8-50 — AIR CONDITIONING SYSTEM; FRONT (#49538) — 93 parça

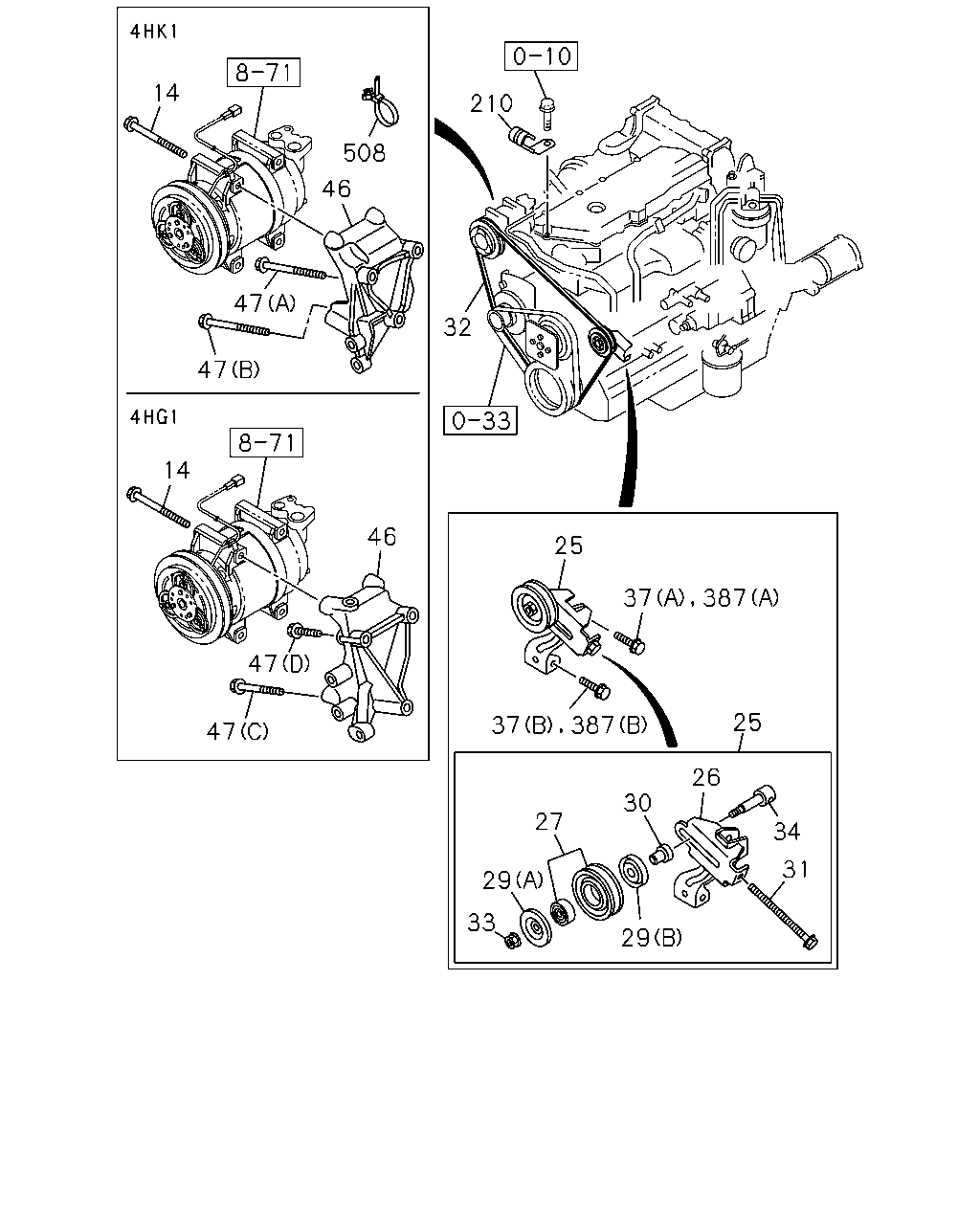

çizim 176236
14 508 46 47 47 14 46 47 47 32 210 25 37 387 387 37 25 29 27 33 30 34 31 29 26
BalonParca AdiParca NoAdetTipApplied Date A B
14 09.171 BOLT; CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 1012-1307 ●
14 09.171 BOLT; CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 1012-1307 ●
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 1308-1507 ●
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 1508- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 1012-1307 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE 		8-97161-198-1 01 1 1012-1307 ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE 		8-97161-198-1 01 1 1308-1507 ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE 		8-97161-198-1 01 1 1508- ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 1012-1307 ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97161-031-1 01 1 1012-1307 ●
26 09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97161-031-1 01 1 1308-1507 ●
26 09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97161-031-1 01 1 1508- ● ●
27 09.180 PULLEY; IDLE,A/C
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 1012-1307 ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97386-869-0 01 1 1012-1307 ●
27 09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97386-869-0 01 1 1308-1507 ●
27 09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97386-869-0 01 1 1508- ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 1012-1307 ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97384-114-0 01 1 1012-1307 ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97384-114-0 01 1 1308-1507 ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97384-114-0 01 1 1508- ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 1012-1307 ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97384-115-0 01 1 1012-1307 ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97384-115-0 01 1 1308-1507 ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97384-115-0 01 1 1508- ● ●
30 09.181 COLLAR; IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 1012-1307 ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-117-0 01 1 1012-1307 ●
30 09.181 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-117-0 01 1 1308-1507 ●
30 09.181 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-117-0 01 1 1508- ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 1012-1307 ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-113-0 01 1 1012-1307 ●
31 09.181 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-113-0 01 1 1308-1507 ●
31 09.181 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-113-0 01 1 1508- ● ●
32 01.066 BELT; A/C CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 1012-1307 ●
32 01.066 BELT; A/C CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) BEST VALUE PARTS 		5-87610-097-0 01 1 1308- ●
32 01.066 BELT; A/C CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 1012-1307 ●
32 01.066 BELT; A/C CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1569 		8-97180-183-3 01 1 1308- ●
32 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1674 		8-98010-841-1 01 1 1012-1507 ●
32 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1674 		8-98010-841-1 01 1 1508- ●
32 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=1674 		8-98010-841-1 01 1 1508- ●
33 09.181 NUT; IDLER PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 1012-1307 ●
33 09.181 NUT; IDLER PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-118-0 01 1 1012-1307 ●
33 09.181 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-118-0 01 1 1308-1507 ●
33 09.181 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-118-0 01 1 1508- ● ●
34 09.181 SHAFT; IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 1012-1307 ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-116-0 01 1 1012-1307 ●
34 09.181 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-116-0 01 1 1308-1507 ●
34 09.181 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-116-0 01 1 1508- ● ●
37 09.173 BOLT; PULLEY BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 1012-1507 ●
37 09.173 BOLT; PULLEY BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 1508- ●
37 09.173 BOLT; PULLEY BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 1508- ●
37 09.173 BOLT; PULLEY BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 1012-1507 ●
37 09.173 BOLT; PULLEY BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 1508- ●
37 09.173 BOLT; PULLEY BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 1508- ●
46 09.171 BRACKET; CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-97305-489-0 01 1 1012-1307 ●
46 09.171 BRACKET; CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242 		8-97305-489-0 01 1 1308- ●
46 09.171 BRACKET; CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242 		8-98006-515-3 01 1 1012-1507 ●
46 09.171 BRACKET; CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242 		8-98006-515-3 01 1 1508- ●
46 09.171 BRACKET; CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-98006-515-3 01 1 1508- ●
47 09.173 BOLT; BRKT TO BODY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X110 FLANGE 		0-28156-011-0 01 1 1012-1307 ●
47 09.173 BOLT; BRKT TO BODY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.171 (C) M10X110 FLANGE 		0-28156-011-0 01 1 1308- ●
47 09.173 BOLT; BRKT TO BODY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.683 (D) M10X55 FLANGE 		8-97365-449-0 02 1 1012-1307 ●
47 09.173 BOLT; BRKT TO BODY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.683 (D) M10X55 FLANGE 		8-97365-449-0 02 1 1308- ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 (A) M10X90 FLANGE 		0-28151-090-0 02 1 1012-1507 ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 (A) M10X90 FLANGE 		0-28151-090-0 02 1 1508- ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M10X90 FLANGE 		0-28151-090-0 02 1 1508- ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1012-1507 ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1508- ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1508- ●
210 09.242 CLIP; HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1012-1507 ●
210 09.242 CLIP; HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1508- ● ●
387 09.190 BOLT; TENSIONER FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 1012-1307 ●
387 09.190 BOLT; TENSIONER FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 1308- ●
387 09.190 BOLT; TENSIONER FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 1012-1307 ●
387 09.190 BOLT; TENSIONER FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 1308- ●
508 09.181 CLIP; HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 02.559 L=170.3 		1-09987-182-0 01 1 1012-1507 ●
508 09.181 CLIP; HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 02.559 L=170.3 		1-09987-182-0 01 1 1508- ●
508 09.181 CLIP; HARNESS
4HK1-TCN ENG(RDQ) 02.559 L=170.3 		1-09987-182-0 01 1 1508- ●

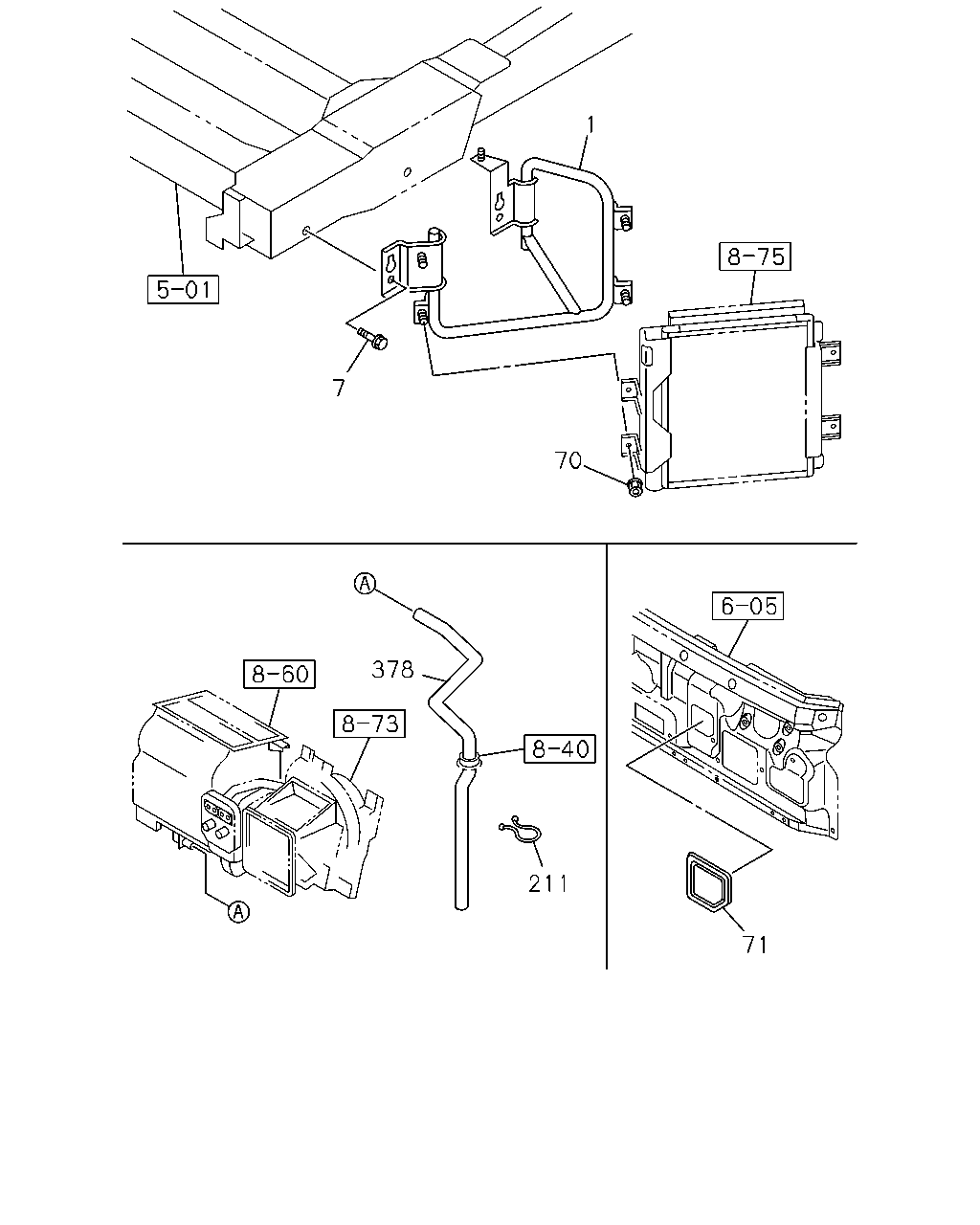

çizim 176328
7 70 71 211 378 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97387-182-0 01 1 1012-1303 ●
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98214-411-0 01 1 1304-1507 ●
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98214-411-0 01 1 1508- ● ●
7 09.242 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 07.395 M12X30 FLANGE 		0-28651-230-0 04 1 1012-1507 ●
7 09.242 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 07.395 M12X30 FLANGE 		0-28651-230-0 04 1 1508- ●
7 09.242 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 07.395 M12X30 FLANGE 		0-28651-230-0 04 1 1508- ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1012-1507 ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1508- ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1508- ●
71 09.190 COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 		8-98017-234-1 01 1 1012-1301 ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98017-234-1 01 1 1302-1507 ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98017-234-1 01 1 1508- ● ●
211 09.190 CLIP; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 ID=44 		8-94463-508-0 01 1 1012-1507 ●
211 09.190 CLIP; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 ID=44 		8-94463-508-0 01 1 1508- ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97387-174-2 01 1 1012-1507 ●
378 09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97387-174-2 01 1 1508- ● ●
