Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#49536) — 148 parça

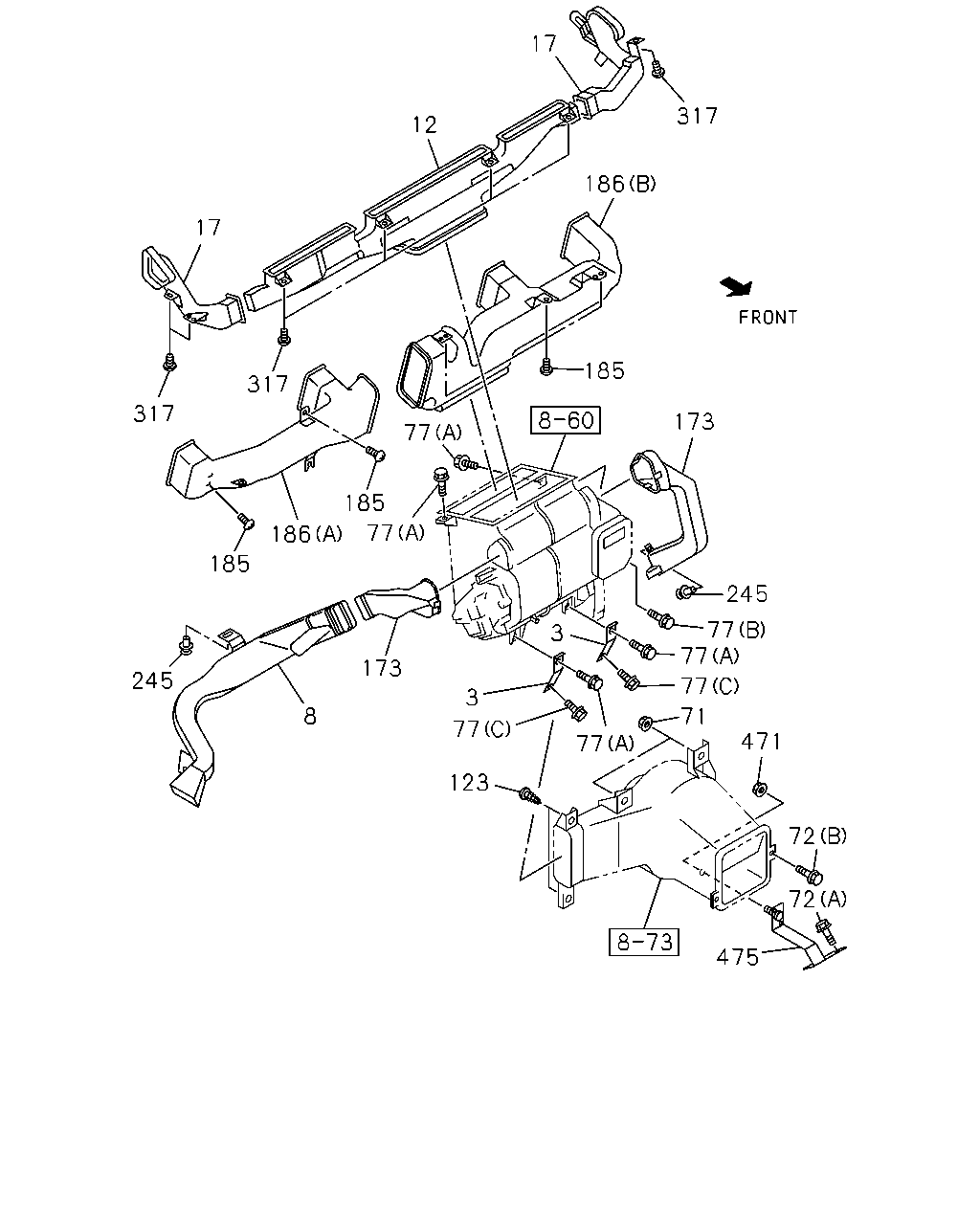

17 12 317 186 185 77 317 317 17 185 186 185 245 8 173 77 123 77 71 77 245 173 77 3 77 471 72 72 475 77 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98082-473-1	02	1	1012-1507	●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98082-473-1	02	1	1508-	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98084-146-0	01	1	1012-1507	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98084-146-0	01	1	1508-	●	●
12	09.779 NOZZLE; DEFROSTER	8-97585-480-4	01	1	1012-1507	●
12	09.779 NOZZLE; DEFROSTER	8-97585-480-4	01	1	1508-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-469-1	01	1	1012-1507	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-469-1	01	1	1508-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-475-5	01	1	1012-1507	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-475-5	01	1	1508-	●	●
71	08.845 NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-1507	●
71	08.845 NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE	0-91180-106-0	02	1	1508-	●	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1012-1507	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1508-	●	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-1507	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1508-	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	1012-1507	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	1508-	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1012-1301	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1302-1507	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1508-	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1012-1507	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1508-	●	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1012	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1101-1212	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-1507	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1508-	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-504-3	01	1	1012-1507	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-504-3	01	1	1508-	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98084-145-0	01	1	1012-1411	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98246-555-0	01	1	1412-1507	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98246-555-0	01	1	1508-	●	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-98091-544-5	01	1	1012-1012	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-98184-165-0	01	1	1012-1507	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-98184-165-0	01	1	1508-	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60)	8-98184-165-0	01	1	1508-		●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1012-1012	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1101-1212	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-1507	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1508-	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97585-466-7	01	1	1012-1410	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98285-582-0	01	1	1411-1507	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98285-582-0	01	1	1508-	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97585-486-6	01	1	1012-1410	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98285-585-0	01	1	1411-1507	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98285-585-0	01	1	1508-	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (C)	8-98054-363-0	01	1	1012-1507	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (C)	8-98054-363-0	01	1	1508-	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (C)	8-98054-363-0	01	1	1508-		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (E)	8-98054-371-0	01	1	1012-1507	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (E)	8-98054-371-0	01	1	1508-	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (E)	8-98054-371-0	01	1	1508-		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (D)	8-98054-379-2	01	1	1012-1507	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (D)	8-98054-379-2	01	1	1508-	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (D)	8-98054-379-2	01	1	1508-		●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.264	1-09987-144-0	02	1	1012-1507	●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.264	1-09987-144-0	02	1	1508-	●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	02	1	1508-		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1012	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1101-1212	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-1507	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1508-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1012-1012	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1101-1212	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-1507	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1508-	●	●
471	08.866 NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-1507	●
471	08.866 NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
475	09.277 BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97387-092-2	01	1	1012-1507	●
475	09.277 BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97387-092-2	01	1	1508-	●	●

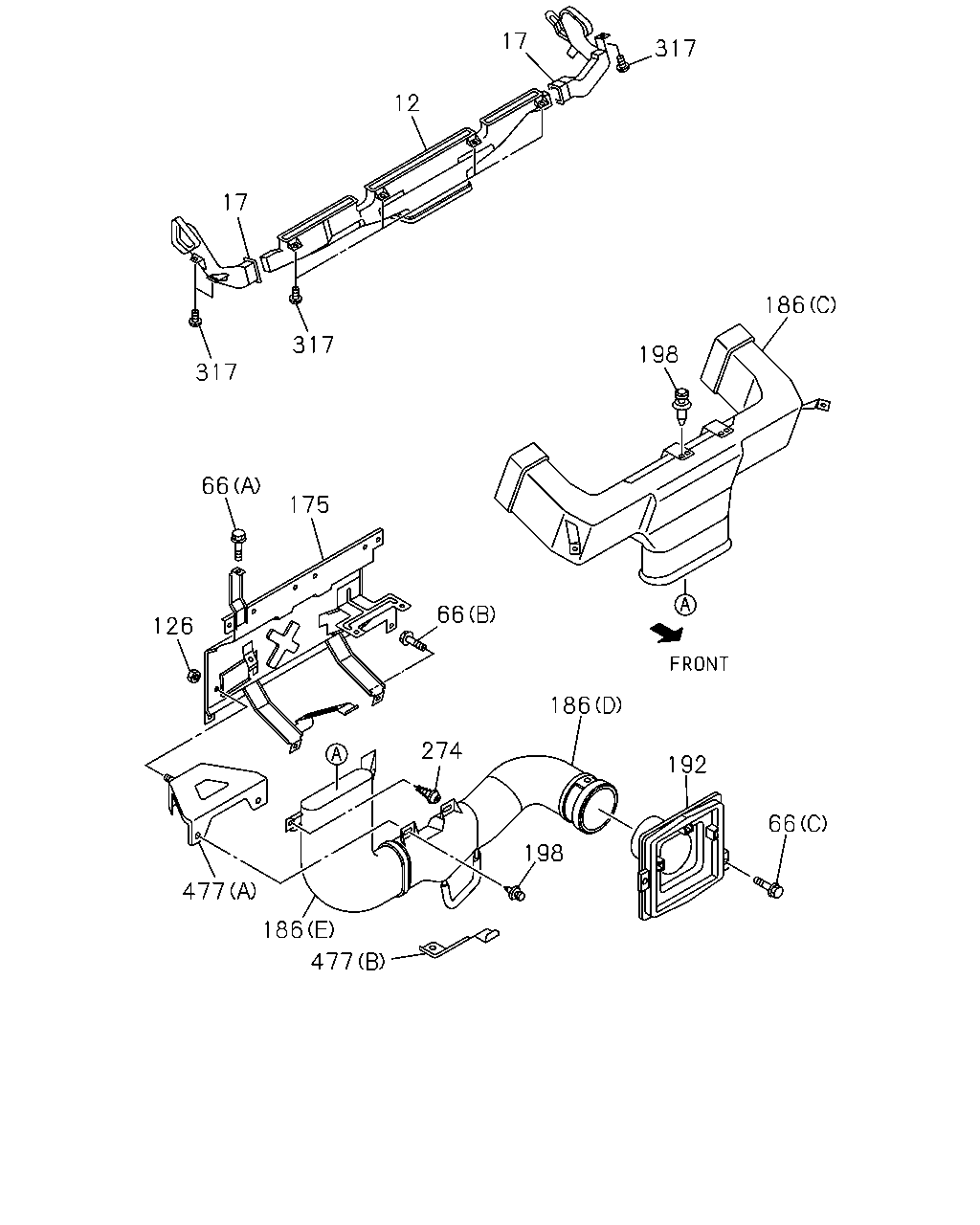

317 17 317 12 17 317 66 75 126 66 477 186 477 274 186 198 192 66 186 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	09.779 NOZZLE; DEFROSTER	8-97585-480-4	01	1	1012-1507	●
12	09.779 NOZZLE; DEFROSTER	8-97585-480-4	01	1	1508-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-469-1	01	1	1012-1507	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-469-1	01	1	1508-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-475-5	01	1	1012-1507	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-475-5	01	1	1508-	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1012-1507	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1508-	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-1507	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1508-	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1012-1507	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1508-	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-1507	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-1507	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-98091-544-5	01	1	1012-1012	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-98184-165-0	01	1	1012-1507	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-98184-165-0	01	1	1508-	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60)	8-98184-165-0	01	1	1508-		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97585-466-7	01	1	1012-1410	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98285-582-0	01	1	1411-1507	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98285-582-0	01	1	1508-	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97585-486-6	01	1	1012-1410	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98285-585-0	01	1	1411-1507	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98285-585-0	01	1	1508-	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (C)	8-98054-363-0	01	1	1012-1507	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (C)	8-98054-363-0	01	1	1508-	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (C)	8-98054-363-0	01	1	1508-		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (E)	8-98054-371-0	01	1	1012-1507	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (E)	8-98054-371-0	01	1	1508-	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (E)	8-98054-371-0	01	1	1508-		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (D)	8-98054-379-2	01	1	1012-1507	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (D)	8-98054-379-2	01	1	1508-	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (D)	8-98054-379-2	01	1	1508-		●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 03.417	8-98054-386-4	01	1	1012-1507	●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 03.417	8-98054-386-4	01	1	1508-	●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 03.417	8-98054-386-4	01	1	1508-		●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 09.264	1-09987-144-0	05	1	1012-1507	●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 09.264	1-09987-144-0	05	1	1508-	●	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1012	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1101-1212	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-1507	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1508-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1012	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1101-1212	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-1507	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1508-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1012-1012	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1101-1212	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-1507	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1508-	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (A)	8-98091-304-0	01	1	1012-1507	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (A)	8-98091-304-0	01	1	1508-	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-455-0	01	1	1012-1507	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-455-0	01	1	1508-	●	●

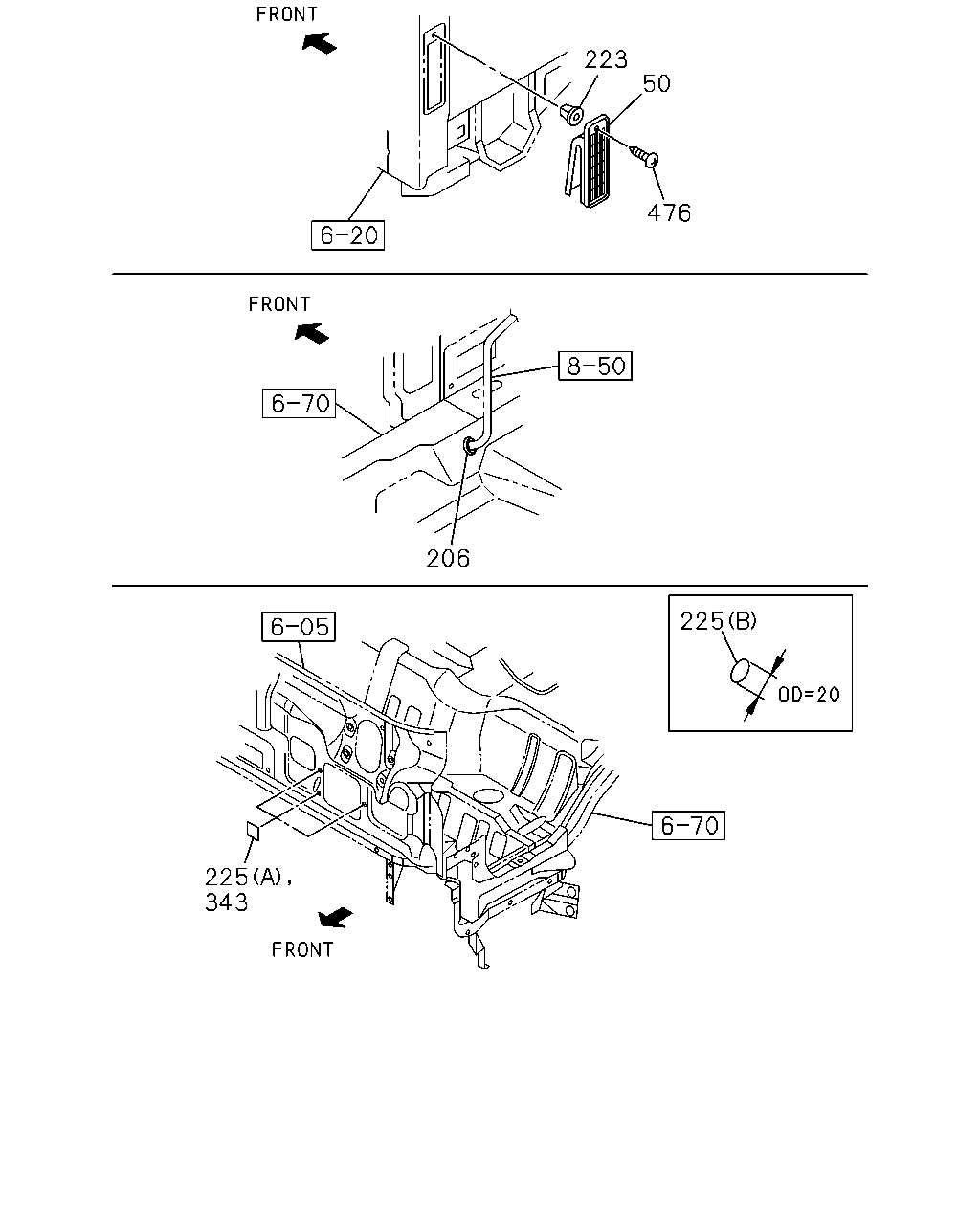

223 476 206 50 225 343 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	08.845 VALVE ASM; HTR	8-98080-999-2	01	1	1508-		●
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	1012-	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-98091-544-5	01	1	1012-1012	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-98184-165-0	01	1	1012-1507	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-98184-165-0	01	1	1508-	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60)	8-98184-165-0	01	1	1508-		●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	1012-1507	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	1508-	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	1012-1507	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	1508-	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97856-616-0	01	1	1303-1507	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97856-616-0	01	1	1508-	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97856-616-0	03	1	1012-1302	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97856-616-0	02	1	1303-1507	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97856-616-0	02	1	1508-	●	●
225	08.845 SEAL; WATER EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1012-1301	●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1302-1507	●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1508-	●	●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-97856-616-0	02	1	1012-1507	●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-97856-616-0	02	1	1508-	●	●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	1012-1507	●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	1508-	●	●
