8-21 — METER ASM (#49532) — 48 parça
çizim 176305
1 110 2 81 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) INDONESIA EQUIPMENT(B00) 		8-98080-733-2 01 1 1012- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(B00) 		8-98096-900-4 01 1 1012-1507 ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(B00) 		8-98096-900-4 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98096-900-4 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(B00) 		8-98100-029-2 01 1 1012- ●
2 09.735 PANEL; CLUSTER
4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(B00) 		8-98054-432-0 01 1 1012-1507 ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98054-432-0 01 1 1012-1507 ●
2 09.735 PANEL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98054-432-0 01 1 1508- ● ●
2 09.735 PANEL; CLUSTER
4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(B00) 		8-98054-432-0 01 1 1508- ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) INDONESIA EQUIPMENT(B00) 		8-98095-812-0 01 1 1012- ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(B00) 		8-98096-965-0 01 1 1012-1507 ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(B00) 		8-98096-965-0 01 1 1508- ●
81 09.735 METER SUB ASM
4HK1-TCN ENG(RDQ) 		8-98096-965-0 01 1 1508- ●
81 09.735 METER SUB ASM
4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(B00) 		8-98107-762-0 01 1 1012- ●
110 09.748 GLASS; CLUSTER METER
4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(B00) 		8-98054-431-0 01 1 1012-1507 ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ) 		8-98054-431-0 01 1 1012-1507 ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCN ENG(RDQ) 		8-98054-431-0 01 1 1508- ● ●
110 09.748 GLASS; CLUSTER METER
4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(B00) 		8-98054-431-0 01 1 1508- ●
480 09.748 COVER; METER
4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(B00) BLACK 		8-98054-433-0 01 1 1012-1507 ●
480 09.748 COVER; METER
4HK1-TCN ENG(RDQ) BLACK 		8-98054-433-0 01 1 1012-1507 ●
480 09.748 COVER; METER
4HK1-TCN ENG(RDQ) BLACK 		8-98054-433-0 01 1 1508- ● ●
480 09.748 COVER; METER
4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(B00) BLACK 		8-98054-433-0 01 1 1508- ●
480 09.748 COVER; METER
4HK1-TCN ENG(RDQ) INDONESIA EQUIPMENT(B00) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1012- ●

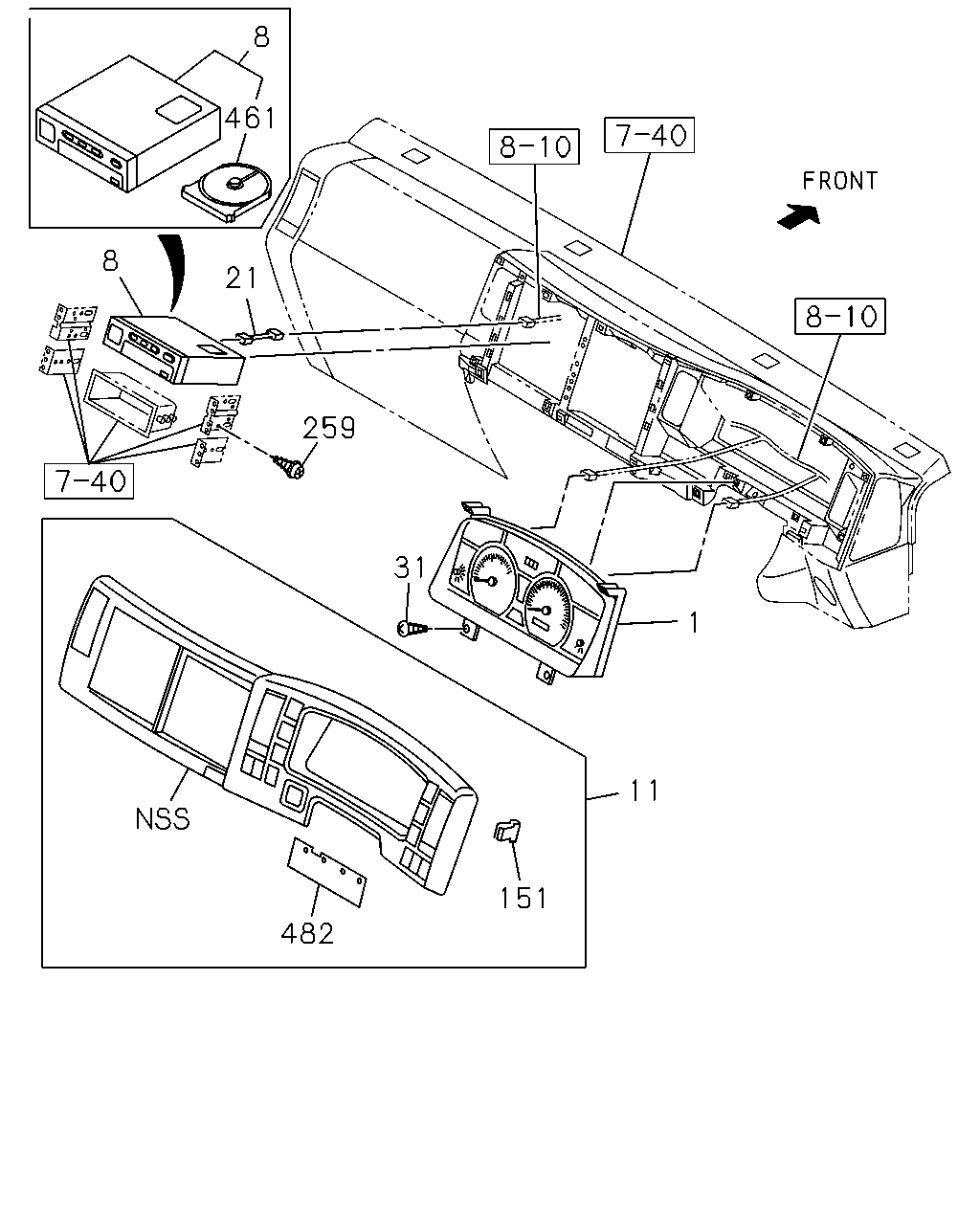

çizim 176323
8 461 8 21 259 31 1 11 151 482
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) INDONESIA EQUIPMENT(B00) 		8-98080-733-2 01 1 1012- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(B00) 		8-98096-900-4 01 1 1012-1507 ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(B00) 		8-98096-900-4 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98096-900-4 01 1 1508- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(B00) 		8-98100-029-2 01 1 1012- ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<SM8> 		8-97387-082-2 01 1 1407- ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1012-1407 ●
11 09.743 CLUSTER ASM; METER
EXC. TACHOGRAPH 140KM/H<SM8> DARK GRAY 		8-97405-350-6 01 1 1408-1411 ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1412-1507 ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1508- ● ●
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 		8-98201-154-0 01 1 1407- ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1012-1012 ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1101-1212 ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-1507 ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1508- ● ●
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 1012-1407 ●
151 09.747 CLIP; METER CLUSTER
EXC. TACHOGRAPH 140KM/H<SM8> 16.085 		8-98021-271-0 13 1 1408-1411 ●
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 1412-1507 ●
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 1508- ● ●
259 09.772 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1407- ●
461 09.750 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 		1-83129-433-0 01 1 1407- ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 1012-1407 ●
482 09.772 SEAL; CLUSTER METER
EXC. TACHOGRAPH 140KM/H<SM8> 		8-98116-842-0 01 1 1408-1411 ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 1412-1507 ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 1508- ● ●
