Sayfa 8-15 - Isuzu EPC

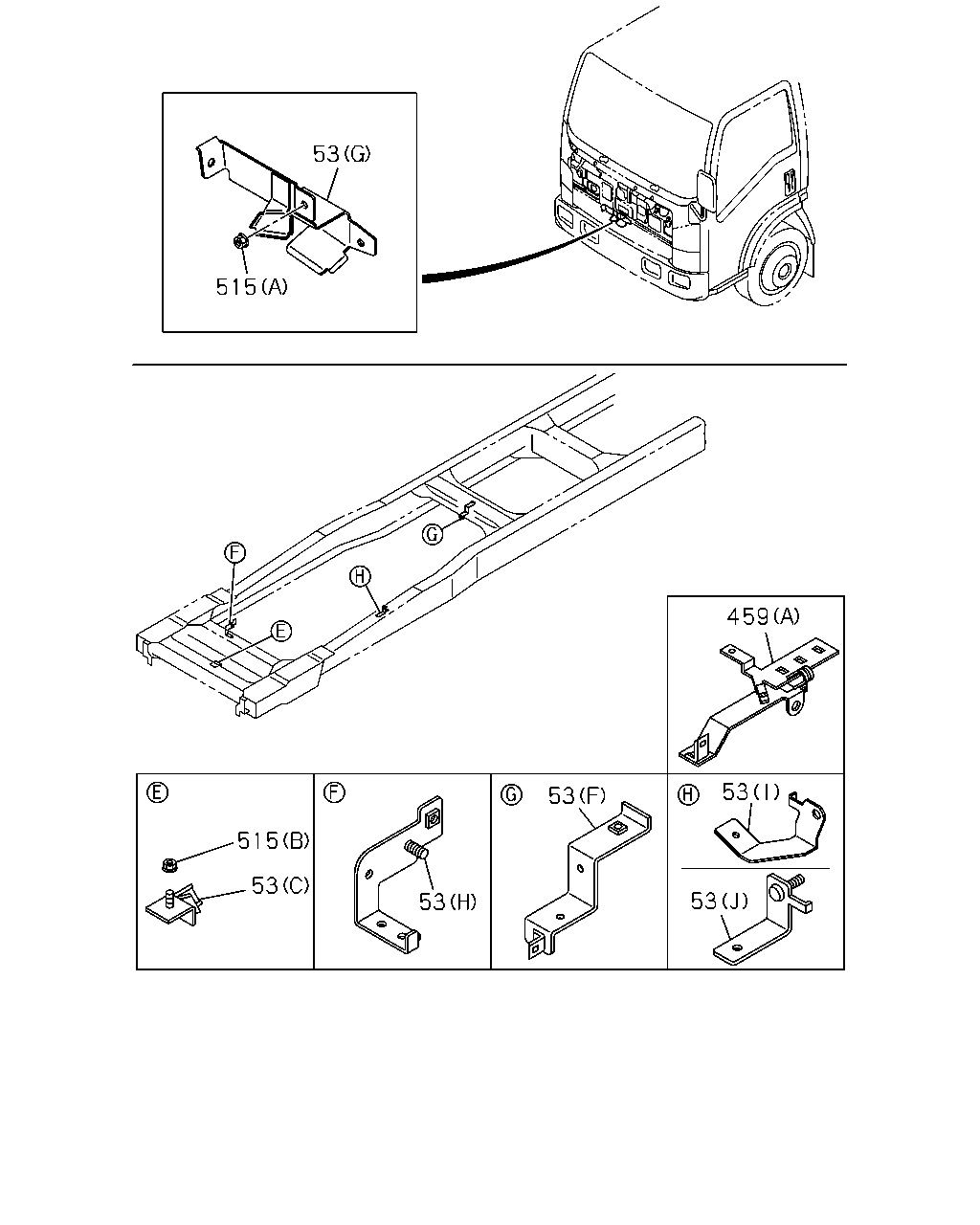

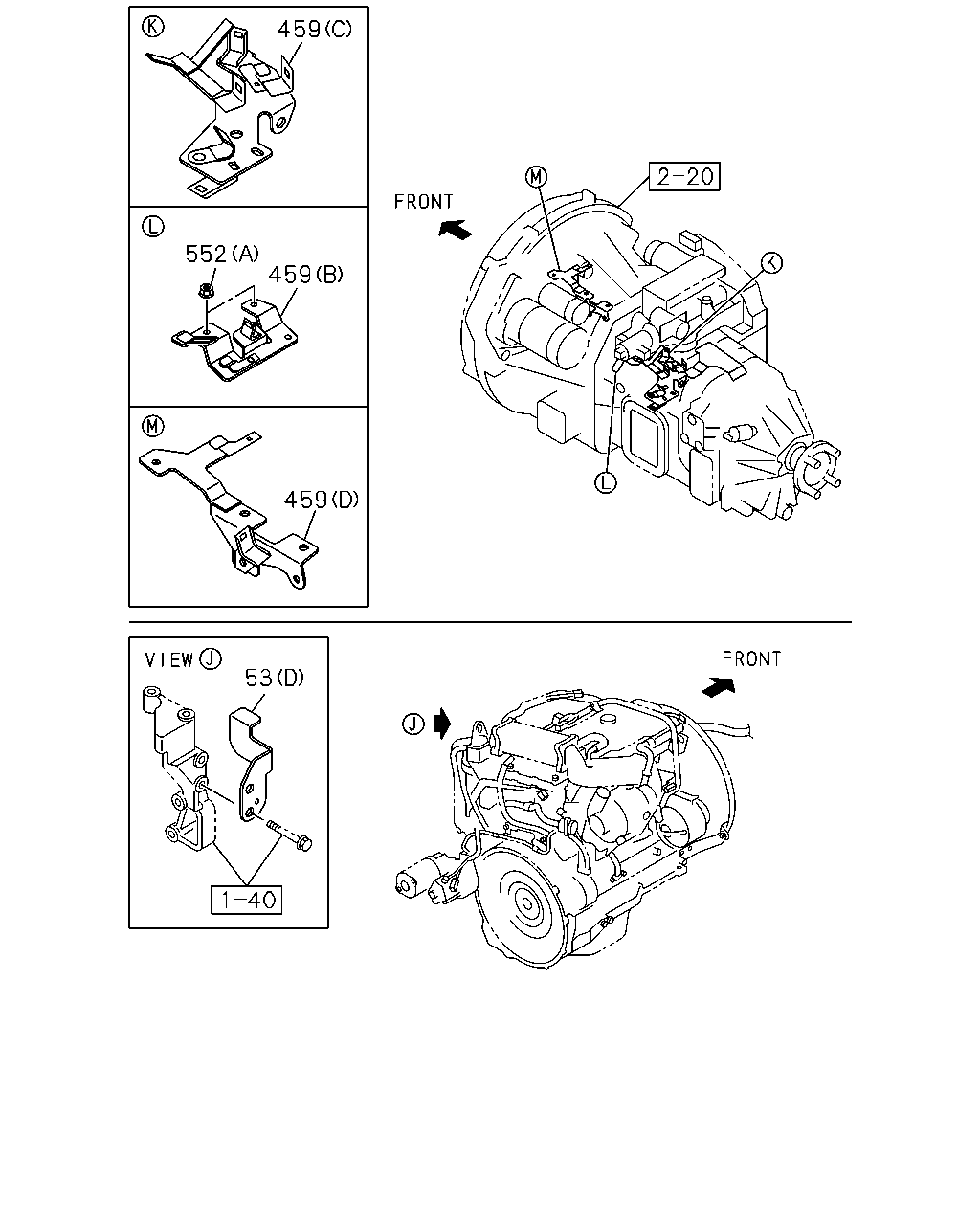

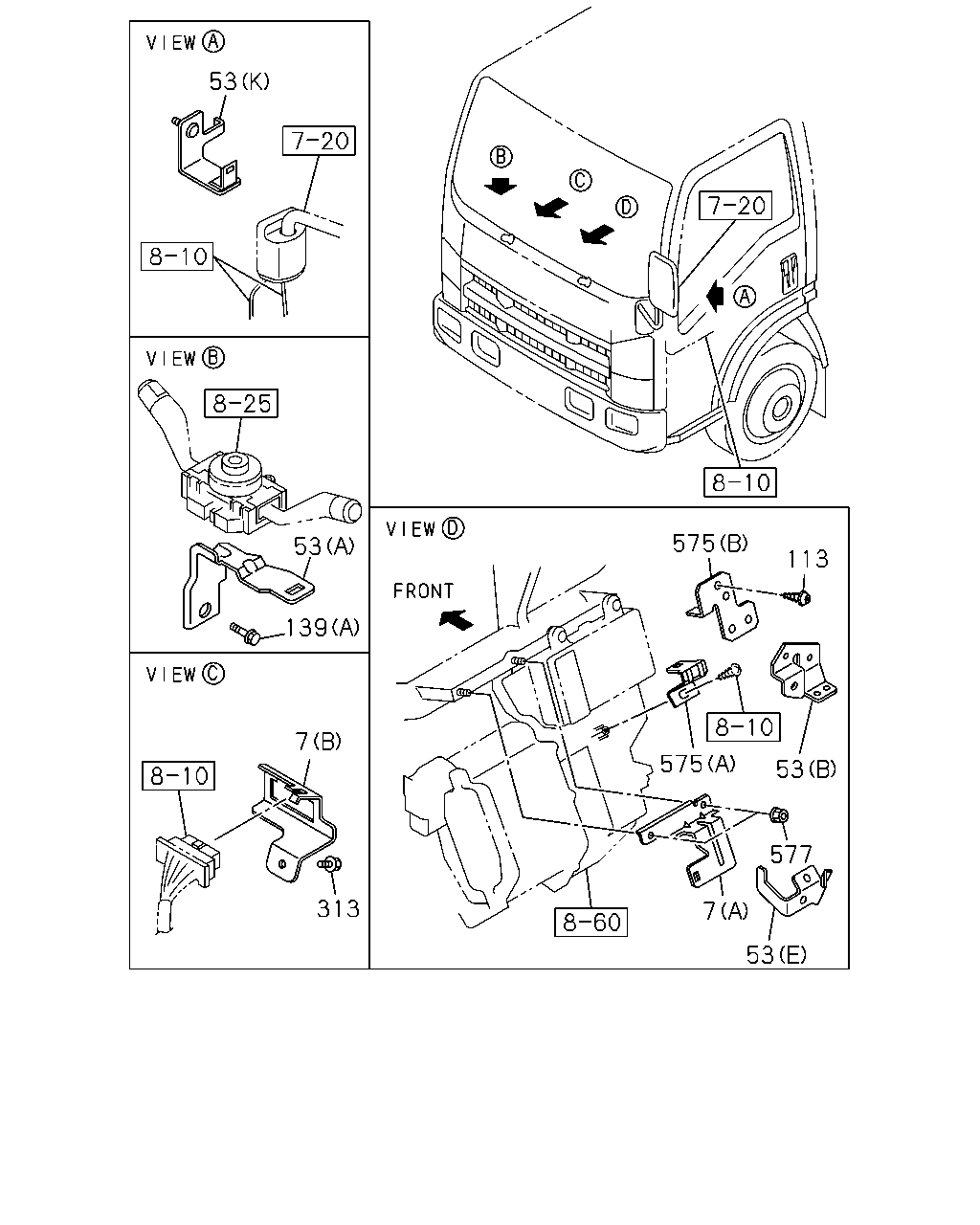

8-15 — FIXING PARTS; WIRING HARNESS (#49531) — 327 parça

53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98074-502-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98074-502-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (D)	8-98052-804-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (D)	8-98052-804-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (I)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) (L)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (K)	8-98114-461-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1304-1507	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1508-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (M)	8-98130-669-1	01	1	1508-		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (N)	8-98132-377-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1508-	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1508-		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (F)	8-98077-504-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (F)	8-98077-504-0	01	1	1508-	●
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	1508-		●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B)	8-98084-590-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B)	8-98084-590-0	01	1	1508-	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (B)	8-98084-590-0	01	1	1508-		●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J)	8-98083-225-1	01	1	1012-	●

16 16 16 48 16 16 483 513 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (J) L=140	5-09707-031-1	01	1	1401-	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (H) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-1307	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (H) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1308-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (G)	8-97101-436-0	01	1	1012-1507	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (G)	8-97101-436-0	01	1	1508-	●	●
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	01	1	1012-1106	●
16	02.559 CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1012-1507	●
16	02.559 CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1508-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1012	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1507	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1508-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1508-		●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1012-1507	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1508-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-1507	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1508-	●	●
16	02.559 CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1012-1507	●
16	02.559 CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1508-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	1012-1507	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	1508-	●	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1012-1308	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1309-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (A) ID=10 & 16.5	8-94424-440-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) (B) T=4.5 & 9	8-97371-947-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-1507	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1508-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1508-		●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	1012-1412	●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (E) L=140	5-09707-031-1	01	1	1012-	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1012-1507	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	1012-1507	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=24 L=24	1-09701-001-1	01	1	1012-1507	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=24 L=24	1-09701-001-1	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 01.152 (F) L=36	8-94224-891-1	04	1	1012-1507	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 01.152 (F) L=36	8-94224-891-1	04	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1507	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1508-	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 130X80	8-97304-373-0	01	1	1012-1507	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 130X80	8-97304-373-0	01	1	1508-	●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	1012-1507	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	1508-	●	●

150 38 313 139 150 480 529 480 386 377 386 377 24 294 515 577 294 515 515 552 24 515 552 113 139 516

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-1409	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-1507	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1508-	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	02	1	1012-1307	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.216 M6X12 FLANGE	0-28250-612-0	02	1	1308-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1208-1212	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1508	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1507	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1508-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1507	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1508-	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	1012-1507	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	1508-	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) (B) M8X16 FLANGE	0-28050-816-0	04	1	1012-1507	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) (B) M8X16 FLANGE	0-28050-816-0	04	1	1508-	●	●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1507	●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
294	02.559 NUT 4HG1 ENG(RJH) 02.343 (B) M6 W/LK WASHER	8-94424-179-0	01	1	1012-	●
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-1507	●
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1508-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1012-1507	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1508-	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1012-1507	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1508-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-1507	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1508-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-1507	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1508-	●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-1507	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-		●
480	02.483 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1012-1507	●
480	02.483 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1508-	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1508-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1508-		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-1507	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-1507	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1508-	●	●
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1012-1507	●
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1508-	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-1507	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1508-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-1507	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	04	1	1012-1507	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	04	1	1508-	●	●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●

459 552 459 53 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98074-502-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98074-502-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (D)	8-98052-804-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (D)	8-98052-804-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (I)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) (L)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (K)	8-98114-461-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1304-1507	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1508-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (M)	8-98130-669-1	01	1	1508-		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (N)	8-98132-377-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1508-	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1508-		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (F)	8-98077-504-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (F)	8-98077-504-0	01	1	1508-	●
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	1508-		●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B)	8-98084-590-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B)	8-98084-590-0	01	1	1508-	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (B)	8-98084-590-0	01	1	1508-		●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J)	8-98083-225-1	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) 02.559 (A)	8-97379-633-0	01	1	1012-1507	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) 02.559 (A)	8-97379-633-0	01	1	1508-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98020-227-3	01	1	1012-1507	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98020-227-3	01	1	1508-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) (D)	8-98123-282-0	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) (C)	8-98123-286-1	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-1507	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●

16 22 483 48 14 16 102 483 16 102 6 14 48 48 48 22 16 483 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.162 (B) L=140	5-09707-031-1	01	1	1502-1507	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.162 (B) L=140	5-09707-031-1	01	1	1508-	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) GLOW SYSTEM DELETE<7RK> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.162 (B) L=140	5-09707-031-1	01	1	1508-		●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) 09.242 (A) L=150	8-97355-273-0	01	1	1012-1507	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) 09.242 (A) L=150	8-97355-273-0	01	1	1508-	●	●
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (J) L=140	5-09707-031-1	01	1	1401-	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (H) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-1307	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (H) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1308-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (G)	8-97101-436-0	01	1	1012-1507	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (G)	8-97101-436-0	01	1	1508-	●	●
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	01	1	1012-1106	●
16	02.559 CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1012-1507	●
16	02.559 CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1508-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1012	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1507	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1508-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1508-		●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1012-1507	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1508-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-1507	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1508-	●	●
16	02.559 CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1012-1507	●
16	02.559 CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1508-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	1012-1507	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	1508-	●	●
22	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) (B) L=170.3	1-09987-182-0	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EXC. FAST GLOW SYSTEM<KM6> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-1507	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-1507	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EXC. FAST GLOW SYSTEM<KM6> 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1508-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1508-	●	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1012-1308	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1309-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (A) ID=10 & 16.5	8-94424-440-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) (B) T=4.5 & 9	8-97371-947-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-1507	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1508-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1508-		●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	1012-1412	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) (A) L=250	5-09707-030-1	01	1	1012-1507	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) (A) L=250	5-09707-030-1	01	1	1508-	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) 03.162 (B) L=140	5-09707-031-1	04	1	1012-1202	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. KD PREPARATORY PACK<6HF> 03.162 (B) L=140	5-09707-031-1	02	1	1203-1407	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) 03.162 (B) L=140	5-09707-031-1	02	1	1408-1507	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) 03.162 (B) L=140	5-09707-031-1	02	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (E) L=140	5-09707-031-1	01	1	1012-	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1012-1507	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	1012-1507	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=24 L=24	1-09701-001-1	01	1	1012-1507	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=24 L=24	1-09701-001-1	01	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 01.152 (F) L=36	8-94224-891-1	04	1	1012-1507	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 01.152 (F) L=36	8-94224-891-1	04	1	1508-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1507	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1508-	●	●

53 53 139 7 313 575 113 575 53 577 7 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98029-762-4	01	1	1012-1507	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98029-762-4	01	1	1508-	●	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (B)	8-98043-070-1	01	1	1012-1507	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (B)	8-98043-070-1	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98074-502-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98074-502-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (D)	8-98052-804-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (D)	8-98052-804-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (I)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) (L)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (K)	8-98114-461-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1304-1507	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1508-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (M)	8-98130-669-1	01	1	1508-		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (N)	8-98132-377-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1508-	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1508-		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (F)	8-98077-504-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (F)	8-98077-504-0	01	1	1508-	●
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	1508-		●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B)	8-98084-590-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B)	8-98084-590-0	01	1	1508-	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (B)	8-98084-590-0	01	1	1508-		●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J)	8-98083-225-1	01	1	1012-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1208-1212	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1508	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1507	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1508-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1507	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1508-	●	●
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-1507	●
313	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1508-	●	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	1-82698-128-2	01	1	1208-1508	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) (B)	1-82698-128-2	01	1	1509-	●
575	02.559 BRACKET; FUSE BOX (A)	8-98042-656-2	01	1	1012-1507	●
575	02.559 BRACKET; FUSE BOX (A)	8-98042-656-2	01	1	1508-	●	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	04	1	1012-1507	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	04	1	1508-	●	●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●

53 515 515 53 53 53 459 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98074-502-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98074-502-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (D)	8-98052-804-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (D)	8-98052-804-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (I)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) (L)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (K)	8-98114-461-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1304-1507	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (M)	8-98130-669-1	01	1	1508-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (M)	8-98130-669-1	01	1	1508-		●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (N)	8-98132-377-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1508-	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1508-		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (F)	8-98077-504-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (F)	8-98077-504-0	01	1	1508-	●
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	1508-		●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1508-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B)	8-98084-590-0	01	1	1012-1507	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B)	8-98084-590-0	01	1	1508-	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (B)	8-98084-590-0	01	1	1508-		●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J)	8-98083-225-1	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) 02.559 (A)	8-97379-633-0	01	1	1012-1507	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) 02.559 (A)	8-97379-633-0	01	1	1508-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98020-227-3	01	1	1012-1507	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98020-227-3	01	1	1508-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) (D)	8-98123-282-0	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) (C)	8-98123-286-1	01	1	1012-	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1508-	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1508-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	1508-		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-1507	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-1507	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
