Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#49530) — 240 parça

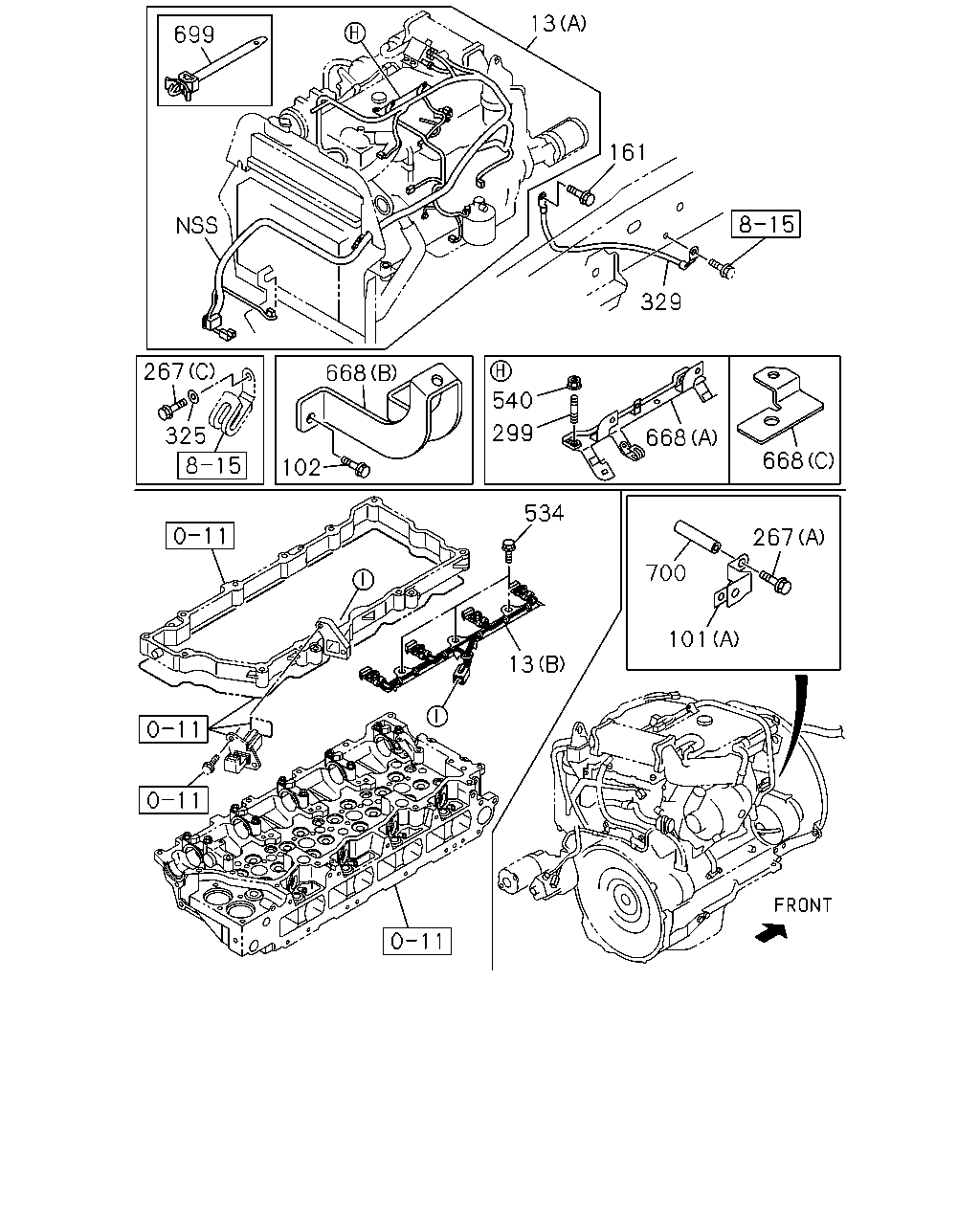

699 13 161 329 267 325 668 102 540 299 668 668 267 101 700 534 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) (A)	8-97356-988-1	01	1	1012-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98149-125-0	01	1	1012-1202	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98209-817-0	01	1	1203-1507	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98209-817-0	01	1	1508-	●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1012-1507	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1508-	●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98149-126-0	01	1	1012-1202	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98209-818-0	01	1	1203-1507	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98209-818-0	01	1	1508-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1012-1507	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1508-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98094-483-1	01	1	1012-1507	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98094-483-1	01	1	1508-	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98094-483-1	01	1	1508-		●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	1012-	●
102	08.900 BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) 00.029 M10X16 FLANGE	0-28151-016-0	02	1	1012-1507	●
102	08.900 BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) 00.029 M10X16 FLANGE	0-28151-016-0	02	1	1508-	●	●
161	02.559 BOLT; GROUND,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1012-1507	●
161	02.559 BOLT; GROUND,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1508-	●	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	1012-1507	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	1508-	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	1508-		●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1012-1507	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1508-	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1508-		●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	1012-1507	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	1508-	●	●
299	02.559 STUD; BRKT 4HK1-TCN ENG(RDQ) 01.062 M6X18 L=27	0-41010-618-0	02	1	1012-1202	●
325	02.483 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 06.168 ID=8.4 OD=18	0-91610-608-0	01	1	1012-1507	●
325	02.483 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 06.168 ID=8.4 OD=18	0-91610-608-0	01	1	1508-	●
325	02.483 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 06.168 ID=8.4 OD=18	0-91610-608-0	01	1	1508-		●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98102-465-0	01	1	1012-1507	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98102-465-0	01	1	1508-	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98102-465-0	01	1	1508-		●
329	02.480 CABLE; ENG TO FRAME 4HG1 ENG(RJH)	8-98123-064-0	01	1	1012-	●
534	02.483 BOLT 4HK1-TCN ENG(RDQ) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	1012-1507	●
534	02.483 BOLT 4HK1-TCN ENG(RDQ) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	1508-	●	●
540	02.483 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-1202	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98011-484-0	01	1	1012-1507	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98011-484-0	01	1	1508-	●	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (A)	8-98061-805-2	01	1	1012-1202	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. KD PREPARATORY PACK<6HF> (C)	8-98205-089-0	01	1	1203-1407	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (C)	8-98205-089-0	01	1	1408-1507	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (C)	8-98205-089-0	01	1	1508-	●	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.128 L=213.5	8-98000-506-1	01	1	1012-1507	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.128 L=213.5	8-98000-506-1	01	1	1508-	●	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) L=146.2	8-98052-677-0	01	1	1012-1507	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) L=146.2	8-98052-677-0	01	1	1508-	●	●
700	02.483 TUBE; DISTANCE 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	1012-1507	●
700	02.483 TUBE; DISTANCE 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	1508-	●	●

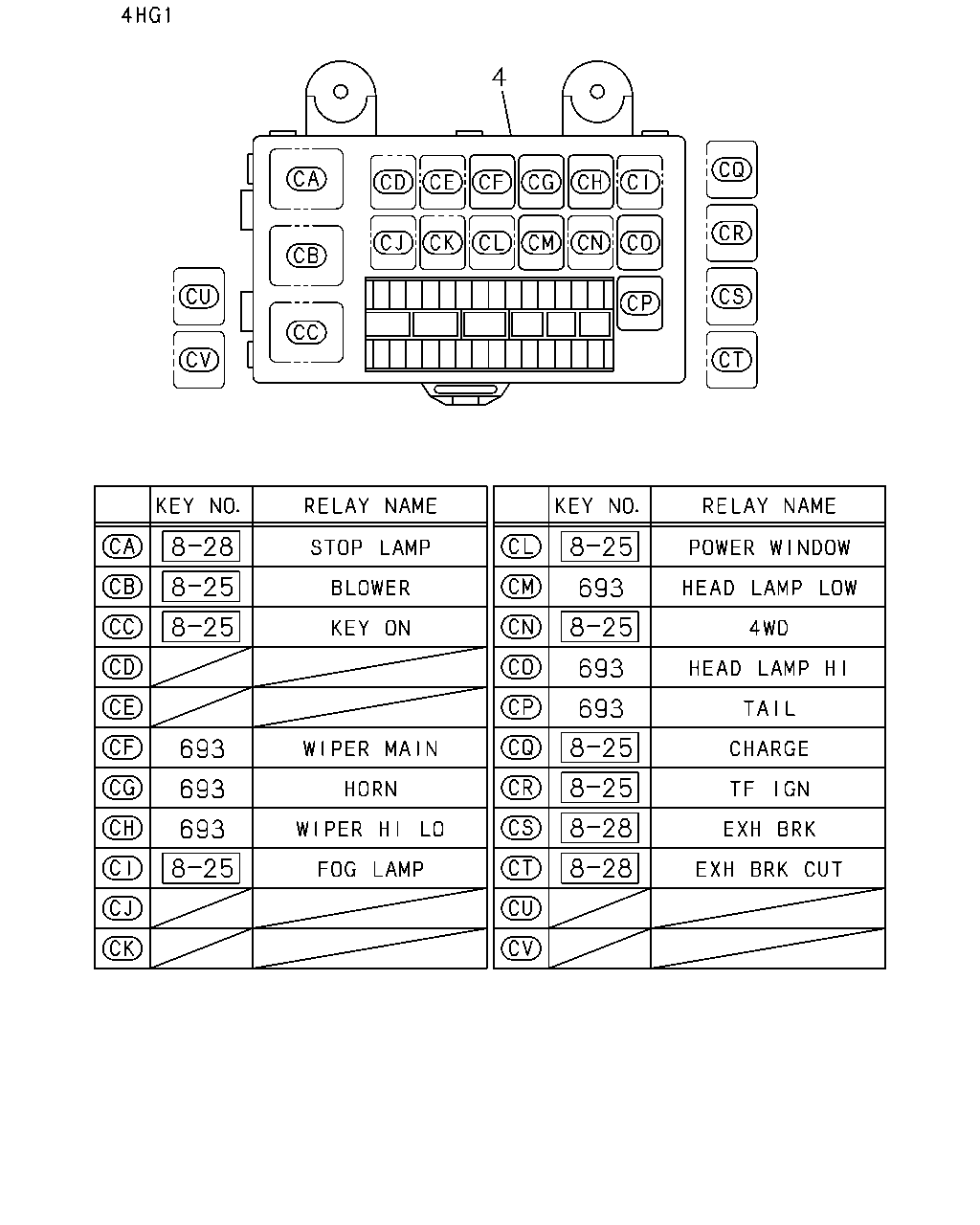

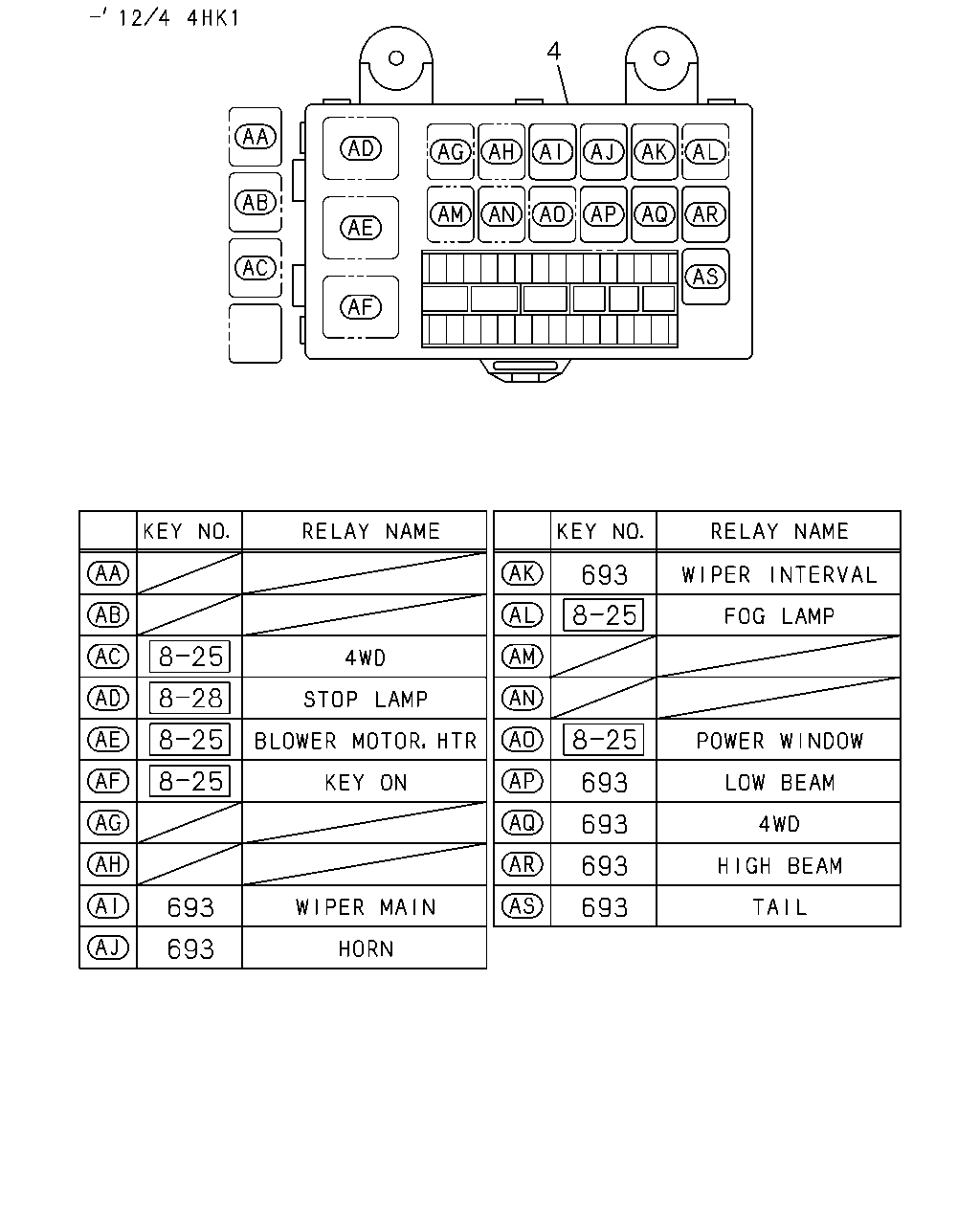

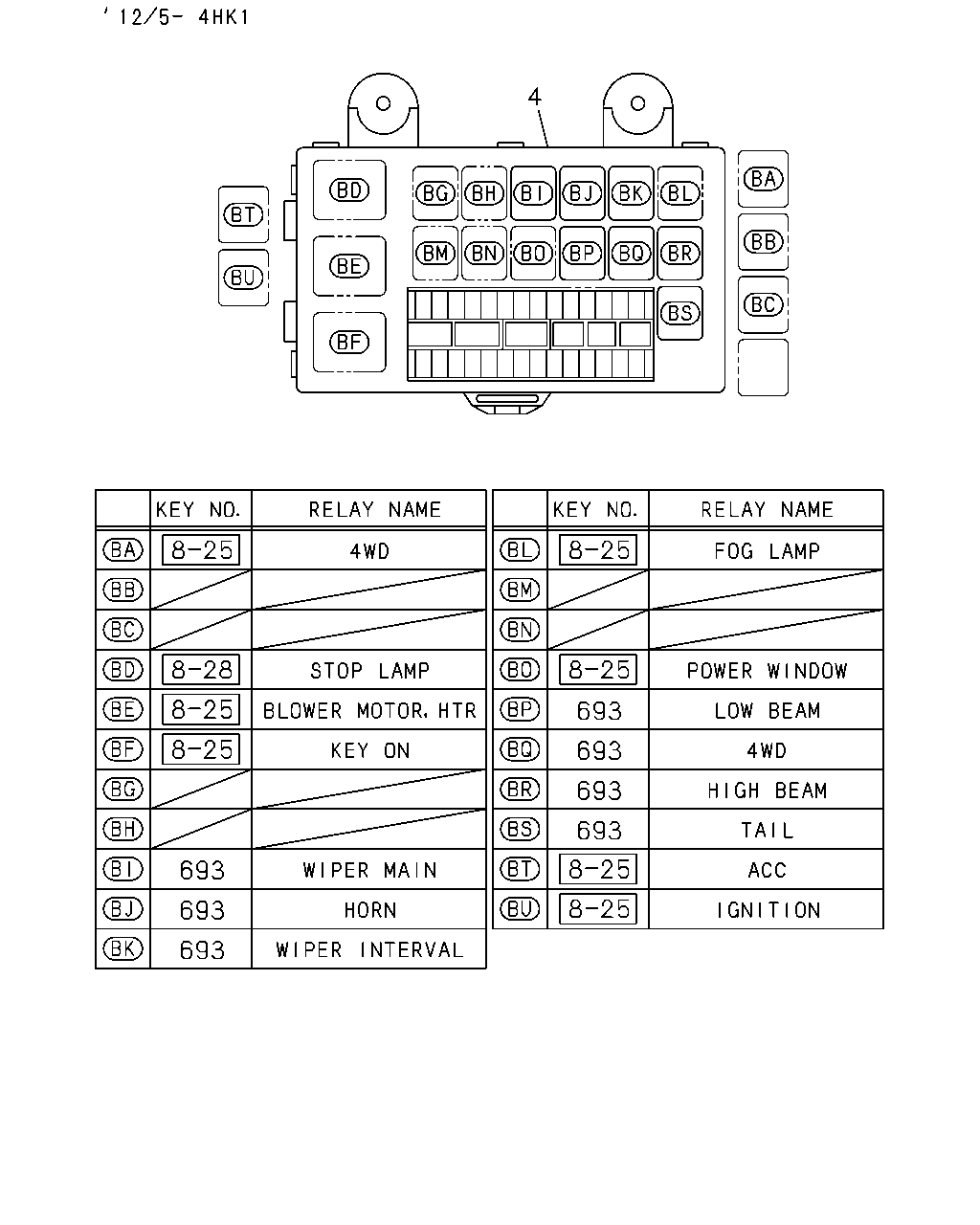

4 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1012-1212	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1301-1507	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1508-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-1507	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1508-	●	●

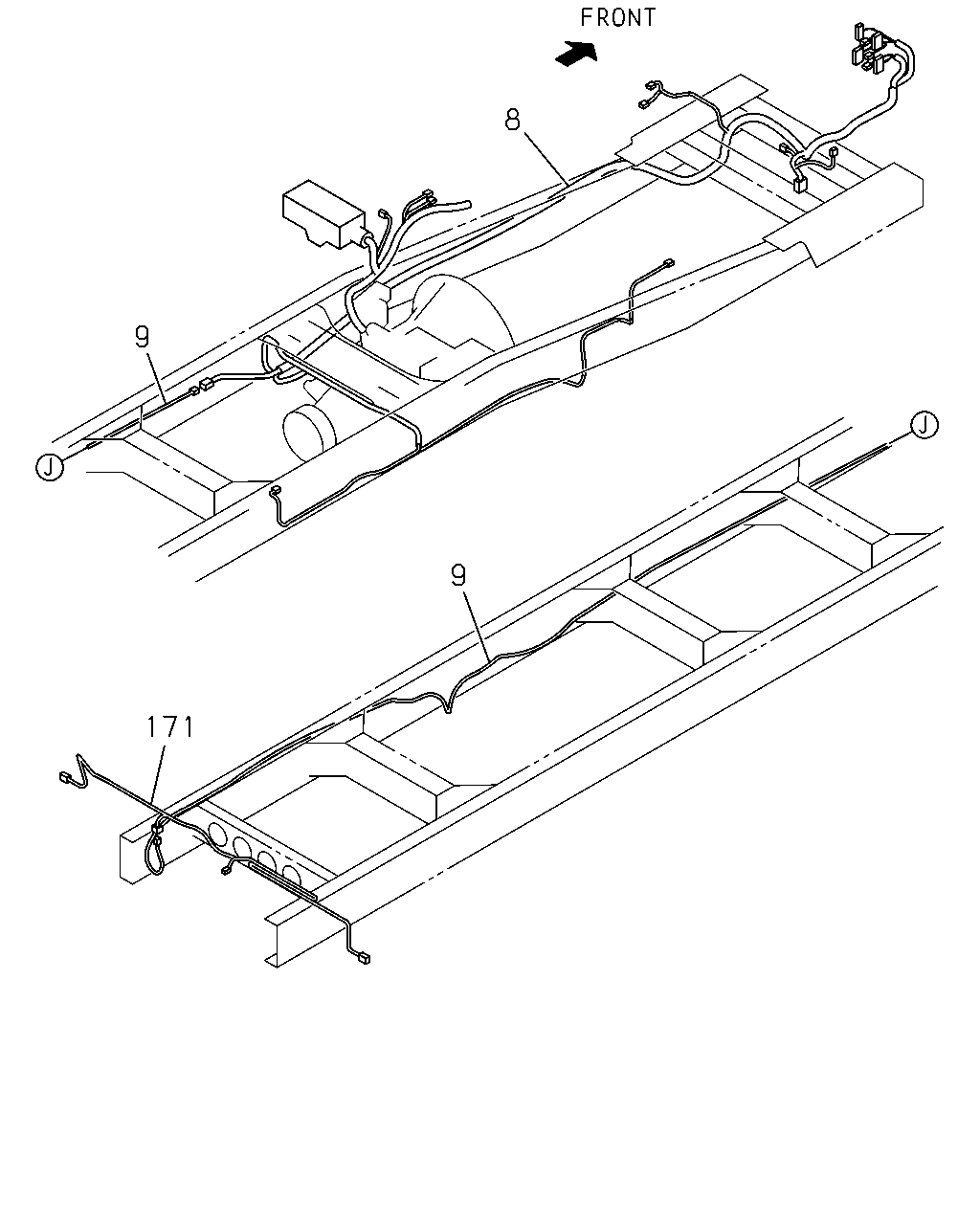

9 8 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT	8-98318-487-0	01	1	1508-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98070-285-9	01	1	1012-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-235-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98126-192-5	01	1	1012-1101	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98180-747-1	01	1	1102-1409	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98294-404-0	01	1	1410-	●
9	02.480 HARNESS; FRAME,RR 4HG1 ENG(RJH)	8-98117-248-0	01	1	1012-1507	●
9	02.480 HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98117-248-0	01	1	1012-1507	●
9	02.480 HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98117-248-0	01	1	1508-	●
9	02.480 HARNESS; FRAME,RR 4HG1 ENG(RJH)	8-98117-248-0	01	1	1508-	●
9	02.480 HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ)	8-98117-248-0	01	1	1508-		●
9	02.480 HARNESS; FRAME,RR EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-001-2	01	1	1012-	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-028-0	01	1	1012-1507	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-028-0	01	1	1508-	●	●

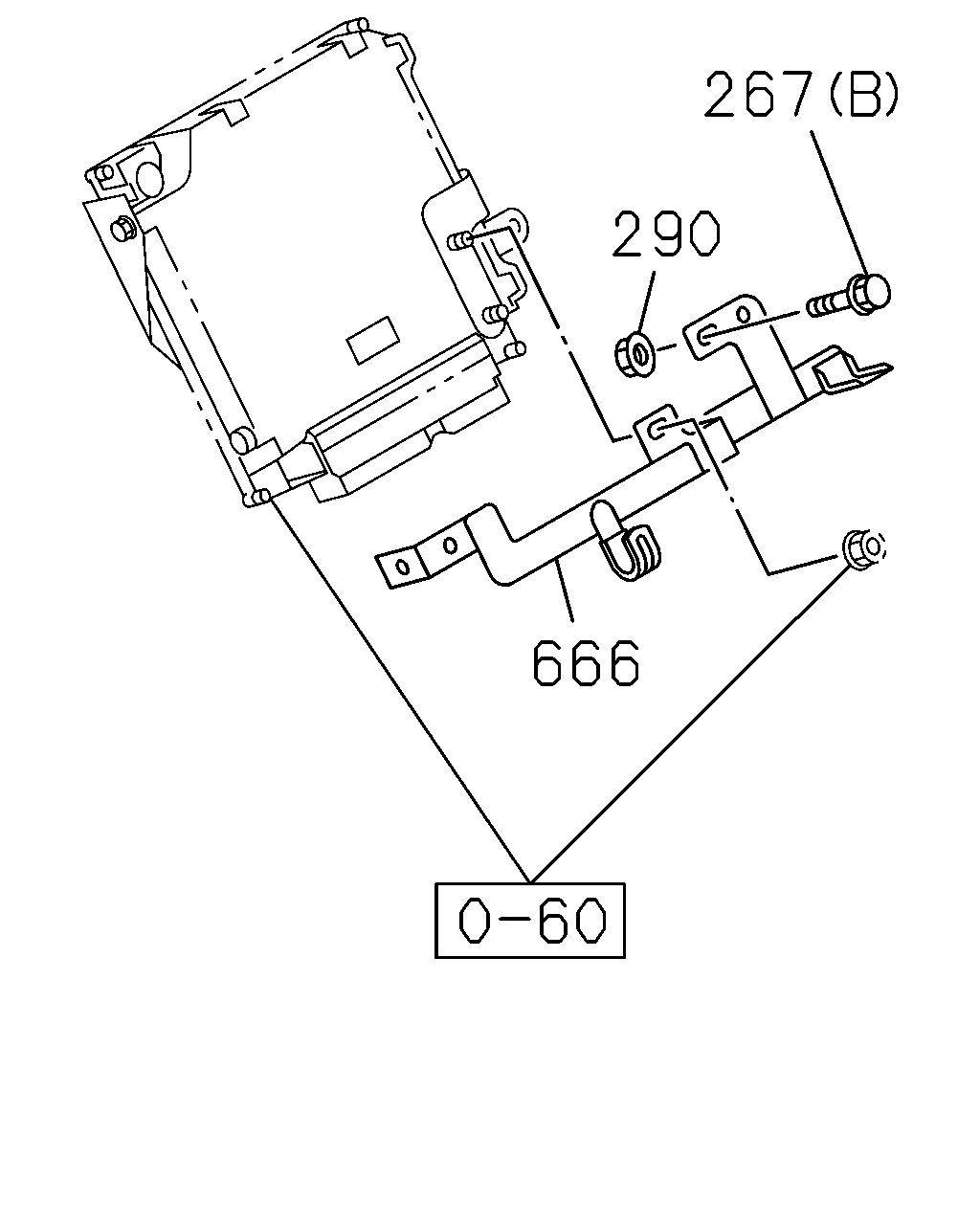

267 290 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	1012-1507	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	1508-	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	1508-		●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1012-1507	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1508-	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1508-		●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	1012-1507	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	1508-	●	●
290	02.483 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1102-1111	●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1112-1507	●
290	02.483 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1112-1507	●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
290	02.483 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-1507	●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE	0-91180-106-0	02	1	1508-	●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	1508-		●
666	02.483 BRACKET; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98110-213-0	01	1	1012-1507	●
666	02.483 BRACKET; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98110-213-0	01	1	1508-	●
666	02.483 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98110-213-0	01	1	1508-		●

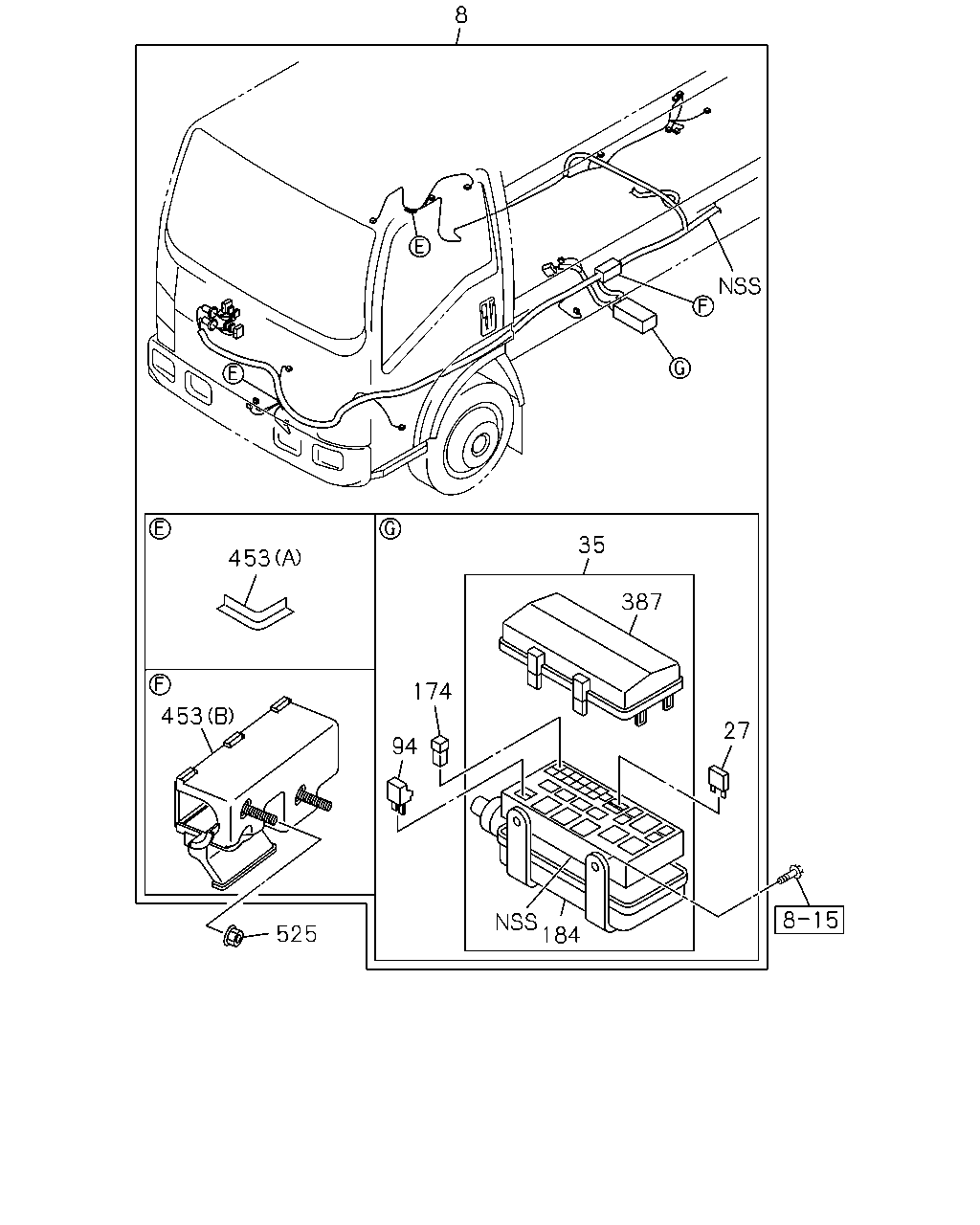

35 387 27 184 525 453 174 94 453 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT	8-98318-487-0	01	1	1508-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98070-285-9	01	1	1012-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98294-235-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98126-192-5	01	1	1012-1101	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98180-747-1	01	1	1102-1409	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98294-404-0	01	1	1410-	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1012-1507	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1508-	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1012-1507	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1508-	●	●
94	02.483 DIODE; FRAME HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> BLACK 2P-1.5A	8-94422-639-1	01	1	1012-1507	●
94	02.483 DIODE; FRAME HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> BLACK 2P-1.5A	8-94422-639-1	01	1	1508-	●
94	02.483 DIODE; FRAME HARNESS 4HK1-TCN ENG(RDQ) BLACK 2P-1.5A	8-94422-639-1	01	1	1508-		●
94	02.483 DIODE; FRAME HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> BLACK 2P-1.5A	8-94422-639-1	02	1	1012-	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1012-1507	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1508-	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1012-1507	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1508-	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1012-1507	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1508-	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1012-1507	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1508-	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1012-1507	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1508-	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1012-1507	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1508-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	01	1	1508-		●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (A)	8-94417-716-0	03	1	1102-	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94417-716-0	02	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (A)	8-94417-716-0	02	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94417-716-0	02	1	1102-	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1012-1507	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1508-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1012-1507	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1508-	●	●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1507	●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●	●

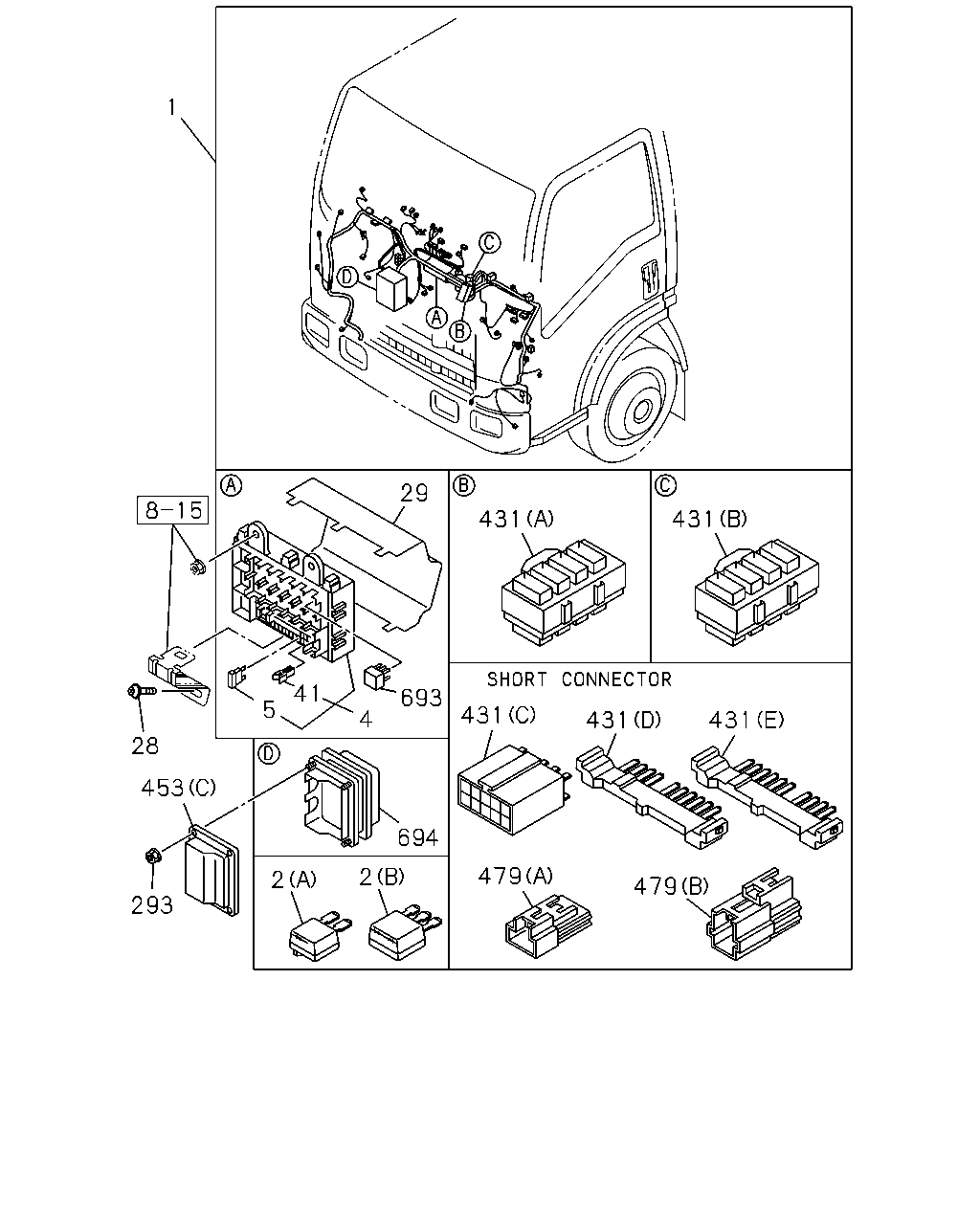

1 28 453 293 29 41 5 4 693 694 2 2 431 431 431 431 479 479 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. FAST GLOW SYSTEM<KM6>	8-98291-061-0	01	1	1504-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6>	8-98298-773-0	01	1	1504-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98087-868-6	01	1	1012-1204	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98207-660-0	01	1	1205-1212	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98207-660-0	01	1	1301-1507	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98207-660-0	01	1	1508-	●	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-98210-942-0	01	1	1208-1503	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6>	8-98210-942-0	01	1	1504-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-98106-623-4	01	1	1012-1207	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1012-1507	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1508-	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1012-1507	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1508-	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1012-1212	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1301-1507	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1508-	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1012-1507	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1508-	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1012-1507	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1508-	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1012-1507	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1508-	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1507	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1508-	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1012-1212	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1301-1507	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1508-	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1012-1212	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1301-1507	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1508-	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1012-1507	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1508-	●	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (D) 10P BLUE	1-82699-598-0	01	1	1012-1204	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (E) 10P GREEN	1-82699-599-0	01	1	1012-1204	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-98046-205-0	01	1	1012-1212	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) EXC. FOG LAMP<T96>,FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-98046-205-0	01	1	1012-1212	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (A)	8-98046-205-0	01	1	1301-1507	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (A)	8-98046-205-0	01	1	1508-	●	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P	8-97077-943-0	02	1	1012-1204	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) EXC. FOG LAMP<T96>,FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P	8-97077-943-0	02	1	1012-1204	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (C) 10P	8-97077-943-0	02	1	1012-1204	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (C) 10P	8-97077-943-0	02	1	1205-1207	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98046-206-0	01	1	1012-1212	●
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) EXC. FOG LAMP<T96>,FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98046-206-0	01	1	1012-1212	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (B)	8-98046-206-0	01	1	1012-1212	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1301-1507	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1508-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	01	1	1508-		●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (A)	8-94417-716-0	03	1	1102-	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94417-716-0	02	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (A)	8-94417-716-0	02	1	1012-1101	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94417-716-0	02	1	1102-	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1012-1507	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1508-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1012-1507	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1508-	●	●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (A)	8-98108-678-0	01	1	1012-1507	●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (A)	8-98108-678-0	01	1	1508-	●	●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B)	8-98108-679-0	01	1	1012-1507	●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B)	8-98108-679-0	01	1	1508-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-1507	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1508-	●	●
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-98057-772-0	01	1	1012-1212	●
694	02.483 BOX ASM; CONNECTOR 4HK1-TCN ENG(RDQ) EXC. FOG LAMP<T96>,FUEL SEDIMENTER WITH HEATER<6HU>	8-98057-772-0	01	1	1012-1212	●
694	02.483 BOX ASM; CONNECTOR 4HG1 ENG(RJH)	8-98057-772-0	01	1	1012-1212	●
694	02.483 BOX ASM; CONNECTOR	8-98057-772-0	01	1	1301-1507	●
694	02.483 BOX ASM; CONNECTOR	8-98057-772-0	01	1	1508-	●	●

1 443 691 1 542 374 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. FAST GLOW SYSTEM<KM6>	8-98291-061-0	01	1	1504-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6>	8-98298-773-0	01	1	1504-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98087-868-6	01	1	1012-1204	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98207-660-0	01	1	1205-1212	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98207-660-0	01	1	1301-1507	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98207-660-0	01	1	1508-	●	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-98210-942-0	01	1	1208-1503	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6>	8-98210-942-0	01	1	1504-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-98106-623-4	01	1	1012-1207	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1012-1507	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1508-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98094-483-1	01	1	1012-1507	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98094-483-1	01	1	1508-	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98094-483-1	01	1	1508-		●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	1012-	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	1508-		●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 OD=32 BLACK	8-98031-126-0	01	1	1012-	●
443	02.480 HARNESS; EXT,A/C COOLER WO/HEATER(C65)	8-98103-712-0	01	1	1012-	●
542	02.483 GROMMET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	01	1	1012-	●
691	02.480 HARNESS; IDLE CONT	8-98049-014-2	01	1	1012-1107	●
691	02.480 HARNESS; IDLE CONT 4HK1-TCN ENG(RDQ)	8-98049-014-2	01	1	1108-1507	●
691	02.480 HARNESS; IDLE CONT 4HK1-TCN ENG(RDQ)	8-98049-014-2	01	1	1508-	●	●

4 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1012-1212	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1301-1507	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1508-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-1507	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1508-	●	●

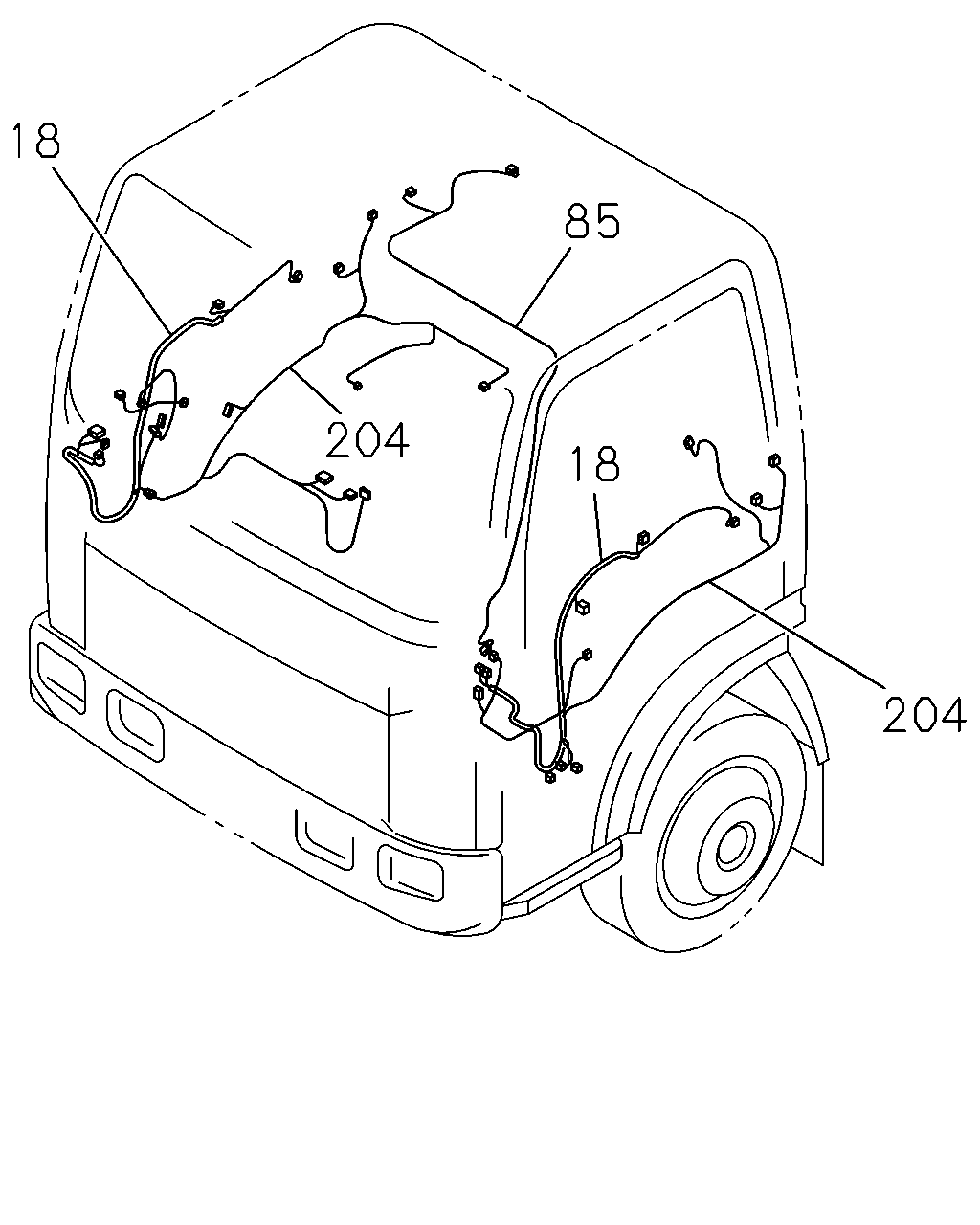

18 85 204 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98071-076-2	01	1	1012-	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98071-084-3	01	1	1012-	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98071-075-2	01	1	1012-1507	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98071-075-2	01	1	1508-	●
18	02.480 HARNESS; DOOR	8-98071-075-2	01	1	1508-		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98071-083-2	01	1	1012-1507	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98071-083-2	01	1	1508-	●
18	02.480 HARNESS; DOOR	8-98071-083-2	01	1	1508-		●
85	06.495 HARNESS; ROOM LAMP	8-98029-741-4	01	1	1508-		●
85	06.495 HARNESS; ROOM LAMP	8-98047-149-3	01	1	1012-	●
204	02.559 HARNESS; CABLE,FLOOR	8-98070-809-3	01	1	1508-		●
204	02.559 HARNESS; CABLE,FLOOR	8-98070-791-3	01	1	1508-		●
204	02.559 HARNESS; CABLE,FLOOR	8-98070-787-4	01	1	1012-	●

4 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1012-1212	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1301-1507	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1508-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-1507	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
