7-60 — SEAT BELT (#49526) — 58 parça

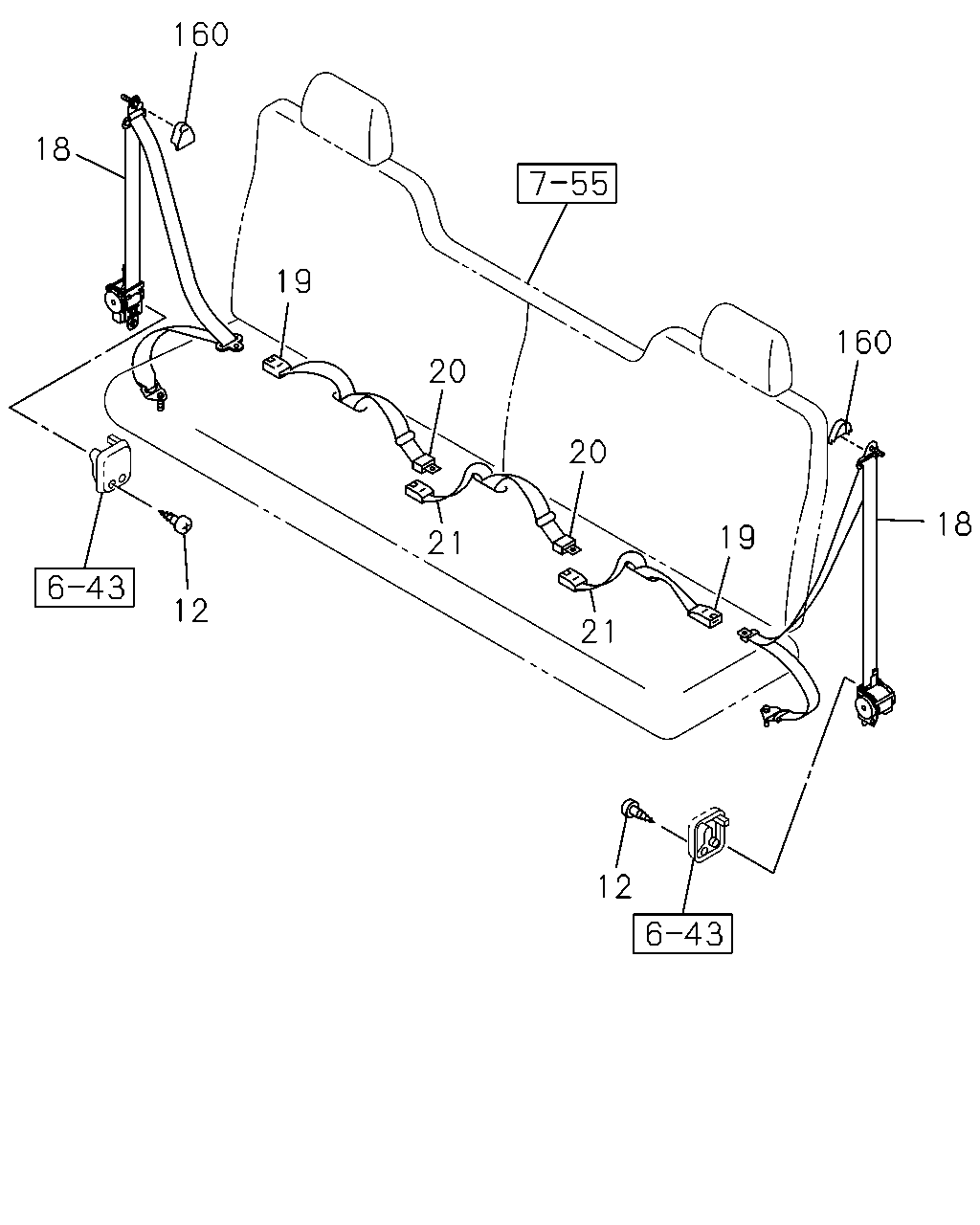

18 160 12 19 20 21 20 21 19 160 18 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	16.714 SCREW; RETRACTOR COVER,SEAT BELT M4X14 TAPPING	0-74360-414-0	04	1	1508-	●
18	16.714 BELT; SEAT,RR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-185-8	02	1	1508-	●
19	16.714 BELT; RR SEAT,BUCKLE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-184-2	02	1	1508-	●
20	16.714 BELT; RR SEAT CTR,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97411-511-3	01	1	1508-	●
20	16.714 BELT; RR SEAT CTR,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97411-512-3	01	1	1508-	●
21	16.714 BELT; RR SEAT CTR,BUCKLE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-187-2	01	1	1508-	●
21	16.714 BELT; RR SEAT CTR,BUCKLE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-188-2	01	1	1508-	●
160	16.714 COVER; THROUGH ANCHOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-991-0	02	1	1508-	●
160	16.714 COVER; THROUGH ANCHOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-991-0	01	1	1012-1507		●
160	16.714 COVER; THROUGH ANCHOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-991-0	01	1	1508-	●	●
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	1012-1507		●
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	1508-		●
167	16.714 PLATE; ANCHOR	8-97589-140-0	01	1	1508-	●

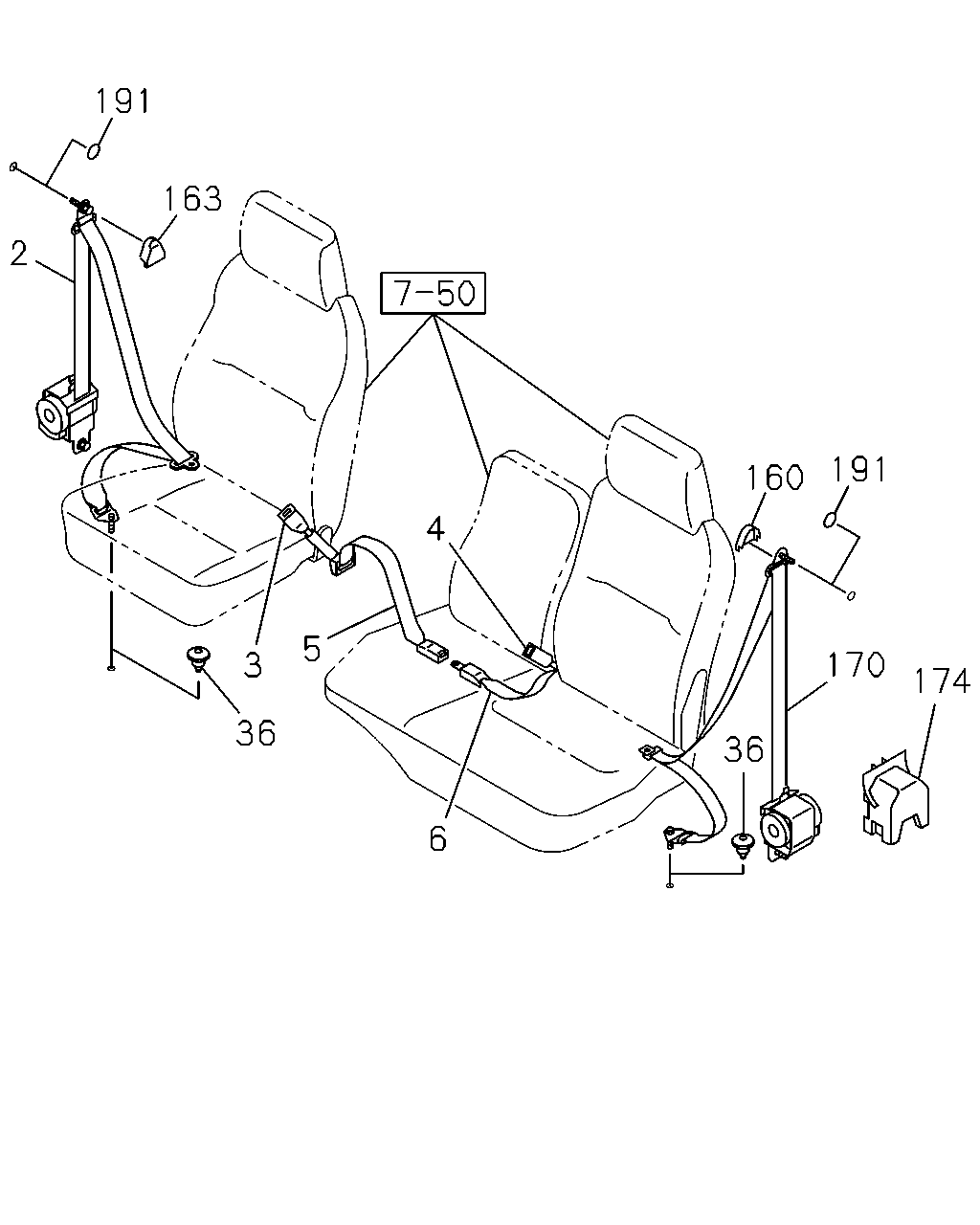

191 163 2 4 5 3 36 6 36 170 174 160 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.714 BELT; SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-180-7	01	1	1012-1406		●
2	16.714 BELT; SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97428-457-1	01	1	1407-1507		●
2	16.714 BELT; SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97428-457-1	01	1	1508-	●	●
3	16.714 BELT; SEAT,BUCKLE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-175-2	01	1	1012-1507		●
3	16.714 BELT; SEAT,BUCKLE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-175-2	01	1	1508-	●	●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-178-0	01	1	1012-1507		●
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-178-0	01	1	1508-	●	●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-182-1	01	1	1012-1507		●
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-182-1	01	1	1508-	●	●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97411-507-2	01	1	1012-1507		●
6	16.714 BELT; CENTER SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97411-507-2	01	1	1508-	●	●
36	09.775 PLUG; DUMMY HOLE,SEAT BELT EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.714 OD=22	9-61168-535-0	02	1	1012-1507		●
36	09.775 PLUG; DUMMY HOLE,SEAT BELT EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.714 OD=22	9-61168-535-0	02	1	1508-	●	●
160	16.714 COVER; THROUGH ANCHOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-991-0	02	1	1508-	●
160	16.714 COVER; THROUGH ANCHOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-991-0	01	1	1012-1507		●
160	16.714 COVER; THROUGH ANCHOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-991-0	01	1	1508-	●	●
163	16.714 COVER; ADJUSTER SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-991-0	01	1	1012-1507		●
163	16.714 COVER; ADJUSTER SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-991-0	01	1	1508-	●	●
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	1012-1507		●
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	1508-		●
167	16.714 PLATE; ANCHOR	8-97589-140-0	01	1	1508-	●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97405-180-7	01	1	1012-1406		●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE EXC. SEAT BELT - DELETE<8NY> GRAY	8-97428-457-1	01	1	1407-1507		●
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE EXC. SEAT BELT - DELETE<8NY> GRAY	8-97428-457-1	01	1	1508-	●	●
174	16.714 COVER; RETRACTOR,SEAT BELT	8-98039-376-1	01	1	1012-		●
191	16.650 SEAL; SEAT BELT EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.592 OD=36 WHITE	1-76778-007-0	02	1	1012-1507		●
191	16.650 SEAL; SEAT BELT EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.592 OD=36 WHITE	1-76778-007-0	02	1	1508-	●	●

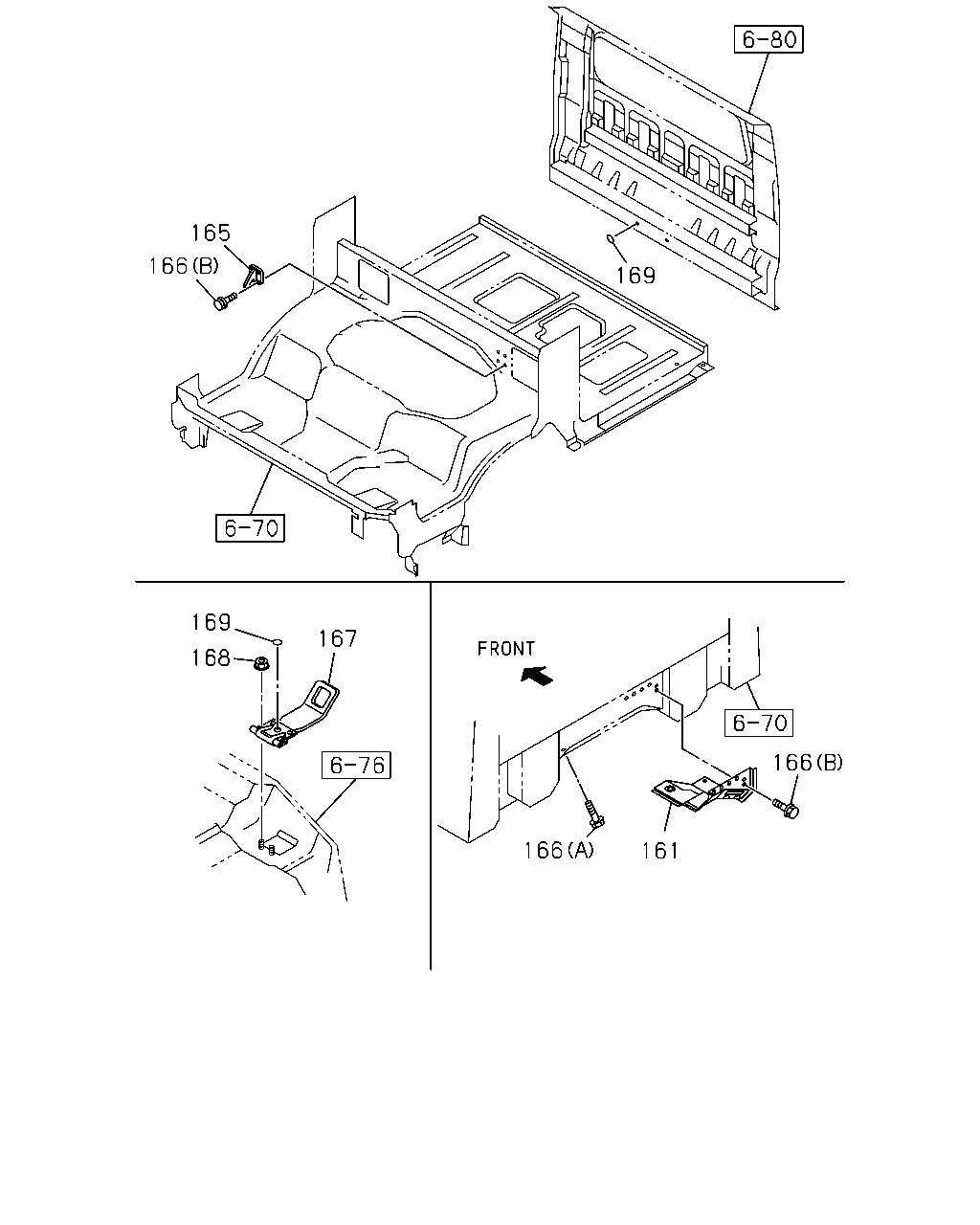

165 166 169 168 67 166 161 166 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 16.545	8-98015-216-2	01	1	1012-		●
165	16.714 HOOK; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA>	8-98040-143-0	01	1	1012-1507		●
165	16.714 HOOK; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA>	8-98040-143-0	01	1	1508-		●
165	16.714 HOOK; SEAT BELT ANCHOR	8-98040-143-0	01	1	1508-	●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	05	1	1012-		●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1012-1507		●
166	16.714 BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1508-		●
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1508-	●
166	16.714 BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	1012-		●
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	1012-1507		●
167	16.714 PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	1508-		●
167	16.714 PLATE; ANCHOR	8-97589-140-0	01	1	1508-	●
168	16.714 NUT; ANCHOR PLATE INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1507		●
168	16.714 NUT; ANCHOR PLATE INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-		●
168	16.714 NUT; ANCHOR PLATE 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●
169	16.650 SEAL EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.545 OD=32 BLACK	8-98031-126-0	04	1	1508-	●
169	16.650 SEAL EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.545 OD=32 BLACK	8-98031-126-0	02	1	1012-1507		●
169	16.650 SEAL EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.545 OD=32 BLACK	8-98031-126-0	02	1	1508-	●	●
