◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#4952) — 58 parça

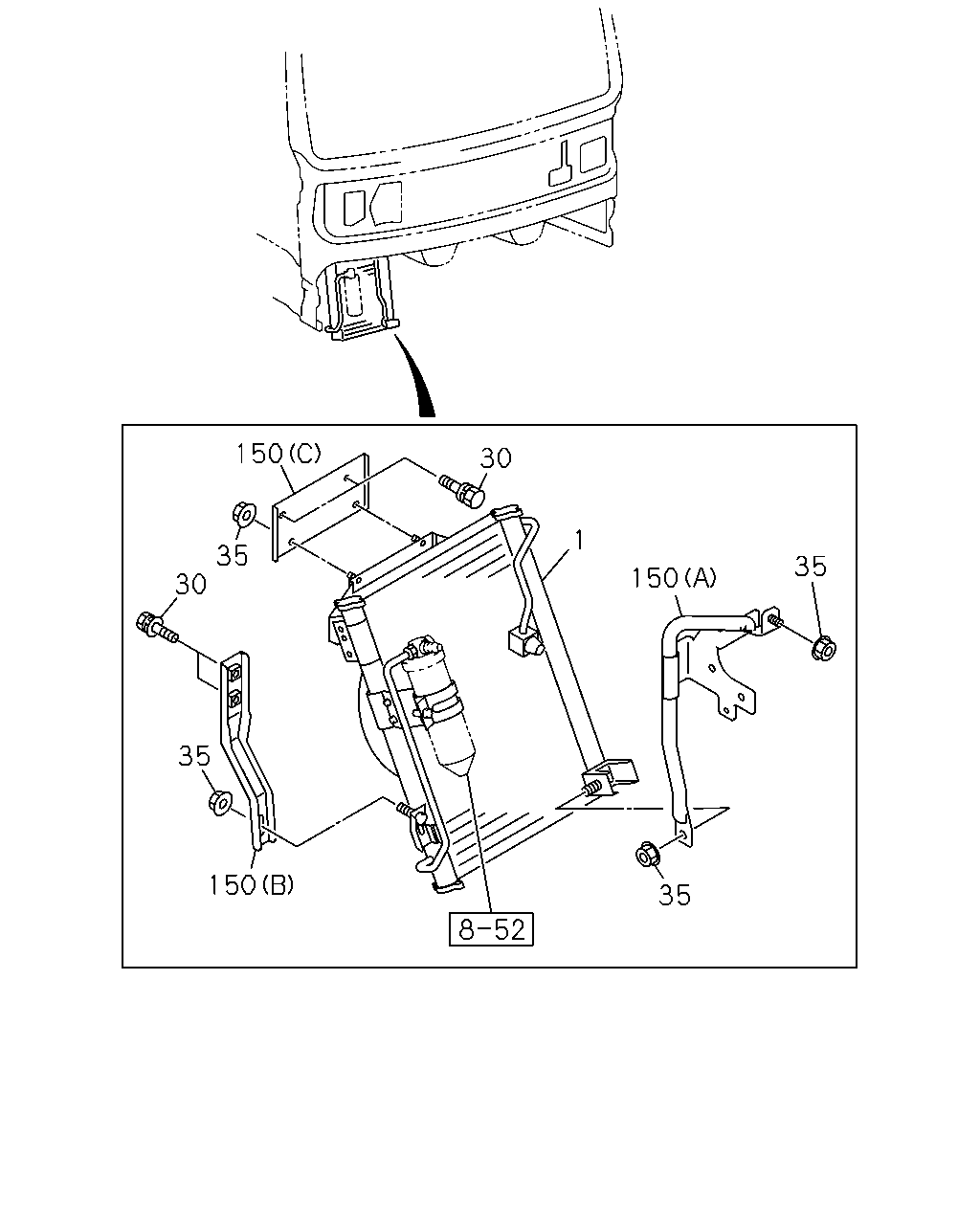

çizim 39364
150 30 1 35 30 35 150 35 150 35
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-191-0 01 1 9603-9901 ● ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-223-2 01 1 9902-9904 ● ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-223-2 01 1 9905- ● ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9603-9904 ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905- ● ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 05 1 9603-9904 ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 05 1 9905- ● ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-914-0 01 1 9603-9904 ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-914-0 01 1 9905- ● ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-915-0 01 1 9603-9904 ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-915-0 01 1 9905- ● ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-918-0 01 1 9603-9904 ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-918-0 01 1 9905- ● ● ●

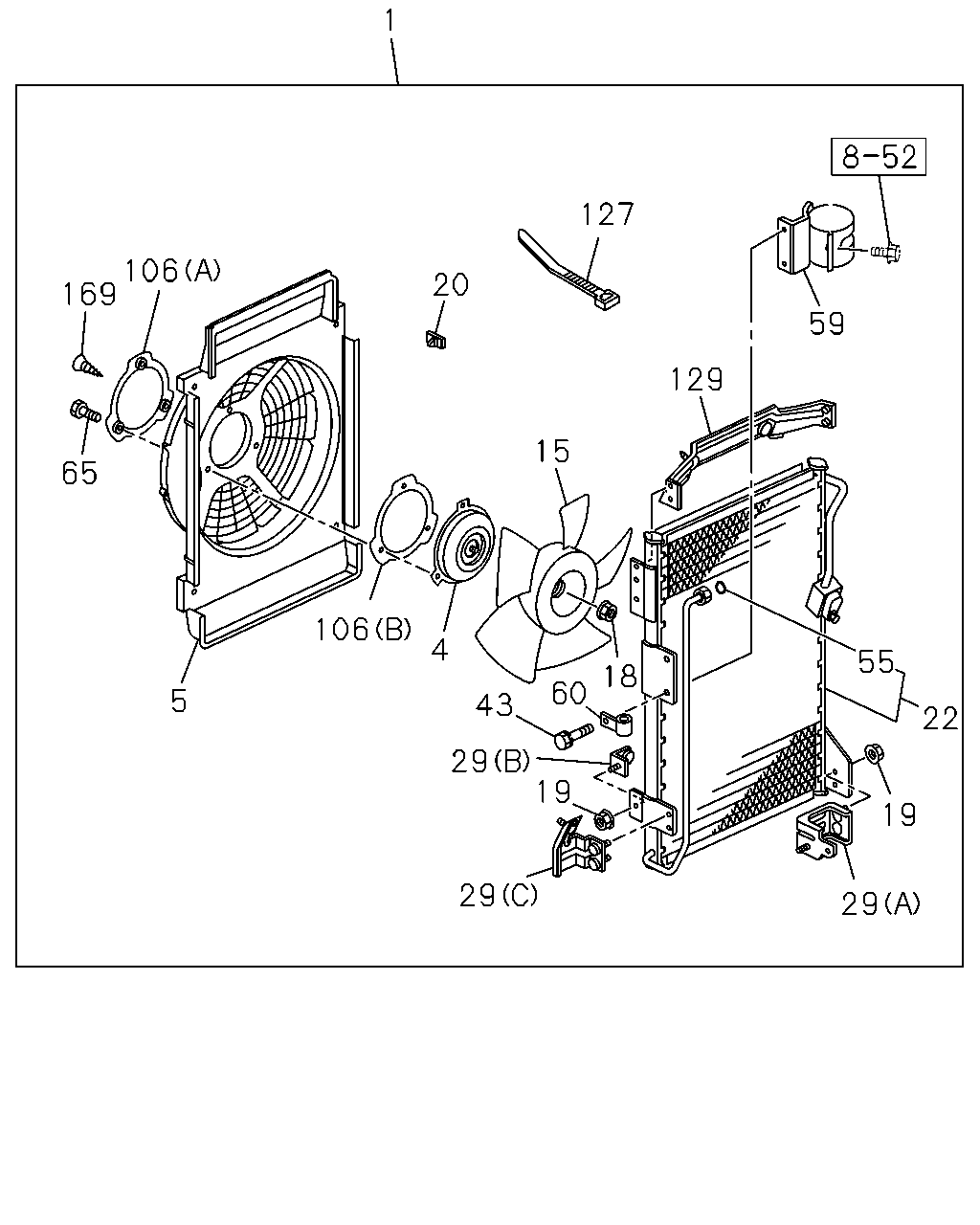

çizim 42239
1 127 106 169 20 59 129 15 65 106 4 55 18 60 5 43 22 29 19 19 29 29
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-191-0 01 1 9603-9901 ● ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-223-2 01 1 9902-9904 ● ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-223-2 01 1 9905- ● ● ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-231-0 01 1 9603-9904 ● ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-231-0 01 1 9905- ● ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-230-2 01 1 9603-9904 ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-230-2 01 1 9905- ● ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-232-0 01 1 9603-9904 ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-232-0 01 1 9905- ● ● ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97018-672-0 01 1 9603-9904 ● ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97018-672-0 01 1 9905- ● ● ●
19 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-235-0 12 1 9603-9904 ● ●
19 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-235-0 12 1 9905- ● ● ●
20 CLIP; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94364-751-0 01 1 9603-9904 ● ●
20 CLIP; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94364-751-0 01 1 9905- ● ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-193-0 01 1 9603-9901 ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-226-1 01 1 9902-9904 ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-226-1 01 1 9905- ● ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-227-1 01 1 9603-9904 ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-227-1 01 1 9905- ● ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-236-0 04 1 9603-9904 ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-236-0 04 1 9905- ● ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83539-262-1 01 1 9603-9904 ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83539-262-1 01 1 9905- ● ● ●
43 BOLT; BRKT,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE 		1-83539-260-0 06 1 9603-9904 ● ●
43 BOLT; BRKT,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE 		1-83539-260-0 06 1 9905- ● ● ●
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 01 1 9603-9901 ● ●
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-776-0 01 1 9902-9904 ● ●
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-776-0 01 1 9905- ● ● ●
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-228-2 01 1 9603-9904 ● ●
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-228-2 01 1 9905- ● ● ●
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-234-0 01 1 9603-9904 ● ●
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-234-0 01 1 9905- ● ● ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-242-0 03 1 9603-9904 ● ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-242-0 03 1 9905- ● ● ●
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-243-0 01 1 9603-9904 ● ●
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-243-0 01 1 9905- ● ● ●
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-244-0 01 1 9603-9904 ● ●
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-244-0 01 1 9905- ● ● ●
127 CLIP; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-008-0 01 1 9603-9904 ● ●
127 CLIP; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-008-0 01 1 9905- ● ● ●
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-237-1 01 1 9603-9904 ● ●
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-237-1 01 1 9905- ● ● ●
169 SCREW; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-807-0 01 1 9603-9904 ● ●
169 SCREW; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-807-0 01 1 9905- ● ● ●
