◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51301 - NPS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#49519) — 48 parça

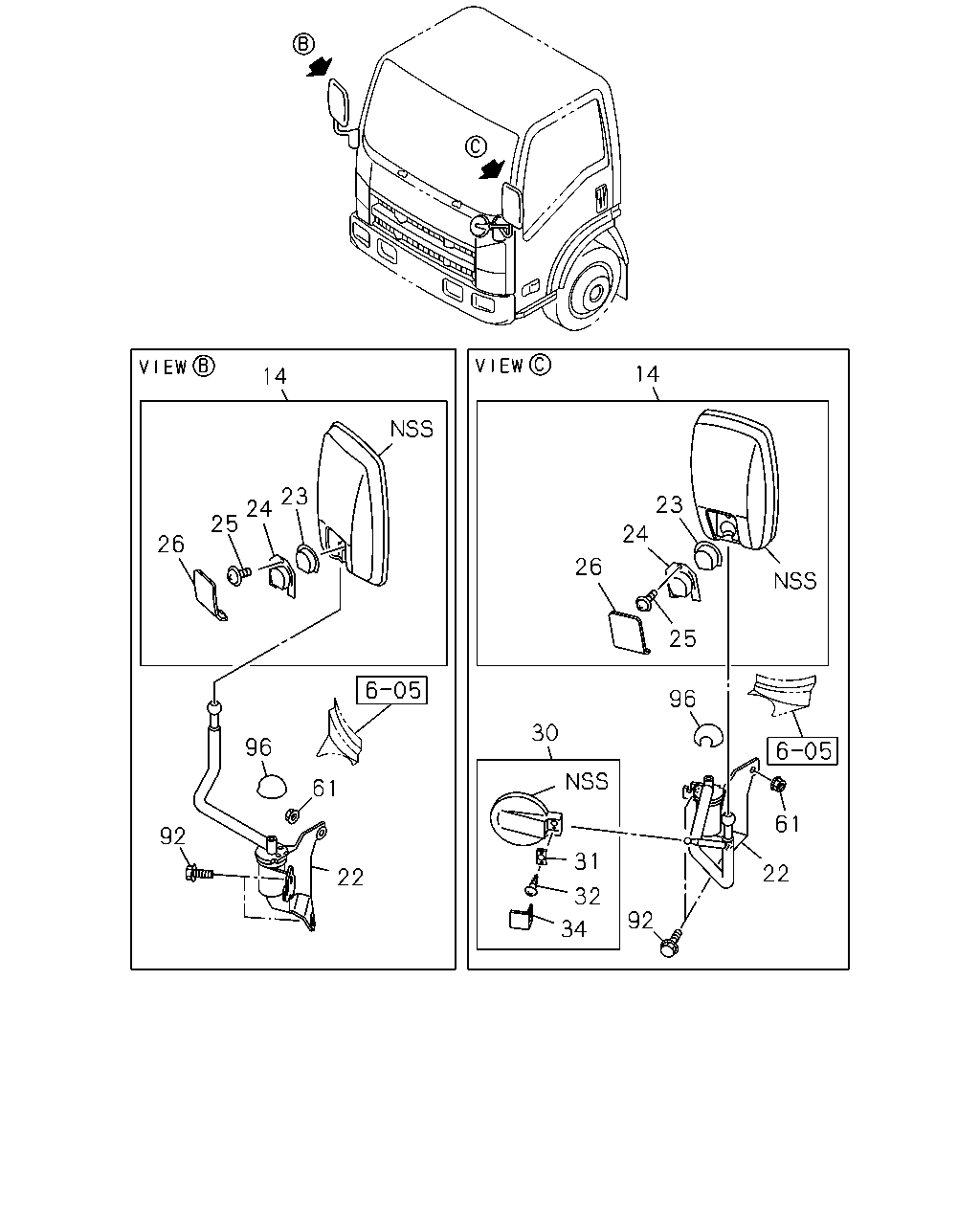

çizim 176227
14 23 25 24 26 30 31 32 34 96 61 22 92 22 61 96 92 26 23 24 25 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 16.068 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1012-1507 ●
14 16.068 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1012-1507 ●
14 16.068 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1508- ● ●
14 16.068 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1508- ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98027-519-0 01 1 1012-1507 ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98027-519-0 01 1 1508- ● ●
22 16.069 STAY; OUTSIDE MIRROR 8-98038-224-1 01 1 1012-1507 ●
22 16.069 STAY; OUTSIDE MIRROR 8-98038-224-1 01 1 1508- ● ●
22 16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98070-509-0 01 1 1012-1507 ●
22 16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98070-509-0 01 1 1508- ● ●
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1012-1507 ●
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1012-1507 ●
23 16.069 WASHER; OUTSIDE MIRROR
16.068 		8-94262-542-3 01 1 1508- ● ●
23 16.069 WASHER; OUTSIDE MIRROR
16.068 		8-94262-542-3 01 1 1508- ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1012-1507 ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1012-1507 ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1508- ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1508- ● ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1012-1507 ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1012-1507 ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1508- ● ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1508- ● ●
26 16.069 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 1012-1507 ●
26 16.069 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 1012-1507 ●
26 16.069 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 1508- ● ●
26 16.069 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 1508- ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 1012-1507 ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 1508- ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 1012-1507 ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 1508- ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 1012-1507 ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 1508- ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 1012-1507 ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 1508- ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1507 ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
01.062 M8 FLANGE 		0-91180-108-0 02 1 1508- ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012-1507 ●
92 16.069 BOLT; STAY BRKT,MIRROR
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1508- ● ●
96 16.069 CAP; MIRROR STAY 8-98027-552-2 02 1 1012-1507 ●
96 16.069 CAP; MIRROR STAY 8-98027-552-2 02 1 1508- ● ●

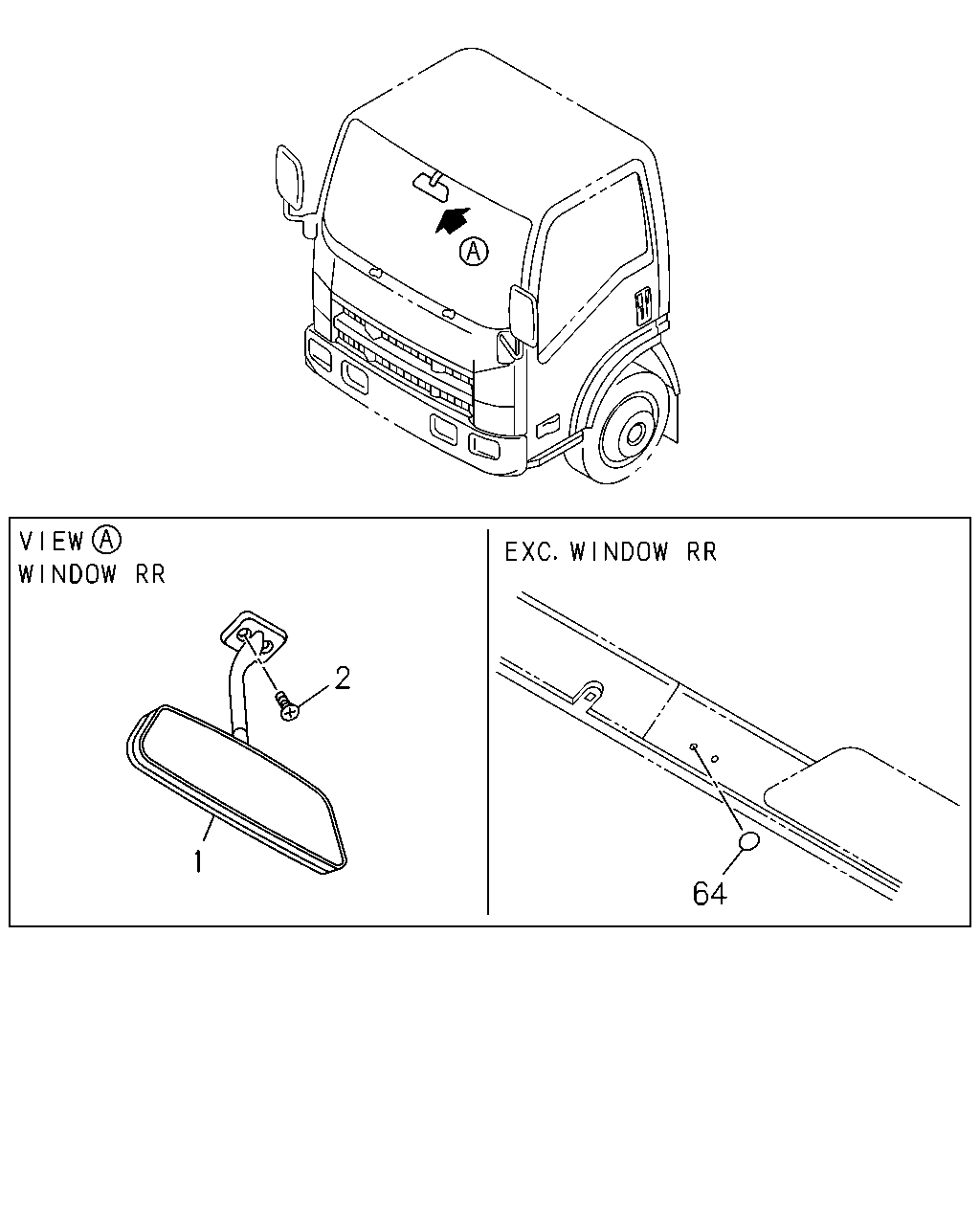

çizim 176228
1 2 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 1012-1507 ●
1 16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 1508- ●
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1508- ●
2 16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26 		8-98033-674-0 02 1 1012-1507 ●
2 16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26 		8-98033-674-0 02 1 1508- ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 1508- ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1012- ●
64 16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1012- ●
