6-75 — MAT AND CARPET (#49510) — 32 parça

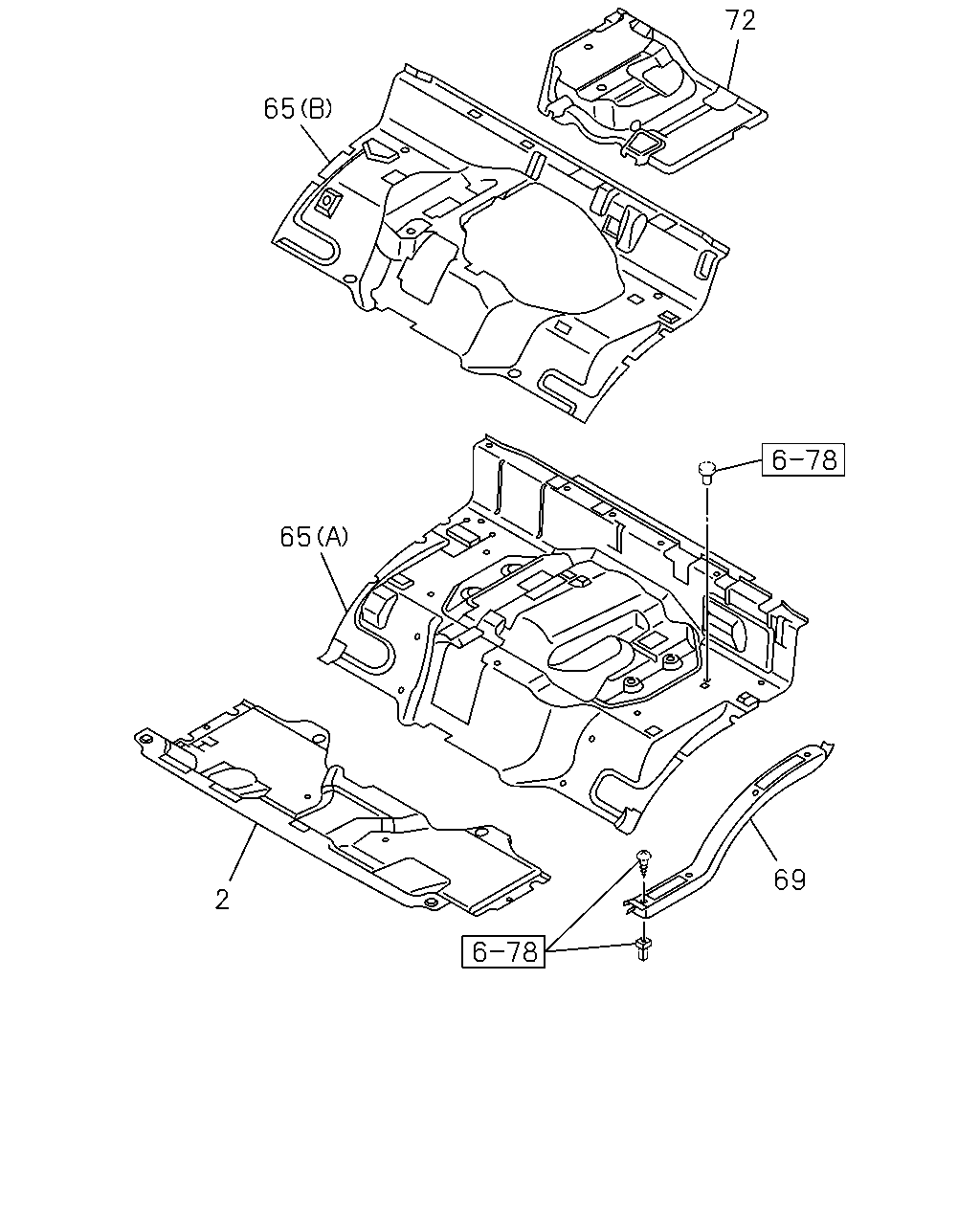

65 65 72 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.800 MAT; FLOOR GRAY	8-97422-057-0	01	1	1012-1507	●
2	16.800 MAT; FLOOR GRAY	8-97422-057-0	01	1	1508-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4HK1-TCN ENG(RDQ) (C) GRAY	8-97425-111-1	01	1	1508-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	1012-1303	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-110-1	01	1	1304-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	1012-1303	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1304-	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1012-1507	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1508-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1012-1507	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1508-	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	1012-1507	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	1508-	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	1508-		●

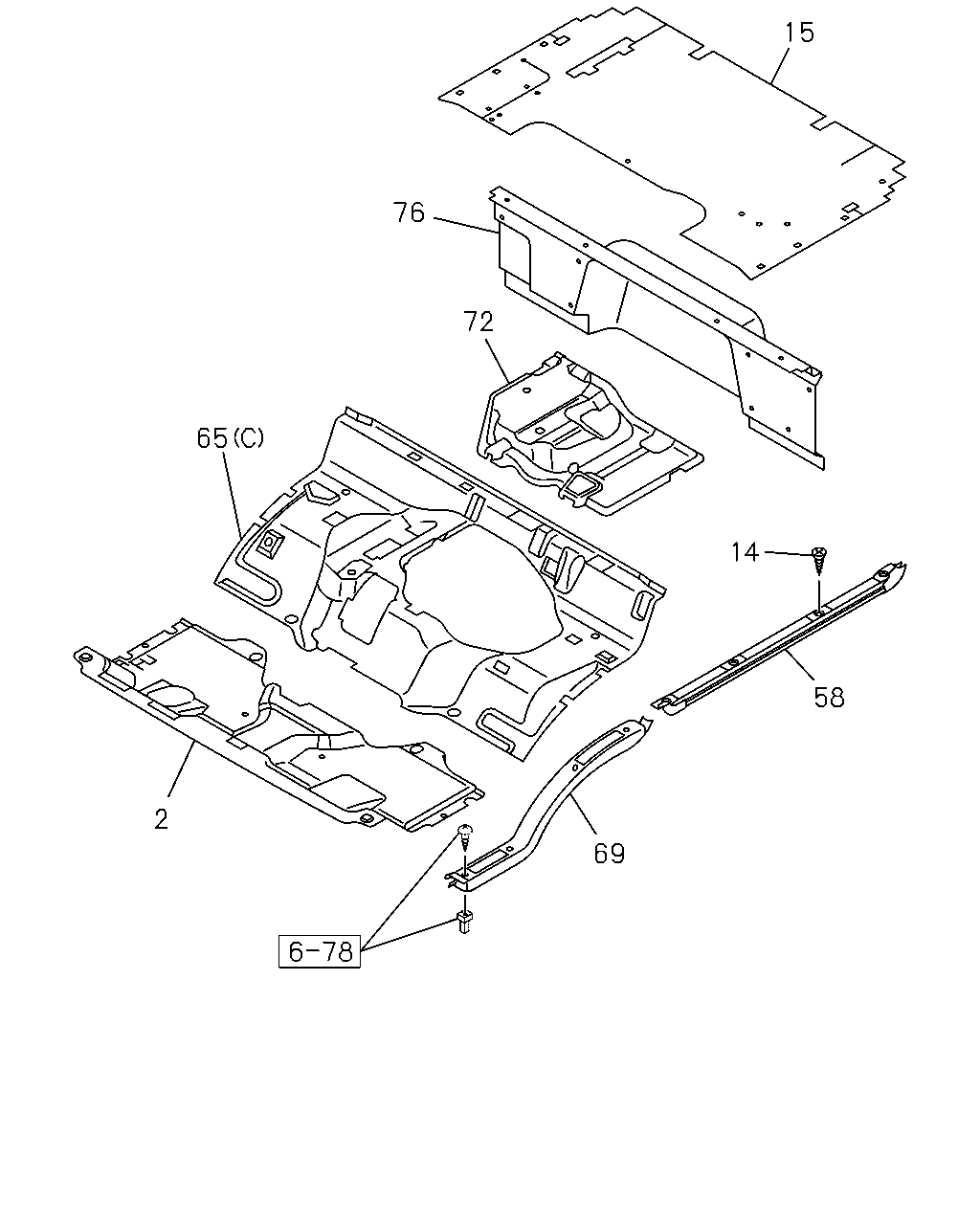

65 76 2 72 15 14 69 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.800 MAT; FLOOR GRAY	8-97422-057-0	01	1	1012-1507	●
2	16.800 MAT; FLOOR GRAY	8-97422-057-0	01	1	1508-	●	●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1508-		●
15	16.800 MAT; FLOOR REAR 4HK1-TCN ENG(RDQ) GRAY	8-97412-602-1	01	1	1508-		●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	1508-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR 4HK1-TCN ENG(RDQ) (C) GRAY	8-97425-111-1	01	1	1508-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97405-200-6	01	1	1012-1303	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-110-1	01	1	1304-	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97405-198-6	01	1	1012-1303	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-119-1	01	1	1304-	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1012-1507	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1508-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1012-1507	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1508-	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	1012-1507	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97406-252-3	01	1	1508-	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97406-252-3	01	1	1508-		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HK1-TCN ENG(RDQ) GRAY	8-97412-600-1	01	1	1508-		●
