6-66 — HEAD LINING AND TRIM (#49508) — 65 parça

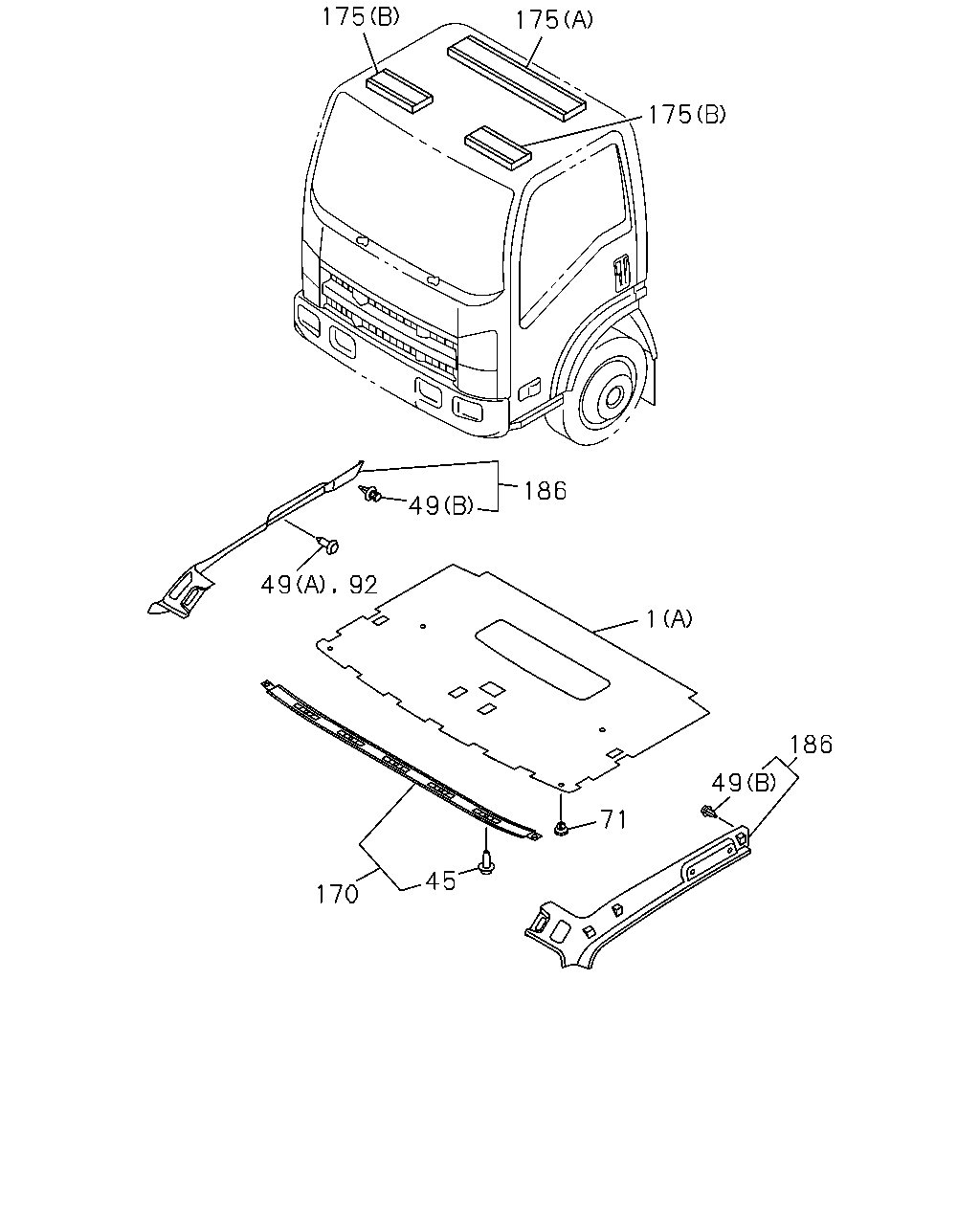

175 175 175 49 186 1 186 49 71 45 170 49 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97405-277-3	01	1	1508-	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-279-3	01	1	1508-	●
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-278-2	01	1	1508-	●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97405-272-8	01	1	1012-		●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-270-8	01	1	1012-		●
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	1012-		●
45	16.742 CLIP; FINISHER	8-98035-592-1	03	1	1012-1507		●
45	16.742 CLIP; FINISHER	8-98035-592-1	03	1	1508-	●	●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	1012-1507		●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	1508-	●	●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	03	1	1012-1410		●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	02	1	1411-1507		●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	02	1	1508-	●	●
71	16.742 FASTENER; HD LINING DARK GRAY	8-97405-282-0	20	1	1508-	●
71	16.742 FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1012-		●
92	16.742 RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	1012-1507		●
92	16.742 RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	1508-	●	●
170	16.742 FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	1012-1507		●
170	16.742 FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	1508-	●	●
175	16.742 CUSHION; HEAD LINING (D)	8-98037-298-3	03	1	1508-	●
175	16.742 CUSHION; HEAD LINING (C)	8-98054-171-3	02	1	1508-	●
175	16.742 CUSHION; HEAD LINING (B)	8-98037-299-3	02	1	1012-		●
175	16.742 CUSHION; HEAD LINING (A)	8-98037-300-3	01	1	1012-		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	1012-1507		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	1508-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	1012-1507		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	1508-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1012-1507		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1508-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1012-1507		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1508-	●	●

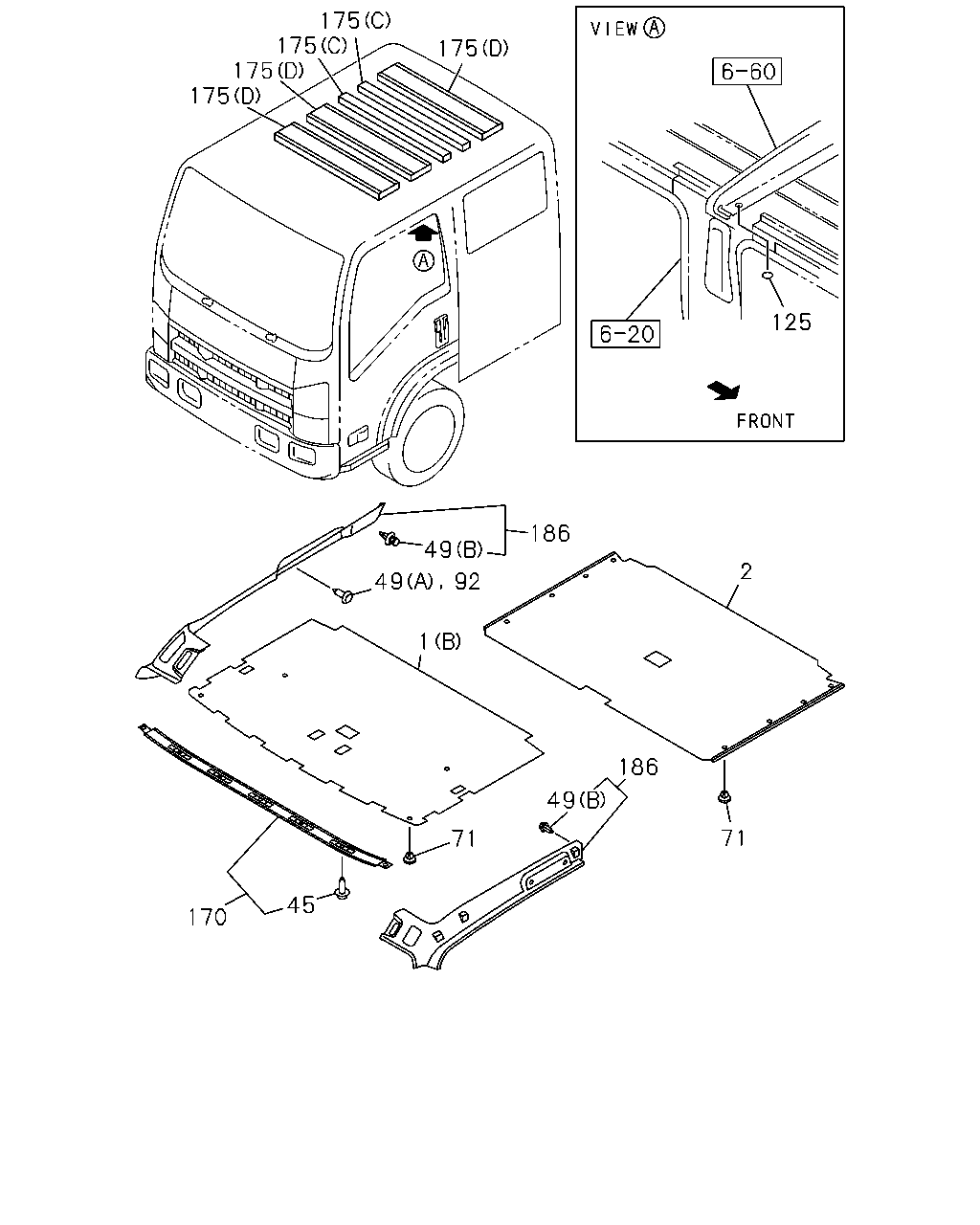

175 175 175 175 175 186 49 92 49 49 186 71 71 45 170 2 1 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97405-277-3	01	1	1508-	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-279-3	01	1	1508-	●
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-278-2	01	1	1508-	●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97405-272-8	01	1	1012-		●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-270-8	01	1	1012-		●
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	1012-		●
2	16.742 LINING; HD,ROOF RR DARK GRAY	8-97405-280-3	01	1	1508-	●
45	16.742 CLIP; FINISHER	8-98035-592-1	03	1	1012-1507		●
45	16.742 CLIP; FINISHER	8-98035-592-1	03	1	1508-	●	●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	1012-1507		●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	1508-	●	●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	03	1	1012-1410		●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	02	1	1411-1507		●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	02	1	1508-	●	●
71	16.742 FASTENER; HD LINING DARK GRAY	8-97405-282-0	20	1	1508-	●
71	16.742 FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1012-		●
92	16.742 RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	1012-1507		●
92	16.742 RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	1508-	●	●
125	16.570 SEAL; HOLE BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR TRANS BLUE (999) 02.580 OD=36 T=0.05 BLACK	5-76777-035-0	02	1	1508-	●
125	16.570 SEAL; HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.592 OD=36 WHITE	1-76778-007-0	02	1	1508-	●
170	16.742 FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	1012-1507		●
170	16.742 FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	1508-	●	●
175	16.742 CUSHION; HEAD LINING (D)	8-98037-298-3	03	1	1508-	●
175	16.742 CUSHION; HEAD LINING (C)	8-98054-171-3	02	1	1508-	●
175	16.742 CUSHION; HEAD LINING (B)	8-98037-299-3	02	1	1012-		●
175	16.742 CUSHION; HEAD LINING (A)	8-98037-300-3	01	1	1012-		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	1012-1507		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	1508-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	1012-1507		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	1508-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1012-1507		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1508-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1012-1507		●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1508-	●	●
