6-47 — MUD GUARD AND INSULATOR (#49506) — 119 parça

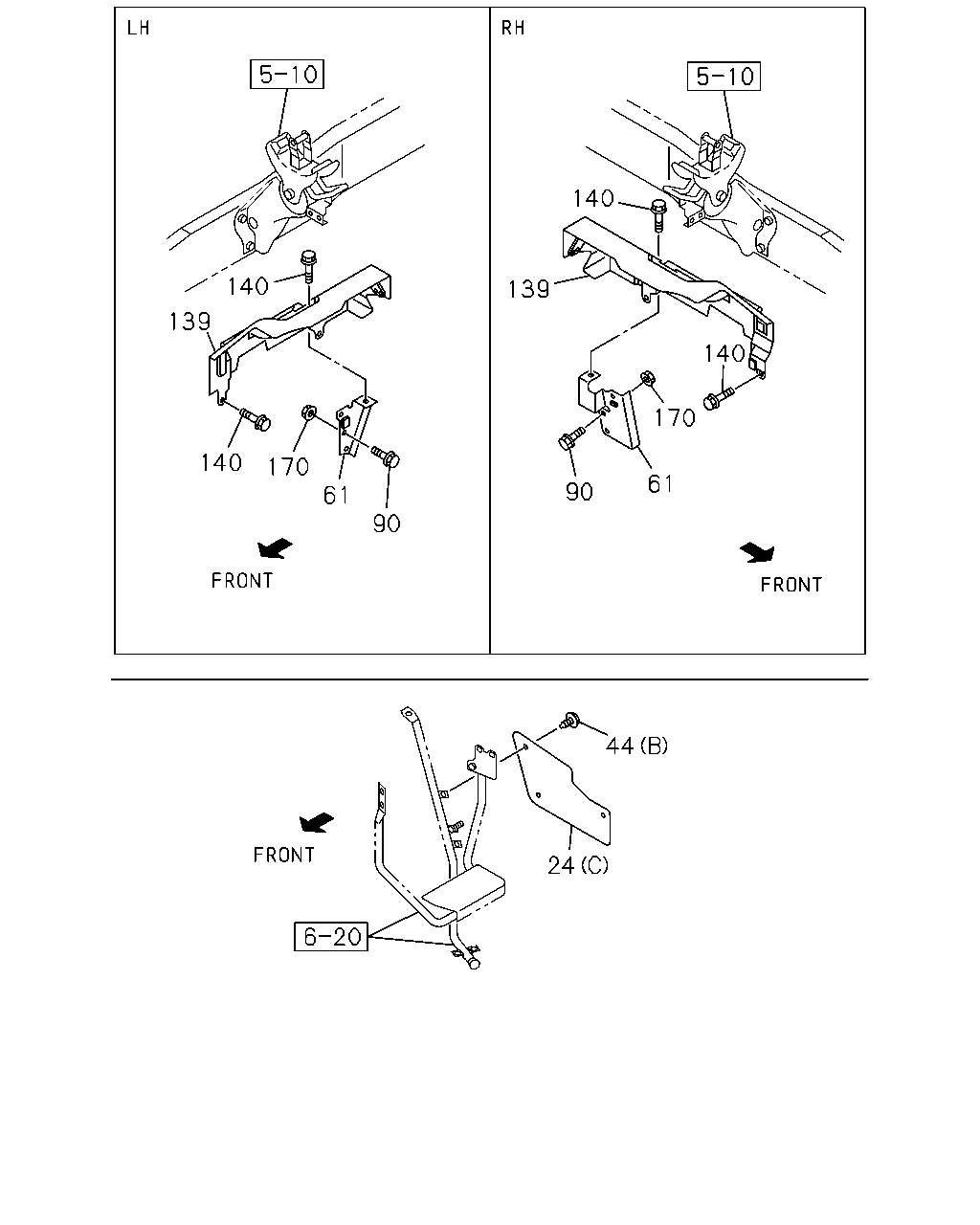

140 139 170 140 61 90 90 61 170 140 139 140 24 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	08.155 PLATE; MUD COVER (A)	8-98072-929-1	01	1	1012-1507	●
24	08.155 PLATE; MUD COVER (A)	8-98072-929-1	01	1	1508-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98073-062-1	01	1	1012-1507	●
24	08.155 PLATE; MUD COVER (A)	8-98073-062-1	01	1	1508-	●	●
24	08.155 PLATE; MUD COVER (C)	8-98094-591-1	02	1	1012-1507	●
24	08.155 PLATE; MUD COVER (C)	8-98094-591-1	02	1	1508-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1012-1507	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1508-	●	●
44	08.154 CLIP; ANCHOR 08.155 (A) OD=16 L=11	1-76378-155-0	06	1	1012-1507	●
44	08.154 CLIP; ANCHOR 08.155 (A) OD=16 L=11	1-76378-155-0	06	1	1508-	●	●
44	08.154 CLIP; ANCHOR 16.320 (B) OD=8.3	8-97997-832-0	06	1	1012-1507	●
44	08.154 CLIP; ANCHOR 16.320 (B) OD=8.3	8-97997-832-0	06	1	1508-	●	●
61	08.155 BRACKET; COVER	8-98049-205-1	01	1	1012-1507	●
61	08.155 BRACKET; COVER	8-98049-205-1	01	1	1508-	●	●
61	08.155 BRACKET; COVER	8-98049-206-1	01	1	1012-1507	●
61	08.155 BRACKET; COVER	8-98049-206-1	01	1	1508-	●	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1012-1507	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1508-	●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ>	8-98049-203-0	01	1	1012-1507	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ>	8-98049-203-0	01	1	1508-	●
139	08.153 PANEL; SIDE	8-98049-203-0	01	1	1508-		●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ>	8-98115-458-1	01	1	1012-1507	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ>	8-98115-458-1	01	1	1508-	●
139	08.153 PANEL; SIDE	8-98115-458-1	01	1	1508-		●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1012-1507	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1508-	●	●
170	08.155 NUT; COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1507	●
170	08.155 NUT; COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●	●

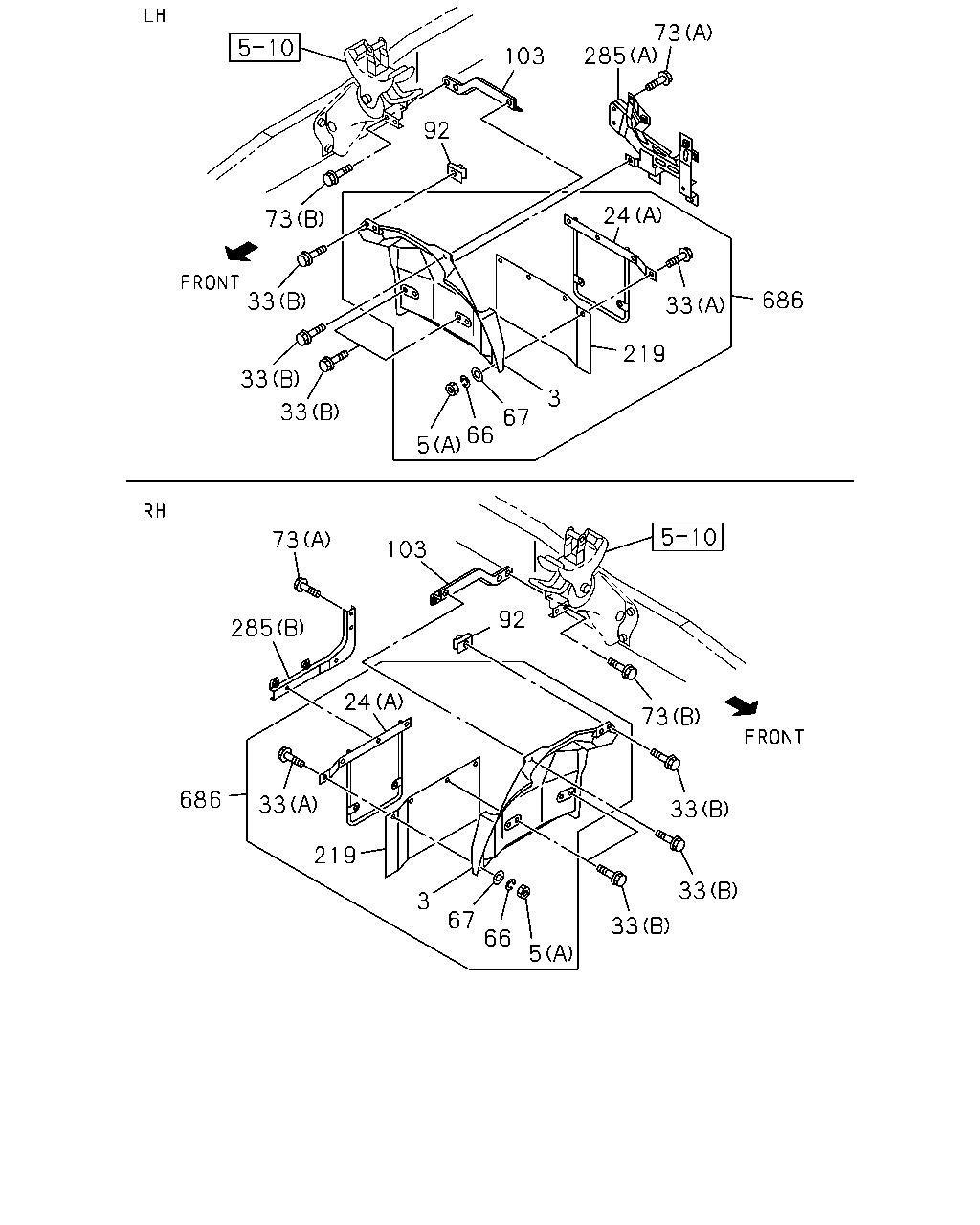

103 285 73 24 33 686 219 3 67 66 5 33 33 33 73 92 103 73 285 686 33 24 219 92 73 33 33 33 5 66 67 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.153 GUARD; MUD,RR	8-98004-029-5	01	1	1012-1507	●
3	08.153 GUARD; MUD,RR	8-98004-029-5	01	1	1508-	●	●
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	1012-1507	●
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	1508-	●	●
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1508-		●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	12	1	1012-1209	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	12	1	1210-1507	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	12	1	1508-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98072-929-1	01	1	1012-1507	●
24	08.155 PLATE; MUD COVER (A)	8-98072-929-1	01	1	1508-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98073-062-1	01	1	1012-1507	●
24	08.155 PLATE; MUD COVER (A)	8-98073-062-1	01	1	1508-	●	●
24	08.155 PLATE; MUD COVER (C)	8-98094-591-1	02	1	1012-1507	●
24	08.155 PLATE; MUD COVER (C)	8-98094-591-1	02	1	1508-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1012-1507	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1508-	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	12	1	1012-1209	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	12	1	1210-1507	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	12	1	1508-	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1012-1507	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1508-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1012-1507	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1508-	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	12	1	1012-1209	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	12	1	1012-1209	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1012-1507	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1508-	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1012-1507	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1508-	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1012-1507	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1508-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	1012-1507	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	1508-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	1012-1507	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	1508-	●	●
219	08.155 FLAP; MUD GUARD	8-98072-933-0	02	1	1012-1507	●
219	08.155 FLAP; MUD GUARD	8-98072-933-0	02	1	1508-	●	●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1012-1507	●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1508-	●	●
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	1012-1507	●
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	1508-	●	●
686	08.155 FLAP ASM; MUD	8-98049-236-3	01	1	1012-1507	●
686	08.155 FLAP ASM; MUD	8-98049-236-3	01	1	1508-	●	●
686	08.155 FLAP ASM; MUD	8-98049-237-3	01	1	1012-1507	●
686	08.155 FLAP ASM; MUD	8-98049-237-3	01	1	1508-	●	●

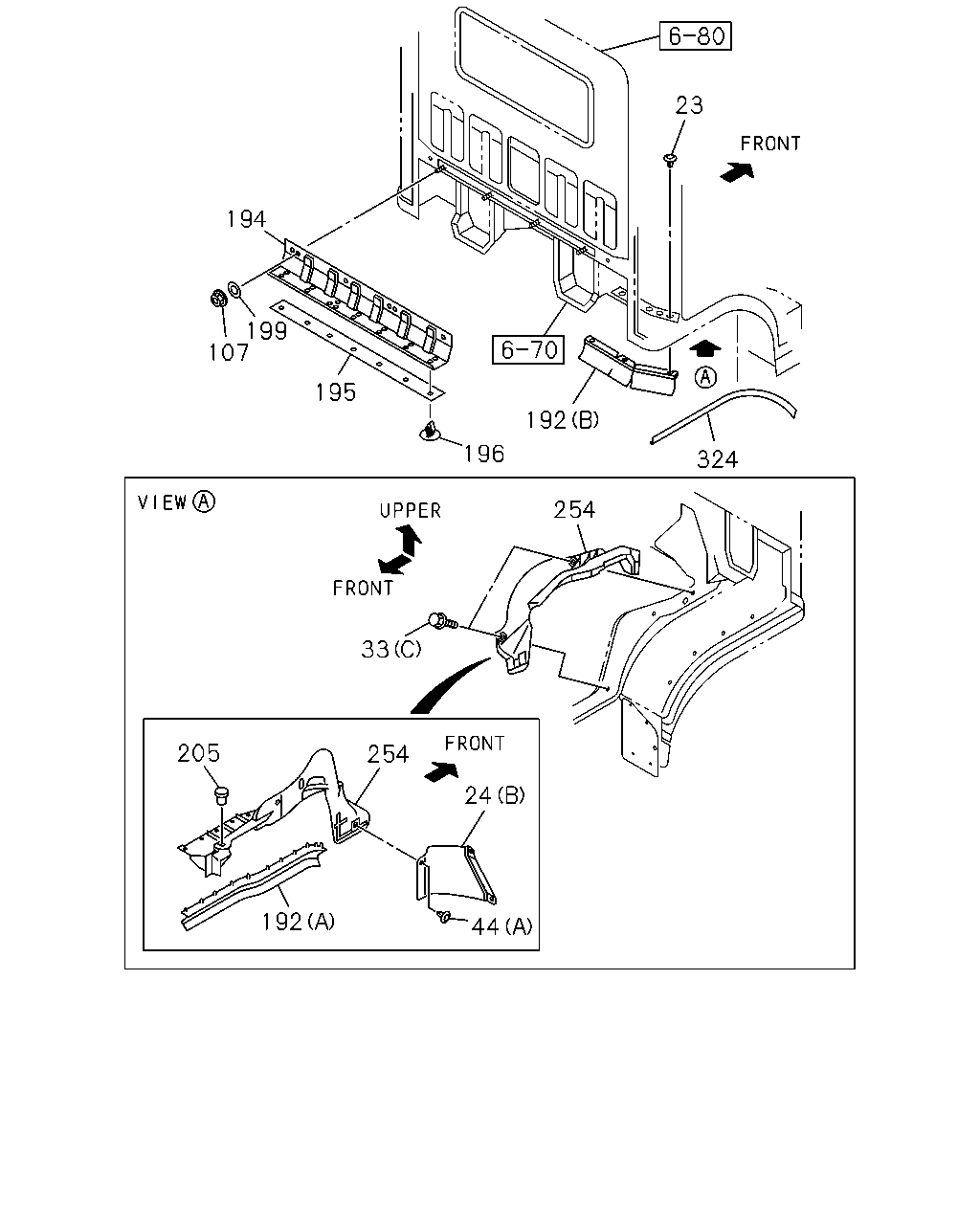

23 194 199 107 195 196 192 254 324 33 254 24 44 192 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1012-1507	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1508-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98072-929-1	01	1	1012-1507	●
24	08.155 PLATE; MUD COVER (A)	8-98072-929-1	01	1	1508-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98073-062-1	01	1	1012-1507	●
24	08.155 PLATE; MUD COVER (A)	8-98073-062-1	01	1	1508-	●	●
24	08.155 PLATE; MUD COVER (C)	8-98094-591-1	02	1	1012-1507	●
24	08.155 PLATE; MUD COVER (C)	8-98094-591-1	02	1	1508-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1012-1507	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1508-	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	12	1	1012-1209	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	12	1	1210-1507	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	12	1	1508-	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1012-1507	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1508-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1012-1507	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1508-	●	●
44	08.154 CLIP; ANCHOR 08.155 (A) OD=16 L=11	1-76378-155-0	06	1	1012-1507	●
44	08.154 CLIP; ANCHOR 08.155 (A) OD=16 L=11	1-76378-155-0	06	1	1508-	●	●
44	08.154 CLIP; ANCHOR 16.320 (B) OD=8.3	8-97997-832-0	06	1	1012-1507	●
44	08.154 CLIP; ANCHOR 16.320 (B) OD=8.3	8-97997-832-0	06	1	1508-	●	●
107	08.214 NUT; HEAT PROTECTOR 03.417 M6 FLANGE	8-94279-514-0	04	1	1508-		●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1012-1507	●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1508-	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1012-1507	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1508-	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	1012-1507	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	1508-	●	●
194	03.602 BRACKET; HEAT PROTECTOR	8-98065-107-0	01	1	1508-		●
195	03.602 PROTECTOR; HEAT	8-94272-528-1	01	1	1508-		●
196	03.602 CLIP; HEAT PROTECTOR	8-94244-922-0	07	1	1508-		●
199	03.602 WASHER; PL,HEAT PROTECTOR	8-94292-135-0	04	1	1508-		●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1012-1507	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1508-	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	1012-1507	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	1508-	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	1012-1507	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	1508-	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1012-1507	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1508-	●	●

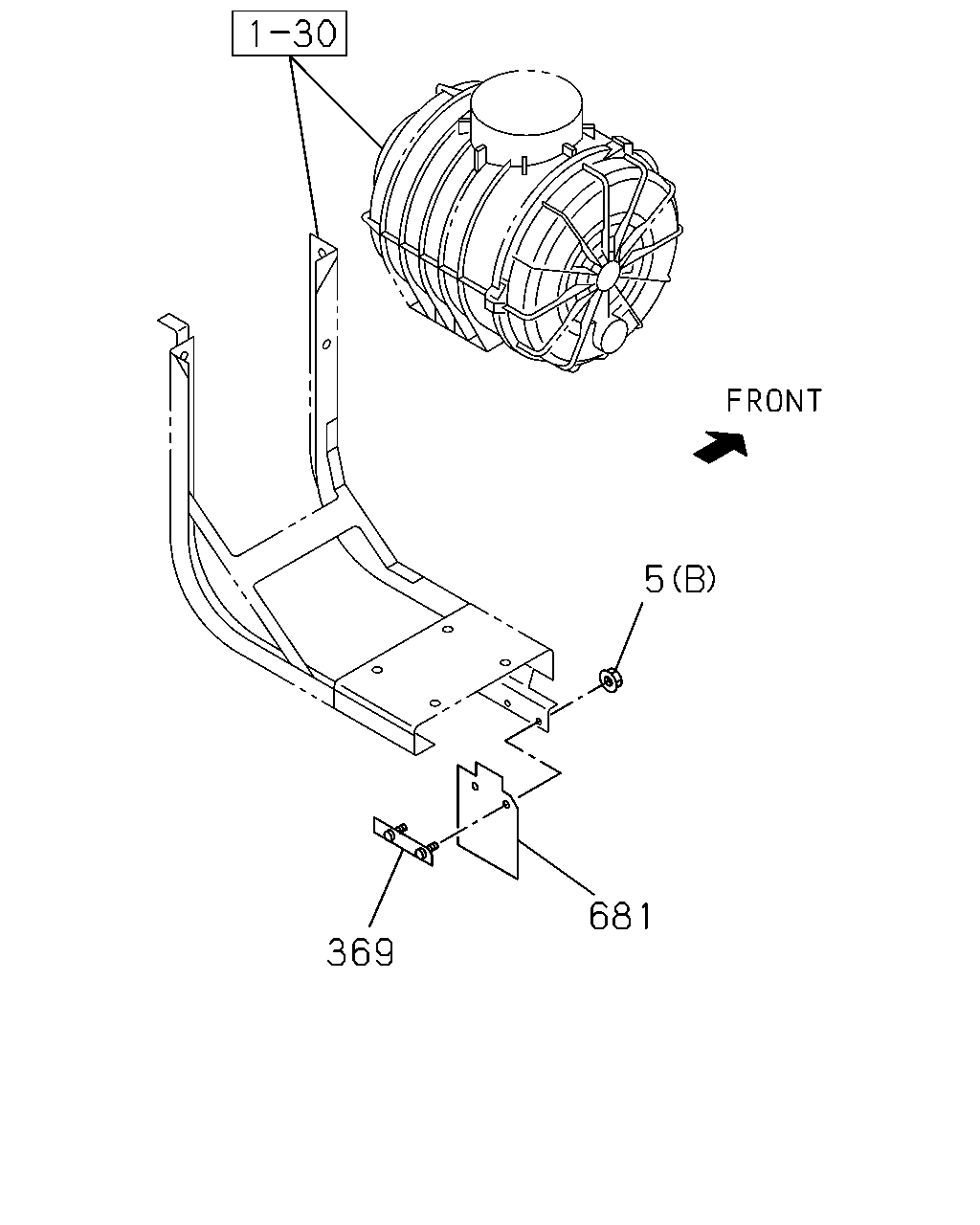

5 681 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1508-		●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	12	1	1012-1209	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	12	1	1210-1507	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	12	1	1508-	●	●
369	08.155 PLATE	8-98061-674-0	01	1	1508-		●
681	03.402 FLAP; AIR CLEANER	8-98061-671-0	01	1	1508-		●
