6-32 — FRONT DOOR LOCK AND HANDLE (#49503) — 152 parça

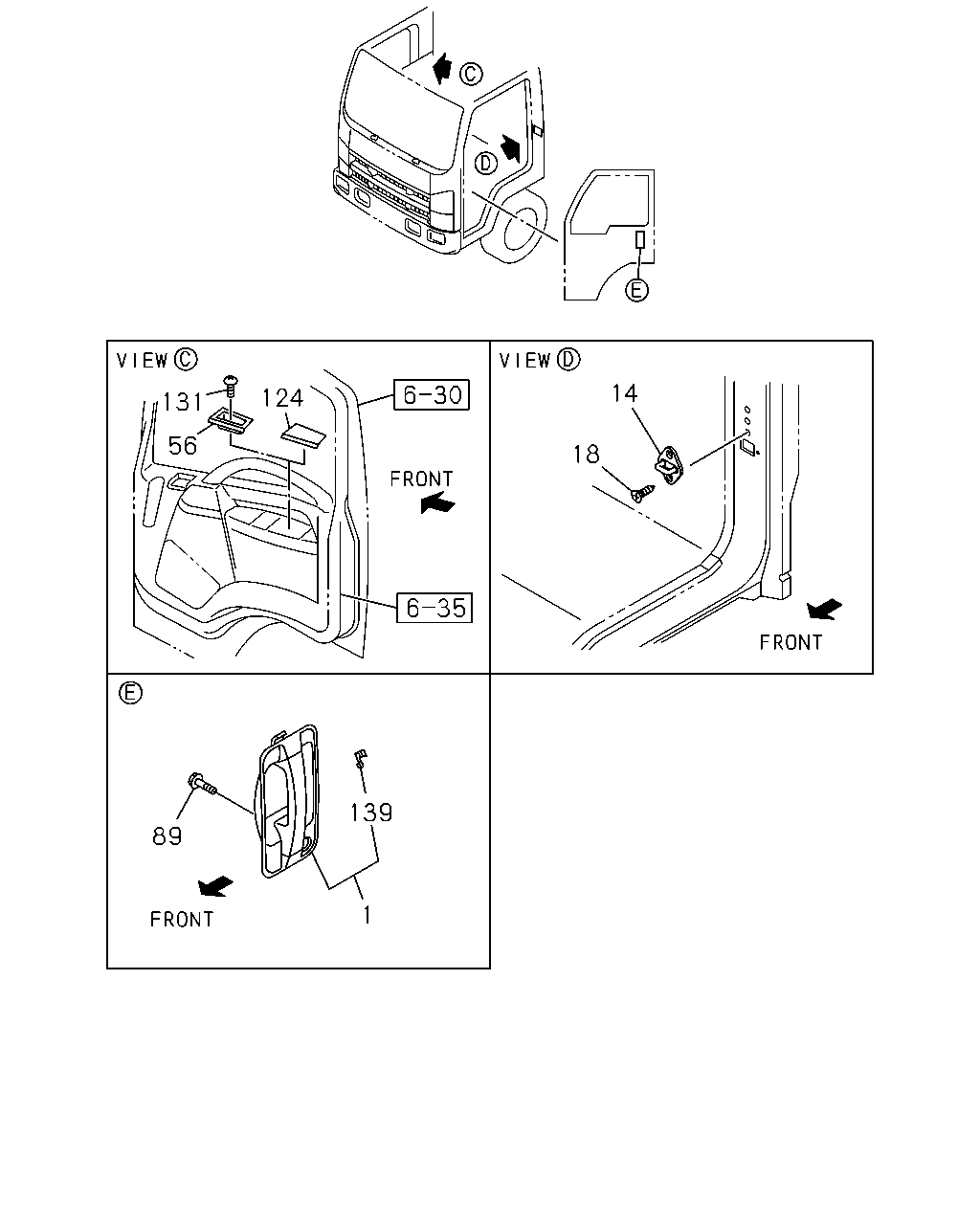

çizim 176216
131 124 89 1 139 18 14 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-98037-100-2 01 1 1012-1507 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-98037-100-2 01 1 1508- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-98037-101-2 01 1 1012-1507 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-98037-101-2 01 1 1508- ● ●
14 16.335 STRIKER; FRT DOOR 8-98029-173-2 02 1 1012-1507 ●
14 16.335 STRIKER; FRT DOOR 8-98029-173-2 02 1 1508- ● ●
18 16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 1012-1507 ●
18 16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 1508- ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
DOOR PARTS EQUIPMENT<PT8> GRAY 		8-97405-314-1 01 1 1012-1507 ●
56 16.157 ESCUTCHEON; LOCK KNOB
DOOR PARTS EQUIPMENT<PT8> GRAY 		8-97405-314-1 01 1 1508- ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
DOOR PARTS EQUIPMENT<PT8> GRAY 		8-97405-315-1 01 1 1012-1507 ●
56 16.157 ESCUTCHEON; LOCK KNOB
DOOR PARTS EQUIPMENT<PT8> GRAY 		8-97405-315-1 01 1 1508- ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 1012-1507 ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 1508- ● ●
124 16.335 COVER; DOOR PULL
EXC. DOOR PARTS EQUIPMENT<PT8> GRAY 		8-97422-055-1 01 1 1012-1507 ●
124 16.335 COVER; DOOR PULL
EXC. DOOR PARTS EQUIPMENT<PT8> GRAY 		8-97422-055-1 01 1 1508- ● ●
124 16.335 COVER; DOOR PULL
EXC. DOOR PARTS EQUIPMENT<PT8> GRAY 		8-97422-056-1 01 1 1012-1507 ●
124 16.335 COVER; DOOR PULL
EXC. DOOR PARTS EQUIPMENT<PT8> GRAY 		8-97422-056-1 01 1 1508- ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
DOOR PARTS EQUIPMENT<PT8> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1012-1507 ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
DOOR PARTS EQUIPMENT<PT8> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1508- ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
16.330 WHITE 		8-97333-303-0 01 1 1012-1507 ●
139 16.350 HOLDER; ROD,DOOR HANDLE
16.330 WHITE 		8-97333-303-0 01 1 1508- ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
BLACK 		8-98095-813-0 01 1 1012-1507 ●
139 16.350 HOLDER; ROD,DOOR HANDLE
BLACK 		8-98095-813-0 01 1 1508- ● ●

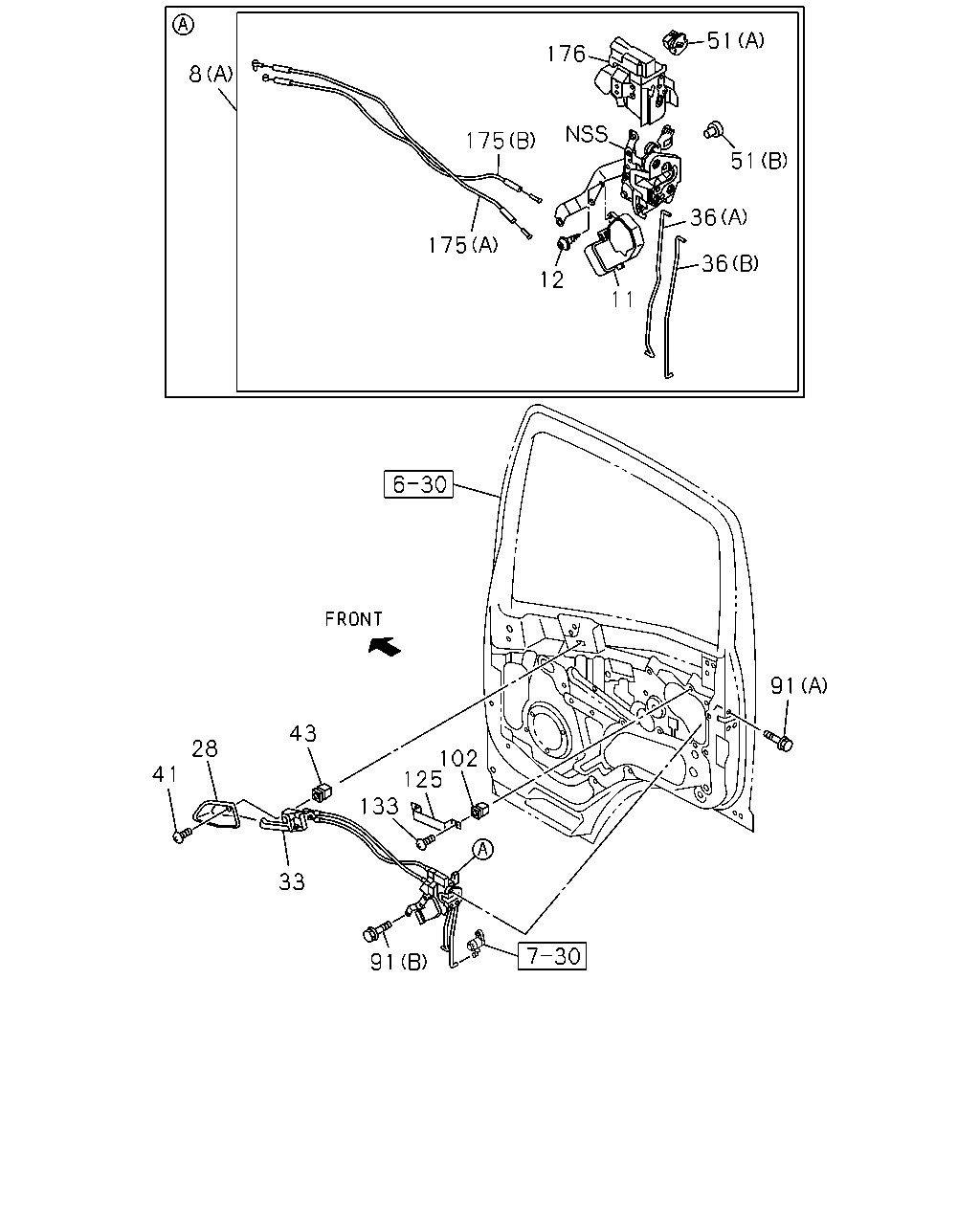

çizim 176217
36 36 51 51 176 11 12 175 175 43 102 125 133 33 28 41 8 91 91
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98029-054-3 01 1 1012- ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98029-055-2 01 1 1012- ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98029-052-2 01 1 1012-1507 ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98029-052-2 01 1 1508- ●
8 16.330 LOCK; DOOR,FRT DOOR
(B) 		8-98029-052-2 01 1 1508- ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98029-053-2 01 1 1012-1507 ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98029-053-2 01 1 1508- ●
8 16.330 LOCK; DOOR,FRT DOOR
(B) 		8-98029-053-2 01 1 1508- ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 16.345 		8-98058-231-0 01 1 1012- ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-98058-234-0 01 1 1012- ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97310-549-0 02 1 1012- ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97310-549-0 02 1 1012- ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-311-0 01 1 1012-1507 ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-311-0 01 1 1508- ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-312-0 01 1 1012-1507 ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-312-0 01 1 1508- ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-309-1 01 1 1012-1507 ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-309-1 01 1 1508- ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-310-1 01 1 1012-1507 ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-310-1 01 1 1508- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-531-0 01 1 1012-1507 ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-531-0 01 1 1508- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-532-0 01 1 1012-1507 ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-532-0 01 1 1508- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-535-0 01 1 1012-1507 ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-535-0 01 1 1508- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-536-0 01 1 1012-1507 ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-536-0 01 1 1508- ● ●
41 16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1012-1507 ●
41 16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1508- ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1012-1507 ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> (A) NATURAL 		8-98058-226-0 01 1 1012- ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> (A) BLUE 		8-98058-227-0 01 1 1012- ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(B) BLACK 		8-98058-228-0 01 1 1012-1507 ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(B) BLACK 		8-98058-228-0 01 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(B) RED 		8-98058-229-0 01 1 1012-1507 ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(B) RED 		8-98058-229-0 01 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> (A) NATURAL 		8-98058-226-0 02 1 1012-1507 ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> (A) NATURAL 		8-98058-226-0 02 1 1508- ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(A) NATURAL 		8-98058-226-0 02 1 1508- ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> (A) BLUE 		8-98058-227-0 02 1 1012-1507 ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> (A) BLUE 		8-98058-227-0 02 1 1508- ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(A) BLUE 		8-98058-227-0 02 1 1508- ●
91 16.330 BOLT; DOOR LOCK
AUTO DOOR LOCK<AU4> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1012- ●
91 16.330 BOLT; DOOR LOCK
(A) M6X14.5 		8-98004-342-0 06 1 1012-1507 ●
91 16.330 BOLT; DOOR LOCK
(A) M6X14.5 		8-98004-342-0 06 1 1508- ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
DOOR PARTS EQUIPMENT<PT8> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1012-1507 ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
DOOR PARTS EQUIPMENT<PT8> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1508- ● ●
125 16.341 BRACKET; DOOR PULL
DOOR PARTS EQUIPMENT<PT8> 		8-97585-927-0 02 1 1012-1507 ●
125 16.341 BRACKET; DOOR PULL
DOOR PARTS EQUIPMENT<PT8> 		8-97585-927-0 02 1 1508- ● ●
133 16.345 SCREW; DOOR PULL STAY
DOOR PARTS EQUIPMENT<PT8> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1012-1507 ●
133 16.345 SCREW; DOOR PULL STAY
DOOR PARTS EQUIPMENT<PT8> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 01 1 1012- ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 01 1 1012- ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-537-0 01 1 1012-1507 ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-537-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-538-0 01 1 1012-1507 ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-538-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 02 1 1012-1507 ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 02 1 1508- ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 02 1 1508- ●
176 16.270 COVER; DOOR LOCK 8-98058-238-0 01 1 1012-1507 ●
176 16.270 COVER; DOOR LOCK 8-98058-238-0 01 1 1508- ● ●
176 16.270 COVER; DOOR LOCK 8-98058-239-0 01 1 1012-1507 ●
176 16.270 COVER; DOOR LOCK 8-98058-239-0 01 1 1508- ● ●

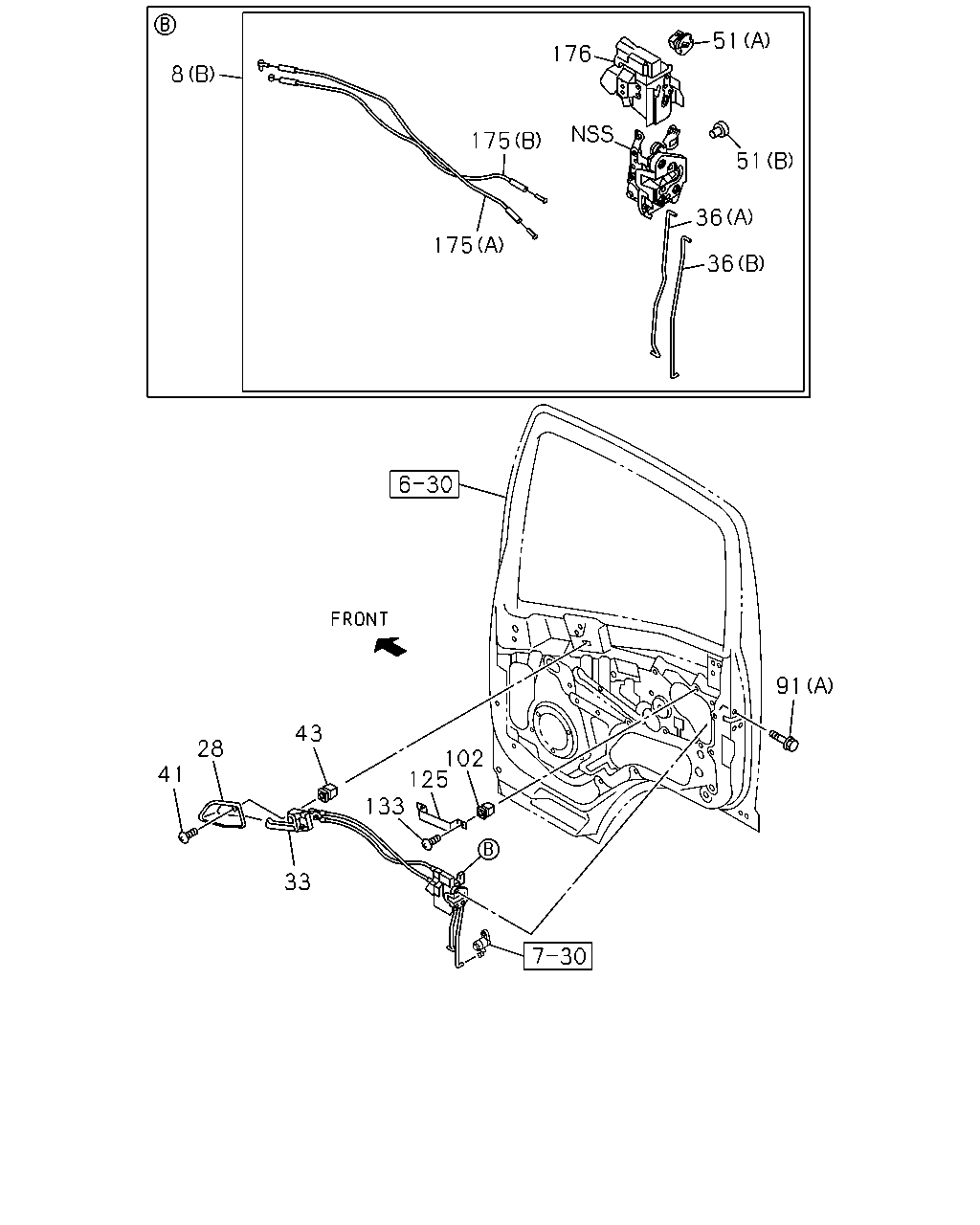

çizim 176287
8 175 176 51 175 36 51 36 41 43 133 33 125 102 91 28
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98029-054-3 01 1 1012- ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98029-055-2 01 1 1012- ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98029-052-2 01 1 1012-1507 ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98029-052-2 01 1 1508- ●
8 16.330 LOCK; DOOR,FRT DOOR
(B) 		8-98029-052-2 01 1 1508- ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98029-053-2 01 1 1012-1507 ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98029-053-2 01 1 1508- ●
8 16.330 LOCK; DOOR,FRT DOOR
(B) 		8-98029-053-2 01 1 1508- ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-311-0 01 1 1012-1507 ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-311-0 01 1 1508- ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-312-0 01 1 1012-1507 ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-312-0 01 1 1508- ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-309-1 01 1 1012-1507 ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-309-1 01 1 1508- ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-310-1 01 1 1012-1507 ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-310-1 01 1 1508- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-531-0 01 1 1012-1507 ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-531-0 01 1 1508- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-532-0 01 1 1012-1507 ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-532-0 01 1 1508- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-535-0 01 1 1012-1507 ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-535-0 01 1 1508- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-536-0 01 1 1012-1507 ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-536-0 01 1 1508- ● ●
41 16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1012-1507 ●
41 16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1508- ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1012-1507 ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> (A) NATURAL 		8-98058-226-0 01 1 1012- ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> (A) BLUE 		8-98058-227-0 01 1 1012- ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(B) BLACK 		8-98058-228-0 01 1 1012-1507 ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(B) BLACK 		8-98058-228-0 01 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(B) RED 		8-98058-229-0 01 1 1012-1507 ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(B) RED 		8-98058-229-0 01 1 1508- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> (A) NATURAL 		8-98058-226-0 02 1 1012-1507 ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> (A) NATURAL 		8-98058-226-0 02 1 1508- ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(A) NATURAL 		8-98058-226-0 02 1 1508- ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> (A) BLUE 		8-98058-227-0 02 1 1012-1507 ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> (A) BLUE 		8-98058-227-0 02 1 1508- ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
(A) BLUE 		8-98058-227-0 02 1 1508- ●
91 16.330 BOLT; DOOR LOCK
AUTO DOOR LOCK<AU4> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1012- ●
91 16.330 BOLT; DOOR LOCK
(A) M6X14.5 		8-98004-342-0 06 1 1012-1507 ●
91 16.330 BOLT; DOOR LOCK
(A) M6X14.5 		8-98004-342-0 06 1 1508- ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
DOOR PARTS EQUIPMENT<PT8> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1012-1507 ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
DOOR PARTS EQUIPMENT<PT8> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1508- ● ●
125 16.341 BRACKET; DOOR PULL
DOOR PARTS EQUIPMENT<PT8> 		8-97585-927-0 02 1 1012-1507 ●
125 16.341 BRACKET; DOOR PULL
DOOR PARTS EQUIPMENT<PT8> 		8-97585-927-0 02 1 1508- ● ●
133 16.345 SCREW; DOOR PULL STAY
DOOR PARTS EQUIPMENT<PT8> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1012-1507 ●
133 16.345 SCREW; DOOR PULL STAY
DOOR PARTS EQUIPMENT<PT8> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 01 1 1012- ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 01 1 1012- ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-537-0 01 1 1012-1507 ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-537-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-538-0 01 1 1012-1507 ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98058-538-0 01 1 1508- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 02 1 1012-1507 ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98058-539-0 02 1 1508- ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 02 1 1508- ●
176 16.270 COVER; DOOR LOCK 8-98058-238-0 01 1 1012-1507 ●
176 16.270 COVER; DOOR LOCK 8-98058-238-0 01 1 1508- ● ●
176 16.270 COVER; DOOR LOCK 8-98058-239-0 01 1 1012-1507 ●
176 16.270 COVER; DOOR LOCK 8-98058-239-0 01 1 1508- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
