◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51301 - NPS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#49500) — 226 parça

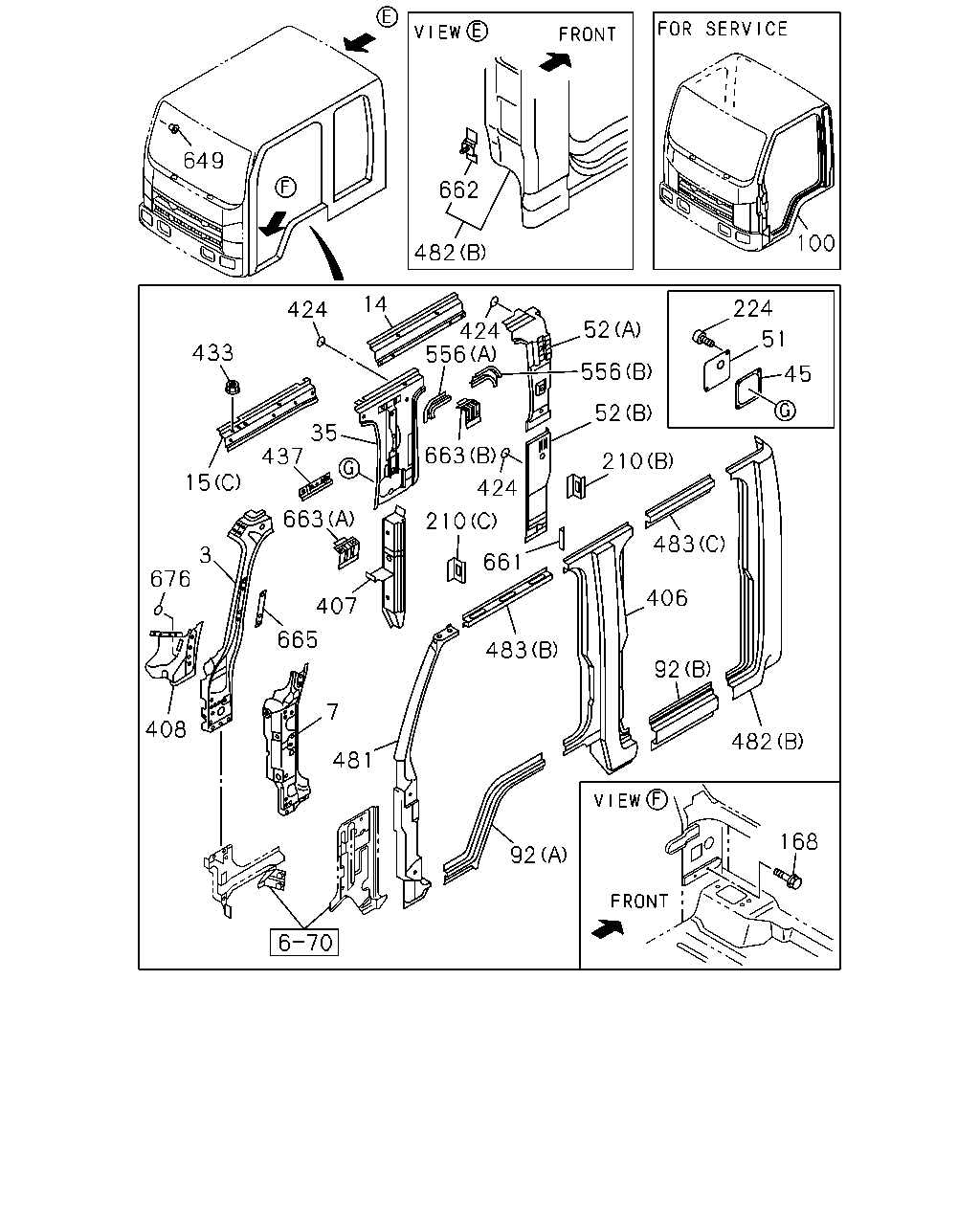

çizim 176215
649 662 482 100 224 45 51 483 210 52 556 52 424 556 663 210 661 483 406 92 482 168 92 481 7 665 676 408 15 433 424 35 437 663 407 424 14 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1012-1507 ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1508- ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1012-1507 ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1508- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1012-1507 ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1508- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1012-1507 ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1508- ● ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 02 1 1508- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1508- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1508- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1012- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1012- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1012- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1012- ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-97583-703-4 01 1 1508- ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98013-489-4 01 1 1508- ●
45 16.570 SEAL; B-C POST 8-97853-731-2 02 1 1508- ●
51 16.570 COVER; HOLE,B-C POST 8-94273-658-0 02 1 1508- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-707-4 01 1 1508- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-708-4 01 1 1508- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-779-2 01 1 1508- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-780-2 01 1 1508- ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 1508- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1012-1507 ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1508- ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1012-1507 ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1508- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1508- ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1508- ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1012- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1012- ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1012-1507 ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1508- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1508- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1508- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1508- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1508- ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1012- ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1012- ●
224 16.570 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1508- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1012- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1012- ●
406 16.570 PILLAR; CENTER 8-98069-085-0 01 1 1508- ●
406 16.570 PILLAR; CENTER 8-98069-086-0 01 1 1508- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 1508- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 1508- ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1012-1507 ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1508- ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1012-1507 ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1508- ● ●
424 16.570 SEAL; CLOSING
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR TRANS BLUE (999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 1508- ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 12 1 1508- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1508- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1012-1204 ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1205- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1205- ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1012-1507 ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1508- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1012-1507 ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1508- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1012-1507 ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1508- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1012-1507 ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1508- ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1508- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1508- ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 1012- ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1012- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1508- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1508- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 1508- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1012- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1012- ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 1508- ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 1508- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 1508- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 1508- ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1012-1507 ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1508- ● ●
661 16.570 BRACKET; SIDE PANEL 8-98012-621-1 01 1 1508- ●
661 16.570 BRACKET; SIDE PANEL 8-98012-623-1 01 1 1508- ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 1508- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1012- ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 02 1 1508- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1012-1507 ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1508- ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1012-1507 ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1508- ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1508- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1012-1204 ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1205- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1205- ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1012-1507 ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1508- ● ●

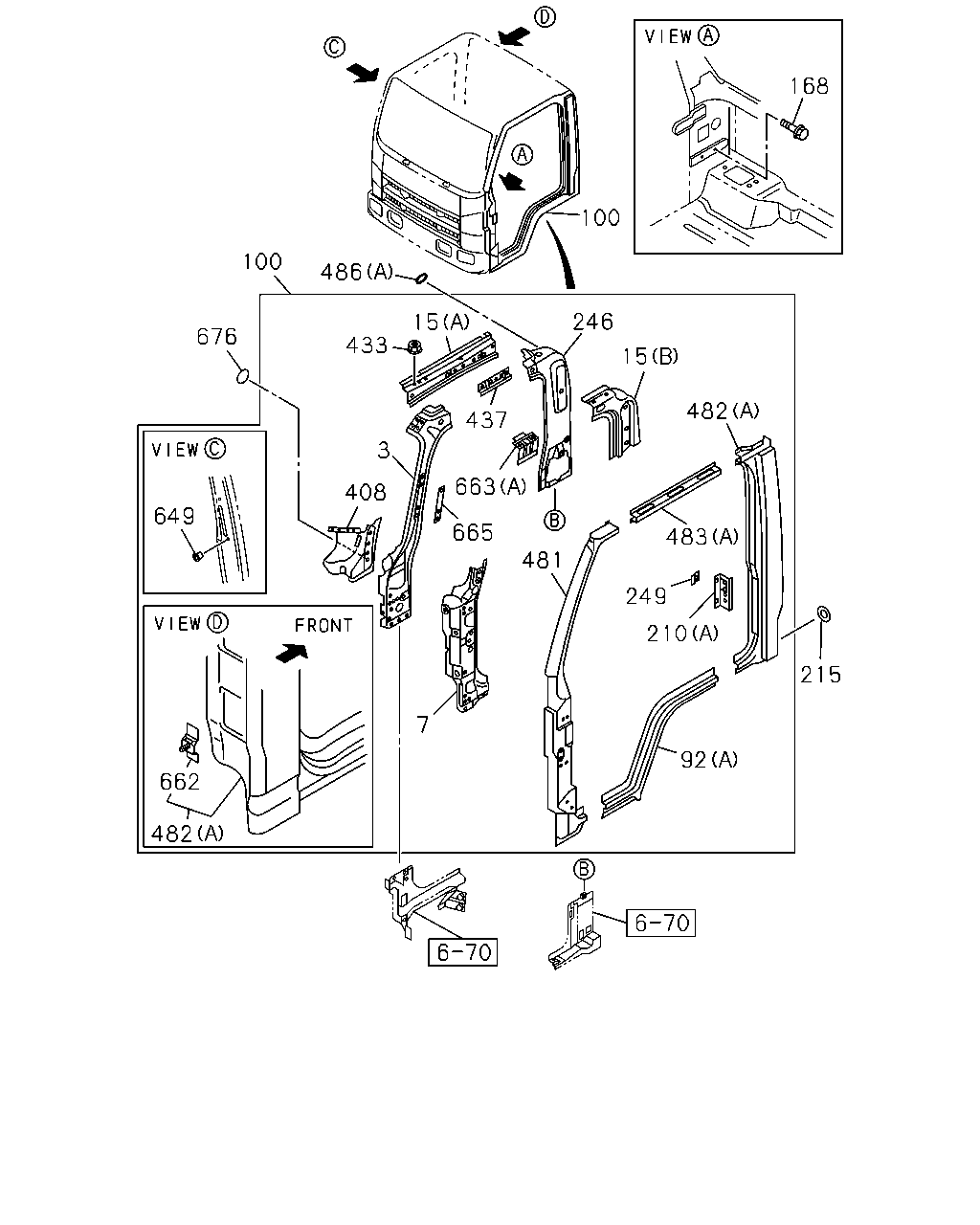

çizim 176224
92 215 210 249 483 482 15 146 437 663 665 7 481 15 433 408 3 649 662 482 676 100 168 486 100
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1012-1507 ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1508- ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1012-1507 ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1508- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1012-1507 ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1508- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1012-1507 ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1508- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1508- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1508- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1012- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1012- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1012- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1012- ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 1508- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1012-1507 ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1508- ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1012-1507 ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1508- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1508- ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1508- ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1012- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1012- ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1012-1507 ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1508- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1508- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1508- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1508- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1508- ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1012- ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1012- ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1012- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1012- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1012- ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 02 1 1012-1204 ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1205- ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1205- ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1012-1507 ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1508- ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1012-1507 ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1508- ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1508- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1012-1204 ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1205- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1205- ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1012-1507 ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1508- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1012-1507 ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1508- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1012-1507 ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1508- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1012-1507 ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1508- ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1508- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1508- ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 1012- ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1012- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1508- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1508- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 1508- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1012- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1012- ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1508- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1012- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1012- ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1012-1507 ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1508- ● ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 1508- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1012- ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 02 1 1508- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1012-1507 ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1508- ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1012-1507 ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1508- ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1508- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1012-1204 ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1205- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1205- ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1012-1507 ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1508- ● ●

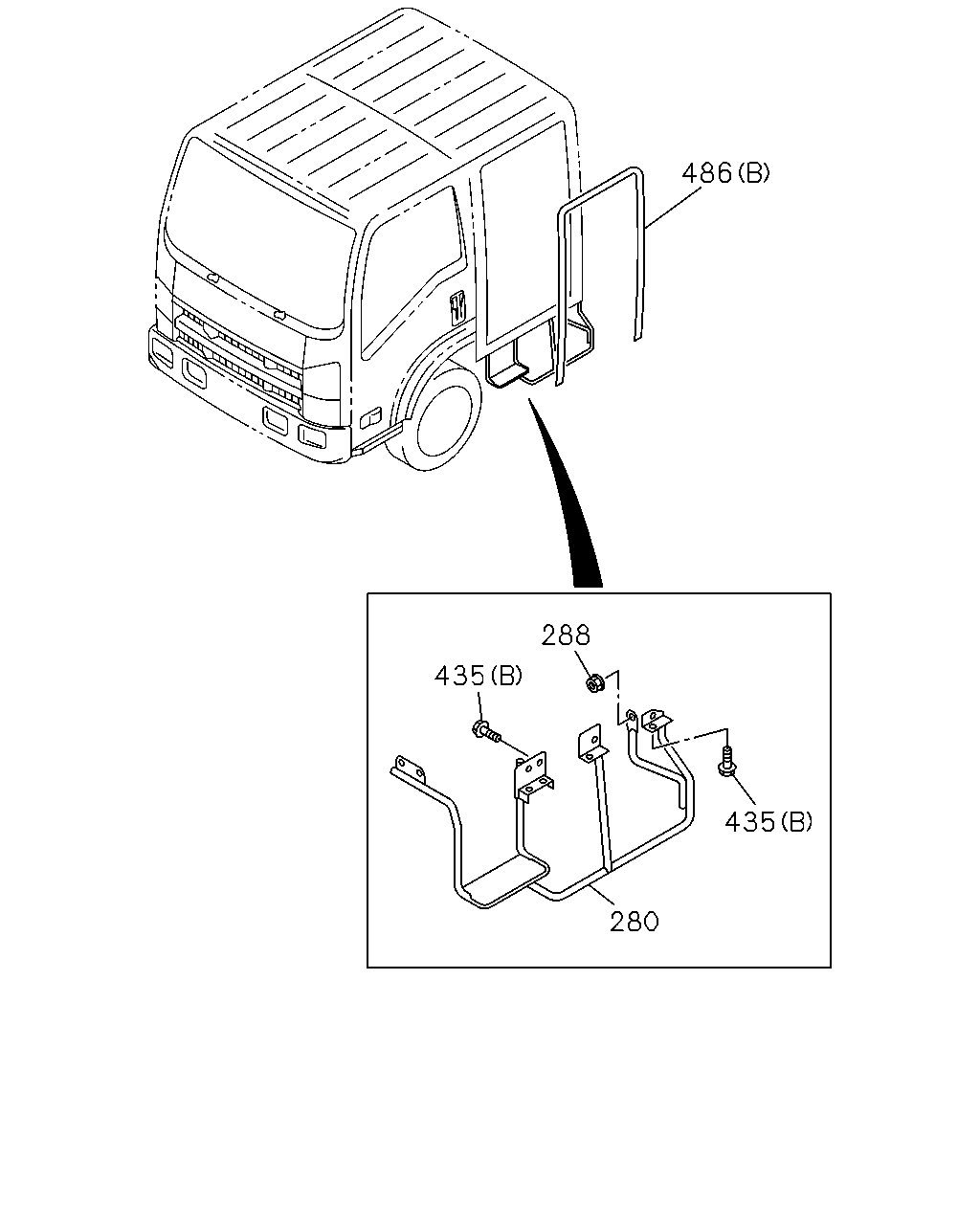

çizim 513149
288 435 486 435 280
BalonParca AdiParca NoAdetTipApplied Date A B
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1012- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1012- ●
280 08.225 STEP ASM; RR 8-98075-436-2 01 1 1508- ●
280 08.225 STEP ASM; RR 8-98075-437-2 01 1 1508- ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 04 1 1508- ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 08 1 1012-1507 ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 08 1 1508- ● ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 08 1 1508- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1012-1507 ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1508- ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1508- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1012- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1012- ●

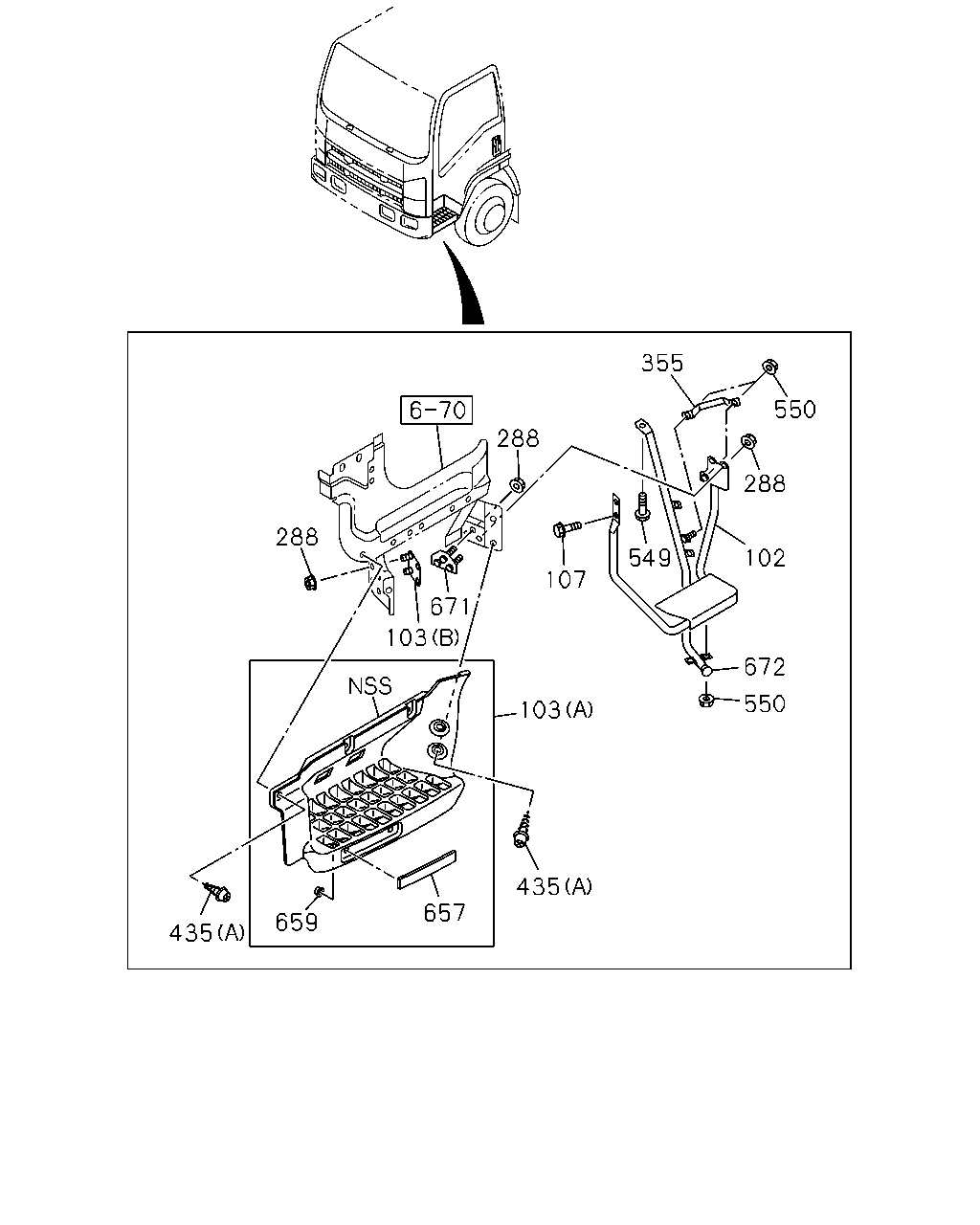

çizim 513892
288 671 103 107 288 355 550 288 102 672 550 103 657 659 435 549 435
BalonParca AdiParca NoAdetTipApplied Date A B
102 12.934 STEP; BODY SIDE 8-98070-082-0 01 1 1012-1507 ●
102 12.934 STEP; BODY SIDE 8-98070-082-0 01 1 1508- ● ●
102 12.934 STEP; BODY SIDE 8-98070-083-0 01 1 1012-1507 ●
102 12.934 STEP; BODY SIDE 8-98070-083-0 01 1 1508- ● ●
103 08.228 PLATE; STEP
(B) 		8-98070-091-1 01 1 1012-1507 ●
103 08.228 PLATE; STEP
(B) 		8-98070-091-1 01 1 1508- ● ●
103 08.228 PLATE; STEP
(B) 		8-98070-092-1 01 1 1012-1507 ●
103 08.228 PLATE; STEP
(B) 		8-98070-092-1 01 1 1508- ● ●
103 08.228 PLATE; STEP
(A) 		8-98077-158-0 01 1 1012-1507 ●
103 08.228 PLATE; STEP
(A) 		8-98077-158-0 01 1 1508- ● ●
103 08.228 PLATE; STEP
(A) 		8-98077-159-0 01 1 1012-1507 ●
103 08.228 PLATE; STEP
(A) 		8-98077-159-0 01 1 1508- ● ●
107 08.228 BOLT; SIDE STEP
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012-1507 ●
107 08.228 BOLT; SIDE STEP
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1508- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1012- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1012- ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 04 1 1508- ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 08 1 1012-1507 ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 08 1 1508- ● ●
355 08.225 STAY 8-98070-088-1 02 1 1012-1507 ●
355 08.225 STAY 8-98070-088-1 02 1 1508- ● ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 08 1 1508- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1012-1507 ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1508- ● ●
549 08.225 BOLT; STAY
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1507 ●
549 08.225 BOLT; STAY
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1508- ● ●
550 16.714 NUT; STAY
01.062 M8 FLANGE 		0-91180-108-0 08 1 1012-1507 ●
550 16.714 NUT; STAY
01.062 M8 FLANGE 		0-91180-108-0 08 1 1508- ● ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1012-1507 ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1508- ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1012-1507 ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1508- ● ●
671 16.575 PLATE; STEP RR 8-98070-093-0 02 1 1012-1507 ●
671 16.575 PLATE; STEP RR 8-98070-093-0 02 1 1508- ● ●
672 08.225 STAY; STEP 8-98070-085-0 01 1 1012-1507 ●
672 08.225 STAY; STEP 8-98070-085-0 01 1 1508- ● ●
672 08.225 STAY; STEP 8-98070-086-0 01 1 1012-1507 ●
672 08.225 STAY; STEP 8-98070-086-0 01 1 1508- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
