2-25 — SPEEDOMETER DRIVEN GEAR (#495) — 66 parça

32 33 57 33 32 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X16,M12X35 L=59	1-09029-031-0	02	1	8712-9001	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 10PC1 STD ENG(10L) (A) M10X16,M12X35 L=59	1-09029-031-0	02	1	8712-9001		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	9-02351-235-0	07	1	8712-9001	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 10PC1 STD ENG(10L) (B) M12X35	9-02351-235-0	07	1	8712-9001		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	9-02351-235-0	10	1	8902-9005	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	0-23801-235-0	10	1	9006-9205			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35 W/LK&PL WASHER	0-50151-235-0	10	1	9206-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X16,M12X35 L=59	1-09029-031-1	02	1	9002-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (A) M10X16,M12X35 L=59	1-09029-031-0	01	1	8712-9001		●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (B) M12X35	9-02351-235-0	08	1	8712-9001		●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X45	9-02351-245-0	03	1	8712-9205		●		●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X45	0-50151-245-0	03	1	9206-				●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X16,M12X35 L=59	1-09029-031-1	01	1	9002-				●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	9-02351-235-0	08	1	9002-9005				●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	0-23801-235-0	08	1	9006-9205				●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35 W/LK&PL WASHER	0-50151-235-0	08	1	9206-				●	●	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	12	1	8712-9205	●	●	●	●	●	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	02	1	9206-			●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	01	1	9206-				●	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	02	1	9206-			●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	01	1	9206-				●	●	●

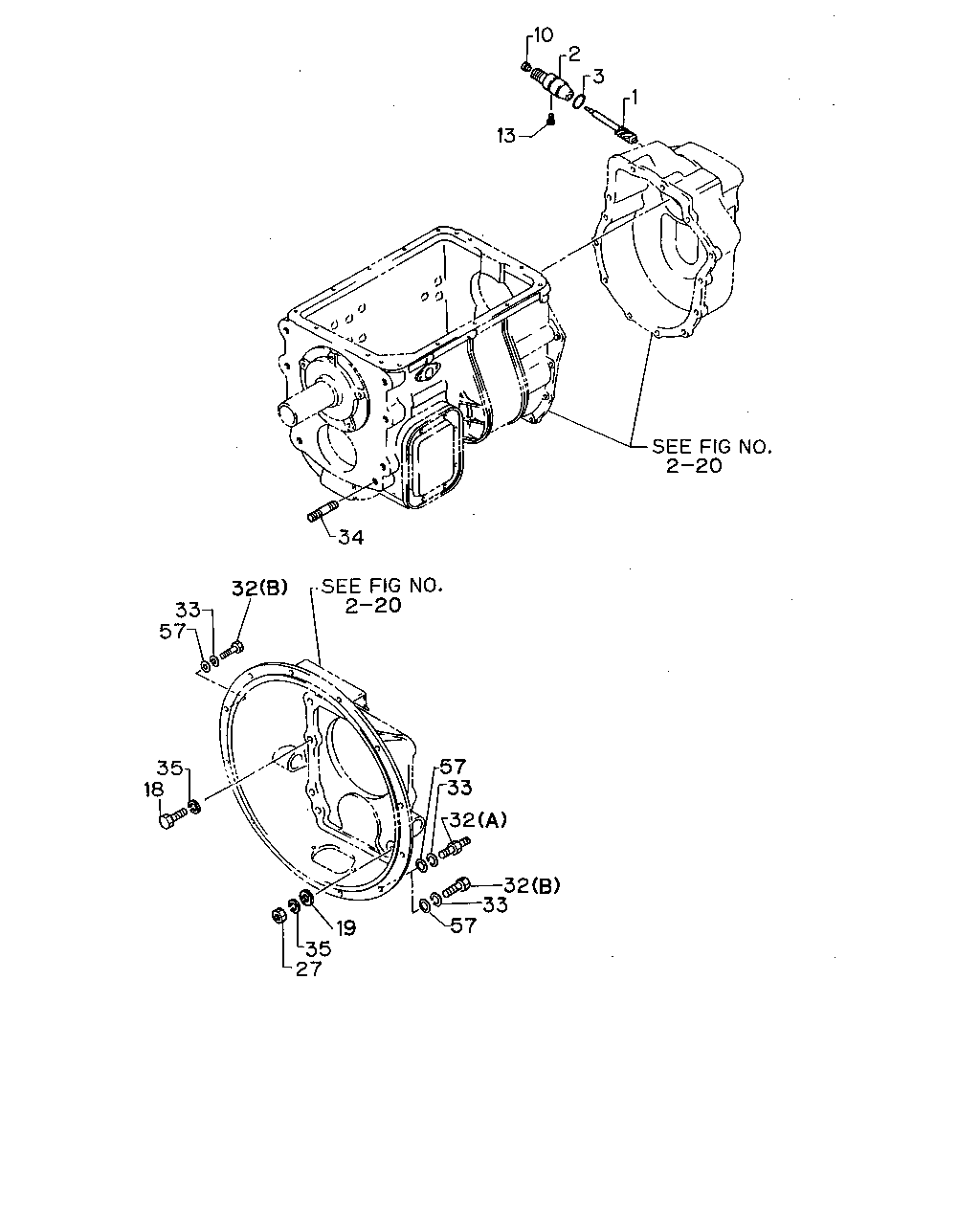

10 2 3 1 13 34 32 33 57 35 18 27 35 19 57 33 32 32 33 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	GEAR; DRIVEN,SPD FINAL GEAR 43/6 17.5"(W3U) RR TIRE 11.00-20 BIAS<86X> Z=16	1-33372-084-3	01	1	8902-9001	●
1	GEAR; DRIVEN,SPD FINAL GEAR 43/6 17.5"(W3U) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>, RRTIRE 10.00-20 BIAS<88X> Z=17	1-33372-153-1	01	1	8902-9001	●
1	GEAR; DRIVEN,SPD FINAL GEAR 43/7 17.5"(W3Y) Z=20	1-33372-146-2	01	1	8902-9001	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	9307-			●
1	GEAR; DRIVEN,SPD FINAL GEAR 43/6 17.5"(W3U) RR TIRE 11.00-20<97X> Z=16	1-33372-084-3	01	1	9002-9306			●
1	GEAR; DRIVEN,SPD FINAL GEAR 41/6 17.5"(W4W) Z=16	1-33372-084-3	01	1	9002-9306			●
1	GEAR; DRIVEN,SPD FINAL GEAR 43/6 17.5"(W3U) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>, RRTIRE 10.00-20<96X> Z=17	1-33372-153-1	01	1	9002-9306			●
1	GEAR; DRIVEN,SPD FINAL GEAR 43/7 17.5"(W3Y) Z=20	1-33372-146-2	01	1	9002-9306			●
1	GEAR; DRIVEN,SPD FINAL GEAR 45/7 17.5"(W3X) Z=15	1-33372-147-2	01	1	9002-9306			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-056-2	01	1	8902-9309	●		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-074-0	01	1	9310-9604			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	9605-			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	8902-	●		●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-113-0	01	1	8902-9003	●		●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9004-			●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	8902-	●		●
18	BOLT; CLU HSG TO TRANS M16X50	9-92351-650-0	06	1	8902-9005	●		●
18	BOLT; CLU HSG TO TRANS M16X50	0-23801-650-0	06	1	9006-9203			●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	9204-			●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9204-			●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	8902-	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X16,M12X35 L=59	1-09029-031-0	02	1	8712-9001	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 10PC1 STD ENG(10L) (A) M10X16,M12X35 L=59	1-09029-031-0	02	1	8712-9001		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	9-02351-235-0	07	1	8712-9001	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 10PC1 STD ENG(10L) (B) M12X35	9-02351-235-0	07	1	8712-9001		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	9-02351-235-0	10	1	8902-9005	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	0-23801-235-0	10	1	9006-9205			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35 W/LK&PL WASHER	0-50151-235-0	10	1	9206-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X16,M12X35 L=59	1-09029-031-1	02	1	9002-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (A) M10X16,M12X35 L=59	1-09029-031-0	01	1	8712-9001		●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (B) M12X35	9-02351-235-0	08	1	8712-9001		●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X45	9-02351-245-0	03	1	8712-9205		●		●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X45	0-50151-245-0	03	1	9206-				●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X16,M12X35 L=59	1-09029-031-1	01	1	9002-				●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	9-02351-235-0	08	1	9002-9005				●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35	0-23801-235-0	08	1	9006-9205				●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M12X35 W/LK&PL WASHER	0-50151-235-0	08	1	9206-				●	●	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	12	1	8712-9205	●	●	●	●	●	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	02	1	9206-			●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	01	1	9206-				●	●	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	8902-	●		●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-616-0	08	1	8902-9203	●		●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9204-			●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	02	1	9206-			●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	01	1	9206-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
