6-05 — FRONT PANEL (#49498) — 146 parça

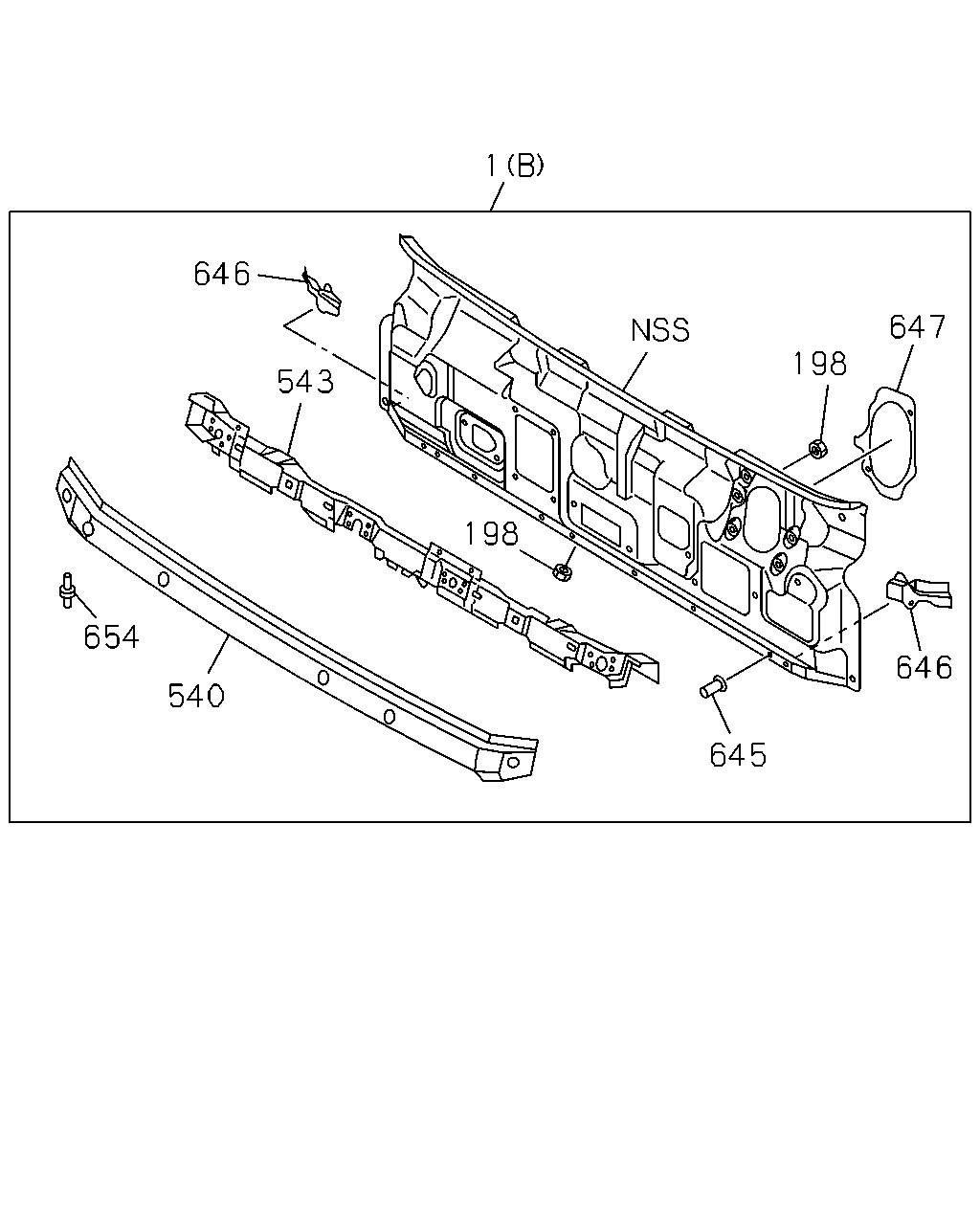

çizim 176211
1 647 646 645 540 654 646 543 198 198
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT
(B) 		8-97585-324-9 01 1 1012-1102 ●
1 16.550 PANEL ASM; FRT
(B) 		8-98181-027-0 01 1 1103-1507 ●
1 16.550 PANEL ASM; FRT
(B) 		8-98181-027-0 01 1 1508- ● ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1012-1507 ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1508- ● ●
198 16.125 NUT; PANEL
16.545 M6 		9-09114-086-0 04 1 1012-1507 ●
198 16.125 NUT; PANEL
16.545 M6 		9-09114-086-0 04 1 1508- ● ●
540 16.588 PANEL; FRONT,OUTER 8-97585-325-3 01 1 1012-1507 ●
540 16.588 PANEL; FRONT,OUTER 8-97585-325-3 01 1 1508- ● ●
543 16.570 CLOSING; FRT MTG RAIL 8-97585-328-5 01 1 1012-1507 ●
543 16.570 CLOSING; FRT MTG RAIL 8-97585-328-5 01 1 1508- ● ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1012-1507 ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1508- ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1012-1507 ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1508- ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1012-1507 ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1508- ● ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1012-1507 ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1508- ● ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1012-1507 ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1508- ● ●

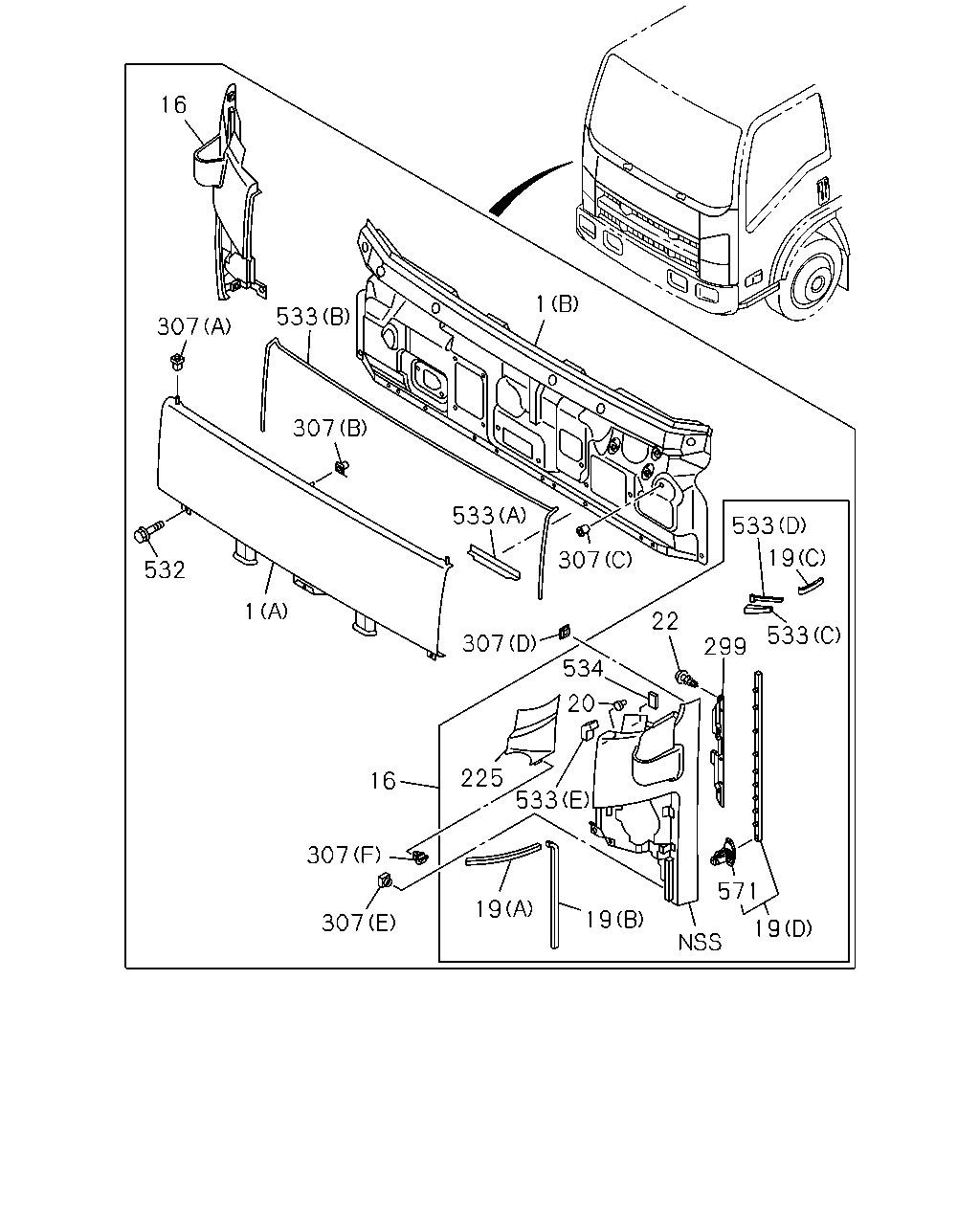

çizim 176259
533 19 533 299 22 307 533 307 1 532 307 533 1 571 19 19 19 307 307 16 225 533 534 307 20 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT
(B) 		8-97585-324-9 01 1 1012-1102 ●
1 16.550 PANEL ASM; FRT
(B) 		8-98181-027-0 01 1 1103-1507 ●
1 16.550 PANEL ASM; FRT
(B) 		8-98181-027-0 01 1 1508- ● ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1012-1507 ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-315-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-315-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-316-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-316-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-096-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-096-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-107-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-107-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-105-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-105-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-116-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-116-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-097-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-097-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-108-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-108-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-579-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-579-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-588-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-588-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-098-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-098-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-109-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-109-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-625-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-625-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-099-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-099-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-110-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-110-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-100-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-100-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-111-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-111-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-101-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-101-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-112-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-112-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-102-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-102-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-113-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-113-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-104-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-104-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-115-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-115-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-106-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-106-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-117-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-117-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 1012- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-623-8 01 1 1012- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 1508- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 1012-1507 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 1508- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1012-1507 ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1508- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1012-1507 ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1508- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1012-1507 ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1508- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1012-1507 ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1508- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1012-1507 ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1508- ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 1012-1507 ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 1508- ● ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1012-1507 ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1508- ● ●
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1012-1507 ●
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1508- ● ●
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1012-1507 ●
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1508- ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1012-1507 ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1508- ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1012-1507 ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1508- ● ●
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1012-1507 ●
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1508- ● ●
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1012-1507 ●
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1508- ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1012-1507 ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1508- ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1012-1507 ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1508- ● ●
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1012-1507 ●
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1508- ● ●
307 16.125 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 1012-1507 ●
307 16.125 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 1508- ● ●
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1012-1507 ●
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1508- ● ●
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1012-1507 ●
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1508- ● ●
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-965-2 01 1 1012-1507 ●
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-965-2 01 1 1508- ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 1012-1506 ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1507-1507 ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1508- ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1012-1507 ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1508- ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1012-1507 ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1508- ● ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1012-1507 ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1508- ● ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1012-1507 ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1508- ● ●
534 16.550 FASTENER
20X30 		8-98059-208-1 02 1 1012-1507 ●
534 16.550 FASTENER
20X30 		8-98059-208-1 02 1 1508- ● ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 1012-1507 ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 1508- ● ●
çizim 513760
524 523
BalonParca AdiParca NoAdetTipApplied Date A B
523 08.212 COVER; FENDER RR 8-97410-295-2 01 1 1508- ●
523 08.212 COVER; FENDER RR 8-97410-296-2 01 1 1508- ●
524 08.212 CLIP; FENDER COVER
OD=8.5 GRAY 		8-97893-482-0 06 1 1508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
