◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51301 - NPS-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#49494) — 23 parça

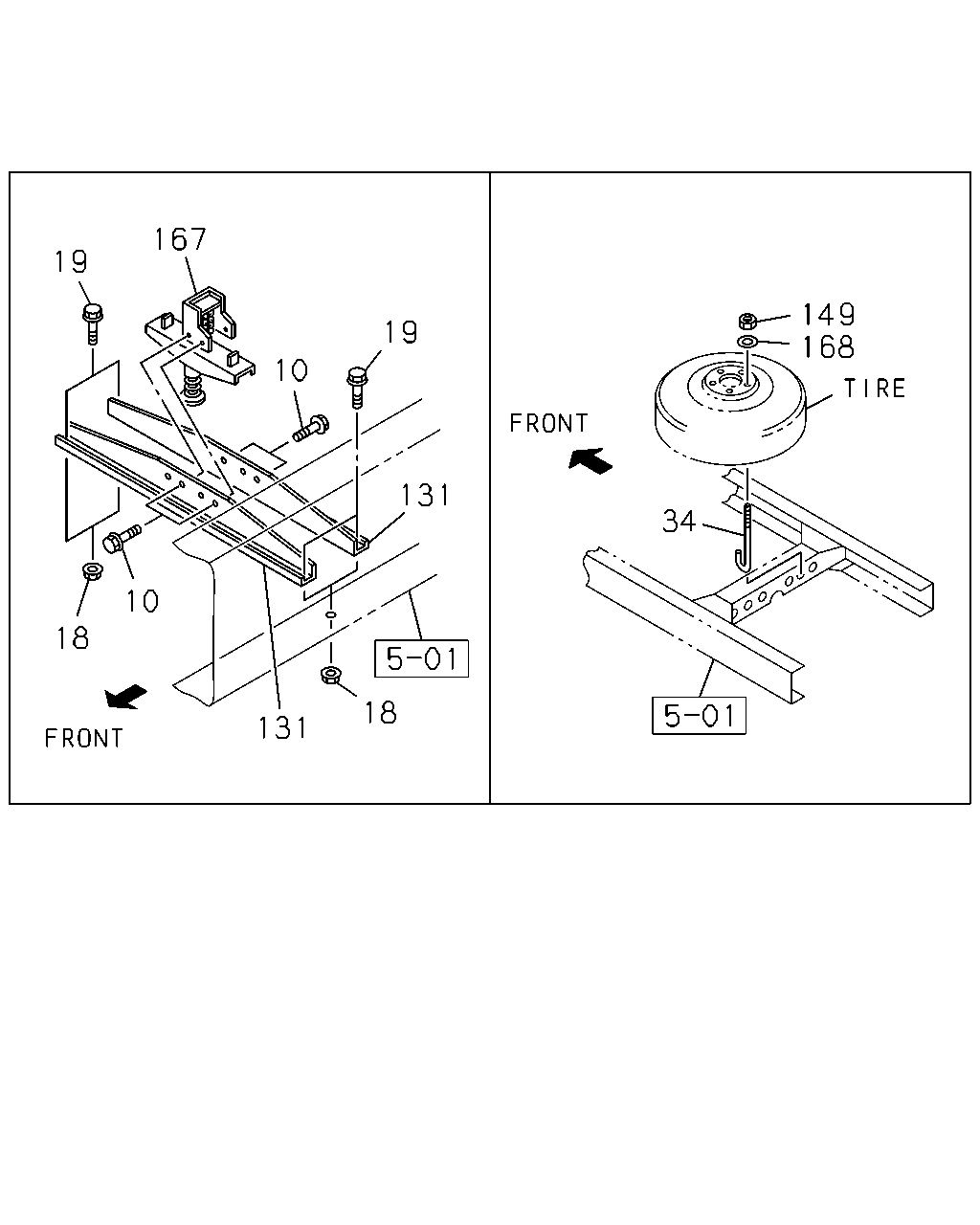

çizim 176209
19 167 10 19 131 10 18 131 18 34 149 168
BalonParca AdiParca NoAdetTipApplied Date A B
10 07.632 BOLT; TIRE HANGER
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012-1507 ●
10 07.632 BOLT; TIRE HANGER
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1508- ● ●
18 07.633 NUT; MEMBER
03.162 M10 FLANGE 		0-91180-110-0 04 1 1012-1507 ●
18 07.633 NUT; MEMBER
03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ● ●
19 07.632 BOLT; C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1012-1507 ●
19 07.632 BOLT; C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508- ● ●
34 07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305 		8-94441-189-0 02 1 1012-1209 ●
34 07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X330 		8-98226-501-0 02 1 1210-1507 ●
34 07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X330 		8-98226-501-0 02 1 1508- ●
34 07.629 BOLT; SPARE TIRE
M12X330 		8-98226-501-0 02 1 1508- ●
131 07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 		8-98035-827-1 02 1 1012-1507 ●
131 07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 		8-98035-827-1 02 1 1508- ●
131 07.629 CROSSMEMBER; SPARE TIRE 8-98035-827-1 02 1 1508- ●
131 07.629 CROSSMEMBER; SPARE TIRE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98024-842-2 02 1 1012- ●
149 07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ> 05.002 M12 		0-91110-512-0 02 1 1012-1507 ●
149 07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ> 05.002 M12 		0-91110-512-0 02 1 1508- ●
149 07.629 NUT; CARRIER
05.002 M12 		0-91110-512-0 02 1 1508- ●
167 07.629 HANGER; TIRE
FRAME STRAIGHT TYPE<7KJ> 		8-98049-238-0 01 1 1012-1507 ●
167 07.629 HANGER; TIRE
FRAME STRAIGHT TYPE<7KJ> 		8-98049-238-0 01 1 1508- ●
167 07.629 HANGER; TIRE 8-98049-238-0 01 1 1508- ●
168 07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 1012-1507 ●
168 07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 1508- ●
168 07.633 WASHER; SPARE TIRE
07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 1508- ●
