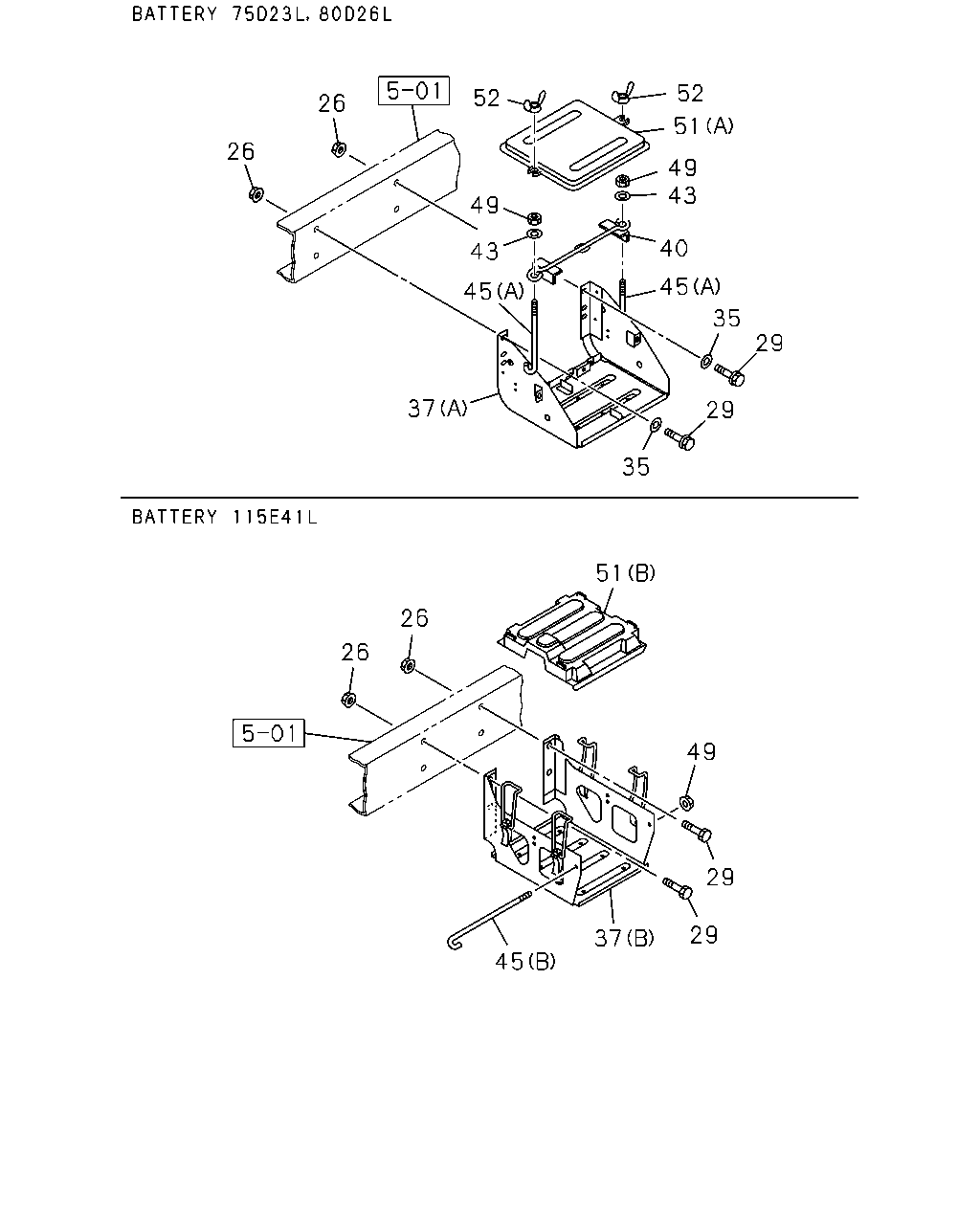

5-20 — BATTERY CARRIER (#49493) — 33 parça

26 26 52 49 43 45 37 35 29 29 35 45 40 43 49 51 52 26 26 45 51 49 29 37 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-1507	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1508-	●	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1012-1507	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1508-	●	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1012-1507	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1508-	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1508-		●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1012-1507	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1508-	●	●
37	02.333 BRACKET; BATTERY BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	1012-	●
37	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1012-1507	●
37	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1508-	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	1012-1507	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	1508-	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	1508-		●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1012-1507	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1508-	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1508-		●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (A) L=120	9-53616-615-0	02	1	1012-1507	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (A) L=120	9-53616-615-0	02	1	1508-	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) L=120	9-53616-615-0	02	1	1508-		●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1012-1507	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1508-	●	●
49	02.334 NUT; ROD,BATTERY 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1507	●
49	02.334 NUT; ROD,BATTERY 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	1012-1507	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	1508-	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	1508-		●
51	02.335 COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1012-1507	●
51	02.335 COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1508-	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1012-1507	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1508-	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	1508-		●
