Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#49491) — 190 parça

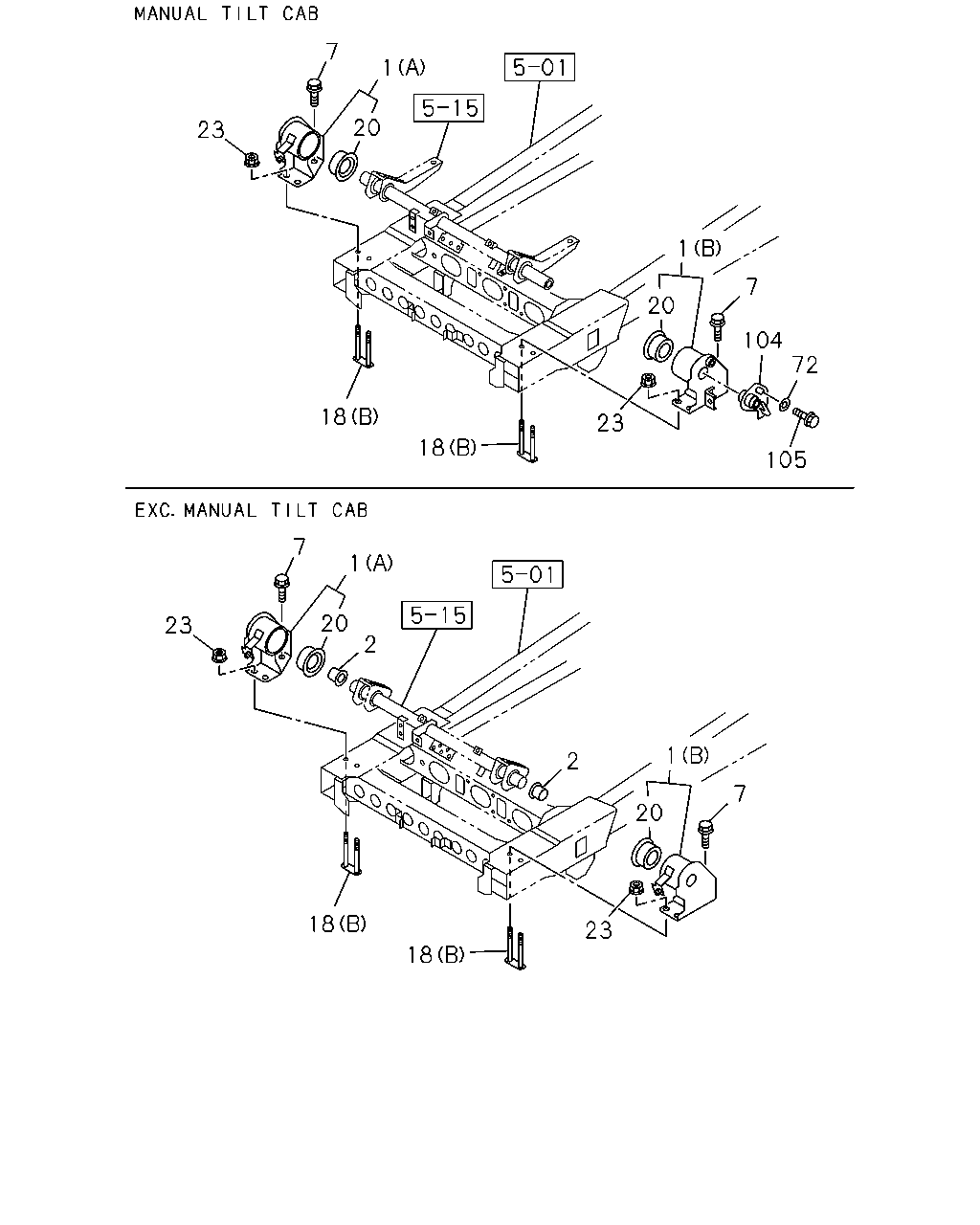

23 20 7 1 2 18 18 2 20 1 7 23 18 18 23 105 72 104 7 1 20 20 1 7 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> 16.545 (B)	8-98020-467-5	01	1	1012-	●
1	09.003 BRACKET; CAB MTG 16.545 (A)	8-98074-798-0	01	1	1012-1507	●
1	09.003 BRACKET; CAB MTG 16.545 (A)	8-98074-798-0	01	1	1508-	●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> 16.545 (B)	8-98074-800-0	01	1	1012-1507	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> 16.545 (B)	8-98074-800-0	01	1	1508-	●
1	09.003 BRACKET; CAB MTG 16.545 (B)	8-98074-800-0	01	1	1508-		●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	1012-1507	●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	1508-	●
2	09.009 BUSHING; TORSION BAR	8-97061-514-0	02	1	1508-		●
7	09.003 BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	1012-1507	●
7	09.003 BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	1508-	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1012-1507	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1508-	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1012-1507	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1508-	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	02	1	1012-1507	●
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	02	1	1508-	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	02	1	1508-		●
23	09.003 NUT; MTG BRKT M14	8-98039-989-0	04	1	1012-1507	●
23	09.003 NUT; MTG BRKT M14	8-98039-989-0	04	1	1508-	●	●
72	09.003 WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	1012-	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97383-788-1	01	1	1012-	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	1012-	●

156 151 300 149 199 199 149 156 300 151 191 191 192 18 199 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1012-1507	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1508-	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1012-1507	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1508-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=35	8-97256-684-0	02	1	1508-		●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	8-97256-686-0	02	1	1508-		●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1012-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1012-1507	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1508-	●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1508-		●
151	09.011 WASHER; CAB MTG,RR UPR 09.003 (C) ID=15 OD=36	0-91614-714-0	02	1	1508-		●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1508-		●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1012-	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1012-1507	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1508-	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1508-		●
156	07.529 NUT; CAB MTG RR 07.833 (C) M14	0-91110-514-0	04	1	1508-		●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1012-	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1012-1507	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1508-	●
156	07.529 NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1508-		●
191	09.003 BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	08	1	1012-1507	●
191	09.003 BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	08	1	1508-	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	1508-		●
191	09.003 BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	04	1	1012-	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	1012-1507	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	1508-	●	●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1012-	●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1012-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1012-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98024-776-3	01	1	1012-1101	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98178-617-1	01	1	1102-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98024-777-3	01	1	1012-1101	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98178-618-1	01	1	1102-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98024-779-1	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98024-772-1	01	1	1012-1101	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1102-1507	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG (E)	8-98099-144-1	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (F)	8-98024-778-1	01	1	1012-1507	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (F)	8-98024-778-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG (F)	8-98024-778-1	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (F)	8-98024-771-1	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-97092-102-5	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-97092-102-5	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98024-770-1	01	1	1012-	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1012-1507	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1508-	●	●

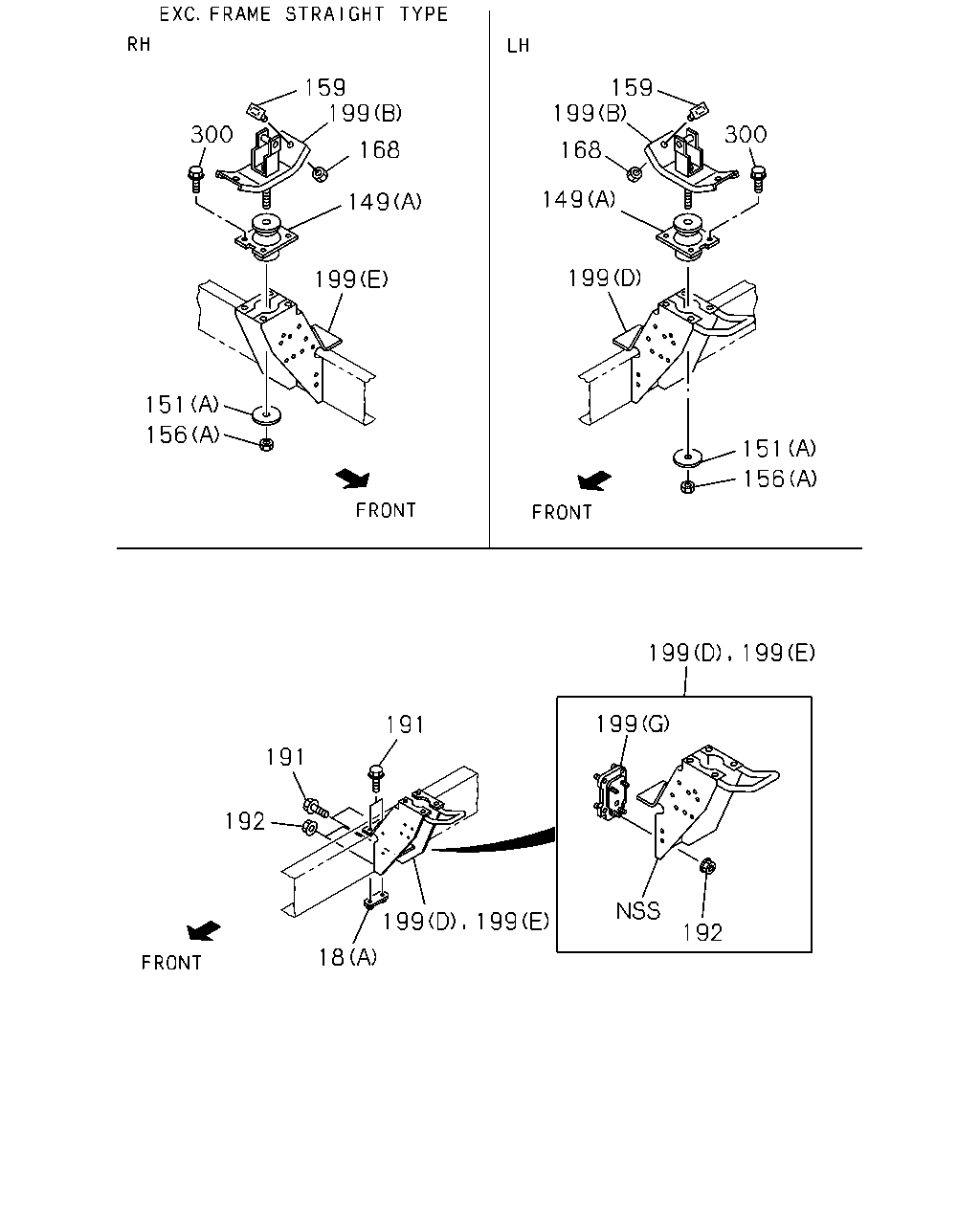

151 156 199 149 168 199 159 191 199 18 192 191 199 156 151 199 149 168 199 159 300 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1012-1507	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1508-	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1012-1507	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1508-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=35	8-97256-684-0	02	1	1508-		●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	8-97256-686-0	02	1	1508-		●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1012-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1012-1507	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1508-	●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1508-		●
151	09.011 WASHER; CAB MTG,RR UPR 09.003 (C) ID=15 OD=36	0-91614-714-0	02	1	1508-		●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1508-		●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1012-	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1012-1507	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1508-	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1508-		●
156	07.529 NUT; CAB MTG RR 07.833 (C) M14	0-91110-514-0	04	1	1508-		●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1012-	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1012-1507	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1508-	●
156	07.529 NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1508-		●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	1012-	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●
191	09.003 BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	08	1	1012-1507	●
191	09.003 BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	08	1	1508-	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	1508-		●
191	09.003 BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	04	1	1012-	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	1012-1507	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	1508-	●	●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1012-	●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1012-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1012-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98024-776-3	01	1	1012-1101	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98178-617-1	01	1	1102-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98024-777-3	01	1	1012-1101	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98178-618-1	01	1	1102-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98024-779-1	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98024-772-1	01	1	1012-1101	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1102-1507	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG (E)	8-98099-144-1	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (F)	8-98024-778-1	01	1	1012-1507	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (F)	8-98024-778-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG (F)	8-98024-778-1	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (F)	8-98024-771-1	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-97092-102-5	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-97092-102-5	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98024-770-1	01	1	1012-	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1012-1507	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1508-	●	●

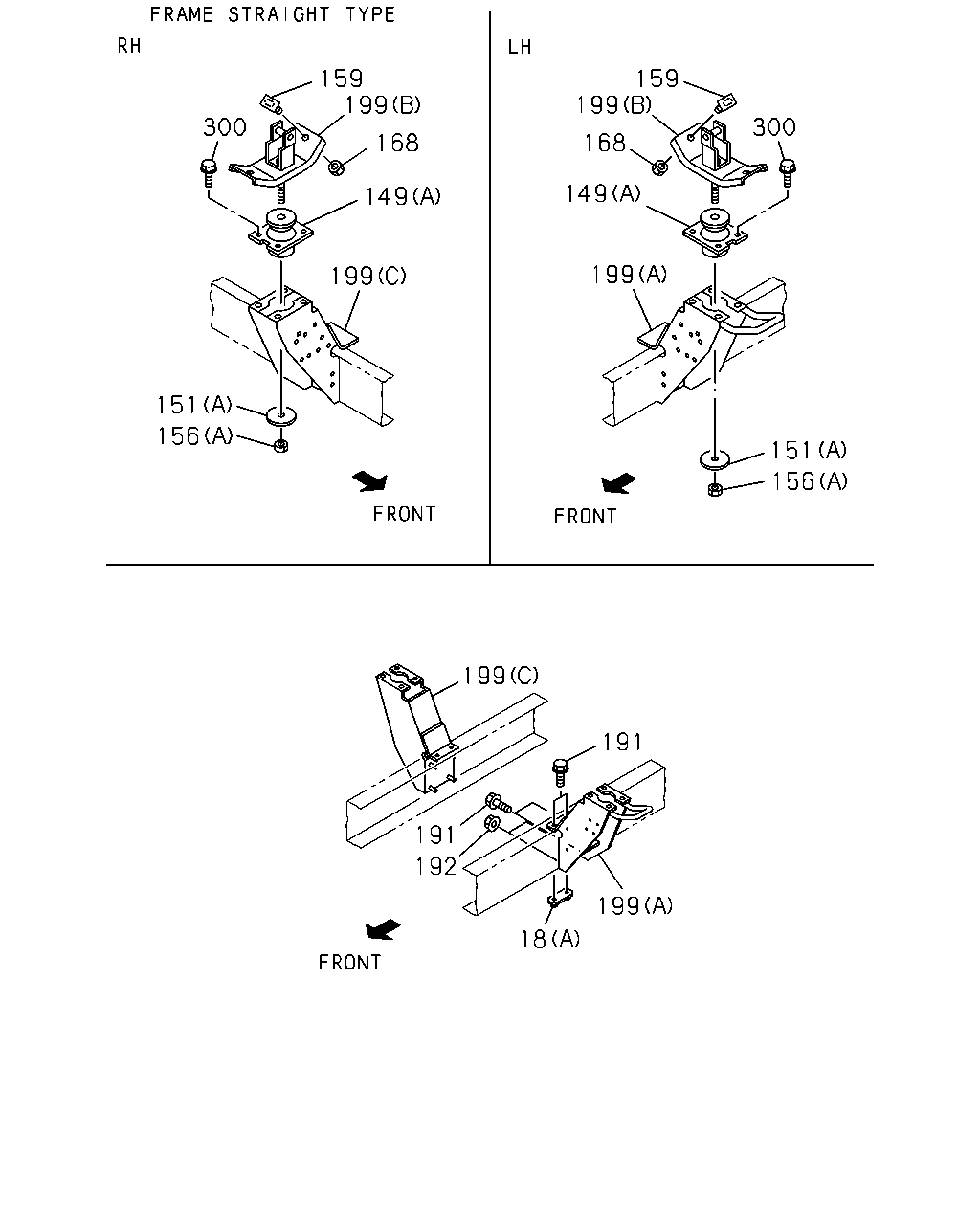

300 159 168 199 149 199 151 156 159 199 149 168 199 151 156 300 191 192 18 191 199 199 199 192 199 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1012-1507	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1508-	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1012-1507	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1508-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=35	8-97256-684-0	02	1	1508-		●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	8-97256-686-0	02	1	1508-		●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1012-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1012-1507	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1508-	●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1508-		●
151	09.011 WASHER; CAB MTG,RR UPR 09.003 (C) ID=15 OD=36	0-91614-714-0	02	1	1508-		●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1508-		●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1012-	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1012-1507	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1508-	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1508-		●
156	07.529 NUT; CAB MTG RR 07.833 (C) M14	0-91110-514-0	04	1	1508-		●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1012-	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1012-1507	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1508-	●
156	07.529 NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1508-		●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	1012-	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●
191	09.003 BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	08	1	1012-1507	●
191	09.003 BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	08	1	1508-	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	1508-		●
191	09.003 BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE	0-28651-240-0	04	1	1012-	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	1012-1507	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	1508-	●	●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1012-	●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1012-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1012-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98024-776-3	01	1	1012-1101	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98178-617-1	01	1	1102-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98024-777-3	01	1	1012-1101	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98178-618-1	01	1	1102-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98024-779-1	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98024-772-1	01	1	1012-1101	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1102-1507	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG (E)	8-98099-144-1	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (F)	8-98024-778-1	01	1	1012-1507	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (F)	8-98024-778-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG (F)	8-98024-778-1	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (F)	8-98024-771-1	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-97092-102-5	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-97092-102-5	01	1	1012-	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98024-770-1	01	1	1012-	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1012-1507	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1508-	●	●

150 157 149 149 151 151 156 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=35	8-97256-684-0	02	1	1508-		●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	8-97256-686-0	02	1	1508-		●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1012-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1012-1507	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1508-	●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1508-		●
150	09.011 BOLT; CAB MTG RR M14X110	8-97365-192-0	02	1	1508-		●
151	09.011 WASHER; CAB MTG,RR UPR 09.003 (C) ID=15 OD=36	0-91614-714-0	02	1	1508-		●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1508-		●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1012-	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1012-1507	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1508-	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1508-		●
156	07.529 NUT; CAB MTG RR 07.833 (C) M14	0-91110-514-0	04	1	1508-		●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1012-	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1012-1507	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1508-	●
156	07.529 NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1508-		●
157	09.023 RUBBER; MTG,CAB,TOP RR	8-97256-685-0	02	1	1508-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
