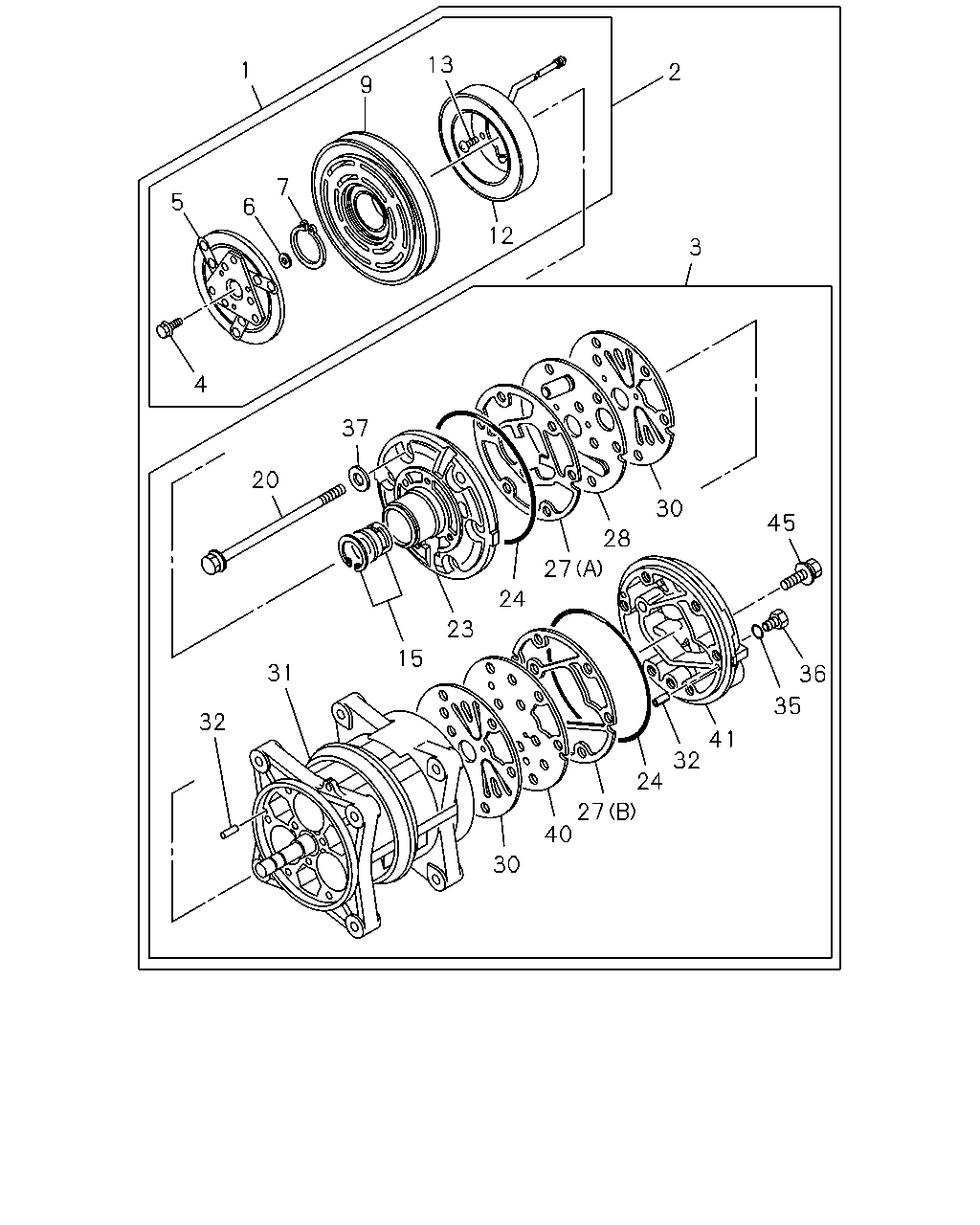

8-71 — COMPRESSOR; AIR CONDITIONING (#4949) — 81 parça

13 1 2 9 7 5 6 12 3 4 37 20 30 45 28 27 24 23 15 31 36 35 32 41 32 24 27 40 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-255-1	01	1	9603-9901	●	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-278-0	01	1	9902-9904	●	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-278-1	01	1	9905-	●	●	●
2	CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-041-0	01	1	9603-9904	●	●
2	CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83533-041-0	01	1	9905-	●	●	●
3	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-258-0	01	1	9603-9901	●	●
3	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-292-0	01	1	9902-9904	●	●
3	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83532-292-0	01	1	9905-	●	●	●
4	BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-439-0	01	1	9603-9904	●	●
4	BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-439-0	01	1	9905-	●	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97034-788-0	01	1	9603-9904	●	●
5	ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97034-788-0	01	1	9905-	●	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.1	8-94120-721-0	AR	1	9902-9904	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.3	8-94120-722-0	AR	1	9902-9904	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.5	8-94120-723-0	AR	1	9902-9904	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.1	8-94120-721-0	AR	1	9603-9901	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.3	8-94120-722-0	AR	1	9603-9901	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.5	8-94120-723-0	AR	1	9603-9901	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.1	8-94120-721-0	AR	1	9905-	●	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.3	8-94120-722-0	AR	1	9905-	●	●	●
6	SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) T=0.5	8-94120-723-0	AR	1	9905-	●	●	●
7	RING; SNAP,PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-724-0	01	1	9902-9904	●	●
7	RING; SNAP,PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-724-0	01	1	9603-9901	●	●
7	RING; SNAP,PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-724-0	01	1	9905-	●	●	●
9	PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-616-1	01	1	9902-9904	●	●
9	PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-616-0	01	1	9603-9901	●	●
9	PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-616-1	01	1	9905-	●	●	●
12	COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-093-0	01	1	9902-9904	●	●
12	COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-833-0	01	1	9603-9901	●	●
12	COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-093-0	01	1	9905-	●	●	●
13	SCREW; COIL FIELD AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-727-0	03	1	9902-9904	●	●
13	SCREW; COIL FIELD AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-727-0	03	1	9603-9901	●	●
13	SCREW; COIL FIELD AIR CONDITIONER MANUAL CONTROL(C60)	8-94120-727-0	03	1	9905-	●	●	●
15	SEAL; SHAFT AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-090-0	01	1	9902-9904	●	●
15	SEAL; SHAFT AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97114-217-1	01	1	9603-9901	●	●
15	SEAL; SHAFT AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-090-0	01	1	9905-	●	●	●
20	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97233-738-0	06	1	9902-9904	●	●
20	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97081-394-0	06	1	9603-9901	●	●
20	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97233-738-0	06	1	9905-	●	●	●
23	HEAD; CYL,FRT AIR CONDITIONER MANUAL CONTROL(C60)	8-97178-401-0	01	1	9902-9904	●	●
23	HEAD; CYL,FRT AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97114-215-0	01	1	9603-9901	●	●
23	HEAD; CYL,FRT AIR CONDITIONER MANUAL CONTROL(C60)	8-97178-401-0	01	1	9905-	●	●	●
24	GASKET; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-953-0	02	1	9902-9904	●	●
24	GASKET; CMPR AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-396-0	02	1	9603-9901	●	●
24	GASKET; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-953-0	02	1	9905-	●	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97170-930-0	01	1	9902-9904	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97170-933-0	01	1	9902-9904	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (A) "R-134A"	8-97085-777-0	01	1	9603-9901	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (B) "R-134A"	8-97085-779-0	01	1	9603-9901	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97170-930-0	01	1	9905-	●	●	●
27	GASKET; CYL HD AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97170-933-0	01	1	9905-	●	●	●
28	PLATE; VLV,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97170-932-1	01	1	9902-9904	●	●
28	PLATE; VLV,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97135-796-0	01	1	9603-9901	●	●
28	PLATE; VLV,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97170-932-1	01	1	9905-	●	●	●
30	VALVE; SUCTION AIR CONDITIONER MANUAL CONTROL(C60)	8-97134-755-0	02	1	9902-9904	●	●
30	VALVE; SUCTION AIR CONDITIONER MANUAL CONTROL(C60)	8-97134-755-0	02	1	9603-9901	●	●
30	VALVE; SUCTION AIR CONDITIONER MANUAL CONTROL(C60)	8-97134-755-0	02	1	9905-	●	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97138-177-0	01	1	9902-9904	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97138-177-0	01	1	9603-9901	●	●
31	CYLINDER & SHAFT ASM; AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97138-177-0	01	1	9905-	●	●	●
32	PIN; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-711-0	04	1	9902-9904	●	●
32	PIN; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-711-0	04	1	9603-9901	●	●
32	PIN; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94154-711-0	04	1	9905-	●	●	●
35	GASKET; PLUG,CYL AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-395-0	01	1	9902-9904	●	●
35	GASKET; PLUG,CYL AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-395-0	01	1	9603-9901	●	●
35	GASKET; PLUG,CYL AIR CONDITIONER MANUAL CONTROL(C60) "R-134A"	8-97081-395-0	01	1	9905-	●	●	●
36	PLUG; CYL AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-473-0	01	1	9902-9904	●	●
36	PLUG; CYL AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-473-0	01	1	9603-9901	●	●
36	PLUG; CYL AIR CONDITIONER MANUAL CONTROL(C60)	8-94164-473-0	01	1	9905-	●	●	●
37	GASKET; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97233-739-0	06	1	9902-9904	●	●
37	GASKET; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-94466-678-0	06	1	9603-9901	●	●
37	GASKET; CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-97233-739-0	06	1	9905-	●	●	●
40	PLATE; VLV,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-97170-931-1	01	1	9902-9904	●	●
40	PLATE; VLV,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-97135-797-0	01	1	9603-9901	●	●
40	PLATE; VLV,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-97170-931-1	01	1	9905-	●	●	●
41	HEAD; CYL,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-97170-929-1	01	1	9902-9904	●	●
41	HEAD; CYL,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-97034-784-0	01	1	9603-9901	●	●
41	HEAD; CYL,RR AIR CONDITIONER MANUAL CONTROL(C60)	8-97170-929-1	01	1	9905-	●	●	●
45	BOLT; PLATE TO CYL HD AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9902-9904	●	●
45	BOLT; PLATE TO CYL HD AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9603-9901	●	●
45	BOLT; PLATE TO CYL HD AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	9-01971-035-0	01	1	9905-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
