Isuzu WW
▶
TRUCKS
▶
NPS
▶
51301 - NPS-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#49489) — 28 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

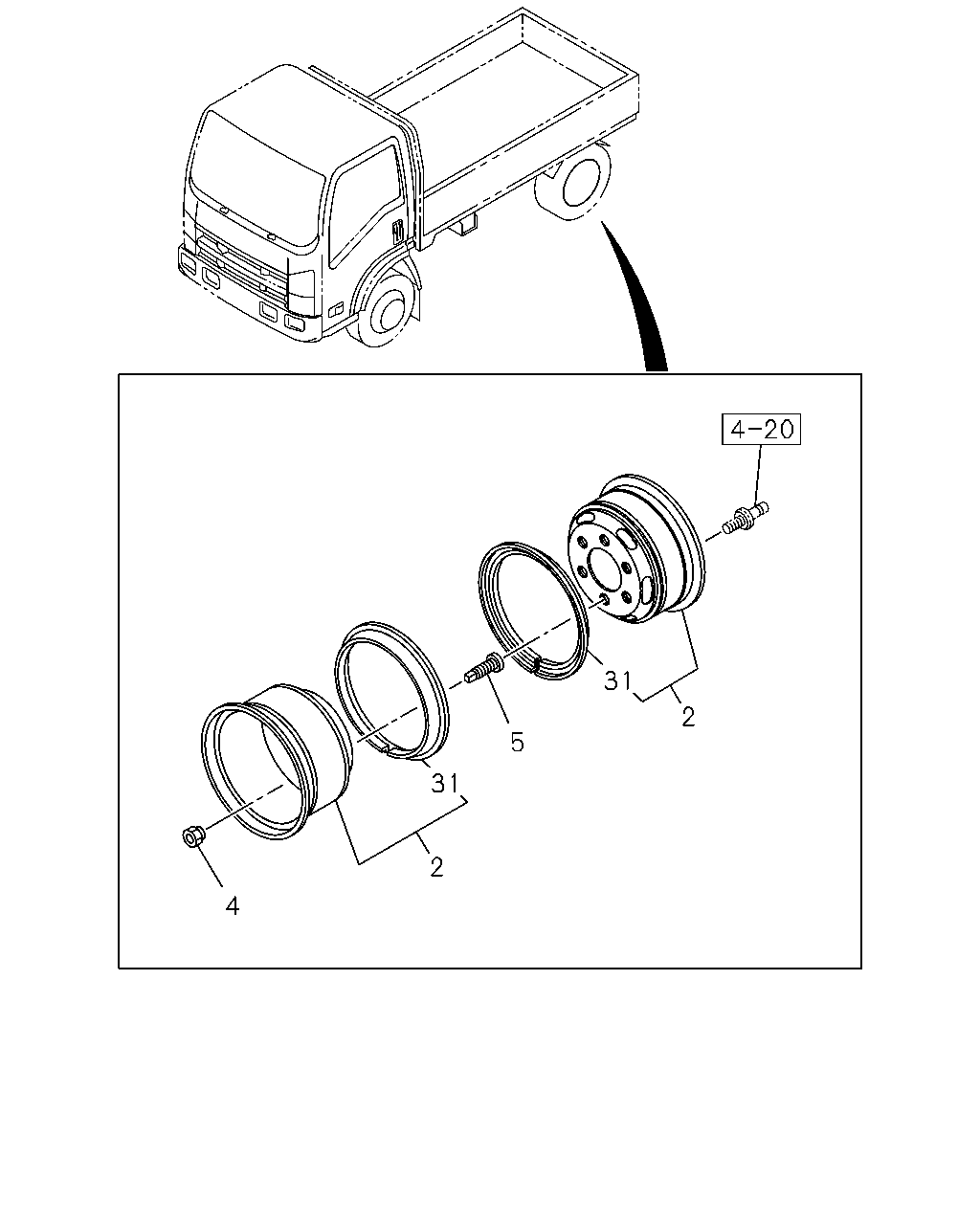

[480A] REAR (16 parça)

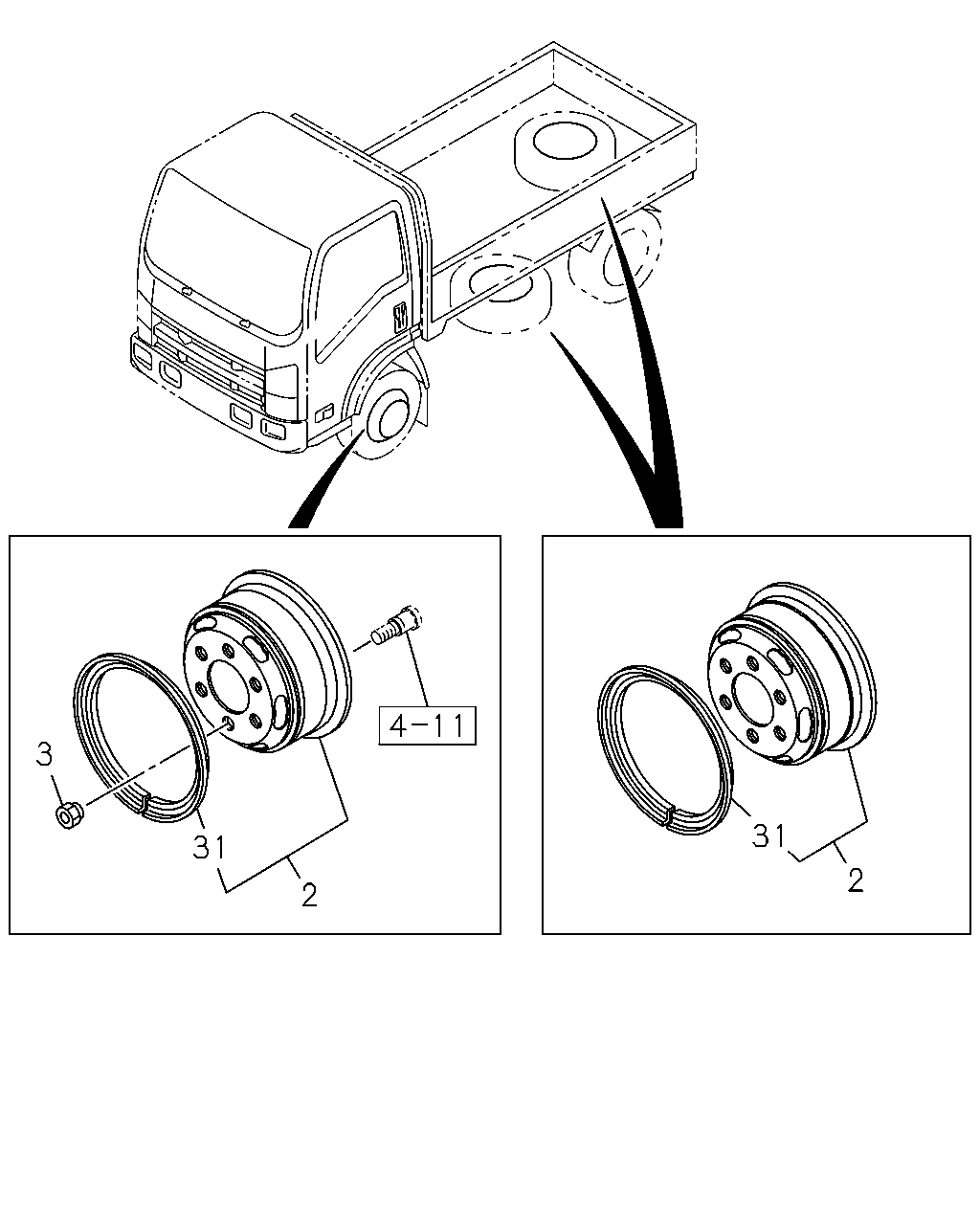

[480A] FRONT AND SPARE (12 parça)
▶
2
31
5
31
2
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
05.803 WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
01
1
1012-1507
●
2
05.803 WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
01
1
1508-
●
●
2
05.803 WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
06
1
1012-1507
●
2
05.803 WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
06
1
1508-
●
●
4
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
1012-1507
●
4
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
1508-
●
●
4
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
1012-1507
●
4
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
1508-
●
●
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
1012-1507
●
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
1508-
●
●
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
1012-1507
●
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
1508-
●
●
31
05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
1012-1507
●
31
05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
1508-
●
●
31
05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
1012-1507
●
31
05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
1508-
●
●
2
31
3
31
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
05.803 WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
01
1
1012-1507
●
2
05.803 WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
01
1
1508-
●
●
2
05.803 WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
06
1
1012-1507
●
2
05.803 WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
06
1
1508-
●
●
3
05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD
8-97359-807-0
06
1
1012-1507
●
3
05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD
8-97359-807-0
06
1
1508-
●
●
3
05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD
8-97359-808-0
06
1
1012-1507
●
3
05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD
8-97359-808-0
06
1
1508-
●
●
31
05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
1012-1507
●
31
05.839 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
1508-
●
●
31
05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
1012-1507
●
31
05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
1508-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
