1 |

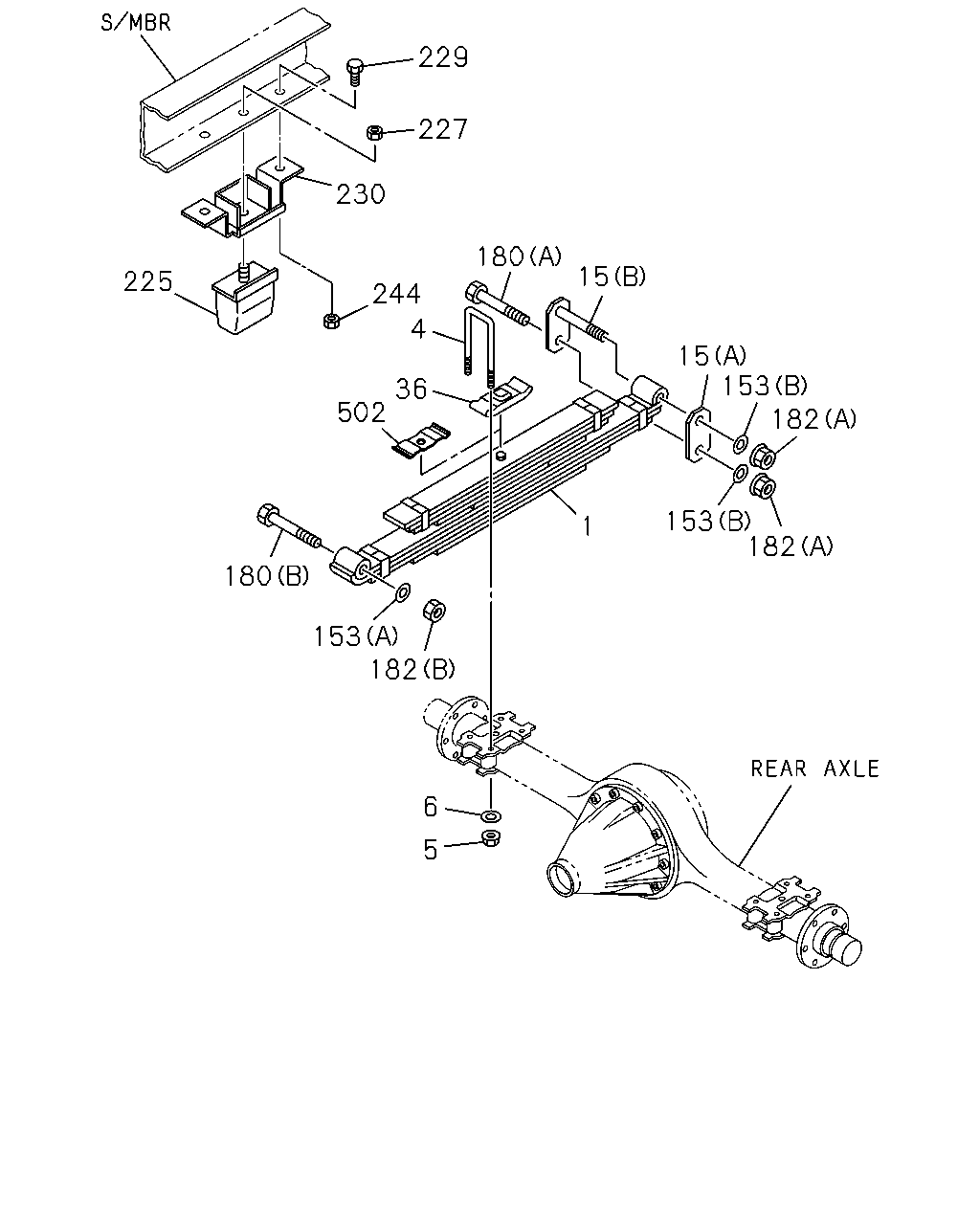

07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
13-LEAF
|
8-98089-683-1 |
02 |
1 |
1012-1507 |
● |
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
13-LEAF
|
8-98089-683-1 |
02 |
1 |
1508- |
● |
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
13-LEAF
|
8-98089-683-1 |
02 |
1 |
1508- |
|
● |
| |
4 |
07.516 U-BOLT; RR SPR
FRAME STRAIGHT TYPE<7KJ>
L=420
|
1-51371-196-2 |
04 |
1 |
1012-1507 |
● |
|
| |
4 |
07.516 U-BOLT; RR SPR
FRAME STRAIGHT TYPE<7KJ>
L=420
|
1-51371-196-2 |
04 |
1 |
1508- |
● |
|
| |
4 |
07.516 U-BOLT; RR SPR
L=420
|
1-51371-196-2 |
04 |
1 |
1508- |
|
● |
| |
5 |
07.529 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ>
M18 FLANGE
|
1-09440-039-1 |
08 |
1 |
1012-1507 |
● |
|
| |
5 |
07.529 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ>
M18 FLANGE
|
1-09440-039-1 |
08 |
1 |
1508- |
● |
|
| |
5 |
07.529 NUT; U-BOLT,RR SPR
M18 FLANGE
|
1-09440-039-1 |
08 |
1 |
1508- |
|
● |
| |
5 |
07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ>
07.417
M16
|
8-97360-121-0 |
08 |
1 |
1012- |
● |
|
| |
6 |
07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ>
ID=16.4
|
8-97360-118-0 |
08 |
1 |
1012- |
● |
|
| |
15 |
07.523 SHACKLE; RR SPR
(A)
|
8-94118-511-3 |
02 |
1 |
1012-1507 |
● |
|
| |
15 |
07.523 SHACKLE; RR SPR
(A)
|
8-94118-511-3 |
02 |
1 |
1508- |
● |
● |
| |
15 |
07.523 SHACKLE; RR SPR
(B)
|
8-97360-011-0 |
02 |
1 |
1012-1507 |
● |
|
| |
15 |
07.523 SHACKLE; RR SPR
(B)
|
8-97360-011-0 |
02 |
1 |
1508- |
● |
● |
| |
36 |
07.529 SEAT; HELPER RUBBER,RR SPR
FRAME STRAIGHT TYPE<7KJ>
07.518
|
1-51372-059-0 |
02 |
1 |
1012-1507 |
● |
|
| |
36 |
07.529 SEAT; HELPER RUBBER,RR SPR
FRAME STRAIGHT TYPE<7KJ>
07.518
|
1-51372-059-0 |
02 |
1 |
1508- |
● |
|
| |
36 |
07.529 SEAT; HELPER RUBBER,RR SPR
07.518
|
1-51372-059-0 |
02 |
1 |
1508- |
|
● |
| |
153 |
07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF>
07.427
(B)
ID=16.5
|
8-98011-489-0 |
04 |
1 |
1012-1507 |
● |
|
| |
153 |
07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF>
07.427
(B)
ID=16.5
|
8-98011-489-0 |
04 |
1 |
1508- |
● |
● |
| |
153 |
07.529 WASHER; PL,SPRING PIN
(A)
ID=19
|
8-97360-119-0 |
02 |
1 |
1012-1507 |
● |
|
| |
153 |
07.529 WASHER; PL,SPRING PIN
(A)
ID=19
|
8-97360-119-0 |
02 |
1 |
1508- |
● |
● |
| |
180 |
07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF>
07.427
(A)
M16X122
|
8-98011-487-0 |
02 |
1 |
1012-1507 |
● |
|
| |
180 |
07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF>
07.427
(A)
M16X122
|
8-98011-487-0 |
02 |
1 |
1508- |
● |
● |
| |
180 |
07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF>
(B)
M18X130
|
8-98011-488-0 |
02 |
1 |
1012-1507 |
● |
|
| |
180 |
07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF>
(B)
M18X130
|
8-98011-488-0 |
02 |
1 |
1508- |
● |
● |
| |
180 |
07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>
07.427
(A)
M16X122 FLANGE
|
8-97360-110-0 |
02 |
1 |
1012-1507 |
● |
|
| |
180 |
07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>
07.427
(A)
M16X122 FLANGE
|
8-97360-110-0 |
02 |
1 |
1508- |
● |
● |
| |
180 |
07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>
(B)
M18X130 FLANGE
|
8-97360-112-0 |
02 |
1 |
1012-1507 |
● |
|
| |
180 |
07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>
(B)
M18X130 FLANGE
|
8-97360-112-0 |
02 |
1 |
1508- |
● |
● |
| |
182 |
07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF>
06.509
(A)
M16
|
0-91110-516-0 |
04 |
1 |
1012-1507 |
● |
|
| |
182 |
07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF>
06.509
(A)
M16
|
0-91110-516-0 |
04 |
1 |
1508- |
● |
● |
| |
182 |
07.529 NUT; PIN,RR SPR
(B)
M18
|
0-91110-518-0 |
02 |
1 |
1012-1507 |
● |
|
| |
182 |
07.529 NUT; PIN,RR SPR
(B)
M18
|
0-91110-518-0 |
02 |
1 |
1508- |
● |
● |
| |
182 |
07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF>
07.427
(A)
M16 FLANGE
|
8-97360-125-0 |
04 |
1 |
1012-1507 |
● |
|
| |
182 |
07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF>
07.427
(A)
M16 FLANGE
|
8-97360-125-0 |
04 |
1 |
1508- |
● |
● |
| |
225 |
07.535 RUBBER; CUSHION,RR SPR
|
8-98025-096-1 |
02 |
1 |
1012-1507 |
● |
|
| |
225 |
07.535 RUBBER; CUSHION,RR SPR
|
8-98025-096-1 |
02 |
1 |
1508- |
● |
● |
| |
227 |
07.535 NUT; CUSHION RUBBER
02.042
M12 FLANGE
|
0-91180-112-0 |
02 |
1 |
1012-1507 |
● |
|
| |
227 |
07.535 NUT; CUSHION RUBBER
02.042
M12 FLANGE
|
0-91180-112-0 |
02 |
1 |
1508- |
● |
● |
| |
229 |
07.535 BOLT; BRKT
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1012-1507 |
● |
|
| |
229 |
07.535 BOLT; BRKT
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1508- |
● |
● |
| |
230 |
07.518 SPACER; CUSHION RUBBER
|
8-98049-968-0 |
02 |
1 |
1012-1507 |
● |
|
| |
230 |
07.518 SPACER; CUSHION RUBBER
|
8-98049-968-0 |
02 |
1 |
1508- |
● |
● |
| |
244 |
07.242 NUT; BRKT
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1012-1507 |
● |
|
| |
244 |
07.242 NUT; BRKT
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1508- |
● |
● |
| |
502 |
07.506 CLAMP; RR LEAF SPR
EXC. FRAME STRAIGHT TYPE<7KJ>
07.518
L=140 T=4.5
|
8-94118-509-1 |
02 |
1 |
1012-1106 |
● |
|
