4-50 — FRONT SUSPENSION (#49484) — 60 parça

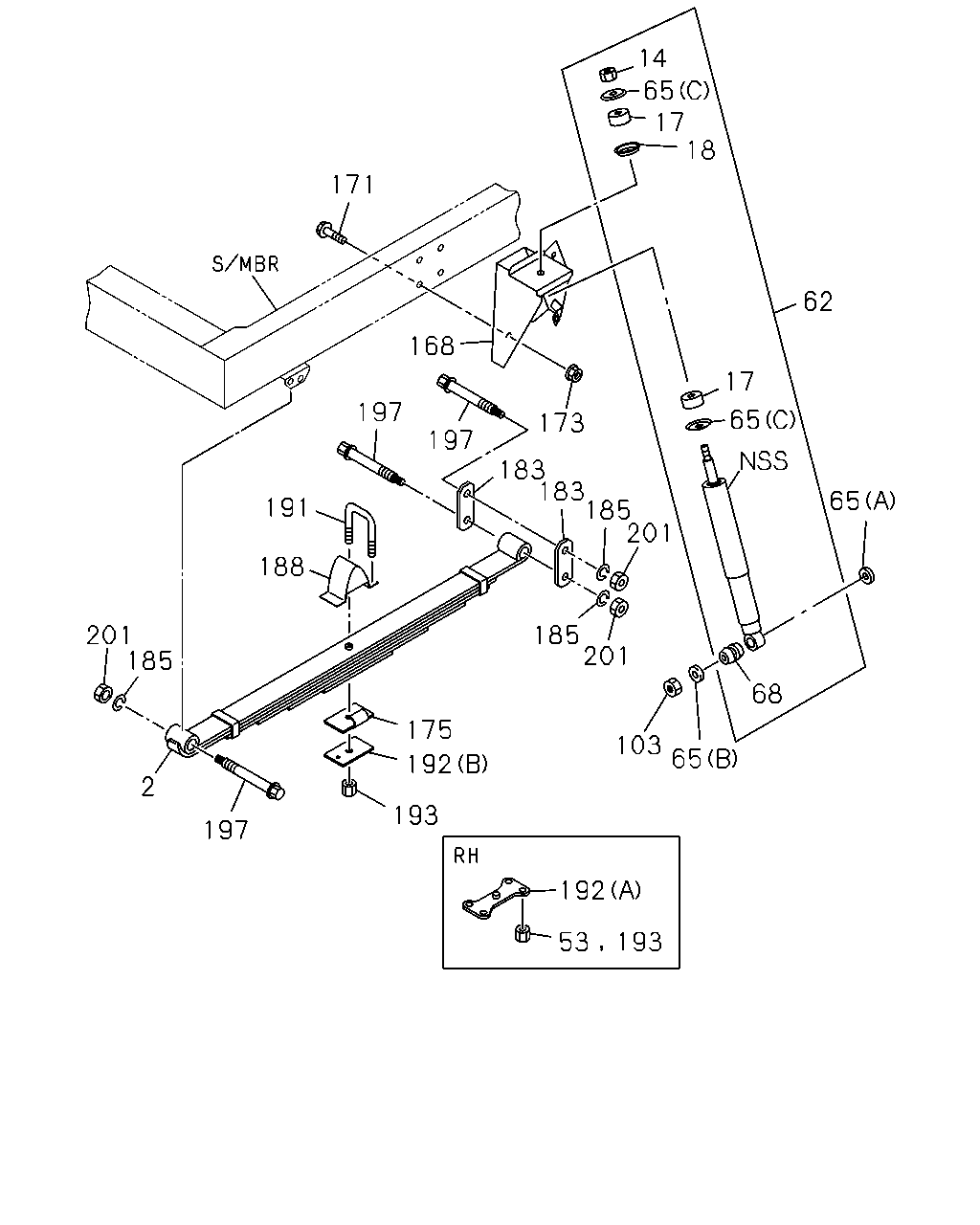

çizim 176197
171 168 197 191 188 201 185 2 197 193 192 175 192 53 193 65 103 201 185 201 65 17 62 185 183 183 197 173 14 18 65 17 65 68
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 5-LEAF 		8-98090-401-0 01 1 1012-1507 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 5-LEAF 		8-98090-401-0 01 1 1508- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98090-401-0 01 1 1508- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 5-LEAF 		8-98090-402-0 01 1 1012-1507 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> 5-LEAF 		8-98090-402-0 01 1 1508- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-98090-402-0 01 1 1508- ●
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1012-1507 ●
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1508- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1012-1507 ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1508- ● ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1012-1507 ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1508- ● ●
53 06.174 NUT; LWR LINK
M14 FLANGE 		8-97360-124-0 02 1 1012-1507 ●
53 06.174 NUT; LWR LINK
M14 FLANGE 		8-97360-124-0 02 1 1508- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97367-351-1 02 1 1012-1507 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97367-351-1 02 1 1508- ● ●
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1012-1507 ●
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1508- ● ●
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1012-1507 ●
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1508- ● ●
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1012-1507 ●
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1508- ● ●
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1012-1507 ●
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1508- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1012-1507 ●
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1508- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98049-995-3 01 1 1012-1406 ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98049-995-4 01 1 1407-1507 ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98049-995-4 01 1 1508- ● ●
171 07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE 		0-28651-235-0 04 1 1012-1507 ●
171 07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE 		0-28651-235-0 04 1 1508- ● ●
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 03 1 1012-1507 ●
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 03 1 1508- ● ●
175 06.170 SPACER; BRKT,S/ABS
FRAME STRAIGHT TYPE<7KJ> 07.518 		8-94311-841-2 02 1 1012-1507 ●
175 06.170 SPACER; BRKT,S/ABS
FRAME STRAIGHT TYPE<7KJ> 07.518 		8-94311-841-2 02 1 1508- ●
175 06.170 SPACER; BRKT,S/ABS
07.518 		8-94311-841-2 02 1 1508- ●
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1012-1507 ●
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1508- ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 1012-1507 ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 1508- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98090-443-0 02 1 1012-1507 ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98090-443-0 02 1 1508- ● ●
191 07.417 U-BOLT; FRT SPR
L=185 		8-94461-227-4 02 1 1012-1507 ●
191 07.417 U-BOLT; FRT SPR
L=185 		8-94461-227-4 02 1 1508- ● ●
191 07.417 U-BOLT; FRT SPR
L=275 		8-94461-228-2 02 1 1012-1507 ●
191 07.417 U-BOLT; FRT SPR
L=275 		8-94461-228-2 02 1 1508- ● ●
192 07.436 PIECE; DIST
(A) 		8-94462-218-2 01 1 1012-1507 ●
192 07.436 PIECE; DIST
(A) 		8-94462-218-2 01 1 1508- ● ●
192 07.436 PIECE; DIST
(B) 		8-98049-991-0 02 1 1012-1507 ●
192 07.436 PIECE; DIST
(B) 		8-98049-991-0 02 1 1508- ● ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1012-1507 ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1508- ● ●
197 07.427 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 1012-1507 ●
197 07.427 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 1508- ● ●
197 07.427 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 1012-1507 ●
197 07.427 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 1508- ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 M16 		0-91110-516-0 06 1 1012-1507 ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 M16 		0-91110-516-0 06 1 1508- ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 1012-1507 ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 1508- ● ●
