1 |

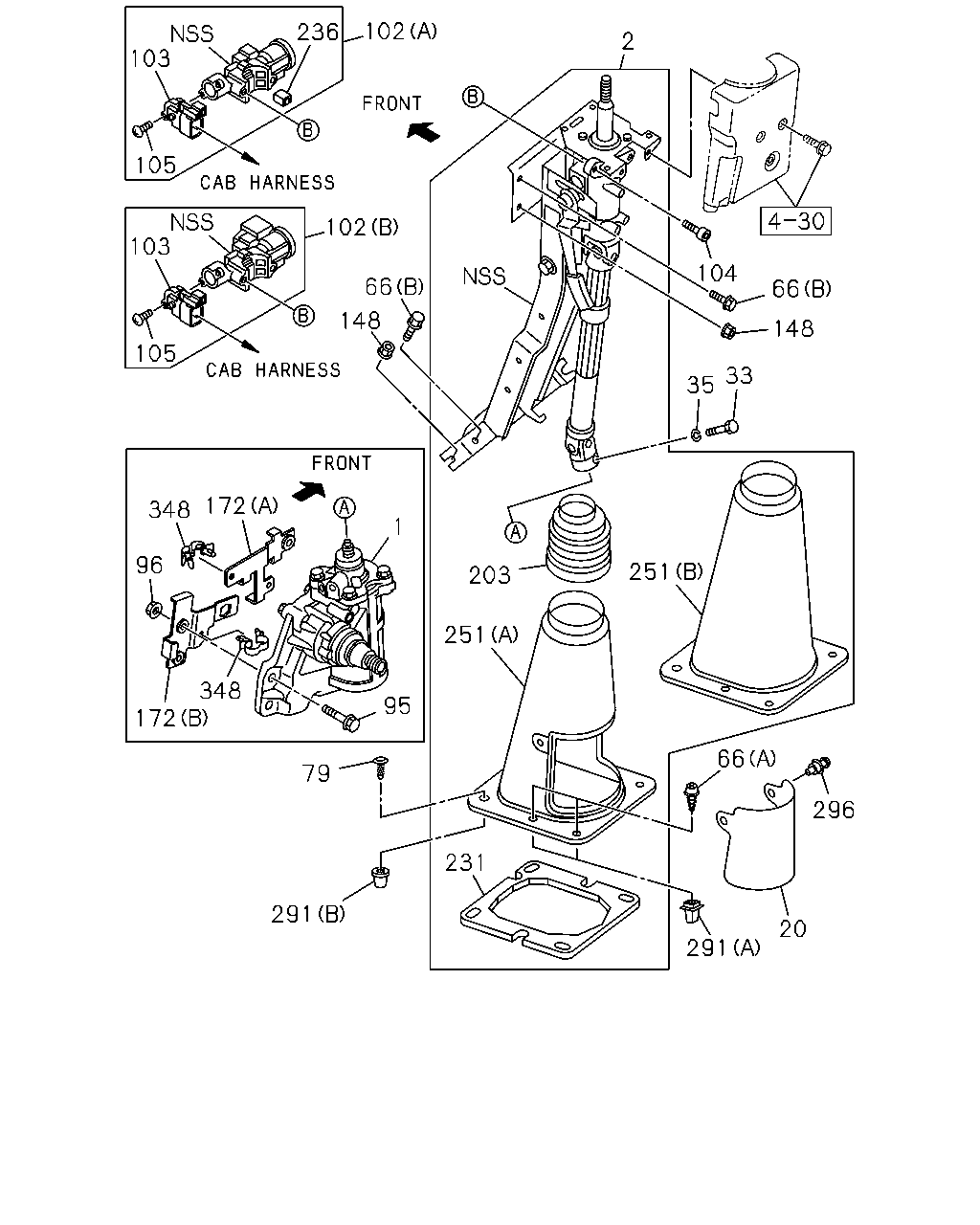

06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
|
8-98110-219-5 |
01 |
1 |
1012-1507 |
● |
|
| |
1 |
06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
|
8-98110-219-5 |
01 |
1 |
1508- |
● |
● |
| |
2 |
06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ>
BLACK
|
8-97418-802-2 |
01 |
1 |
1012- |
● |
|
| |
2 |
06.518 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ>
BLACK
|
8-97406-375-8 |
01 |
1 |
1012-1507 |
● |
|
| |
2 |
06.518 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ>
BLACK
|
8-97406-375-8 |
01 |
1 |
1508- |
● |
|
| |
2 |
06.518 SHAFT ASM; STRG
BLACK
|
8-97406-375-8 |
01 |
1 |
1508- |
|
● |
| |
20 |
06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ>
BLACK
|
8-97405-159-0 |
01 |
1 |
1012-1507 |
● |
|
| |
20 |
06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ>
BLACK
|
8-97405-159-0 |
01 |
1 |
1508- |
● |
|
| |
20 |
06.525 COVER; STRG SHAFT
BLACK
|
8-97405-159-0 |
01 |
1 |
1508- |
|
● |
| |
33 |
06.525 BOLT; STRG SHAFT TO UNIT
M8X30
|
8-97359-615-0 |
01 |
1 |
1012-1507 |
● |
|
| |
33 |
06.525 BOLT; STRG SHAFT TO UNIT
M8X30
|
8-97359-615-0 |
01 |
1 |
1508- |
● |
● |
| |
35 |
06.525 WASHER; LK,STRG SHAFT
02.559
ID=8.2
|
0-91510-808-0 |
01 |
1 |
1012-1507 |
● |
|
| |
35 |
06.525 WASHER; LK,STRG SHAFT
02.559
ID=8.2
|
0-91510-808-0 |
01 |
1 |
1508- |
● |
● |
| |
66 |
06.514 BOLT; STRG COLUMN
01.531
(B)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1201-1507 |
● |
|
| |
66 |
06.514 BOLT; STRG COLUMN
01.531
(B)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1508- |
● |
● |
| |
66 |
06.514 BOLT; STRG COLUMN
(A)
M5X18 TAPPING
|
0-72180-518-0 |
04 |
1 |
1012-1507 |
● |
|
| |
66 |
06.514 BOLT; STRG COLUMN
(A)
M5X18 TAPPING
|
0-72180-518-0 |
04 |
1 |
1508- |
● |
● |
| |
66 |
06.514 BOLT; STRG COLUMN
(B)
M8X24.5 W/LK&PL WASHER
|
8-98051-939-0 |
04 |
1 |
1012-1112 |
● |
|
| |
66 |
06.514 BOLT; STRG COLUMN
(B)
M8X24.5 W/LK&PL WASHER
|
8-98051-939-0 |
02 |
1 |
1201-1507 |
● |
|
| |
66 |
06.514 BOLT; STRG COLUMN
(B)
M8X24.5 W/LK&PL WASHER
|
8-98051-939-0 |
02 |
1 |
1508- |
● |
● |
| |
79 |
06.760 CLIP; STRG COLUMN COVER
16.800
L=19 BLACK
|
8-94363-776-0 |
02 |
1 |
1012-1507 |
● |
|
| |
79 |
06.760 CLIP; STRG COLUMN COVER
16.800
L=19 BLACK
|
8-94363-776-0 |
02 |
1 |
1508- |
● |
● |
| |
95 |
06.509 BOLT; STRG UNIT
M12X47 FLANGE
|
8-98055-055-0 |
04 |
1 |
1012-1507 |
● |
|
| |
95 |
06.509 BOLT; STRG UNIT
M12X47 FLANGE
|
8-98055-055-0 |
04 |
1 |
1508- |
● |
● |
| |
96 |
06.509 NUT; STRG UNIT
M12 FLANGE
|
8-97359-618-0 |
01 |
1 |
1012-1507 |
● |
|
| |
96 |
06.509 NUT; STRG UNIT
M12 FLANGE
|
8-97359-618-0 |
01 |
1 |
1508- |
● |
● |
| |
102 |
06.500 LOCK ASM; STRG
4HG1 ENG(RJH)
(B)
|
8-98006-150-0 |
01 |
1 |
1111- |
● |
|
| |
102 |
06.500 LOCK ASM; STRG
(A)
|
8-97387-036-0 |
01 |
1 |
1012-1110 |
● |
|
| |
102 |
06.500 LOCK ASM; STRG
4HK1-TCN ENG(RDQ)
(A)
|
8-97387-036-0 |
01 |
1 |
1111-1507 |
● |
|
| |
102 |
06.500 LOCK ASM; STRG
4HK1-TCN ENG(RDQ)
(A)
|
8-97387-036-0 |
01 |
1 |
1508- |
● |
● |
| |
103 |
02.188 SWITCH; IGNITION
|
8-98045-349-0 |
01 |
1 |
1012-1507 |
● |
|
| |
103 |
02.188 SWITCH; IGNITION
|
8-98045-349-0 |
01 |
1 |
1508- |
● |
● |
| |
104 |
06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
|
8-97321-385-0 |
02 |
1 |
1012-1507 |
● |
|
| |
104 |
06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
|
8-97321-385-0 |
02 |
1 |
1508- |
● |
● |
| |
105 |
06.500 SCREW; IGN SW
|
8-98045-346-0 |
02 |
1 |
1012-1507 |
● |
|
| |
105 |
06.500 SCREW; IGN SW
|
8-98045-346-0 |
02 |
1 |
1508- |
● |
● |
| |
148 |
06.514 NUT; COLUMN TO BRKT
01.840
M8 W/DISHED WASHER
|
8-97329-625-0 |
03 |
1 |
1012-1507 |
● |
|
| |
148 |
06.514 NUT; COLUMN TO BRKT
01.840
M8 W/DISHED WASHER
|
8-97329-625-0 |
03 |
1 |
1508- |
● |
● |
| |
172 |
06.509 BRACKET; STRG
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98081-033-0 |
01 |
1 |
1012-1507 |
● |
|
| |
172 |
06.509 BRACKET; STRG
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98081-033-0 |
01 |
1 |
1508- |
● |
|
| |
172 |
06.509 BRACKET; STRG
(B)
|
8-98081-033-0 |
01 |
1 |
1508- |
|
● |
| |
172 |
06.509 BRACKET; STRG
(A)
|
8-98055-256-1 |
01 |
1 |
1012-1507 |
● |
|
| |
172 |
06.509 BRACKET; STRG
(A)
|
8-98055-256-1 |
01 |
1 |
1508- |
● |
● |
| |
172 |
06.509 BRACKET; STRG
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98055-257-1 |
01 |
1 |
1012- |
● |
|
| |
203 |
06.525 BOOT; STRG COLUMN LWR
|
8-98137-331-0 |
01 |
1 |
1012-1507 |
● |
|
| |
203 |
06.525 BOOT; STRG COLUMN LWR
|
8-98137-331-0 |
01 |
1 |
1508- |
● |
● |
| |
231 |
06.525 SEAL; RUBBER,STRG COLUMN
|
8-98137-329-0 |
01 |
1 |
1012-1507 |
● |
|
| |
231 |
06.525 SEAL; RUBBER,STRG COLUMN
|
8-98137-329-0 |
01 |
1 |
1508- |
● |
● |
| |
236 |
02.195 SWITCH; DOOR WARNING,STRG LOCK
|
8-98045-350-0 |
01 |
1 |
1012-1110 |
● |
|
| |
236 |
02.195 SWITCH; DOOR WARNING,STRG LOCK
4HK1-TCN ENG(RDQ)
|
8-98045-350-0 |
01 |
1 |
1111-1507 |
● |
|
| |
236 |
02.195 SWITCH; DOOR WARNING,STRG LOCK
4HK1-TCN ENG(RDQ)
|
8-98045-350-0 |
01 |
1 |
1508- |
● |
● |
| |
251 |
06.518 COVER; LWR
MANUAL TILT CAB<RWZ>
(B)
BLACK
|
8-97418-804-0 |
01 |
1 |
1012- |
● |
|
| |
251 |
06.518 COVER; LWR
EXC. MANUAL TILT CAB<RWZ>
(A)
BLACK
|
8-97417-049-0 |
01 |
1 |
1012-1507 |
● |
|
| |
251 |
06.518 COVER; LWR
EXC. MANUAL TILT CAB<RWZ>
(A)
BLACK
|
8-97417-049-0 |
01 |
1 |
1508- |
● |
|
| |
251 |
06.518 COVER; LWR
(A)
BLACK
|
8-97417-049-0 |
01 |
1 |
1508- |
|
● |
| |
291 |
06.518 GROMMET; STRG SHAFT COVER
04.931
(A)
H=15
|
8-94463-268-1 |
04 |
1 |
1012-1507 |
● |
|
| |
291 |
06.518 GROMMET; STRG SHAFT COVER
04.931
(A)
H=15
|
8-94463-268-1 |
04 |
1 |
1508- |
● |
● |
| |
291 |
06.518 GROMMET; STRG SHAFT COVER
(B)
|
8-98029-442-1 |
02 |
1 |
1012-1507 |
● |
|
| |
291 |
06.518 GROMMET; STRG SHAFT COVER
(B)
|
8-98029-442-1 |
02 |
1 |
1508- |
● |
● |
| |
296 |
06.525 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ>
BLACK
|
8-97868-409-0 |
01 |
1 |
1012-1507 |
● |
|
| |
296 |
06.525 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ>
BLACK
|
8-97868-409-0 |
01 |
1 |
1508- |
● |
|
| |
296 |
06.525 CLIP; COVER
BLACK
|
8-97868-409-0 |
01 |
1 |
1508- |
|
● |
| |
348 |
06.525 CLIP; BRKT,STRG
FRAME STRAIGHT TYPE<7KJ>
ID=5-12 L=22
|
1-09709-288-0 |
02 |
1 |
1012-1507 |
● |
|
| |
348 |
06.525 CLIP; BRKT,STRG
FRAME STRAIGHT TYPE<7KJ>
ID=5-12 L=22
|
1-09709-288-0 |
02 |
1 |
1508- |
● |
|
| |
348 |
06.525 CLIP; BRKT,STRG
ID=5-12 L=22
|
1-09709-288-0 |
02 |
1 |
1508- |
|
● |
| |
348 |
06.525 CLIP; BRKT,STRG
EXC. FRAME STRAIGHT TYPE<7KJ>
ID=5-12 L=18
|
1-09709-287-0 |
02 |
1 |
1012- |
● |
|
