4-10 — FRONT AXLE (#49470) — 128 parça

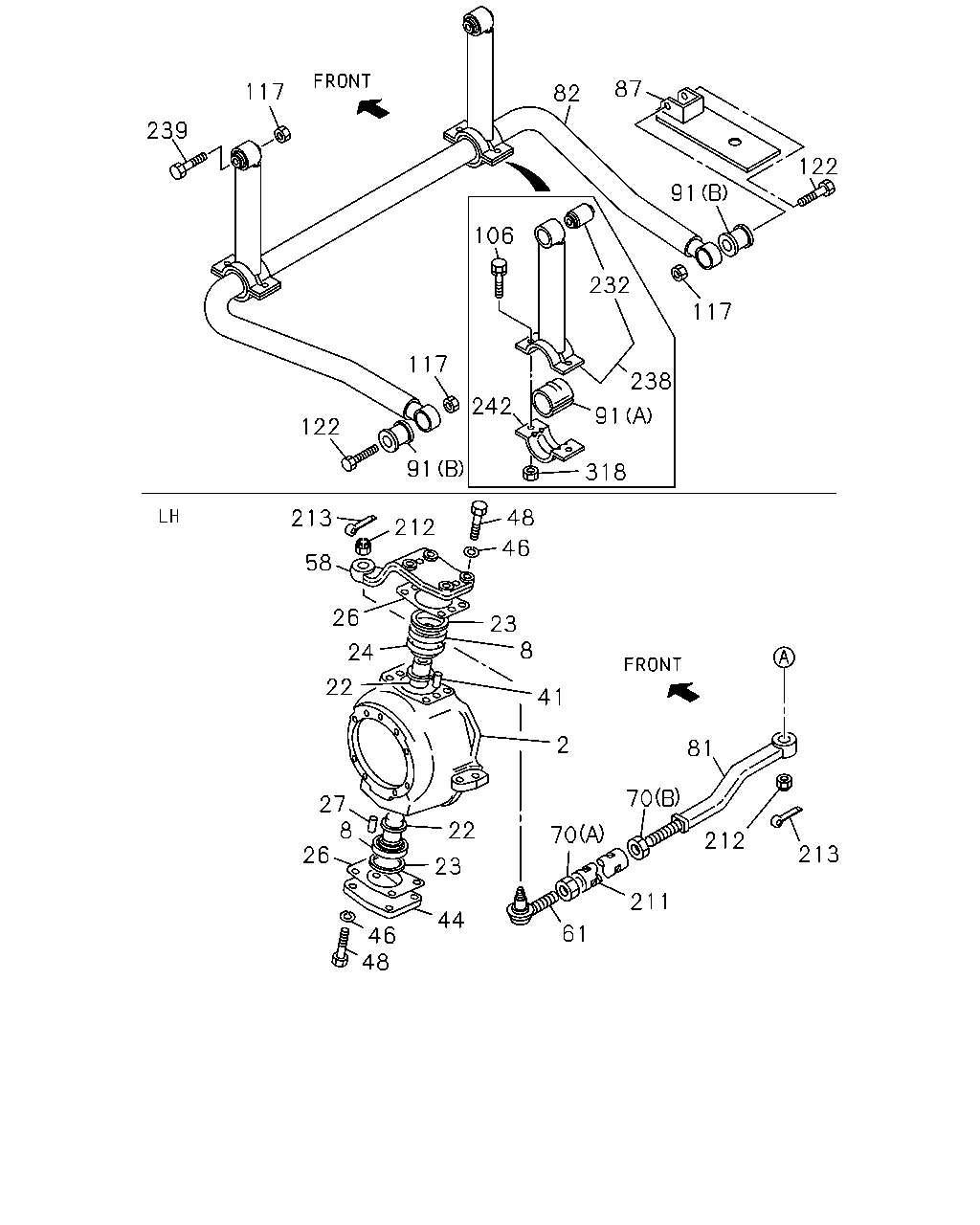

çizim 176181
213 212 70 211 70 61 81 41 8 23 46 48 212 58 213 26 24 22 2 22 23 44 26 27 8 46 318 91 238 117 232 106 91 87 82 117 239 117 122 91 242 122 48
BalonParca AdiParca NoAdetTipApplied Date A B
2 06.020 KNUCKLE; FRT AXLE 8-94458-330-2 01 1 1012-1507 ●
2 06.020 KNUCKLE; FRT AXLE 8-94458-330-2 01 1 1508- ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94458-331-2 01 1 1012-1507 ●
2 06.020 KNUCKLE; FRT AXLE 8-94458-331-2 01 1 1508- ● ●
8 06.021 BEARING; NEEDLE,KING PIN 8-94440-901-0 04 1 1012-1507 ●
8 06.021 BEARING; NEEDLE,KING PIN 8-94440-901-0 04 1 1508- ● ●
22 06.203 PIN; KING,FRT AXLE 8-94440-228-0 04 1 1012-1507 ●
22 06.203 PIN; KING,FRT AXLE 8-94440-228-0 04 1 1508- ● ●
23 07.242 COLLAR; DIST BRG 8-94440-839-0 04 1 1012-1507 ●
23 07.242 COLLAR; DIST BRG 8-94440-839-0 04 1 1508- ● ●
24 06.210 RECEIVER; KING PIN 8-94458-454-0 02 1 1012-1507 ●
24 06.210 RECEIVER; KING PIN 8-94458-454-0 02 1 1508- ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.1 		8-94440-840-0 AR 1 1012-1507 ●
26 06.022 SHIM; KING PIN,BRG
T=0.1 		8-94440-840-0 AR 1 1508- ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.2 		8-94440-841-0 AR 1 1012-1507 ●
26 06.022 SHIM; KING PIN,BRG
T=0.2 		8-94440-841-0 AR 1 1508- ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.5 		8-94440-842-0 AR 1 1012-1507 ●
26 06.022 SHIM; KING PIN,BRG
T=0.5 		8-94440-842-0 AR 1 1508- ● ●
27 06.203 PIN; STRAIGHT,KING PIN
00.662 OD=4 L=8 		9-08160-408-0 04 1 1012-1507 ●
27 06.203 PIN; STRAIGHT,KING PIN
00.662 OD=4 L=8 		9-08160-408-0 04 1 1508- ● ●
41 06.177 PIN; KNOCK,KNUCKLE ARM
00.669 		9-08161-028-0 04 1 1012-1507 ●
41 06.177 PIN; KNOCK,KNUCKLE ARM
00.669 		9-08161-028-0 04 1 1508- ● ●
44 06.225 COVER; KING PIN 8-94440-230-0 02 1 1012-1507 ●
44 06.225 COVER; KING PIN 8-94440-230-0 02 1 1508- ● ●
46 07.347 WASHER; LK,COVER
06.174 ID=14.2 		0-91510-814-0 16 1 1012-1507 ●
46 07.347 WASHER; LK,COVER
06.174 ID=14.2 		0-91510-814-0 16 1 1508- ● ●
48 06.225 BOLT; COVER 8-98048-539-0 16 1 1012-1507 ●
48 06.225 BOLT; COVER 8-98048-539-0 16 1 1508- ● ●
58 06.103 ARM; TIE ROD 8-94440-366-0 01 1 1012-1507 ●
58 06.103 ARM; TIE ROD 8-94440-366-0 01 1 1508- ● ●
61 06.233 ROD END; TIE ROD
LH THREAD 		8-94419-609-3 02 1 1012-1507 ●
61 06.233 ROD END; TIE ROD
LH THREAD 		8-94419-609-3 02 1 1508- ● ●
70 06.234 NUT; TIE ROD END
(B) M20 		0-91111-520-0 02 1 1012-1507 ●
70 06.234 NUT; TIE ROD END
(B) M20 		0-91111-520-0 02 1 1508- ● ●
70 06.234 NUT; TIE ROD END
(A) M20 LH THREAD 		8-94254-726-0 02 1 1012-1507 ●
70 06.234 NUT; TIE ROD END
(A) M20 LH THREAD 		8-94254-726-0 02 1 1508- ● ●
81 06.230 ROD; TIE 8-94440-365-0 02 1 1012-1507 ●
81 06.230 ROD; TIE 8-94440-365-0 02 1 1508- ● ●
82 07.241 BAR; STAB,FRT SUSP 8-94322-468-2 01 1 1012-1507 ●
82 07.241 BAR; STAB,FRT SUSP 8-94322-468-2 01 1 1508- ● ●
87 07.242 BRACKET; STABILIZER 8-94321-458-0 01 1 1012-1507 ●
87 07.242 BRACKET; STABILIZER 8-94321-458-0 01 1 1508- ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
(B) 		8-94331-581-0 02 1 1012-1207 ●
91 07.243 BUSHING; RUBBER,STAB BAR
(B) 		8-97239-911-0 02 1 1208-1507 ●
91 07.243 BUSHING; RUBBER,STAB BAR
(B) 		8-97239-911-0 02 1 1508- ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
(A) 		8-94440-793-0 02 1 1012-1507 ●
91 07.243 BUSHING; RUBBER,STAB BAR
(A) 		8-94440-793-0 02 1 1508- ● ●
106 06.216 BOLT; CAP FIX
00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1012-1507 ●
106 06.216 BOLT; CAP FIX
00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1508- ● ●
117 06.174 NUT; STAB BAR BUSHING
M14 FLANGE 		8-97360-124-0 02 1 1012-1507 ●
117 06.174 NUT; STAB BAR BUSHING
M14 FLANGE 		8-97360-124-0 02 1 1508- ● ●
122 07.242 BOLT; BRKT
M14X70 FLANGE 		0-28851-470-0 02 1 1012-1507 ●
122 07.242 BOLT; BRKT
M14X70 FLANGE 		0-28851-470-0 02 1 1508- ● ●
211 06.233 ROD ASM; STEERING TIE ROD 8-94458-045-0 02 1 1012-1507 ●
211 06.233 ROD ASM; STEERING TIE ROD 8-94458-045-0 02 1 1508- ● ●
212 06.216 NUT; STRG ROD
M16 SLOTTED 		8-98049-689-0 02 1 1012-1507 ●
212 06.216 NUT; STRG ROD
M16 SLOTTED 		8-98049-689-0 02 1 1508- ● ●
213 06.203 PIN; COTTER,STRG ROD
OD=3.7 L=25 		0-81124-025-0 04 1 1012-1507 ●
213 06.203 PIN; COTTER,STRG ROD
OD=3.7 L=25 		0-81124-025-0 04 1 1508- ● ●
232 07.243 BUSHING; LINK ROD 8-94331-581-0 02 1 1012-1207 ●
232 07.243 BUSHING; LINK ROD 8-97239-911-0 02 1 1208-1507 ●
232 07.243 BUSHING; LINK ROD 8-97239-911-0 02 1 1508- ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT 8-97138-300-1 02 1 1012-1507 ●
238 07.240 ROD LINK ASM; STABILIZER,FRT 8-97138-300-1 02 1 1508- ● ●
239 07.242 BOLT; LINK ROD
M14X70 FLANGE 		0-28851-470-0 02 1 1012-1507 ●
239 07.242 BOLT; LINK ROD
M14X70 FLANGE 		0-28851-470-0 02 1 1508- ● ●
242 07.242 CAP; LINK ROD 8-94178-430-2 02 1 1012-1507 ●
242 07.242 CAP; LINK ROD 8-94178-430-2 02 1 1508- ● ●
318 07.242 NUT; CAP FIX
03.162 M10 FLANGE 		0-91180-110-0 04 1 1012-1507 ●
318 07.242 NUT; CAP FIX
03.162 M10 FLANGE 		0-91180-110-0 04 1 1508- ● ●

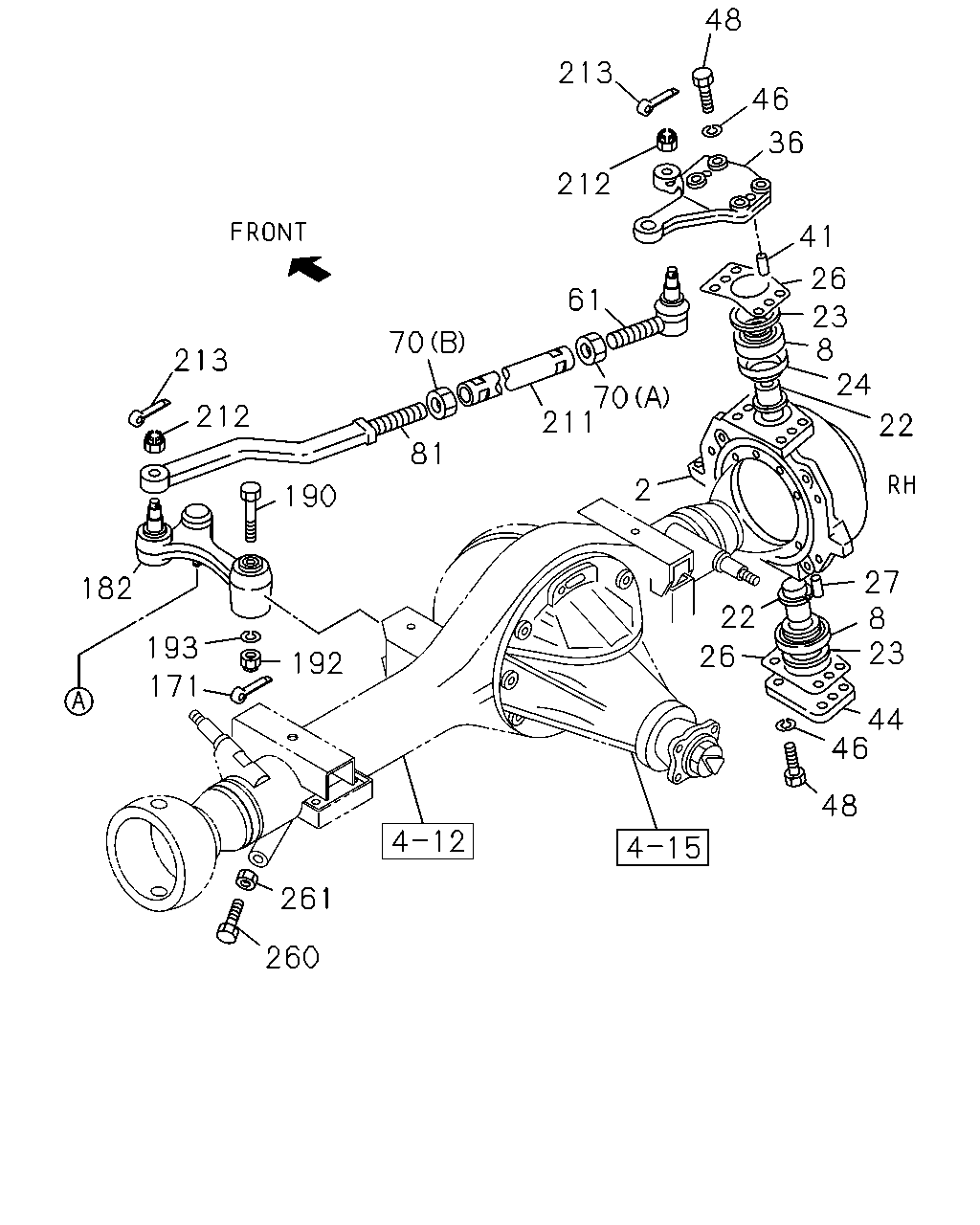

çizim 176189
48 46 44 23 27 8 22 24 8 23 26 41 36 46 48 213 212 70 61 211 2 22 26 192 193 171 182 212 213 70 81 190 261 260
BalonParca AdiParca NoAdetTipApplied Date A B
2 06.020 KNUCKLE; FRT AXLE 8-94458-330-2 01 1 1012-1507 ●
2 06.020 KNUCKLE; FRT AXLE 8-94458-330-2 01 1 1508- ● ●
2 06.020 KNUCKLE; FRT AXLE 8-94458-331-2 01 1 1012-1507 ●
2 06.020 KNUCKLE; FRT AXLE 8-94458-331-2 01 1 1508- ● ●
8 06.021 BEARING; NEEDLE,KING PIN 8-94440-901-0 04 1 1012-1507 ●
8 06.021 BEARING; NEEDLE,KING PIN 8-94440-901-0 04 1 1508- ● ●
22 06.203 PIN; KING,FRT AXLE 8-94440-228-0 04 1 1012-1507 ●
22 06.203 PIN; KING,FRT AXLE 8-94440-228-0 04 1 1508- ● ●
23 07.242 COLLAR; DIST BRG 8-94440-839-0 04 1 1012-1507 ●
23 07.242 COLLAR; DIST BRG 8-94440-839-0 04 1 1508- ● ●
24 06.210 RECEIVER; KING PIN 8-94458-454-0 02 1 1012-1507 ●
24 06.210 RECEIVER; KING PIN 8-94458-454-0 02 1 1508- ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.1 		8-94440-840-0 AR 1 1012-1507 ●
26 06.022 SHIM; KING PIN,BRG
T=0.1 		8-94440-840-0 AR 1 1508- ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.2 		8-94440-841-0 AR 1 1012-1507 ●
26 06.022 SHIM; KING PIN,BRG
T=0.2 		8-94440-841-0 AR 1 1508- ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.5 		8-94440-842-0 AR 1 1012-1507 ●
26 06.022 SHIM; KING PIN,BRG
T=0.5 		8-94440-842-0 AR 1 1508- ● ●
27 06.203 PIN; STRAIGHT,KING PIN
00.662 OD=4 L=8 		9-08160-408-0 04 1 1012-1507 ●
27 06.203 PIN; STRAIGHT,KING PIN
00.662 OD=4 L=8 		9-08160-408-0 04 1 1508- ● ●
36 06.103 ARM; KNUCKLE 8-97043-208-0 01 1 1012-1507 ●
36 06.103 ARM; KNUCKLE 8-97043-208-0 01 1 1508- ● ●
41 06.177 PIN; KNOCK,KNUCKLE ARM
00.669 		9-08161-028-0 04 1 1012-1507 ●
41 06.177 PIN; KNOCK,KNUCKLE ARM
00.669 		9-08161-028-0 04 1 1508- ● ●
44 06.225 COVER; KING PIN 8-94440-230-0 02 1 1012-1507 ●
44 06.225 COVER; KING PIN 8-94440-230-0 02 1 1508- ● ●
46 07.347 WASHER; LK,COVER
06.174 ID=14.2 		0-91510-814-0 16 1 1012-1507 ●
46 07.347 WASHER; LK,COVER
06.174 ID=14.2 		0-91510-814-0 16 1 1508- ● ●
48 06.225 BOLT; COVER 8-98048-539-0 16 1 1012-1507 ●
48 06.225 BOLT; COVER 8-98048-539-0 16 1 1508- ● ●
61 06.233 ROD END; TIE ROD
LH THREAD 		8-94419-609-3 02 1 1012-1507 ●
61 06.233 ROD END; TIE ROD
LH THREAD 		8-94419-609-3 02 1 1508- ● ●
70 06.234 NUT; TIE ROD END
(B) M20 		0-91111-520-0 02 1 1012-1507 ●
70 06.234 NUT; TIE ROD END
(B) M20 		0-91111-520-0 02 1 1508- ● ●
70 06.234 NUT; TIE ROD END
(A) M20 LH THREAD 		8-94254-726-0 02 1 1012-1507 ●
70 06.234 NUT; TIE ROD END
(A) M20 LH THREAD 		8-94254-726-0 02 1 1508- ● ●
81 06.230 ROD; TIE 8-94440-365-0 02 1 1012-1507 ●
81 06.230 ROD; TIE 8-94440-365-0 02 1 1508- ● ●
171 06.104 PIN; SPLIT,STRG ARM
06.881 OD=2.8 L=25 		0-81123-025-0 01 1 1012-1507 ●
171 06.104 PIN; SPLIT,STRG ARM
06.881 OD=2.8 L=25 		0-81123-025-0 01 1 1508- ● ●
182 06.103 ARM; STRG,TIE ROD,FRT AXLE 8-94323-964-1 01 1 1012-1507 ●
182 06.103 ARM; STRG,TIE ROD,FRT AXLE 8-94323-964-1 01 1 1508- ● ●
190 06.104 BOLT; STRG ARM TO BRKT,FRT AXLE 8-98049-687-0 01 1 1012-1507 ●
190 06.104 BOLT; STRG ARM TO BRKT,FRT AXLE 8-98049-687-0 01 1 1508- ● ●
192 06.216 NUT; STRG ARM BRKT
M14 SLOTTED 		0-91116-514-0 01 1 1012-1507 ●
192 06.216 NUT; STRG ARM BRKT
M14 SLOTTED 		0-91116-514-0 01 1 1508- ● ●
193 06.216 WASHER; PL,STRG ARM BRKT
ID=15 		0-91614-614-0 01 1 1012-1507 ●
193 06.216 WASHER; PL,STRG ARM BRKT
ID=15 		0-91614-614-0 01 1 1508- ● ●
211 06.233 ROD ASM; STEERING TIE ROD 8-94458-045-0 02 1 1012-1507 ●
211 06.233 ROD ASM; STEERING TIE ROD 8-94458-045-0 02 1 1508- ● ●
212 06.216 NUT; STRG ROD
M16 SLOTTED 		8-98049-689-0 02 1 1012-1507 ●
212 06.216 NUT; STRG ROD
M16 SLOTTED 		8-98049-689-0 02 1 1508- ● ●
213 06.203 PIN; COTTER,STRG ROD
OD=3.7 L=25 		0-81124-025-0 04 1 1012-1507 ●
213 06.203 PIN; COTTER,STRG ROD
OD=3.7 L=25 		0-81124-025-0 04 1 1508- ● ●
260 07.240 BOLT; STOPPER,TIE ROD ARM 8-98049-680-0 03 1 1012-1507 ●
260 07.240 BOLT; STOPPER,TIE ROD ARM 8-98049-680-0 03 1 1508- ● ●
261 07.242 NUT; STOPPER BOLT
05.002 M12 		0-91110-512-0 03 1 1012-1507 ●
261 07.242 NUT; STOPPER BOLT
05.002 M12 		0-91110-512-0 03 1 1508- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
