Sayfa 8-52 - Isuzu EPC

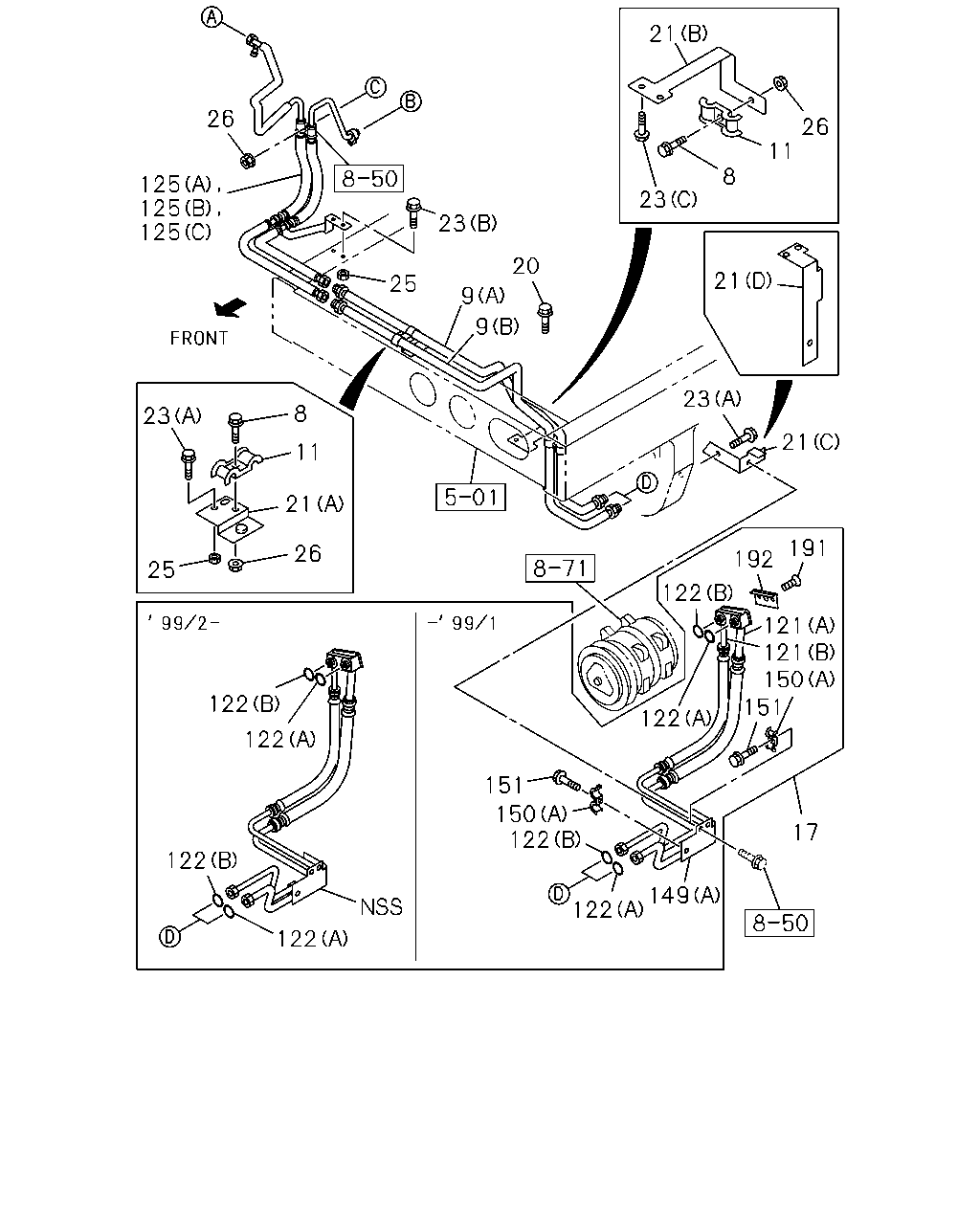

8-52 — PIPING; AIR CONDITIONING (#4947) — 345 parça

21 26 26 11 8 125 125 125 23 23 20 21 25 9 9 23 8 23 21 11 21 191 26 192 25 122 121 121 150 151 122 122 122 151 150 122 17 122 149 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	BOLT; CLIP 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	01	1	9603-9603	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	01	1	9603-9603	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	01	1	9604-9606	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9607-9609	●	●
8	BOLT; CLIP 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9610-9801	●	●
8	BOLT; CLIP 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9802-9901	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9802-9901	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	01	1	9902-9904	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9902-9904	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9902-9904	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103	●	●	●
8	BOLT; CLIP L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	01	1	9905-0103	●	●	●
8	BOLT; CLIP L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103	●	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0104-	●	●	●
8	BOLT; CLIP L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8X18 FLANGE	0-28080-818-0	01	1	0104-	●	●	●
8	BOLT; CLIP L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0104-	●	●	●
9	PIPE; COOLER,HOSE TO HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-550-0	01	1	9905-0012	●	●
9	PIPE; COOLER,HOSE TO HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (A)	1-83572-550-0	01	1	0101-	●	●
9	PIPE; COOLER,HOSE TO HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-554-0	01	1	9905-0012	●	●
9	PIPE; COOLER,HOSE TO HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (B)	1-83572-554-0	01	1	0101-	●	●
9	PIPE; COOLER,HOSE TO HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (A)	1-83567-796-0	01	1	0101-	●	●
9	PIPE; COOLER,HOSE TO HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (B)	1-83567-797-0	01	1	0101-	●	●
9	PIPE; COOLER,HOSE TO HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-256-0	01	1	9603-9901	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A)	1-83572-539-1	01	1	9902-9904	●	●
9	PIPE; COOLER,HOSE TO HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A)	1-83572-539-1	01	1	9905-	●	●	●
9	PIPE; COOLER,HOSE TO HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-257-0	01	1	9603-9901	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B)	1-83572-540-0	01	1	9902-9904	●	●
9	PIPE; COOLER,HOSE TO HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B)	1-83572-540-0	01	1	9905-	●	●	●
9	PIPE; COOLER,HOSE TO HOSE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-250-0	01	1	9603-9901	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A)	1-83572-551-0	01	1	9902-9904	●	●
9	PIPE; COOLER,HOSE TO HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A)	1-83572-551-0	01	1	9905-	●	●	●
9	PIPE; COOLER,HOSE TO HOSE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-251-0	01	1	9603-9901	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B)	1-83572-555-0	01	1	9902-9904	●	●
9	PIPE; COOLER,HOSE TO HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B)	1-83572-555-0	01	1	9905-	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=12.2 & 16.2	1-83574-190-0	01	1	9902-9904	●	●
11	CLIP; COOLER PIPE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=12.2 & 16.2	1-83574-190-0	01	1	9905-	●	●	●
11	CLIP; COOLER PIPE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9603-9901	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9603-9901	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9902-9904	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9902-9904	●	●
11	CLIP; COOLER PIPE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9905-	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9905-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-249-0	01	1	9603-9901	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-549-0	01	1	9905-9907	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-646-1	01	1	9908-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-198-1	01	1	9603-9901	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-547-1	01	1	9902-9904	●	●
17	HOSE; FLEX,CMPR TO PIPE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-547-1	01	1	9905-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-248-0	01	1	9603-9901	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-546-1	01	1	9902-9904	●	●
17	HOSE; FLEX,CMPR TO PIPE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-546-1	01	1	9905-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-548-1	01	1	9905-	●	●
20	BOLT; COOLER PIPE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	01	1	9603-9901	●	●
20	BOLT; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	01	1	9902-9904	●	●
20	BOLT; COOLER PIPE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	01	1	9905-	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-930-1	01	1	9603-9904	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-930-1	01	1	9905-9908	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A)	1-83571-930-1	01	1	9909-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D)	1-83571-998-0	01	1	9902-9904	●	●
21	BRACKET; COOLER HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D)	1-83571-998-0	01	1	9905-	●	●	●
21	BRACKET; COOLER HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-777-1	01	1	9603-9901	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-777-1	01	1	9902-9904	●	●
21	BRACKET; COOLER HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-777-1	01	1	9905-	●	●	●
21	BRACKET; COOLER HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-910-0	01	1	9603-9608	●	●
21	BRACKET; COOLER HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-018-0	01	1	9609-9901	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C)	1-83573-018-0	01	1	9902-9904	●	●
21	BRACKET; COOLER HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C)	1-83573-018-0	01	1	9905-9908	●	●	●
21	BRACKET; COOLER HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-018-0	01	1	9909-	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9603	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 FLANGE	0-28080-816-0	02	1	9604-9904	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 FLANGE	0-28080-816-0	02	1	9905-9908	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) M8X16 FLANGE	0-28080-816-0	02	1	9909-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) M8X30 FLANGE	0-28680-830-0	02	1	9902-9904	●	●
23	BOLT; BRKT L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●
23	BOLT; BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
23	BOLT; BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9705	●	●
23	BOLT; BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28080-820-0	01	1	9706-9901	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) M8X20 FLANGE	0-28080-820-0	01	1	9902-9904	●	●
23	BOLT; BRKT L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) M8X20 FLANGE	0-28080-820-0	01	1	9905-9908	●	●	●
23	BOLT; BRKT L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28080-820-0	01	1	9909-	●	●	●
23	BOLT; BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
23	BOLT; BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-9901	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X25 FLANGE	0-28680-825-0	02	1	9902-9904	●	●
23	BOLT; BRKT L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9603-9904	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9905-9908	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> M8	9-09110-408-0	02	1	9909-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9603-9606	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9607-9609	●	●
26	NUT; PIPE CLIP 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9610-9801	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9610-9801	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9610-9801	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9802-9904	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
26	NUT; PIPE CLIP 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9603-9606	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9603-9606	●	●
26	NUT; PIPE CLIP 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9609	●	●
26	NUT; PIPE CLIP 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9802-9901	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●
26	NUT; PIPE CLIP L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
26	NUT; PIPE CLIP L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-425-0	01	1	9603-9603	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83572-423-0	01	1	9604-9901	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-426-0	01	1	9603-9603	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83572-424-0	01	1	9604-9901	●	●
121	HOSE; COOLER 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-120-0	01	1	9603-9901	●	●
121	HOSE; COOLER 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-302-0	01	1	9603-9901	●	●
121	HOSE; COOLER 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-122-0	01	1	9603-9901	●	●
121	HOSE; COOLER 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-199-0	01	1	9603-9901	●	●
121	HOSE; COOLER 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-124-0	01	1	9603-9901	●	●
121	HOSE; COOLER 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-301-0	01	1	9603-9901	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13.9	8-94113-330-0	02	1	9604-9901	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9902-9904	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9902-9904	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9905-	●	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9905-	●	●	●
122	GASKET 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94481-717-0	01	1	9603-9901	●	●
122	GASKET 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13.9	8-94113-330-0	01	1	9603-9901	●	●
122	GASKET 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8	8-94113-331-0	01	1	9603-9603	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8	8-94113-331-0	01	1	9604-9901	●	●
122	GASKET 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8	8-94113-331-0	01	1	9604-9901	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9902-9904	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9902-9904	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9905-	●	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9905-	●	●	●

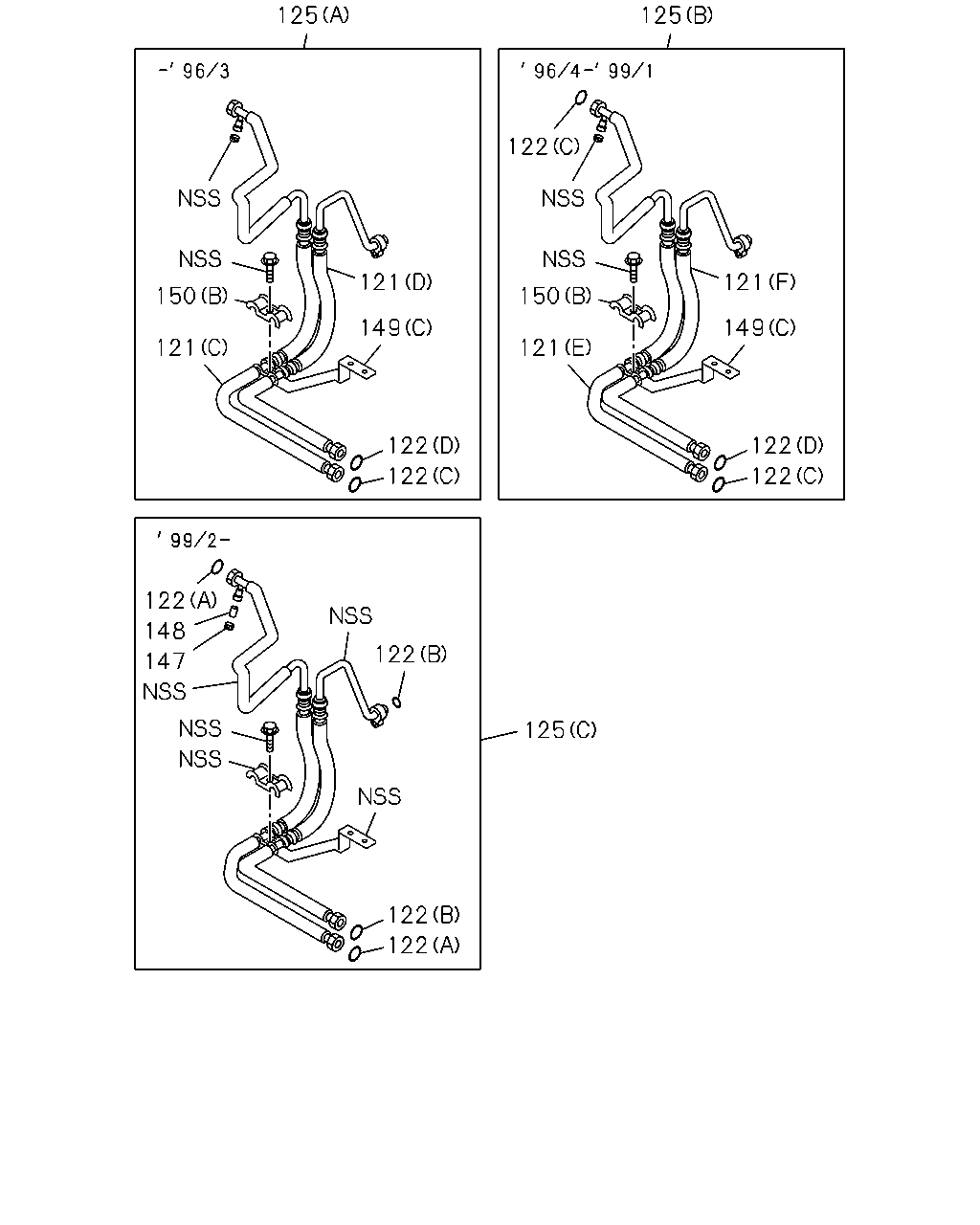

125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-203-0	01	1	9603-9603	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-314-0	01	1	9604-9901	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C)	1-83572-541-1	01	1	9902-9904	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-541-1	01	1	9905-			●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C)	1-83572-541-1	01	1	9905-	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C)	1-83572-545-1	01	1	9902-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-046-0	01	1	9603-9901	●	●
149	BRACKET; COOLER HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-902-0	01	1	9603-9901	●	●
149	BRACKET; COOLER HOSE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-901-1	01	1	9603-9901	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2	1-83574-190-0	01	1	9603-9901	●	●
150	CLIP; HOSE 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-157-0	02	1	9603-9901	●	●
151	BOLT; CLIP FIX,COOLER HOSE 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01900-616-0	02	1	9603-9901	●	●
191	SCREW; CONNECTOR,COOLER HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M4X10 TAPPING	9-07076-410-0	02	1	9603-9901	●	●
192	PLATE; COOLER HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-027-0	01	1	9603-9901	●	●

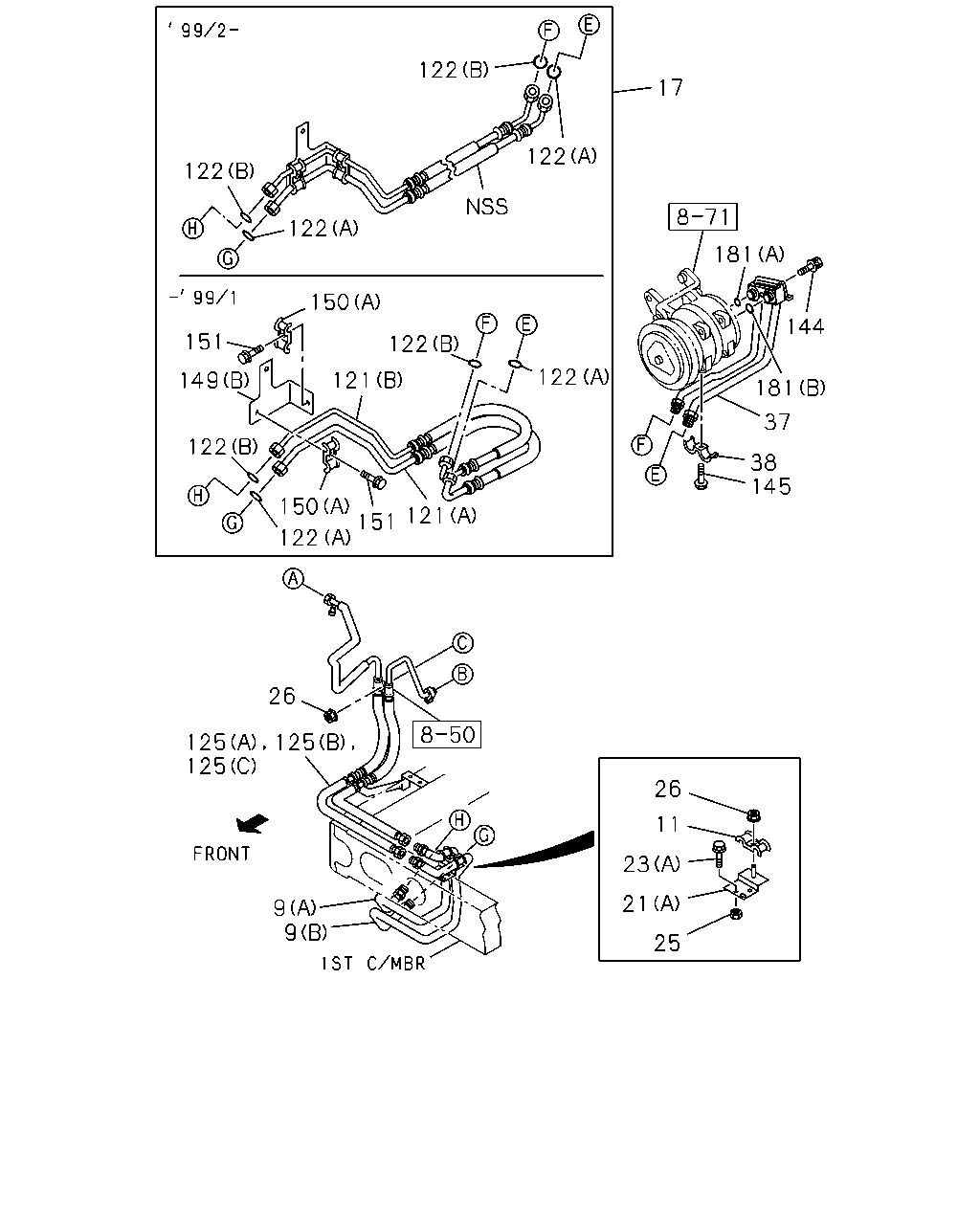

122 17 122 122 12 181 150 144 151 122 122 121 149 181 37 122 38 145 150 121 151 122 26 125 125 125 26 11 23 21 9 9 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	PIPE; COOLER,HOSE TO HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-550-0	01	1	9905-0012	●	●
9	PIPE; COOLER,HOSE TO HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (A)	1-83572-550-0	01	1	0101-	●	●
9	PIPE; COOLER,HOSE TO HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-554-0	01	1	9905-0012	●	●
9	PIPE; COOLER,HOSE TO HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (B)	1-83572-554-0	01	1	0101-	●	●
9	PIPE; COOLER,HOSE TO HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (A)	1-83567-796-0	01	1	0101-	●	●
9	PIPE; COOLER,HOSE TO HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (B)	1-83567-797-0	01	1	0101-	●	●
9	PIPE; COOLER,HOSE TO HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-256-0	01	1	9603-9901	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A)	1-83572-539-1	01	1	9902-9904	●	●
9	PIPE; COOLER,HOSE TO HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A)	1-83572-539-1	01	1	9905-	●	●	●
9	PIPE; COOLER,HOSE TO HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-257-0	01	1	9603-9901	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B)	1-83572-540-0	01	1	9902-9904	●	●
9	PIPE; COOLER,HOSE TO HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B)	1-83572-540-0	01	1	9905-	●	●	●
9	PIPE; COOLER,HOSE TO HOSE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-250-0	01	1	9603-9901	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A)	1-83572-551-0	01	1	9902-9904	●	●
9	PIPE; COOLER,HOSE TO HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A)	1-83572-551-0	01	1	9905-	●	●	●
9	PIPE; COOLER,HOSE TO HOSE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-251-0	01	1	9603-9901	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B)	1-83572-555-0	01	1	9902-9904	●	●
9	PIPE; COOLER,HOSE TO HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B)	1-83572-555-0	01	1	9905-	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=12.2 & 16.2	1-83574-190-0	01	1	9902-9904	●	●
11	CLIP; COOLER PIPE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=12.2 & 16.2	1-83574-190-0	01	1	9905-	●	●	●
11	CLIP; COOLER PIPE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9603-9901	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9603-9901	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9902-9904	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9902-9904	●	●
11	CLIP; COOLER PIPE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9905-	●	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	9905-	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-204-0	01	1	9603-9609	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-204-0	01	1	9612-9901	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-538-0	01	1	9902-9904	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-538-0	01	1	9905-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-249-0	01	1	9603-9901	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-549-0	01	1	9905-9907	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-646-1	01	1	9908-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-198-1	01	1	9603-9901	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-547-1	01	1	9902-9904	●	●
17	HOSE; FLEX,CMPR TO PIPE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-547-1	01	1	9905-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-248-0	01	1	9603-9901	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-546-1	01	1	9902-9904	●	●
17	HOSE; FLEX,CMPR TO PIPE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83572-546-1	01	1	9905-	●	●	●
17	HOSE; FLEX,CMPR TO PIPE 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-548-1	01	1	9905-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-930-1	01	1	9603-9904	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-930-1	01	1	9905-9908	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A)	1-83571-930-1	01	1	9909-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D)	1-83571-998-0	01	1	9902-9904	●	●
21	BRACKET; COOLER HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (D)	1-83571-998-0	01	1	9905-	●	●	●
21	BRACKET; COOLER HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-777-1	01	1	9603-9901	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-777-1	01	1	9902-9904	●	●
21	BRACKET; COOLER HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-777-1	01	1	9905-	●	●	●
21	BRACKET; COOLER HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-910-0	01	1	9603-9608	●	●
21	BRACKET; COOLER HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-018-0	01	1	9609-9901	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C)	1-83573-018-0	01	1	9902-9904	●	●
21	BRACKET; COOLER HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C)	1-83573-018-0	01	1	9905-9908	●	●	●
21	BRACKET; COOLER HOSE L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-018-0	01	1	9909-	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9603	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 FLANGE	0-28080-816-0	02	1	9604-9904	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 FLANGE	0-28080-816-0	02	1	9905-9908	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) M8X16 FLANGE	0-28080-816-0	02	1	9909-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) M8X30 FLANGE	0-28680-830-0	02	1	9902-9904	●	●
23	BOLT; BRKT L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●
23	BOLT; BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
23	BOLT; BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9705	●	●
23	BOLT; BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28080-820-0	01	1	9706-9901	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) M8X20 FLANGE	0-28080-820-0	01	1	9902-9904	●	●
23	BOLT; BRKT L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) M8X20 FLANGE	0-28080-820-0	01	1	9905-9908	●	●	●
23	BOLT; BRKT L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28080-820-0	01	1	9909-	●	●	●
23	BOLT; BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
23	BOLT; BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X25 FLANGE	0-28680-825-0	02	1	9607-9901	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X25 FLANGE	0-28680-825-0	02	1	9902-9904	●	●
23	BOLT; BRKT L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9603-9904	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9905-9908	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> M8	9-09110-408-0	02	1	9909-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9603-9606	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9607-9609	●	●
26	NUT; PIPE CLIP 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9610-9801	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9610-9801	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9610-9801	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9802-9904	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
26	NUT; PIPE CLIP 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9603-9606	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9603-9606	●	●
26	NUT; PIPE CLIP 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9609	●	●
26	NUT; PIPE CLIP 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9802-9901	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●
26	NUT; PIPE CLIP L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
26	NUT; PIPE CLIP L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
37	CONNECTOR; CMPR TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-83563-173-0	01	1	9905-	●	●
37	CONNECTOR; CMPR TO FLEX HOSE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83575-077-0	01	1	9603-9901	●	●
38	CLIP; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-83574-177-0	01	1	9905-	●	●
38	CLIP; CONNECTOR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-177-0	01	1	9603-9901	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-425-0	01	1	9603-9603	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83572-423-0	01	1	9604-9901	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-426-0	01	1	9603-9603	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83572-424-0	01	1	9604-9901	●	●
121	HOSE; COOLER 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-120-0	01	1	9603-9901	●	●
121	HOSE; COOLER 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-302-0	01	1	9603-9901	●	●
121	HOSE; COOLER 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-122-0	01	1	9603-9901	●	●
121	HOSE; COOLER 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-199-0	01	1	9603-9901	●	●
121	HOSE; COOLER 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-124-0	01	1	9603-9901	●	●
121	HOSE; COOLER 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-301-0	01	1	9603-9901	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13.9	8-94113-330-0	02	1	9604-9901	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9902-9904	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9902-9904	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9905-	●	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9905-	●	●	●
122	GASKET 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94481-717-0	01	1	9603-9901	●	●
122	GASKET 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13.9	8-94113-330-0	01	1	9603-9901	●	●
122	GASKET 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8	8-94113-331-0	01	1	9603-9603	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8	8-94113-331-0	01	1	9604-9901	●	●
122	GASKET 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8	8-94113-331-0	01	1	9604-9901	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9902-9904	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9902-9904	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9905-	●	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9905-	●	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-203-0	01	1	9603-9603	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-314-0	01	1	9604-9901	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C)	1-83572-541-1	01	1	9902-9904	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-541-1	01	1	9905-			●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C)	1-83572-541-1	01	1	9905-	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C)	1-83572-545-1	01	1	9902-	●	●
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) M10X45	9-01961-045-0	01	1	9905-	●	●
144	BOLT; CONN TO CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45	9-01961-045-0	01	1	9603-9901	●	●
145	BOLT; CLIP,CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) M8X16 W/LK WASHER	9-01900-816-0	01	1	9905-	●	●
145	BOLT; CLIP,CONNECTOR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER	9-01900-816-0	01	1	9603-9901	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-046-0	01	1	9603-9901	●	●
149	BRACKET; COOLER HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-902-0	01	1	9603-9901	●	●
149	BRACKET; COOLER HOSE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-901-1	01	1	9603-9901	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2	1-83574-190-0	01	1	9603-9901	●	●
150	CLIP; HOSE 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-157-0	02	1	9603-9901	●	●
151	BOLT; CLIP FIX,COOLER HOSE 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01900-616-0	02	1	9603-9901	●	●
181	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (A) HIGH PRESS ID=15.5	8-97161-777-0	01	1	9905-	●	●
181	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (B) LOW PRESS ID=18.3	8-97161-778-0	01	1	9905-	●	●
181	GASKET; CONNECTOR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) HIGH PRESS	1-09623-514-0	01	1	9603-9901	●	●
181	GASKET; CONNECTOR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) LOW PRESS	1-09623-515-0	01	1	9603-9901	●	●

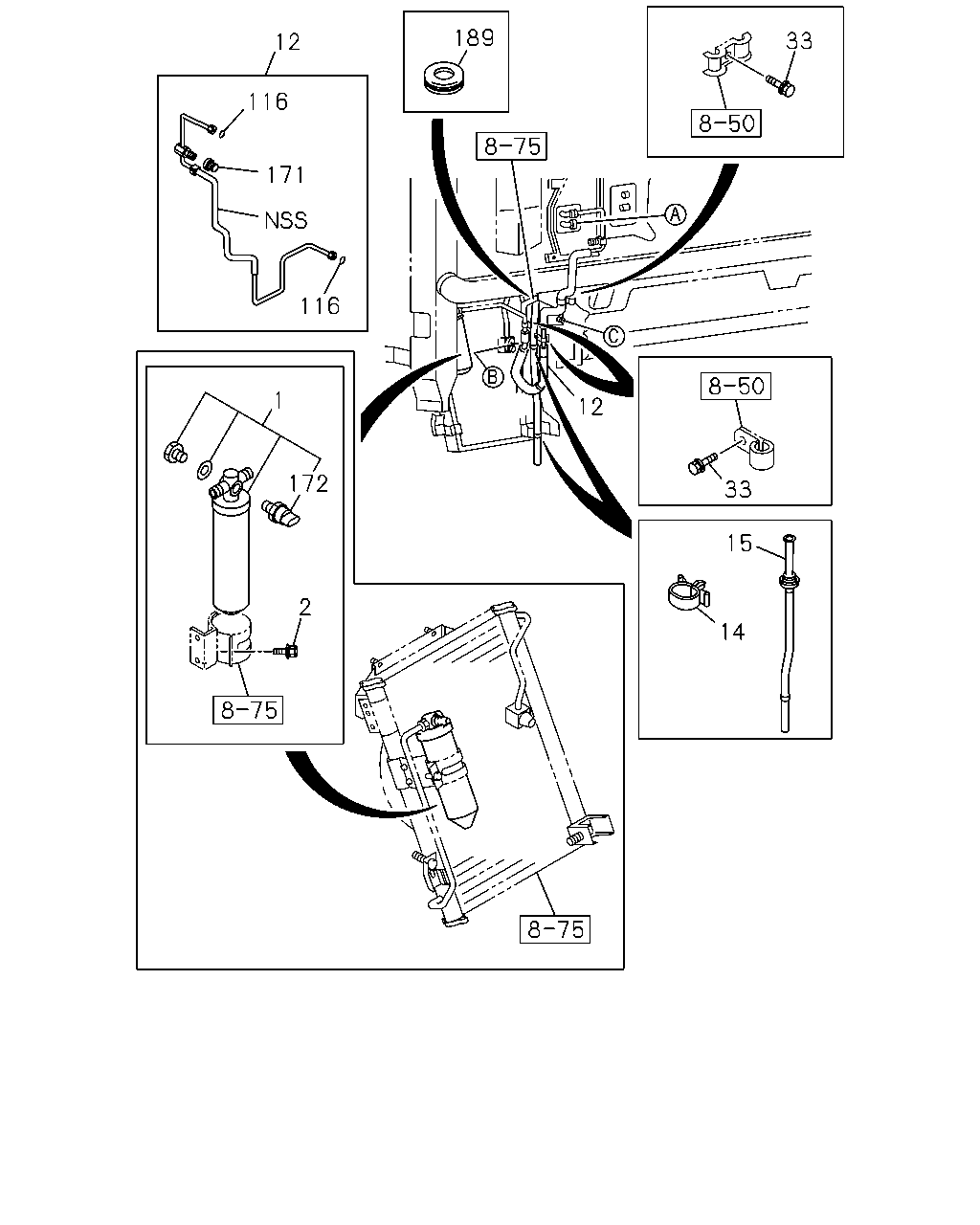

189 33 12 116 171 116 1 12 172 33 15 2 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-079-0	01	1	9603-9901	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-087-0	01	1	9902-9904	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-087-0	01	1	9905-	●	●	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9603-9904	●	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9905-	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-204-0	01	1	9603-9609	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-204-0	01	1	9612-9901	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-538-0	01	1	9902-9904	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-538-0	01	1	9905-	●	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	9603-9904	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	9905-	●	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83566-904-2	01	1	9603-9702	●	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	9703-9901	●	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	9902-9904	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	9905-	●	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-903-3	01	1	9603-9702	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-411-0	01	1	9703-9904	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	9905-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-9904	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=6	8-94481-700-0	02	1	9603-9609	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=6	8-94481-700-0	02	1	9610-9901	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	02	1	9902-9904	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	02	1	9905-	●	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	9603-9609	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	9612-9901	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97080-101-0	01	1	9902-9904	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97080-101-0	01	1	9905-	●	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-218-0	01	1	9603-9904	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-218-0	01	1	9905-	●	●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9603-9901	●	●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9902-9904	●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9905-	●	●	●

125 125 122 121 121 150 150 149 149 121 121 122 122 122 122 122 148 122 147 125 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-425-0	01	1	9603-9603	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83572-423-0	01	1	9604-9901	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-426-0	01	1	9603-9603	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83572-424-0	01	1	9604-9901	●	●
121	HOSE; COOLER 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-120-0	01	1	9603-9901	●	●
121	HOSE; COOLER 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-302-0	01	1	9603-9901	●	●
121	HOSE; COOLER 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-122-0	01	1	9603-9901	●	●
121	HOSE; COOLER 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-199-0	01	1	9603-9901	●	●
121	HOSE; COOLER 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-124-0	01	1	9603-9901	●	●
121	HOSE; COOLER 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-301-0	01	1	9603-9901	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13.9	8-94113-330-0	02	1	9604-9901	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9902-9904	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9902-9904	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9905-	●	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3	8-97161-778-0	02	1	9905-	●	●	●
122	GASKET 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94481-717-0	01	1	9603-9901	●	●
122	GASKET 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13.9	8-94113-330-0	01	1	9603-9901	●	●
122	GASKET 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8	8-94113-331-0	01	1	9603-9603	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8	8-94113-331-0	01	1	9604-9901	●	●
122	GASKET 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8	8-94113-331-0	01	1	9604-9901	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9902-9904	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9902-9904	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9905-	●	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	02	1	9905-	●	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-203-0	01	1	9603-9603	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-314-0	01	1	9604-9901	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C)	1-83572-541-1	01	1	9902-9904	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-541-1	01	1	9905-			●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C)	1-83572-541-1	01	1	9905-	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C)	1-83572-545-1	01	1	9902-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9902-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9902-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-046-0	01	1	9603-9901	●	●
149	BRACKET; COOLER HOSE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-902-0	01	1	9603-9901	●	●
149	BRACKET; COOLER HOSE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-901-1	01	1	9603-9901	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2	1-83574-190-0	01	1	9603-9901	●	●
150	CLIP; HOSE 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-157-0	02	1	9603-9901	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
