Sayfa 3-60 - Isuzu EPC

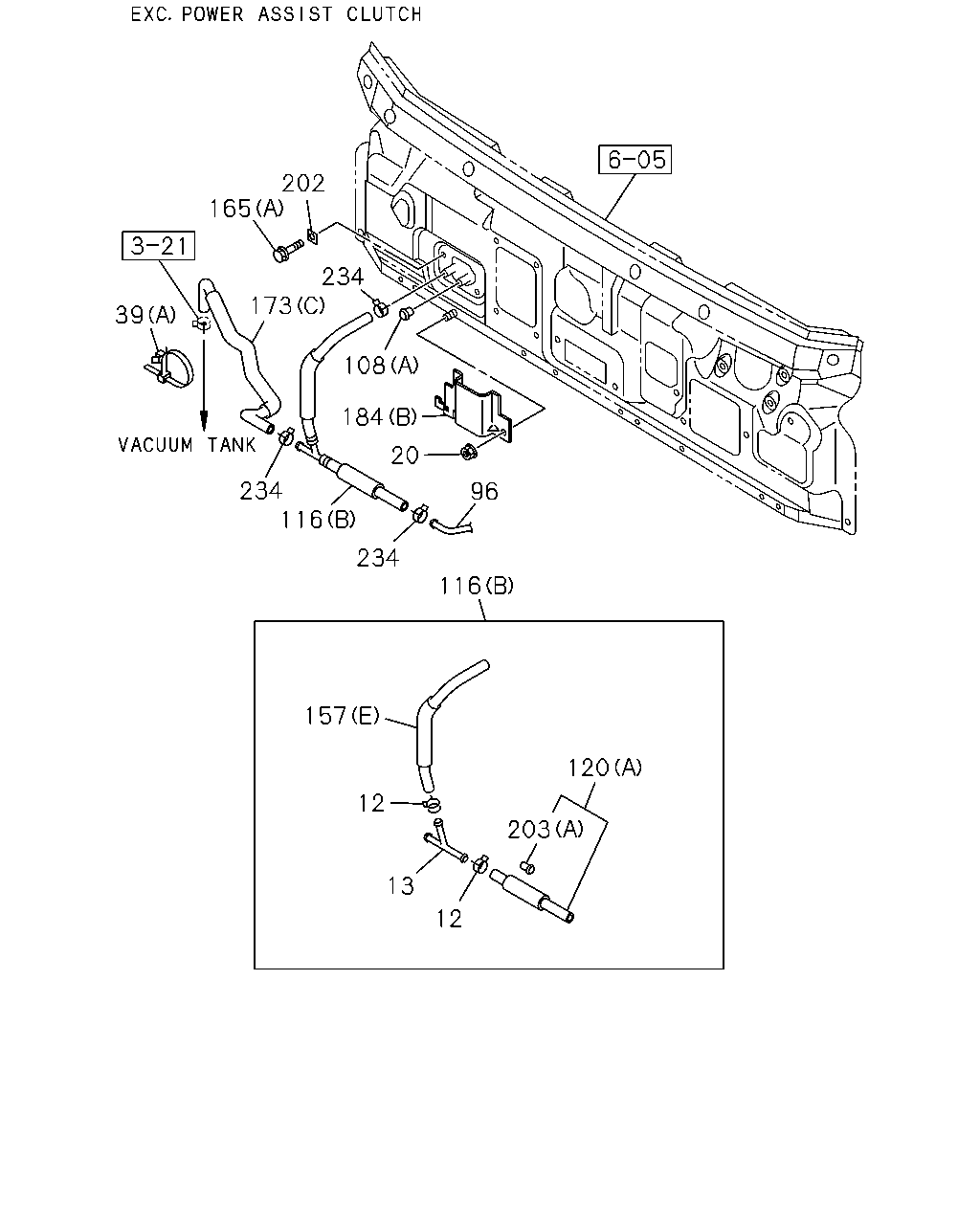

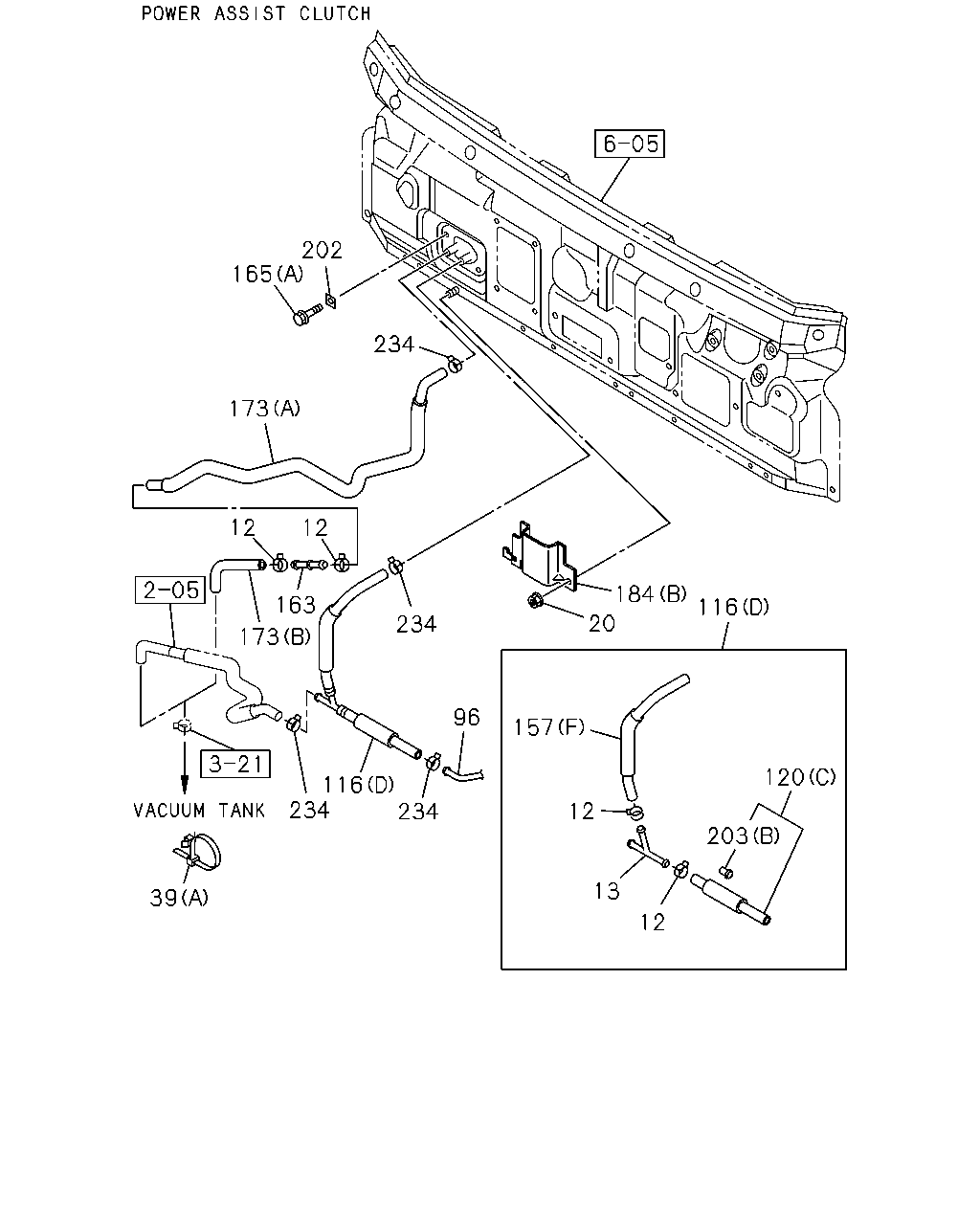

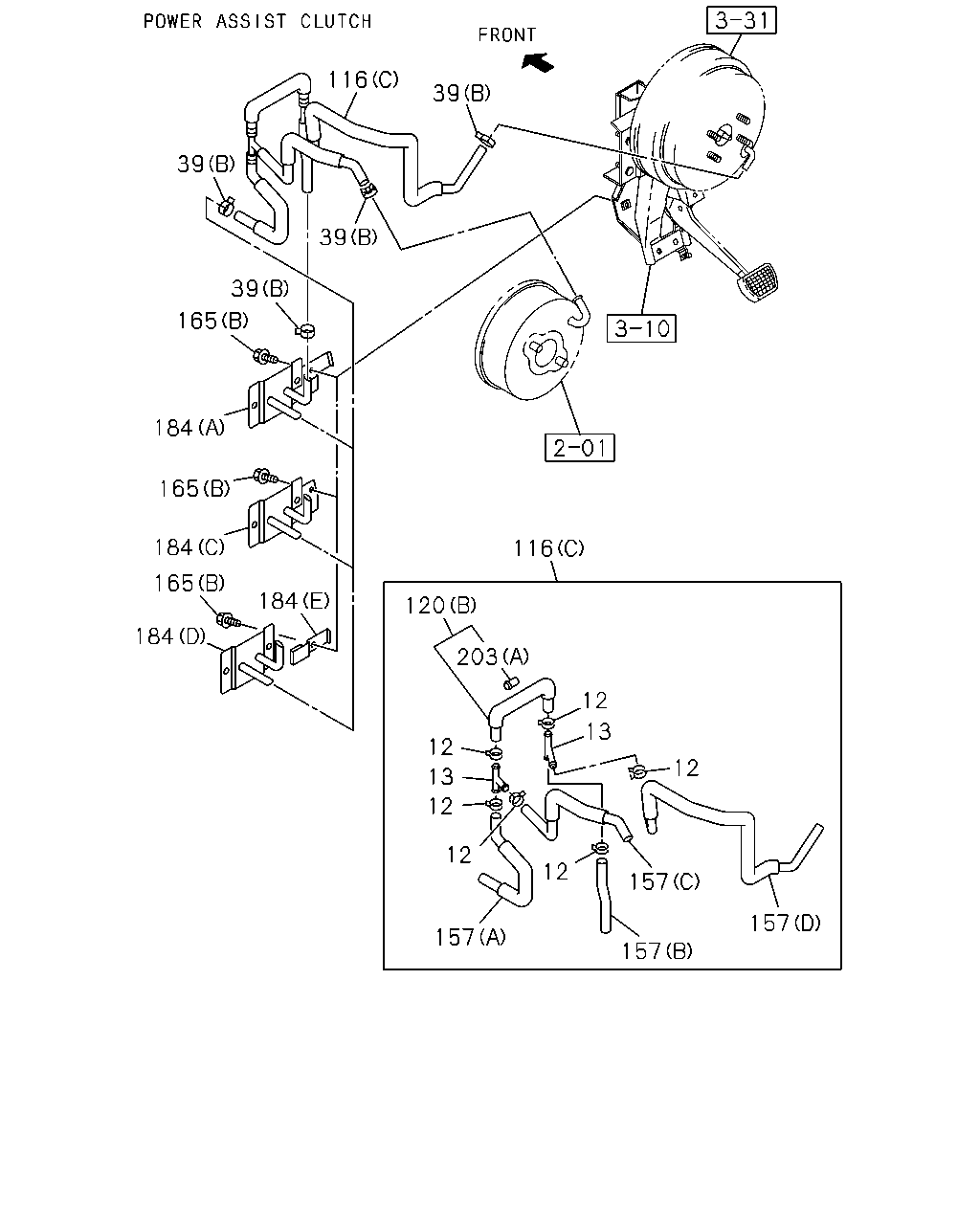

3-60 — BRAKE PIPING; VACUUM (#49468) — 516 parça

202 165 39 173 234 108 184 234 234 116 116 20 96 157 12 13 12 203 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1012	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1101-1507	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	14	1	1012-1012	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	1101-1507	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	1508-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1012-1507	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	06	1	1508-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1012-1507	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	02	1	1508-	●	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-1507	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1507	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1508-	●	●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1507	●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	1012-1205	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-1507	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1508-	●	●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-1507	●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1508-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1508-		●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1012-1507	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98158-378-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98158-378-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E)	8-98158-378-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98100-244-1	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98189-220-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (E)	8-98130-735-0	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (E)	8-98189-219-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1508-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1012-1507	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1508-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1012-1507	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1508-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1012-1507	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1508-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1508-	●	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1507	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1508-	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1508-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	1012-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	1012-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	1012-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1012-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-1507	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1508-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1012-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-1507	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1508-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1012-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-1507	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-1507	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1012-1102	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1103-1507	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1012-1507	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1012-1102	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1103-1311	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-1507	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1508-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1012-1507	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1508-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1012-1507	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1508-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-1507	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1508-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1012-1507	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1508-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1012-1507	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1508-	●	●

39 116 165 39 184 165 184 165 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1507	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1508-	●	●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1507	●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98158-378-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98158-378-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E)	8-98158-378-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98100-244-1	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98189-220-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (E)	8-98130-735-0	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (E)	8-98189-219-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1508-	●	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1507	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1508-	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-1507	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1012-1102	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1103-1507	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1012-1507	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1012-1102	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1103-1311	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-1507	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1508-	●	●

136 236 78 136 122 136 108 169 235 78 136 66 116 66 44 136 44 136 96 98 39 78 66 116 66 33 39 33 169 116 66 66 66 116 78 66 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	1012-1507	●
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1507	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1508-	●	●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98040-634-0	01	1	1508-		●
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> (B)	8-98103-009-0	01	1	1012-1507	●
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> (B)	8-98103-009-0	01	1	1508-	●
44	04.930 PIPE; VAC,MAG VLV (B)	8-98103-009-0	01	1	1508-		●
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	08	1	1012-1507	●
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	08	1	1508-	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	08	1	1508-		●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1507	●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1508-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-103-0	01	1	1508-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.630 (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (C) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98080-833-1	01	1	1012-1507	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98080-833-1	01	1	1508-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98080-833-1	01	1	1508-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	1012-1205	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-1507	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1508-	●	●
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-1507	●
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1508-	●	●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-1507	●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1508-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1508-		●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1012-1507	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98158-378-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98158-378-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E)	8-98158-378-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98100-244-1	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98189-220-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (E)	8-98130-735-0	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (E)	8-98189-219-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1508-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-105-0	01	1	1508-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98034-103-2	01	1	1012-1103	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1104-	●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-1507	●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1508-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98041-052-2	01	1	1012-1507	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98041-052-2	01	1	1508-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) (A)	8-98041-052-2	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98041-054-3	01	1	1012-1507	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98041-054-3	01	1	1508-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) (C)	8-98041-054-3	01	1	1508-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98100-234-2	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (C)	8-98100-235-1	01	1	1012-	●
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-053-4	01	1	1012-1507	●
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-053-4	01	1	1508-	●
169	04.930 PIPE; VAC,BOOSTER SIDE (B)	8-98041-053-4	01	1	1508-		●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-1507	●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1508-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1508-		●
236	04.930 BOLT; PIPE 00.029 M10X25 FLANGE	0-28651-025-0	01	1	1508-		●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●

165 202 234 173 12 163 12 173 234 20 116 184 234 234 96 116 39 157 12 13 12 203 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1012	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1101-1507	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	14	1	1012-1012	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	1101-1507	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	1508-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1012-1507	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	06	1	1508-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1012-1507	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	02	1	1508-	●	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-1507	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1507	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1508-	●	●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1507	●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	1012-1205	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-1507	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98158-378-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98158-378-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E)	8-98158-378-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98100-244-1	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98189-220-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (E)	8-98130-735-0	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (E)	8-98189-219-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1508-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1012-1507	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1508-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1012-1507	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1508-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1012-1507	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1508-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1508-	●	●
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	1012-1507	●
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	1508-	●	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1507	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1508-	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1508-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	1012-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	1012-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	1012-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1012-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-1507	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1508-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1012-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-1507	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1508-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1012-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-1507	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-1507	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1012-1102	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1103-1507	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1012-1507	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1012-1102	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1103-1311	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-1507	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1508-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1012-1507	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1508-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1012-1507	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1508-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-1507	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1508-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1012-1507	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1508-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1012-1507	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1508-	●	●

153 165 165 228 153 152 118 159 152 172 158 159 172 159 159 158 172 158 155 106 81 106 228 44 159 228 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	04.930 PIPE; VAC,MAG VLV (A)	8-98040-634-0	01	1	1508-		●
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> (B)	8-98103-009-0	01	1	1012-1507	●
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> (B)	8-98103-009-0	01	1	1508-	●
44	04.930 PIPE; VAC,MAG VLV (B)	8-98103-009-0	01	1	1508-		●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1507	●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
81	04.930 PIPE; VAC,VSV FRAME STRAIGHT TYPE<7KJ>	8-98060-407-3	01	1	1012-1507	●
81	04.930 PIPE; VAC,VSV FRAME STRAIGHT TYPE<7KJ>	8-98060-407-3	01	1	1508-	●
81	04.930 PIPE; VAC,VSV	8-98060-407-3	01	1	1508-		●
106	04.930 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> ID=10 H=40	8-94462-219-0	02	1	1012-1507	●
106	04.930 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> ID=10 H=40	8-94462-219-0	02	1	1508-	●
106	04.930 CLIP; PIPE ID=10 H=40	8-94462-219-0	02	1	1508-		●
118	04.930 BRACKET; VSV	8-98090-281-1	01	1	1508-		●
118	04.930 BRACKET; VSV FRAME STRAIGHT TYPE<7KJ>	8-98069-541-3	01	1	1012-	●
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO FRAME STRAIGHT TYPE<7KJ>	8-94481-999-4	02	1	1012-1302	●
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO FRAME STRAIGHT TYPE<7KJ> 09.755	8-98222-432-0	02	1	1303-1310	●
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO FRAME STRAIGHT TYPE<7KJ> 09.755	8-98256-404-0	02	1	1311-	●
153	04.686 BOLT; VSV FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1012-1507	●
153	04.686 BOLT; VSV FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1508-	●
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1508-		●
155	04.931 HOSE; VAC,AIR FILTER FRAME STRAIGHT TYPE<7KJ> 03.630 L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1012-1507	●
155	04.931 HOSE; VAC,AIR FILTER FRAME STRAIGHT TYPE<7KJ> 03.630 L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1508-	●
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1508-		●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 (B) ID=14-20	8-97061-603-0	01	1	1012-	●
158	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=16.5 & 16.5	8-94468-380-0	01	1	1012-1507	●
158	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=16.5 & 16.5	8-94468-380-0	01	1	1508-	●
158	04.681 CLIP; HOSE 02.559 (A) ID=16.5 & 16.5	8-94468-380-0	01	1	1508-		●
159	04.931 HOSE ASM; VAC FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-137-2	02	1	1012-1507	●
159	04.931 HOSE ASM; VAC FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-137-2	02	1	1508-	●
159	04.931 HOSE ASM; VAC (B)	8-98070-137-2	02	1	1508-		●
159	04.931 HOSE ASM; VAC FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-138-1	02	1	1012-1507	●
159	04.931 HOSE ASM; VAC FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-138-1	02	1	1508-	●
159	04.931 HOSE ASM; VAC (A)	8-98070-138-1	02	1	1508-		●
159	04.931 HOSE ASM; VAC FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-010-0	01	1	1012-1507	●
159	04.931 HOSE ASM; VAC FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-010-0	01	1	1508-	●
159	04.931 HOSE ASM; VAC (C)	8-98093-010-0	01	1	1508-		●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1507	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1508-	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1508-	●	●
172	04.930 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1012-1507	●
172	04.930 CLIP; VAC HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1508-	●
172	04.930 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	04	1	1508-		●
228	04.930 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
228	04.930 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-1507	●
228	04.930 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-	●
228	04.930 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-	●
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-		●
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-		●
228	04.930 NUT; PIPE 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-		●

116 39 39 39 165 184 165 184 165 184 184 120 116 203 12 13 12 157 157 157 157 12 12 12 12 13 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1012	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1101-1507	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1508-	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	14	1	1012-1012	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	1101-1507	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	1508-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1012-1507	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	06	1	1508-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1012-1507	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	02	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1507	●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1508-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1507	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1508-	●	●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1507	●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98158-378-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E)	8-98158-378-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E)	8-98158-378-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98100-244-1	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98189-220-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (E)	8-98130-735-0	01	1	1012-1104	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (E)	8-98189-219-0	01	1	1105-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1508-	●
116	04.931 HOSE; VAC,M/VAC 03.630 (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1508-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1508-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-1507	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1508-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1012-1507	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1508-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1012-1507	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1508-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1012-1507	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1508-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1012-1507	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1508-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1012-1507	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1508-	●	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
165	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-	●
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1508-		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1507	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1508-	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-1507	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-1507	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1012-1102	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1103-1507	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1012-1507	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1508-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1012-1102	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1103-1311	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-1507	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1508-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1012-1507	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1508-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-1507	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
