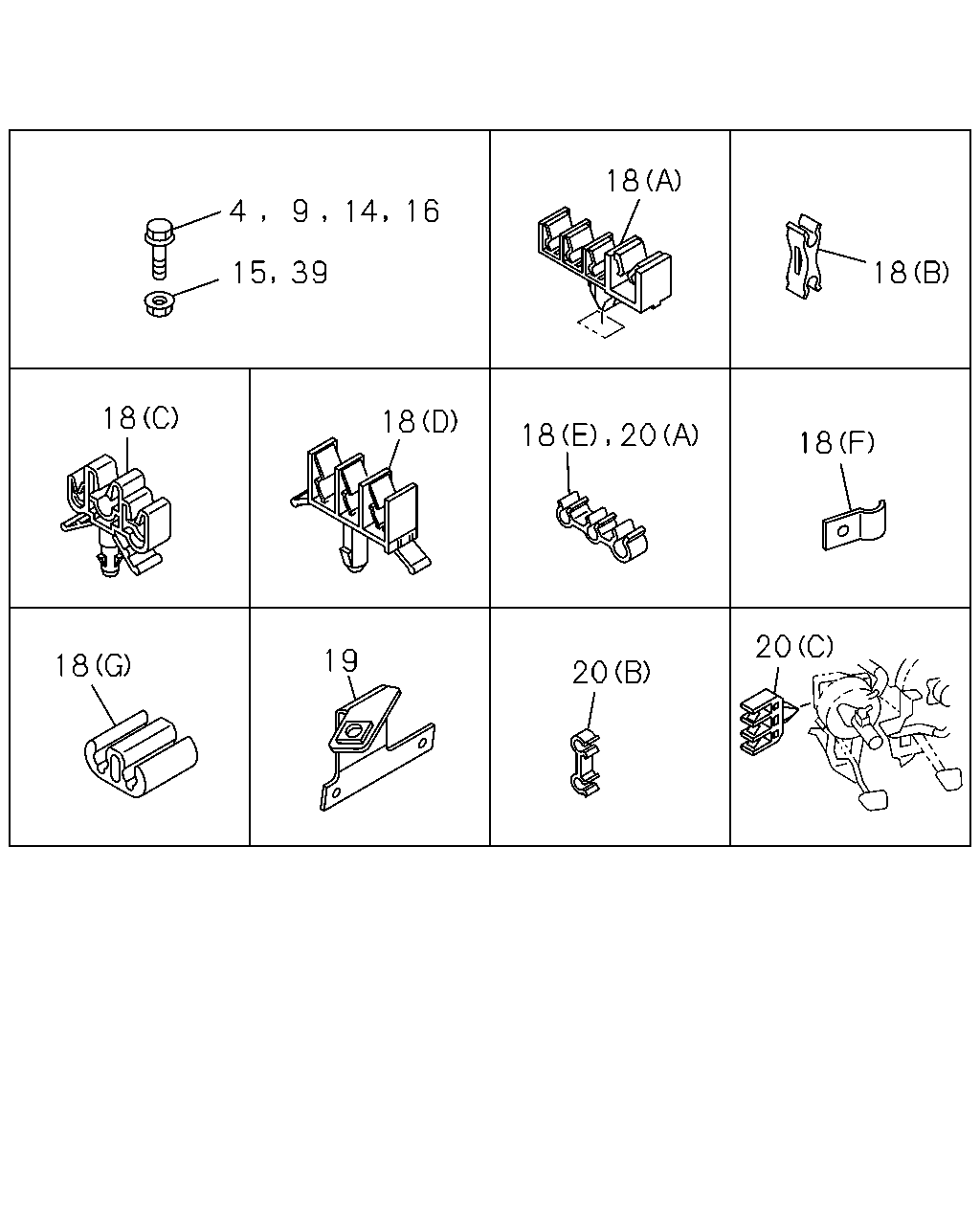

3-58 — FIXING PARTS; OIL PIPING (#49467) — 56 parça

4 9 14 16 15 39 18 18 18 20 18 18 18 18 19 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1507	●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-	●	●
9	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1507	●
9	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-	●
9	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-		●
14	04.686 BOLT; CLIP,OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1507	●
14	04.686 BOLT; CLIP,OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-	●
14	04.686 BOLT; CLIP,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-		●
15	04.686 NUT; CLIP,OIL PIPE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1507	●
15	04.686 NUT; CLIP,OIL PIPE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●
15	04.686 NUT; CLIP,OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-		●
16	04.686 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-1507	●
16	04.686 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1508-	●
16	04.686 BOLT; BRKT TO FRAME 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1508-		●
18	04.686 CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	01	1	1408-1507	●
18	04.686 CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	01	1	1508-	●
18	04.686 CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) (C) ID=12 & 6.35 & 4.76	8-97202-954-1	01	1	1508-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) B=18 L=20	1-09700-372-0	02	1	1012-1507	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) B=18 L=20	1-09700-372-0	02	1	1508-	●
18	04.686 CLIP; BRK PIPE (F) B=18 L=20	1-09700-372-0	02	1	1508-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (E) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1012-1507	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (E) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1508-	●
18	04.686 CLIP; BRK PIPE (E) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1508-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (G) ID=4.8X2	8-94389-060-0	01	1	1012-1507	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (G) ID=4.8X2	8-94389-060-0	01	1	1508-	●
18	04.686 CLIP; BRK PIPE (G) ID=4.8X2	8-94389-060-0	01	1	1508-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1012-1507	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1508-	●
18	04.686 CLIP; BRK PIPE 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1508-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1012-1507	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1508-	●
18	04.686 CLIP; BRK PIPE 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1508-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97168-819-0	01	1	1012-1507	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97168-819-0	01	1	1508-	●
18	04.686 CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	01	1	1508-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	03	1	1012-1407	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1408-1507	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1508-	●
18	04.686 CLIP; BRK PIPE (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1508-		●
18	04.686 CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	02	1	1012-1507	●
18	04.686 CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	02	1	1508-	●	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	04	1	1012-1507	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	04	1	1508-	●	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	07	1	1012-1507	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	07	1	1508-	●	●
19	04.686 BRACKET; OIL PIPE	8-97389-845-2	01	1	1012-1507	●
19	04.686 BRACKET; OIL PIPE	8-97389-845-2	01	1	1508-	●	●
20	04.686 CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1012-1507	●
20	04.686 CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1508-	●	●
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	1012-1507	●
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	1508-	●	●
20	04.686 CLIP; BRK PIPE (B)	8-94338-104-0	01	1	1012-1507	●
20	04.686 CLIP; BRK PIPE (B)	8-94338-104-0	01	1	1508-	●	●
39	04.686 NUT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1507	●
39	04.686 NUT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
39	04.686 NUT; BRKT FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
