◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51301 - NPS-RHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#49466) — 16 parça

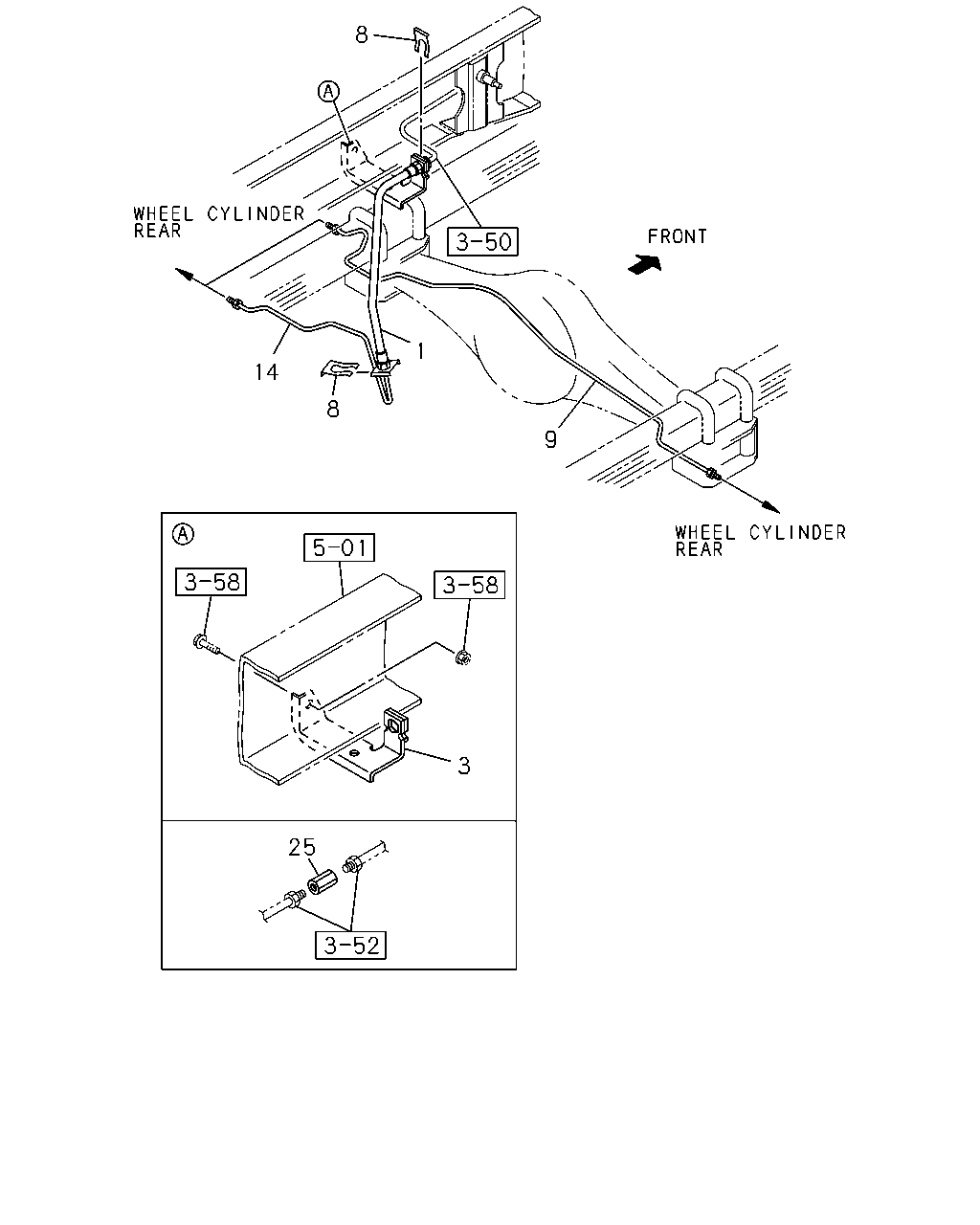

çizim 176148
8 14 8 9 1 3 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98049-265-0 01 1 1012-1507 ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98049-265-0 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK 8-98049-265-0 01 1 1508- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97205-714-1 01 1 1012-1507 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97205-714-1 01 1 1508- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 1508- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1012-1507 ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1508- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1012-1507 ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1508- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 1012-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 1508- ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1012-1507 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1012-1507 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1508- ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1508- ● ●
