3-52 — BRAKE PIPING; OIL,FRONT (#49465) — 27 parça

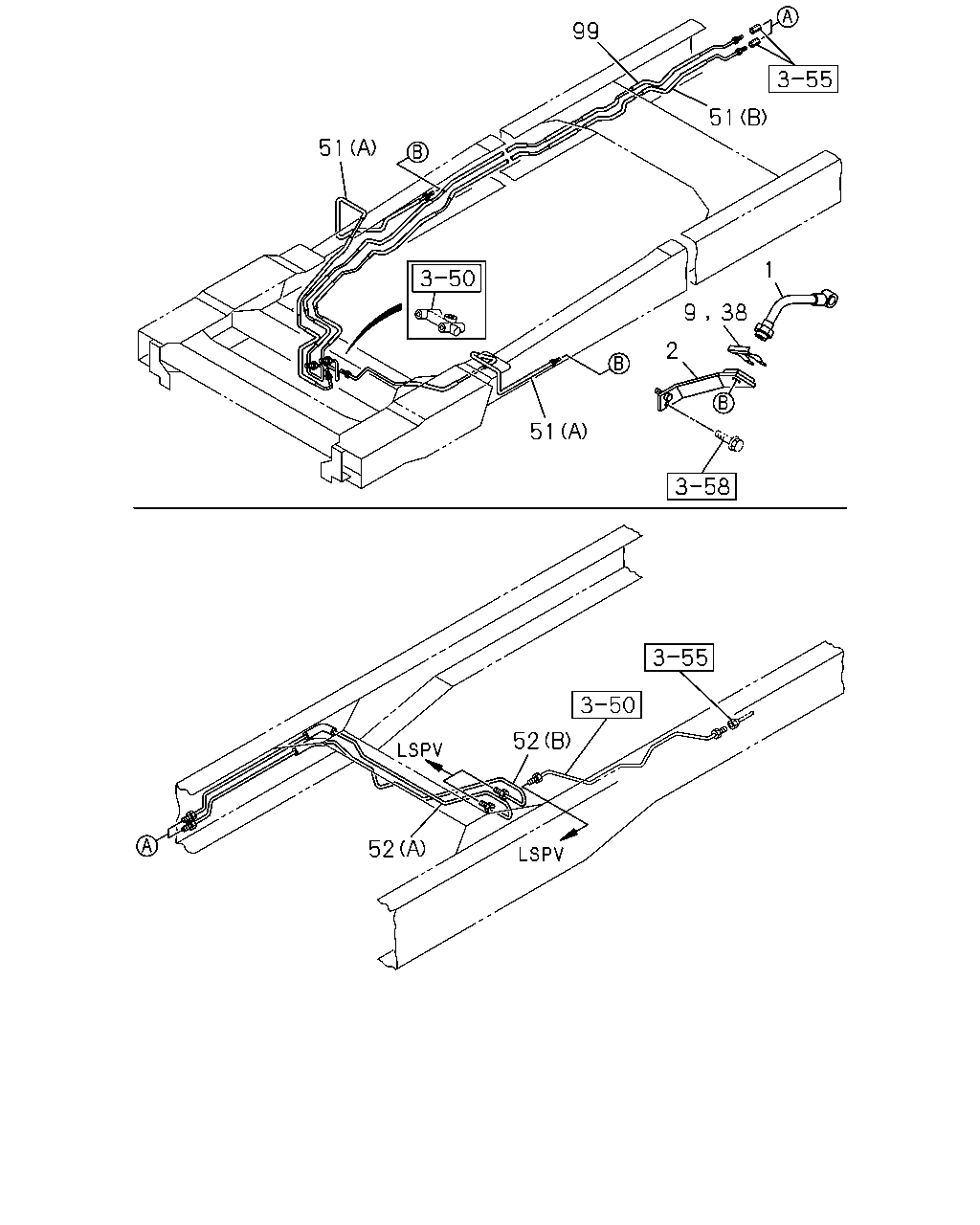

çizim 176159
51 2 38 1 51 99 51 52 52 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1012-1507 ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1508- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98049-943-1 01 1 1012-1507 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98049-943-1 01 1 1508- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-98049-943-1 01 1 1508- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1012-1507 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1508- ● ●
38 04.686 CLIP 8-97360-054-0 02 1 1012-1507 ●
38 04.686 CLIP 8-97360-054-0 02 1 1508- ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 1012-1507 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 1508- ●
51 04.685 PIPE; BRK
(B) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 1508- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 6WAY TO 2WAY,FRONT 		8-98060-402-1 01 1 1012-1507 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 6WAY TO 2WAY,FRONT 		8-98060-402-1 01 1 1508- ●
51 04.685 PIPE; BRK
(A) 6WAY TO 2WAY,FRONT 		8-98060-402-1 01 1 1508- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 6WAY TO 2WAY,FRONT 		8-98060-406-2 01 1 1012-1507 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 6WAY TO 2WAY,FRONT 		8-98060-406-2 01 1 1508- ●
51 04.685 PIPE; BRK
(A) 6WAY TO 2WAY,FRONT 		8-98060-406-2 01 1 1508- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 1012-1507 ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 1508- ●
52 04.685 PIPE; BRK
(B) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 1508- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 1012-1507 ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 1508- ●
52 04.685 PIPE; BRK
(A) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 1508- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1012-1507 ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1508- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1508- ●
