Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#49464) — 59 parça

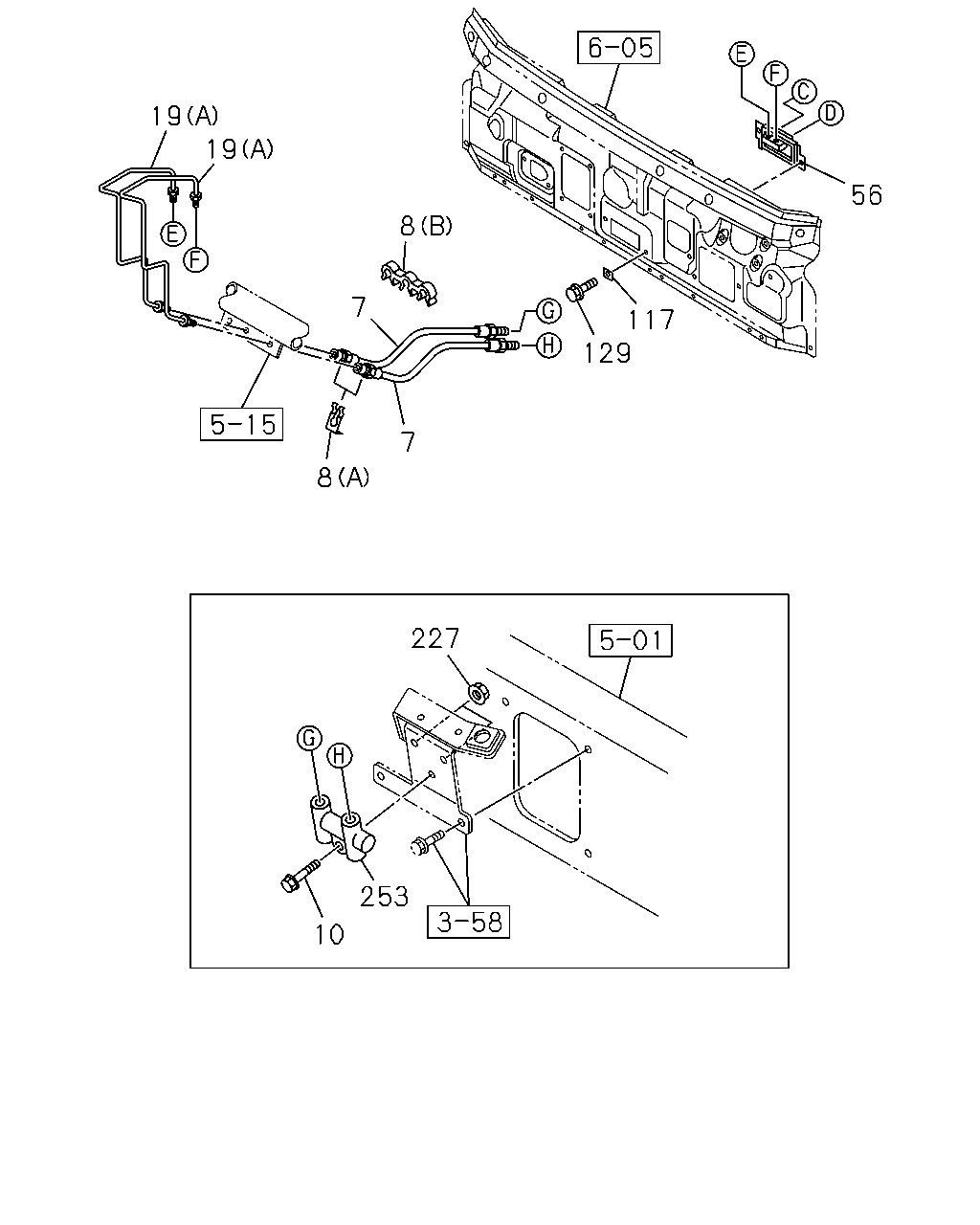

19 8 19 7 56 117 129 7 8 227 253 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1012-1507	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1508-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1012-1507	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1508-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1012-1507	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1508-	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1012-1507	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1508-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1012-1507	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1508-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1012-1507	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1508-	●	●
56	04.686 BRACKET; UNION,BRK	8-98154-264-1	01	1	1012-1507	●
56	04.686 BRACKET; UNION,BRK	8-98154-264-1	01	1	1508-	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1012-1507	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1508-	●	●
129	04.710 BOLT; BRKT 08.857 M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-1507	●
129	04.710 BOLT; BRKT 08.857 M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1508-	●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1507	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-		●
253	04.840 JOINT 04.686	8-97120-033-2	01	1	1012-1507	●
253	04.840 JOINT 04.686	8-97120-033-2	01	1	1508-	●	●

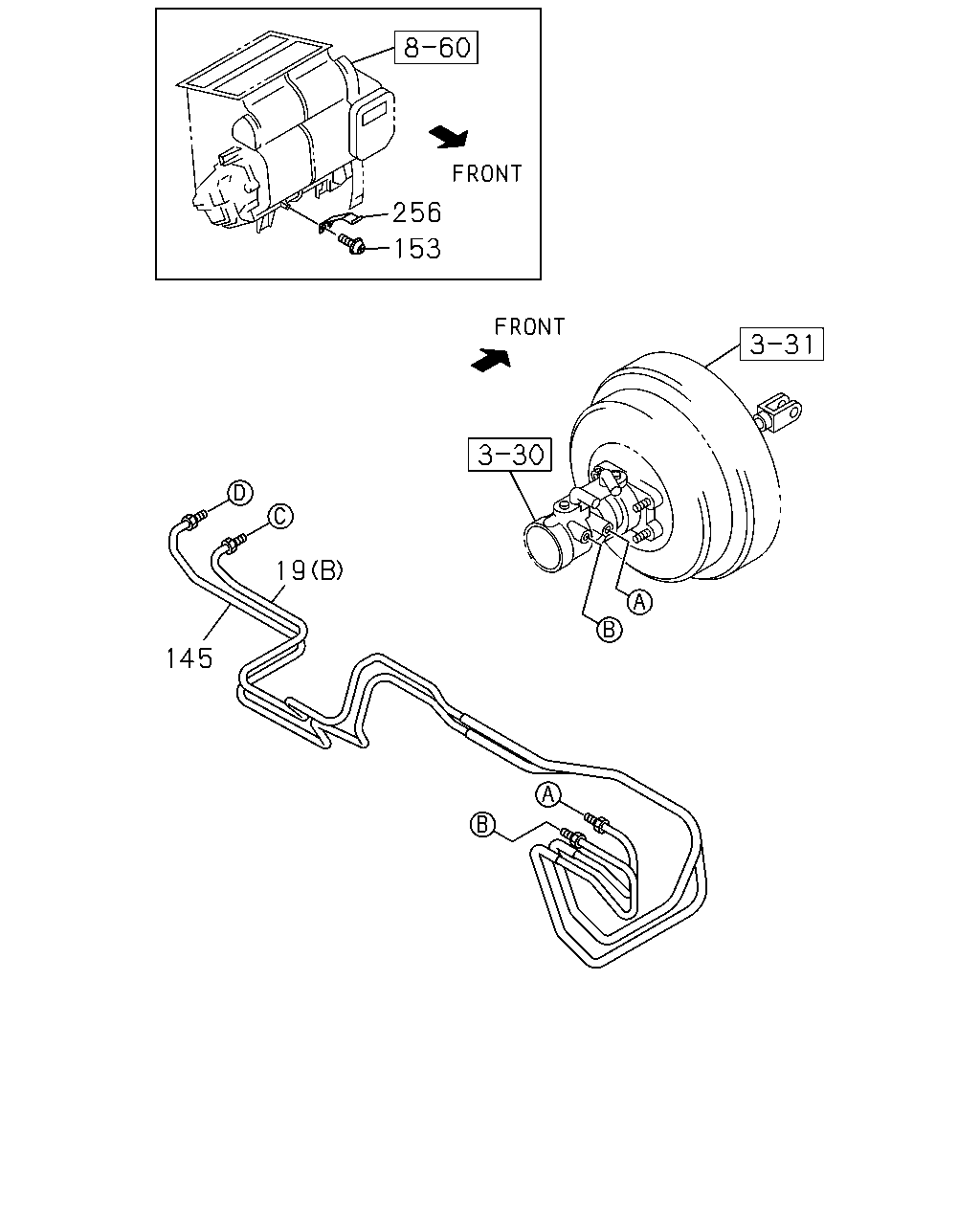

256 19 153 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1012-1507	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1508-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1012-1507	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1508-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97389-295-3	01	1	1012-1507	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97389-295-3	01	1	1508-	●	●
153	04.730 SCREW; BRKT FIX EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1012-1507	●
153	04.730 SCREW; BRKT FIX EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1508-	●	●
256	04.840 BRACKET; BRK PIPE EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1012-1507	●
256	04.840 BRACKET; BRK PIPE EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1508-	●	●

263 13 11 164 262 260 261 261 35 11 26 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	04.686 VALVE; BRK CONT 04.730	8-94427-224-2	01	1	1012-1507	●
11	04.686 VALVE; BRK CONT 04.730	8-94427-224-2	01	1	1508-	●	●
13	04.686 BOLT; VLV TO BRKT 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1012-1507	●
13	04.686 BOLT; VLV TO BRKT 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1508-	●	●
26	04.730 BRACKET; PROPORTIONING VLV	8-98057-012-0	01	1	1012-1507	●
26	04.730 BRACKET; PROPORTIONING VLV	8-98057-012-0	01	1	1508-	●	●
35	04.685 PIPE; BRK,VLV TO RR AXLE FRAME STRAIGHT TYPE<7KJ>	8-98057-271-0	01	1	1012-1507	●
35	04.685 PIPE; BRK,VLV TO RR AXLE FRAME STRAIGHT TYPE<7KJ>	8-98057-271-0	01	1	1508-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE	8-98057-271-0	01	1	1508-		●
104	04.730 BOLT; BRKT TO BODY 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-1507	●
104	04.730 BOLT; BRKT TO BODY 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1508-	●	●
164	04.730 SCREW; BLEEDER 04.685	8-97093-663-0	01	1	1012-1507	●
164	04.730 SCREW; BLEEDER 04.685	8-97093-663-0	01	1	1508-	●	●
260	04.685 SHACKLE; LSPV 04.710	8-97173-366-0	01	1	1012-1507	●
260	04.685 SHACKLE; LSPV 04.710	8-97173-366-0	01	1	1508-	●	●
261	04.685 BUSHING; LSPV 04.710	8-97145-631-0	02	1	1012-1507	●
261	04.685 BUSHING; LSPV 04.710	8-97145-631-0	02	1	1508-	●	●
262	04.685 COLLAR; LSPV 04.710	8-97139-186-0	01	1	1012-1507	●
262	04.685 COLLAR; LSPV 04.710	8-97139-186-0	01	1	1508-	●	●
263	04.685 CAP; BLEEDER	8-97093-662-0	01	1	1012-1507	●
263	04.685 CAP; BLEEDER	8-97093-662-0	01	1	1508-	●	●

11 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	04.686 VALVE; BRK CONT 04.730	8-94427-224-2	01	1	1012-1507	●
11	04.686 VALVE; BRK CONT 04.730	8-94427-224-2	01	1	1508-	●	●
35	04.685 PIPE; BRK,VLV TO RR AXLE FRAME STRAIGHT TYPE<7KJ>	8-98057-271-0	01	1	1012-1507	●
35	04.685 PIPE; BRK,VLV TO RR AXLE FRAME STRAIGHT TYPE<7KJ>	8-98057-271-0	01	1	1508-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE	8-98057-271-0	01	1	1508-		●
