Isuzu WW
▶
TRUCKS
▶
NPS
▶
51301 - NPS-RHD
▶
3 - Brakes, Brake System
▶
3-21 - VACUUM TANK
▶

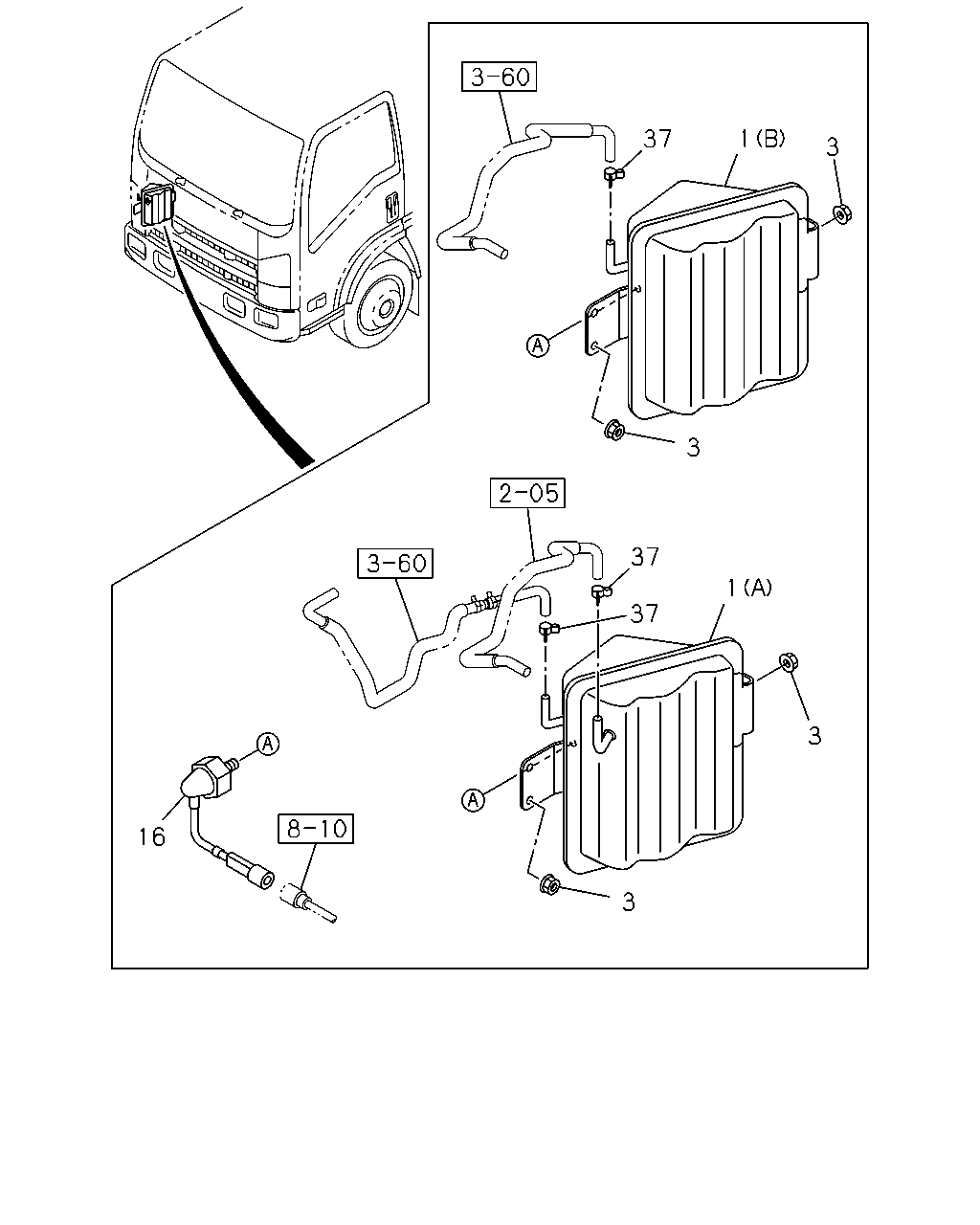

3-21 — VACUUM TANK
(#49460) — 12 parça
Tümü
A - NPS5SN
B - NPS5WN
37
3
1
3
37
37
3
3
16
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-98009-121-2
01
1
1012-1507
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-98009-121-2
01
1
1508-
●
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-98009-122-2
01
1
1012-1507
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-98009-122-2
01
1
1508-
●
●
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1012-1507
●
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1508-
●
●
16
04.906 SWITCH; VAC
8-98049-417-0
01
1
1012-1507
●
16
04.906 SWITCH; VAC
8-98049-417-0
01
1
1508-
●
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
02
1
1012-1507
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
02
1
1508-
●
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1012-1507
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1508-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
