Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#4946) — 217 parça

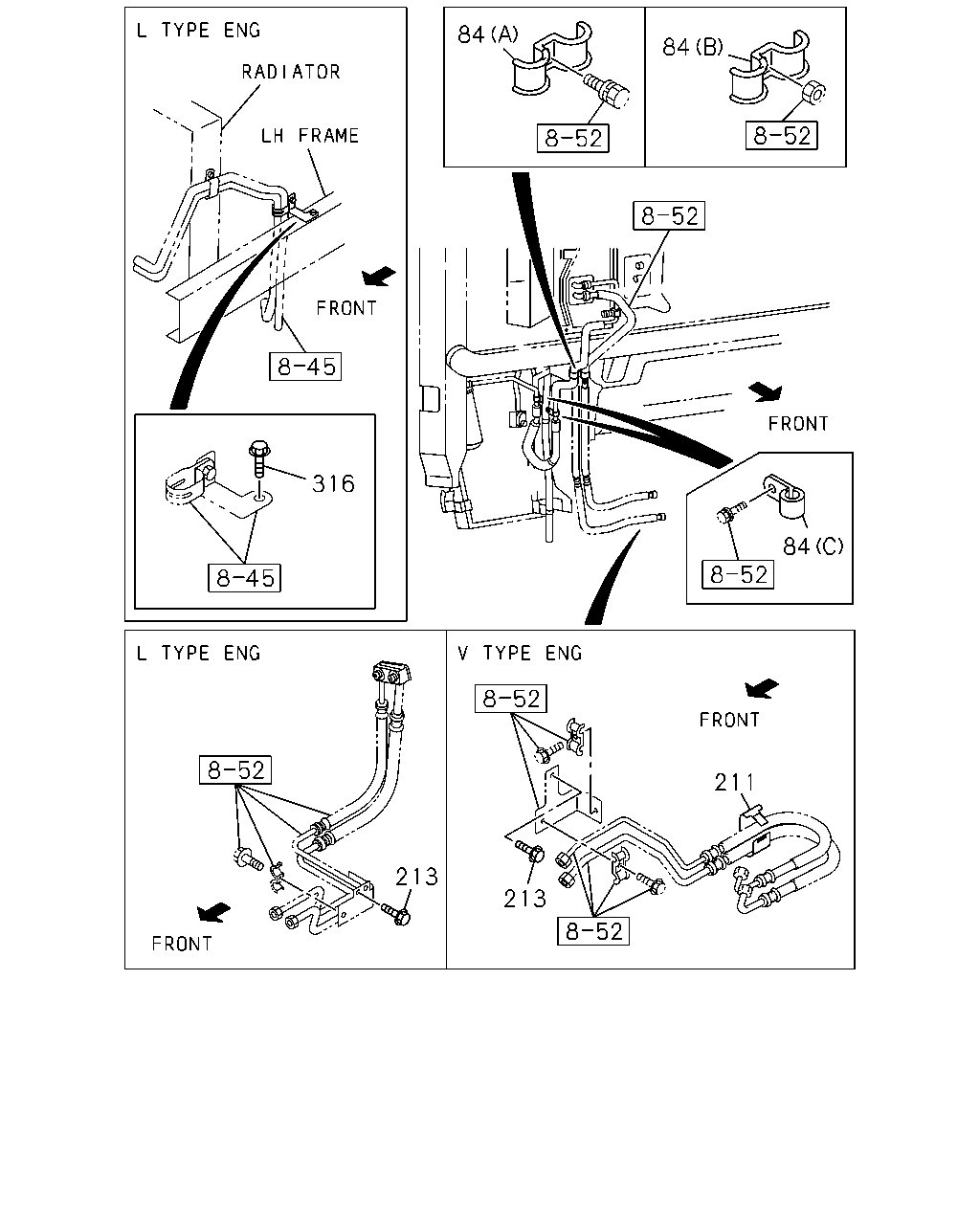

84 84 316 84 211 213 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9603-9904	●	●
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9905-	●	●	●
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20	1-83574-195-1	01	1	9603-9904	●	●
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20	1-83574-195-1	01	1	9905-	●	●	●
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20	9-09524-835-0	02	1	9603-9904	●	●
84	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20	9-09524-835-0	02	1	9905-	●	●	●
211	CLIP; HOSE 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-168-0	01	1	9603-9901	●	●
211	CLIP; HOSE 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-168-0	01	1	9905-	●	●
213	BOLT; FLEX HOSE TO CMPR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	01	1	9905-	●	●
213	BOLT; FLEX HOSE TO CMPR 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	02	1	9603-9901	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	02	1	9902-9904	●	●
213	BOLT; FLEX HOSE TO CMPR L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	02	1	9905-	●	●	●
213	BOLT; FLEX HOSE TO CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	01	1	9603-9901	●	●
316	BOLT; BRKT FIX 6WA1 TC-S(56L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●	●	●
316	BOLT; BRKT FIX 6WA1 TC-S(56L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●	●	●
316	BOLT; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●	●
316	BOLT; BRKT FIX 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●	●

25 26 34 30 31 30 29 44 407 40 407 41 44 27 29 30 42 33 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-13660-298-0	01	1	9905-	●	●
25	PULLEY ASM; IDLER,CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13660-284-0	01	1	9603-9612	●	●
25	PULLEY ASM; IDLER,CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13660-298-0	01	1	9701-9901	●	●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-13668-028-0	01	1	9905-	●	●
26	BRACKET; IDLE PULLEY,A/C 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13668-028-0	01	1	9603-9901	●	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-13663-057-0	01	1	9905-	●	●
27	PULLEY; IDLE,A/C 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13663-057-0	01	1	9603-9901	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-13669-175-0	02	1	9905-	●	●
29	COVER; DUST,IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-126-0	02	1	9603-9612	●	●
29	COVER; DUST,IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-175-0	02	1	9701-9901	●	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (A) ID=19 T=9	1-13666-021-1	01	1	9905-	●	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (B) ID=18.2 OD=33 T=6.5	1-13666-040-0	02	1	9905-	●	●
30	COLLAR; IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=19 T=9	1-13666-021-1	01	1	9603-9901	●	●
30	COLLAR; IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 OD=36 T=6.5	1-13666-022-0	02	1	9603-9612	●	●
30	COLLAR; IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2 OD=33 T=6.5	1-13666-040-0	02	1	9701-9901	●	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) M10X135	1-09009-113-0	01	1	9905-	●	●
31	BOLT; ADJ,IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M10X135	1-09009-113-0	01	1	9603-9901	●	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) M18	9-99111-518-0	01	1	9905-	●	●
33	NUT; IDLER PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M18	9-99111-518-0	01	1	9603-9901	●	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-13665-026-2	01	1	9905-	●	●
34	SHAFT; IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13665-026-2	01	1	9603-9901	●	●
40	BUSHING; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-13669-128-0	01	1	9905-	●	●
40	BUSHING; IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-128-0	01	1	9603-9901	●	●
41	RING; SNAP,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) OD=56.2	9-09180-152-0	01	1	9905-	●	●
41	RING; SNAP,IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2	9-09180-152-0	01	1	9603-9901	●	●
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (A) ID=12.2	9-09150-512-0	02	1	9905-	●	●
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (B) ID=18.2	9-09150-818-0	01	1	9905-	●	●
42	WASHER; PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2	9-09150-512-0	02	1	9603-9901	●	●
42	WASHER; PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2	9-09150-818-0	01	1	9603-9901	●	●
43	NIPPLE; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) PT1/8 ELBOW	9-09031-210-0	01	1	9905-	●	●
43	NIPPLE; IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW	9-09031-210-0	01	1	9603-9901	●	●
44	BEARING; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-09800-217-0	02	1	9905-	●	●
44	BEARING; IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09800-217-0	02	1	9603-9901	●	●
407	RUBBER; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-13669-174-0	02	1	9905-	●	●
407	RUBBER; IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13669-174-0	02	1	9701-9901	●	●

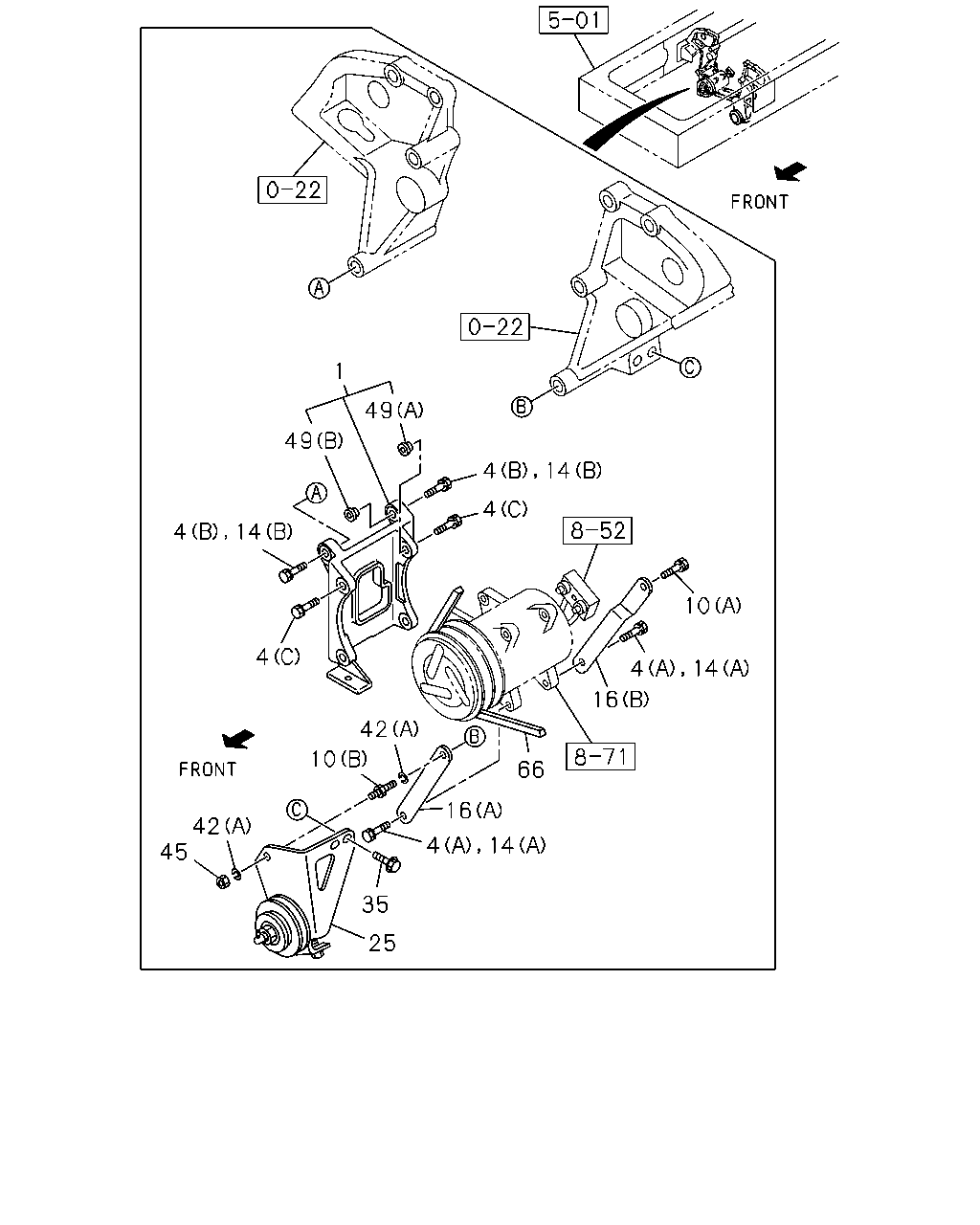

1 49 49 4 14 4 4 14 10 4 4 14 16 42 10 66 16 42 45 4 14 35 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-83571-590-0	01	1	9905-	●	●
1	BRACKET; A/C 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9603-9901	●	●
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9902-9904	●	●
1	BRACKET; A/C 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9905-9909	●	●	●
1	BRACKET; A/C 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9910-	●	●	●
1	BRACKET; A/C 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-590-0	01	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	9905-	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9905-	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9905-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	9905-	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9902-9904	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9905-9909	●	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9910-	●	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9902-9904	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9905-9909	●	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9910-	●	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9902-9904	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9905-9909	●	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9910-	●	●	●
4	BOLT; A/C CMPR BRKT 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9603-9901	●	●
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (A) M12X25 FLANGE	0-28681-225-0	01	1	9905-	●	●
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9905-	●	●
10	BOLT; ADJ PLATE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X22 FLANGE	0-28181-222-0	01	1	9603-9604	●	●
10	BOLT; ADJ PLATE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9605-9901	●	●
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9902-9904	●	●
10	BOLT; ADJ PLATE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9905-9909	●	●	●
10	BOLT; ADJ PLATE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9910-	●	●	●
10	BOLT; ADJ PLATE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9603-9901	●	●
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9902-9904	●	●
10	BOLT; ADJ PLATE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9905-9909	●	●	●
10	BOLT; ADJ PLATE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9910-	●	●	●
10	BOLT; ADJ PLATE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 W/LK WASHER	0-50041-225-0	01	1	9603-9702	●	●
10	BOLT; ADJ PLATE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28681-225-0	01	1	9703-9901	●	●
10	BOLT; ADJ PLATE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) STUD M12X19,M12X19 L=60	1-09029-055-3	01	1	9603-9901	●	●
14	BOLT; CMPR 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	9905-	●	●
14	BOLT; CMPR 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	9905-	●	●
14	BOLT; CMPR 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	9603-9901	●	●
14	BOLT; CMPR 8PE1S(59L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	9603-9901	●	●
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (A)	1-13674-189-1	01	1	9905-	●	●
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (B)	1-13674-190-1	01	1	9905-	●	●
16	PLATE; ADJ,CMPR 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9603-9901	●	●
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9902-9904	●	●
16	PLATE; ADJ,CMPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9905-9909	●	●	●
16	PLATE; ADJ,CMPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9910-	●	●	●
16	PLATE; ADJ,CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	01	1	9603-9901	●	●
16	PLATE; ADJ,CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13674-190-1	01	1	9603-9901	●	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-13660-298-0	01	1	9905-	●	●
25	PULLEY ASM; IDLER,CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13660-284-0	01	1	9603-9612	●	●
25	PULLEY ASM; IDLER,CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-13660-298-0	01	1	9701-9901	●	●
35	BOLT; IDLER PULLEY TO C/BL AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) M12X35 FLANGE	0-28091-235-0	02	1	9905-	●	●
35	BOLT; IDLER PULLEY TO C/BL 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M12X35 FLANGE	0-28091-235-0	02	1	9603-9901	●	●
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (A) ID=12.2	9-09150-512-0	02	1	9905-	●	●
42	WASHER; PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (B) ID=18.2	9-09150-818-0	01	1	9905-	●	●
42	WASHER; PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2	9-09150-512-0	02	1	9603-9901	●	●
42	WASHER; PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2	9-09150-818-0	01	1	9603-9901	●	●
45	NUT; BOLT,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) M12	9-99110-412-0	01	1	9905-	●	●
45	NUT; BOLT,IDLE PULLEY 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M12	9-99110-412-0	01	1	9603-9901	●	●
49	COLLAR; BRKT,CMPR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (A)	1-83571-601-0	02	1	9905-	●	●
49	COLLAR; BRKT,CMPR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (B)	1-83571-602-0	01	1	9905-	●	●
49	COLLAR; BRKT,CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-601-0	02	1	9603-9901	●	●
49	COLLAR; BRKT,CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-602-0	01	1	9603-9901	●	●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) L=1335	1-13671-404-0	01	1	9905-	●	●
66	BELT; A/C CMPR 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) L=1130	1-13671-208-0	01	1	9603-9611	●	●
66	BELT; A/C CMPR 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9612-9901	●	●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9902-9904	●	●
66	BELT; A/C CMPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9905-9909	●	●	●
66	BELT; A/C CMPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9910-	●	●	●
66	BELT; A/C CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) L=1335	1-13671-404-0	01	1	9603-9901	●	●

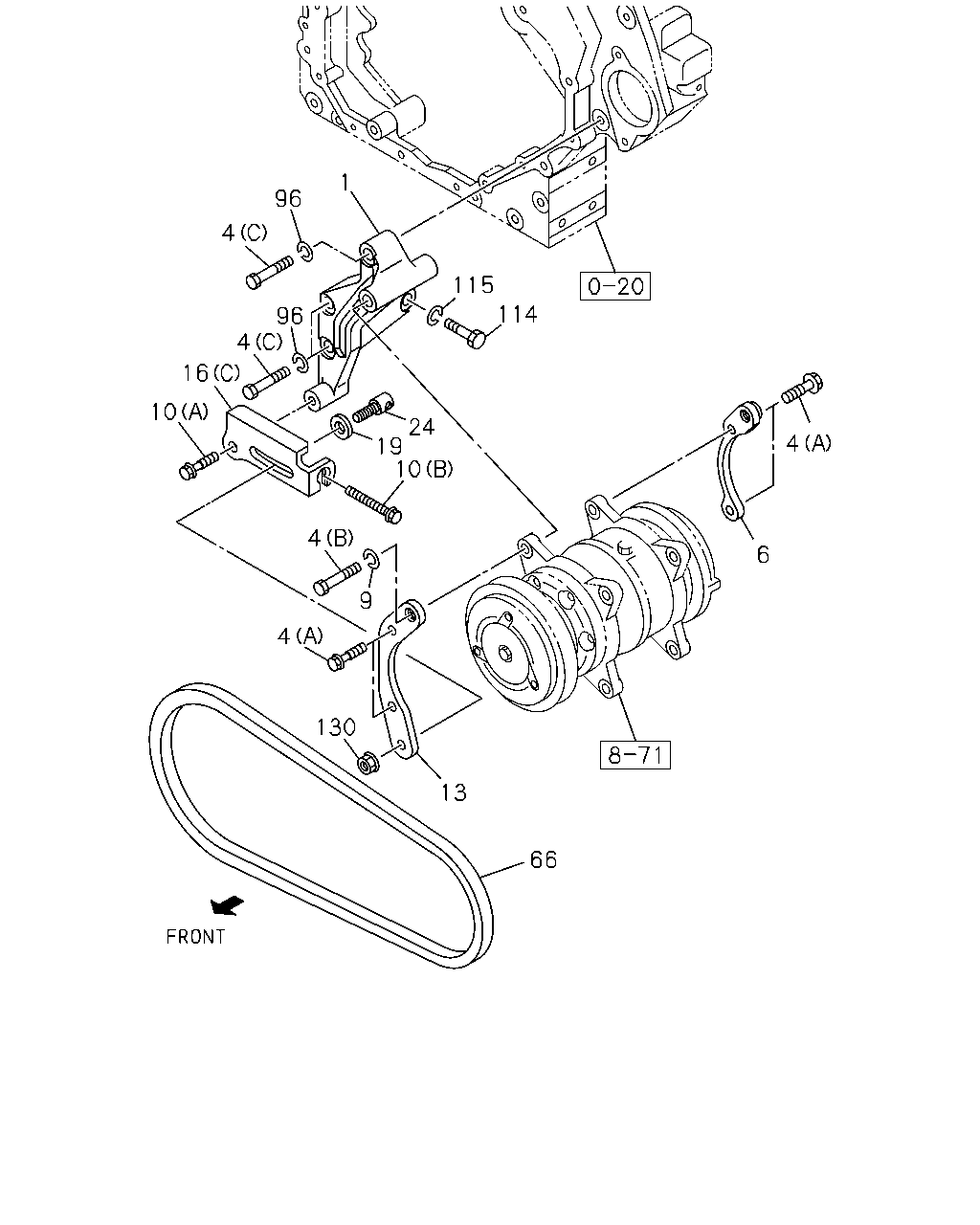

1 96 4 115 114 96 4 16 10 24 19 10 4 4 6 9 4 130 13 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L)	1-83571-590-0	01	1	9905-	●	●
1	BRACKET; A/C 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9603-9901	●	●
1	BRACKET; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9902-9904	●	●
1	BRACKET; A/C 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9905-9909	●	●	●
1	BRACKET; A/C 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-842-0	01	1	9910-	●	●	●
1	BRACKET; A/C 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-590-0	01	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	9905-	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9905-	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9905-	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE	0-28081-020-0	02	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT 10PE1S(60L),10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE	0-28081-240-0	02	1	9905-	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9902-9904	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9905-9909	●	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE	0-28081-025-0	04	1	9910-	●	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9902-9904	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9905-9909	●	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130	9-09804-177-2	01	1	9910-	●	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9902-9904	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9905-9909	●	●	●
4	BOLT; A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130	9-09804-194-1	02	1	9910-	●	●	●
4	BOLT; A/C CMPR BRKT 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9603-9901	●	●
4	BOLT; A/C CMPR BRKT 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9603-9901	●	●
6	BRACKET; CMPR,RR 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-707-0	01	1	9603-9901	●	●
6	BRACKET; CMPR,RR AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-707-0	01	1	9902-9904	●	●
6	BRACKET; CMPR,RR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-707-0	01	1	9905-9909	●	●	●
6	BRACKET; CMPR,RR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-707-0	01	1	9910-	●	●	●
9	WASHER; LK,A/C CMPR BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2	9-09150-512-0	01	1	9603-9901	●	●
9	WASHER; LK,A/C CMPR BRKT AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2	9-09150-512-0	01	1	9902-9904	●	●
9	WASHER; LK,A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2	9-09150-512-0	01	1	9905-9909	●	●	●
9	WASHER; LK,A/C CMPR BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2	9-09150-512-0	01	1	9910-	●	●	●
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (A) M12X25 FLANGE	0-28681-225-0	01	1	9905-	●	●
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9905-	●	●
10	BOLT; ADJ PLATE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X22 FLANGE	0-28181-222-0	01	1	9603-9604	●	●
10	BOLT; ADJ PLATE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9605-9901	●	●
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9902-9904	●	●
10	BOLT; ADJ PLATE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9905-9909	●	●	●
10	BOLT; ADJ PLATE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28181-225-0	01	1	9910-	●	●	●
10	BOLT; ADJ PLATE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9603-9901	●	●
10	BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9902-9904	●	●
10	BOLT; ADJ PLATE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9905-9909	●	●	●
10	BOLT; ADJ PLATE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90	1-09009-151-0	01	1	9910-	●	●	●
10	BOLT; ADJ PLATE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 W/LK WASHER	0-50041-225-0	01	1	9603-9702	●	●
10	BOLT; ADJ PLATE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE	0-28681-225-0	01	1	9703-9901	●	●
10	BOLT; ADJ PLATE 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) STUD M12X19,M12X19 L=60	1-09029-055-3	01	1	9603-9901	●	●
13	BRACKET; CMPR,FRT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-843-1	01	1	9603-9901	●	●
13	BRACKET; CMPR,FRT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-843-1	01	1	9902-9904	●	●
13	BRACKET; CMPR,FRT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-843-1	01	1	9905-9909	●	●	●
13	BRACKET; CMPR,FRT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-843-1	01	1	9910-	●	●	●
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (A)	1-13674-189-1	01	1	9905-	●	●
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) (B)	1-13674-190-1	01	1	9905-	●	●
16	PLATE; ADJ,CMPR 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9603-9901	●	●
16	PLATE; ADJ,CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9902-9904	●	●
16	PLATE; ADJ,CMPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9905-9909	●	●	●
16	PLATE; ADJ,CMPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-13674-210-1	01	1	9910-	●	●	●
16	PLATE; ADJ,CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-13674-189-1	01	1	9603-9901	●	●
16	PLATE; ADJ,CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-13674-190-1	01	1	9603-9901	●	●
19	WASHER; PL,ADJ PLATE TO CMPR 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32	9-09160-712-0	01	1	9603-9901	●	●
19	WASHER; PL,ADJ PLATE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32	9-09160-712-0	01	1	9902-9904	●	●
19	WASHER; PL,ADJ PLATE TO CMPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32	9-09160-712-0	01	1	9905-9909	●	●	●
19	WASHER; PL,ADJ PLATE TO CMPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32	9-09160-712-0	01	1	9910-	●	●	●
24	PIECE; SLIDING 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45	1-13674-160-0	01	1	9603-9901	●	●
24	PIECE; SLIDING AIR CONDITIONER MANUAL CONTROL(C60) M12X45	1-13674-160-0	01	1	9902-9904	●	●
24	PIECE; SLIDING 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45	1-13674-160-0	01	1	9905-9909	●	●	●
24	PIECE; SLIDING 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45	1-13674-160-0	01	1	9910-	●	●	●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) 8PE1S(59L),10PE1S(60L),10PE1N(61L) L=1335	1-13671-404-0	01	1	9905-	●	●
66	BELT; A/C CMPR 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) L=1130	1-13671-208-0	01	1	9603-9611	●	●
66	BELT; A/C CMPR 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9612-9901	●	●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9902-9904	●	●
66	BELT; A/C CMPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9905-9909	●	●	●
66	BELT; A/C CMPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) L=1131	1-13671-436-0	01	1	9910-	●	●	●
66	BELT; A/C CMPR 8PE1S(59L),10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) L=1335	1-13671-404-0	01	1	9603-9901	●	●
96	WASHER; LK 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	02	1	9603-9901	●	●
96	WASHER; LK AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	02	1	9902-9904	●	●
96	WASHER; LK 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	02	1	9905-9909	●	●	●
96	WASHER; LK 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	02	1	9910-	●	●	●
114	BOLT; BRKT TO GEAR CASE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M14X35	0-23801-435-0	01	1	9603-9901	●	●
114	BOLT; BRKT TO GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) M14X35	0-23801-435-0	01	1	9902-9904	●	●
114	BOLT; BRKT TO GEAR CASE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) M14X35	0-23801-435-0	01	1	9905-9909	●	●	●
114	BOLT; BRKT TO GEAR CASE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) M14X35	0-23801-435-0	01	1	9910-	●	●	●
115	WASHER; LK,BRKT TO GEAR CASE 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	01	1	9603-9901	●	●
115	WASHER; LK,BRKT TO GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	01	1	9902-9904	●	●
115	WASHER; LK,BRKT TO GEAR CASE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	01	1	9905-9909	●	●	●
115	WASHER; LK,BRKT TO GEAR CASE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2	9-09150-514-0	01	1	9910-	●	●	●
130	NUT; ADJ BRKT 6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE	0-91150-112-0	01	1	9603-9901	●	●
130	NUT; ADJ BRKT AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE	0-91150-112-0	01	1	9902-9904	●	●
130	NUT; ADJ BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE	0-91150-112-0	01	1	9905-9909	●	●	●
130	NUT; ADJ BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE	0-91150-112-0	01	1	9910-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
