8-45 — HEATER PIPING (#4945) — 51 parça

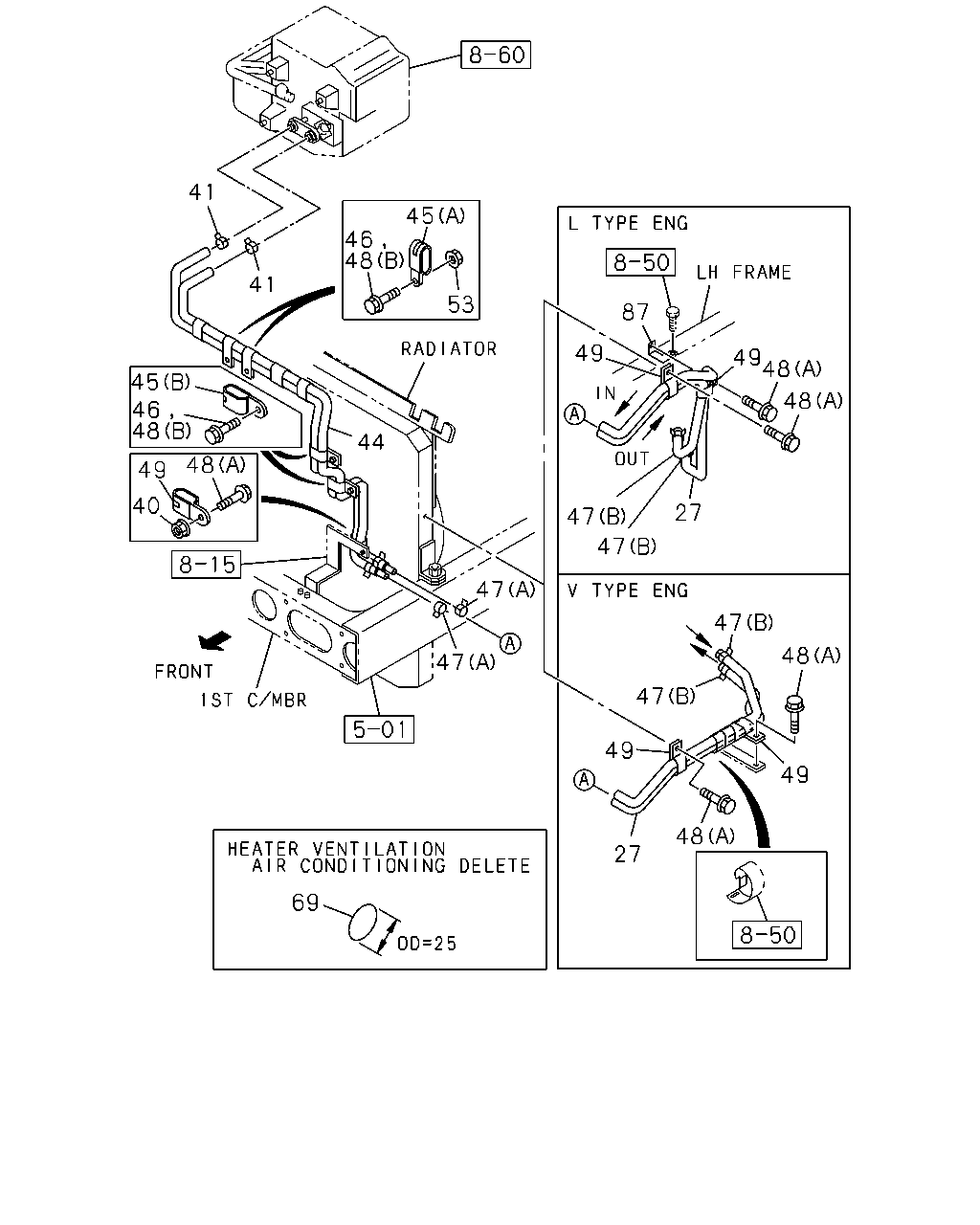

çizim 39750
41 45 46 48 41 53 87 49 49 48 45 46 48 48 44 48 49 40 27 47 47 47 47 48 47 47 49 49 48 27 69
BalonParca AdiParca NoAdetTipApplied Date A B C
27 HOSE; WATER,HTR UNIT TO WATER PIPE
6WA1 TC-S(56L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-614-0 01 1 9603-9901 ● ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83565-618-1 01 1 9902-9904 ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
6WA1 TC-C(55L),6WG1 TC-C(72L),6WG1 TC-R(75L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83565-618-1 01 1 9905- ● ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
10PE1S(60L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-598-1 01 1 9603-9901 ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-598-1 01 1 9905- ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
8PE1S(59L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-593-1 01 1 9603-9901 ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83565-614-0 01 1 9902-9904 ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83565-614-0 01 1 9905- ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
8PE1S(59L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-593-1 01 1 9905- ● ●
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9607-9901 ● ● ●
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9902-9904 ● ●
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ●
41 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 02 1 9603-9901 ● ● ●
41 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 02 1 9902-9904 ● ●
41 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 02 1 9905- ● ● ●
44 HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-616-2 01 1 9603-9609 ● ● ●
44 HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-643-0 01 1 9610-9702 ● ● ●
44 HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-663-0 01 1 9703-9901 ● ● ●
44 HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-663-0 01 1 9902-9904 ● ●
44 HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-663-0 01 1 9905- ● ● ●
45 CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09701-143-1 02 1 9603-9901 ● ● ●
45 CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09701-143-1 02 1 9902-9904 ● ●
45 CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09701-143-1 02 1 9905- ● ● ●
45 CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09701-238-0 02 1 9603-9901 ● ● ●
45 CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09701-238-0 02 1 9902-9904 ● ●
45 CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09701-238-0 02 1 9905- ● ● ●
46 SCREW; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9603-9609 ● ● ●
46 SCREW; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9610-9901 ● ● ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09707-181-0 02 1 9603-9901 ● ● ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09707-181-0 02 1 9902-9904 ● ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09707-181-0 02 1 9905- ● ● ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22 		8-94382-401-0 02 1 9603-9901 ● ● ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22 		8-94382-401-0 02 1 9902-9904 ● ●
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22 		8-94382-401-0 02 1 9905- ● ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 03 1 9603-9606 ● ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 03 1 9607-9901 ● ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 03 1 9902-9904 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 03 1 9905- ● ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9902-9904 ● ●
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9905- ● ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 03 1 9603-9901 ● ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 03 1 9902-9904 ● ●
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 03 1 9905- ● ● ●
49 CLIP; WATER HOSE,HTR
8PE1S(59L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 01 1 9909- ● ●
53 NUT; HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9901 ● ● ●
53 NUT; HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9902-9904 ● ●
53 NUT; HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ●
69 SEAL; RUBBER,HTR PIPE
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK 		1-76798-019-0 03 1 9603- ● ●
87 BRACKET; HTR HOSE CLIP
6WA1 TC-S(56L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-857-0 01 1 9603-9901 ● ● ●
87 BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-857-0 01 1 9902-9904 ● ●
87 BRACKET; HTR HOSE CLIP
6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-C(72L), 6WG1TC-R(75L),6WA1 TC-R(93L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-857-0 01 1 9905- ● ● ●
