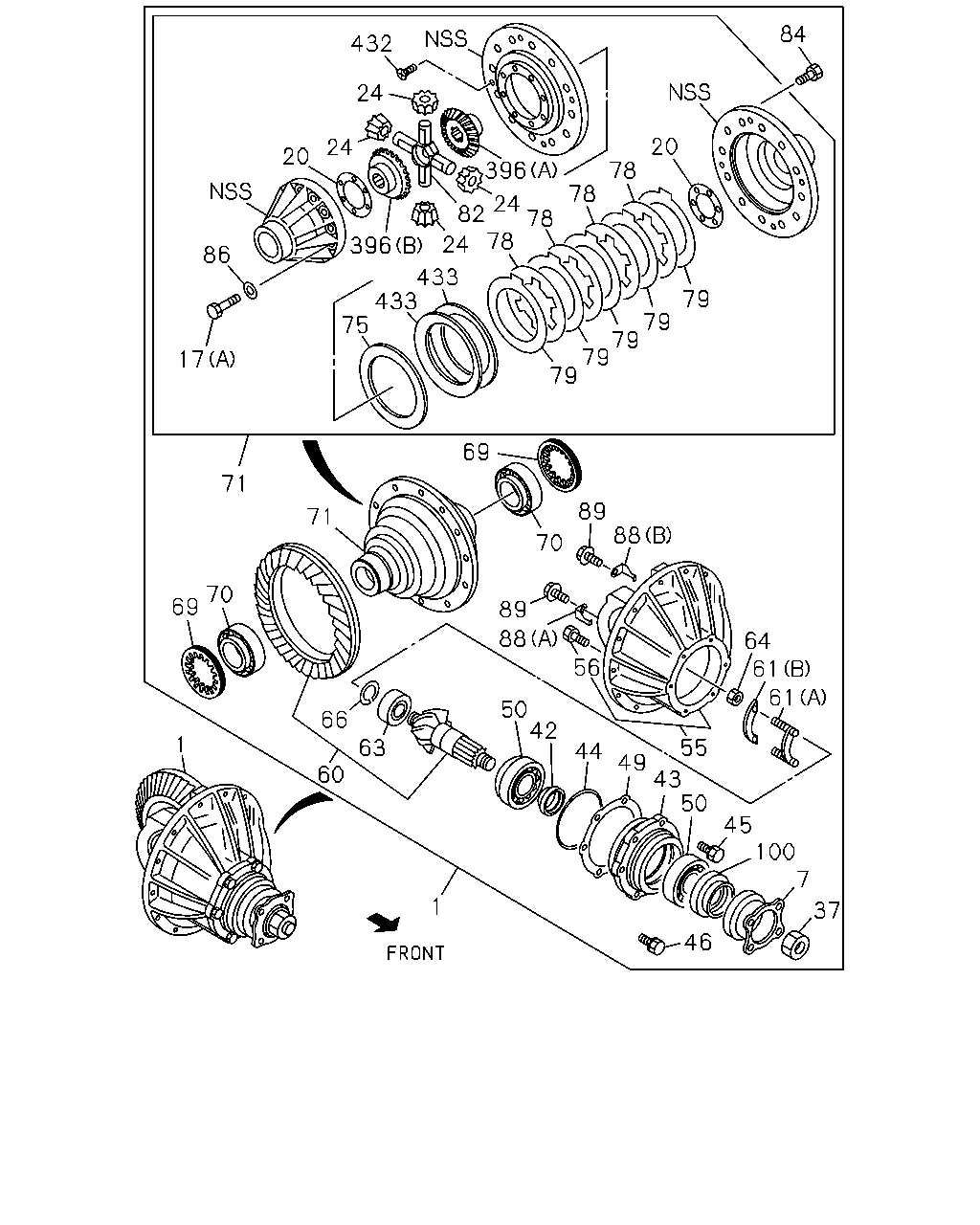

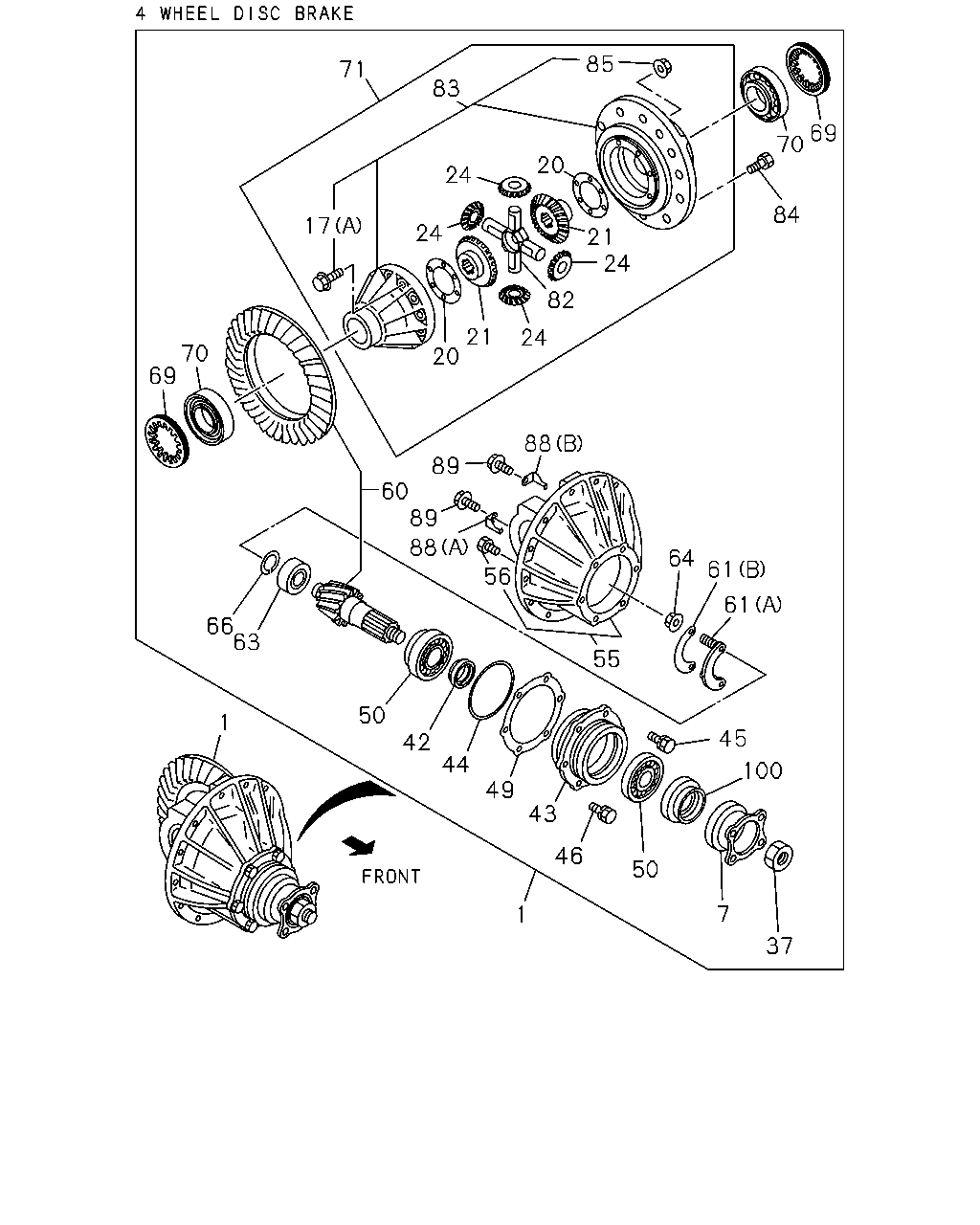

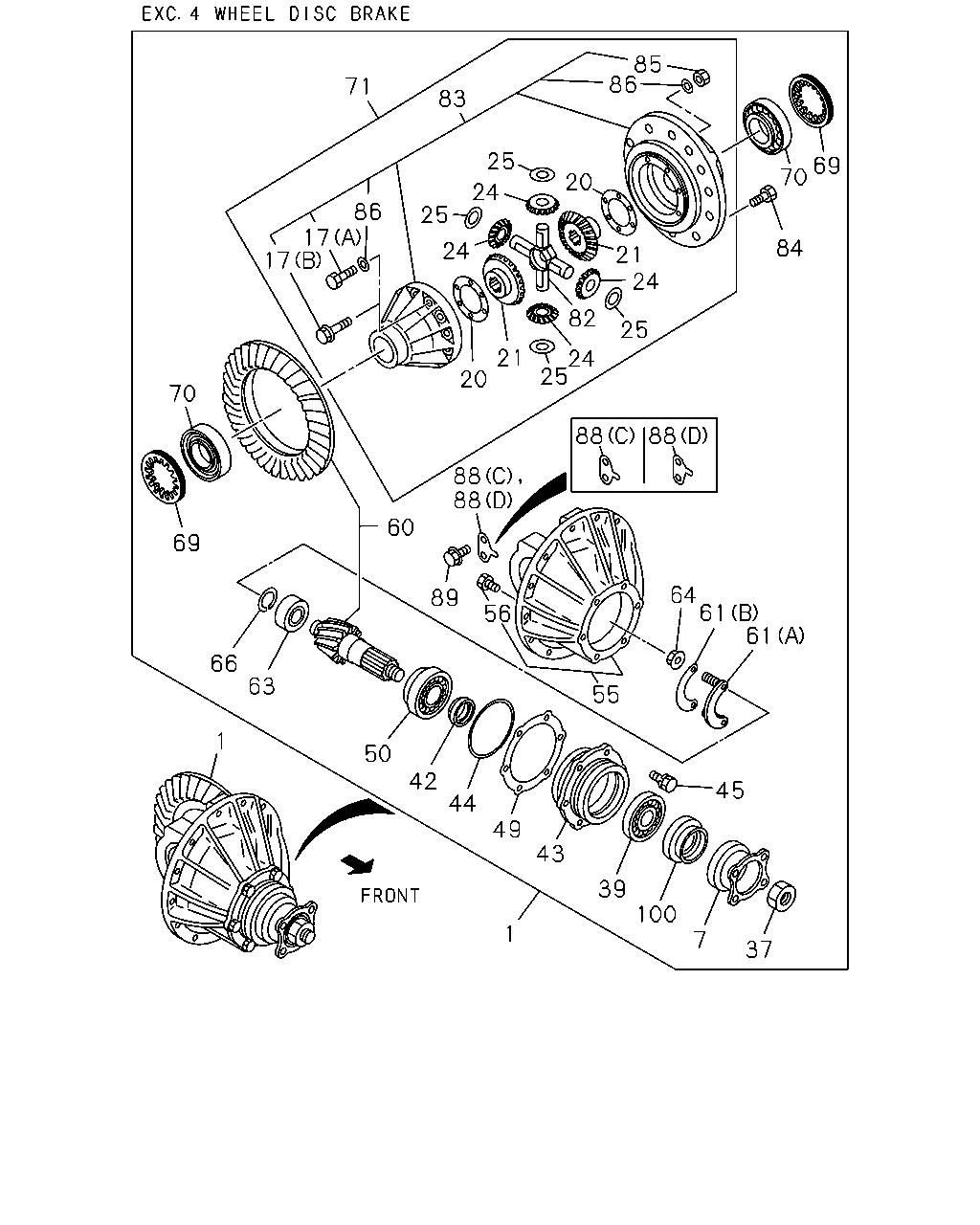

4-25 — REAR FINAL DRIVE (#49418) — 505 parça

85 86 71 83 25 69 70 20 24 86 25 17 17 84 24 21 24 82 25 21 20 24 25 70 88 88 88 88 60 69 64 61 61 89 56 66 63 55 1 50 42 45 44 49 43 39 100 1 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/10	8-98015-157-0	01	1	0712-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> 41/10	8-98015-157-0	01	1	0712-			●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/10	8-98015-135-0	01	1	0712-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> 41/10	8-98015-135-0	01	1	0712-			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. 4 WHEEL DISC BRAKE<JF9>,LIMITED SLIP DIFF<6LV> 41/10	8-97388-700-0	01	1	0712-			●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 41/9	8-98015-124-0	01	1	0712-			●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. 4 WHEEL DISC BRAKE<JF9> 41/9	8-97388-702-0	01	1	0712-			●	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0712-	●	●
7	05.545 FLANGE; FINAL 4 WHEEL DISC BRAKE<JF9>	8-94477-723-4	01	1	0712-			●	●
7	05.545 FLANGE; FINAL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-095-2	01	1	0712-			●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-97321-642-0	12	1	0712-	●	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> (A)	8-97321-642-0	12	1	0712-			●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M10X75 FLANGE	8-97232-161-0	12	1	0712-	●	●
17	05.510 BOLT; DIFF CAGE SETTING 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> (A) M10X75 FLANGE	8-97232-161-0	12	1	0712-			●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97047-295-0	12	1	0712-1208			●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-98219-448-0	12	1	1209-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0712-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4 WHEEL DISC BRAKE<JF9> T=1.40	9-41562-601-0	02	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0712-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=1.30	8-97220-723-0	02	1	0712-			●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0712-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=1.50	8-97220-724-0	02	1	0712-			●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0712-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=1.60	8-97220-725-0	02	1	0712-			●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=2.80	1-41562-073-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=2.90	1-41562-074-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.00	1-41562-075-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.10	1-41562-076-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.20	1-41562-077-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.30	1-41562-078-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.40	1-41562-079-0	AR	1	0712-			●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> 05.515 Z=20	8-97362-599-1	02	1	0712-	●	●
21	05.528 GEAR; SIDE,DIFF FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> 05.515 Z=20	8-97362-599-1	02	1	0712-			●
21	05.528 GEAR; SIDE,DIFF FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) Z=20	8-97362-598-1	02	1	0712-			●	●
21	05.528 GEAR; SIDE,DIFF EXC. 4 WHEEL DISC BRAKE<JF9> Z=16	1-41561-093-0	02	1	0712-1004			●	●
21	05.528 GEAR; SIDE,DIFF EXC. 4 WHEEL DISC BRAKE<JF9> Z=16	8-98165-935-0	02	1	1005-			●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0712-	●	●
24	05.526 GEAR; PINION,DIFF 4 WHEEL DISC BRAKE<JF9> Z=10	8-98015-202-0	04	1	0712-			●	●
24	05.526 GEAR; PINION,DIFF EXC. 4 WHEEL DISC BRAKE<JF9> Z=10	1-41551-024-0	04	1	0712-1004			●	●
24	05.526 GEAR; PINION,DIFF EXC. 4 WHEEL DISC BRAKE<JF9> Z=10	1-41551-050-0	04	1	1005-			●	●
25	05.528 WASHER; THRUST,PINION EXC. 4 WHEEL DISC BRAKE<JF9>	1-41552-020-0	04	1	0712-			●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0712-	●	●
37	05.595 NUT; DRIVING PINION 4 WHEEL DISC BRAKE<JF9> M24 FLANGE	8-94329-526-1	01	1	0712-			●	●
37	05.595 NUT; DRIVING PINION EXC. 4 WHEEL DISC BRAKE<JF9> M30 FLANGE	8-97047-146-0	01	1	0712-			●	●
39	05.484 BEARING; FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9> KOYO	5-09812-062-1	01	1	1002-			●	●
39	05.484 BEARING; FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9> NSK	1-09812-026-0	01	1	0712-1002			●	●
39	05.484 BEARING; FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9> NSK	5-09812-063-0	01	1	1003-			●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0712-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4 WHEEL DISC BRAKE<JF9> L=19.6	9-41219-603-1	01	1	0712-			●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-097-0	01	1	0712-			●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0712-	●	●
43	05.453 CAGE; FINAL PINION 4 WHEEL DISC BRAKE<JF9>	8-94400-890-0	01	1	0712-			●	●
43	05.453 CAGE; FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-098-0	01	1	0712-			●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0712-	●	●
44	05.476 GASKET; PINION CAGE 4 WHEEL DISC BRAKE<JF9> 05.458	9-09720-505-0	01	1	0712-			●	●
44	05.476 GASKET; PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97048-053-0	01	1	0712-			●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0712-0909	●	●
45	05.453 BOLT; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> M12X38 W/LK WASHER	0-50051-238-0	05	1	0712-0909			●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●	●
45	05.453 BOLT; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311			●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●	●
45	05.453 BOLT; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-			●	●
45	05.453 BOLT; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> M12X40 W/LK WASHER	0-50071-240-0	06	1	0712-0909			●	●
45	05.453 BOLT; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209			●	●
45	05.453 BOLT; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.10	8-94401-335-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.12	8-94401-336-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.14	8-94401-337-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.16	8-94401-338-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.18	8-94401-339-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.20	8-94401-340-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> ID=142 T=0.12	8-97047-298-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> ID=142 T=0.15	8-97047-299-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> ID=142 T=0.20	8-97047-300-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> ID=142 T=0.25	8-97048-418-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0712-			●	●
50	05.447 BEARING; FINAL PINION 05.484 KOYO	5-09812-062-1	02	1	0712-	●	●
50	05.447 BEARING; FINAL PINION 4 WHEEL DISC BRAKE<JF9> 05.484 KOYO	5-09812-062-1	02	1	0712-			●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0712-	●	●
50	05.447 BEARING; FINAL PINION 4 WHEEL DISC BRAKE<JF9> 05.484 NSK	5-09812-063-0	02	1	0712-			●	●
50	05.447 BEARING; FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9> 05.484 NSK	1-09812-041-2	01	1	0712-			●	●
50	05.447 BEARING; FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9> KOYO	1-09812-042-1	01	1	0712-			●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0712-	●	●
55	05.505 CARRIER; DIFF 4 WHEEL DISC BRAKE<JF9>	8-97307-760-0	01	1	0712-			●	●
55	05.505 CARRIER; DIFF EXC. 4 WHEEL DISC BRAKE<JF9>	8-97094-637-0	01	1	0712-			●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0712-	●	●
56	05.506 BOLT; BRG CAP 4 WHEEL DISC BRAKE<JF9> 05.387 M14X80	8-94365-377-3	04	1	0712-			●	●
56	05.506 BOLT; BRG CAP EXC. 4 WHEEL DISC BRAKE<JF9> M14X95 FLANGE	1-09070-027-0	04	1	0712-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	0712-1311	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 41/10	8-97319-153-0	01	1	0712-1311			●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 41/10	8-98092-055-0	01	1	1312-			●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) EXC. 4 WHEEL DISC BRAKE<JF9>,LIMITED SLIP DIFF<6LV> 41/10	8-97061-846-0	01	1	0712-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 41/9	8-97319-156-0	01	1	0712-1311			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 41/9	8-98092-049-0	01	1	1312-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) EXC. 4 WHEEL DISC BRAKE<JF9> 41/9	8-97078-635-1	01	1	0712-			●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0712-	●	●
61	05.476 RETAINER; PILOT BRG,PINION 4 WHEEL DISC BRAKE<JF9> (A) W/STUD	5-41227-001-0	01	1	0712-			●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0712-	●	●
61	05.476 RETAINER; PILOT BRG,PINION 4 WHEEL DISC BRAKE<JF9> (B)	9-41227-601-0	01	1	0712-			●	●
61	05.476 RETAINER; PILOT BRG,PINION EXC. 4 WHEEL DISC BRAKE<JF9> (A) W/STUD	8-97047-149-0	01	1	0712-			●	●
61	05.476 RETAINER; PILOT BRG,PINION EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97047-150-0	01	1	0712-			●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0712-	●	●
63	05.447 BEARING; PINION PILOT 4 WHEEL DISC BRAKE<JF9> NSK	5-09810-008-1	01	1	0712-			●	●
63	05.447 BEARING; PINION PILOT KOYO	8-97107-548-0	01	1	0712-	●	●
63	05.447 BEARING; PINION PILOT 4 WHEEL DISC BRAKE<JF9> KOYO	8-97107-548-0	01	1	0712-			●	●
63	05.447 BEARING; PINION PILOT EXC. 4 WHEEL DISC BRAKE<JF9> NSK	8-97047-296-0	01	1	0712-			●	●
63	05.447 BEARING; PINION PILOT EXC. 4 WHEEL DISC BRAKE<JF9> KOYO	8-97047-928-0	01	1	0712-			●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0712-	●	●
66	05.476 RING; SNAP,PILOT BRG 4 WHEEL DISC BRAKE<JF9>	9-09752-002-0	01	1	0712-			●	●
66	05.476 RING; SNAP,PILOT BRG EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-297-0	01	1	0712-			●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0712-	●	●
69	05.506 NUT; ADJ,DIFF CAGE 4 WHEEL DISC BRAKE<JF9> M110 H=10	5-41121-001-0	02	1	0712-			●	●
69	05.506 NUT; ADJ,DIFF CAGE EXC. 4 WHEEL DISC BRAKE<JF9> M115 H=20	1-41121-039-0	02	1	0712-			●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0712-	●	●
70	05.536 BEARING; DIFF CAGE 4 WHEEL DISC BRAKE<JF9> NSK	9-00093-602-0	02	1	0712-			●	●
70	05.536 BEARING; DIFF CAGE EXC. 4 WHEEL DISC BRAKE<JF9> KOYO ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0712-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-2	01	1	0712-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9>	8-98015-187-2	01	1	0712-			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	0712-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	0712-			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV)	8-98015-178-1	01	1	0712-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-099-4	01	1	0712-			●	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0712-	●	●
82	05.517 SPIDER; DIFF PINION FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9>	8-97220-519-0	01	1	0712-			●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0712-	●	●
82	05.517 SPIDER; DIFF PINION 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0712-			●	●
82	05.517 SPIDER; DIFF PINION EXC. 4 WHEEL DISC BRAKE<JF9> 05.520	1-41521-035-2	01	1	0712-1004			●	●
82	05.517 SPIDER; DIFF PINION EXC. 4 WHEEL DISC BRAKE<JF9>	1-41521-062-0	01	1	1005-1309			●	●
82	05.517 SPIDER; DIFF PINION EXC. 4 WHEEL DISC BRAKE<JF9> 05.520	1-41521-035-2	01	1	1310-			●	●
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0712-	●	●
83	05.510 CAGE ASM; DIFF 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0712-			●	●
83	05.510 CAGE ASM; DIFF EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-101-2	01	1	0712-1208			●	●
83	05.510 CAGE ASM; DIFF EXC. 4 WHEEL DISC BRAKE<JF9>	8-98219-705-0	01	1	1209-			●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0712-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> M14X29	8-97319-141-2	12	1	0712-			●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0712-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0712-			●	●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> M16X30	8-97047-147-0	12	1	0712-			●	●
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0712-	●	●
85	05.510 NUT; DIFF CAGE SETTING 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0712-			●	●
85	05.510 NUT; DIFF CAGE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M12	8-97065-214-0	12	1	0712-			●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0712-	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> ID=10 OD=18 T=2	8-98080-367-0	12	1	0712-			●
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0712-1208			●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-			●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0712-	●	●
88	05.506 PLATE; LK,ADJ NUT 4 WHEEL DISC BRAKE<JF9> (A)	8-97027-281-0	AR	1	0712-			●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0712-	●	●
88	05.506 PLATE; LK,ADJ NUT 4 WHEEL DISC BRAKE<JF9> (B)	8-97027-282-0	AR	1	0712-			●	●
88	05.506 PLATE; LK,ADJ NUT EXC. 4 WHEEL DISC BRAKE<JF9> (D)	8-97087-821-0	AR	1	0712-			●	●
88	05.506 PLATE; LK,ADJ NUT EXC. 4 WHEEL DISC BRAKE<JF9> (C) T=2.3	9-41124-015-0	AR	1	0712-			●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
89	05.506 BOLT; LK PLATE 4 WHEEL DISC BRAKE<JF9> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-			●	●
89	05.506 BOLT; LK PLATE EXC. 4 WHEEL DISC BRAKE<JF9> 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0712-			●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0712-	●	●
100	05.469 SEAL; OIL,FINAL PINION 4 WHEEL DISC BRAKE<JF9> OD=103	8-94408-083-0	01	1	0712-			●	●
100	05.469 SEAL; OIL,FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9> NOK	1-09625-484-1	01	1	0712-			●	●

85 71 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 88 89 60 89 88 64 61 56 61 66 63 55 50 1 45 42 44 100 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/10	8-98015-157-0	01	1	0712-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> 41/10	8-98015-157-0	01	1	0712-			●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/10	8-98015-135-0	01	1	0712-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> 41/10	8-98015-135-0	01	1	0712-			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. 4 WHEEL DISC BRAKE<JF9>,LIMITED SLIP DIFF<6LV> 41/10	8-97388-700-0	01	1	0712-			●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 41/9	8-98015-124-0	01	1	0712-			●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. 4 WHEEL DISC BRAKE<JF9> 41/9	8-97388-702-0	01	1	0712-			●	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0712-	●	●
7	05.545 FLANGE; FINAL 4 WHEEL DISC BRAKE<JF9>	8-94477-723-4	01	1	0712-			●	●
7	05.545 FLANGE; FINAL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-095-2	01	1	0712-			●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-97321-642-0	12	1	0712-	●	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> (A)	8-97321-642-0	12	1	0712-			●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M10X75 FLANGE	8-97232-161-0	12	1	0712-	●	●
17	05.510 BOLT; DIFF CAGE SETTING 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> (A) M10X75 FLANGE	8-97232-161-0	12	1	0712-			●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97047-295-0	12	1	0712-1208			●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-98219-448-0	12	1	1209-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0712-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4 WHEEL DISC BRAKE<JF9> T=1.40	9-41562-601-0	02	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0712-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=1.30	8-97220-723-0	02	1	0712-			●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0712-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=1.50	8-97220-724-0	02	1	0712-			●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0712-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=1.60	8-97220-725-0	02	1	0712-			●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=2.80	1-41562-073-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=2.90	1-41562-074-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.00	1-41562-075-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.10	1-41562-076-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.20	1-41562-077-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.30	1-41562-078-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.40	1-41562-079-0	AR	1	0712-			●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> 05.515 Z=20	8-97362-599-1	02	1	0712-	●	●
21	05.528 GEAR; SIDE,DIFF FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> 05.515 Z=20	8-97362-599-1	02	1	0712-			●
21	05.528 GEAR; SIDE,DIFF FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) Z=20	8-97362-598-1	02	1	0712-			●	●
21	05.528 GEAR; SIDE,DIFF EXC. 4 WHEEL DISC BRAKE<JF9> Z=16	1-41561-093-0	02	1	0712-1004			●	●
21	05.528 GEAR; SIDE,DIFF EXC. 4 WHEEL DISC BRAKE<JF9> Z=16	8-98165-935-0	02	1	1005-			●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0712-	●	●
24	05.526 GEAR; PINION,DIFF 4 WHEEL DISC BRAKE<JF9> Z=10	8-98015-202-0	04	1	0712-			●	●
24	05.526 GEAR; PINION,DIFF EXC. 4 WHEEL DISC BRAKE<JF9> Z=10	1-41551-024-0	04	1	0712-1004			●	●
24	05.526 GEAR; PINION,DIFF EXC. 4 WHEEL DISC BRAKE<JF9> Z=10	1-41551-050-0	04	1	1005-			●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0712-	●	●
37	05.595 NUT; DRIVING PINION 4 WHEEL DISC BRAKE<JF9> M24 FLANGE	8-94329-526-1	01	1	0712-			●	●
37	05.595 NUT; DRIVING PINION EXC. 4 WHEEL DISC BRAKE<JF9> M30 FLANGE	8-97047-146-0	01	1	0712-			●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0712-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4 WHEEL DISC BRAKE<JF9> L=19.6	9-41219-603-1	01	1	0712-			●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-097-0	01	1	0712-			●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0712-	●	●
43	05.453 CAGE; FINAL PINION 4 WHEEL DISC BRAKE<JF9>	8-94400-890-0	01	1	0712-			●	●
43	05.453 CAGE; FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-098-0	01	1	0712-			●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0712-	●	●
44	05.476 GASKET; PINION CAGE 4 WHEEL DISC BRAKE<JF9> 05.458	9-09720-505-0	01	1	0712-			●	●
44	05.476 GASKET; PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97048-053-0	01	1	0712-			●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0712-0909	●	●
45	05.453 BOLT; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> M12X38 W/LK WASHER	0-50051-238-0	05	1	0712-0909			●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●	●
45	05.453 BOLT; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311			●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●	●
45	05.453 BOLT; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-			●	●
45	05.453 BOLT; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> M12X40 W/LK WASHER	0-50071-240-0	06	1	0712-0909			●	●
45	05.453 BOLT; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209			●	●
45	05.453 BOLT; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-			●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0712-0909	●	●
46	05.453 BOLT 4 WHEEL DISC BRAKE<JF9> M14X35 W/LK WASHER	0-50051-435-0	01	1	0712-0909			●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-	●	●
46	05.453 BOLT 4 WHEEL DISC BRAKE<JF9> M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.10	8-94401-335-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.12	8-94401-336-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.14	8-94401-337-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.16	8-94401-338-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.18	8-94401-339-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.20	8-94401-340-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> ID=142 T=0.12	8-97047-298-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> ID=142 T=0.15	8-97047-299-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> ID=142 T=0.20	8-97047-300-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> ID=142 T=0.25	8-97048-418-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0712-			●	●
50	05.447 BEARING; FINAL PINION 05.484 KOYO	5-09812-062-1	02	1	0712-	●	●
50	05.447 BEARING; FINAL PINION 4 WHEEL DISC BRAKE<JF9> 05.484 KOYO	5-09812-062-1	02	1	0712-			●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0712-	●	●
50	05.447 BEARING; FINAL PINION 4 WHEEL DISC BRAKE<JF9> 05.484 NSK	5-09812-063-0	02	1	0712-			●	●
50	05.447 BEARING; FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9> 05.484 NSK	1-09812-041-2	01	1	0712-			●	●
50	05.447 BEARING; FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9> KOYO	1-09812-042-1	01	1	0712-			●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0712-	●	●
55	05.505 CARRIER; DIFF 4 WHEEL DISC BRAKE<JF9>	8-97307-760-0	01	1	0712-			●	●
55	05.505 CARRIER; DIFF EXC. 4 WHEEL DISC BRAKE<JF9>	8-97094-637-0	01	1	0712-			●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0712-	●	●
56	05.506 BOLT; BRG CAP 4 WHEEL DISC BRAKE<JF9> 05.387 M14X80	8-94365-377-3	04	1	0712-			●	●
56	05.506 BOLT; BRG CAP EXC. 4 WHEEL DISC BRAKE<JF9> M14X95 FLANGE	1-09070-027-0	04	1	0712-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	0712-1311	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 41/10	8-97319-153-0	01	1	0712-1311			●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 41/10	8-98092-055-0	01	1	1312-			●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) EXC. 4 WHEEL DISC BRAKE<JF9>,LIMITED SLIP DIFF<6LV> 41/10	8-97061-846-0	01	1	0712-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 41/9	8-97319-156-0	01	1	0712-1311			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 41/9	8-98092-049-0	01	1	1312-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) EXC. 4 WHEEL DISC BRAKE<JF9> 41/9	8-97078-635-1	01	1	0712-			●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0712-	●	●
61	05.476 RETAINER; PILOT BRG,PINION 4 WHEEL DISC BRAKE<JF9> (A) W/STUD	5-41227-001-0	01	1	0712-			●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0712-	●	●
61	05.476 RETAINER; PILOT BRG,PINION 4 WHEEL DISC BRAKE<JF9> (B)	9-41227-601-0	01	1	0712-			●	●
61	05.476 RETAINER; PILOT BRG,PINION EXC. 4 WHEEL DISC BRAKE<JF9> (A) W/STUD	8-97047-149-0	01	1	0712-			●	●
61	05.476 RETAINER; PILOT BRG,PINION EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97047-150-0	01	1	0712-			●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0712-	●	●
63	05.447 BEARING; PINION PILOT 4 WHEEL DISC BRAKE<JF9> NSK	5-09810-008-1	01	1	0712-			●	●
63	05.447 BEARING; PINION PILOT KOYO	8-97107-548-0	01	1	0712-	●	●
63	05.447 BEARING; PINION PILOT 4 WHEEL DISC BRAKE<JF9> KOYO	8-97107-548-0	01	1	0712-			●	●
63	05.447 BEARING; PINION PILOT EXC. 4 WHEEL DISC BRAKE<JF9> NSK	8-97047-296-0	01	1	0712-			●	●
63	05.447 BEARING; PINION PILOT EXC. 4 WHEEL DISC BRAKE<JF9> KOYO	8-97047-928-0	01	1	0712-			●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0712-	●	●
66	05.476 RING; SNAP,PILOT BRG 4 WHEEL DISC BRAKE<JF9>	9-09752-002-0	01	1	0712-			●	●
66	05.476 RING; SNAP,PILOT BRG EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-297-0	01	1	0712-			●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0712-	●	●
69	05.506 NUT; ADJ,DIFF CAGE 4 WHEEL DISC BRAKE<JF9> M110 H=10	5-41121-001-0	02	1	0712-			●	●
69	05.506 NUT; ADJ,DIFF CAGE EXC. 4 WHEEL DISC BRAKE<JF9> M115 H=20	1-41121-039-0	02	1	0712-			●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0712-	●	●
70	05.536 BEARING; DIFF CAGE 4 WHEEL DISC BRAKE<JF9> NSK	9-00093-602-0	02	1	0712-			●	●
70	05.536 BEARING; DIFF CAGE EXC. 4 WHEEL DISC BRAKE<JF9> KOYO ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0712-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-2	01	1	0712-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9>	8-98015-187-2	01	1	0712-			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	0712-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	0712-			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV)	8-98015-178-1	01	1	0712-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-099-4	01	1	0712-			●	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0712-	●	●
82	05.517 SPIDER; DIFF PINION FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9>	8-97220-519-0	01	1	0712-			●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0712-	●	●
82	05.517 SPIDER; DIFF PINION 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0712-			●	●
82	05.517 SPIDER; DIFF PINION EXC. 4 WHEEL DISC BRAKE<JF9> 05.520	1-41521-035-2	01	1	0712-1004			●	●
82	05.517 SPIDER; DIFF PINION EXC. 4 WHEEL DISC BRAKE<JF9>	1-41521-062-0	01	1	1005-1309			●	●
82	05.517 SPIDER; DIFF PINION EXC. 4 WHEEL DISC BRAKE<JF9> 05.520	1-41521-035-2	01	1	1310-			●	●
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0712-	●	●
83	05.510 CAGE ASM; DIFF 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0712-			●	●
83	05.510 CAGE ASM; DIFF EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-101-2	01	1	0712-1208			●	●
83	05.510 CAGE ASM; DIFF EXC. 4 WHEEL DISC BRAKE<JF9>	8-98219-705-0	01	1	1209-			●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0712-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> M14X29	8-97319-141-2	12	1	0712-			●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0712-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0712-			●	●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> M16X30	8-97047-147-0	12	1	0712-			●	●
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0712-	●	●
85	05.510 NUT; DIFF CAGE SETTING 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0712-			●	●
85	05.510 NUT; DIFF CAGE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> M12	8-97065-214-0	12	1	0712-			●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0712-	●	●
88	05.506 PLATE; LK,ADJ NUT 4 WHEEL DISC BRAKE<JF9> (A)	8-97027-281-0	AR	1	0712-			●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0712-	●	●
88	05.506 PLATE; LK,ADJ NUT 4 WHEEL DISC BRAKE<JF9> (B)	8-97027-282-0	AR	1	0712-			●	●
88	05.506 PLATE; LK,ADJ NUT EXC. 4 WHEEL DISC BRAKE<JF9> (D)	8-97087-821-0	AR	1	0712-			●	●
88	05.506 PLATE; LK,ADJ NUT EXC. 4 WHEEL DISC BRAKE<JF9> (C) T=2.3	9-41124-015-0	AR	1	0712-			●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
89	05.506 BOLT; LK PLATE 4 WHEEL DISC BRAKE<JF9> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-			●	●
89	05.506 BOLT; LK PLATE EXC. 4 WHEEL DISC BRAKE<JF9> 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0712-			●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0712-	●	●
100	05.469 SEAL; OIL,FINAL PINION 4 WHEEL DISC BRAKE<JF9> OD=103	8-94408-083-0	01	1	0712-			●	●
100	05.469 SEAL; OIL,FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9> NOK	1-09625-484-1	01	1	0712-			●	●

84 432 24 20 24 20 396 78 78 24 82 78 78 24 396 86 433 433 75 79 79 79 79 79 17 69 71 89 88 71 70 70 69 89 88 64 61 56 61 50 42 66 1 55 63 44 49 43 50 60 45 100 7 1 37 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/10	8-98015-157-0	01	1	0712-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> 41/10	8-98015-157-0	01	1	0712-			●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/10	8-98015-135-0	01	1	0712-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> 41/10	8-98015-135-0	01	1	0712-			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. 4 WHEEL DISC BRAKE<JF9>,LIMITED SLIP DIFF<6LV> 41/10	8-97388-700-0	01	1	0712-			●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 41/9	8-98015-124-0	01	1	0712-			●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. 4 WHEEL DISC BRAKE<JF9> 41/9	8-97388-702-0	01	1	0712-			●	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0712-	●	●
7	05.545 FLANGE; FINAL 4 WHEEL DISC BRAKE<JF9>	8-94477-723-4	01	1	0712-			●	●
7	05.545 FLANGE; FINAL EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-095-2	01	1	0712-			●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-97321-642-0	12	1	0712-	●	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> (A)	8-97321-642-0	12	1	0712-			●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M10X75 FLANGE	8-97232-161-0	12	1	0712-	●	●
17	05.510 BOLT; DIFF CAGE SETTING 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> (A) M10X75 FLANGE	8-97232-161-0	12	1	0712-			●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97047-295-0	12	1	0712-1208			●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-98219-448-0	12	1	1209-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0712-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4 WHEEL DISC BRAKE<JF9> T=1.40	9-41562-601-0	02	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0712-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=1.30	8-97220-723-0	02	1	0712-			●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0712-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=1.50	8-97220-724-0	02	1	0712-			●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0712-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=1.60	8-97220-725-0	02	1	0712-			●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=2.80	1-41562-073-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=2.90	1-41562-074-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.00	1-41562-075-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.10	1-41562-076-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.20	1-41562-077-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.30	1-41562-078-0	AR	1	0712-			●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> T=3.40	1-41562-079-0	AR	1	0712-			●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0712-	●	●
24	05.526 GEAR; PINION,DIFF 4 WHEEL DISC BRAKE<JF9> Z=10	8-98015-202-0	04	1	0712-			●	●
24	05.526 GEAR; PINION,DIFF EXC. 4 WHEEL DISC BRAKE<JF9> Z=10	1-41551-024-0	04	1	0712-1004			●	●
24	05.526 GEAR; PINION,DIFF EXC. 4 WHEEL DISC BRAKE<JF9> Z=10	1-41551-050-0	04	1	1005-			●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0712-	●	●
37	05.595 NUT; DRIVING PINION 4 WHEEL DISC BRAKE<JF9> M24 FLANGE	8-94329-526-1	01	1	0712-			●	●
37	05.595 NUT; DRIVING PINION EXC. 4 WHEEL DISC BRAKE<JF9> M30 FLANGE	8-97047-146-0	01	1	0712-			●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0712-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4 WHEEL DISC BRAKE<JF9> L=19.6	9-41219-603-1	01	1	0712-			●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-097-0	01	1	0712-			●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0712-	●	●
43	05.453 CAGE; FINAL PINION 4 WHEEL DISC BRAKE<JF9>	8-94400-890-0	01	1	0712-			●	●
43	05.453 CAGE; FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-098-0	01	1	0712-			●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0712-	●	●
44	05.476 GASKET; PINION CAGE 4 WHEEL DISC BRAKE<JF9> 05.458	9-09720-505-0	01	1	0712-			●	●
44	05.476 GASKET; PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97048-053-0	01	1	0712-			●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0712-0909	●	●
45	05.453 BOLT; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> M12X38 W/LK WASHER	0-50051-238-0	05	1	0712-0909			●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●	●
45	05.453 BOLT; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311			●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●	●
45	05.453 BOLT; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-			●	●
45	05.453 BOLT; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> M12X40 W/LK WASHER	0-50071-240-0	06	1	0712-0909			●	●
45	05.453 BOLT; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209			●	●
45	05.453 BOLT; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-			●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0712-0909	●	●
46	05.453 BOLT 4 WHEEL DISC BRAKE<JF9> M14X35 W/LK WASHER	0-50051-435-0	01	1	0712-0909			●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-	●	●
46	05.453 BOLT 4 WHEEL DISC BRAKE<JF9> M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.10	8-94401-335-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.12	8-94401-336-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.14	8-94401-337-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.16	8-94401-338-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.18	8-94401-339-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0712-	●	●
49	05.458 SHIM; FINAL PINION CAGE 4 WHEEL DISC BRAKE<JF9> ID=132 T=0.20	8-94401-340-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> ID=142 T=0.12	8-97047-298-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> ID=142 T=0.15	8-97047-299-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> ID=142 T=0.20	8-97047-300-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> ID=142 T=0.25	8-97048-418-0	AR	1	0712-			●	●
49	05.458 SHIM; FINAL PINION CAGE EXC. 4 WHEEL DISC BRAKE<JF9> 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0712-			●	●
50	05.447 BEARING; FINAL PINION 05.484 KOYO	5-09812-062-1	02	1	0712-	●	●
50	05.447 BEARING; FINAL PINION 4 WHEEL DISC BRAKE<JF9> 05.484 KOYO	5-09812-062-1	02	1	0712-			●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0712-	●	●
50	05.447 BEARING; FINAL PINION 4 WHEEL DISC BRAKE<JF9> 05.484 NSK	5-09812-063-0	02	1	0712-			●	●
50	05.447 BEARING; FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9> 05.484 NSK	1-09812-041-2	01	1	0712-			●	●
50	05.447 BEARING; FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9> KOYO	1-09812-042-1	01	1	0712-			●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0712-	●	●
55	05.505 CARRIER; DIFF 4 WHEEL DISC BRAKE<JF9>	8-97307-760-0	01	1	0712-			●	●
55	05.505 CARRIER; DIFF EXC. 4 WHEEL DISC BRAKE<JF9>	8-97094-637-0	01	1	0712-			●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0712-	●	●
56	05.506 BOLT; BRG CAP 4 WHEEL DISC BRAKE<JF9> 05.387 M14X80	8-94365-377-3	04	1	0712-			●	●
56	05.506 BOLT; BRG CAP EXC. 4 WHEEL DISC BRAKE<JF9> M14X95 FLANGE	1-09070-027-0	04	1	0712-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	0712-1311	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 41/10	8-97319-153-0	01	1	0712-1311			●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 41/10	8-98092-055-0	01	1	1312-			●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) EXC. 4 WHEEL DISC BRAKE<JF9>,LIMITED SLIP DIFF<6LV> 41/10	8-97061-846-0	01	1	0712-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 41/9	8-97319-156-0	01	1	0712-1311			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 41/9	8-98092-049-0	01	1	1312-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) EXC. 4 WHEEL DISC BRAKE<JF9> 41/9	8-97078-635-1	01	1	0712-			●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0712-	●	●
61	05.476 RETAINER; PILOT BRG,PINION 4 WHEEL DISC BRAKE<JF9> (A) W/STUD	5-41227-001-0	01	1	0712-			●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0712-	●	●
61	05.476 RETAINER; PILOT BRG,PINION 4 WHEEL DISC BRAKE<JF9> (B)	9-41227-601-0	01	1	0712-			●	●
61	05.476 RETAINER; PILOT BRG,PINION EXC. 4 WHEEL DISC BRAKE<JF9> (A) W/STUD	8-97047-149-0	01	1	0712-			●	●
61	05.476 RETAINER; PILOT BRG,PINION EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97047-150-0	01	1	0712-			●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0712-	●	●
63	05.447 BEARING; PINION PILOT 4 WHEEL DISC BRAKE<JF9> NSK	5-09810-008-1	01	1	0712-			●	●
63	05.447 BEARING; PINION PILOT KOYO	8-97107-548-0	01	1	0712-	●	●
63	05.447 BEARING; PINION PILOT 4 WHEEL DISC BRAKE<JF9> KOYO	8-97107-548-0	01	1	0712-			●	●
63	05.447 BEARING; PINION PILOT EXC. 4 WHEEL DISC BRAKE<JF9> NSK	8-97047-296-0	01	1	0712-			●	●
63	05.447 BEARING; PINION PILOT EXC. 4 WHEEL DISC BRAKE<JF9> KOYO	8-97047-928-0	01	1	0712-			●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0712-	●	●
66	05.476 RING; SNAP,PILOT BRG 4 WHEEL DISC BRAKE<JF9>	9-09752-002-0	01	1	0712-			●	●
66	05.476 RING; SNAP,PILOT BRG EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-297-0	01	1	0712-			●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0712-	●	●
69	05.506 NUT; ADJ,DIFF CAGE 4 WHEEL DISC BRAKE<JF9> M110 H=10	5-41121-001-0	02	1	0712-			●	●
69	05.506 NUT; ADJ,DIFF CAGE EXC. 4 WHEEL DISC BRAKE<JF9> M115 H=20	1-41121-039-0	02	1	0712-			●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0712-	●	●
70	05.536 BEARING; DIFF CAGE 4 WHEEL DISC BRAKE<JF9> NSK	9-00093-602-0	02	1	0712-			●	●
70	05.536 BEARING; DIFF CAGE EXC. 4 WHEEL DISC BRAKE<JF9> KOYO ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0712-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-2	01	1	0712-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9>	8-98015-187-2	01	1	0712-			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	0712-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5) 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	0712-			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV)	8-98015-178-1	01	1	0712-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. 4 WHEEL DISC BRAKE<JF9>	8-97047-099-4	01	1	0712-			●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0712-	●	●
75	05.511 PLATE; BEVEL FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=3.00	8-97220-699-0	01	1	0712-			●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0712-	●	●
75	05.511 PLATE; BEVEL FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=3.30	8-97220-700-0	01	1	0712-			●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0712-	●	●
75	05.511 PLATE; BEVEL FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=3.60	8-97220-701-0	01	1	0712-			●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0712-	●	●
75	05.511 PLATE; BEVEL FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=2.85	8-97220-702-0	01	1	0712-			●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0712-	●	●
75	05.511 PLATE; BEVEL FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=3.15	8-97220-703-0	01	1	0712-			●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0712-	●	●
75	05.511 PLATE; BEVEL FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=3.45	8-97220-704-0	01	1	0712-			●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0712-	●	●
75	05.511 PLATE; BEVEL FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> T=3.75	8-97221-223-0	01	1	0712-			●
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0712-	●	●
78	05.511 DISC; FRICTION FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9>	8-97220-696-0	04	1	0712-			●
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0712-	●	●
79	05.511 PLATE; FRICTION FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9>	8-97220-698-0	05	1	0712-			●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0712-	●	●
82	05.517 SPIDER; DIFF PINION FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9>	8-97220-519-0	01	1	0712-			●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0712-	●	●
82	05.517 SPIDER; DIFF PINION 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0712-			●	●
82	05.517 SPIDER; DIFF PINION EXC. 4 WHEEL DISC BRAKE<JF9> 05.520	1-41521-035-2	01	1	0712-1004			●	●
82	05.517 SPIDER; DIFF PINION EXC. 4 WHEEL DISC BRAKE<JF9>	1-41521-062-0	01	1	1005-1309			●	●
82	05.517 SPIDER; DIFF PINION EXC. 4 WHEEL DISC BRAKE<JF9> 05.520	1-41521-035-2	01	1	1310-			●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0712-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> M14X29	8-97319-141-2	12	1	0712-			●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0712-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4 WHEEL DISC BRAKE<JF9> EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0712-			●	●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. 4 WHEEL DISC BRAKE<JF9> M16X30	8-97047-147-0	12	1	0712-			●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0712-	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> ID=10 OD=18 T=2	8-98080-367-0	12	1	0712-			●
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0712-1208			●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. 4 WHEEL DISC BRAKE<JF9> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-			●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0712-	●	●
88	05.506 PLATE; LK,ADJ NUT 4 WHEEL DISC BRAKE<JF9> (A)	8-97027-281-0	AR	1	0712-			●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0712-	●	●
88	05.506 PLATE; LK,ADJ NUT 4 WHEEL DISC BRAKE<JF9> (B)	8-97027-282-0	AR	1	0712-			●	●
88	05.506 PLATE; LK,ADJ NUT EXC. 4 WHEEL DISC BRAKE<JF9> (D)	8-97087-821-0	AR	1	0712-			●	●
88	05.506 PLATE; LK,ADJ NUT EXC. 4 WHEEL DISC BRAKE<JF9> (C) T=2.3	9-41124-015-0	AR	1	0712-			●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●
89	05.506 BOLT; LK PLATE 4 WHEEL DISC BRAKE<JF9> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-			●	●
89	05.506 BOLT; LK PLATE EXC. 4 WHEEL DISC BRAKE<JF9> 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0712-			●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0712-	●	●
100	05.469 SEAL; OIL,FINAL PINION 4 WHEEL DISC BRAKE<JF9> OD=103	8-94408-083-0	01	1	0712-			●	●
100	05.469 SEAL; OIL,FINAL PINION EXC. 4 WHEEL DISC BRAKE<JF9> NOK	1-09625-484-1	01	1	0712-			●	●
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (B) Z=20	8-97362-599-1	01	1	0712-	●	●
396	05.515 GEAR; DIFF,LSD FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> (B) Z=20	8-97362-599-1	01	1	0712-			●
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-602-0	01	1	0712-	●	●
396	05.515 GEAR; DIFF,LSD FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9> (A) Z=20	8-97362-602-0	01	1	0712-			●
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0712-	●	●
432	05.650 SCREW FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9>	8-98080-350-0	04	1	0712-			●
433	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0712-	●	●
433	05.511 PLATE; FRICTION FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<6LV> 4 WHEEL DISC BRAKE<JF9>	8-97220-722-0	02	1	0712-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
