4-20 — REAR AXLE CASE AND SHAFT (#49417) — 158 parça

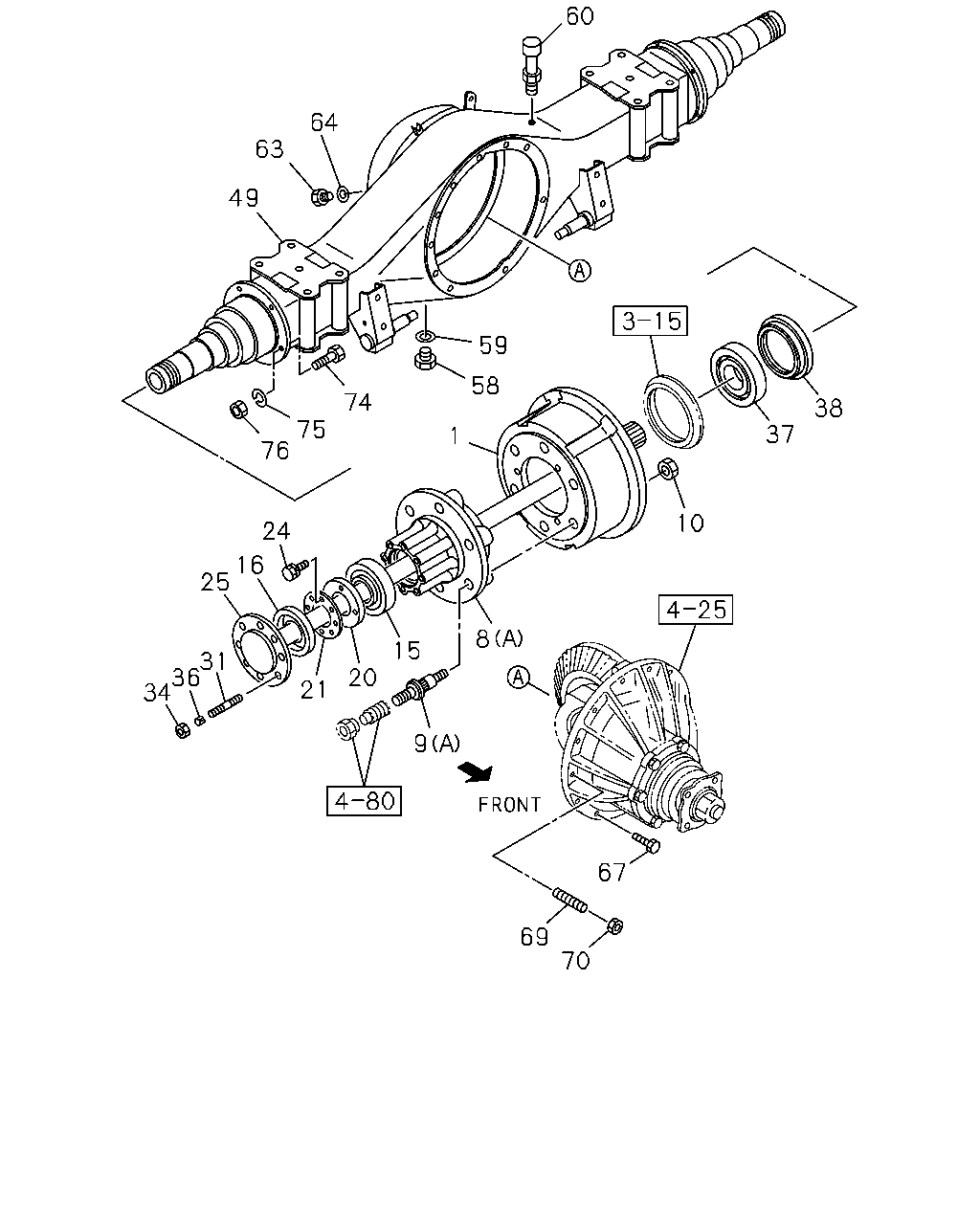

çizim 155414
60 64 63 49 59 58 74 38 75 76 37 1 10 24 16 25 8 15 31 36 34 20 21 9 67 69 70
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 05.809 DRUM; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97102-001-3 02 1 0712- ● ●
8 05.809 HUB; RR AXLE
(B) 		8-98022-462-0 02 1 0712- ● ●
8 05.809 HUB; RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B) 		8-98022-462-0 02 1 0712- ●
8 05.809 HUB; RR AXLE
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) (B) 		8-98022-463-0 02 1 0712- ● ●
8 05.809 HUB; RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97250-321-1 02 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X46 LH THREAD 		8-98028-533-1 05 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B) M18X46 LH THREAD 		8-98028-533-1 05 1 0712- ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X46 RH THREAD 		8-98028-532-1 05 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B) M18X46 RH THREAD 		8-98028-532-1 05 1 0712- ●
9 05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) (B) M20X53 LH THREAD 		8-97168-457-2 06 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) (B) M20X53 RH THREAD 		8-97168-456-2 06 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> (A) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> (A) M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 0712- ● ●
10 05.813 NUT; WHEEL PIN,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> 07.172 M22 		0-91110-522-0 12 1 0712- ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 0712- ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NSK 		9-00093-082-0 02 1 0712- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) NSK 		9-00093-607-0 02 1 0712- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 0712-1207 ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) TKK 		8-94336-315-2 02 1 0712-1207 ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-911-0 02 1 1208- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NOK 		8-98202-911-0 02 1 1208- ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 0712-1106 ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NOK 		8-94367-961-1 02 1 0712-1106 ●
16 05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) TKK 		8-94336-317-2 02 1 0712-1207 ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) NOK 		8-98202-912-0 02 1 1208- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) NOK 		8-94367-960-1 02 1 0712-1106 ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 0712-1303 ● ●
20 05.830 NUT; BRG,RR HUB
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) M52 		8-97137-092-0 02 1 0712-1303 ●
20 05.830 NUT; BRG,RR HUB
M52 		8-98236-850-0 02 1 1304- ● ●
20 05.830 NUT; BRG,RR HUB
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) M52 		8-98236-850-0 02 1 1304- ●
20 05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M55 		8-97137-094-0 02 1 0712- ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 0712- ● ●
21 05.830 WASHER; LK,BRG NUT
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) ID=52 		9-09853-214-0 02 1 0712- ●
21 05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) ID=55 		9-09653-002-0 02 1 0712- ● ●
24 05.830 BOLT; LK WASHER
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0712- ● ● ● ●
25 05.420 SHAFT; AXLE,RR
L=804.5 		8-97032-497-0 02 1 0712- ● ●
25 05.420 SHAFT; AXLE,RR
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) L=804.5 		8-97032-497-0 02 1 0712- ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) L=830 		8-94341-974-1 02 1 0712- ● ●
25 05.420 SHAFT; AXLE,RR
EXC. 4 WHEEL DISC BRAKE<JF9> L=885 		8-97134-439-0 02 1 0712- ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0712- ● ● ● ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 16 1 0712- ● ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0712- ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 0712- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NSK 		9-00093-081-0 02 1 0712- ●
37 05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) NSK 		9-00093-624-0 02 1 0712- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> NSK 		8-97122-938-0 02 1 0712- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> KOYO 		8-97123-119-0 02 1 0712- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-98037-080-0 02 1 0712- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NOK 		8-98037-080-0 02 1 0712- ●
38 05.822 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 		8-98037-081-0 02 1 0712- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
EXC. 4 WHEEL DISC BRAKE<JF9> NOK 		8-97122-937-0 02 1 0712- ● ●
49 05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98022-460-6 01 1 0712- ● ●
49 05.387 CASE; RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 		8-98022-460-6 01 1 0712- ●
49 05.387 CASE; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98022-459-6 01 1 0712- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 		8-98022-461-5 01 1 0712- ● ●
49 05.387 CASE; RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97250-319-3 01 1 0712- ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0712- ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 0712- ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0712- ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0712- ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0712- ● ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 0712-0909 ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
4 WHEEL DISC BRAKE<JF9> M10X40 W/LK WASHER 		0-50061-040-0 11 1 0712-0909 ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
4 WHEEL DISC BRAKE<JF9> 06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> M10X40 W/LK WASHER 		0-50061-040-0 07 1 0712-0909 ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> 06.156 M10X40 W/LK WASHER 		0-50561-040-0 07 1 0910- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> M10X50 W/LK WASHER 		0-50061-050-0 04 1 0712-0909 ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> M10X50 W/LK WASHER 		0-50561-050-0 04 1 0910- ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0712- ● ● ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0712- ● ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> M14X40 		8-98007-879-0 12 1 0712- ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> 06.174 ID=14.2 		0-91510-814-0 12 1 0712- ● ●
76 05.002 NUT; RR BRK ASM SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> 07.833 M14 		0-91110-514-0 12 1 0712- ● ●

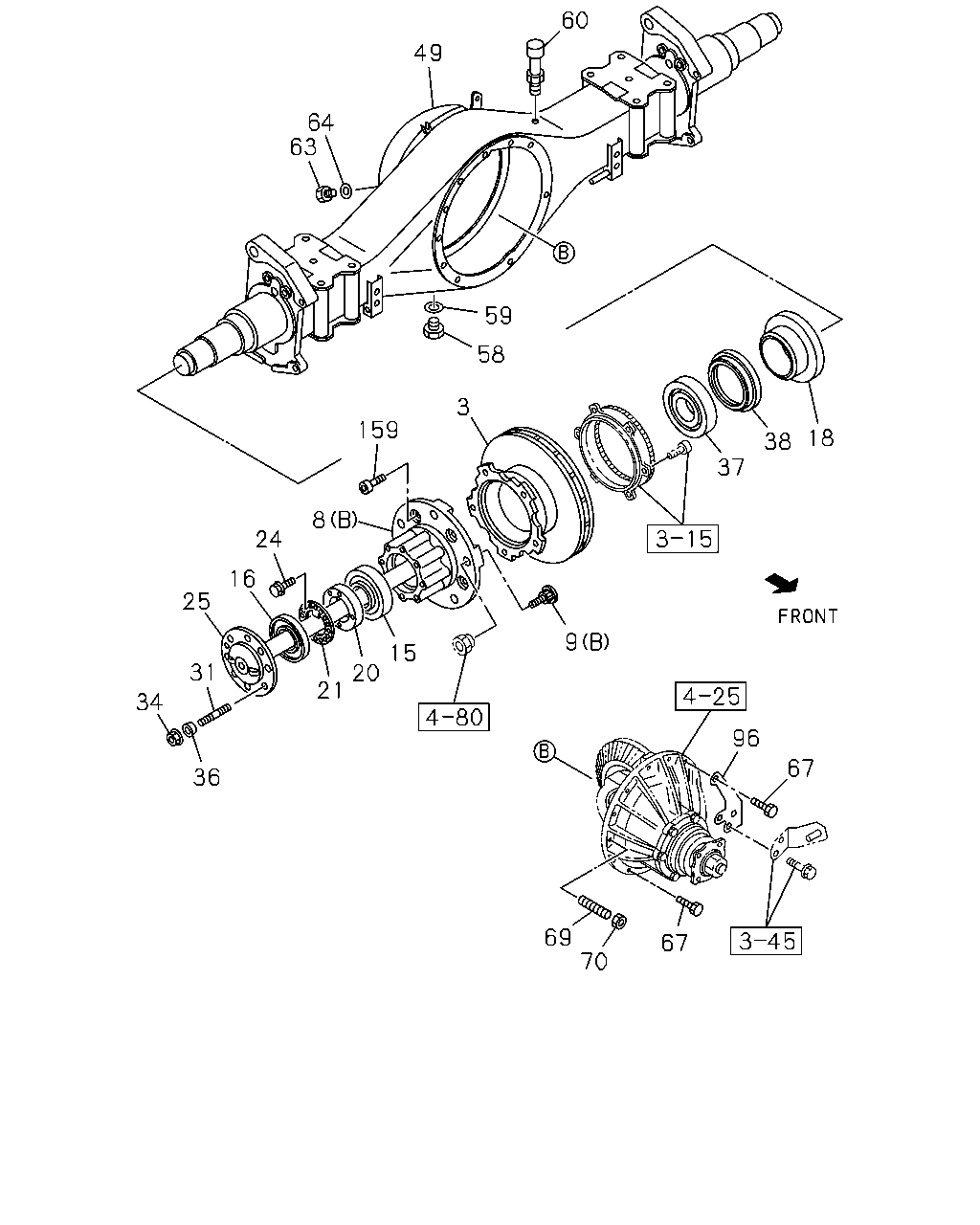

çizim 155780
60 49 64 63 59 58 3 159 18 38 37 8 24 16 25 9 15 31 20 21 34 96 67 36 69 70 67
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 05.809 ROTOR; DISC BRK,RR 8-98024-006-0 02 1 0712-1310 ● ●
3 05.809 ROTOR; DISC BRK,RR
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 		8-98024-006-0 02 1 0712-1310 ●
3 05.809 ROTOR; DISC BRK,RR 8-98248-897-0 02 1 1311- ● ●
3 05.809 ROTOR; DISC BRK,RR
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 		8-98248-897-0 02 1 1311- ●
3 05.809 ROTOR; DISC BRK,RR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 		8-98028-837-0 02 1 0712-1310 ● ●
3 05.809 ROTOR; DISC BRK,RR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 		8-98248-898-0 02 1 1311- ● ●
8 05.809 HUB; RR AXLE
(B) 		8-98022-462-0 02 1 0712- ● ●
8 05.809 HUB; RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B) 		8-98022-462-0 02 1 0712- ●
8 05.809 HUB; RR AXLE
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) (B) 		8-98022-463-0 02 1 0712- ● ●
8 05.809 HUB; RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97250-321-1 02 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X46 LH THREAD 		8-98028-533-1 05 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B) M18X46 LH THREAD 		8-98028-533-1 05 1 0712- ●
9 05.812 PIN; WHEEL,RR AXLE
(B) M18X46 RH THREAD 		8-98028-532-1 05 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) (B) M18X46 RH THREAD 		8-98028-532-1 05 1 0712- ●
9 05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) (B) M20X53 LH THREAD 		8-97168-457-2 06 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) (B) M20X53 RH THREAD 		8-97168-456-2 06 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> (A) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> (A) M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 0712- ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 0712- ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NSK 		9-00093-082-0 02 1 0712- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) NSK 		9-00093-607-0 02 1 0712- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 0712-1207 ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) TKK 		8-94336-315-2 02 1 0712-1207 ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-911-0 02 1 1208- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NOK 		8-98202-911-0 02 1 1208- ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 0712-1106 ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NOK 		8-94367-961-1 02 1 0712-1106 ●
16 05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) TKK 		8-94336-317-2 02 1 0712-1207 ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) NOK 		8-98202-912-0 02 1 1208- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) NOK 		8-94367-960-1 02 1 0712-1106 ● ●
18 05.822 RETAINER; RR AXLE 8-98032-676-0 02 1 0712-1308 ● ●
18 05.822 RETAINER; RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 		8-98032-676-0 02 1 0712-1308 ●
18 05.822 RETAINER; RR AXLE 8-98232-252-0 02 1 1309- ● ●
18 05.822 RETAINER; RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 		8-98232-252-0 02 1 1309- ●
18 05.822 RETAINER; RR AXLE
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 		8-98032-677-0 02 1 0712- ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 0712-1303 ● ●
20 05.830 NUT; BRG,RR HUB
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) M52 		8-97137-092-0 02 1 0712-1303 ●
20 05.830 NUT; BRG,RR HUB
M52 		8-98236-850-0 02 1 1304- ● ●
20 05.830 NUT; BRG,RR HUB
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) M52 		8-98236-850-0 02 1 1304- ●
20 05.830 NUT; BRG,RR HUB
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M55 		8-97137-094-0 02 1 0712- ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 0712- ● ●
21 05.830 WASHER; LK,BRG NUT
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) ID=52 		9-09853-214-0 02 1 0712- ●
21 05.830 WASHER; LK,BRG NUT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) ID=55 		9-09653-002-0 02 1 0712- ● ●
24 05.830 BOLT; LK WASHER
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0712- ● ● ● ●
25 05.420 SHAFT; AXLE,RR
L=804.5 		8-97032-497-0 02 1 0712- ● ●
25 05.420 SHAFT; AXLE,RR
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) L=804.5 		8-97032-497-0 02 1 0712- ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) L=830 		8-94341-974-1 02 1 0712- ● ●
25 05.420 SHAFT; AXLE,RR
EXC. 4 WHEEL DISC BRAKE<JF9> L=885 		8-97134-439-0 02 1 0712- ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0712- ● ● ● ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 16 1 0712- ● ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0712- ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 0712- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NSK 		9-00093-081-0 02 1 0712- ●
37 05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) NSK 		9-00093-624-0 02 1 0712- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> NSK 		8-97122-938-0 02 1 0712- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> KOYO 		8-97123-119-0 02 1 0712- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-98037-080-0 02 1 0712- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) NOK 		8-98037-080-0 02 1 0712- ●
38 05.822 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 		8-98037-081-0 02 1 0712- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
EXC. 4 WHEEL DISC BRAKE<JF9> NOK 		8-97122-937-0 02 1 0712- ● ●
49 05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98022-460-6 01 1 0712- ● ●
49 05.387 CASE; RR AXLE
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 		8-98022-460-6 01 1 0712- ●
49 05.387 CASE; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98022-459-6 01 1 0712- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 		8-98022-461-5 01 1 0712- ● ●
49 05.387 CASE; RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97250-319-3 01 1 0712- ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0712- ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 0712- ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0712- ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0712- ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0712- ● ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 0712-0909 ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
4 WHEEL DISC BRAKE<JF9> M10X40 W/LK WASHER 		0-50061-040-0 11 1 0712-0909 ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
4 WHEEL DISC BRAKE<JF9> 06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> M10X40 W/LK WASHER 		0-50061-040-0 07 1 0712-0909 ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> 06.156 M10X40 W/LK WASHER 		0-50561-040-0 07 1 0910- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> M10X50 W/LK WASHER 		0-50061-050-0 04 1 0712-0909 ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> M10X50 W/LK WASHER 		0-50561-050-0 04 1 0910- ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0712- ● ● ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0712- ● ● ● ●
96 04.730 BRACKET; LSPV,AXLE CASE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98030-956-0 01 1 0712- ● ●
159 05.822 BOLT; ROTOR TO HUB
05.812 		8-98021-780-0 10 1 0712- ● ●
159 05.822 BOLT; ROTOR TO HUB
4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 05.812 		8-98021-780-0 10 1 0712- ●
159 05.822 BOLT; ROTOR TO HUB
FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) 05.812 		8-98021-780-0 12 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
