◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51155 - NNR/NPR EU-L EXC.EU5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#49416) — 85 parça

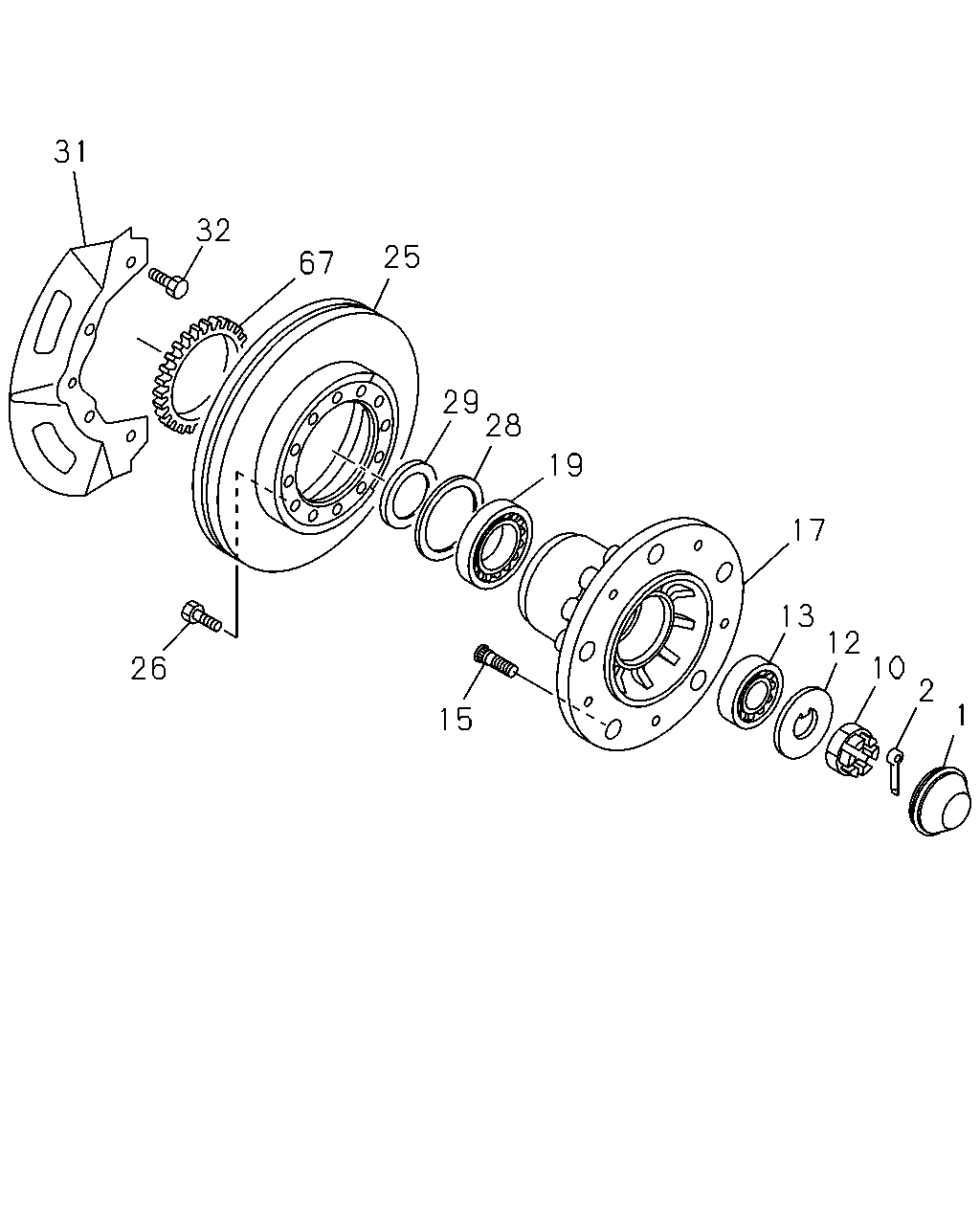

çizim 155778
31 32 25 67 29 28 19 17 13 12 10 2 26 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0712-1407 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408- ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0712- ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0712- ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0712- ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0712- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-3 06 1 0806- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-3 06 1 0806- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-1 06 1 0712-0805 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-1 06 1 0712-0805 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0712- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) M18X46 LH THREAD 		8-98028-533-1 05 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0712- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) M18X46 RH THREAD 		8-98028-532-1 05 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SIL VER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) M20X53 LH THREAD 		8-97168-457-2 06 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) M20X53 LH THREAD 		8-97168-457-2 06 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20X53 LH THREAD 		8-97168-457-2 06 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SIL VER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) M20X53 RH THREAD 		8-97168-456-2 06 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) M20X53 RH THREAD 		8-97168-456-2 06 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20X53 RH THREAD 		8-97168-456-2 06 1 0712- ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97349-911-0 02 1 0806- ● ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97349-911-0 02 1 0712-0805 ● ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97035-160-0 02 1 0712- ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97035-160-0 02 1 0712- ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97017-193-0 02 1 0712- ● ●
17 06.307 HUB; FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SIL VER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97168-460-0 02 1 0712- ●
17 06.307 HUB; FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 		8-97168-460-0 02 1 0712- ●
17 06.307 HUB; FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-97168-460-0 02 1 0712- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
KOYO 		8-94248-088-2 02 1 0712-1009 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0712-1009 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 0712- ● ●
25 05.809 ROTOR; DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97387-229-0 02 1 0712- ● ●
25 05.809 ROTOR; DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) REFER TO PERIODICAL PCN86 		8-98105-058-0 02 1 0712- ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0712- ● ●
26 05.812 BOLT; BRK,DISC TO HUB
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-94474-923-0 24 1 0712- ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0712- ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0712- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-98037-377-0 02 1 0712- ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98037-377-0 02 1 0712- ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0712- ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0712- ● ●
67 05.811 ROTOR; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97387-158-0 02 1 0806- ● ●
67 05.811 ROTOR; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97387-158-0 02 1 0712-0805 ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-159-0 02 1 0712- ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97387-159-0 02 1 0712- ● ●

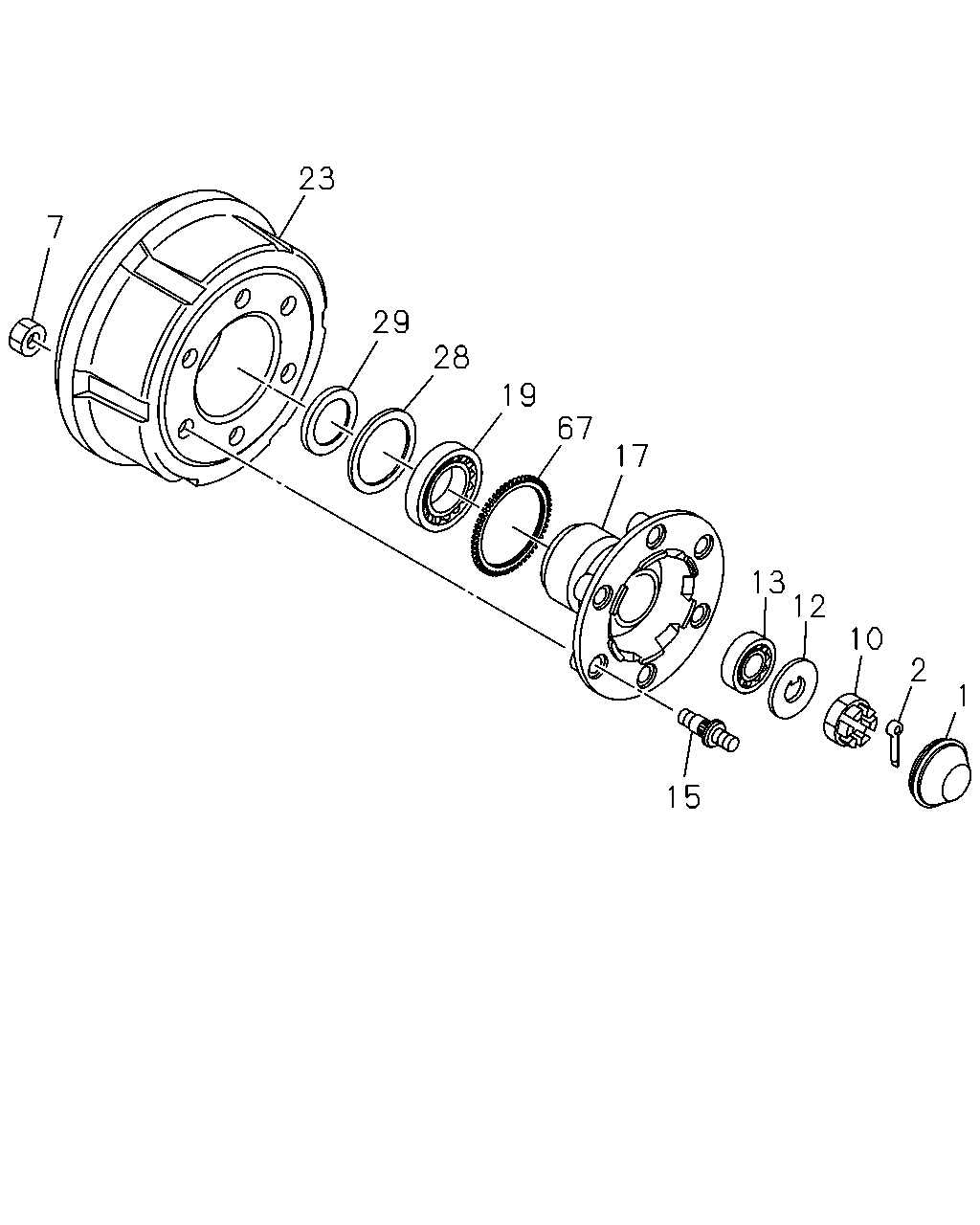

çizim 155785
23 7 29 28 19 67 17 13 12 10 2 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0712- ● ● ● ●
7 05.812 NUT; FRT HUB
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 07.172 M22 		0-91110-522-0 12 1 0806- ● ●
7 05.812 NUT; FRT HUB
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 07.172 M22 		0-91110-522-0 12 1 0712-0805 ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0712- ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0712- ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0712- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-3 06 1 0806- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-3 06 1 0806- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-1 06 1 0712-0805 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-1 06 1 0712-0805 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0712- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) M18X46 LH THREAD 		8-98028-533-1 05 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0712- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) M18X46 RH THREAD 		8-98028-532-1 05 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SIL VER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) M20X53 LH THREAD 		8-97168-457-2 06 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) M20X53 LH THREAD 		8-97168-457-2 06 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20X53 LH THREAD 		8-97168-457-2 06 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SIL VER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) M20X53 RH THREAD 		8-97168-456-2 06 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) M20X53 RH THREAD 		8-97168-456-2 06 1 0712- ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20X53 RH THREAD 		8-97168-456-2 06 1 0712- ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97349-911-0 02 1 0806- ● ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97349-911-0 02 1 0712-0805 ● ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97035-160-0 02 1 0712- ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97035-160-0 02 1 0712- ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97017-193-0 02 1 0712- ● ●
17 06.307 HUB; FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7WHITE(AUJ),FRT&RR TIRE 215-75R16C DISC16-5.5J-127(AYS),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127SILVER(CQT),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SIL VER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97168-460-0 02 1 0712- ●
17 06.307 HUB; FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) 		8-97168-460-0 02 1 0712- ●
17 06.307 HUB; FRT AXLE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-97168-460-0 02 1 0712- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
KOYO 		8-94248-088-2 02 1 0712-1009 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0712-1009 ● ● ● ●
23 05.809 DRUM; BRK,FRT
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97188-115-0 02 1 0806- ● ●
23 05.809 DRUM; BRK,FRT
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97188-115-0 02 1 0712-0805 ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0712- ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0712- ● ● ● ●
67 05.811 ROTOR; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97387-158-0 02 1 0806- ● ●
67 05.811 ROTOR; SENSOR
EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 		8-97387-158-0 02 1 0712-0805 ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-159-0 02 1 0712- ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-97387-159-0 02 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
