◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#4941) — 117 parça

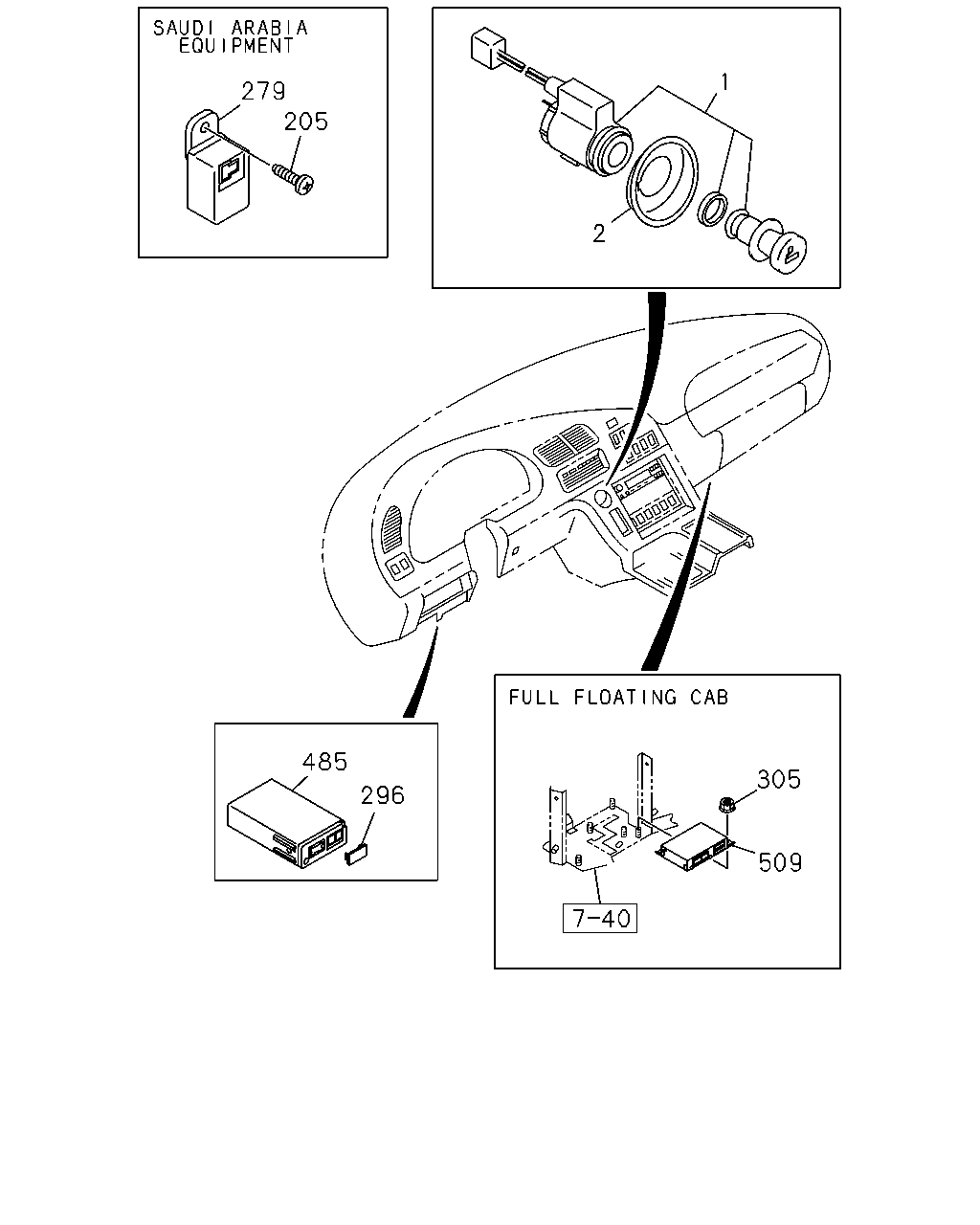

çizim 6189
1 279 205 2 485 305 296 509
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9603-9901 ● ● ●
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9902-9904 ● ●
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9905- ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9603-9901 ● ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9902-9904 ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9905- ● ● ●
205 SCREW; BUZZER
SAUDI ARABIA EQUIPMENT(WH1) M5X14 		8-94279-325-0 01 1 9802-9901 ● ●
205 SCREW; BUZZER
SAUDI ARABIA EQUIPMENT(WH1) M5X14 		8-94279-325-0 01 1 9905- ● ●
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 9802-9901 ● ●
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 9905- ● ●
296 COVER; CONT UNIT 1-82549-010-0 01 1 9603-9901 ● ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 9603-9901 ● ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 9902- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9603-9901 ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 9902-9904 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 9905- ● ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-82505-179-1 01 1 9603-9603 ● ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) '960318- 		1-82505-228-0 01 1 9603-9701 ● ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-030-0 01 1 9702-9901 ● ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-032-0 01 1 9902- ● ●

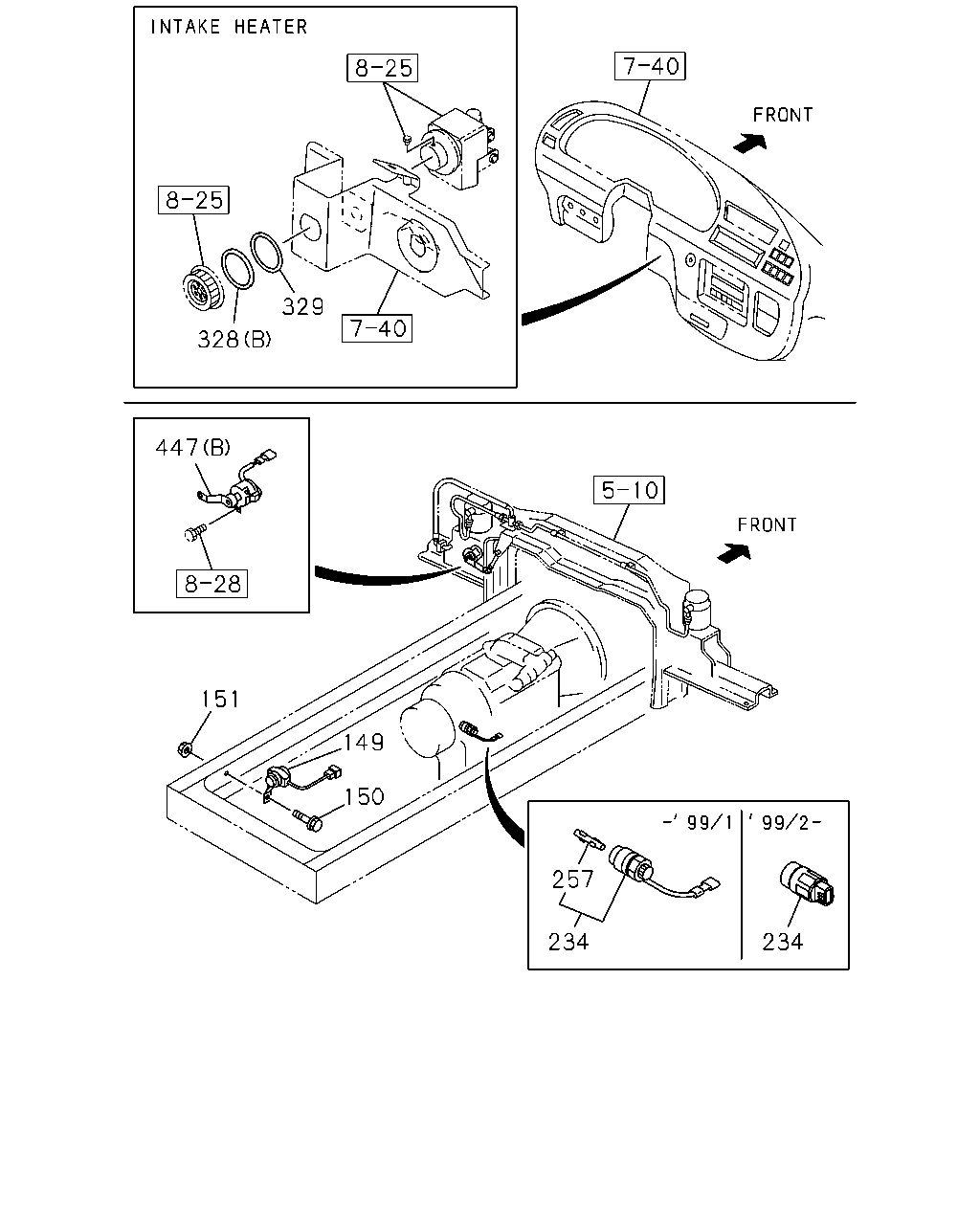

çizim 39282
329 328 447 151 149 150 257 234 234
BalonParca AdiParca NoAdetTipApplied Date A B C
149 BUZZER; BRK LK
10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) NIKKO 		1-83460-064-0 01 1 9603-9901 ●
149 BUZZER; BRK LK
10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) NIKKO 		1-83460-064-0 01 1 9905-9909 ●
149 BUZZER; BRK LK
10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) METRO DENSO 		1-83460-094-1 01 1 9905-0001 ●
149 BUZZER; BRK LK
POWER BRAKE LOCK SYSTEM(J50) METRO DENSO 		1-83460-094-2 01 1 0002- ● ●
150 BOLT; BUZZER BRK LK
POWER BRAKE LOCK SYSTEM(J50) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) M10X35 W/LK&PL WASHER 		0-50141-035-0 01 1 0002- ● ●
151 NUT; BUZZER BRK LK
POWER BRAKE LOCK SYSTEM(J50) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) M10 FLANGE 		0-91150-210-0 01 1 0002- ● ●
234 SENSOR; VEHICLE SPD 1-83127-254-2 01 1 9603-9901 ● ● ●
234 SENSOR; VEHICLE SPD 1-80240-001-0 01 1 9902-9904 ● ●
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 9905- ● ● ●
257 KEY; SPEED SENSOR 1-83129-125-0 01 1 9603-9901 ● ● ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9603-9901 ● ● ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9902-9904 ● ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9905- ● ● ●
328 NUT
ELEC OUTLET 12V<TAW> (C) M6 FLANGE 		0-91150-106-0 04 1 9905-9907 ● ● ●
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (C) M6 FLANGE 		0-91150-106-0 04 1 9908-9911 ● ● ●
328 NUT
INTAKE HEATER<SL2> (B) 		1-09449-037-1 01 1 9603-9901 ● ●
328 NUT
INTAKE HEATER<SL2> (B) 		1-09449-037-1 01 1 9905- ● ●
329 WASHER
INTAKE HEATER<SL2> 		1-09503-100-0 01 1 9603-9901 ● ●
329 WASHER
INTAKE HEATER<SL2> 		1-09503-100-0 01 1 9905- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-81541-067-4 01 1 9603-9901 ● ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-81541-067-4 01 1 9902- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-81541-069-3 01 1 9603-9901 ● ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-81541-069-3 01 1 9902- ● ●

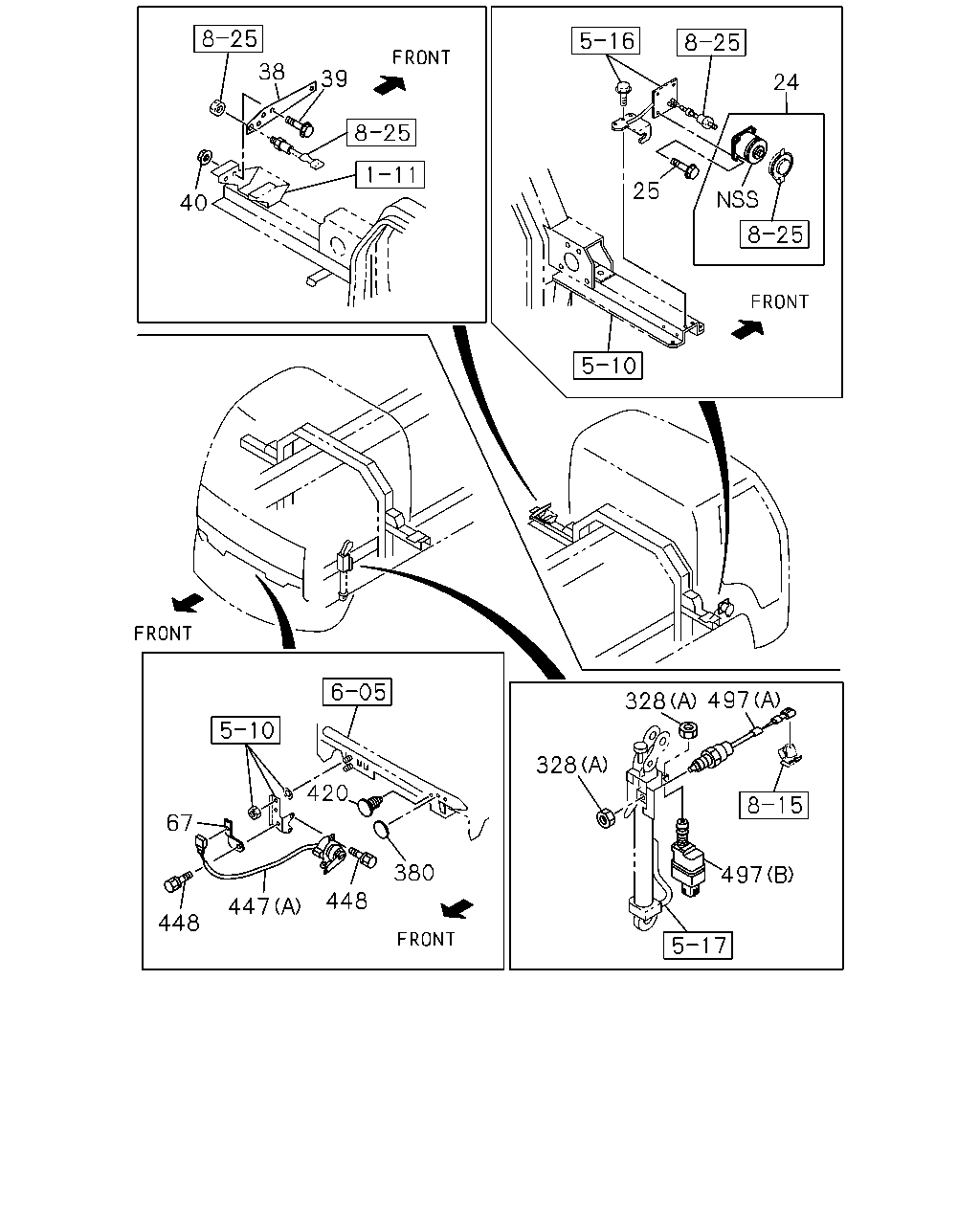

çizim 39558
38 39 24 25 40 497 328 328 420 67 380 497 448 447 448
BalonParca AdiParca NoAdetTipApplied Date A B C
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 9603-9901 ● ● ●
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 9902-9904 ● ●
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 9905- ● ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 04 1 9603-9606 ● ● ●
25 BOLT; SW BOX
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9607-9609 ● ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 9610-9901 ● ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 9902-9904 ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 9905- ● ● ●
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 9603-9901 ● ● ●
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 9902-9904 ● ●
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 9905- ● ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9901 ● ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9902-9904 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 		9-09110-408-0 02 1 9603-9606 ● ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 9607-9901 ● ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ●
67 BRACKET; CONT UNIT
FULL FLOATING CAB(W16) 		1-82699-355-1 01 1 9603-9901 ● ● ●
67 BRACKET; CONT UNIT
FULL FLOATING CAB(W16) 		1-82699-355-1 01 1 9902- ● ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9603-9901 ● ● ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9902-9904 ● ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9905- ● ● ●
328 NUT
ELEC OUTLET 12V<TAW> (C) M6 FLANGE 		0-91150-106-0 04 1 9905-9907 ● ● ●
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (C) M6 FLANGE 		0-91150-106-0 04 1 9908-9911 ● ● ●
328 NUT
INTAKE HEATER<SL2> (B) 		1-09449-037-1 01 1 9603-9901 ● ●
328 NUT
INTAKE HEATER<SL2> (B) 		1-09449-037-1 01 1 9905- ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 04 1 9603-9612 ● ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 9701-9804 ● ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 9805-9901 ● ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 02 1 9902- ● ●
420 PLUG; SWITCH
OD=15 BLACK 		8-94279-804-0 01 1 9612-9803 ● ● ●
420 PLUG; SWITCH
OD=25 BLACK 		1-76798-019-0 01 1 9804-9804 ● ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-81541-067-4 01 1 9603-9901 ● ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-81541-067-4 01 1 9902- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-81541-069-3 01 1 9603-9901 ● ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-81541-069-3 01 1 9902- ● ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603-9901 ● ● ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9902- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9603-9901 ● ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9902-9904 ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9905- ● ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 9603-9901 ● ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 9902-9904 ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 9905- ● ● ●

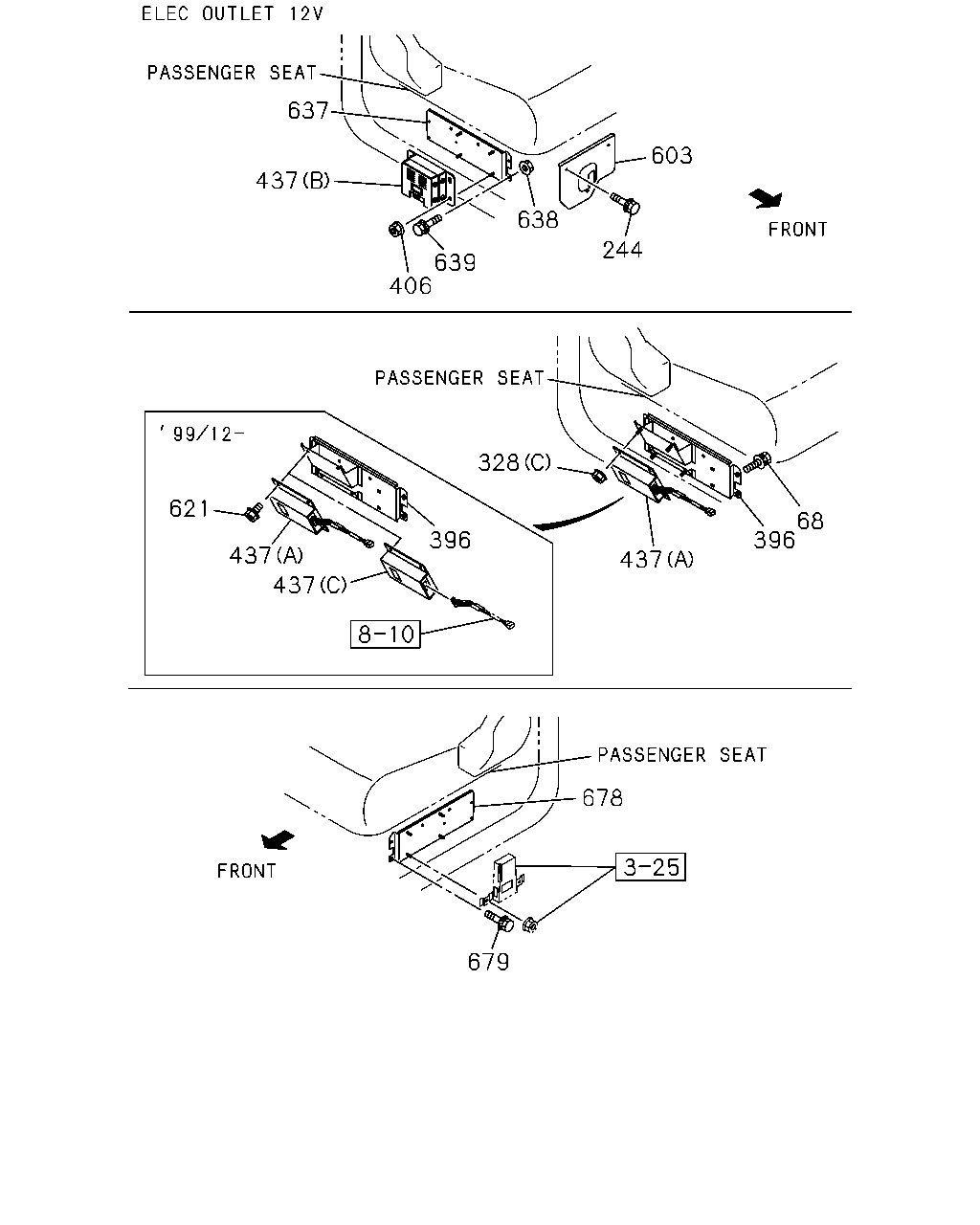

çizim 39804
637 603 437 638 244 639 406 328 621 68 396 396 437 437 437 678 679
BalonParca AdiParca NoAdetTipApplied Date A B C
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907 ● ● ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908- ● ● ●
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9610-9901 ● ● ●
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9902-9904 ● ●
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905- ● ● ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9603-9901 ● ● ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9902-9904 ● ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9905- ● ● ●
328 NUT
ELEC OUTLET 12V<TAW> (C) M6 FLANGE 		0-91150-106-0 04 1 9905-9907 ● ● ●
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (C) M6 FLANGE 		0-91150-106-0 04 1 9908-9911 ● ● ●
328 NUT
INTAKE HEATER<SL2> (B) 		1-09449-037-1 01 1 9603-9901 ● ●
328 NUT
INTAKE HEATER<SL2> (B) 		1-09449-037-1 01 1 9905- ● ●
396 BRACKET
ELEC OUTLET 12V<TAW> 		1-75557-484-0 01 1 9905-9907 ● ● ●
396 BRACKET
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 		1-75557-484-1 01 1 9908- ● ● ●
406 NUT; COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905- ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 9905- ● ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-0 01 1 9905-9907 ● ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 9908-0008 ● ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (C) MITSUBISHI 		1-84122-034-1 01 1 0009- ● ● ●
603 COVER; CONT UNIT,SEAT STAND 1-75558-535-3 01 1 9610-9901 ● ● ●
603 COVER; CONT UNIT,SEAT STAND 1-75558-535-3 01 1 9902-9904 ● ●
603 COVER; CONT UNIT,SEAT STAND 1-75558-535-3 01 1 9905- ● ● ●
621 SCREW
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/PL WASHER 		1-09981-380-0 04 1 9912- ● ● ●
637 BRACKET; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> 		1-75557-473-0 01 1 9905- ● ● ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905- ● ● ●
639 BOLT; BRKT,DC-DC CONVERTER
ELEC OUTLET 12V<TAW> W/LK&PL WASHER M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905- ● ● ●
678 BRACKET; BRAKE LOCK
POWER BRAKE LOCK SYSTEM(J50) 		1-75557-492-0 01 1 0004- ● ●
679 BOLT; BRKT,BRAKE LOCK
POWER BRAKE LOCK SYSTEM(J50) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0004- ● ●
