◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51155 - NNR/NPR EU-L EXC.EU5 ▶ 3 - Brakes, Brake System ▶ 3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER ▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#49407) — 30 parça
çizim 155700
1 17 16 24 15 12 11 23 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.901 MASTER VAC ASM; BRK 8-97162-800-1 01 1 0712- ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97162-800-1 01 1 0712- ● ●
1 04.901 MASTER VAC ASM; BRK
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97162-800-1 01 1 0712- ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 		8-97162-798-1 01 1 0712- ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC 9-83315-319-0 01 1 0712- ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		9-83315-319-0 01 1 0712- ● ●
11 04.906 FILTER; M/VAC 8-97205-576-0 01 1 0712- ● ●
11 04.906 FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-576-0 01 1 0712- ● ●
12 04.906 SILENCER; M/VAC 8-97205-577-0 01 1 0712- ● ●
12 04.906 SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-577-0 01 1 0712- ● ●
15 04.906 RETAINER; GUARD,M/VAC 8-94375-083-0 01 1 0712- ● ●
15 04.906 RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-94375-083-0 01 1 0712- ● ●
16 04.662 NUT; VLV ROD,M/VAC
M10 		1-52139-008-0 01 1 0712- ● ●
16 04.662 NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) M10 		1-52139-008-0 01 1 0712- ● ●
17 04.662 CLEVIS; YOKE,M/VAC 8-97224-610-0 01 1 0712- ● ●
17 04.662 CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-610-0 01 1 0712- ● ●
23 04.910 SEAL; M/VAC 8-97079-350-0 01 1 0712- ● ●
23 04.910 SEAL; M/VAC
G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97079-350-0 01 1 0712- ● ●
23 04.910 SEAL; M/VAC
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97079-350-0 01 1 0712- ● ●
23 04.910 SEAL; M/VAC
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52>,HYDRO BRAKE BOOSTER(7QQ) 		8-97261-943-0 01 1 0712- ● ●
24 04.906 GUARD; VLV BODY,M/VAC 8-97205-578-0 01 1 0712- ● ●
24 04.906 GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-578-0 01 1 0712- ● ●

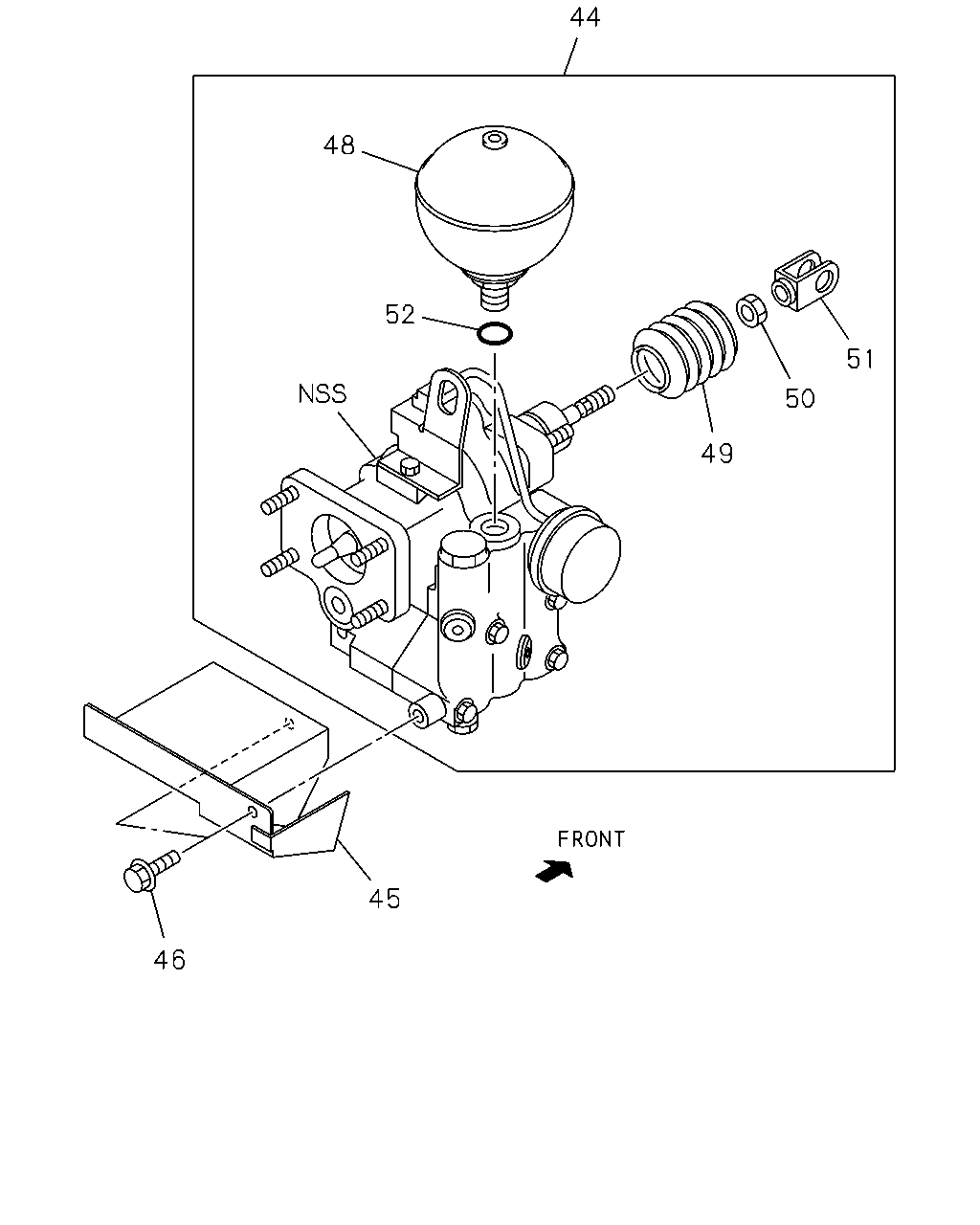

çizim 155702
44 48 52 51 50 49 45 46
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 04.901 BOOSTER; HYDRAULIC BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-98031-414-0 01 1 0712- ● ●
45 04.901 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER(7QQ) 		8-98031-415-1 01 1 0712- ● ●
46 04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER(7QQ) 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 0712- ● ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-98038-346-0 01 1 0712- ● ●
49 04.906 GUARD; HYDRO BRK BOOSTER
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97191-043-0 01 1 0712- ● ●
50 04.906 NUT; HYDRO BRK BOOSTER
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-98038-349-0 01 1 0712- ● ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-98038-347-0 01 1 0712- ● ●
52 04.906 GASKET; HYDRO BRK BOOSTER
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 04.910 		8-97191-038-0 01 1 0712- ● ●
