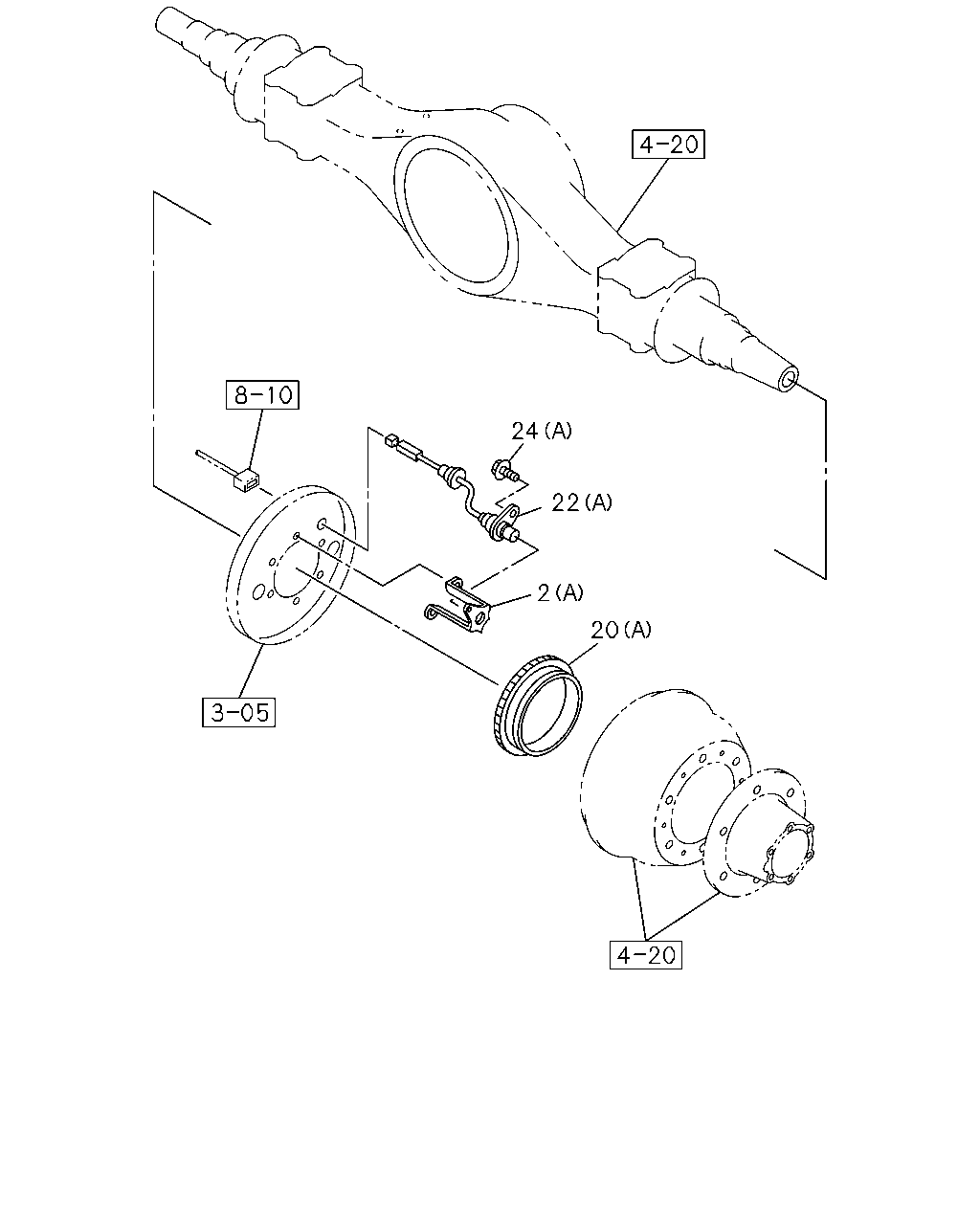

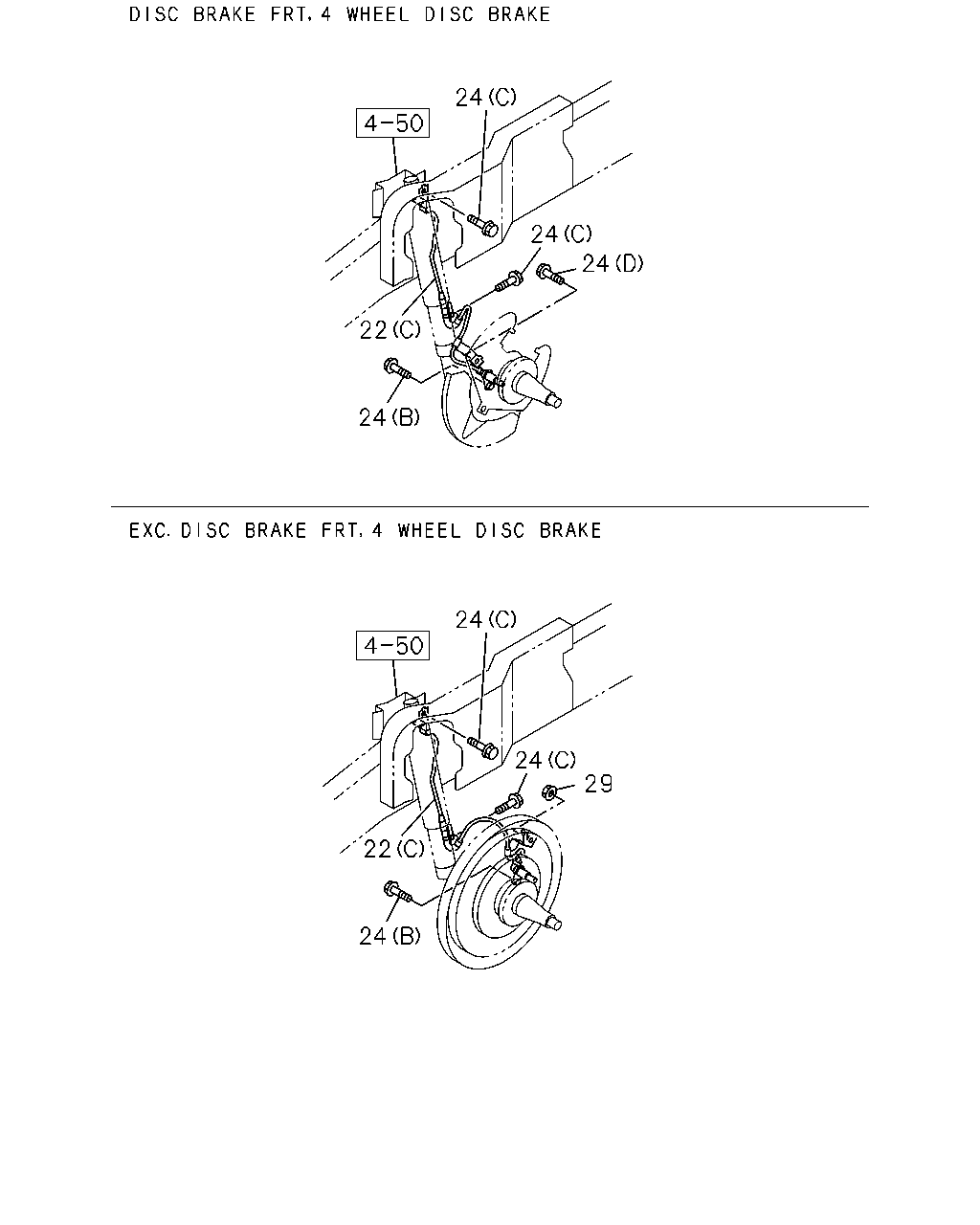

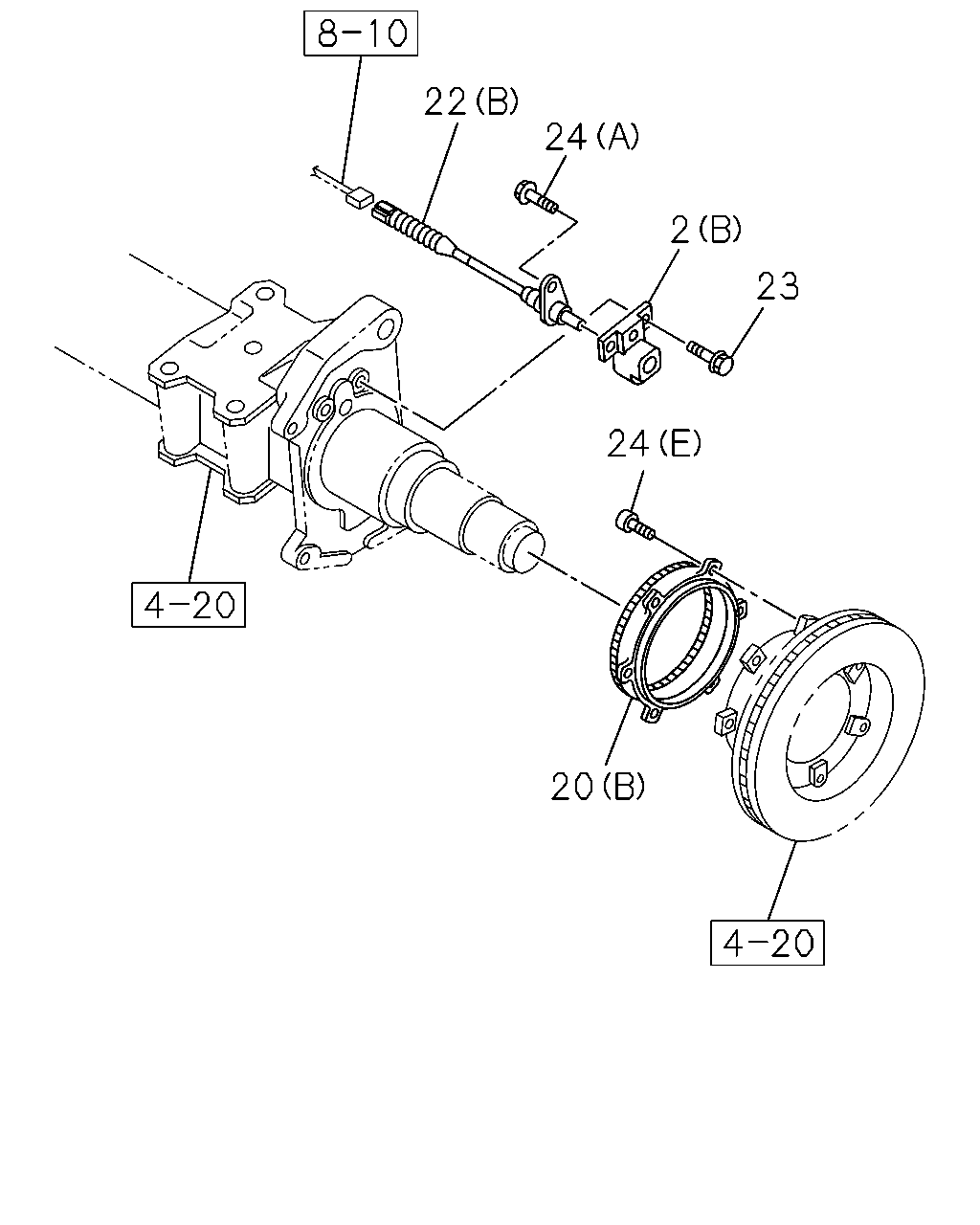

3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#49404) — 127 parça

24 22 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98045-222-0	02	1	0712-	●	●
2	04.730 BRACKET; SENSOR 4 WHEEL DISC BRAKE<JF9> (B)	8-98045-222-0	02	1	0712-			●	●
2	04.730 BRACKET; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98002-440-1	02	1	0712-			●	●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 05.809 (B)	8-97387-160-0	02	1	0712-1102	●	●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 05.809 (B)	8-97387-160-0	02	1	0712-1102			●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 05.809 (B)	8-98187-136-0	02	1	1103-	●	●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 05.809 (B)	8-98187-136-0	02	1	1103-			●
20	04.710 ROTOR; SENSOR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) (B)	8-98042-652-0	02	1	0712-1102			●	●
20	04.710 ROTOR; SENSOR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) (B)	8-98187-137-0	02	1	1103-1401			●	●
20	04.710 ROTOR; SENSOR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) (B)	8-98207-952-0	02	1	1402-			●	●
20	04.710 ROTOR; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97206-775-3	02	1	0712-			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98012-753-1	02	1	0712-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9> (B)	8-98012-753-1	02	1	0712-			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98006-185-0	01	1	0712-1406	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98006-185-0	01	1	0712-1406			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98219-392-0	01	1	1407-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98219-392-0	01	1	1407-			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98006-184-0	01	1	0712-1406	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98006-184-0	01	1	0712-1406			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98219-391-0	01	1	1407-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98219-391-0	01	1	1407-			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98002-215-1	02	1	0712-1401			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A)	8-98219-354-0	02	1	1402-			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C)	8-98006-187-0	01	1	0712-1406			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C)	8-98219-394-0	01	1	1407-			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C)	8-98006-186-0	01	1	0712-1406			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C)	8-98219-393-0	01	1	1407-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0712-1401	●	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0712-1401			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-1310	●	●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-1310			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-	●	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	0712-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	0712-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0712-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 00.349 (E) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 00.349 (E) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-			●	●

22 24 2 23 24 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98045-222-0	02	1	0712-	●	●
2	04.730 BRACKET; SENSOR 4 WHEEL DISC BRAKE<JF9> (B)	8-98045-222-0	02	1	0712-			●	●
2	04.730 BRACKET; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98002-440-1	02	1	0712-			●	●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 05.809 (B)	8-97387-160-0	02	1	0712-1102	●	●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 05.809 (B)	8-97387-160-0	02	1	0712-1102			●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 05.809 (B)	8-98187-136-0	02	1	1103-	●	●
20	04.710 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT) 05.809 (B)	8-98187-136-0	02	1	1103-			●
20	04.710 ROTOR; SENSOR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) (B)	8-98042-652-0	02	1	0712-1102			●	●
20	04.710 ROTOR; SENSOR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) (B)	8-98187-137-0	02	1	1103-1401			●	●
20	04.710 ROTOR; SENSOR FINAL GEAR RATIO 41/9(HC6) 4 WHEEL DISC BRAKE<JF9> G.V.W. 6.0-6.5TON(RPV) (B)	8-98207-952-0	02	1	1402-			●	●
20	04.710 ROTOR; SENSOR EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97206-775-3	02	1	0712-			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98012-753-1	02	1	0712-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9> (B)	8-98012-753-1	02	1	0712-			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98006-185-0	01	1	0712-1406	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98006-185-0	01	1	0712-1406			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98219-392-0	01	1	1407-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98219-392-0	01	1	1407-			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98006-184-0	01	1	0712-1406	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98006-184-0	01	1	0712-1406			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98219-391-0	01	1	1407-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98219-391-0	01	1	1407-			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98002-215-1	02	1	0712-1401			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A)	8-98219-354-0	02	1	1402-			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C)	8-98006-187-0	01	1	0712-1406			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C)	8-98219-394-0	01	1	1407-			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C)	8-98006-186-0	01	1	0712-1406			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C)	8-98219-393-0	01	1	1407-			●	●
23	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0712-	●	●
23	04.710 BOLT; BRKT 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0712-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0712-1401	●	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0712-1401			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-1310	●	●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-1310			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-	●	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	0712-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	0712-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0712-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 00.349 (E) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 00.349 (E) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-			●	●

24 24 24 22 24 24 24 29 22 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98012-753-1	02	1	0712-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL DISC BRAKE<JF9> (B)	8-98012-753-1	02	1	0712-			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98006-185-0	01	1	0712-1406	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98006-185-0	01	1	0712-1406			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98219-392-0	01	1	1407-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98219-392-0	01	1	1407-			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98006-184-0	01	1	0712-1406	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98006-184-0	01	1	0712-1406			●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98219-391-0	01	1	1407-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98219-391-0	01	1	1407-			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-98002-215-1	02	1	0712-1401			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (A)	8-98219-354-0	02	1	1402-			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C)	8-98006-187-0	01	1	0712-1406			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C)	8-98219-394-0	01	1	1407-			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C)	8-98006-186-0	01	1	0712-1406			●	●
22	04.710 SENSOR; SPEED EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> (C)	8-98219-393-0	01	1	1407-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0712-1401	●	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0712-1401			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-1310	●	●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-1310			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-	●	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	0712-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	0712-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0712-			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 00.349 (E) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 00.349 (E) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303			●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL DISC BRAKE<JF9> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-			●	●
29	04.730 NUT EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKEFRT<J52> 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-			●	●
