◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#4940) — 135 parça

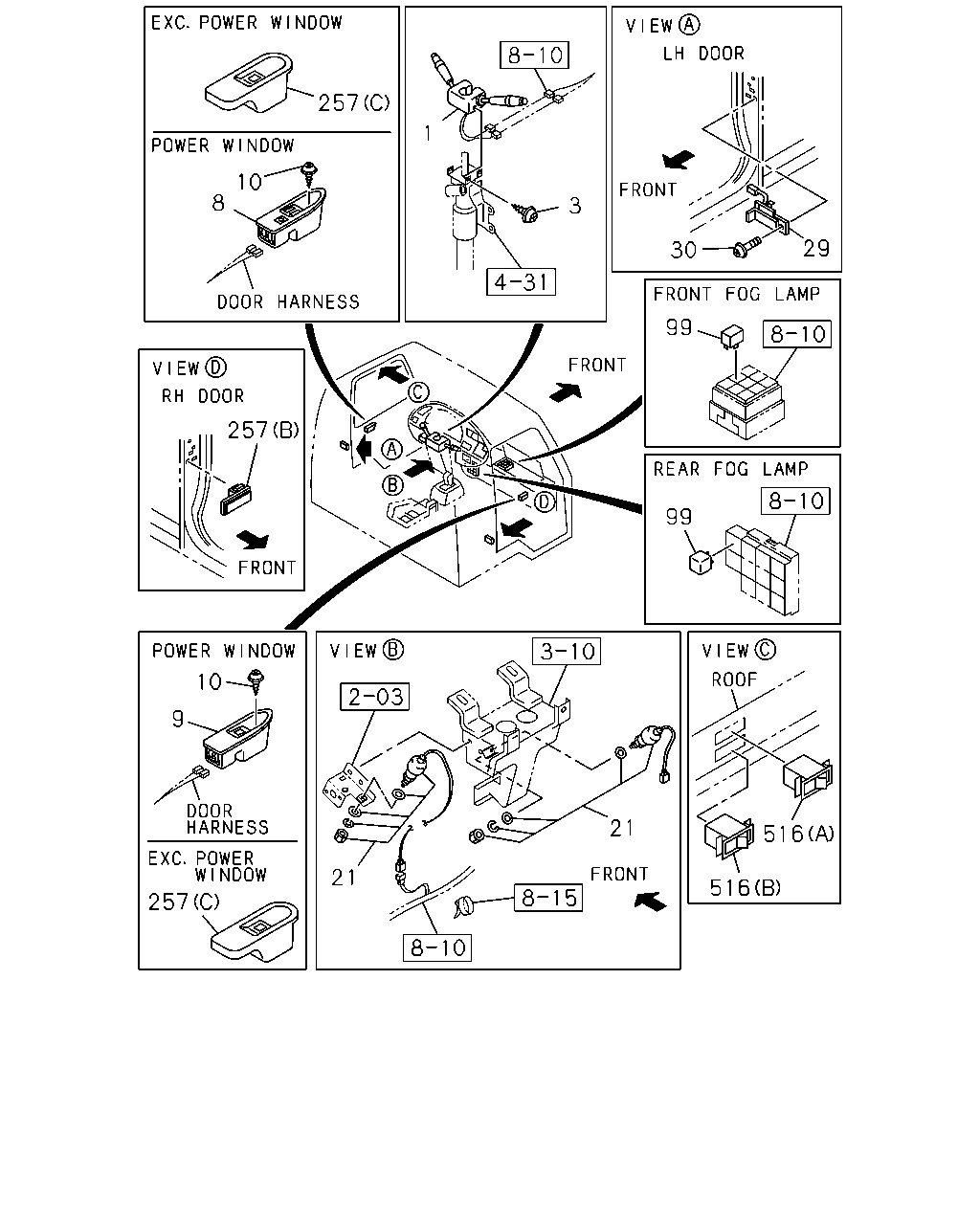

çizim 5094
257 1 10 8 3 29 30 99 257 99 10 9 21 516 21 516 257
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SWITCH; COMB
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-496-0 01 1 9905-0012 ● ● ●
1 SWITCH; COMB
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-572-0 01 1 0101- ● ● ●
1 SWITCH; COMB
FOG LAMP<T96> EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-405-3 01 1 9603-9611 ● ● ●
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-405-3 01 1 9612-9705 ● ● ●
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2>,LIGHTING SYSTEM ECE<SLC> 		1-82360-405-4 01 1 9706-9901 ● ● ●
1 SWITCH; COMB 1-82360-405-4 01 1 9902-9904 ● ●
1 SWITCH; COMB
EXC. LIGHTING SYSTEM ECE<SLC>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,DRIVER SEAT BELT W/PRE TENSIONREDUCER(TFN),AIR BAG(TFQ) 		1-82360-405-4 01 1 9905-0001 ● ● ●
1 SWITCH; COMB
EXC. FOG LAMP REAR<NHD>,LIGHTING SYSTEM ECE<SLC>, BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,DRIVER SEATBELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-405-4 01 1 0002-0103 ● ● ●
1 SWITCH; COMB
EXC. FOG LAMP REAR<NHD>,LIGHTING SYSTEM ECE<SLC>, BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,DRIVER SEATBELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-647-0 01 1 0104- ● ● ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-82360-498-0 01 1 9905-0012 ● ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-82360-574-0 01 1 0101- ● ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) 		1-82360-411-2 01 1 9905-0001 ● ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FOG LAMP REAR<NHD>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-411-2 01 1 0002-0103 ● ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FOG LAMP REAR<NHD>,DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN),AIR BAG(TFQ) 		1-82360-648-0 01 1 0104- ● ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> 		1-82360-411-2 01 1 9603-9901 ● ●
1 SWITCH; COMB
LIGHTING SYSTEM ECE<SLC> 		1-82360-480-1 01 1 9706-9901 ●
1 SWITCH; COMB
LIGHTING SYSTEM ECE<SLC> 		1-82360-480-1 01 1 9905-0103 ●
1 SWITCH; COMB
LIGHTING SYSTEM ECE<SLC> 		1-82360-649-0 01 1 0104- ●
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2>,FOG LAMP<T96> 		1-82360-371-3 01 1 9603-9611 ● ●
1 SWITCH; COMB
FOG LAMP REAR<NHD> EXC. LIGHTING SYSTEM ECE<SLC>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,DRIVER SEAT BELT W/PRE TENSIONREDUCER(TFN),AIR BAG(TFQ) 		1-82360-539-0 01 1 0002-0103 ● ●
1 SWITCH; COMB
FOG LAMP REAR<NHD> EXC. LIGHTING SYSTEM ECE<SLC>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,DRIVER SEAT BELT W/PRE TENSIONREDUCER(TFN),AIR BAG(TFQ) 		1-82360-654-0 01 1 0104- ● ●
1 SWITCH; COMB
FOG LAMP REAR<NHD> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) 		1-82360-540-0 01 1 0002-0103 ●
1 SWITCH; COMB
FOG LAMP REAR<NHD> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) 		1-82360-655-0 01 1 0104- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9603-9901 ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9902-9904 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9905- ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-142-1 01 1 9603-9709 ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-157-2 01 1 9710-9901 ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-157-3 01 1 9902-9904 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-157-3 01 1 9905- ● ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-143-0 01 1 9603-9709 ● ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-158-2 01 1 9710-9901 ● ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-158-3 01 1 9902-9904 ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-158-3 01 1 9905- ● ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9603-9901 ● ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9902-9904 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9905- ● ● ●
21 SWITCH; CLU 1-82380-114-1 01 1 9603-9901 ● ● ●
21 SWITCH; CLU
ZF M/T<X9E> 		1-82380-114-1 01 1 9603-9901 ● ●
21 SWITCH; CLU
ZF M/T<X9E> 		1-82380-114-2 01 1 9902-9904 ● ●
21 SWITCH; CLU 1-82380-114-2 01 1 9902-9904 ● ●
21 SWITCH; CLU 1-82380-114-2 01 1 9905- ● ● ●
21 SWITCH; CLU
ZF M/T<X9E> 		1-82380-114-2 01 1 9905- ● ●
29 SWITCH; DOOR 8-97855-032-2 01 1 9603-9901 ● ● ●
29 SWITCH; DOOR 8-97855-032-2 01 1 9902-9904 ● ●
29 SWITCH; DOOR 8-97855-032-3 01 1 9905- ● ● ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9603-9901 ● ● ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9902-9904 ● ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9905-9906 ● ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907- ● ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9603-9611 ● ● ●
99 RELAY; FOG LAMP
24V 12.5A MITUBA 		8-97062-815-0 01 1 9612-9705 ● ● ●
99 RELAY; FOG LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9706-9901 ● ● ●
99 RELAY; FOG LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9902-9904 ● ●
99 RELAY; FOG LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9905-0001 ● ● ●
99 RELAY; FOG LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0002- ● ● ●
99 RELAY; FOG LAMP
FOG LAMP REAR<NHD> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0002- ● ●
99 RELAY; FOG LAMP
LIGHTING SYSTEM ECE<SLC> 24V 12.5A MITUBA 		8-97062-815-1 02 1 9706-9901 ●
99 RELAY; FOG LAMP
LIGHTING SYSTEM ECE<SLC> 24V 12.5A MITUBA 		8-97062-815-1 02 1 9905- ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9603-9901 ● ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9902-9904 ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9905- ● ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9603-9901 ● ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9902-9904 ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9905- ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9603-9901 ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9902-9904 ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9905- ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9603-9901 ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9902-9904 ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9905- ● ● ●
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> (B) PASSENGER 		1-82350-274-0 01 1 9603-9901 ● ● ●
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> (B) PASSENGER 		1-82350-274-0 01 1 9902-9904 ● ●
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> (B) PASSENGER 		1-82350-274-0 01 1 9905- ● ● ●
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> (A) DRIVER 		1-82350-275-0 01 1 9603-9901 ● ● ●
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> (A) DRIVER 		1-82350-275-0 01 1 9902-9904 ● ●
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> (A) DRIVER 		1-82350-275-0 01 1 9905- ● ● ●

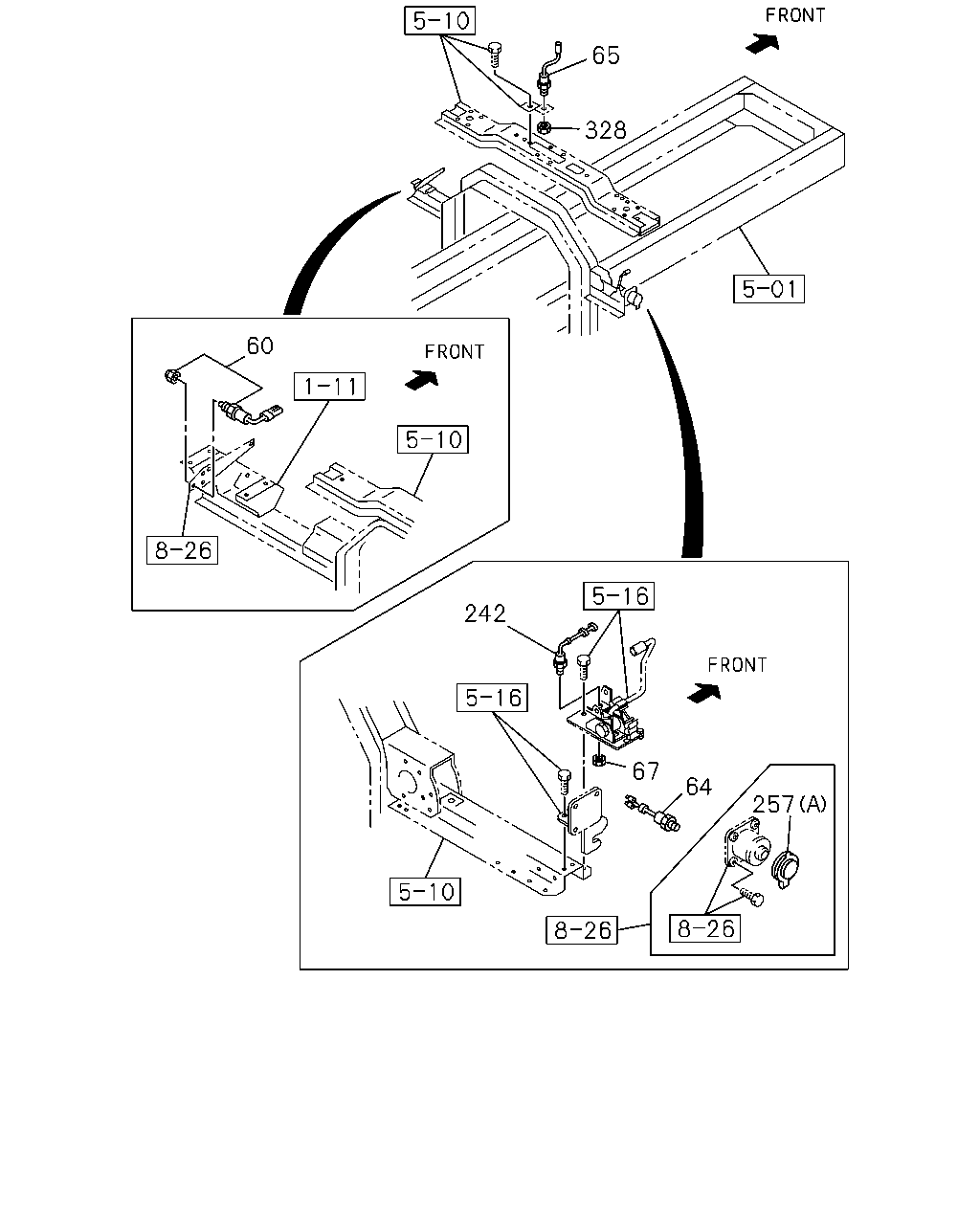

çizim 5506
65 328 60 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date A B C
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9603-9901 ● ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9902-9904 ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9905- ● ● ●
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 9603-9901 ● ● ●
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 9902-9904 ● ●
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 9905- ● ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 9603-9901 ● ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 9902-9904 ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 9905- ● ● ●
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 9603-9901 ● ● ●
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 9902-9904 ● ●
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 9905- ● ● ●
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 9603-9901 ● ● ●
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 9902-9904 ● ●
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 9905- ● ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9603-9901 ● ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9902-9904 ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9905- ● ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9603-9901 ● ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9902-9904 ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9905- ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9603-9901 ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9902-9904 ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9905- ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9603-9901 ● ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9902-9904 ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9905- ● ● ●
328 NUT; SW
M16 		9-99110-416-0 01 1 9603-9901 ● ● ●
328 NUT; SW
M16 		9-99110-416-0 01 1 9902-9904 ● ●
328 NUT; SW
M16 		9-99110-416-0 01 1 9905- ● ● ●

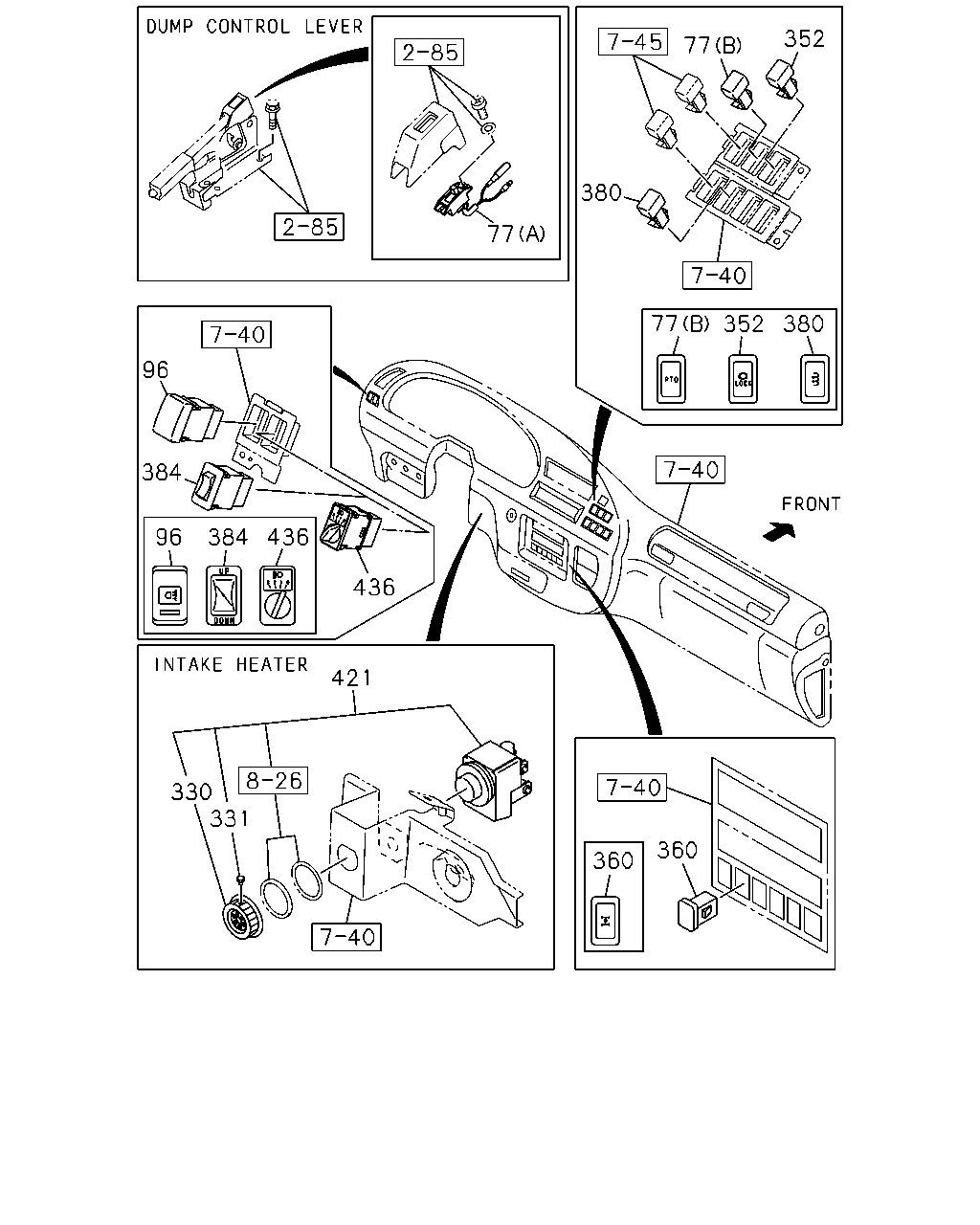

çizim 39919
352 77 380 77 77 352 380 96 384 436 96 384 436 421 330 331 360 360
BalonParca AdiParca NoAdetTipApplied Date A B C
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 9603-9901 ● ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 9902-9904 ● ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-82340-413-0 01 1 9902-9904 ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 9905-0004 ● ● ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-82340-413-0 01 1 9905-0004 ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 0005- ● ● ●
77 SWITCH; PTO
ELECTRONIC GOV RED3(KG5) MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-82340-413-0 01 1 0005- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 9603-9901 ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 9902- ● ●
96 SWITCH; FOG LAMP
LIGHTING SYSTEM ECE<SLC> 		1-82340-628-0 01 1 9706-9901 ●
96 SWITCH; FOG LAMP
LIGHTING SYSTEM ECE<SLC> 		1-82340-628-0 01 1 9905- ●
96 SWITCH; FOG LAMP
FOG LAMP REAR<NHD> 		1-82340-676-0 01 1 0002- ● ●
330 KNOB; INT HTR
INTAKE HEATER<SL2> 		1-82336-003-1 01 1 9603-9901 ● ●
330 KNOB; INT HTR
INTAKE HEATER<SL2> 		1-82336-003-1 01 1 9905- ● ●
331 SCREW
INTAKE HEATER<SL2> 		1-09106-002-0 01 1 9603-9901 ● ●
331 SCREW
INTAKE HEATER<SL2> 		1-09106-002-0 01 1 9905- ● ●
352 SWITCH ASM; BRK LK
10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) 		1-82340-425-0 01 1 9603-9901 ●
352 SWITCH ASM; BRK LK
10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) 		1-82340-425-0 01 1 9905-0001 ●
352 SWITCH ASM; BRK LK
POWER BRAKE LOCK SYSTEM(J50) 		1-82340-425-0 01 1 0002- ● ●
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 9603- ● ●
380 SWITCH; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-82340-405-0 01 1 9603-9901 ● ● ●
380 SWITCH; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-82340-405-0 01 1 9905-0104 ● ●
384 SWITCH; IDLING CONT,ELEC
ELECTRONIC GOV RED3(KG5) 		1-82350-213-1 01 1 9902-9904 ● ●
384 SWITCH; IDLING CONT,ELEC
ELECTRONIC GOV RED3(KG5) 		1-82350-213-1 01 1 9905- ● ●
421 SWITCH ASM; INT HTR
INTAKE HEATER<SL2> 		1-82330-030-0 01 1 9603-9901 ● ●
421 SWITCH ASM; INT HTR
INTAKE HEATER<SL2> 		1-82330-030-0 01 1 9905- ● ●
436 SWITCH; HEADLAMP LEVELING
LIGHTING SYSTEM ECE<SLC> 		1-82330-043-0 01 1 9706-9901 ●
436 SWITCH; HEADLAMP LEVELING
LIGHTING SYSTEM ECE<SLC> 		1-82330-043-0 01 1 9905- ●
