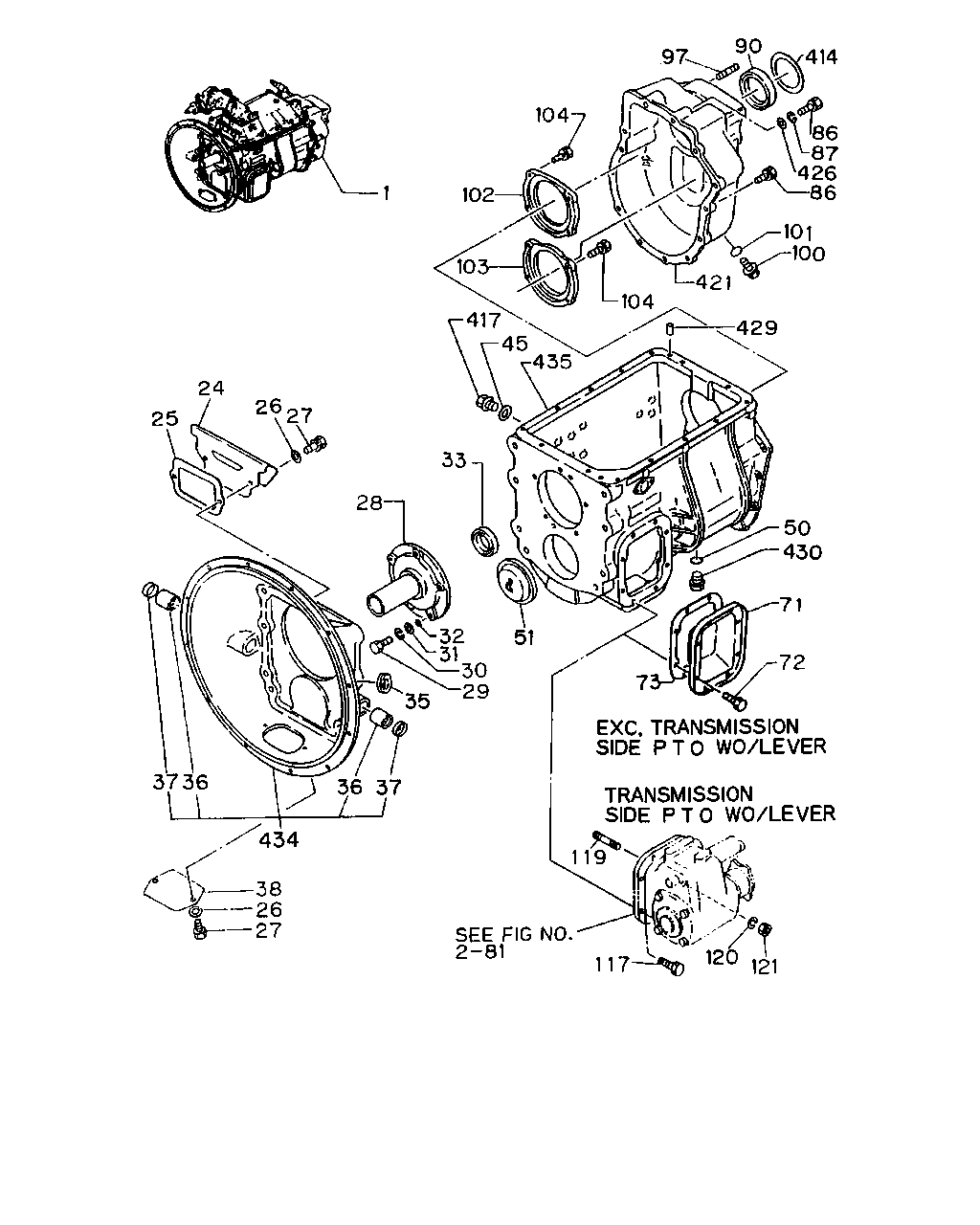

2-20 — MANUAL TRANSMISSION ASM AND CASE (#494) — 154 parça

1 102 103 417 45 435 104 104 97 90 414 86 87 426 86 101 100 421 429 50 430 71 72 73 121 120 117 119 27 26 38 434 37 36 36 37 35 29 30 31 32 51 33 28 27 26 24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U)	1-33017-942-0	01	1	8902-9001	●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y)	1-33017-936-0	01	1	8902-9001	●
1	TRANSMISSION ASM; MANUAL	1-33037-858-0	01	1	9307-		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 41/6 17.5"(W4W) ASSISTER SHIFT CONTROL<WX8>	1-33027-104-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 41/6 17.5"(W4W) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-078-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) ASSISTER SHIFT CONTROL<WX8>	1-33027-095-0	01	1	9002-9306		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 43/7 17.5"(W3Y) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33027-069-0	01	1	9002-9306		●
24	COVER; CHECK HOLE,DUST	1-31131-030-0	01	1	8902-	●	●
24	COVER; CHECK HOLE,DUST	1-31131-003-0	01	1	8712-			●	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	8902-	●	●
26	WASHER; PL,COVER ID=8.4 OD=22	9-09160-708-0	02	1	8902-9205	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	04	1	8902-9001	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9206-		●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9204		●	●	●		●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9205		●	●	●		●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	04	1	9206-			●	●		●
27	BOLT; COVER TO CLU HSG M8X12	9-02040-812-0	04	1	8712-8801				●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	04	1	8802-9001				●	●
28	COVER; FRT,TRANS CASE	1-33121-067-2	01	1	8902-9001	●
28	COVER; FRT,TRANS CASE	1-33121-063-1	01	1	9002-		●
29	BOLT; FRT COVER	1-09020-120-1	05	1	8902-9205	●
29	BOLT; FRT COVER	1-09040-089-0	05	1	9206-		●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	05	1	8902-9205	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	05	1	8902-9205	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	8902-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-235-0	01	1	8902-8903	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	8904-9001	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-496-0	01	1	9002-		●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	8902-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	8902-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-181-0	04	1	8712-			●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	8902-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-215-0	02	1	8712-			●	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	8902-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-014-0	01	1	8712-			●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	8902-9405	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	8902-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	8902-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33141-030-1	01	1	8902-	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X20 W/LK WASHER	9-01921-020-0	08	1	8902-9204	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X16 FLANGE	0-28181-016-0	08	1	9206-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	9-33142-037-0	01	1	8902-9411	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-33142-043-0	01	1	9412-		●
86	BOLT; RR COVER M10X16,M12X35 L=59	1-09029-031-0	02	1	8902-9205	●	●
86	BOLT; RR COVER M10X16,M12X30 L=57.7	1-09049-018-0	02	1	9206-9512		●
86	BOLT; RR COVER M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-		●
86	BOLT; RR COVER M12X70	9-01656-270-0	02	1	8902-9205	●	●
86	BOLT; RR COVER M12X40	9-01991-240-0	10	1	8902-9205	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	10	1	9206-9512		●
86	BOLT; RR COVER M17X35	1-09044-076-0	09	1	9601-		●
86	BOLT; RR COVER M12X65	1-09044-077-0	02	1	9206-		●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	04	1	8902-9205	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-472-0	01	1	8902-9406	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	9407-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	8902-	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	8902-	●	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	8902-	●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-035-1	01	1	8902-	●	●
103	RETAINER; BRG	1-33151-035-1	01	1	8902-	●	●
104	BOLT; BRG RET M10X30	9-01931-030-0	08	1	8902-9002	●	●
104	BOLT; BRG RET M10X30 W/LK WASHER	0-50051-030-0	08	1	9003-9205		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9206-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 W/LK WASHER	9-01931-025-0	03	1	8902-9002	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 W/LK WASHER	0-50051-025-0	03	1	9003-9205		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X22 FLANGE	0-28181-022-0	04	1	9206-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 W/LK WASHER	9-01931-040-0	02	1	8902-9002	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X40 W/LK WASHER	0-50051-040-0	02	1	9003-9006		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50	0-16806-050-0	02	1	9007-9205		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X50 FLANGE	0-28181-050-0	02	1	9206-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 L=40 M10X25 L=37.5	9-04501-025-0	03	1	8902-9203	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 L=40	9-04411-025-0	03	1	9204-9205		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10X25 L=40	9-04411-025-0	02	1	9206-		●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=10.2	9-09150-510-0	03	1	8902-9006	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=10.2	9-09150-510-0	05	1	9007-9205		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10	9-09110-410-0	03	1	8902-9205	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER<SH5> M10 FLANGE	0-91150-210-0	02	1	9206-		●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	8902-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	8902-9405	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-		●
421	COVER; RR,TRANS	1-33131-091-5	01	1	8902-8906	●
421	COVER; RR,TRANS	1-33131-122-2	01	1	8907-9011	●	●
421	COVER; RR,TRANS	1-33131-138-1	01	1	9012-9604		●
421	COVER; RR,TRANS	1-33131-197-1	01	1	9605-		●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	04	1	8902-9205	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	8902-	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	8902-	●	●
434	HOUSING; CLU	1-31110-118-8	01	1	8902-	●	●
434	HOUSING; CLU	1-31110-103-0	01	1	8712-			●	●	●	●
435	CASE; TRANS	1-33111-195-1	01	1	8902-	●	●

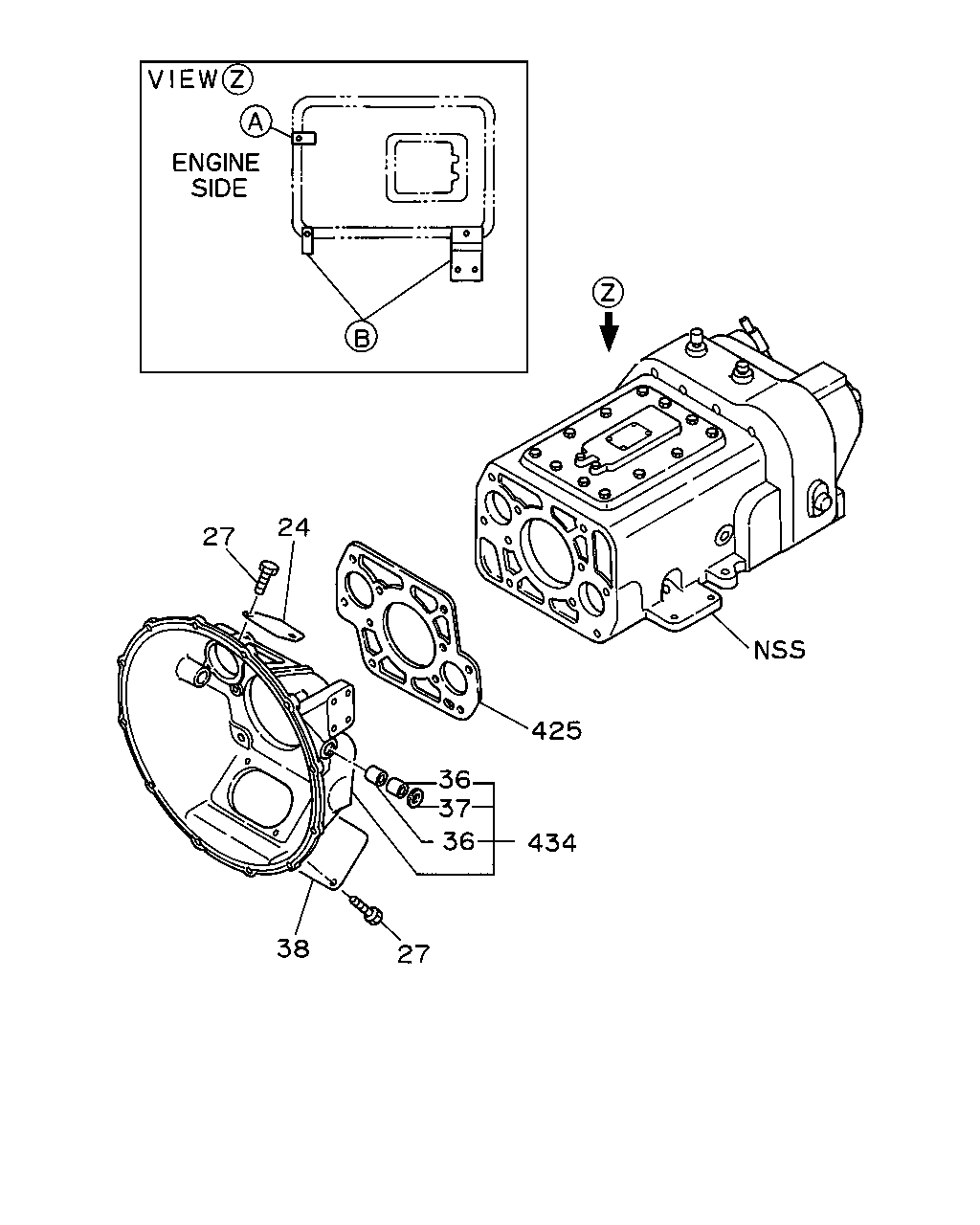

425 36 37 36 434 27 38 27 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	COVER; CHECK HOLE,DUST	1-31131-030-0	01	1	8902-	●	●
24	COVER; CHECK HOLE,DUST	1-31131-003-0	01	1	8712-			●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	04	1	8902-9001	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	9206-		●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9204		●	●	●		●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9205		●	●	●		●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	04	1	9206-			●	●		●
27	BOLT; COVER TO CLU HSG M8X12	9-02040-812-0	04	1	8712-8801				●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	04	1	8802-9001				●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	8902-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-181-0	04	1	8712-			●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	8902-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-215-0	02	1	8712-			●	●	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	8902-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-014-0	01	1	8712-			●	●	●	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-31121-004-0	01	1	8712-			●	●	●	●
434	HOUSING; CLU	1-31110-118-8	01	1	8902-	●	●
434	HOUSING; CLU	1-31110-103-0	01	1	8712-			●	●	●	●

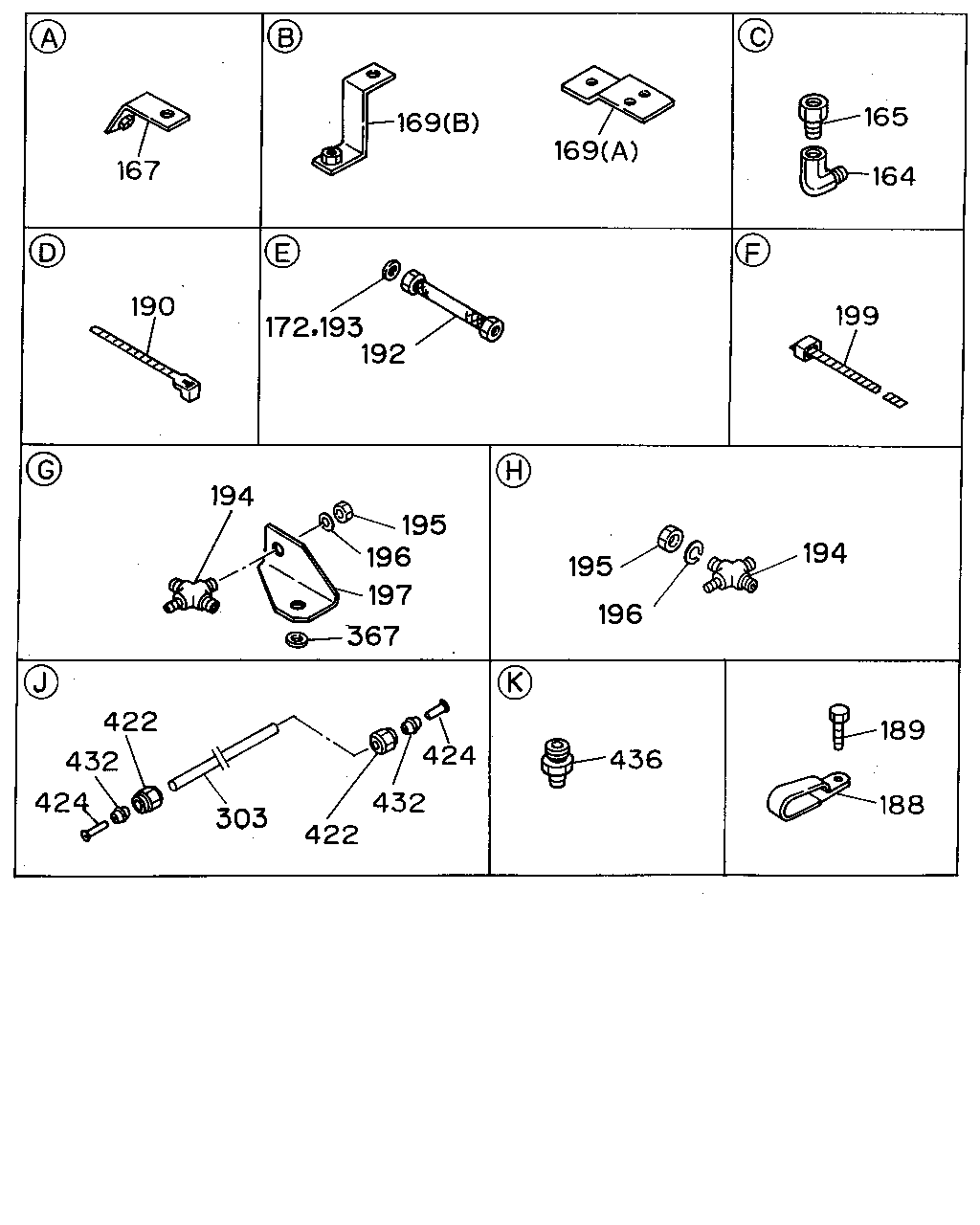

167 169 169 165 164 199 172 193 192 190 194 195 196 197 367 195 196 194 189 188 436 424 432 422 303 422 432 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E	F
164	CONNECTOR; ELBOW	1-33619-290-0	02	1	8801-	●	●	●	●
165	ADAPTER; STRAIGHT	1-33619-291-0	02	1	8801-	●	●	●	●
167	BRACKET; CLIP,AIR TUBE	1-47465-769-0	01	1	8712-	●	●	●	●
169	BRACKET; CLIP,PIPE HOSE 10PC1 STD ENG(10L) (B) H=80	1-46147-083-0	01	1	8712-9001			●
169	BRACKET; CLIP,PIPE HOSE 10PC1 STD ENG(10L) (B) H=50	1-47475-689-0	01	1	8712-9001			●
169	BRACKET; CLIP,PIPE HOSE (A)	1-47475-633-0	01	1	8712-	●	●	●	●
172	GASKET; AIR HOSE ID=11 OD=18	9-09572-510-0	02	1	9307-	●	●
188	CLIP; PIPE,BRKT ID=10.5 & 14.5 L=20	1-09700-716-0	01	1	8712-8801		●	●
188	CLIP; PIPE,BRKT ID=14.5 H=23 L=30	1-09700-859-0	01	1	8802-8802		●	●
188	CLIP; PIPE,BRKT ID=13 L=28	9-09525-256-0	01	1	8803-9306	●	●	●	●
188	CLIP; PIPE,BRKT ID=16 L=28	9-09525-556-0	01	1	9307-9412	●	●
188	CLIP; PIPE,BRKT ID=19 L=50	9-09525-886-0	01	1	9501-	●	●
189	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01910-816-0	01	1	8712-9005	●	●	●	●
189	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-9302	●	●		●
189	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9303-	●	●		●
190	CLIP; BAND,CONT TUBE L=140	5-09707-031-0	03	1	8712-9007	●	●	●	●
190	CLIP; BAND,CONT TUBE L=140	5-09707-031-0	02	1	9008-	●	●		●
190	CLIP; BAND,CONT TUBE EXC. NYLON TUBE AIR PIPING<Z29> L=250	5-09707-030-0	01	1	8712-	●	●	●	●
192	HOSE; FLEX,TRANS 10PC1 STD ENG(10L) L=650	0-07150-650-0	01	1	8712-9001			●
192	HOSE; FLEX,TRANS 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) EXC. NYLON TUBE AIR PIPING<Z29> L=480	0-07150-480-0	01	1	8712-9001		●	●
192	HOSE; FLEX,TRANS EXC. NYLON TUBE AIR PIPING<Z29> L=480	0-07150-480-0	01	1	9002-	●	●		●
193	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●		●
194	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-09664-066-0	01	1	8712-9306	●	●
194	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-09660-545-0	02	1	9307-	●	●
195	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	8712-9304	●	●
195	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306	●	●
195	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> 8 M12	9-99110-312-0	02	1	9307-	●	●
196	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	8712-9306	●	●
196	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	9307-	●	●
197	BRACKET; UNION NYLON TUBE AIR PIPING<Z29>	1-47475-905-0	01	1	8712-	●	●
199	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250	1-09707-126-0	01	1	8712-	●	●
303	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=3/8" L=30000	1-09368-250-0	03	1	9307-9404		●
303	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=3/8" L=30000	1-09368-250-0	04	1	9405-9405		●
303	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=3/8" L=30000	1-09368-250-0	03	1	9406-		●
303	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 L=30000	1-09369-578-0	02	1	8712-9306	●	●
367	WASHER; PL,BRKT NYLON TUBE AIR PIPING<Z29>	1-53459-587-0	01	1	9101-	●	●
422	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	04	1	8712-9306	●	●
422	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	06	1	9307-9404	●	●
422	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	08	1	9405-9405	●	●
422	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	06	1	9406-	●	●
424	RING; INSERT NYLON TUBE AIR PIPING<Z29> ID=4.5 OD=5.8 L=18	1-09669-054-0	04	1	8712-9306	●	●
424	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	06	1	9307-	●	●
432	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=8.15 OD=11 L=9.5	1-09666-042-0	04	1	8712-9306	●	●
432	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	06	1	9307-	●	●
436	CONNECTOR; AIR HOSE,SUPPLY EXC. NYLON TUBE AIR PIPING<Z29>	1-09660-039-0	01	1	8712-9306	●	●	●	●
