Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#49396) — 140 parça

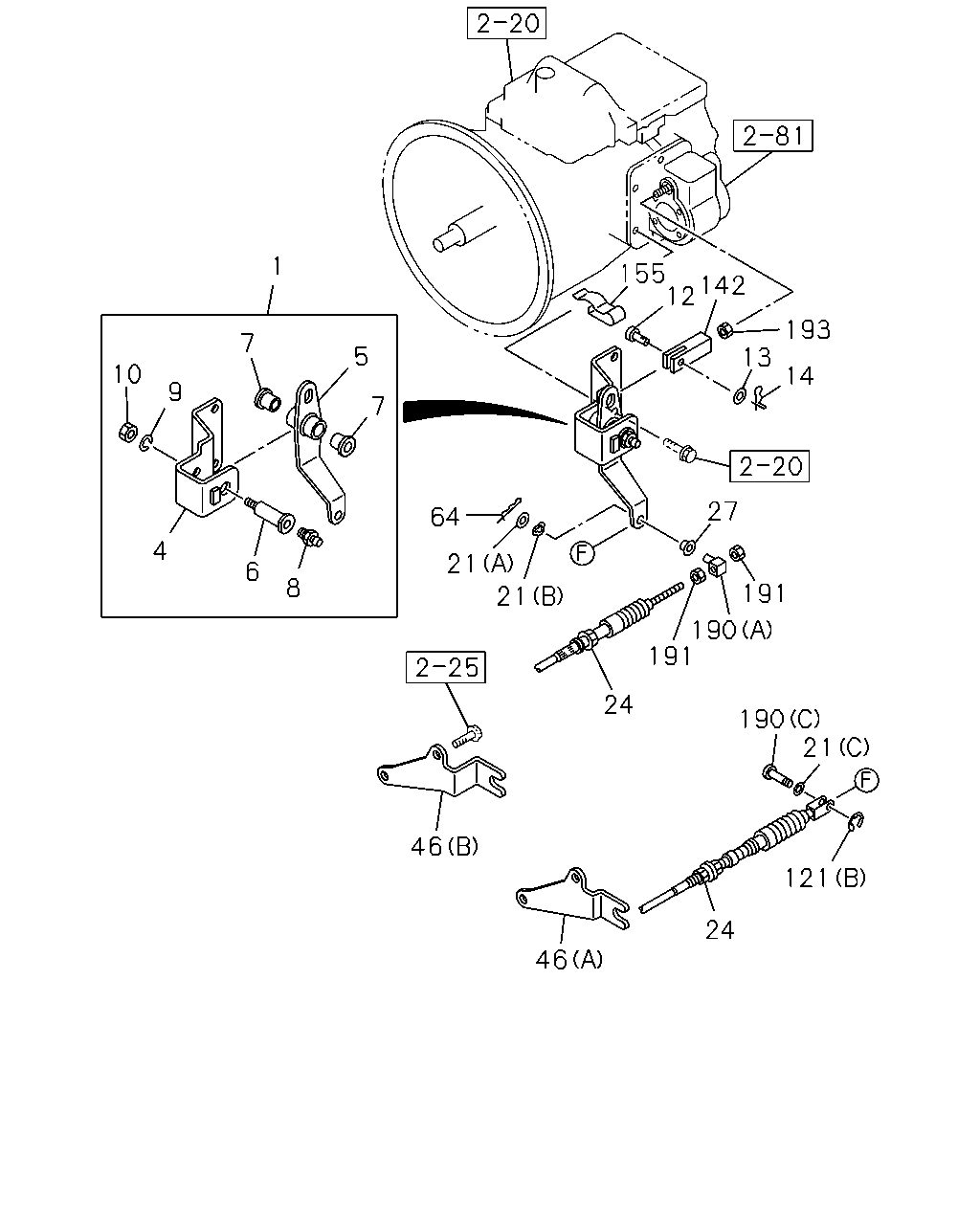

1 155 142 12 193 7 5 13 10 14 9 7 27 64 4 21 21 6 8 191 190 191 24 190 21 46 121 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 LEVER ASM; PTO & DUMP CONT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98032-714-0	01	1	0712-1107	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1108-	●	●
4	04.439 BRACKET; PTO CONT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98032-717-0	01	1	0712-1107	●	●
4	04.439 BRACKET; PTO CONT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1108-	●	●
5	04.439 LEVER; PTO SHIFT CONT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	0712-	●	●
6	04.439 SHAFT; PTO CONT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	0712-1107	●	●
6	04.439 SHAFT; PTO CONT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1108-	●	●
7	04.439 BUSHING; LEVER,PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0712-	●	●
8	04.439 NIPPLE; GREASE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0712-	●	●
9	04.439 WASHER; LK,SHAFT,PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0712-	●	●
10	04.439 NUT; SHAFT,PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0712-	●	●
12	04.439 JOINT; PIN,YOKE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0712-	●	●
13	04.439 WASHER; PL,YOKE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0712-	●	●
14	04.439 PIN; SPLIT,YOKE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0712-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0712-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0712-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 17.198 (C) ID=10.5	0-91610-510-0	01	1	0712-			●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3413	8-98085-646-1	01	1	0712-1204	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3413	8-98212-276-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3399	8-98223-354-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98085-645-1	01	1	0712-1204	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98212-275-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3477	8-98223-355-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3323	8-98085-644-2	01	1	0712-1204	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3323	8-98212-274-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3309	8-98223-348-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3401	8-98085-643-2	01	1	0712-1204	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3401	8-98212-273-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3387	8-98223-349-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FRAME STRAIGHT TYPE<7KJ> L=3630	8-98070-962-2	01	1	0712-1204			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FRAME STRAIGHT TYPE<7KJ> L=3630	8-98212-279-0	01	1	1205-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FRAME STRAIGHT TYPE<7KJ> L=3630	8-98223-358-1	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) FRAME STRAIGHT TYPE<7KJ> L=3695	8-98070-963-2	01	1	0712-1204			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) FRAME STRAIGHT TYPE<7KJ> L=3695	8-98212-281-0	01	1	1205-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) FRAME STRAIGHT TYPE<7KJ> L=3695	8-98223-359-1	01	1	1208-			●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	0712-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98032-829-2	01	1	0712-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98081-815-0	01	1	0712-	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	0712-	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	0712-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) (B) ID=8	0-91805-508-0	01	1	0712-			●
142	04.439 CLEVIS; CONT BOX 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	0712-	●	●
155	04.439 CLIP; CABLE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	0712-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0712-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0712-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (C)	0-82154-025-0	01	1	0712-			●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	0712-	●	●
193	04.439 NUT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0712-	●	●

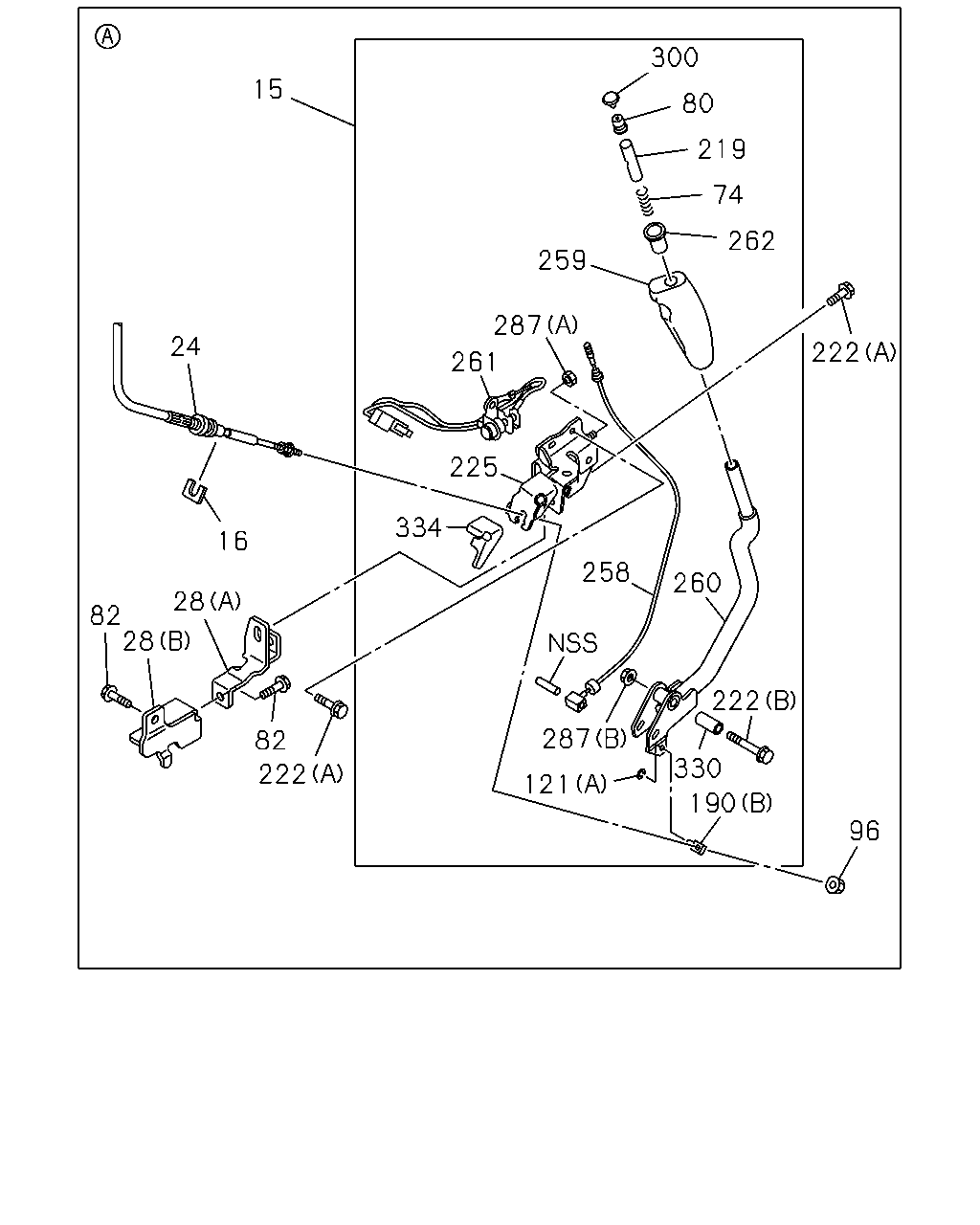

96 190 330 222 121 287 260 258 222 262 74 219 80 300 15 259 287 261 225 334 24 16 28 82 28 82 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98070-129-3	01	1	0712-	●	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	0712-	●	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3413	8-98085-646-1	01	1	0712-1204	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3413	8-98212-276-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3399	8-98223-354-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98085-645-1	01	1	0712-1204	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98212-275-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3477	8-98223-355-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3323	8-98085-644-2	01	1	0712-1204	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3323	8-98212-274-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3309	8-98223-348-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3401	8-98085-643-2	01	1	0712-1204	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3401	8-98212-273-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3387	8-98223-349-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FRAME STRAIGHT TYPE<7KJ> L=3630	8-98070-962-2	01	1	0712-1204			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FRAME STRAIGHT TYPE<7KJ> L=3630	8-98212-279-0	01	1	1205-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FRAME STRAIGHT TYPE<7KJ> L=3630	8-98223-358-1	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) FRAME STRAIGHT TYPE<7KJ> L=3695	8-98070-963-2	01	1	0712-1204			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) FRAME STRAIGHT TYPE<7KJ> L=3695	8-98212-281-0	01	1	1205-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) FRAME STRAIGHT TYPE<7KJ> L=3695	8-98223-359-1	01	1	1208-			●
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	0712-	●	●	●
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	0712-	●	●	●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	0712-	●	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	0712-	●	●	●
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	0712-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 (A) ID=4	0-91805-504-0	01	1	0712-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) (B) ID=8	0-91805-508-0	01	1	0712-			●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0712-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0712-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (C)	0-82154-025-0	01	1	0712-			●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	0712-	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	0712-	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0712-	●	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98077-250-2	01	1	0712-	●	●	●
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-160-1	01	1	0712-	●	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	0712-	●	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-136-1	01	1	0712-	●	●	●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-899-2	01	1	0712-	●	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	0712-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	0712-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	0712-	●	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	0712-	●	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	0712-	●	●	●
334	04.439 SHEET; PTO PTO MANUAL CONTROL(6WC)	8-98109-990-1	01	1	0811-	●	●	●

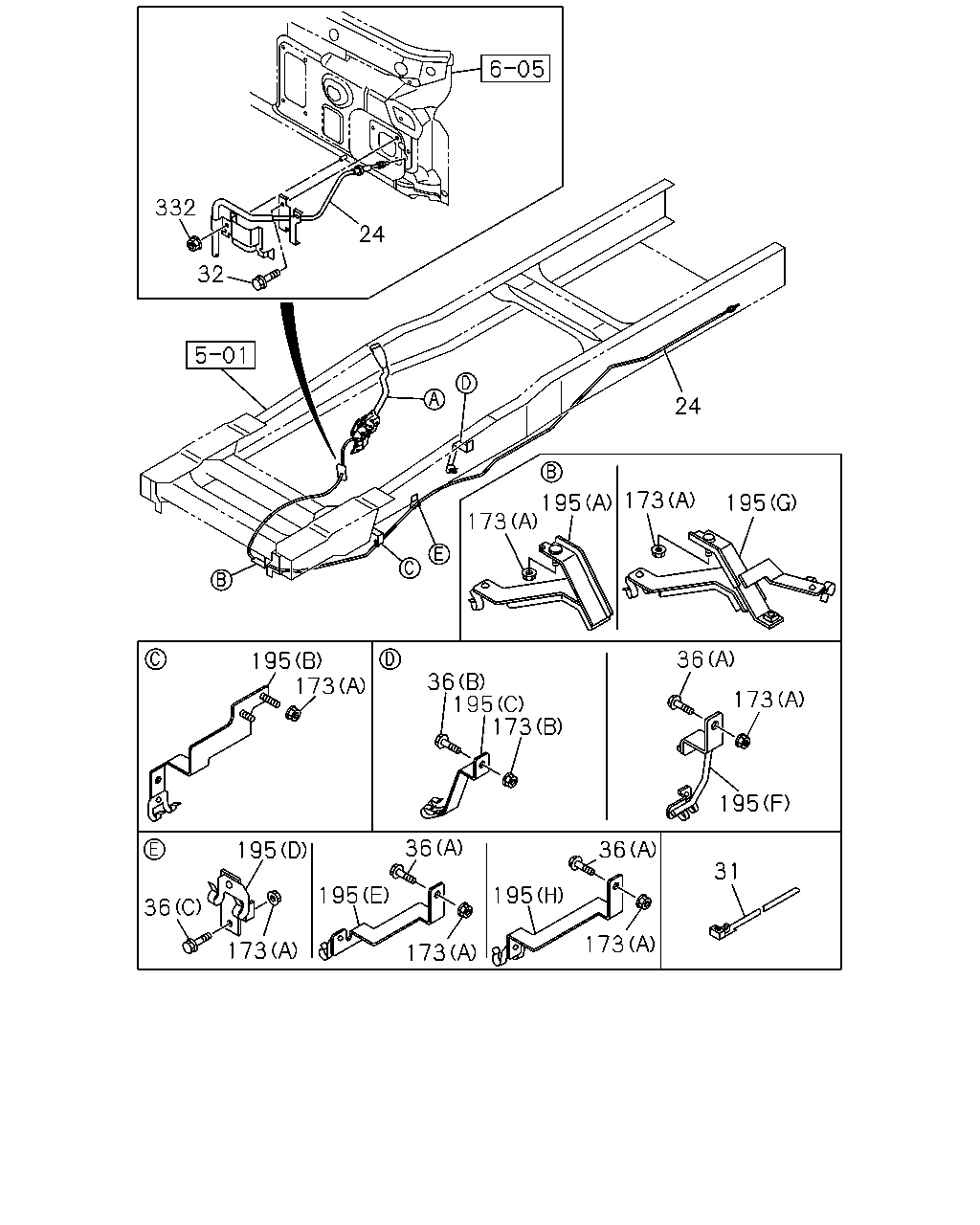

6 332 24 32 5 24 173 195 195 173 36 195 173 36 195 173 173 195 36 36 195 31 195 195 36 173 173 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	04.439 LEVER; PTO SHIFT CONT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	0712-	●	●
6	04.439 SHAFT; PTO CONT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	0712-1107	●	●
6	04.439 SHAFT; PTO CONT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1108-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3413	8-98085-646-1	01	1	0712-1204	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3413	8-98212-276-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3399	8-98223-354-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98085-645-1	01	1	0712-1204	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98212-275-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3477	8-98223-355-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3323	8-98085-644-2	01	1	0712-1204	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3323	8-98212-274-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3309	8-98223-348-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3401	8-98085-643-2	01	1	0712-1204	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3401	8-98212-273-0	01	1	1205-1207	●	●
24	04.439 CABLE; PTO CONT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3387	8-98223-349-1	01	1	1208-	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FRAME STRAIGHT TYPE<7KJ> L=3630	8-98070-962-2	01	1	0712-1204			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FRAME STRAIGHT TYPE<7KJ> L=3630	8-98212-279-0	01	1	1205-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FRAME STRAIGHT TYPE<7KJ> L=3630	8-98223-358-1	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) FRAME STRAIGHT TYPE<7KJ> L=3695	8-98070-963-2	01	1	0712-1204			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) FRAME STRAIGHT TYPE<7KJ> L=3695	8-98212-281-0	01	1	1205-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) FRAME STRAIGHT TYPE<7KJ> L=3695	8-98223-359-1	01	1	1208-			●
31	04.439 CLIP; BAND,CABLE FRONT STABILIZER SHAFT<F59> PTO MANUAL CONTROL(6WC) 02.559 L=250	5-09707-030-1	01	1	0712-0801	●	●	●
31	04.439 CLIP; BAND,CABLE 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) 02.559 L=250	5-09707-030-1	01	1	0712-0801			●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 L=250	5-09707-030-1	01	1	0802-0804	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 L=250	5-09707-030-1	01	1	0805-	●	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	0712-	●	●	●
36	04.439 BOLT; PTO BRKT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0712-	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FRAME STRAIGHT TYPE<7KJ> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0712-			●
36	04.439 BOLT; PTO BRKT 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-			●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-			●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0712-			●
173	04.439 NUT; BRKT 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98086-267-1	01	1	0712-0801	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (G)	8-98112-829-0	01	1	0802-0804	●	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (G)	8-98112-829-0	01	1	0805-1112	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (G)	8-98203-716-0	01	1	1201-	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (C)	8-98101-144-0	01	1	0712-	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCS ENG(LFB) PTO MANUAL CONTROL(6WC) (B)	8-98101-145-0	01	1	0712-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98086-271-2	01	1	0712-			●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98099-115-0	01	1	0712-0804			●
195	04.439 BRACKET; CONT CABLE 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (A)	8-98119-504-0	01	1	0805-1112			●
195	04.439 BRACKET; CONT CABLE 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (A)	8-98203-717-0	01	1	1201-			●
195	04.439 BRACKET; CONT CABLE 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (E)	8-98102-494-0	01	1	0712-0712			●
195	04.439 BRACKET; CONT CABLE 4HK1-TCS ENG(RJS) PTO MANUAL CONTROL(6WC) (H)	8-98086-269-2	01	1	0801-			●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●
