Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#49395) — 130 parça

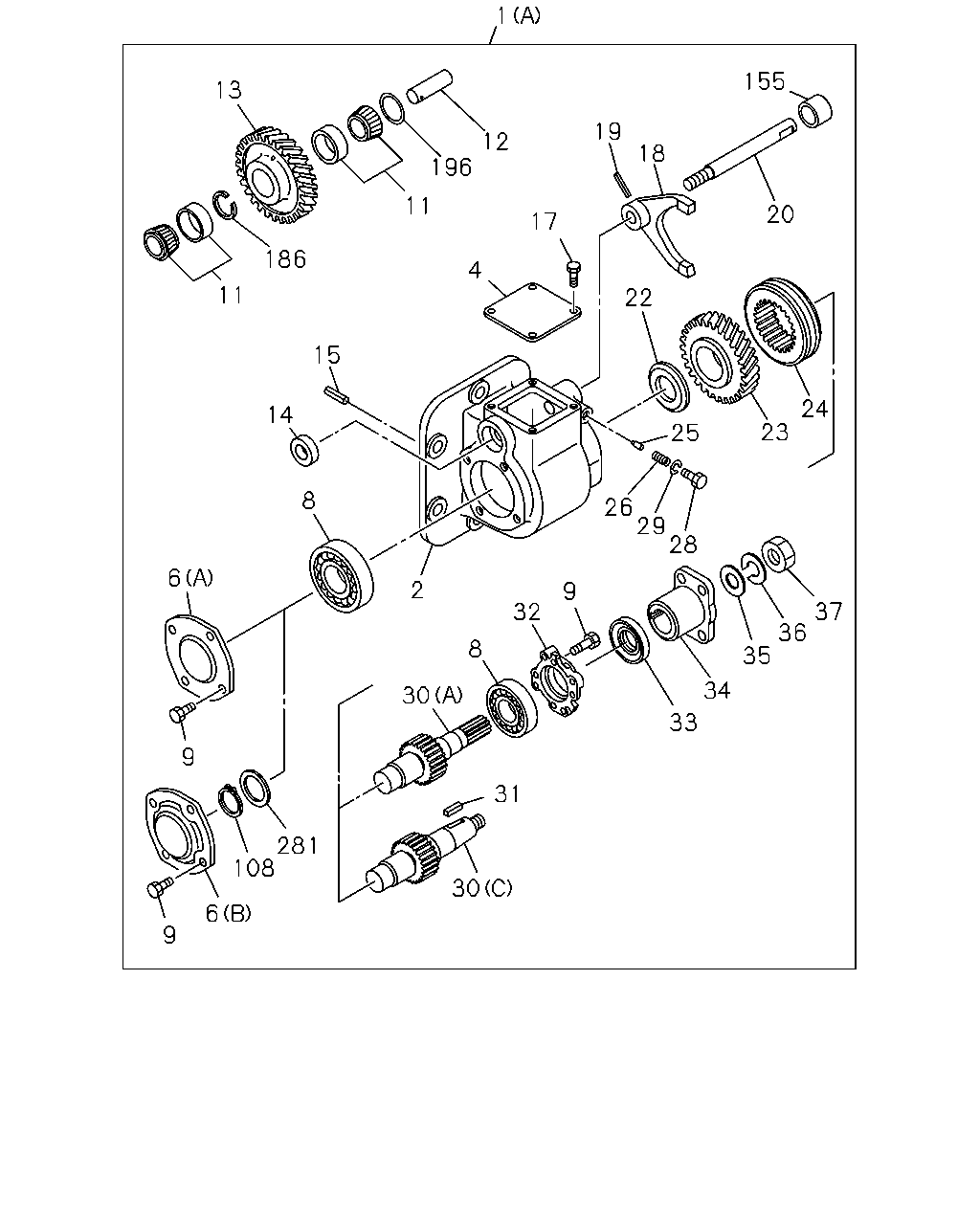

13 11 186 11 196 12 17 19 1 18 20 155 24 23 37 36 35 34 33 28 29 26 25 22 4 15 14 2 32 8 9 8 30 31 30 281 108 6 9 9 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0712-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-98233-783-0	01	1	1306-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (B) NO IDENTIFICATION	8-98047-033-0	01	1	0712-			●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0712-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	0712-			●
4	04.439 COVER; UPR,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	0712-	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (B)	8-98233-778-0	01	1	1306-	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	0712-1305	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	1306-			●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0712-	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	0712-	●	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	0712-			●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0712-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0712-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	0712-			●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0712-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	0712-			●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0712-	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	1-09625-358-0	01	1	0712-			●
15	04.439 PIN; SPR,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0712-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) L=20 OD=4	9-09678-514-0	01	1	0712-			●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0712-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0712-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	0712-			●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0712-	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-97306-596-0	01	1	0712-			●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98046-623-0	01	1	0712-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98046-934-0	01	1	0712-			●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	0712-			●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0712-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0712-0805	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	0712-			●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0712-	●	●
25	04.439 PIN; LK,SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0712-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0712-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	0712-			●
28	04.439 BOLT; SPRING,SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	0712-	●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) 02.559 ID=8.2	0-91510-808-0	01	1	0712-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	0712-1210	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (C)	8-98223-518-0	01	1	1211-1305	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (C)	8-98233-777-0	01	1	1306-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (B)	8-97374-129-1	01	1	0712-			●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	0712-1210			●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0712-	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0712-	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0712-1210	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	0712-	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	0712-	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	0712-	●	●	●
108	04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) 08.934 ID=23.2	9-09180-025-0	01	1	1306-	●	●
155	04.439 PLUG; SHIFTER ROD 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0712-	●	●
155	04.439 PLUG; SHIFTER ROD 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	0712-			●
186	04.439 RING; SNAP,IDLE GEAR,TRANS SIDE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	0712-	●	●
196	04.439 PIECE; THRUST 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	0712-	●	●
196	04.439 PIECE; THRUST 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	0712-	●	●
196	04.439 PIECE; THRUST 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	0712-	●	●
196	04.439 PIECE; THRUST 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	0712-	●	●
196	04.439 PIECE; THRUST 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	0712-	●	●
196	04.439 PIECE; THRUST 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	0712-	●	●
281	04.439 SHIM; OUTPUT SHAFT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-	●	●

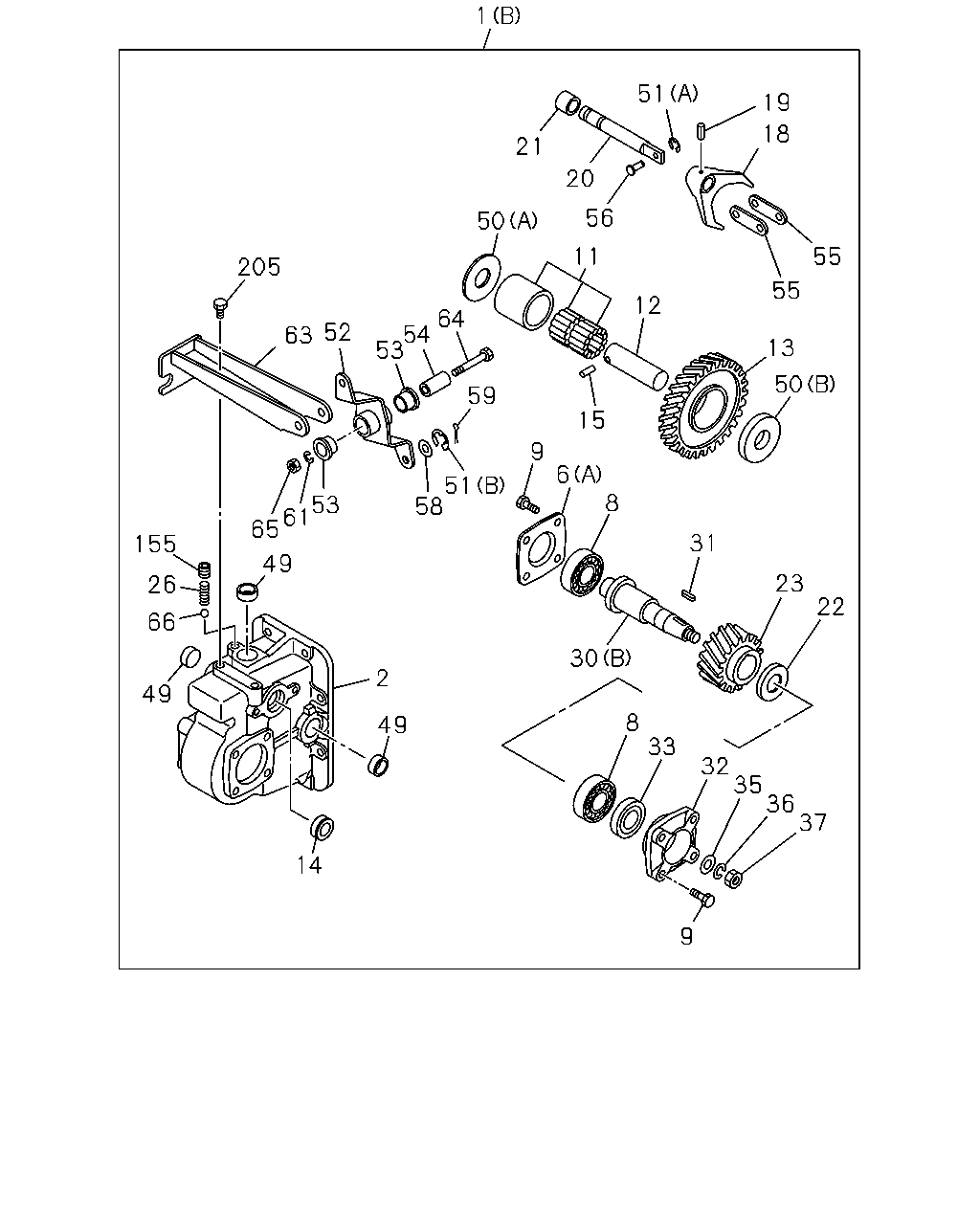

1 51 19 21 18 20 50 56 11 12 55 55 13 15 50 31 8 6 9 23 22 30 51 58 59 64 54 53 52 63 205 53 61 65 155 49 26 66 49 2 49 14 8 33 32 35 36 37 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0712-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-98233-783-0	01	1	1306-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (B) NO IDENTIFICATION	8-98047-033-0	01	1	0712-			●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0712-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	0712-			●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (B)	8-98233-778-0	01	1	1306-	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	0712-1305	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	1306-			●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0712-	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	0712-	●	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	0712-			●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0712-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0712-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	0712-			●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0712-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	0712-			●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0712-	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	1-09625-358-0	01	1	0712-			●
15	04.439 PIN; SPR,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0712-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) L=20 OD=4	9-09678-514-0	01	1	0712-			●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0712-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	0712-			●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0712-	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-97306-596-0	01	1	0712-			●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98046-623-0	01	1	0712-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98046-934-0	01	1	0712-			●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98046-619-0	01	1	0712-			●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	0712-			●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0712-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0712-0805	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	0712-			●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0712-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	0712-			●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	0712-1210	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (C)	8-98223-518-0	01	1	1211-1305	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) (C)	8-98233-777-0	01	1	1306-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (B)	8-97374-129-1	01	1	0712-			●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	0712-1210			●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0712-	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0712-	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	0712-	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	0712-	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	0712-	●	●	●
49	04.439 PLUG; IDLE SHAFT,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98037-773-0	03	1	0712-			●
50	04.439 WASHER; THRUST,IDLE GEAR,TRANS S 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (A)	1-38226-058-1	01	1	0712-			●
50	04.439 WASHER; THRUST,IDLE GEAR,TRANS S 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (B)	8-97305-818-0	01	1	0712-			●
51	04.439 RING; SNAP,PIN,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 16.585 (A) ID=6	0-91805-506-0	01	1	0712-			●
51	04.439 RING; SNAP,PIN,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (B) ID=8	0-91805-508-0	01	1	0712-			●
52	04.439 LEVER; CONT,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98049-416-0	01	1	0712-			●
53	04.439 BUSHING; CONT LVR,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	1-09330-023-0	02	1	0712-			●
54	04.439 COLLAR; DIST,CONT LVR,TRANS SIDE 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	1-38321-003-1	01	1	0712-			●
55	04.439 PLATE; LEVER JOINT,TRANS SIDE PT 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98046-938-0	02	1	0712-			●
56	04.439 PIN; PLATE TO LVR & ROD,TRANS SI 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98046-942-0	01	1	0712-			●
58	04.439 WASHER; PL,CONT LEVER 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 17.198 ID=10.5	0-91610-510-0	02	1	0712-			●
59	04.439 PIN; PTO CONT LEVER 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	0-82154-025-0	01	1	0712-			●
61	04.439 WASHER; LK,CONT LVR,TRANS SIDE P 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 02.277 ID=10.2	0-91510-810-0	01	1	0712-			●
63	04.439 BRACKET; CONT LVR,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-98049-415-0	01	1	0712-			●
64	04.439 BOLT; CONT LEVER 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 00.685 M10X60 FLANGE	0-28051-060-0	01	1	0712-			●
65	04.439 NUT; CONT LEVER 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 00.833 M10	0-91110-510-0	01	1	0712-			●
66	04.439 BALL; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 04.311	9-00097-009-0	01	1	0712-			●
155	04.439 PLUG; SHIFTER ROD 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0712-	●	●
155	04.439 PLUG; SHIFTER ROD 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	0712-			●
205	04.439 BOLT; BRKT,PTO,TRANS SIDE 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 00.029 M10X16 FLANGE	0-28151-016-0	02	1	0712-			●
