◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51155 - NNR/NPR EU-L EXC.EU5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#49391) — 26 parça

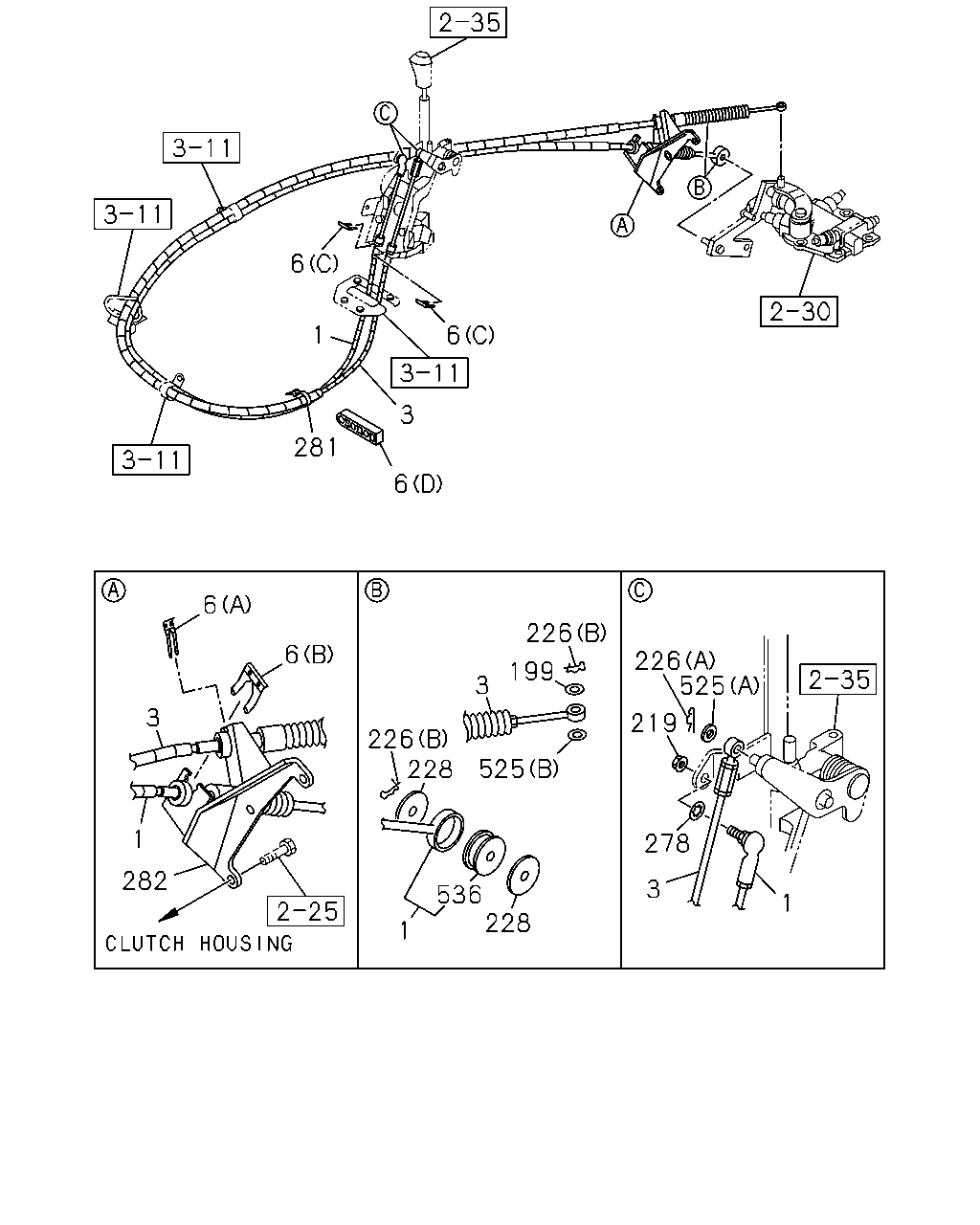

çizim 155497
6 1 6 3 281 6 6 226 6 226 525 199 3 3 219 226 228 525 1 278 282 3 536 228 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3115 		8-98025-439-3 01 1 0712-0911 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3115 		8-98146-878-0 01 1 0912- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3065 		8-98025-438-1 01 1 0712-0911 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3065 		8-98146-877-1 01 1 0912- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3140 		8-98025-440-3 01 1 0712-0911 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3140 		8-98146-879-0 01 1 0912- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98025-445-4 01 1 0712- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98025-444-2 01 1 0712- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98025-446-5 01 1 0712- ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) 04.008 (D) 		8-97093-491-1 01 1 0712- ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 0712- ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97011-448-0 02 1 0712- ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2 		8-97211-011-0 01 1 0712- ● ● ●
199 04.012 WASHER; PL,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 0712- ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0 		8-94363-045-0 01 1 0712- ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7 		8-94111-137-0 01 1 0712- ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23 		8-94170-378-0 02 1 0712- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.2 OD=40 		8-97182-975-0 02 1 0712- ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0712- ● ● ●
281 04.042 CLIP; BAND
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0712- ● ● ●
282 04.010 BRACKET; TRANS SIDE
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-395-1 01 1 0712- ● ●
282 04.010 BRACKET; TRANS SIDE
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97350-449-0 01 1 0712- ● ●
282 04.010 BRACKET; TRANS SIDE
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-396-2 01 1 0712- ●
525 04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 0712- ● ● ●
525 04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 0712- ● ● ●
536 00.854 DAMPER; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-681-0 01 1 0712- ● ● ●
