◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#4939) — 705 parça

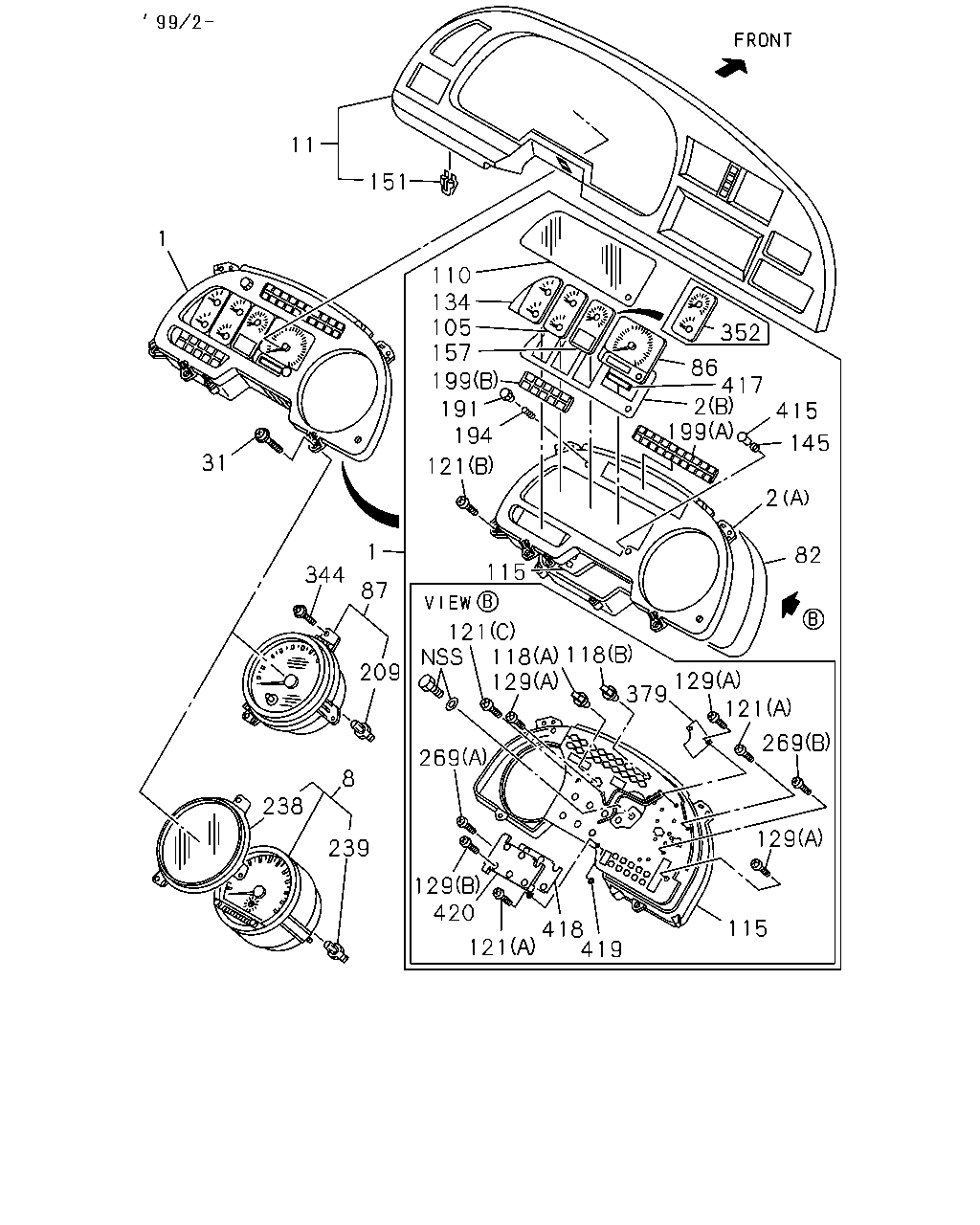

çizim 5096
11 151 1 110 134 105 157 199 191 194 352 86 417 2 199 415 145 31 121 2 1 82 115 344 87 118 129 121 118 209 129 379 121 269 269 8 238 129 239 129 420 115 418 419 121
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83115-169-2 01 1 9905-9905 ● ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83115-169-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83115-686-0 01 1 9911- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83115-233-1 01 1 9905-9910 ● ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83115-694-1 01 1 9911- ● ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83114-802-3 01 1 9603-9704 ● ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83115-047-1 01 1 9705-9801 ● ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-047-1 01 1 9802-9901 ● ● ●
1 METER COMPL; CLUSTER 1-83115-168-2 01 1 9902-9904 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> 		1-83115-168-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> 		1-83115-685-1 01 1 9911- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> 		1-83115-167-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> 		1-83115-684-0 01 1 9911- ● ●
1 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-101-0 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83115-691-1 01 1 0002- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83115-695-0 01 1 0002- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> 		1-83115-172-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> 		1-83115-689-1 01 1 9911- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> 		1-83115-171-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> 		1-83115-688-0 01 1 9911- ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> 		1-83114-792-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> 		1-83115-037-1 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-037-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> 		1-83114-791-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> 		1-83115-036-1 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-036-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> 		1-83114-803-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> 		1-83115-048-0 01 1 9705-9705 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, FULL FLOATING CAB(W16) 		1-83115-048-1 01 1 9706-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83115-048-1 01 1 9706-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83115-048-1 01 1 9706-9801 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83115-048-1 01 1 9706-9801 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83115-048-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-048-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83115-048-1 01 1 9802-9901 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83115-048-1 01 1 9802-9901 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83114-805-2 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83115-050-0 01 1 9705-9705 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83115-050-0 01 1 9706-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83115-050-0 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83114-794-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83115-039-1 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-039-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83114-793-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> 		1-83114-793-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83114-793-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83114-793-3 01 1 9603-9704 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83115-038-1 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> 		1-83115-038-1 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83115-038-1 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83115-038-1 01 1 9705-9801 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-038-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-038-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83115-038-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FU LL FLOATING CAB(W16) 		1-83115-038-1 01 1 9802-9901 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83114-795-2 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83115-040-0 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83115-040-0 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> 		1-83114-789-3 01 1 9603-9704 ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> 		1-83115-035-0 01 1 9705-9801 ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-035-0 01 1 9802-9901 ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83115-170-2 01 1 9905-9910 ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83115-687-0 01 1 9911- ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83115-792-1 01 1 0002- ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE TRUCK<RA9> 		1-83115-173-2 01 1 9905-9910 ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE TRUCK<RA9> 		1-83115-690-1 01 1 9911- ●
2 PANEL; CLUSTER
(C) 		1-83119-499-0 01 1 9603-9901 ● ● ●
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 9902-9904 ● ●
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 9905- ● ● ●
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 9902-9904 ● ●
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 9905- ● ●
2 PANEL; CLUSTER
EXC. FIRE TRUCK<RA9> (B) 		1-83119-652-0 01 1 9905- ●
2 PANEL; CLUSTER
FIRE TRUCK<RA9> (B) 		1-83119-682-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-662-1 01 1 9603-9706 ● ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-806-0 01 1 9707-9901 ● ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-856-0 01 1 9902-9904 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-856-0 01 1 9905- ● ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-857-0 01 1 9902-9904 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-857-0 01 1 9905- ● ● ●
11 CLUSTER ASM; METER 1-72418-022-3 01 1 9603-9901 ● ● ●
11 CLUSTER ASM; METER 1-72418-022-6 01 1 9902-9904 ● ●
11 CLUSTER ASM; METER 1-72418-022-6 01 1 9905- ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9603-9901 ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9902-9904 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9905- ● ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9603-9901 ● ● ●
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 9902-9904 ● ●
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 9905- ● ● ●
86 TACHOMETER; CLUSTER METER
6WA1 TC-S(56L) 		1-83120-693-0 01 1 9603-9801 ● ● ●
86 TACHOMETER; CLUSTER METER 1-83120-693-0 01 1 9802-9901 ●
86 TACHOMETER; CLUSTER METER
6WA1 TC-S(56L) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-693-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER 1-83120-879-0 01 1 9902-9904 ● ●
86 TACHOMETER; CLUSTER METER
L TYPE ENG<90L> 		1-83120-879-0 01 1 9905- ● ● ●
86 TACHOMETER; CLUSTER METER
V TYPE ENG<91L> 		1-83120-880-0 01 1 9905- ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. DUAL AIR GAUGE<UG2> 		1-83120-692-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83120-692-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> 		1-83120-692-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83120-692-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83120-692-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9603-9705 ●
86 TACHOMETER; CLUSTER METER
FIRE TRUCK<RA9> 		1-83120-692-0 01 1 9603-9705 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9603-9705 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9603-9705 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83120-692-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83120-692-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> 		1-83120-692-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83120-692-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83120-692-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9706-9801 ●
86 TACHOMETER; CLUSTER METER
FIRE TRUCK<RA9> 		1-83120-692-0 01 1 9706-9801 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9706-9801 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9706-9801 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9802-9901 ●

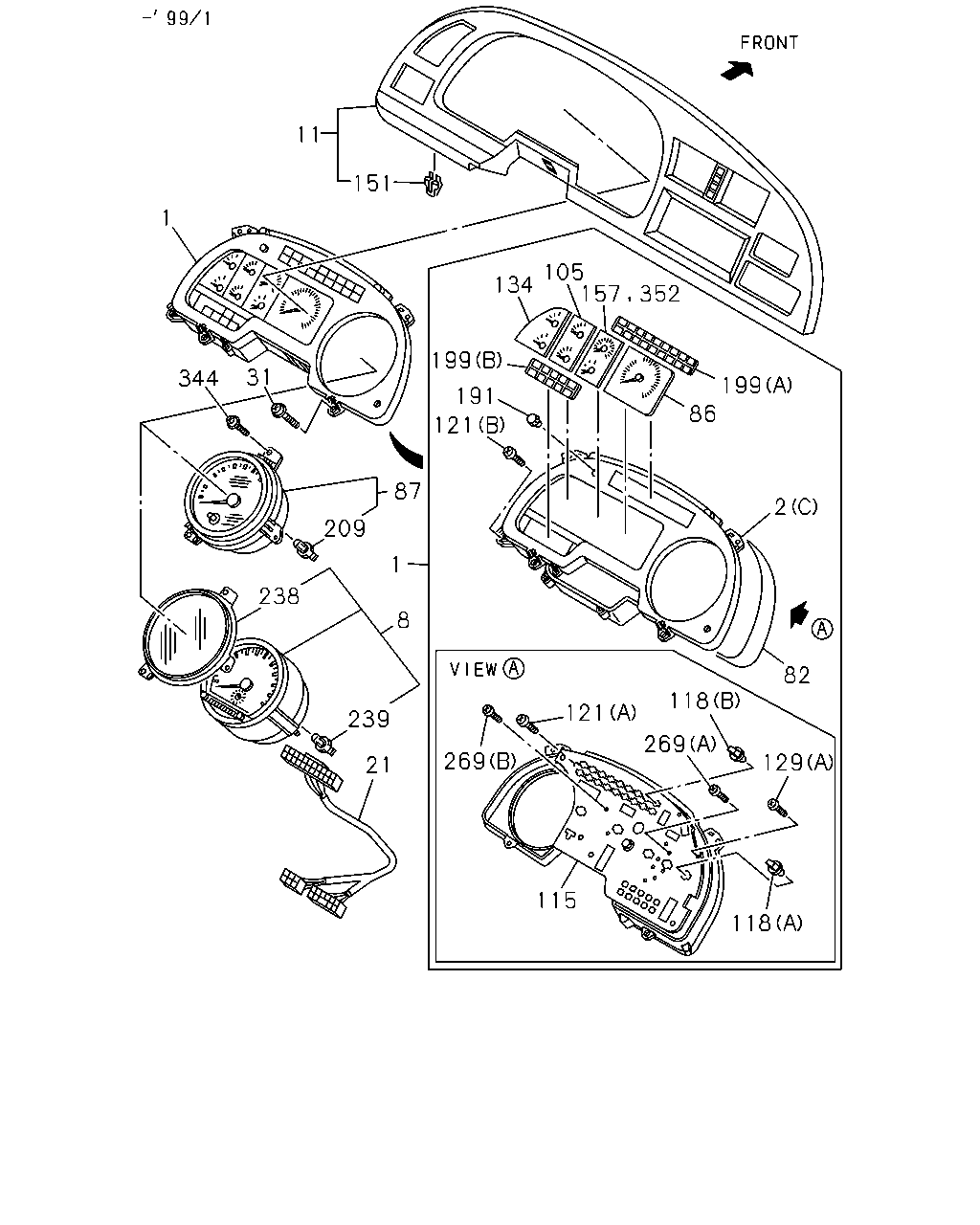

86 TACHOMETER; CLUSTER METER
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9802-9901 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9802-9901 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FU LL FLOATING CAB(W16) 		1-83120-692-0 01 1 9802-9901 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83120-694-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-694-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83120-694-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-694-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83120-694-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83120-694-0 01 1 9802-9901 ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 		1-83120-490-1 01 1 9603-9609 ● ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> 		1-83120-490-1 01 1 9610-9901 ● ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83120-844-0 01 1 9902-9904 ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83120-844-0 01 1 9905- ● ● ●
87 SPEEDOMETER
MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8> 		1-83120-715-0 01 1 9610-9901 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-211-0 01 1 9603-9704 ● ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-275-0 01 1 9705-9901 ● ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 9902-9904 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 9905- ● ● ●
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 9902-9904 ● ●
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 9905- ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> 		1-83189-373-0 01 1 9905- ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
6WA1 TC-S(56L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83189-318-0 01 1 9603-9705 ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. DUAL AIR GAUGE<UG2> 		1-83189-318-0 01 1 9603-9705 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9603-9705 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9603-9705 ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9603-9705 ●
115 CIRCUIT; PRINTED,CLUSTER METER
6WA1 TC-S(56L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83189-318-0 01 1 9706-9801 ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83189-318-0 01 1 9706-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9706-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9706-9801 ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9706-9801 ●
115 CIRCUIT; PRINTED,CLUSTER METER
6WA1 TC-S(56L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-318-0 01 1 9802-9901 ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-318-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9802-9901 ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9802-9901 ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-372-0 01 1 9902-9904 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9> 		1-83189-372-0 01 1 9905- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83189-317-0 01 1 9603-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83189-317-0 01 1 9603-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> 		1-83189-317-0 01 1 9603-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83189-317-0 01 1 9603-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83189-317-0 01 1 9603-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-317-0 01 1 9603-9801 ●
115 CIRCUIT; PRINTED,CLUSTER METER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-317-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-317-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-317-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83189-317-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-317-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-317-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FU LL FLOATING CAB(W16) 		1-83189-317-0 01 1 9802-9901 ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-322-0 01 1 9603-9705 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-322-0 01 1 9706-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83189-322-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83189-321-0 01 1 9603-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83189-321-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
FIRE TRUCK<RA9> 		1-83189-316-0 01 1 9603-9801 ●
115 CIRCUIT; PRINTED,CLUSTER METER
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-316-0 01 1 9802-9901 ●
115 CIRCUIT; PRINTED,CLUSTER METER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83189-374-0 01 1 9905-0001 ●
115 CIRCUIT; PRINTED,CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83189-374-0 01 1 0002- ●
115 CIRCUIT; PRINTED,CLUSTER METER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE TRUCK<RA9> 		1-83189-375-0 01 1 9905- ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 05 1 9603-9901 ● ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 AR 1 9603- ● ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 9902-9904 ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 9905- ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 08 1 9603-9901 ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-084-0 01 1 9902-9904 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-084-0 01 1 9905- ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 9902-9904 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 9905- ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-676-0 02 1 9902-9904 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-676-0 02 1 9905- ● ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-052-0 10 1 9603-9901 ● ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-657-0 09 1 9902-9904 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-657-0 09 1 9905- ● ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-675-0 06 1 9902-9904 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-675-0 06 1 9905- ● ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-224-0 01 1 9603-9901 ● ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-283-0 01 1 9902-9904 ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-283-0 01 1 9905- ● ● ●
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 9902-9904 ● ●
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 9905- ● ● ●
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9603-9812 ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9901-9901 ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9902-9904 ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9905- ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83150-178-0 01 1 9603-9705 ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83150-178-0 01 1 9603-9705 ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-178-0 01 1 9706-9801 ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83150-178-0 01 1 9706-9801 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83150-178-0 01 1 9802-9901 ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83150-217-0 01 1 9905-9905 ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83150-217-0 01 1 9905- ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-214-0 01 1 9902-9904 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83150-214-0 01 1 9905-9910 ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83150-235-0 01 1 9911- ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83150-190-0 01 1 9603-9608 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83150-187-0 01 1 9609-9901 ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9603-9901 ● ● ●
191 KNOB; BULB CHECK 1-83119-672-0 01 1 9902-9904 ● ●
191 KNOB; BULB CHECK 1-83119-672-0 01 1 9905- ● ● ●
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 9902-9904 ● ●
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 9905- ● ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-538-0 01 1 9603-9901 ● ● ●
199 LENS; WARNING LAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-83119-685-0 01 1 9905- ● ● ●
199 LENS; WARNING LAMP
6WA1 TC-S(56L) (B) 		1-83119-539-1 01 1 9603-9801 ● ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> (B) 		1-83119-539-1 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> (B) 		1-83119-539-1 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> (B) 		1-83119-539-1 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> (B) 		1-83119-539-1 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9603-9801 ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9603-9801 ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9603-9801 ●
199 LENS; WARNING LAMP
6WA1 TC-S(56L) (B) 		1-83119-539-1 01 1 9802-9901 ● ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9802-9901 ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FU LL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9802-9901 ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1), FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9802-9901 ●
199 LENS; WARNING LAMP
(A) 		1-83119-683-0 01 1 9902-9904 ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-683-0 01 1 9905- ● ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-684-0 01 1 9902-9904 ● ●
199 LENS; WARNING LAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-83119-684-0 01 1 9905- ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) (B) 		1-83119-435-0 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) 		1-83119-435-0 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
FIRE TRUCK<RA9> (B) 		1-83119-435-0 01 1 9603-9801 ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) 		1-83119-435-0 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) 		1-83119-435-0 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-83119-435-0 01 1 9802-9901 ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 9603-9901 ● ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 9902-9904 ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 9905- ● ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-83129-311-0 01 1 9603-9901 ● ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83129-311-0 01 1 9902-9904 ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83129-311-0 01 1 9905- ● ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 24V 1.8W 		1-82194-076-0 03 1 9603-9901 ● ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		5-82194-034-0 03 1 9902-9904 ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		5-82194-034-0 03 1 9905- ● ● ●
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 9902-9904 ● ●
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 9905- ● ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 05 1 9902-9904 ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 05 1 9905- ● ●
269 SCREW; METER CLUSTER
EXC. FIRE TRUCK<RA9> (B) M3 TAPPING 		1-83119-677-0 05 1 9905- ●
269 SCREW; METER CLUSTER
FIRE TRUCK<RA9> (B) M3 TAPPING 		1-83119-677-0 08 1 9905- ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 03 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 03 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) M3 TAPPING 		1-83119-441-0 14 1 9802-9901 ●
269 SCREW; METER CLUSTER
6WA1 TC-S(56L) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ● ●
269 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ●
269 SCREW; METER CLUSTER
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FU LL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ●
269 SCREW; METER CLUSTER
6WA1 TC-S(56L) EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) M3 TAPPING 		1-83119-441-0 11 1 9802-9901 ● ● ●
269 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(WH1) (A) M3 TAPPING 		1-83119-441-0 11 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9>,SAUDI ARABIA EQUIPMENT(WH1) (A) M3 TAPPING 		1-83119-441-0 11 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (A) M3 TAPPING 		1-83119-441-0 11 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 03 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 03 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 03 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 03 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
FIRE TRUCK<RA9> (A) M3 TAPPING 		1-83119-441-0 14 1 9603-9801 ●
269 SCREW; METER CLUSTER
6WA1 TC-S(56L) (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. DUAL AIR GAUGE<UG2> (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ●
269 SCREW; METER CLUSTER
6WA1 TC-S(56L) (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 11 1 9603-9801 ● ●
269 SCREW; METER CLUSTER
EXC. FIRE TRUCK<RA9> (A) M3 TAPPING 		1-83119-441-0 11 1 9603-9801 ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9603-9901 ● ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9902-9904 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9905- ● ● ●
352 GAUGE; OIL THERMO & AIR PRESS
FIRE TRUCK<RA9> 		1-83150-179-0 01 1 9603-9801 ●
352 GAUGE; OIL THERMO & AIR PRESS
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83150-179-0 01 1 9802-9901 ●
352 GAUGE; OIL THERMO & AIR PRESS
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83150-218-0 01 1 9905- ●
352 GAUGE; OIL THERMO & AIR PRESS
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE TRUCK<RA9> 		1-83150-219-0 01 1 9905-0001 ●
352 GAUGE; OIL THERMO & AIR PRESS
V TYPE ENG<91L> FIRE TRUCK<RA9> 		1-83150-219-0 01 1 0002- ●
379 CIRCUIT; DROP 1-83189-369-0 01 1 9902-9904 ● ●
379 CIRCUIT; DROP 1-83189-369-0 01 1 9905- ● ● ●
415 KNOB; TRIP,METER 1-83119-674-0 01 1 9902-9904 ● ●
415 KNOB; TRIP,METER 1-83119-674-0 01 1 9905- ● ● ●
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 9902-9904 ● ●
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 9905- ● ● ●
418 CIRCUIT; CONTROL,METER 1-83189-376-0 01 1 9902-9904 ● ●
418 CIRCUIT; CONTROL,METER
L TYPE ENG<90L> 		1-83189-376-0 01 1 9905- ● ● ●
418 CIRCUIT; CONTROL,METER
V TYPE ENG<91L> 		1-83189-377-0 01 1 9905-0001 ● ●
418 CIRCUIT; CONTROL,METER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83189-377-0 01 1 0002- ● ●
418 CIRCUIT; CONTROL,METER
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> 		1-83189-377-0 01 1 0002- ● ●
418 CIRCUIT; CONTROL,METER
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83189-400-0 01 1 0002- ●
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 9902-9904 ● ●
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 9905- ● ● ●
420 HEAT SINK; METER 1-83119-679-0 01 1 9902-9904 ● ●
420 HEAT SINK; METER 1-83119-679-0 01 1 9905- ● ● ●

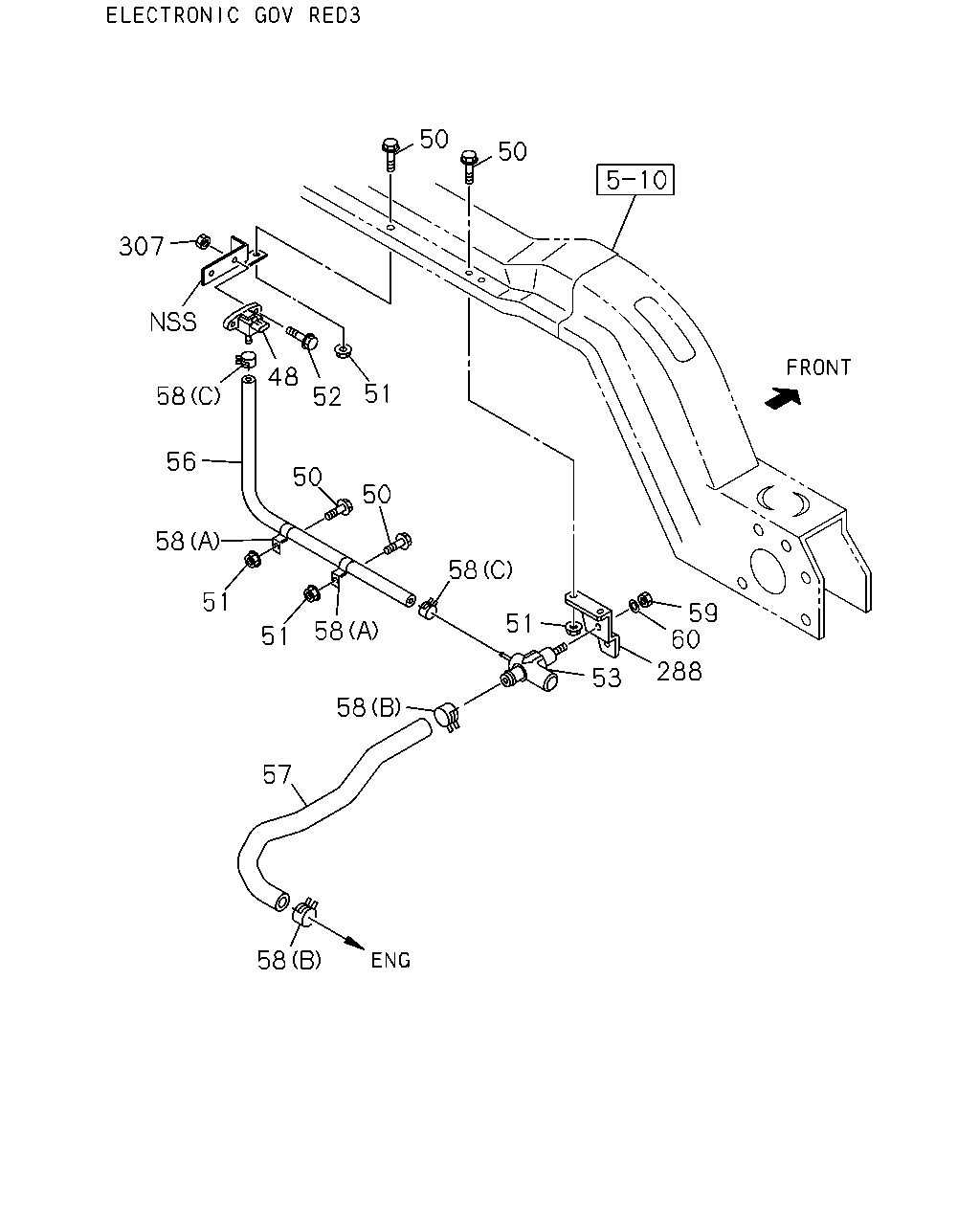

çizim 39590
50 50 307 48 51 58 52 56 50 50 58 58 51 59 60 51 58 51 288 53 58 57 58
BalonParca AdiParca NoAdetTipApplied Date A B C
48 SENSOR; BOOST
ELECTRONIC GOV RED3(KG5) 		1-81531-011-0 01 1 9902-9904 ● ●
48 SENSOR; BOOST
ELECTRONIC GOV RED3(KG5) 		1-81531-011-0 01 1 9905- ● ● ●
50 BOLT; FIX
ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 04 1 9902-9904 ● ●
50 BOLT; FIX
ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 04 1 9905-9909 ● ●
50 BOLT; FIX
ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 03 1 9910- ● ●
51 NUT; FIX
ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 04 1 9902-9904 ● ●
51 NUT; FIX
ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 04 1 9905-9909 ● ●
51 NUT; FIX
ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 03 1 9910- ● ●
52 BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M6X16 FLANGE 		0-28680-616-0 02 1 9902-9904 ● ●
52 BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M6X16 FLANGE 		0-28680-616-0 02 1 9905- ● ●
53 UNION; BOOST UNIT
ELECTRONIC GOV RED3(KG5) 		1-09661-017-0 01 1 9902-9904 ● ●
53 UNION; BOOST UNIT
ELECTRONIC GOV RED3(KG5) 		1-09661-017-0 01 1 9905- ● ●
56 HOSE; NIPPLE TO SENSOR
ELECTRONIC GOV RED3(KG5) L=560 SERVICED BY L=3000 		0-04740-300-0 01 1 9902-9904 ● ●
56 HOSE; NIPPLE TO SENSOR
ELECTRONIC GOV RED3(KG5) L=560 SERVICED BY L=3000 		0-04740-300-0 01 1 9905- ● ●
57 HOSE; BOOST
ELECTRONIC GOV RED3(KG5) 		1-83159-017-0 01 1 9902-9904 ● ●
57 HOSE; BOOST
ELECTRONIC GOV RED3(KG5) 		1-83159-017-0 01 1 9905- ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9902-9904 ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9905-9909 ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9910- ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (B) ID=20.8 		8-94125-862-1 02 1 9902-9904 ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (B) ID=20.8 		8-94125-862-1 02 1 9905- ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (C) ID=7.8 		8-94246-958-0 02 1 9902-9904 ● ●
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (C) ID=7.8 		8-94246-958-0 02 1 9905- ● ●
59 NUT; UNION
ELECTRONIC GOV RED3(KG5) M10 		9-09111-410-0 01 1 9902-9904 ● ●
59 NUT; UNION
ELECTRONIC GOV RED3(KG5) M10 		9-09111-410-0 01 1 9905- ● ●
60 WASHER; LK,UNION
ELECTRONIC GOV RED3(KG5) ID=10.2 		9-09150-510-0 01 1 9902-9904 ● ●
60 WASHER; LK,UNION
ELECTRONIC GOV RED3(KG5) ID=10.2 		9-09150-510-0 01 1 9905- ● ●
288 BRACKET
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> 		1-47477-469-0 01 1 9910- ● ● ●
288 BRACKET
ELECTRONIC GOV RED3(KG5) 		1-47477-379-0 01 1 9902-9904 ● ●
288 BRACKET
ELECTRONIC GOV RED3(KG5) 		1-47477-379-0 01 1 9905-9909 ● ●
288 BRACKET
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> 		1-47477-379-0 01 1 9910- ● ●
307 NUT
ELECTRONIC GOV RED3(KG5) M6 		9-09110-406-0 02 1 9902-9904 ● ●
307 NUT
ELECTRONIC GOV RED3(KG5) M6 		9-09110-406-0 02 1 9905- ● ●
çizim 39802
11 151 1 105 134 31 199 344 199 191 86 121 87 2 209 1 238 8 82 118 121 239 269 269 129 21 115 118 157 352
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83115-169-2 01 1 9905-9905 ● ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83115-169-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83115-686-0 01 1 9911- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83115-233-1 01 1 9905-9910 ● ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83115-694-1 01 1 9911- ● ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83114-802-3 01 1 9603-9704 ● ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83115-047-1 01 1 9705-9801 ● ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-047-1 01 1 9802-9901 ● ● ●
1 METER COMPL; CLUSTER 1-83115-168-2 01 1 9902-9904 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> 		1-83115-168-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> 		1-83115-685-1 01 1 9911- ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> 		1-83115-167-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> 		1-83115-684-0 01 1 9911- ● ●
1 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-101-0 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83115-691-1 01 1 0002- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83115-695-0 01 1 0002- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> 		1-83115-172-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> 		1-83115-689-1 01 1 9911- ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> 		1-83115-171-2 01 1 9905-9910 ● ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> 		1-83115-688-0 01 1 9911- ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> 		1-83114-792-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> 		1-83115-037-1 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-037-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> 		1-83114-791-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> 		1-83115-036-1 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-036-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> 		1-83114-803-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DUAL AIR GAUGE<UG2> 		1-83115-048-0 01 1 9705-9705 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, FULL FLOATING CAB(W16) 		1-83115-048-1 01 1 9706-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83115-048-1 01 1 9706-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83115-048-1 01 1 9706-9801 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83115-048-1 01 1 9706-9801 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83115-048-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-048-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83115-048-1 01 1 9802-9901 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83115-048-1 01 1 9802-9901 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83114-805-2 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83115-050-0 01 1 9705-9705 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83115-050-0 01 1 9706-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83115-050-0 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83114-794-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83115-039-1 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-039-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83114-793-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> 		1-83114-793-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83114-793-3 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83114-793-3 01 1 9603-9704 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83115-038-1 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> 		1-83115-038-1 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83115-038-1 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83115-038-1 01 1 9705-9801 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-038-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-038-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83115-038-1 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FU LL FLOATING CAB(W16) 		1-83115-038-1 01 1 9802-9901 ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83114-795-2 01 1 9603-9704 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83115-040-0 01 1 9705-9801 ● ●
1 METER COMPL; CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83115-040-0 01 1 9802-9901 ● ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> 		1-83114-789-3 01 1 9603-9704 ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> 		1-83115-035-0 01 1 9705-9801 ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-035-0 01 1 9802-9901 ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83115-170-2 01 1 9905-9910 ●
1 METER COMPL; CLUSTER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83115-687-0 01 1 9911- ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83115-792-1 01 1 0002- ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE TRUCK<RA9> 		1-83115-173-2 01 1 9905-9910 ●
1 METER COMPL; CLUSTER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE TRUCK<RA9> 		1-83115-690-1 01 1 9911- ●
2 PANEL; CLUSTER
(C) 		1-83119-499-0 01 1 9603-9901 ● ● ●
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 9902-9904 ● ●
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 9905- ● ● ●
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 9902-9904 ● ●
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 9905- ● ●
2 PANEL; CLUSTER
EXC. FIRE TRUCK<RA9> (B) 		1-83119-652-0 01 1 9905- ●
2 PANEL; CLUSTER
FIRE TRUCK<RA9> (B) 		1-83119-682-0 01 1 9905- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-662-1 01 1 9603-9706 ● ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-806-0 01 1 9707-9901 ● ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-856-0 01 1 9902-9904 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-856-0 01 1 9905- ● ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-857-0 01 1 9902-9904 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-857-0 01 1 9905- ● ● ●
11 CLUSTER ASM; METER 1-72418-022-3 01 1 9603-9901 ● ● ●
11 CLUSTER ASM; METER 1-72418-022-6 01 1 9902-9904 ● ●
11 CLUSTER ASM; METER 1-72418-022-6 01 1 9905- ● ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-82624-665-1 01 1 9603-9901 ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9603-9901 ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9902-9904 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9905- ● ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9603-9901 ● ● ●
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 9902-9904 ● ●
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 9905- ● ● ●
86 TACHOMETER; CLUSTER METER
6WA1 TC-S(56L) 		1-83120-693-0 01 1 9603-9801 ● ● ●
86 TACHOMETER; CLUSTER METER 1-83120-693-0 01 1 9802-9901 ●
86 TACHOMETER; CLUSTER METER
6WA1 TC-S(56L) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-693-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER 1-83120-879-0 01 1 9902-9904 ● ●
86 TACHOMETER; CLUSTER METER
L TYPE ENG<90L> 		1-83120-879-0 01 1 9905- ● ● ●
86 TACHOMETER; CLUSTER METER
V TYPE ENG<91L> 		1-83120-880-0 01 1 9905- ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. DUAL AIR GAUGE<UG2> 		1-83120-692-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83120-692-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> 		1-83120-692-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83120-692-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83120-692-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9603-9705 ●
86 TACHOMETER; CLUSTER METER
FIRE TRUCK<RA9> 		1-83120-692-0 01 1 9603-9705 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9603-9705 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9603-9705 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83120-692-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83120-692-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> 		1-83120-692-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83120-692-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83120-692-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9706-9801 ●
86 TACHOMETER; CLUSTER METER
FIRE TRUCK<RA9> 		1-83120-692-0 01 1 9706-9801 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9706-9801 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9706-9801 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9802-9901 ●
86 TACHOMETER; CLUSTER METER
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9802-9901 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83120-692-0 01 1 9802-9901 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FU LL FLOATING CAB(W16) 		1-83120-692-0 01 1 9802-9901 ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83120-694-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-694-0 01 1 9603-9705 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83120-694-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83120-694-0 01 1 9706-9801 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83120-694-0 01 1 9802-9901 ● ●
86 TACHOMETER; CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83120-694-0 01 1 9802-9901 ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 		1-83120-490-1 01 1 9603-9609 ● ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> 		1-83120-490-1 01 1 9610-9901 ● ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83120-844-0 01 1 9902-9904 ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83120-844-0 01 1 9905- ● ● ●
87 SPEEDOMETER
MILE SPEEDOMETER<UC1> EXC. TACHOGRAPH 120KM/H<SM8> 		1-83120-715-0 01 1 9610-9901 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-211-0 01 1 9603-9704 ● ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-275-0 01 1 9705-9901 ● ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 9902-9904 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 9905- ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> 		1-83189-373-0 01 1 9905- ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
6WA1 TC-S(56L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83189-318-0 01 1 9603-9705 ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. DUAL AIR GAUGE<UG2> 		1-83189-318-0 01 1 9603-9705 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9603-9705 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9603-9705 ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9603-9705 ●
115 CIRCUIT; PRINTED,CLUSTER METER
6WA1 TC-S(56L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83189-318-0 01 1 9706-9801 ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83189-318-0 01 1 9706-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9706-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9706-9801 ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9706-9801 ●
115 CIRCUIT; PRINTED,CLUSTER METER
6WA1 TC-S(56L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-318-0 01 1 9802-9901 ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-318-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9802-9901 ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83189-318-0 01 1 9802-9901 ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-372-0 01 1 9902-9904 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9> 		1-83189-372-0 01 1 9905- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-83189-317-0 01 1 9603-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83189-317-0 01 1 9603-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> 		1-83189-317-0 01 1 9603-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83189-317-0 01 1 9603-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83189-317-0 01 1 9603-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-317-0 01 1 9603-9801 ●
115 CIRCUIT; PRINTED,CLUSTER METER
6WA1 TC-S(56L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-317-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-317-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-317-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83189-317-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-317-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-317-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FU LL FLOATING CAB(W16) 		1-83189-317-0 01 1 9802-9901 ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-322-0 01 1 9603-9705 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) 		1-83189-322-0 01 1 9706-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83189-322-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) 		1-83189-321-0 01 1 9603-9801 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) 		1-83189-321-0 01 1 9802-9901 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
FIRE TRUCK<RA9> 		1-83189-316-0 01 1 9603-9801 ●
115 CIRCUIT; PRINTED,CLUSTER METER
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83189-316-0 01 1 9802-9901 ●
115 CIRCUIT; PRINTED,CLUSTER METER
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83189-374-0 01 1 9905-0001 ●
115 CIRCUIT; PRINTED,CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83189-374-0 01 1 0002- ●
115 CIRCUIT; PRINTED,CLUSTER METER
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE TRUCK<RA9> 		1-83189-375-0 01 1 9905- ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 05 1 9603-9901 ● ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 AR 1 9603- ● ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 9902-9904 ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 9905- ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 08 1 9603-9901 ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-084-0 01 1 9902-9904 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-084-0 01 1 9905- ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 9902-9904 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 9905- ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-676-0 02 1 9902-9904 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-676-0 02 1 9905- ● ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-052-0 10 1 9603-9901 ● ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-657-0 09 1 9902-9904 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-657-0 09 1 9905- ● ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-675-0 06 1 9902-9904 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-675-0 06 1 9905- ● ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-224-0 01 1 9603-9901 ● ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-283-0 01 1 9902-9904 ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-283-0 01 1 9905- ● ● ●
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9603-9812 ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9901-9901 ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9902-9904 ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9905- ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83150-178-0 01 1 9603-9705 ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83150-178-0 01 1 9603-9705 ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-178-0 01 1 9706-9801 ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83150-178-0 01 1 9706-9801 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83150-178-0 01 1 9802-9901 ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83150-217-0 01 1 9905-9905 ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> 		1-83150-217-0 01 1 9905- ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-214-0 01 1 9902-9904 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83150-214-0 01 1 9905-9910 ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83150-235-0 01 1 9911- ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83150-190-0 01 1 9603-9608 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> 		1-83150-187-0 01 1 9609-9901 ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9603-9901 ● ● ●
191 KNOB; BULB CHECK 1-83119-672-0 01 1 9902-9904 ● ●
191 KNOB; BULB CHECK 1-83119-672-0 01 1 9905- ● ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-538-0 01 1 9603-9901 ● ● ●
199 LENS; WARNING LAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-83119-685-0 01 1 9905- ● ● ●
199 LENS; WARNING LAMP
6WA1 TC-S(56L) (B) 		1-83119-539-1 01 1 9603-9801 ● ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> (B) 		1-83119-539-1 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> (B) 		1-83119-539-1 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> (B) 		1-83119-539-1 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> (B) 		1-83119-539-1 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9603-9801 ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9603-9801 ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9603-9801 ●
199 LENS; WARNING LAMP
6WA1 TC-S(56L) (B) 		1-83119-539-1 01 1 9802-9901 ● ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-83119-539-1 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9802-9901 ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FU LL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9802-9901 ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1), FULL FLOATING CAB(W16) (B) 		1-83119-539-1 01 1 9802-9901 ●
199 LENS; WARNING LAMP
(A) 		1-83119-683-0 01 1 9902-9904 ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-683-0 01 1 9905- ● ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-684-0 01 1 9902-9904 ● ●
199 LENS; WARNING LAMP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-83119-684-0 01 1 9905- ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) (B) 		1-83119-435-0 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) 		1-83119-435-0 01 1 9603-9801 ● ●
199 LENS; WARNING LAMP
FIRE TRUCK<RA9> (B) 		1-83119-435-0 01 1 9603-9801 ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) 		1-83119-435-0 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) 		1-83119-435-0 01 1 9802-9901 ● ●
199 LENS; WARNING LAMP
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-83119-435-0 01 1 9802-9901 ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 9603-9901 ● ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 9902-9904 ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 9905- ● ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-83129-311-0 01 1 9603-9901 ● ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83129-311-0 01 1 9902-9904 ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83129-311-0 01 1 9905- ● ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 24V 1.8W 		1-82194-076-0 03 1 9603-9901 ● ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		5-82194-034-0 03 1 9902-9904 ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		5-82194-034-0 03 1 9905- ● ● ●
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 9902-9904 ● ●
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 9905- ● ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 05 1 9902-9904 ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 05 1 9905- ● ●
269 SCREW; METER CLUSTER
EXC. FIRE TRUCK<RA9> (B) M3 TAPPING 		1-83119-677-0 05 1 9905- ●
269 SCREW; METER CLUSTER
FIRE TRUCK<RA9> (B) M3 TAPPING 		1-83119-677-0 08 1 9905- ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 03 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 03 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) M3 TAPPING 		1-83119-441-0 14 1 9802-9901 ●
269 SCREW; METER CLUSTER
6WA1 TC-S(56L) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ● ●
269 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,SAU DI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ●
269 SCREW; METER CLUSTER
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1),FU LL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9802-9901 ●
269 SCREW; METER CLUSTER
6WA1 TC-S(56L) EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) M3 TAPPING 		1-83119-441-0 11 1 9802-9901 ● ● ●
269 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(WH1) (A) M3 TAPPING 		1-83119-441-0 11 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FIRE TRUCK<RA9>,SAUDI ARABIA EQUIPMENT(WH1) (A) M3 TAPPING 		1-83119-441-0 11 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) (A) M3 TAPPING 		1-83119-441-0 11 1 9802-9901 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 03 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 03 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 03 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 03 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
FIRE TRUCK<RA9> (A) M3 TAPPING 		1-83119-441-0 14 1 9603-9801 ●
269 SCREW; METER CLUSTER
6WA1 TC-S(56L) (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. DUAL AIR GAUGE<UG2> (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9603-9705 ●
269 SCREW; METER CLUSTER
6WA1 TC-S(56L) (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2> (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ZF M/T<X9E> EXC. FIRE TRUCK<RA9>,BRAKE SYSTEM RETARDER<RE2>, ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FUL L FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9> (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE OVERRUN BUZZER<SK4> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2> (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ENGINE OVERRUN BUZZER<SK4> EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> ,BRAKE SYSTEM RETARDER<RE2>,DUAL AIR GAUGE<UG2>, FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ● ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ●
269 SCREW; METER CLUSTER
8PE1S(59L),10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER<RE2> EXC. FIRE TRUCK<RA9>,ENGINE OVERRUN BUZZER<SK4>, DUAL AIR GAUGE<UG2>,FULL FLOATING CAB(W16) (B) M3 TAPPING 		1-83119-439-0 04 1 9706-9801 ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 11 1 9603-9801 ● ●
269 SCREW; METER CLUSTER
EXC. FIRE TRUCK<RA9> (A) M3 TAPPING 		1-83119-441-0 11 1 9603-9801 ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9603-9901 ● ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9902-9904 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9905- ● ● ●
352 GAUGE; OIL THERMO & AIR PRESS
FIRE TRUCK<RA9> 		1-83150-179-0 01 1 9603-9801 ●
352 GAUGE; OIL THERMO & AIR PRESS
FIRE TRUCK<RA9> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83150-179-0 01 1 9802-9901 ●
352 GAUGE; OIL THERMO & AIR PRESS
L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> 		1-83150-218-0 01 1 9905- ●
352 GAUGE; OIL THERMO & AIR PRESS
V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FIRE TRUCK<RA9> 		1-83150-219-0 01 1 9905-0001 ●
352 GAUGE; OIL THERMO & AIR PRESS
V TYPE ENG<91L> FIRE TRUCK<RA9> 		1-83150-219-0 01 1 0002- ●
çizim 42078
76
BalonParca AdiParca NoAdetTipApplied Date A B C
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) ID=6 L=30 		5-09360-352-0 02 1 9603-9901 ● ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) ID=6 L=30 		5-09360-352-0 02 1 9905-9910 ● ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) ID=6 L=30 		5-09360-352-0 01 1 9911- ● ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> GOVERNOR CONTROL<W69> EXC. RLD GOVERNOR(SD7) ID=6 L=30 		5-09360-352-0 01 1 9603-9901 ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> GOVERNOR CONTROL<W69> EXC. RLD GOVERNOR(SD7) ID=6 L=30 		5-09360-352-0 01 1 9905-9910 ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) ID=6 OD=10 L=70 		1-09376-512-0 01 1 9911- ● ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> GOVERNOR CONTROL<W69> EXC. RLD GOVERNOR(SD7) ID=6 OD=10 L=70 		1-09376-512-0 01 1 9911- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
