2-30 — GEAR SHIFTER AND QUADRANT BOX (#49389) — 244 parça

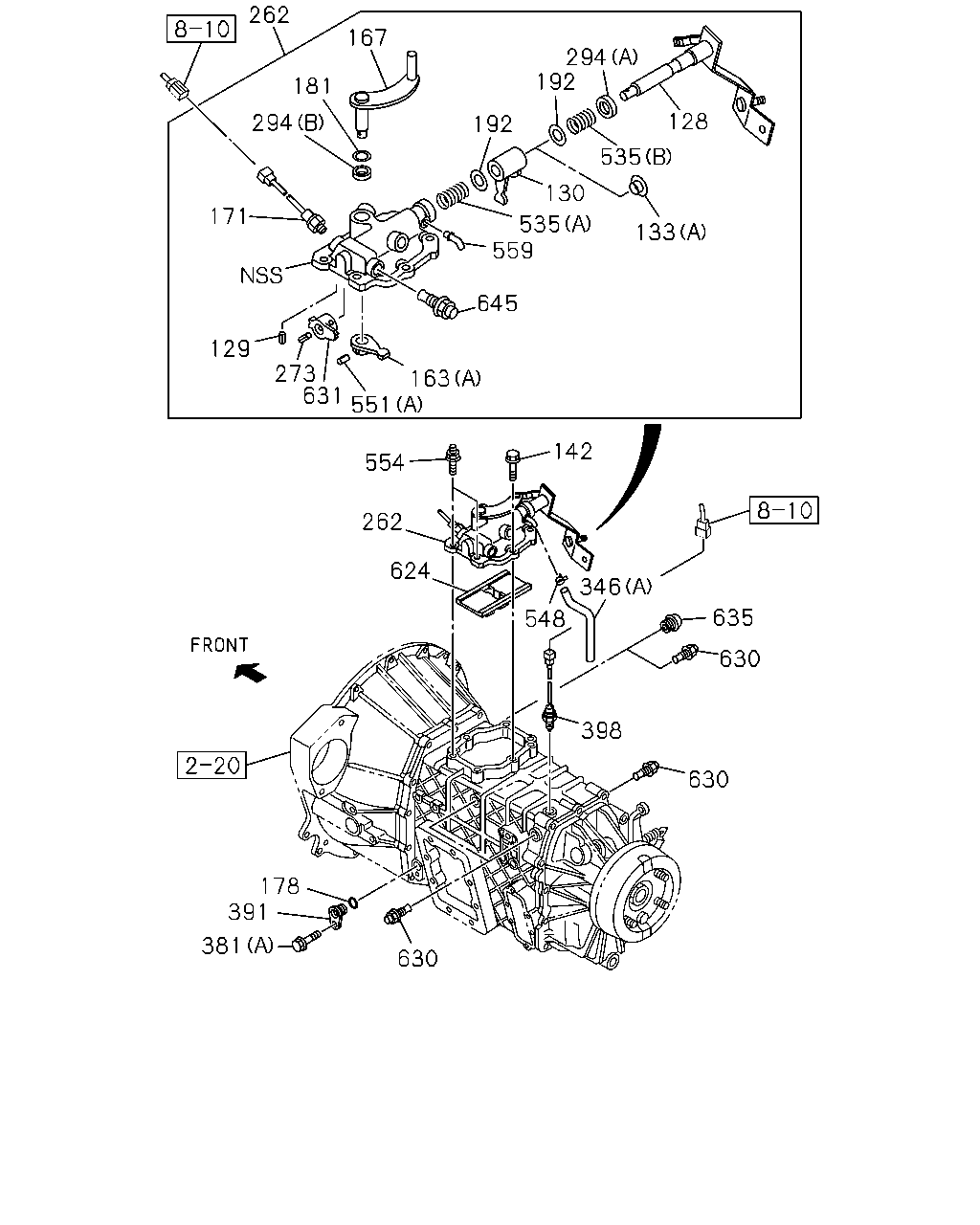

çizim 155711
262 167 294 192 181 128 294 192 535 130 171 535 559 133 645 129 273 631 163 551 142 554 262 624 346 635 548 630 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date A B C
128 04.030 LEVER; SHIFT,EXTERNAL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-725-0 01 1 0712- ●
128 04.030 LEVER; SHIFT,EXTERNAL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-595-0 01 1 0712- ●
128 04.030 LEVER; SHIFT,EXTERNAL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97363-226-0 01 1 0712- ●
129 04.027 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 0712- ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 0712- ● ● ●
133 04.027 SEAT; SPR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-667-0 01 1 0712- ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-988-0 01 1 0712- ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-989-0 01 1 0712- ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0712- ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-98020-384-0 03 1 0712- ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-98020-385-0 03 1 0712- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 0712- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-979-0 01 1 0712- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-990-0 01 1 0712- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0712- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-436-0 01 1 0712- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-444-0 01 1 0712- ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 0712-1312 ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401- ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09567-113-0 01 1 0712- ● ● ●
181 04.302 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 0712- ● ● ●
192 04.309 WASHER; PL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 01 1 0712- ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		1-09503-280-0 01 1 0712- ● ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 0712- ● ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-753-2 01 1 0712-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98241-002-1 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-399-5 01 1 0712-1010 ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98109-435-1 01 1 1011-1312 ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98241-121-1 01 1 1401- ● ● ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-592-1 01 1 0712-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-994-1 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-591-1 01 1 0712-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-993-1 01 1 1401- ●
273 04.309 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 D=4.2 L=25 		8-97103-142-0 01 1 0712- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 0712- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 0712- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0712- ● ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 0712- ● ● ●
346 04.545 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0712- ● ● ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0712- ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 04 1 0712-0906 ● ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 0907- ● ● ●
381 04.105 BOLT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 0712- ●
391 04.104 PLUG; SW HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-273-1 01 1 0712- ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98186-003-0 01 1 1107-1108 ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98186-003-0 01 1 1109-1311 ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1312- ● ● ●
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 0712-1106 ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98023-050-0 01 1 1107-1108 ● ●
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 1107-1108 ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98023-050-0 01 1 1109-1312 ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98242-173-0 01 1 1401- ● ● ●
535 04.302 SPRING; LEVER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97323-771-0 01 1 0712- ●
535 04.302 SPRING; LEVER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97323-772-0 01 1 0712- ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-659-0 01 1 0712- ● ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-660-0 01 1 0712- ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0712- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 0712- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
4JJ1-TCS ENG(LFB) 04.302 (B) L=32 		8-97011-596-2 04 1 0712- ● ●
551 04.303 PIN; SPRING
4HK1-TCS ENG(RJS) 04.302 (B) L=32 		8-97011-596-2 05 1 0712- ●
551 04.303 PIN; SPRING
4JJ1-TCS ENG(LFB) 04.302 (B) L=32 		8-97011-596-2 01 1 0712- ●
554 04.302 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0712- ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510 		8-97358-318-0 01 1 0712- ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 0712- ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 0712- ● ● ●
630 04.307 DETENT ASM
4JJ1-TCS ENG(LFB) 		8-98019-536-0 03 1 0712- ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 0712- ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 0712- ● ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0712- ● ● ●
635 04.309 PLUG; DETENT
4JJ1-TCS ENG(LFB) 00.206 		8-97380-892-0 01 1 0712- ●
645 04.311 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 		8-98019-536-0 01 1 0712- ● ● ●

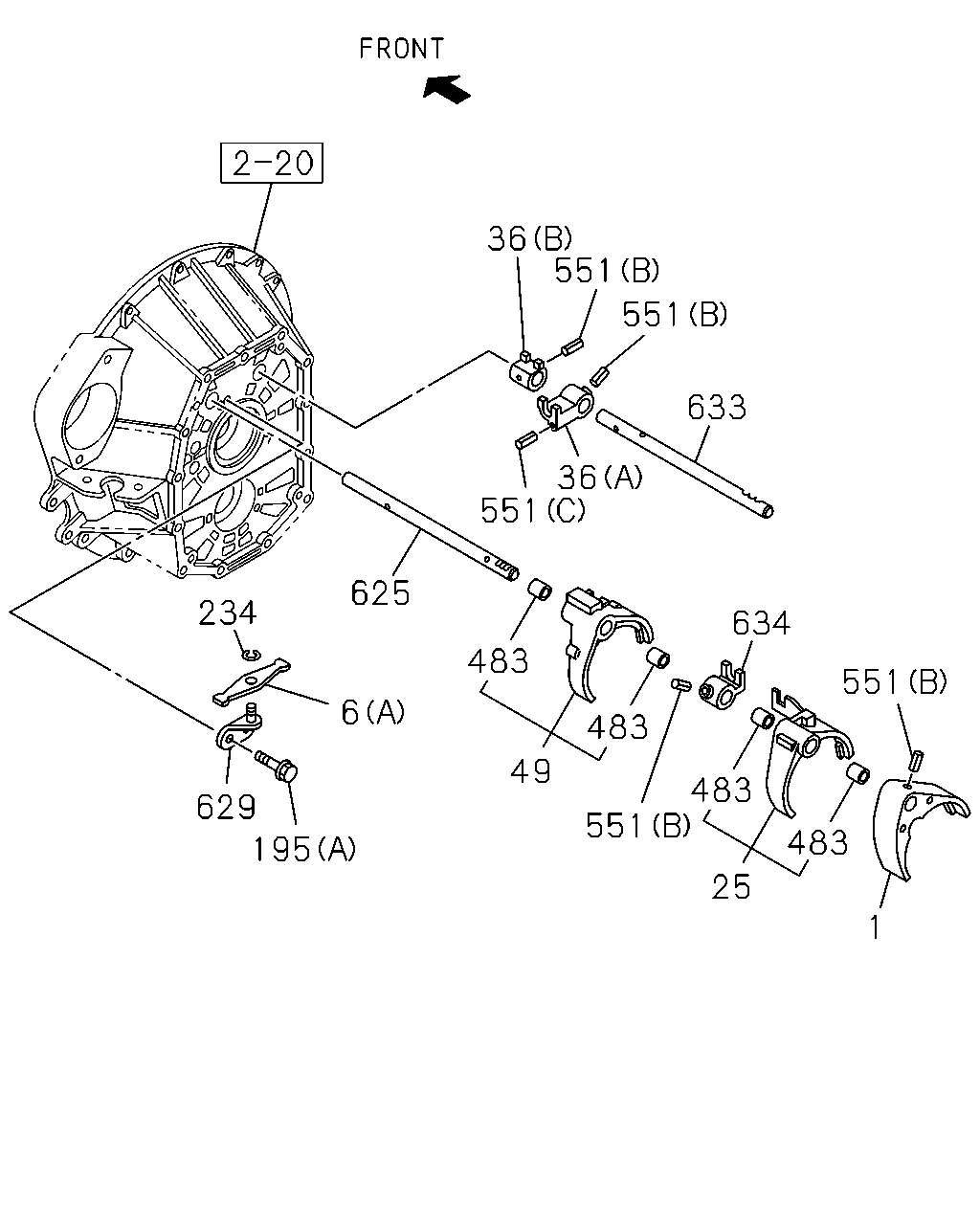

çizim 155712
36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV
4JJ1-TCS ENG(LFB) 		8-97241-320-2 01 1 0712- ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HK1-TCS ENG(RJS) 		8-97241-319-2 01 1 0712- ●
6 04.302 LEVER; RELAY
4JJ1-TCS ENG(LFB) (A) 		8-97241-344-0 01 1 0712- ●
6 04.302 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0712- ● ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4JJ1-TCS ENG(LFB) 		8-97362-731-2 01 1 0712- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HK1-TCS ENG(RJS) 		8-97362-737-1 01 1 0712- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
4JJ1-TCS ENG(LFB) (A) 		8-97241-329-1 01 1 0712- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
4JJ1-TCS ENG(LFB) (B) 		8-97241-330-0 01 1 0712- ●
49 04.302 ARM; SHIFT,4TH & 5TH
4JJ1-TCS ENG(LFB) 		8-97258-716-0 01 1 0712- ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HK1-TCS ENG(RJS) 		8-97362-738-1 01 1 0712- ●
49 04.302 ARM; SHIFT,4TH & 5TH
4JJ1-TCS ENG(LFB) 		8-97362-732-1 01 1 0712- ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0712- ● ● ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ● ●
234 04.311 RING; SNAP
4JJ1-TCS ENG(LFB) 04.307 ID=12 		8-94460-357-0 01 1 0712- ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0712- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0712- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0712- ● ●
483 04.419 BUSHING; SHIFT ARM
4HK1-TCS ENG(RJS) 00.683 		8-97241-326-2 04 1 0712- ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0712- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 0712- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
4JJ1-TCS ENG(LFB) 04.302 (B) L=32 		8-97011-596-2 04 1 0712- ● ●
551 04.303 PIN; SPRING
4HK1-TCS ENG(RJS) 04.302 (B) L=32 		8-97011-596-2 05 1 0712- ●
551 04.303 PIN; SPRING
4JJ1-TCS ENG(LFB) 04.302 (B) L=32 		8-97011-596-2 01 1 0712- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4JJ1-TCS ENG(LFB) 		8-97362-741-0 01 1 0712- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HK1-TCS ENG(RJS) 		8-97362-735-0 01 1 0712- ●
629 04.555 BRIDGE; LEVER
4JJ1-TCS ENG(LFB) 		8-97237-107-1 01 1 0712- ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 0712- ● ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98206-518-0 01 1 1202- ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
4JJ1-TCS ENG(LFB) 		8-97362-743-0 01 1 0712-1201 ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-743-0 01 1 1202- ●
634 04.303 BLOCK; SHIFT,LOW,REV
4JJ1-TCS ENG(LFB) 		8-97241-327-1 01 1 0712- ●

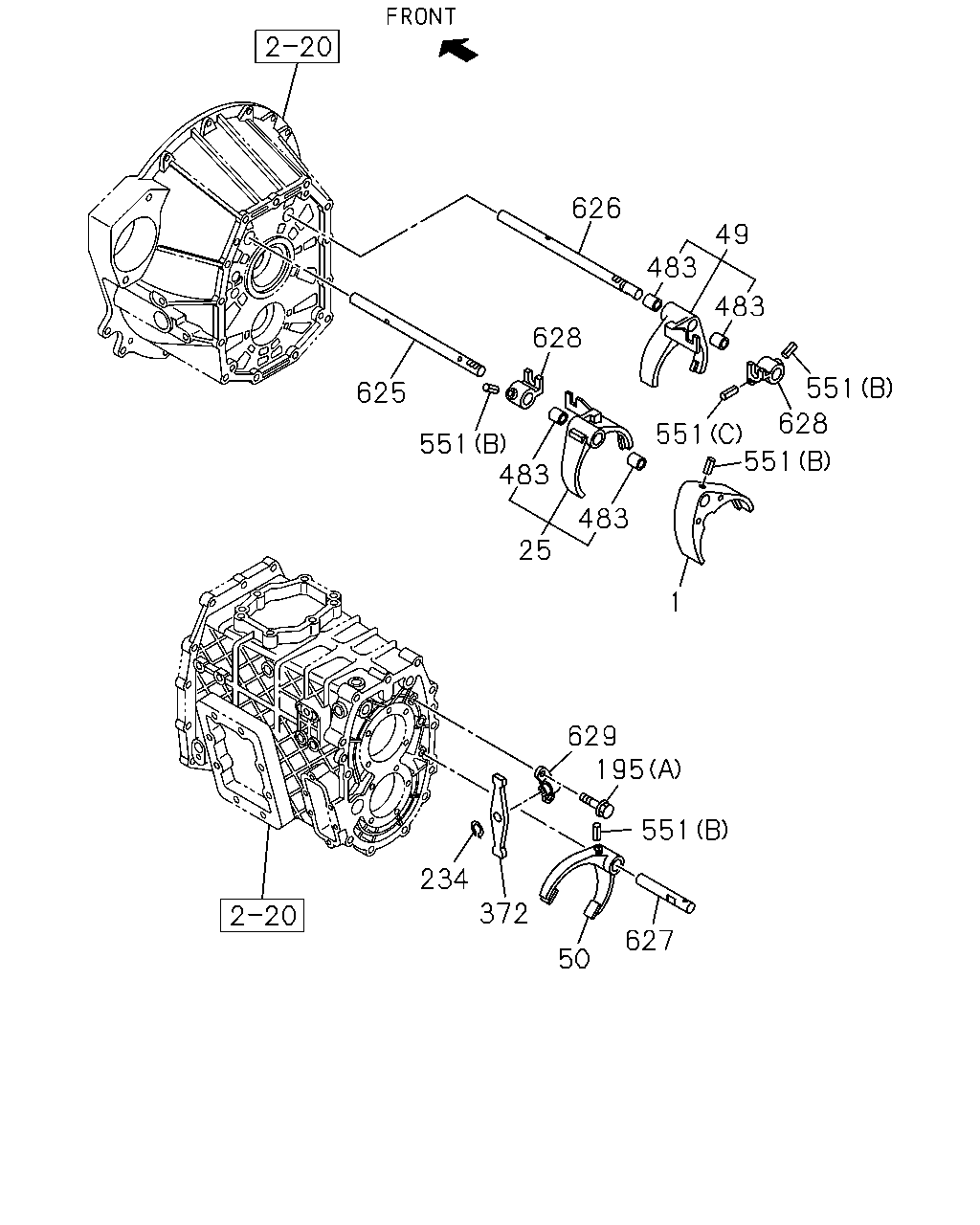

çizim 155713
626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 629 195 551 234 372 627 50
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV
4JJ1-TCS ENG(LFB) 		8-97241-320-2 01 1 0712- ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HK1-TCS ENG(RJS) 		8-97241-319-2 01 1 0712- ●
25 04.302 ARM; SHIFT,2ND & 3RD
4JJ1-TCS ENG(LFB) 		8-97362-731-2 01 1 0712- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HK1-TCS ENG(RJS) 		8-97362-737-1 01 1 0712- ●
49 04.302 ARM; SHIFT,4TH & 5TH
4JJ1-TCS ENG(LFB) 		8-97258-716-0 01 1 0712- ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HK1-TCS ENG(RJS) 		8-97362-738-1 01 1 0712- ●
49 04.302 ARM; SHIFT,4TH & 5TH
4JJ1-TCS ENG(LFB) 		8-97362-732-1 01 1 0712- ●
50 04.302 ARM; SHIFT,6TH
4HK1-TCS ENG(RJS) 		8-97241-324-1 01 1 0712- ●
50 04.302 ARM; SHIFT,6TH
4JJ1-TCS ENG(LFB) 		8-97241-325-1 01 1 0712- ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0712- ● ● ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ● ●
234 04.311 RING; SNAP
4JJ1-TCS ENG(LFB) 04.307 ID=12 		8-94460-357-0 01 1 0712- ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0712- ● ●
372 04.302 LEVER; RELAY,6TH
4HK1-TCS ENG(RJS) 		8-97241-342-0 01 1 0712- ●
372 04.302 LEVER; RELAY,6TH
4JJ1-TCS ENG(LFB) 		8-97241-343-0 01 1 0712- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0712- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0712- ● ●
483 04.419 BUSHING; SHIFT ARM
4HK1-TCS ENG(RJS) 00.683 		8-97241-326-2 04 1 0712- ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0712- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 0712- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
4JJ1-TCS ENG(LFB) 04.302 (B) L=32 		8-97011-596-2 04 1 0712- ● ●
551 04.303 PIN; SPRING
4HK1-TCS ENG(RJS) 04.302 (B) L=32 		8-97011-596-2 05 1 0712- ●
551 04.303 PIN; SPRING
4JJ1-TCS ENG(LFB) 04.302 (B) L=32 		8-97011-596-2 01 1 0712- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4JJ1-TCS ENG(LFB) 		8-97362-741-0 01 1 0712- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HK1-TCS ENG(RJS) 		8-97362-735-0 01 1 0712- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98107-548-0 01 1 0802- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HK1-TCS ENG(RJS) 		8-97383-754-0 01 1 0712-0801 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97383-754-0 01 1 0802- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4JJ1-TCS ENG(LFB) 		8-97366-024-1 01 1 0712- ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-97241-339-0 01 1 0712-0805 ● ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 0806- ● ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 0712- ● ●
629 04.555 BRIDGE; LEVER
4JJ1-TCS ENG(LFB) 		8-97237-107-1 01 1 0712- ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 0712- ● ●

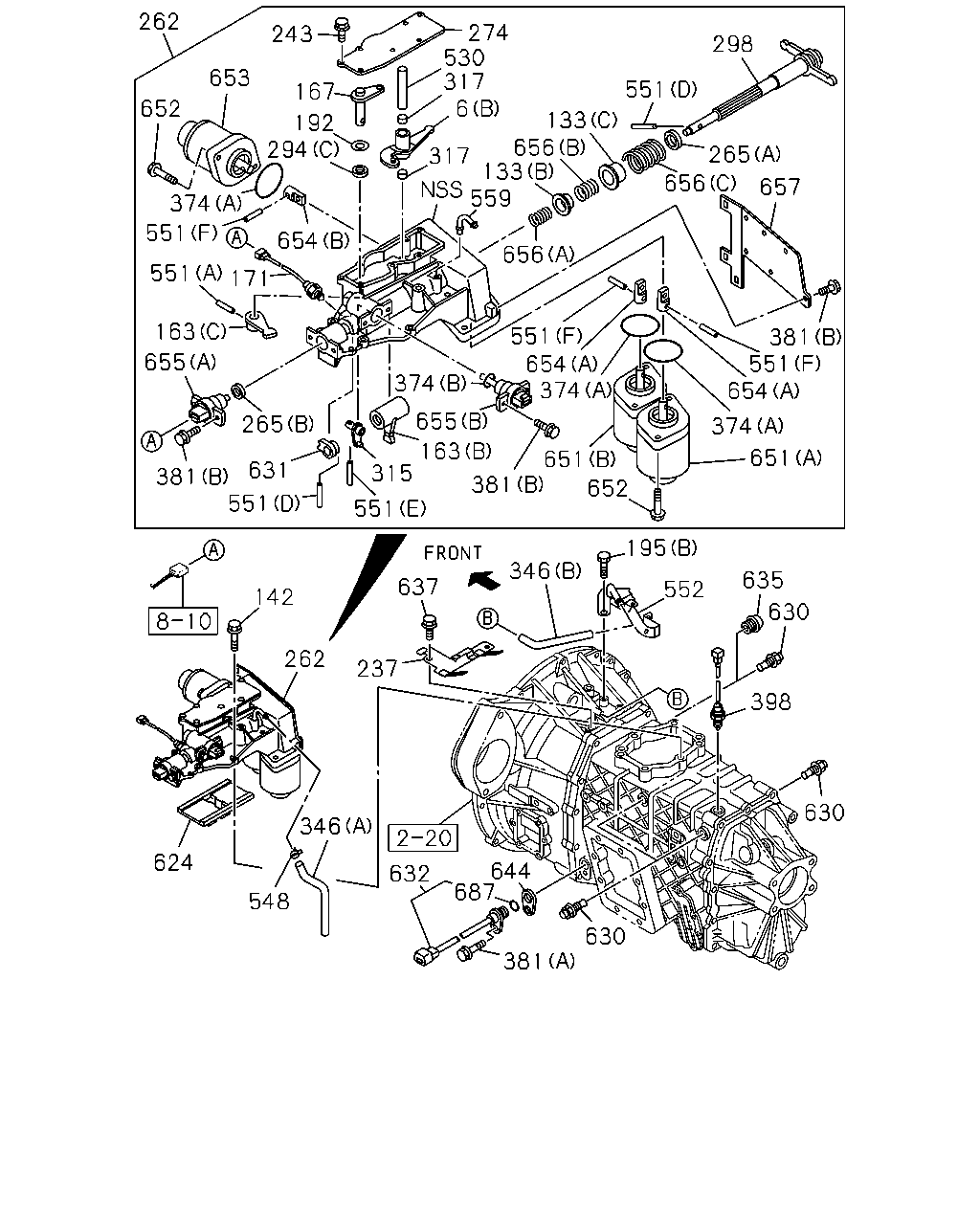

çizim 155722
262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 294 265 317 656 657 374 551 654 656 551 171 163 381 551 654 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 195 346 635 637 552 142 630 262 237 398 630 346 644 687 624 632 548 630 381
BalonParca AdiParca NoAdetTipApplied Date A B C
6 04.302 LEVER; RELAY
4JJ1-TCS ENG(LFB) (A) 		8-97241-344-0 01 1 0712- ●
6 04.302 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0712- ● ● ●
133 04.027 SEAT; SPR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-667-0 01 1 0712- ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-988-0 01 1 0712- ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-989-0 01 1 0712- ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0712- ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-98020-384-0 03 1 0712- ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-98020-385-0 03 1 0712- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 0712- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-979-0 01 1 0712- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-990-0 01 1 0712- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0712- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-436-0 01 1 0712- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-444-0 01 1 0712- ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 0712-1312 ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401- ● ● ●
192 04.309 WASHER; PL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 01 1 0712- ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		1-09503-280-0 01 1 0712- ● ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 0712- ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0712- ● ● ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ● ●
237 04.057 BRACKET; CABLE,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98018-905-1 01 1 0712- ● ● ●
243 04.105 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X12 FLANGE 		0-28050-612-0 11 1 0712-0906 ● ● ●
243 04.105 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 M6X12 FLANGE 		1-33739-842-0 11 1 0907- ● ● ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-753-2 01 1 0712-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98241-002-1 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-399-5 01 1 0712-1010 ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98109-435-1 01 1 1011-1312 ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98241-121-1 01 1 1401- ● ● ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-592-1 01 1 0712-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-994-1 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-591-1 01 1 0712-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-993-1 01 1 1401- ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97363-225-0 01 1 0712- ● ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-981-0 01 1 0712- ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-711-0 01 1 0712- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 0712- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 0712- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0712- ● ● ●
298 04.309 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 0712- ● ● ●
315 04.302 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-998-0 01 1 0712- ● ● ●
317 04.302 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0712- ● ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 0712- ● ● ●
346 04.545 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0712- ● ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-571-0 03 1 0712- ● ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97349-573-0 01 1 0712- ● ● ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0712- ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 04 1 0712-0906 ● ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 0907- ● ● ●
381 04.105 BOLT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 0712- ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98186-003-0 01 1 1107-1108 ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98186-003-0 01 1 1109-1311 ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1312- ● ● ●
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 0712-1106 ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98023-050-0 01 1 1107-1108 ● ●
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 1107-1108 ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98023-050-0 01 1 1109-1312 ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98242-173-0 01 1 1401- ● ● ●
530 04.302 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-996-0 01 1 0712- ● ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0712- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 0712- ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 0712- ● ● ●
551 04.303 PIN; SPRING
4JJ1-TCS ENG(LFB) 04.302 (B) L=32 		8-97011-596-2 04 1 0712- ● ●
551 04.303 PIN; SPRING
4HK1-TCS ENG(RJS) 04.302 (B) L=32 		8-97011-596-2 05 1 0712- ●
551 04.303 PIN; SPRING
4JJ1-TCS ENG(LFB) 04.302 (B) L=32 		8-97011-596-2 01 1 0712- ●
552 04.105 BRACKET
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-914-1 01 1 0712- ● ●
552 04.105 BRACKET
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		8-97385-018-2 01 1 0712- ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510 		8-97358-318-0 01 1 0712- ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 0712- ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 0712- ● ● ●
630 04.307 DETENT ASM
4JJ1-TCS ENG(LFB) 		8-98019-536-0 03 1 0712- ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 0712- ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 0712- ● ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0712- ● ● ●
632 04.054 SENSOR; TRANS,REV
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97315-604-1 01 1 0712- ● ● ●
635 04.309 PLUG; DETENT
4JJ1-TCS ENG(LFB) 00.206 		8-97380-892-0 01 1 0712- ●
637 04.105 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ● ●
644 04.302 SPACER; SENSOR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-489-1 01 1 0712- ●
651 04.309 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98002-759-0 01 1 0712- ● ● ●
651 04.309 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98002-760-0 01 1 0712- ● ● ●
652 04.309 BOLT; SORENOID
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X25 FLANGE 		0-28151-025-0 06 1 0712- ● ● ●
653 04.309 SOLENOID ASM; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98002-761-0 01 1 0712- ● ● ●
654 04.309 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-473-0 02 1 0712- ● ● ●
654 04.309 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97380-419-0 01 1 0712- ● ● ●
655 04.309 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-826-0 01 1 0712-1010 ● ● ●
655 04.309 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98107-823-0 01 1 1011- ● ● ●
655 04.309 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97324-827-0 01 1 0712-1010 ● ● ●
655 04.309 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98107-824-0 01 1 1011- ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-985-0 01 1 0712- ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-986-0 01 1 0712- ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-987-0 01 1 0712- ● ● ●
657 04.105 PLATE; SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-712-0 01 1 0712- ● ● ●
687 04.075 GASKET; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307 		9-09567-113-0 01 1 0712- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
