Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#49388) — 471 parça

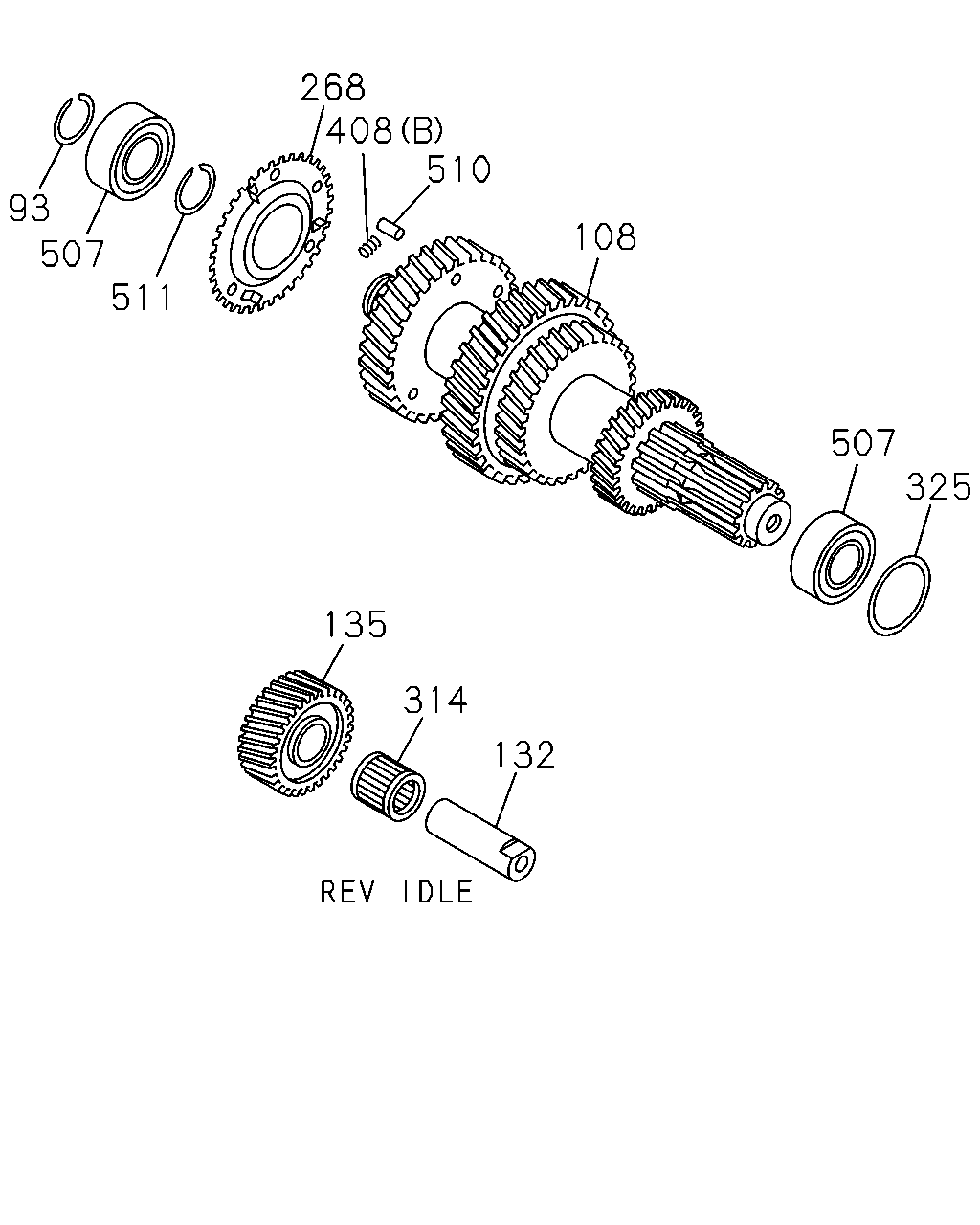

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB) ID=30.7 T=1.9	8-97254-734-0	01	1	0712-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB) ID=30.7 T=2.1	8-97254-740-0	01	1	0712-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB) ID=30.7 T=2.3	8-97254-742-0	01	1	0712-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG(RJS) ID=34.4 T=1.9	8-97254-735-0	01	1	0712-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG(RJS) ID=34.4 T=2.1	8-97254-738-0	01	1	0712-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG(RJS) ID=34.4 T=2.3	8-97254-741-0	01	1	0712-			●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20	8-97380-630-1	01	1	0712-	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97326-590-1	01	1	0712-	●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) Z=46-38-29-21	8-97349-881-0	01	1	0712-0910			●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) Z=46-38-29-21	8-98113-224-0	01	1	0911-1308			●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) Z=46-38-29-21	8-98249-489-0	01	1	1309-			●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	0712-		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0712-		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0712-	●	●	●
135	04.430 GEAR; REV IDLER 4JJ1-TCS ENG(LFB) Z=25	8-98031-869-1	01	1	0712-	●	●
135	04.430 GEAR; REV IDLER 4HK1-TCS ENG(RJS) Z=26	8-97241-292-2	01	1	0712-			●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97257-300-1	01	1	0712-	●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	0712-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0712-	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.29	8-97252-666-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.35	8-97252-667-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.41	8-97252-668-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.47	8-97252-669-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.53	8-97252-670-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.59	8-97252-671-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.65	8-97252-672-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.71	8-97252-673-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.77	8-97252-674-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.83	8-97252-675-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.89	8-97257-622-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.11	8-97306-188-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.17	8-97306-189-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.23	8-97306-190-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.38	8-97252-656-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.44	8-97252-657-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.50	8-97252-658-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.56	8-97252-659-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.62	8-97252-660-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.68	8-97252-661-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.74	8-97252-662-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.80	8-97252-663-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.86	8-97252-664-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.92	8-97252-665-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.98	8-97257-621-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.20	8-97306-185-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.26	8-97306-186-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.32	8-97306-187-0	01	1	0712-			●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0712-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0712-		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0712-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4JJ1-TCS ENG(LFB)	8-97253-107-0	02	1	0712-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HK1-TCS ENG(RJS)	8-97253-106-0	02	1	0712-			●
510	04.540 PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862	9-08160-825-0	03	1	0712-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	0712-	●	●

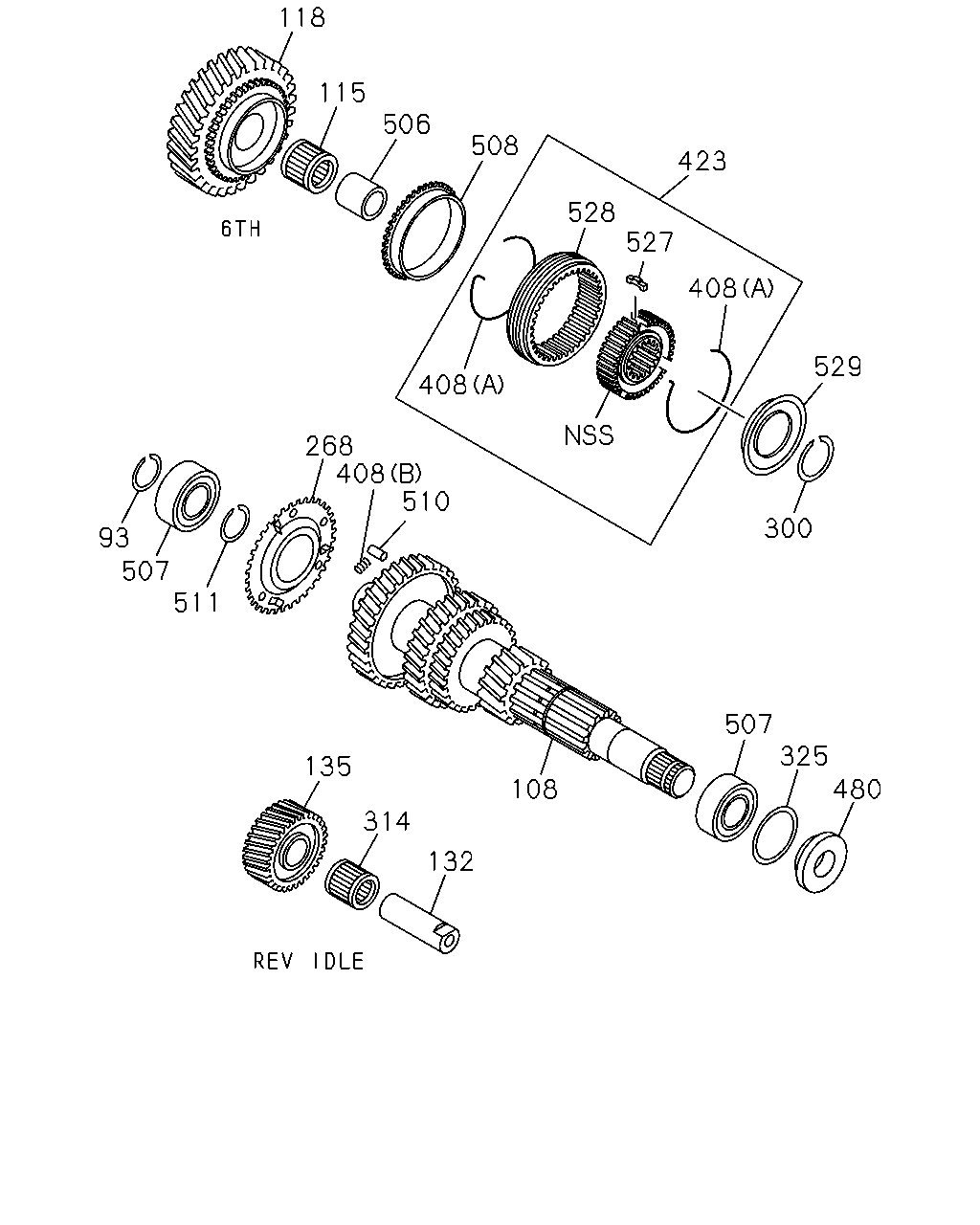

118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB) ID=30.7 T=1.9	8-97254-734-0	01	1	0712-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB) ID=30.7 T=2.1	8-97254-740-0	01	1	0712-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB) ID=30.7 T=2.3	8-97254-742-0	01	1	0712-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG(RJS) ID=34.4 T=1.9	8-97254-735-0	01	1	0712-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG(RJS) ID=34.4 T=2.1	8-97254-738-0	01	1	0712-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG(RJS) ID=34.4 T=2.3	8-97254-741-0	01	1	0712-			●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20	8-97380-630-1	01	1	0712-	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97326-590-1	01	1	0712-	●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) Z=46-38-29-21	8-97349-881-0	01	1	0712-0910			●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) Z=46-38-29-21	8-98113-224-0	01	1	0911-1308			●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) Z=46-38-29-21	8-98249-489-0	01	1	1309-			●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	0712-		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0712-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER	8-97253-113-0	01	1	0712-		●	●
118	04.421 GEAR; 6TH,COUNTER 4HK1-TCS ENG(RJS) Z=47	8-97241-246-0	01	1	0712-			●
118	04.421 GEAR; 6TH,COUNTER 4JJ1-TCS ENG(LFB) Z=50	8-97386-580-0	01	1	0712-		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0712-	●	●	●
135	04.430 GEAR; REV IDLER 4JJ1-TCS ENG(LFB) Z=25	8-98031-869-1	01	1	0712-	●	●
135	04.430 GEAR; REV IDLER 4HK1-TCS ENG(RJS) Z=26	8-97241-292-2	01	1	0712-			●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97257-300-1	01	1	0712-	●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	0712-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG(RJS) ID=33.2 T=1.7	8-97288-618-0	01	1	0712-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG(RJS) ID=33.2 T=1.8	8-97288-619-0	01	1	0712-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG(RJS) ID=33.2 T=1.9	8-97288-620-0	01	1	0712-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG(RJS) ID=33.2 T=1.6	8-97365-616-0	01	1	0712-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCS ENG(LFB) ID=30.7 T=1.7	8-97254-727-0	01	1	0712-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCS ENG(LFB) 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0712-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCS ENG(LFB) ID=30.7 T=1.9	8-97254-734-0	01	1	0712-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCS ENG(LFB) ID=30.7 T=1.6	8-97365-617-0	01	1	0712-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0712-	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.29	8-97252-666-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.35	8-97252-667-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.41	8-97252-668-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.47	8-97252-669-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.53	8-97252-670-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.59	8-97252-671-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.65	8-97252-672-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.71	8-97252-673-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.77	8-97252-674-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.83	8-97252-675-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.89	8-97257-622-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.11	8-97306-188-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.17	8-97306-189-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.23	8-97306-190-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.38	8-97252-656-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.44	8-97252-657-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.50	8-97252-658-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.56	8-97252-659-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.62	8-97252-660-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.68	8-97252-661-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.74	8-97252-662-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.80	8-97252-663-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.86	8-97252-664-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.92	8-97252-665-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.98	8-97257-621-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.20	8-97306-185-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.26	8-97306-186-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.32	8-97306-187-0	01	1	0712-			●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0712-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0712-		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0712-	●	●
423	04.384 SLEEVE & HUB ASM; 6TH 4JJ1-TCS ENG(LFB)	8-97367-022-0	01	1	0712-		●
480	04.419 WASHER; THRUST,6TH 4HK1-TCS ENG(RJS)	8-97253-122-1	01	1	0712-			●
480	04.419 WASHER; THRUST,6TH 4JJ1-TCS ENG(LFB)	8-97253-123-1	01	1	0712-		●
506	04.419 COLLAR; 6TH,COUNTER 4HK1-TCS ENG(RJS)	8-97253-120-1	01	1	0712-			●
506	04.419 COLLAR; 6TH,COUNTER 4JJ1-TCS ENG(LFB)	8-97253-121-1	01	1	0712-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4JJ1-TCS ENG(LFB)	8-97253-107-0	02	1	0712-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HK1-TCS ENG(RJS)	8-97253-106-0	02	1	0712-			●
508	04.383 RING; BLOCK,6TH 4HK1-TCS ENG(RJS) Z=45	8-97241-306-1	01	1	0712-			●
508	04.383 RING; BLOCK,6TH 4JJ1-TCS ENG(LFB) 04.395 Z=45	8-97309-532-0	01	1	0712-		●
510	04.540 PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862	9-08160-825-0	03	1	0712-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	0712-	●	●
527	04.384 INSERT; 6TH 4JJ1-TCS ENG(LFB)	8-94448-202-2	03	1	0712-		●
528	04.384 SLEEVE; 6TH 4JJ1-TCS ENG(LFB) 04.535 Z=45	8-94421-871-1	01	1	0712-		●
529	04.384 PLATE; STOPPER,6TH 4JJ1-TCS ENG(LFB)	8-97248-952-0	01	1	0712-		●

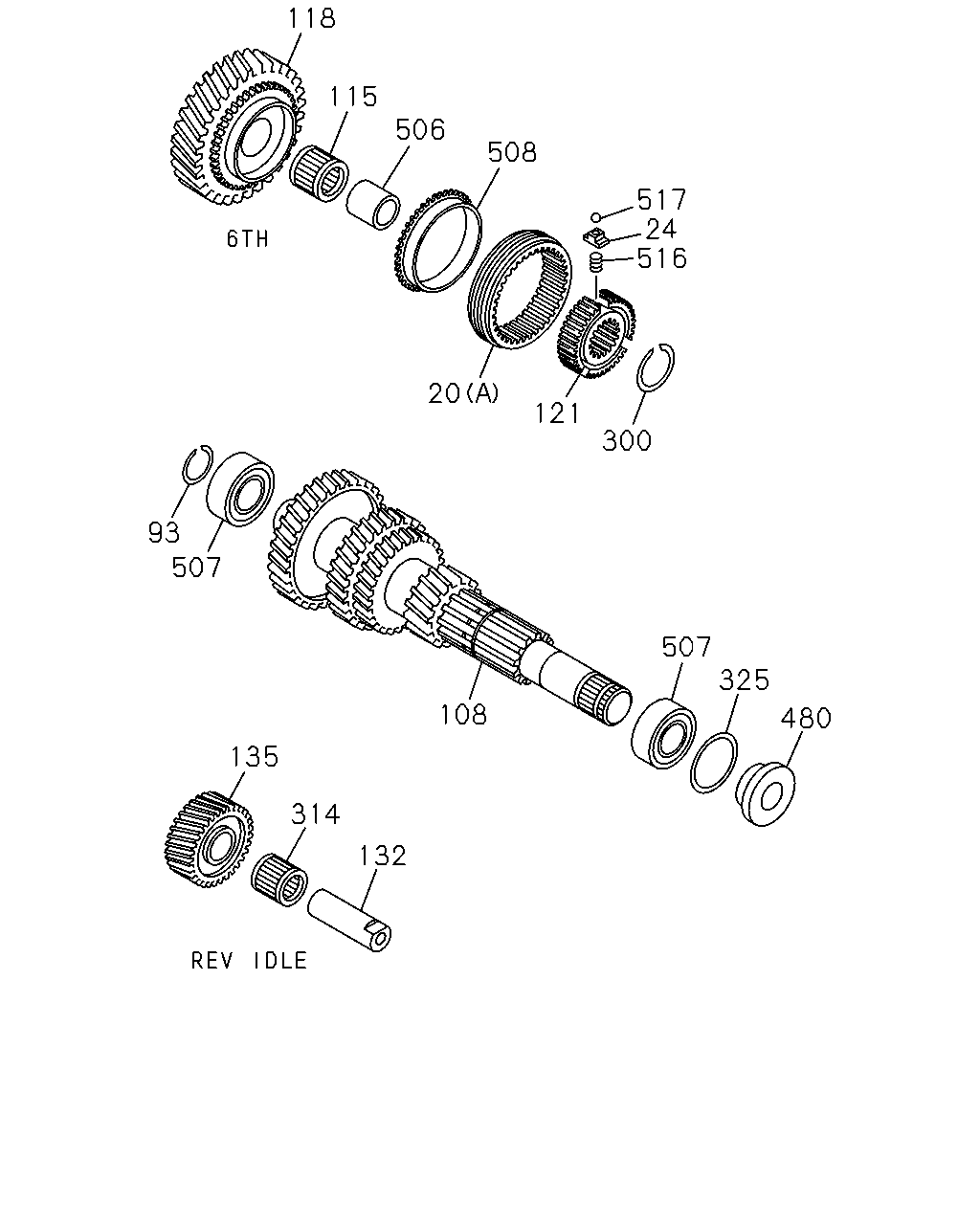

118 115 506 508 517 24 516 20 121 300 93 507 507 325 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	0712-			●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	0712-			●
20	04.383 SLEEVE 4HK1-TCS ENG(RJS) (A) Z=45	8-97241-296-1	02	1	0712-1311			●
20	04.383 SLEEVE 4HK1-TCS ENG(RJS) (A) Z=45	8-98258-279-0	02	1	1312-			●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	0712-	●	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	0712-	●	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCS ENG(RJS)	8-97241-313-1	09	1	0712-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB) ID=30.7 T=1.9	8-97254-734-0	01	1	0712-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB) ID=30.7 T=2.1	8-97254-740-0	01	1	0712-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCS ENG(LFB) ID=30.7 T=2.3	8-97254-742-0	01	1	0712-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG(RJS) ID=34.4 T=1.9	8-97254-735-0	01	1	0712-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG(RJS) ID=34.4 T=2.1	8-97254-738-0	01	1	0712-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCS ENG(RJS) ID=34.4 T=2.3	8-97254-741-0	01	1	0712-			●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20	8-97380-630-1	01	1	0712-	●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20	8-97326-590-1	01	1	0712-	●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) Z=46-38-29-21	8-97349-881-0	01	1	0712-0910			●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) Z=46-38-29-21	8-98113-224-0	01	1	0911-1308			●
108	04.428 SHAFT; COUNTER 4HK1-TCS ENG(RJS) Z=46-38-29-21	8-98249-489-0	01	1	1309-			●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	0712-		●
108	04.428 SHAFT; COUNTER 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0712-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER	8-97253-113-0	01	1	0712-		●	●
118	04.421 GEAR; 6TH,COUNTER 4HK1-TCS ENG(RJS) Z=47	8-97241-246-0	01	1	0712-			●
118	04.421 GEAR; 6TH,COUNTER 4JJ1-TCS ENG(LFB) Z=50	8-97386-580-0	01	1	0712-		●
121	04.384 HUB; CLU,6TH 4HK1-TCS ENG(RJS)	8-97241-301-2	01	1	0712-			●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0712-	●	●	●
135	04.430 GEAR; REV IDLER 4JJ1-TCS ENG(LFB) Z=25	8-98031-869-1	01	1	0712-	●	●
135	04.430 GEAR; REV IDLER 4HK1-TCS ENG(RJS) Z=26	8-97241-292-2	01	1	0712-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG(RJS) ID=33.2 T=1.7	8-97288-618-0	01	1	0712-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG(RJS) ID=33.2 T=1.8	8-97288-619-0	01	1	0712-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG(RJS) ID=33.2 T=1.9	8-97288-620-0	01	1	0712-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1-TCS ENG(RJS) ID=33.2 T=1.6	8-97365-616-0	01	1	0712-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCS ENG(LFB) ID=30.7 T=1.7	8-97254-727-0	01	1	0712-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCS ENG(LFB) 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0712-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCS ENG(LFB) ID=30.7 T=1.9	8-97254-734-0	01	1	0712-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCS ENG(LFB) ID=30.7 T=1.6	8-97365-617-0	01	1	0712-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0712-	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.29	8-97252-666-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.35	8-97252-667-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.41	8-97252-668-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.47	8-97252-669-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.53	8-97252-670-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.59	8-97252-671-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.65	8-97252-672-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.71	8-97252-673-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.77	8-97252-674-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.83	8-97252-675-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.89	8-97257-622-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.11	8-97306-188-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.17	8-97306-189-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCS ENG(LFB) ID=62.7 T=2.23	8-97306-190-0	01	1	0712-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.38	8-97252-656-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.44	8-97252-657-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.50	8-97252-658-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.56	8-97252-659-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.62	8-97252-660-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.68	8-97252-661-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.74	8-97252-662-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.80	8-97252-663-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.86	8-97252-664-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.92	8-97252-665-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.98	8-97257-621-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.20	8-97306-185-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.26	8-97306-186-0	01	1	0712-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCS ENG(RJS) ID=70 T=1.32	8-97306-187-0	01	1	0712-			●
480	04.419 WASHER; THRUST,6TH 4HK1-TCS ENG(RJS)	8-97253-122-1	01	1	0712-			●
480	04.419 WASHER; THRUST,6TH 4JJ1-TCS ENG(LFB)	8-97253-123-1	01	1	0712-		●
506	04.419 COLLAR; 6TH,COUNTER 4HK1-TCS ENG(RJS)	8-97253-120-1	01	1	0712-			●
506	04.419 COLLAR; 6TH,COUNTER 4JJ1-TCS ENG(LFB)	8-97253-121-1	01	1	0712-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4JJ1-TCS ENG(LFB)	8-97253-107-0	02	1	0712-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HK1-TCS ENG(RJS)	8-97253-106-0	02	1	0712-			●
508	04.383 RING; BLOCK,6TH 4HK1-TCS ENG(RJS) Z=45	8-97241-306-1	01	1	0712-			●
508	04.383 RING; BLOCK,6TH 4JJ1-TCS ENG(LFB) 04.395 Z=45	8-97309-532-0	01	1	0712-		●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	0712-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0712-	●	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCS ENG(RJS)	8-97305-803-1	09	1	0712-			●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	0712-			●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	0712-	●	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	0712-	●	●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCS ENG(RJS)	8-97252-935-0	09	1	0712-			●

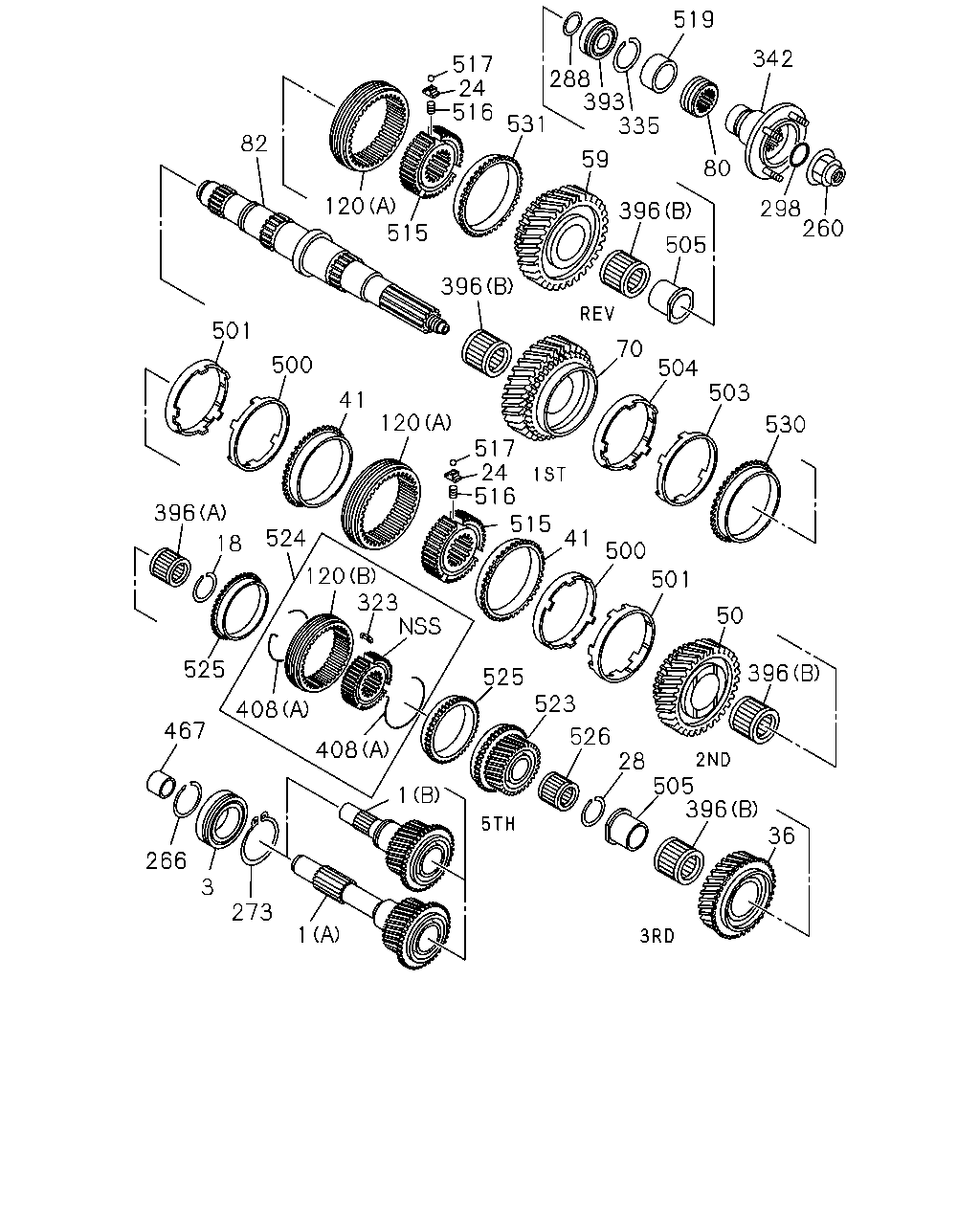

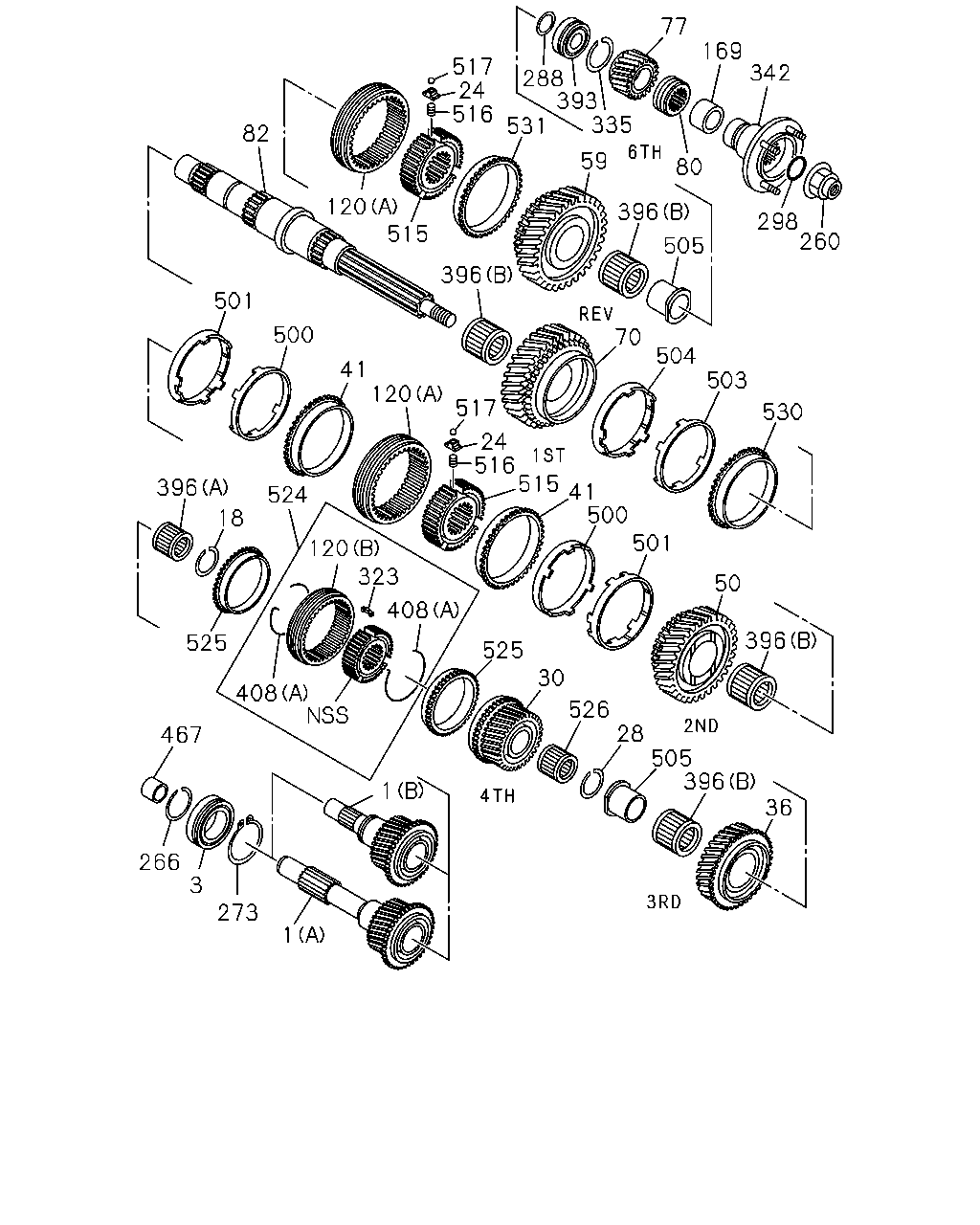

519 342 517 24 516 288 393 335 531 82 59 80 120 515 298 260 396 505 396 501 70 500 504 503 41 120 530 517 24 516 515 396 524 41 18 500 120 323 501 50 396 525 525 523 408 467 526 28 505 396 36 408 1 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	0712-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-98031-849-0	01	1	0712-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25	8-97371-090-0	01	1	0712-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25	8-97371-091-0	01	1	0712-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0712-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0712-		●
3	04.403 BEARING; TOP GEAR SHAFT 4JJ1-TCS ENG(LFB) NSK	8-97253-098-1	01	1	0712-	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HK1-TCS ENG(RJS) NSK	8-97253-097-1	01	1	0712-			●
18	04.384 RING; SNAP,CLU HUB 4JJ1-TCS ENG(LFB) ID=30.7 T=1.8	8-97254-728-0	01	1	0712-	●	●
18	04.384 RING; SNAP,CLU HUB 4HK1-TCS ENG(RJS) ID=35.7 T=1.8	8-97256-855-0	01	1	0712-			●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	0712-	●	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	0712-	●	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCS ENG(RJS)	8-97241-313-1	09	1	0712-			●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0712-	●	●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JJ1-TCS ENG(LFB) Z=34	8-97241-234-0	01	1	0712-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HK1-TCS ENG(RJS) Z=31	8-97252-630-1	01	1	0712-			●
41	04.383 RING; BLOCK,2ND & 3RD 4JJ1-TCS ENG(LFB) Z=45	8-97241-306-1	02	1	0712-	●	●
41	04.383 RING; BLOCK,2ND & 3RD 4HK1-TCS ENG(RJS) Z=54	8-97241-305-2	02	1	0712-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JJ1-TCS ENG(LFB) Z=38	8-97241-237-1	01	1	0712-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HK1-TCS ENG(RJS) Z=43	8-97241-236-1	01	1	0712-			●
59	04.417 GEAR; REV MAINSHAFT 4JJ1-TCS ENG(LFB) Z=41	8-97241-244-0	01	1	0712-	●	●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCS ENG(RJS) Z=45	8-97241-243-0	01	1	0712-			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0712-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0712-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1-TCS ENG(RJS) Z=45	8-97241-241-0	01	1	0712-			●
80	04.343 GEAR; SPD DRIVE 4JJ1-TCS ENG(LFB) Z=4	8-97253-556-0	01	1	0712-	●	●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R16C DISC 16-5.5J-127(AYS),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 215-75R 16C DISC 16-5.5J-127SILVER(CQT) Z=4	8-97253-555-0	01	1	0712-1005			●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/9(HC6) Z=4	8-97253-555-0	01	1	0712-1005			●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) Z=6	8-97327-118-0	01	1	0712-			●
82	04.403 SHAFT; MAIN,TRANS 4JJ1-TCS ENG(LFB) Z=28-42-42-21	8-97253-117-3	01	1	0712-	●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCS ENG(RJS) Z=26-42-23	8-97253-115-3	01	1	0712-			●
82	04.403 SHAFT; MAIN,TRANS 4JJ1-TCS ENG(LFB) Z=28-42-42-21	8-97253-116-3	01	1	0712-		●
120	04.383 SLEEVE 4JJ1-TCS ENG(LFB) 04.535 (B) Z=45	8-94421-871-1	01	1	0712-	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0712-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0712-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0712-	●	●	●
266	04.525 RING; SNAP,BRG INNER 4JJ1-TCS ENG(LFB)	8-97286-916-0	01	1	0712-	●	●
266	04.525 RING; SNAP,BRG INNER 4HK1-TCS ENG(RJS)	8-97286-915-0	01	1	0712-			●
273	04.525 RING; SNAP,BRG OUTER 4JJ1-TCS ENG(LFB)	8-97254-610-0	01	1	0712-	●	●
273	04.525 RING; SNAP,BRG OUTER 4HK1-TCS ENG(RJS)	8-97254-609-0	01	1	0712-			●
288	04.399 SPACER; BRG,MAINSHAFT 4JJ1-TCS ENG(LFB)	8-97252-942-0	01	1	0712-	●	●
288	04.399 SPACER; BRG,MAINSHAFT 4HK1-TCS ENG(RJS)	8-97252-941-0	01	1	0712-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB) ID=30.6 T=5.7	8-98028-226-0	01	1	0712-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG(RJS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0712-			●
323	04.384 INSERT 4JJ1-TCS ENG(LFB)	8-94448-202-2	03	1	0712-	●	●
335	04.383 RING; SNAP,BEARING 4JJ1-TCS ENG(LFB)	8-97254-722-0	01	1	0712-	●	●
335	04.383 RING; SNAP,BEARING 4HK1-TCS ENG(RJS)	8-97254-720-0	01	1	0712-			●
342	05.545 FLANGE; OUTPUT 4JJ1-TCS ENG(LFB)	8-98031-640-0	01	1	0712-	●	●
393	04.352 BEARING; MAINSHAFT END 4JJ1-TCS ENG(LFB)	8-97253-105-1	01	1	0712-	●	●
393	04.352 BEARING; MAINSHAFT END 4HK1-TCS ENG(RJS)	8-97253-104-0	01	1	0712-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0712-	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCS ENG(LFB) (A)	8-97253-102-1	01	1	0712-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1-TCS ENG(RJS) (A)	8-97253-099-1	01	1	0712-			●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0712-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0712-		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0712-	●	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0712-	●	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4JJ1-TCS ENG(LFB)	8-97241-309-1	02	1	0712-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HK1-TCS ENG(RJS)	8-97241-307-1	02	1	0712-			●
501	04.383 RING; INSIDE,3RD & 2ND 4JJ1-TCS ENG(LFB)	8-97241-312-1	02	1	0712-	●	●
501	04.383 RING; INSIDE,3RD & 2ND 4HK1-TCS ENG(RJS)	8-97241-311-1	02	1	0712-			●
503	04.383 RING; OUTSIDE,LOW & REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	0712-	●	●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-307-1	02	1	0712-			●
504	04.383 RING; INSIDE,LOW & REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	0712-	●	●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-311-1	02	1	0712-			●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0712-	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0712-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0712-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	0712-			●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	0712-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	0712-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0712-	●	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCS ENG(RJS)	8-97305-803-1	09	1	0712-			●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	0712-			●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	0712-	●	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	0712-	●	●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCS ENG(RJS)	8-97252-935-0	09	1	0712-			●
519	04.419 COLLAR; MAINSHAFT END,5TH 4JJ1-TCS ENG(LFB) 04.415	8-97252-940-0	01	1	0712-	●
523	04.395 GEAR; OD,MAINSHAFT 4JJ1-TCS ENG(LFB) Z=22	8-97241-231-0	01	1	0712-	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4JJ1-TCS ENG(LFB)	8-97366-526-0	01	1	0712-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4JJ1-TCS ENG(LFB) Z=45	8-97309-532-0	02	1	0712-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4JJ1-TCS ENG(LFB)	8-97253-112-0	01	1	0712-	●	●
530	04.383 RING; BLOCK,LOW 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0712-	●	●
530	04.383 RING; BLOCK,LOW 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	0712-			●
531	04.383 RING; BLOCK,REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	0712-	●	●
531	04.383 RING; BLOCK,REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	0712-			●

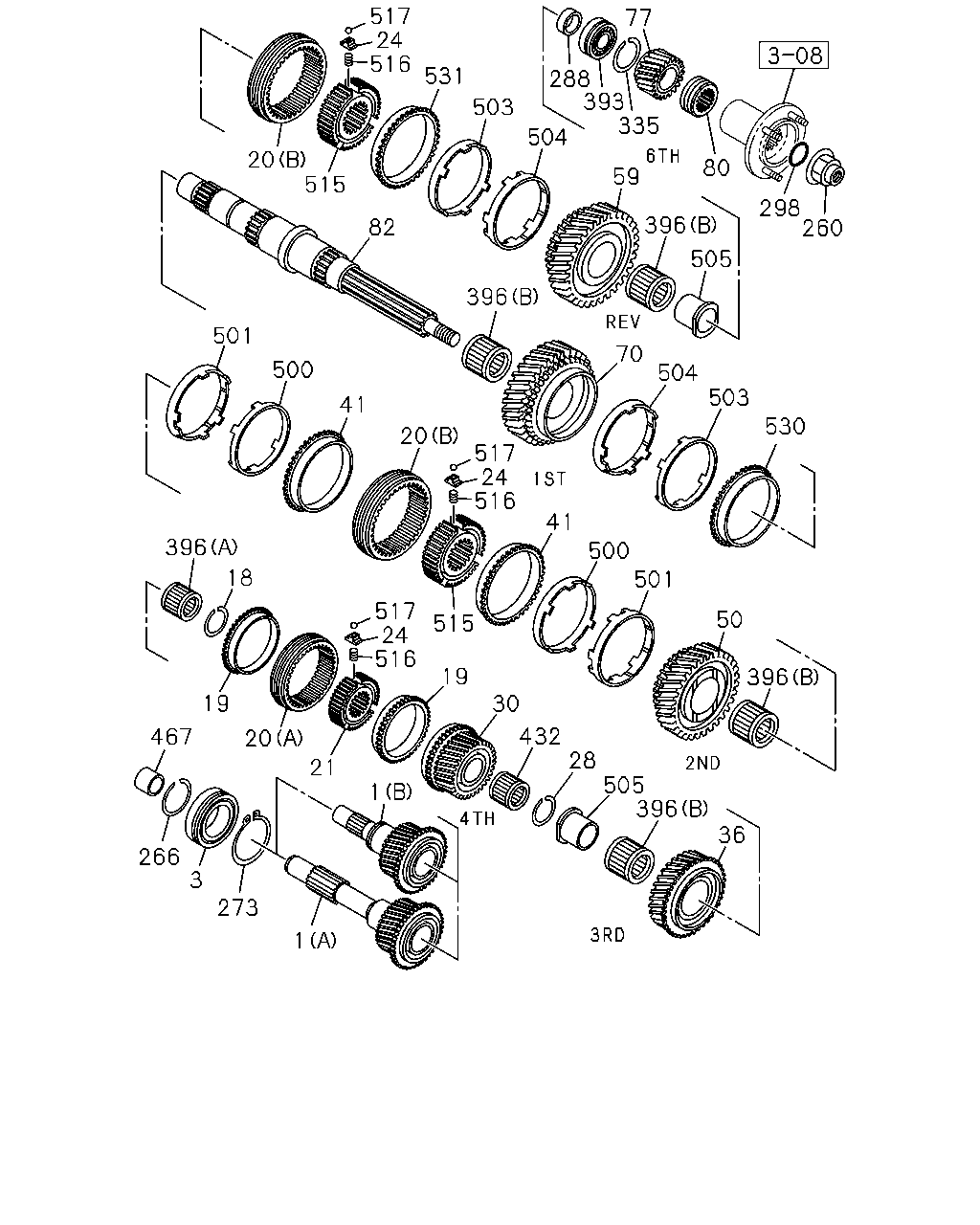

517 24 516 77 531 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 530 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 467 20 21 1 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	0712-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-98031-849-0	01	1	0712-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25	8-97371-090-0	01	1	0712-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25	8-97371-091-0	01	1	0712-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0712-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0712-		●
3	04.403 BEARING; TOP GEAR SHAFT 4JJ1-TCS ENG(LFB) NSK	8-97253-098-1	01	1	0712-	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HK1-TCS ENG(RJS) NSK	8-97253-097-1	01	1	0712-			●
18	04.384 RING; SNAP,CLU HUB 4JJ1-TCS ENG(LFB) ID=30.7 T=1.8	8-97254-728-0	01	1	0712-	●	●
18	04.384 RING; SNAP,CLU HUB 4HK1-TCS ENG(RJS) ID=35.7 T=1.8	8-97256-855-0	01	1	0712-			●
19	04.383 RING; BLOCK,4TH & 5TH 4HK1-TCS ENG(RJS) Z=45	8-97241-306-1	02	1	0712-			●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	0712-			●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	0712-			●
20	04.383 SLEEVE 4HK1-TCS ENG(RJS) (A) Z=45	8-97241-296-1	02	1	0712-1311			●
20	04.383 SLEEVE 4HK1-TCS ENG(RJS) (A) Z=45	8-98258-279-0	02	1	1312-			●
21	04.384 HUB; CLU,4TH & 5TH 4HK1-TCS ENG(RJS)	8-97241-299-3	01	1	0712-			●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	0712-	●	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	0712-	●	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCS ENG(RJS)	8-97241-313-1	09	1	0712-			●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0712-	●	●	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HK1-TCS ENG(RJS) Z=28	8-97252-628-0	01	1	0712-			●
30	04.415 GEAR; 4TH,MAINSHAFT 4JJ1-TCS ENG(LFB) Z=28	8-97241-230-0	01	1	0712-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4JJ1-TCS ENG(LFB) Z=34	8-97241-234-0	01	1	0712-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HK1-TCS ENG(RJS) Z=31	8-97252-630-1	01	1	0712-			●
41	04.383 RING; BLOCK,2ND & 3RD 4JJ1-TCS ENG(LFB) Z=45	8-97241-306-1	02	1	0712-	●	●
41	04.383 RING; BLOCK,2ND & 3RD 4HK1-TCS ENG(RJS) Z=54	8-97241-305-2	02	1	0712-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JJ1-TCS ENG(LFB) Z=38	8-97241-237-1	01	1	0712-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HK1-TCS ENG(RJS) Z=43	8-97241-236-1	01	1	0712-			●
59	04.417 GEAR; REV MAINSHAFT 4JJ1-TCS ENG(LFB) Z=41	8-97241-244-0	01	1	0712-	●	●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCS ENG(RJS) Z=45	8-97241-243-0	01	1	0712-			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0712-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0712-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1-TCS ENG(RJS) Z=45	8-97241-241-0	01	1	0712-			●
77	04.421 GEAR; 6TH,MAINSHAFT 4HK1-TCS ENG(RJS) Z=20	8-97252-634-0	01	1	0712-			●
77	04.421 GEAR; 6TH,MAINSHAFT 4JJ1-TCS ENG(LFB) Z=21	8-97386-582-0	01	1	0712-		●
80	04.343 GEAR; SPD DRIVE 4JJ1-TCS ENG(LFB) Z=4	8-97253-556-0	01	1	0712-	●	●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R16C DISC 16-5.5J-127(AYS),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 215-75R 16C DISC 16-5.5J-127SILVER(CQT) Z=4	8-97253-555-0	01	1	0712-1005			●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/9(HC6) Z=4	8-97253-555-0	01	1	0712-1005			●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) Z=6	8-97327-118-0	01	1	0712-			●
82	04.403 SHAFT; MAIN,TRANS 4JJ1-TCS ENG(LFB) Z=28-42-42-21	8-97253-117-3	01	1	0712-	●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCS ENG(RJS) Z=26-42-23	8-97253-115-3	01	1	0712-			●
82	04.403 SHAFT; MAIN,TRANS 4JJ1-TCS ENG(LFB) Z=28-42-42-21	8-97253-116-3	01	1	0712-		●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0712-	●	●	●
266	04.525 RING; SNAP,BRG INNER 4JJ1-TCS ENG(LFB)	8-97286-916-0	01	1	0712-	●	●
266	04.525 RING; SNAP,BRG INNER 4HK1-TCS ENG(RJS)	8-97286-915-0	01	1	0712-			●
273	04.525 RING; SNAP,BRG OUTER 4JJ1-TCS ENG(LFB)	8-97254-610-0	01	1	0712-	●	●
273	04.525 RING; SNAP,BRG OUTER 4HK1-TCS ENG(RJS)	8-97254-609-0	01	1	0712-			●
288	04.399 SPACER; BRG,MAINSHAFT 4JJ1-TCS ENG(LFB)	8-97252-942-0	01	1	0712-	●	●
288	04.399 SPACER; BRG,MAINSHAFT 4HK1-TCS ENG(RJS)	8-97252-941-0	01	1	0712-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB) ID=30.6 T=5.7	8-98028-226-0	01	1	0712-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG(RJS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0712-			●
335	04.383 RING; SNAP,BEARING 4JJ1-TCS ENG(LFB)	8-97254-722-0	01	1	0712-	●	●
335	04.383 RING; SNAP,BEARING 4HK1-TCS ENG(RJS)	8-97254-720-0	01	1	0712-			●
393	04.352 BEARING; MAINSHAFT END 4JJ1-TCS ENG(LFB)	8-97253-105-1	01	1	0712-	●	●
393	04.352 BEARING; MAINSHAFT END 4HK1-TCS ENG(RJS)	8-97253-104-0	01	1	0712-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0712-	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCS ENG(LFB) (A)	8-97253-102-1	01	1	0712-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1-TCS ENG(RJS) (A)	8-97253-099-1	01	1	0712-			●
432	04.419 BEARING; NEEDLE,4TH 4HK1-TCS ENG(RJS) NSK	8-97253-111-0	01	1	0712-			●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0712-	●	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4JJ1-TCS ENG(LFB)	8-97241-309-1	02	1	0712-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HK1-TCS ENG(RJS)	8-97241-307-1	02	1	0712-			●
501	04.383 RING; INSIDE,3RD & 2ND 4JJ1-TCS ENG(LFB)	8-97241-312-1	02	1	0712-	●	●
501	04.383 RING; INSIDE,3RD & 2ND 4HK1-TCS ENG(RJS)	8-97241-311-1	02	1	0712-			●
503	04.383 RING; OUTSIDE,LOW & REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	0712-	●	●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-307-1	02	1	0712-			●
504	04.383 RING; INSIDE,LOW & REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	0712-	●	●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-311-1	02	1	0712-			●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0712-	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0712-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0712-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	0712-			●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	0712-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	0712-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0712-	●	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCS ENG(RJS)	8-97305-803-1	09	1	0712-			●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	0712-			●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	0712-	●	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	0712-	●	●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCS ENG(RJS)	8-97252-935-0	09	1	0712-			●
530	04.383 RING; BLOCK,LOW 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0712-	●	●
530	04.383 RING; BLOCK,LOW 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	0712-			●
531	04.383 RING; BLOCK,REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	0712-	●	●
531	04.383 RING; BLOCK,REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	0712-			●

77 169 342 517 24 516 288 393 335 531 82 59 80 120 515 396 298 260 505 396 501 70 500 504 41 503 120 517 530 24 516 515 396 41 500 524 18 501 120 323 50 408 396 525 525 30 408 526 28 505 396 36 467 1 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	0712-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28	8-98031-849-0	01	1	0712-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25	8-97371-090-0	01	1	0712-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25	8-97371-091-0	01	1	0712-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0712-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0712-		●
3	04.403 BEARING; TOP GEAR SHAFT 4JJ1-TCS ENG(LFB) NSK	8-97253-098-1	01	1	0712-	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HK1-TCS ENG(RJS) NSK	8-97253-097-1	01	1	0712-			●
18	04.384 RING; SNAP,CLU HUB 4JJ1-TCS ENG(LFB) ID=30.7 T=1.8	8-97254-728-0	01	1	0712-	●	●
18	04.384 RING; SNAP,CLU HUB 4HK1-TCS ENG(RJS) ID=35.7 T=1.8	8-97256-855-0	01	1	0712-			●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	0712-	●	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	0712-	●	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCS ENG(RJS)	8-97241-313-1	09	1	0712-			●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0712-	●	●	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HK1-TCS ENG(RJS) Z=28	8-97252-628-0	01	1	0712-			●
30	04.415 GEAR; 4TH,MAINSHAFT 4JJ1-TCS ENG(LFB) Z=28	8-97241-230-0	01	1	0712-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4JJ1-TCS ENG(LFB) Z=34	8-97241-234-0	01	1	0712-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HK1-TCS ENG(RJS) Z=31	8-97252-630-1	01	1	0712-			●
41	04.383 RING; BLOCK,2ND & 3RD 4JJ1-TCS ENG(LFB) Z=45	8-97241-306-1	02	1	0712-	●	●
41	04.383 RING; BLOCK,2ND & 3RD 4HK1-TCS ENG(RJS) Z=54	8-97241-305-2	02	1	0712-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JJ1-TCS ENG(LFB) Z=38	8-97241-237-1	01	1	0712-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HK1-TCS ENG(RJS) Z=43	8-97241-236-1	01	1	0712-			●
59	04.417 GEAR; REV MAINSHAFT 4JJ1-TCS ENG(LFB) Z=41	8-97241-244-0	01	1	0712-	●	●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCS ENG(RJS) Z=45	8-97241-243-0	01	1	0712-			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0712-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0712-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1-TCS ENG(RJS) Z=45	8-97241-241-0	01	1	0712-			●
77	04.421 GEAR; 6TH,MAINSHAFT 4HK1-TCS ENG(RJS) Z=20	8-97252-634-0	01	1	0712-			●
77	04.421 GEAR; 6TH,MAINSHAFT 4JJ1-TCS ENG(LFB) Z=21	8-97386-582-0	01	1	0712-		●
80	04.343 GEAR; SPD DRIVE 4JJ1-TCS ENG(LFB) Z=4	8-97253-556-0	01	1	0712-	●	●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R16C DISC 16-5.5J-127(AYS),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR TIRE 215-75R 16C DISC 16-5.5J-127SILVER(CQT) Z=4	8-97253-555-0	01	1	0712-1005			●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/9(HC6) Z=4	8-97253-555-0	01	1	0712-1005			●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) Z=6	8-97327-118-0	01	1	0712-			●
82	04.403 SHAFT; MAIN,TRANS 4JJ1-TCS ENG(LFB) Z=28-42-42-21	8-97253-117-3	01	1	0712-	●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCS ENG(RJS) Z=26-42-23	8-97253-115-3	01	1	0712-			●
82	04.403 SHAFT; MAIN,TRANS 4JJ1-TCS ENG(LFB) Z=28-42-42-21	8-97253-116-3	01	1	0712-		●
120	04.383 SLEEVE 4JJ1-TCS ENG(LFB) 04.535 (B) Z=45	8-94421-871-1	01	1	0712-	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0712-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0712-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-	●	●
169	04.419 COLLAR; MAINSHAFT 4JJ1-TCS ENG(LFB)	8-97252-937-1	01	1	0712-		●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0712-	●	●	●
266	04.525 RING; SNAP,BRG INNER 4JJ1-TCS ENG(LFB)	8-97286-916-0	01	1	0712-	●	●
266	04.525 RING; SNAP,BRG INNER 4HK1-TCS ENG(RJS)	8-97286-915-0	01	1	0712-			●
273	04.525 RING; SNAP,BRG OUTER 4JJ1-TCS ENG(LFB)	8-97254-610-0	01	1	0712-	●	●
273	04.525 RING; SNAP,BRG OUTER 4HK1-TCS ENG(RJS)	8-97254-609-0	01	1	0712-			●
288	04.399 SPACER; BRG,MAINSHAFT 4JJ1-TCS ENG(LFB)	8-97252-942-0	01	1	0712-	●	●
288	04.399 SPACER; BRG,MAINSHAFT 4HK1-TCS ENG(RJS)	8-97252-941-0	01	1	0712-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB) ID=30.6 T=5.7	8-98028-226-0	01	1	0712-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG(RJS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0712-			●
323	04.384 INSERT 4JJ1-TCS ENG(LFB)	8-94448-202-2	03	1	0712-	●	●
335	04.383 RING; SNAP,BEARING 4JJ1-TCS ENG(LFB)	8-97254-722-0	01	1	0712-	●	●
335	04.383 RING; SNAP,BEARING 4HK1-TCS ENG(RJS)	8-97254-720-0	01	1	0712-			●
342	05.545 FLANGE; OUTPUT 4JJ1-TCS ENG(LFB)	8-98031-640-0	01	1	0712-	●	●
393	04.352 BEARING; MAINSHAFT END 4JJ1-TCS ENG(LFB)	8-97253-105-1	01	1	0712-	●	●
393	04.352 BEARING; MAINSHAFT END 4HK1-TCS ENG(RJS)	8-97253-104-0	01	1	0712-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0712-	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCS ENG(LFB) (A)	8-97253-102-1	01	1	0712-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1-TCS ENG(RJS) (A)	8-97253-099-1	01	1	0712-			●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0712-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0712-		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0712-	●	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0712-	●	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4JJ1-TCS ENG(LFB)	8-97241-309-1	02	1	0712-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HK1-TCS ENG(RJS)	8-97241-307-1	02	1	0712-			●
501	04.383 RING; INSIDE,3RD & 2ND 4JJ1-TCS ENG(LFB)	8-97241-312-1	02	1	0712-	●	●
501	04.383 RING; INSIDE,3RD & 2ND 4HK1-TCS ENG(RJS)	8-97241-311-1	02	1	0712-			●
503	04.383 RING; OUTSIDE,LOW & REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	0712-	●	●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-307-1	02	1	0712-			●
504	04.383 RING; INSIDE,LOW & REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	0712-	●	●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-311-1	02	1	0712-			●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0712-	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0712-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0712-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	0712-			●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	0712-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	0712-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0712-	●	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCS ENG(RJS)	8-97305-803-1	09	1	0712-			●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	0712-			●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	0712-	●	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	0712-	●	●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCS ENG(RJS)	8-97252-935-0	09	1	0712-			●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4JJ1-TCS ENG(LFB)	8-97366-526-0	01	1	0712-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4JJ1-TCS ENG(LFB) Z=45	8-97309-532-0	02	1	0712-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4JJ1-TCS ENG(LFB)	8-97253-112-0	01	1	0712-	●	●
530	04.383 RING; BLOCK,LOW 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0712-	●	●
530	04.383 RING; BLOCK,LOW 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	0712-			●
531	04.383 RING; BLOCK,REV 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	0712-	●	●
531	04.383 RING; BLOCK,REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	0712-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
