◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#4938) — 22 parça

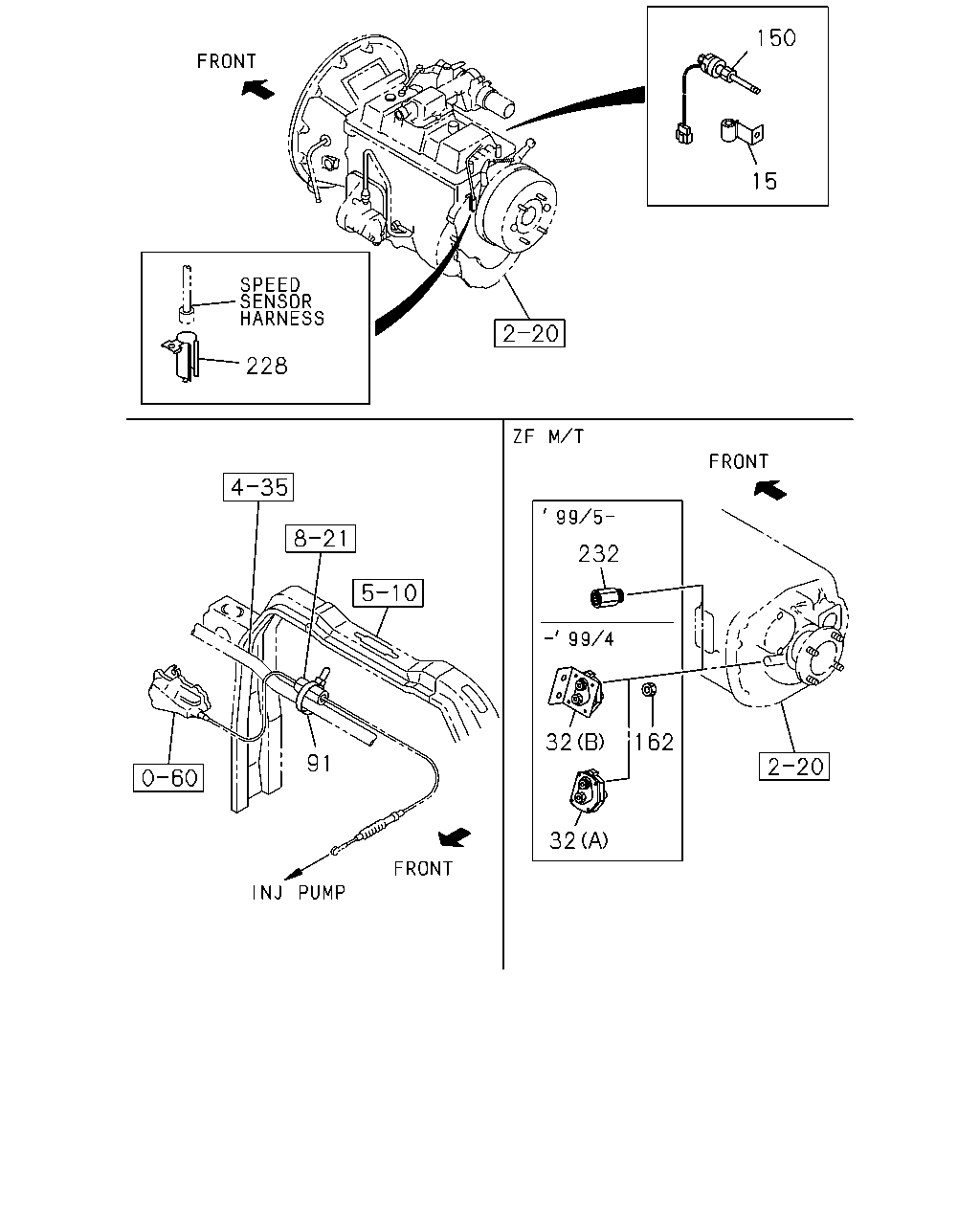

çizim 39742
150 15 228 232 32 162 91 32
BalonParca AdiParca NoAdetTipApplied Date A B C
15 CLIP; BAND,HARNESS
8PE1S(59L),10PE1S(60L) ID=6 H=25 L=21 		1-09700-432-0 01 1 9603-9901 ● ●
15 CLIP; BAND,HARNESS
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=6 H=25 L=21 		1-09700-432-0 01 1 9905- ● ●
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-83126-262-0 01 1 9603-9702 ● ●
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-83126-409-0 01 1 9703-9901 ● ●
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (B) 		1-83126-409-0 01 1 9902-9904 ● ●
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-0 02 1 9603-9901 ● ●
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-1 02 1 9905-9910 ● ●
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-1 01 1 9911- ● ●
91 CLIP; BAND
V TYPE ENG<91L> GOVERNOR CONTROL<W69> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-0 01 1 9603-9901 ●
91 CLIP; BAND
V TYPE ENG<91L> GOVERNOR CONTROL<W69> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-1 01 1 9905-9910 ●
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=250 		1-09707-126-0 01 1 9911- ● ●
91 CLIP; BAND
V TYPE ENG<91L> GOVERNOR CONTROL<W69> EXC. RLD GOVERNOR(SD7) L=250 		1-09707-126-0 01 1 9911- ●
132 SENSOR; SPD,SPEEDOMETER
8PE1S(59L),10PE1S(60L) 		1-83127-115-0 01 1 9901-9901 ● ●
132 SENSOR; SPD,SPEEDOMETER
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) 		1-83127-115-0 01 1 9905- ● ●
150 SENSOR; SPEED,ABS
8PE1S(59L),10PE1S(60L) 		1-83127-115-0 01 1 9603-9901 ● ●
162 NUT; GEAR BOX
TRANSMISSION-ZF 16S151 OD(Y2N) M22 		9-83111-951-0 01 1 9603-9809 ● ●
162 NUT; GEAR BOX
TRANSMISSION-ZF 16S151 OD(Y2N) M22 		1-80249-005-0 01 1 9810-9901 ● ●
162 NUT; GEAR BOX
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M22 		1-80249-005-0 01 1 9902-9904 ● ●
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 9902-9904 ● ●
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 9905- ● ● ●
232 ADAPTER; SPEED SENSOR
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-80249-006-0 01 1 9905-9909 ● ●
232 ADAPTER; SPEED SENSOR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-80249-006-0 01 1 9910- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
