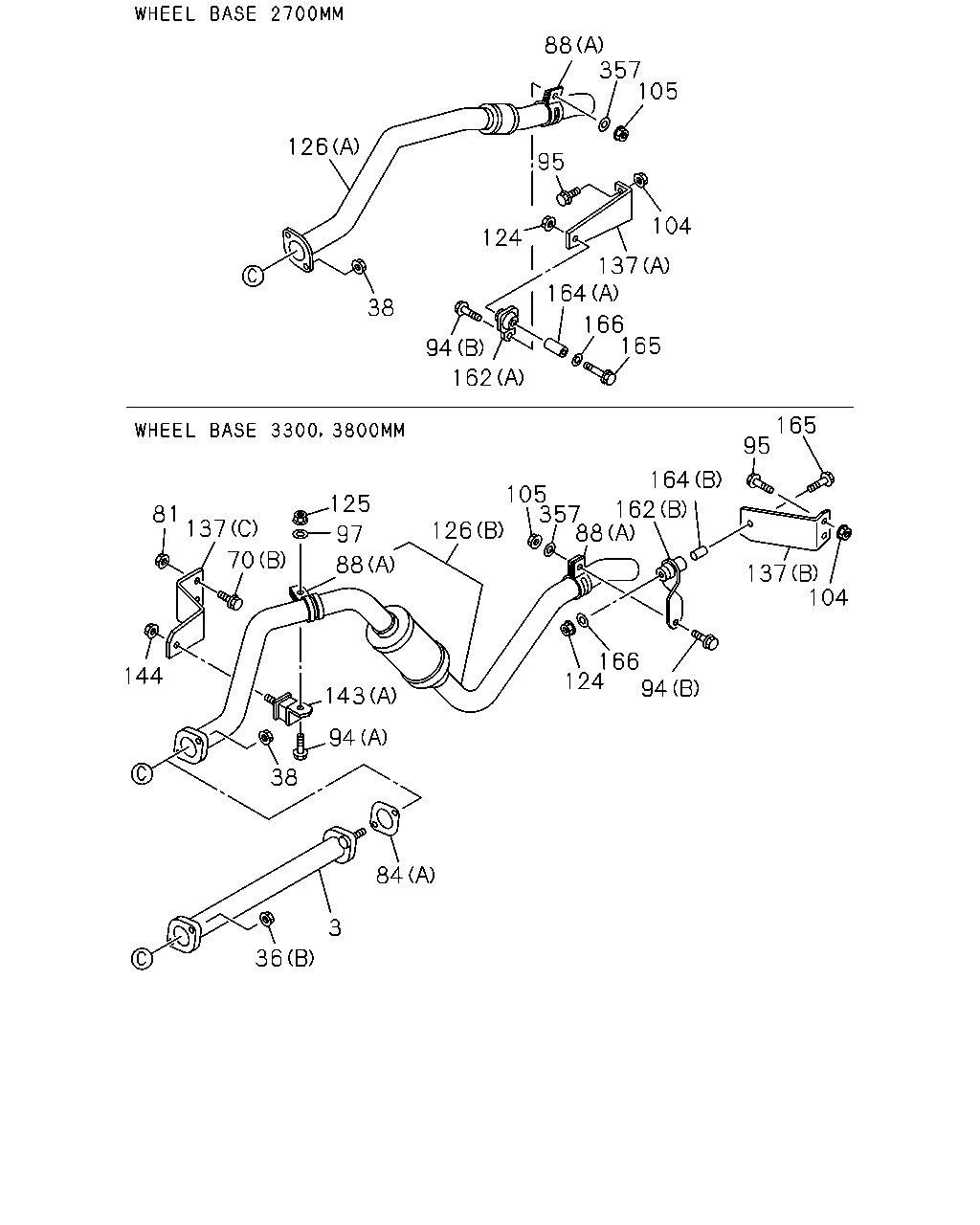

1-50 — EXHAUST PIPE AND SILENCER (#49376) — 513 parça

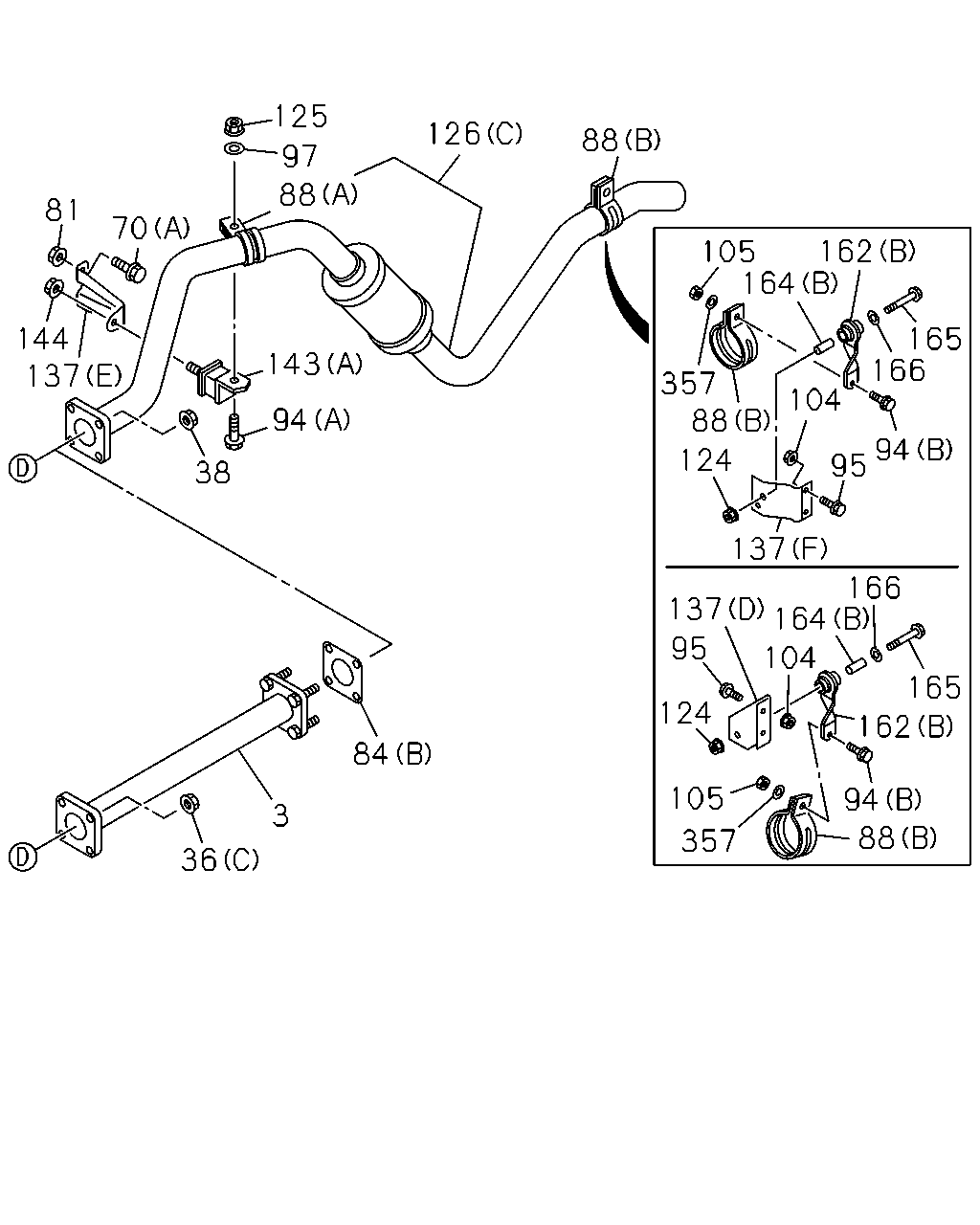

88 357 105 126 95 104 124 137 164 38 166 165 94 162 165 95 164 105 162 357 88 125 81 137 126 97 70 88 137 104 166 124 94 144 143 94 38 84 3 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W)	8-98005-237-0	01	1	0712-	●	●	●	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W)	8-98020-602-0	01	1	0712-0909		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W)	8-98020-602-0	01	1	0910-		●		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W)	8-98099-061-0	01	1	0712-		●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W)	8-97387-264-0	01	1	0712-0909		●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W)	8-97387-264-0	01	1	0910-		●		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W)	8-98099-062-0	01	1	0712-		●		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0712-	●	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0712-		●		●
38	00.002 NUT; SILENCER 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
38	00.002 NUT; SILENCER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0712-		●		●
70	03.706 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
70	03.706 BOLT; BRKT 4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●		●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
81	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-		●		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) ID=65	8-97148-757-1	01	1	0712-	●	●	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.704 (B)	1-22116-043-0	01	1	0712-		●		●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (B)	1-22116-043-0	01	1	0712-		●		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) (A)	8-97373-158-0	01	1	0712-0909	●	●	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-97373-158-0	01	1	0712-0909	●			●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-97373-158-0	01	1	0712-0909		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) (A)	8-97373-158-0	01	1	0712-0909			●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) (A)	8-97373-158-0	01	1	0910-	●	●	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-97373-158-0	01	1	0910-	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-97373-158-0	01	1	0910-		●		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) (A)	8-97373-158-0	01	1	0910-			●
88	03.708 CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-98034-766-0	01	1	0712-		●		●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0712-	●	●	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0712-	●	●	●	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0712-		●		●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0712-		●		●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-		●		●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0712-	●	●	●	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0712-		●		●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-		●		●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-		●		●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0712-	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-		●		●
125	03.708 NUT; CLAMP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10	0-91110-510-0	01	1	0712-	●	●	●	●
125	03.708 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	0712-		●		●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98020-604-0	01	1	0712-	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-98079-101-0	01	1	0712-	●	●	●	●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C)	8-98045-047-0	01	1	0712-		●		●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C)	8-98099-064-0	01	1	0712-		●		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-97387-256-1	01	1	0712-	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-98001-913-0	01	1	0712-	●	●	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C)	8-98019-904-2	01	1	0712-	●	●	●	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) 03.613 (E)	8-97096-651-0	01	1	0712-		●		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F)	8-97116-588-2	01	1	0712-		●		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D)	8-97185-801-0	01	1	0712-		●		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (B)	8-97080-694-0	01	1	0712-	●	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98034-767-0	01	1	0712-	●	●	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (A)	8-98034-767-0	01	1	0712-		●		●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (C)	8-94457-277-1	01	1	0712-		●		●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (D)	8-94457-278-1	01	1	0712-		●		●
144	03.613 NUT; MTG RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●	●
144	03.613 NUT; MTG RUBBER 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-		●		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98032-151-0	01	1	0712-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=115	8-98034-765-0	01	1	0712-0909	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (B) L=115	8-98034-765-0	01	1	0712-0909		●		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=115	8-98034-765-0	01	1	0910-	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) L=115	8-98034-765-0	01	1	0910-		●		●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A) L=23	8-98006-011-0	01	1	0712-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=37.5	9-22151-217-0	01	1	0712-0909	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (B) L=37.5	9-22151-217-0	01	1	0712-0909		●		●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=37.5	9-22151-217-0	01	1	0910-	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) L=37.5	9-22151-217-0	01	1	0910-		●		●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	0712-	●	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X70 FLANGE	0-28051-070-0	01	1	0712-	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) M10X70 FLANGE	0-28051-070-0	01	1	0712-		●		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0712-	●	●	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0712-	●	●	●	●

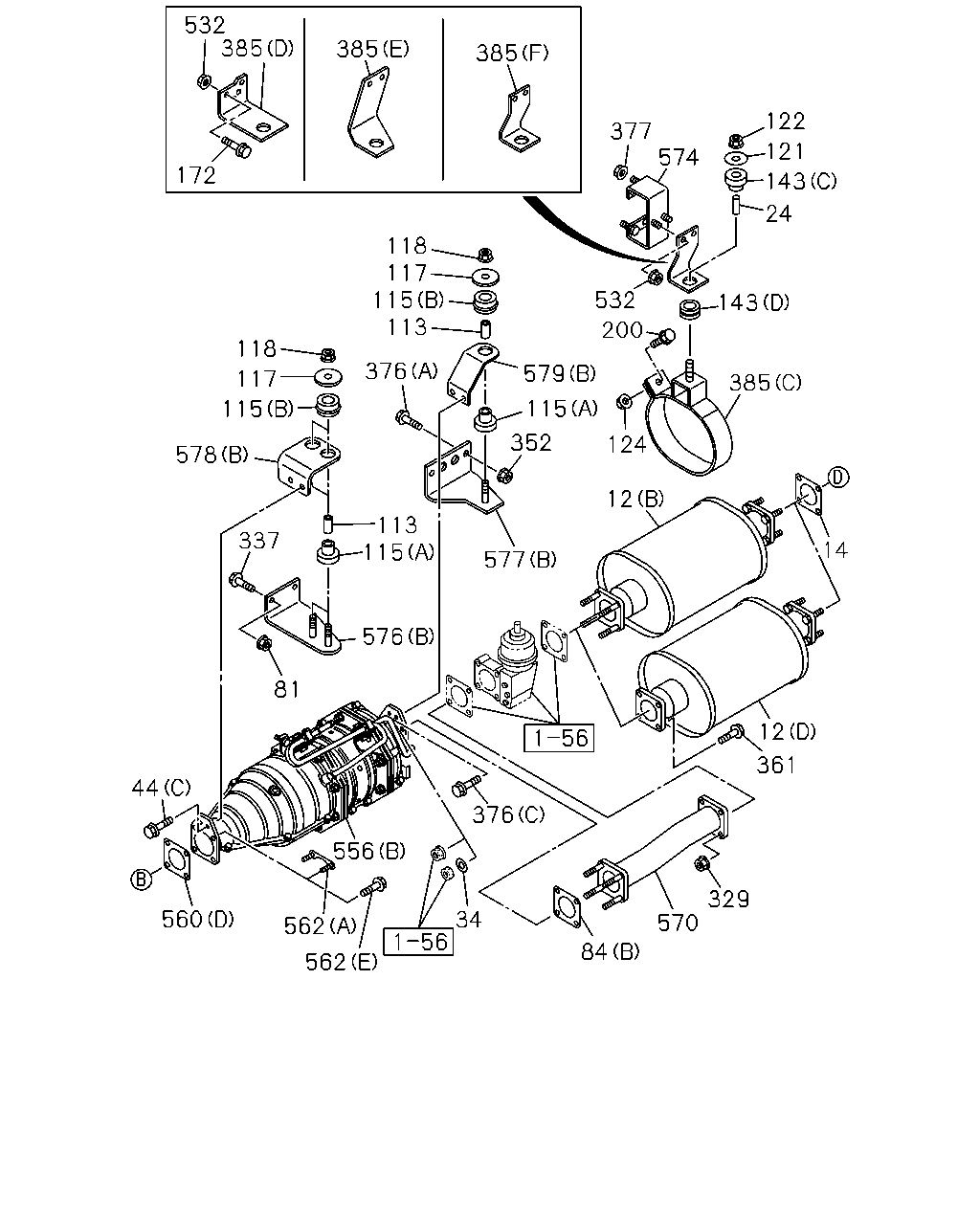

532 385 38 385 122 377 574 121 172 143 24 118 117 115 113 532 143 200 118 376 579 117 385 115 115 352 124 578 12 113 115 337 14 577 576 81 12 361 44 376 556 329 570 560 34 562 84 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-241-0	01	1	1204-1308	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98254-792-0	01	1	1309-	●	●	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98214-243-0	01	1	1204-		●		●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) (A)	8-97387-244-1	01	1	0712-1203	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97387-244-1	01	1	1204-1308	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98254-780-0	01	1	1309-	●	●	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98020-562-1	01	1	0712-1203		●		●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98020-562-1	01	1	1204-		●		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB) 03.611 ID=65	8-97148-757-1	01	1	0712-	●	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCS ENG(RJS)	1-22116-043-0	01	1	0712-		●		●
24	03.613 COLLAR; DIST,CLAMP 4HK1-TCS ENG(RJS) 03.706 L=37.5	9-22151-217-0	01	1	0712-		●		●
34	03.613 WASHER; EXH PIPE 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1204-	●		●
34	03.613 WASHER; EXH PIPE IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1204-		●		●
38	00.002 NUT; SILENCER 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
38	00.002 NUT; SILENCER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0712-		●		●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0712-	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0712-	●	●	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
81	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-		●		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) ID=65	8-97148-757-1	01	1	0712-	●	●	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.704 (B)	1-22116-043-0	01	1	0712-		●		●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (B)	1-22116-043-0	01	1	0712-		●		●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCS ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	0712-	●	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCS ENG(RJS) 03.706 L=37.5	9-22151-217-0	03	1	0712-		●		●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (A)	8-94457-277-1	02	1	0712-	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (B)	8-94457-278-1	02	1	0712-	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	03	1	0712-		●		●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	03	1	0712-		●		●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) OD=55	9-09852-169-0	02	1	0712-	●	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCS ENG(RJS) OD=55	9-09852-169-0	03	1	0712-		●		●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	0712-	●	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCS ENG(RJS) 07.874 M10 FLANGE	5-09440-006-0	03	1	0712-		●		●
121	03.704 WASHER; PL,BRKT 4HK1-TCS ENG(RJS) OD=55	9-09852-169-0	01	1	0712-		●		●
122	03.275 NUT; HANGER BRKT 4HK1-TCS ENG(RJS) 07.874 M10 FLANGE	5-09440-006-0	01	1	0712-		●		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-		●		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (B)	8-97080-694-0	01	1	0712-	●	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98034-767-0	01	1	0712-	●	●	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (A)	8-98034-767-0	01	1	0712-		●		●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (C)	8-94457-277-1	01	1	0712-		●		●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (D)	8-94457-278-1	01	1	0712-		●		●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0712-	●	●	●	●
172	03.708 BOLT 4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0712-		●		●
200	03.704 BOLT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0712-		●		●
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0712-		●		●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0712-	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
352	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BAS E 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-		●		●
361	03.704 BOLT; EXH PIPE TO PIPE 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1204-	●		●
361	03.704 BOLT; EXH PIPE TO PIPE IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1204-		●		●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.890 (D) M10X30 FLANGE	0-28051-030-0	02	1	1206-	●	●	●	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.690 (B) W/PLATE	8-98005-985-0	01	1	0712-1205	●	●	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (B) W/PLATE	8-98005-985-0	01	1	1206-	●	●	●	●
376	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0712-		●		●
377	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-		●		●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98001-889-1	01	1	0712-	●	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97387-251-1	01	1	0712-	●	●	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E)	8-98073-376-0	01	1	0712-0909		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E)	8-98073-376-0	01	1	0910-		●		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (F)	8-98006-774-0	01	1	0712-		●		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BAS E 4400MM(44W) (C)	8-98006-776-1	01	1	0712-		●		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (D)	8-98073-377-0	01	1	0712-		●		●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-		●		●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●	●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-		●		●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB) (A)	8-98036-810-7	01	1	0712-1011	●	●	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB) (A)	8-98084-595-3	01	1	1012-	●	●	●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) (B)	8-98039-162-6	01	1	0712-1010		●		●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) (B)	8-98084-602-3	01	1	1011-		●		●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-97331-947-0	02	1	0712-	●	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (B) ID=64	8-97373-108-0	01	1	0712-	●	●	●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (D)	1-22116-040-0	01	1	0712-		●		●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (C)	8-97611-080-0	02	1	0712-		●		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (C) M8X35 FLANGE	0-28050-835-0	04	1	1206-	●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1206-		●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (E) M12X35 FLANGE	0-28051-235-0	04	1	1206-		●		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (A)	8-97373-966-0	02	1	0712-1205	●	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97373-966-0	02	1	1206-	●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) 03.685 (A) M12X35	1-22131-963-0	02	1	0712-1205		●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A)	1-22131-962-0	02	1	1206-		●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) (B)	8-98030-175-0	01	1	0712-1205		●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1206-		●		●
570	03.704 ADAPTER; EXH PIPE 4HK1-TCS ENG(RJS)	8-98073-373-0	01	1	0712-		●		●
574	03.706 SPACER; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W)	8-98044-774-0	01	1	0712-0810		●
574	03.706 SPACER; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W)	8-98044-774-0	01	1	0811-		●		●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCS ENG(LFB) (A)	8-97387-245-0	01	1	0712-	●	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCS ENG(RJS) (B)	8-98006-770-0	01	1	0712-		●		●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCS ENG(LFB) (A)	8-97387-246-2	01	1	0712-	●	●	●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCS ENG(RJS) (B)	8-98048-292-1	01	1	0712-		●		●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (A)	8-97387-248-1	01	1	0712-	●	●	●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCS ENG(RJS) (B)	8-98048-296-0	01	1	0712-		●		●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (A)	8-97387-249-1	01	1	0712-	●	●	●	●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (B)	8-98048-300-1	01	1	0712-		●		●

2 568 25 36 1 44 8 44 43 562 25 2 562 43 568 44 8 1 36

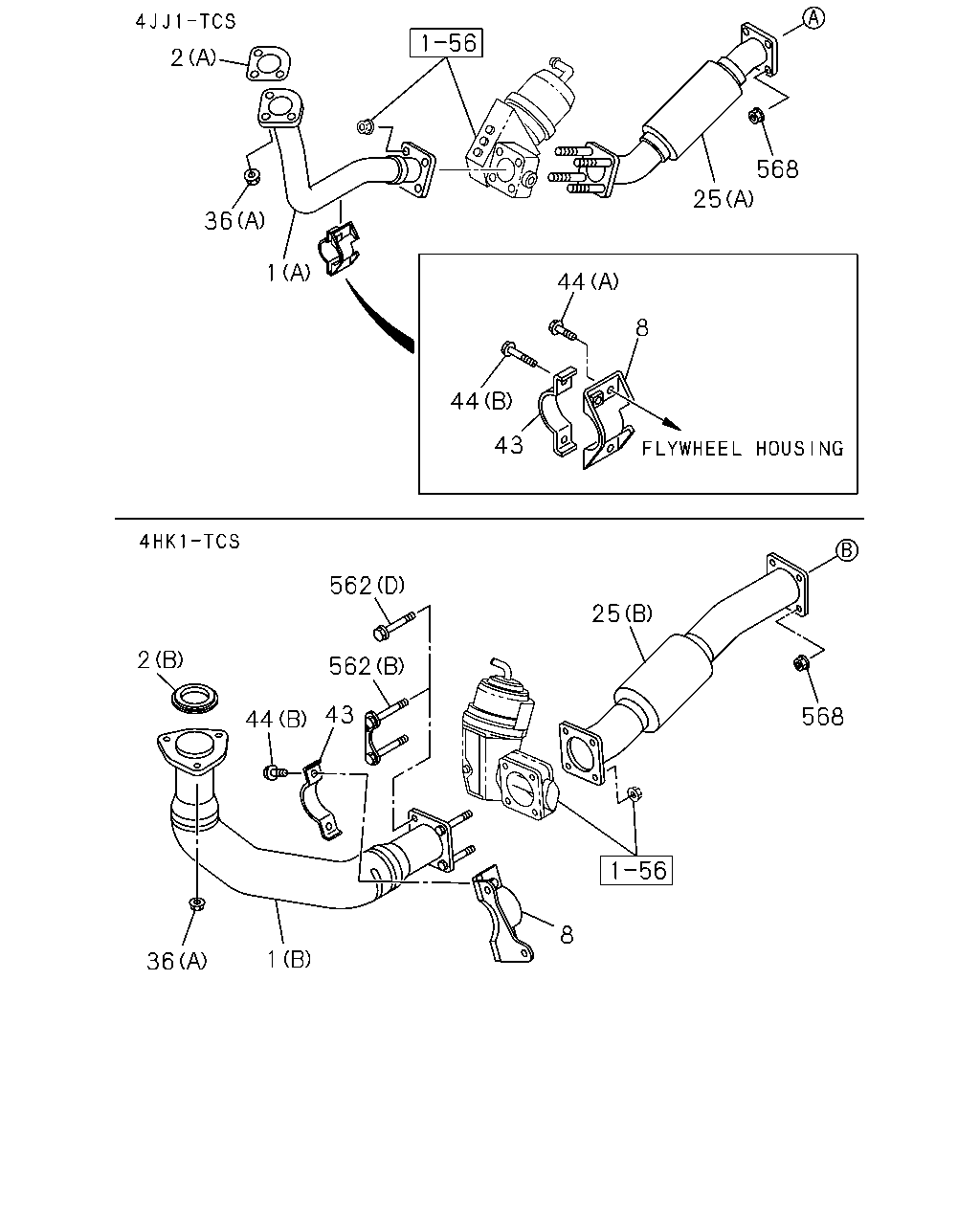

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB) (A)	8-98026-060-0	01	1	0712-	●	●	●	●
1	03.609 PIPE; EXH 4HK1-TCS ENG(RJS) (B)	8-98006-765-2	01	1	0712-		●		●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB) (A)	8-97384-590-0	01	1	0712-	●	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCS ENG(RJS) (B)	8-97381-455-0	01	1	0712-		●		●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) 03.613	8-98026-063-0	01	1	0712-	●	●	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.613	8-98020-555-0	01	1	0712-		●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) (A)	8-98026-062-2	01	1	0712-	●	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS) (B)	8-98006-766-0	01	1	0712-		●		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0712-	●	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0712-		●		●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0712-	●	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0712-	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0712-	●	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (C) M8X35 FLANGE	0-28050-835-0	04	1	1206-	●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1206-		●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (E) M12X35 FLANGE	0-28051-235-0	04	1	1206-		●		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (A)	8-97373-966-0	02	1	0712-1205	●	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97373-966-0	02	1	1206-	●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) 03.685 (A) M12X35	1-22131-963-0	02	1	0712-1205		●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A)	1-22131-962-0	02	1	1206-		●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) (B)	8-98030-175-0	01	1	0712-1205		●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1206-		●		●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	0712-	●	●	●	●
568	03.704 NUT; DPD 4HK1-TCS ENG(RJS) 02.042 M12 FLANGE	0-91180-112-0	04	1	0712-		●		●

182 434 565 434 542 566 182 272 564 182 563 563 556

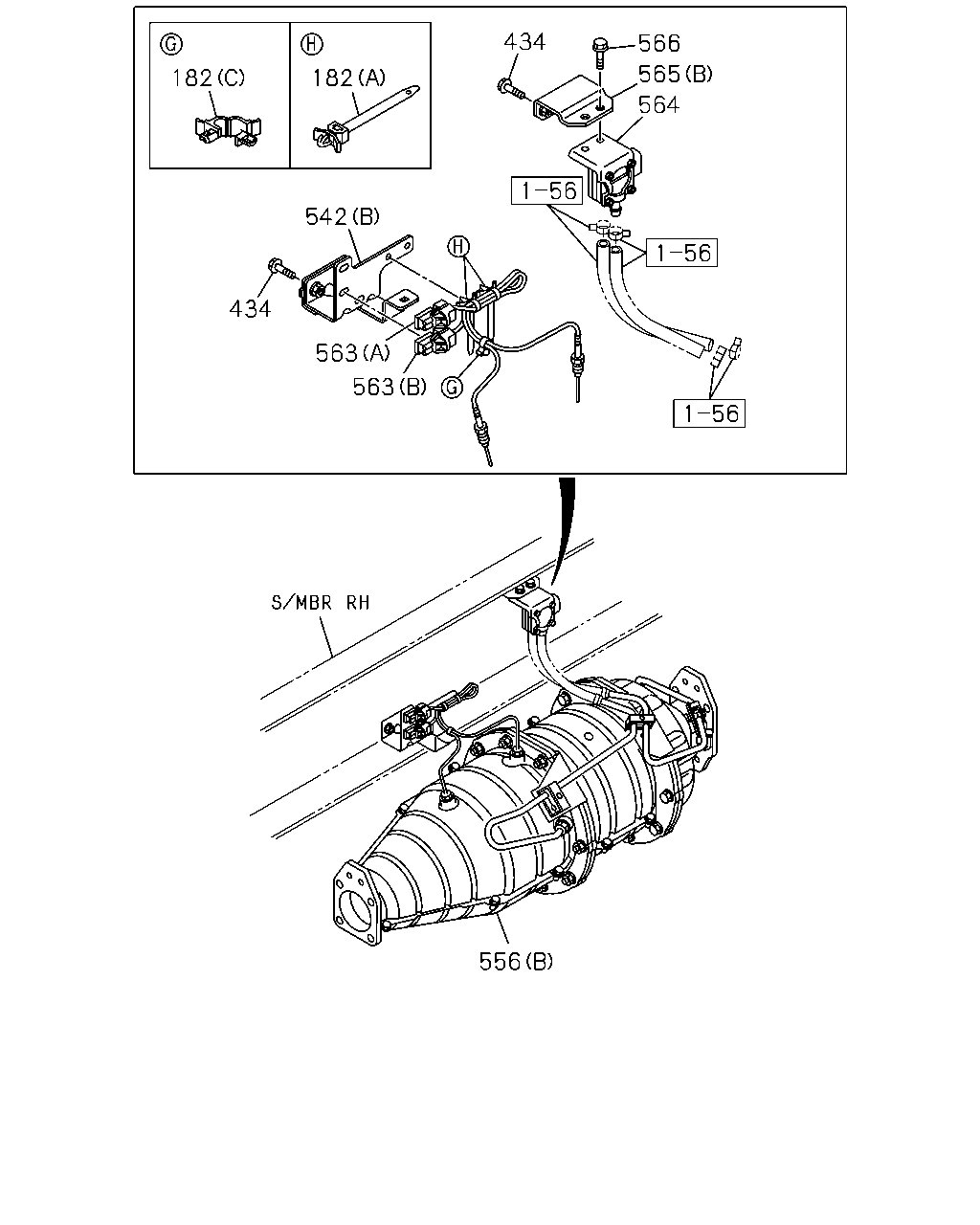

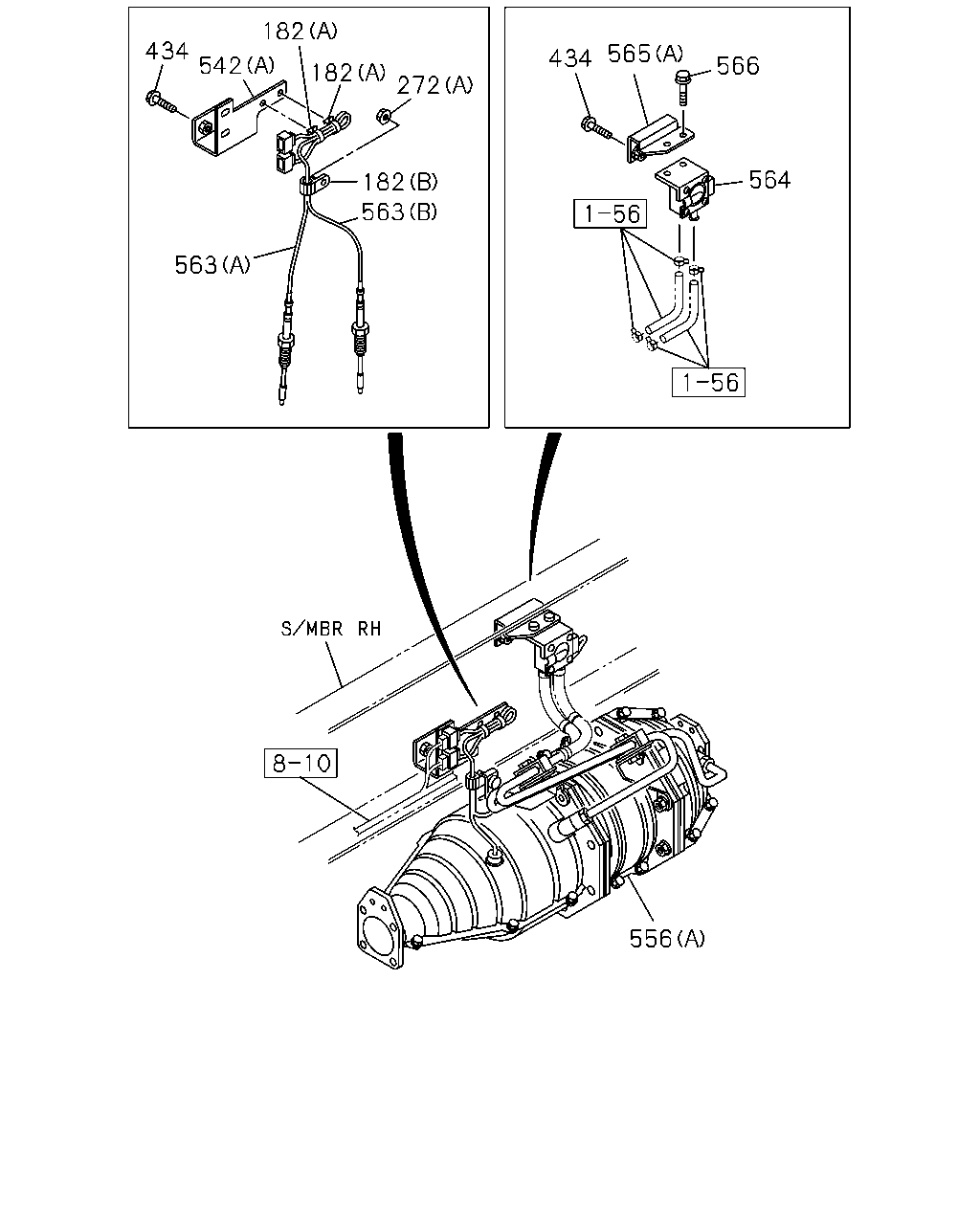

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	0712-	●	●	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (B) ID=7	8-98002-767-0	01	1	0712-	●	●	●	●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) (C) ID=7 L=7.5	8-97369-561-0	01	1	0712-		●		●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0712-	●	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0712-		●		●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
434	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0712-		●		●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (A)	8-98004-026-1	01	1	0712-	●	●	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (B)	8-98039-602-0	01	1	0712-		●		●

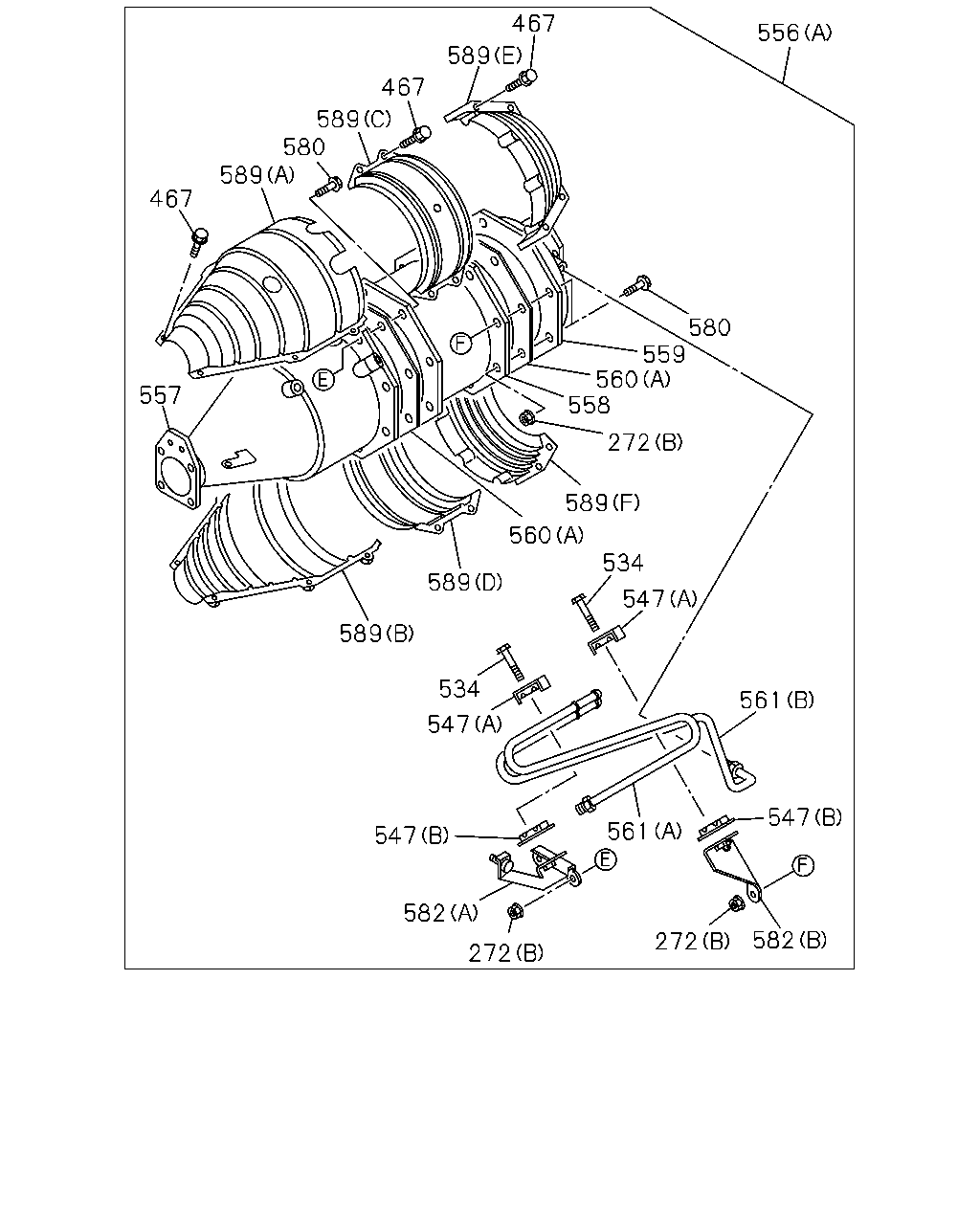

556	03.701 DPD ASM 4JJ1-TCS ENG(LFB) (A)	8-98036-810-7	01	1	0712-1011	●	●	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB) (A)	8-98084-595-3	01	1	1012-	●	●	●	●

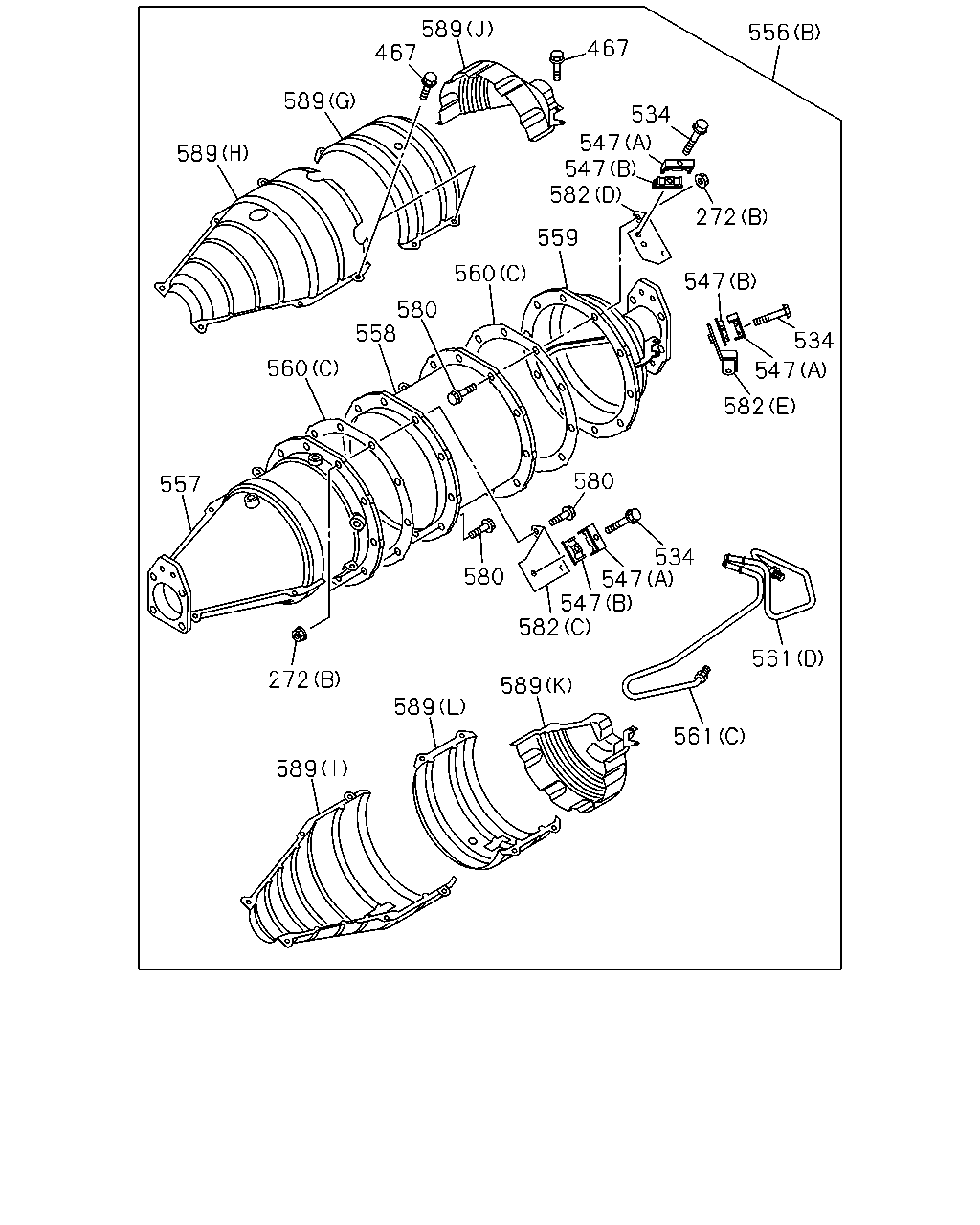

556	03.701 DPD ASM 4HK1-TCS ENG(RJS) (B)	8-98039-162-6	01	1	0712-1010		●		●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) (B)	8-98084-602-3	01	1	1011-		●		●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	0712-	●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	0712-	●	●	●	●
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	0712-	●	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB) (A)	8-98012-396-0	01	1	0712-	●	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCS ENG(RJS) (B)	8-98029-347-0	01	1	0712-		●		●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●	●	●

125 126 88 97 88 81 70 105 12 164 165 166 144 137 143 357 88 104 94 94 95 124 38 137 166 137 164 95 104 165 124 162 84 105 94 88 3 357 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W)	8-98005-237-0	01	1	0712-	●	●	●	●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W)	8-98020-602-0	01	1	0712-0909		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W)	8-98020-602-0	01	1	0910-		●		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W)	8-98099-061-0	01	1	0712-		●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W)	8-97387-264-0	01	1	0712-0909		●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W)	8-97387-264-0	01	1	0910-		●		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W)	8-98099-062-0	01	1	0712-		●		●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-241-0	01	1	1204-1308	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98254-792-0	01	1	1309-	●	●	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98214-243-0	01	1	1204-		●		●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) (A)	8-97387-244-1	01	1	0712-1203	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97387-244-1	01	1	1204-1308	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98254-780-0	01	1	1309-	●	●	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98020-562-1	01	1	0712-1203		●		●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98020-562-1	01	1	1204-		●		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0712-	●	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0712-		●		●
38	00.002 NUT; SILENCER 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
38	00.002 NUT; SILENCER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0712-		●		●
70	03.706 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
70	03.706 BOLT; BRKT 4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●		●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
81	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-		●		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) ID=65	8-97148-757-1	01	1	0712-	●	●	●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.704 (B)	1-22116-043-0	01	1	0712-		●		●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (B)	1-22116-043-0	01	1	0712-		●		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) (A)	8-97373-158-0	01	1	0712-0909	●	●	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-97373-158-0	01	1	0712-0909	●			●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-97373-158-0	01	1	0712-0909		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) (A)	8-97373-158-0	01	1	0712-0909			●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) (A)	8-97373-158-0	01	1	0910-	●	●	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-97373-158-0	01	1	0910-	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-97373-158-0	01	1	0910-		●		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) (A)	8-97373-158-0	01	1	0910-			●
88	03.708 CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-98034-766-0	01	1	0712-		●		●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0712-	●	●	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0712-	●	●	●	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0712-		●		●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0712-		●		●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-		●		●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0712-	●	●	●	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0712-		●		●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-	●	●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-		●		●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-		●		●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0712-	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-		●		●
125	03.708 NUT; CLAMP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10	0-91110-510-0	01	1	0712-	●	●	●	●
125	03.708 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	0712-		●		●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98020-604-0	01	1	0712-	●	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-98079-101-0	01	1	0712-	●	●	●	●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C)	8-98045-047-0	01	1	0712-		●		●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C)	8-98099-064-0	01	1	0712-		●		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-97387-256-1	01	1	0712-	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-98001-913-0	01	1	0712-	●	●	●	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C)	8-98019-904-2	01	1	0712-	●	●	●	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) 03.613 (E)	8-97096-651-0	01	1	0712-		●		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F)	8-97116-588-2	01	1	0712-		●		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D)	8-97185-801-0	01	1	0712-		●		●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (B)	8-97080-694-0	01	1	0712-	●	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98034-767-0	01	1	0712-	●	●	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (A)	8-98034-767-0	01	1	0712-		●		●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (C)	8-94457-277-1	01	1	0712-		●		●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (D)	8-94457-278-1	01	1	0712-		●		●
144	03.613 NUT; MTG RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●	●
144	03.613 NUT; MTG RUBBER 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-		●		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98032-151-0	01	1	0712-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=115	8-98034-765-0	01	1	0712-0909	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (B) L=115	8-98034-765-0	01	1	0712-0909		●		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=115	8-98034-765-0	01	1	0910-	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) L=115	8-98034-765-0	01	1	0910-		●		●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A) L=23	8-98006-011-0	01	1	0712-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=37.5	9-22151-217-0	01	1	0712-0909	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (B) L=37.5	9-22151-217-0	01	1	0712-0909		●		●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=37.5	9-22151-217-0	01	1	0910-	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (B) L=37.5	9-22151-217-0	01	1	0910-		●		●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	0712-	●	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X70 FLANGE	0-28051-070-0	01	1	0712-	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) M10X70 FLANGE	0-28051-070-0	01	1	0712-		●		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0712-	●	●	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0712-	●	●	●	●

434 566 565 182 182 564 542 434 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	0712-	●	●	●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (B) ID=7	8-98002-767-0	01	1	0712-	●	●	●	●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) (C) ID=7 L=7.5	8-97369-561-0	01	1	0712-		●		●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
434	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0712-		●		●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (A)	8-98004-026-1	01	1	0712-	●	●	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (B)	8-98039-602-0	01	1	0712-		●		●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB) (A)	8-98036-810-7	01	1	0712-1011	●	●	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB) (A)	8-98084-595-3	01	1	1012-	●	●	●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) (B)	8-98039-162-6	01	1	0712-1010		●		●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) (B)	8-98084-602-3	01	1	1011-		●		●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	0712-	●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	0712-	●	●	●	●
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	0712-	●	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB) (A)	8-98012-396-0	01	1	0712-	●	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCS ENG(RJS) (B)	8-98029-347-0	01	1	0712-		●		●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●	●	●

467 556 589 467 589 580 589 467 580 559 560 558 557 272 589 560 534 589 547 589 534 561 547 547 561 547 582 582 272 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0712-	●	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0712-		●		●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0712-	●	●	●	●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0712-	●	●	●	●
534	03.704 BOLT; CLIP 4HK1-TCS ENG(RJS) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	0712-		●		●
547	03.682 CLIP; PIPE 4JJ1-TCS ENG(LFB) (A)	8-97381-635-0	02	1	0712-	●	●	●	●
547	03.682 CLIP; PIPE 4JJ1-TCS ENG(LFB) (B)	8-97381-636-0	02	1	0712-	●	●	●	●
547	03.682 CLIP; PIPE 4HK1-TCS ENG(RJS) (A)	8-97381-635-0	03	1	0712-		●		●
547	03.682 CLIP; PIPE 4HK1-TCS ENG(RJS) (B)	8-97381-636-0	03	1	0712-		●		●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB) (A)	8-98036-810-7	01	1	0712-1011	●	●	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB) (A)	8-98084-595-3	01	1	1012-	●	●	●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) (B)	8-98039-162-6	01	1	0712-1010		●		●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) (B)	8-98084-602-3	01	1	1011-		●		●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98036-815-6	01	1	0712-	●	●	●	●
557	03.701 CATALYST ASM 4HK1-TCS ENG(RJS)	8-97608-055-7	01	1	0712-		●		●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98032-908-2	01	1	0712-	●	●	●	●
558	03.634 FILTER ASM 4HK1-TCS ENG(RJS)	8-97608-057-3	01	1	0712-		●		●
559	03.602 COVER; RR 4JJ1-TCS ENG(LFB)	8-98084-599-0	01	1	0712-1011	●	●	●	●
559	03.602 COVER; RR 4JJ1-TCS ENG(LFB)	8-98093-507-0	01	1	1012-	●	●	●	●
559	03.602 COVER; RR 4HK1-TCS ENG(RJS)	8-97611-078-0	01	1	0712-1010		●		●
559	03.602 COVER; RR 4HK1-TCS ENG(RJS)	8-97622-887-0	01	1	1011-		●		●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-97331-947-0	02	1	0712-	●	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (B) ID=64	8-97373-108-0	01	1	0712-	●	●	●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (D)	1-22116-040-0	01	1	0712-		●		●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (C)	8-97611-080-0	02	1	0712-		●		●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98032-910-0	01	1	0712-1011	●	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98084-600-0	01	1	1012-	●	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98032-911-1	01	1	0712-1011	●	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98084-601-0	01	1	1012-	●	●	●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (C)	8-98039-239-0	01	1	0712-1010		●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (C)	8-98084-603-0	01	1	1011-		●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (D)	8-98039-241-0	01	1	0712-1010		●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (D)	8-98084-604-0	01	1	1011-		●		●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0712-	●	●	●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	0712-		●		●
582	03.706 BRACKET; PIPE 4JJ1-TCS ENG(LFB) (A)	8-98032-919-0	01	1	0712-	●	●	●	●
582	03.706 BRACKET; PIPE 4JJ1-TCS ENG(LFB) (B)	8-98032-920-0	01	1	0712-	●	●	●	●
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) (C)	8-97611-083-0	01	1	0712-		●		●
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) (D)	8-97611-084-0	01	1	0712-		●		●
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) (E)	8-97611-085-0	01	1	0712-		●		●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (C)	8-97383-660-0	01	1	0712-	●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (F)	8-97383-663-0	01	1	0712-	●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (A)	8-98032-921-0	01	1	0712-	●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (B)	8-98032-923-0	01	1	0712-	●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (D)	8-98032-924-0	01	1	0712-	●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (E)	8-98032-926-0	01	1	0712-	●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (G)	8-97605-172-0	01	1	0712-		●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (H)	8-97611-086-0	01	1	0712-		●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (I)	8-97611-087-0	01	1	0712-		●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (J)	8-97611-088-0	01	1	0712-		●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (K)	8-97611-089-0	01	1	0712-		●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (L)	8-97613-390-0	01	1	0712-		●		●

589 467 556 467 589 534 547 547 582 589 272 559 560 547 580 558 534 560 547 582 580 557 534 547 547 582 580 561 272 589 589 561 589

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0712-	●	●	●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0712-		●		●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0712-	●	●	●	●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0712-	●	●	●	●
534	03.704 BOLT; CLIP 4HK1-TCS ENG(RJS) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	0712-		●		●
547	03.682 CLIP; PIPE 4JJ1-TCS ENG(LFB) (A)	8-97381-635-0	02	1	0712-	●	●	●	●
547	03.682 CLIP; PIPE 4JJ1-TCS ENG(LFB) (B)	8-97381-636-0	02	1	0712-	●	●	●	●
547	03.682 CLIP; PIPE 4HK1-TCS ENG(RJS) (A)	8-97381-635-0	03	1	0712-		●		●
547	03.682 CLIP; PIPE 4HK1-TCS ENG(RJS) (B)	8-97381-636-0	03	1	0712-		●		●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB) (A)	8-98036-810-7	01	1	0712-1011	●	●	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB) (A)	8-98084-595-3	01	1	1012-	●	●	●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) (B)	8-98039-162-6	01	1	0712-1010		●		●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) (B)	8-98084-602-3	01	1	1011-		●		●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98036-815-6	01	1	0712-	●	●	●	●
557	03.701 CATALYST ASM 4HK1-TCS ENG(RJS)	8-97608-055-7	01	1	0712-		●		●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98032-908-2	01	1	0712-	●	●	●	●
558	03.634 FILTER ASM 4HK1-TCS ENG(RJS)	8-97608-057-3	01	1	0712-		●		●
559	03.602 COVER; RR 4JJ1-TCS ENG(LFB)	8-98084-599-0	01	1	0712-1011	●	●	●	●
559	03.602 COVER; RR 4JJ1-TCS ENG(LFB)	8-98093-507-0	01	1	1012-	●	●	●	●
559	03.602 COVER; RR 4HK1-TCS ENG(RJS)	8-97611-078-0	01	1	0712-1010		●		●
559	03.602 COVER; RR 4HK1-TCS ENG(RJS)	8-97622-887-0	01	1	1011-		●		●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-97331-947-0	02	1	0712-	●	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (B) ID=64	8-97373-108-0	01	1	0712-	●	●	●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (D)	1-22116-040-0	01	1	0712-		●		●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (C)	8-97611-080-0	02	1	0712-		●		●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98032-910-0	01	1	0712-1011	●	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98084-600-0	01	1	1012-	●	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98032-911-1	01	1	0712-1011	●	●	●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98084-601-0	01	1	1012-	●	●	●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (C)	8-98039-239-0	01	1	0712-1010		●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (C)	8-98084-603-0	01	1	1011-		●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (D)	8-98039-241-0	01	1	0712-1010		●		●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (D)	8-98084-604-0	01	1	1011-		●		●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0712-	●	●	●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	0712-		●		●
582	03.706 BRACKET; PIPE 4JJ1-TCS ENG(LFB) (A)	8-98032-919-0	01	1	0712-	●	●	●	●
582	03.706 BRACKET; PIPE 4JJ1-TCS ENG(LFB) (B)	8-98032-920-0	01	1	0712-	●	●	●	●
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) (C)	8-97611-083-0	01	1	0712-		●		●
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) (D)	8-97611-084-0	01	1	0712-		●		●
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) (E)	8-97611-085-0	01	1	0712-		●		●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (C)	8-97383-660-0	01	1	0712-	●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (F)	8-97383-663-0	01	1	0712-	●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (A)	8-98032-921-0	01	1	0712-	●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (B)	8-98032-923-0	01	1	0712-	●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (D)	8-98032-924-0	01	1	0712-	●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (E)	8-98032-926-0	01	1	0712-	●	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (G)	8-97605-172-0	01	1	0712-		●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (H)	8-97611-086-0	01	1	0712-		●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (I)	8-97611-087-0	01	1	0712-		●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (J)	8-97611-088-0	01	1	0712-		●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (K)	8-97611-089-0	01	1	0712-		●		●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (L)	8-97613-390-0	01	1	0712-		●		●

532 385 532 172 43 118 117 115 113 385 118 117 115 113 578 579 352 376 577 115 352 14 12 115 337 81 576 12 44 376 361 556 376 34 560 562 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-241-0	01	1	1204-1308	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98254-792-0	01	1	1309-	●	●	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98214-243-0	01	1	1204-		●		●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) (A)	8-97387-244-1	01	1	0712-1203	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97387-244-1	01	1	1204-1308	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98254-780-0	01	1	1309-	●	●	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98020-562-1	01	1	0712-1203		●		●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98020-562-1	01	1	1204-		●		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB) 03.611 ID=65	8-97148-757-1	01	1	0712-	●	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCS ENG(RJS)	1-22116-043-0	01	1	0712-		●		●
34	03.613 WASHER; EXH PIPE 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1204-	●		●
34	03.613 WASHER; EXH PIPE IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1204-		●		●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0712-	●	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0712-	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0712-	●	●	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
81	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-		●		●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCS ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	0712-	●	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCS ENG(RJS) 03.706 L=37.5	9-22151-217-0	03	1	0712-		●		●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (A)	8-94457-277-1	02	1	0712-	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (B)	8-94457-278-1	02	1	0712-	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	03	1	0712-		●		●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	03	1	0712-		●		●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) OD=55	9-09852-169-0	02	1	0712-	●	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCS ENG(RJS) OD=55	9-09852-169-0	03	1	0712-		●		●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	0712-	●	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCS ENG(RJS) 07.874 M10 FLANGE	5-09440-006-0	03	1	0712-		●		●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0712-	●	●	●	●
172	03.708 BOLT 4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0712-		●		●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0712-	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●	●
352	03.613 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BAS E 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-		●		●
361	03.704 BOLT; EXH PIPE TO PIPE 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1204-	●		●
361	03.704 BOLT; EXH PIPE TO PIPE IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1204-		●		●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.890 (D) M10X30 FLANGE	0-28051-030-0	02	1	1206-	●	●	●	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.690 (B) W/PLATE	8-98005-985-0	01	1	0712-1205	●	●	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (B) W/PLATE	8-98005-985-0	01	1	1206-	●	●	●	●
376	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0712-		●		●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98001-889-1	01	1	0712-	●	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97387-251-1	01	1	0712-	●	●	●	●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E)	8-98073-376-0	01	1	0712-0909		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E)	8-98073-376-0	01	1	0910-		●		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (F)	8-98006-774-0	01	1	0712-		●		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BAS E 4400MM(44W) (C)	8-98006-776-1	01	1	0712-		●		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (D)	8-98073-377-0	01	1	0712-		●		●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-		●		●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●	●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-		●		●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB) (A)	8-98036-810-7	01	1	0712-1011	●	●	●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB) (A)	8-98084-595-3	01	1	1012-	●	●	●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) (B)	8-98039-162-6	01	1	0712-1010		●		●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) (B)	8-98084-602-3	01	1	1011-		●		●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A)	8-97331-947-0	02	1	0712-	●	●	●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (B) ID=64	8-97373-108-0	01	1	0712-	●	●	●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (D)	1-22116-040-0	01	1	0712-		●		●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (C)	8-97611-080-0	02	1	0712-		●		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (C) M8X35 FLANGE	0-28050-835-0	04	1	1206-	●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1206-		●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (E) M12X35 FLANGE	0-28051-235-0	04	1	1206-		●		●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (A)	8-97373-966-0	02	1	0712-1205	●	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97373-966-0	02	1	1206-	●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) 03.685 (A) M12X35	1-22131-963-0	02	1	0712-1205		●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A)	1-22131-962-0	02	1	1206-		●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) (B)	8-98030-175-0	01	1	0712-1205		●		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1206-		●		●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCS ENG(LFB) (A)	8-97387-245-0	01	1	0712-	●	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCS ENG(RJS) (B)	8-98006-770-0	01	1	0712-		●		●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCS ENG(LFB) (A)	8-97387-246-2	01	1	0712-	●	●	●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCS ENG(RJS) (B)	8-98048-292-1	01	1	0712-		●		●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (A)	8-97387-248-1	01	1	0712-	●	●	●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCS ENG(RJS) (B)	8-98048-296-0	01	1	0712-		●		●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (A)	8-97387-249-1	01	1	0712-	●	●	●	●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (B)	8-98048-300-1	01	1	0712-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
