◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51155 - NNR/NPR EU-L EXC.EU5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#49372) — 723 parça

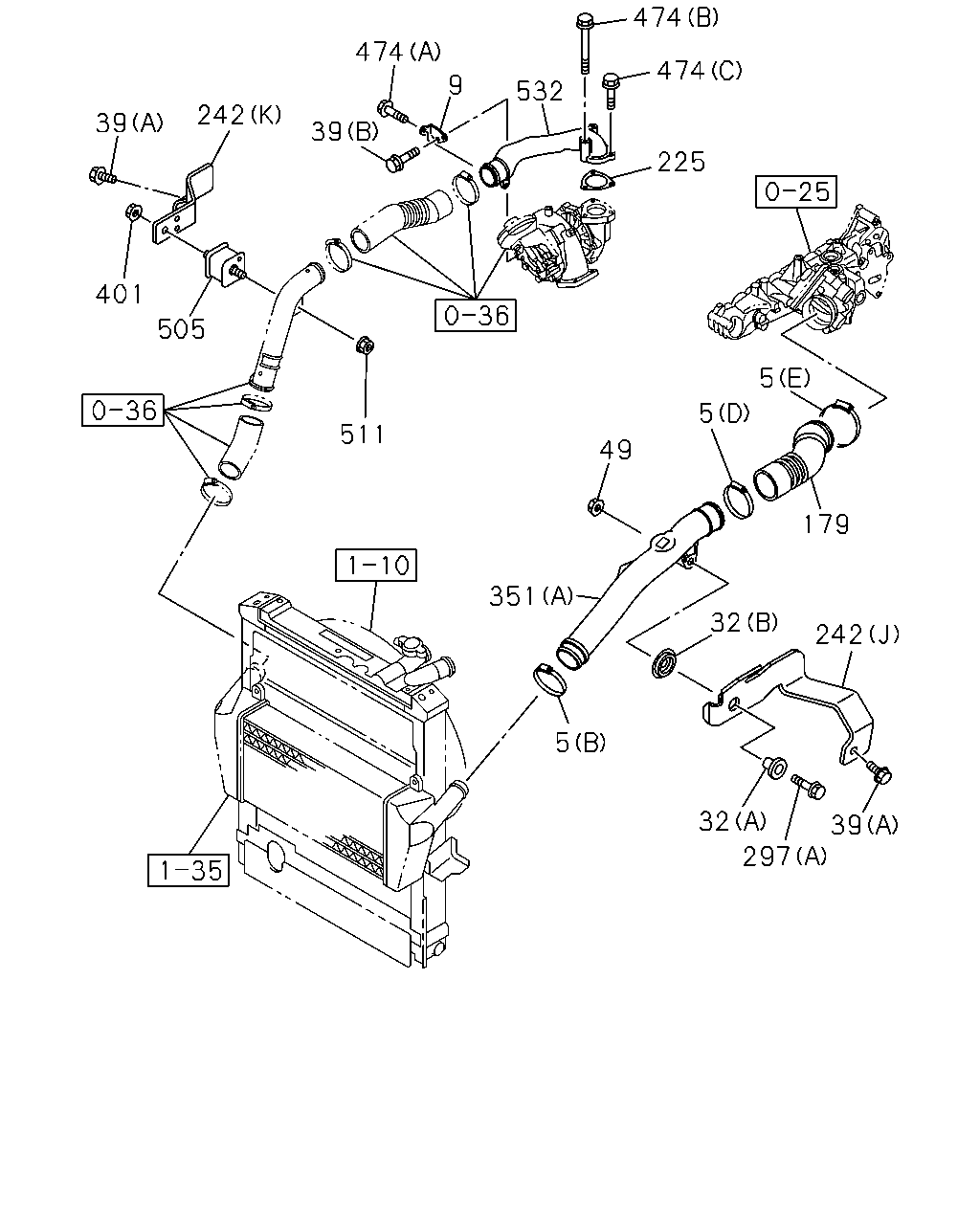

çizim 155661
474 474 9 474 532 242 39 39 225 401 505 5 5 511 49 179 351 32 242 5 32 39 297
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0712-0802 ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0712-0811 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 01 1 0901-1406 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 02 1 0712-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (F) ID=117 		9-09915-075-1 01 1 0712- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (H) ID=112 		9-09915-074-1 01 1 0712- ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCS ENG(LFB) 		8-98009-086-0 01 1 0712- ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 01.277 (B) 		8-94395-766-0 01 1 0712- ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 03.265 (A) OD=23 		8-97105-689-6 01 1 0712- ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCS ENG(RJS) (C) 		8-98036-826-0 01 1 0712-1106 ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCS ENG(RJS) (C) 		8-97081-886-0 01 1 1107- ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ● ● ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 0712- ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ● ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) 		8-98050-920-2 01 1 0712- ● ● ● ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) 		8-98019-957-1 01 1 0712-0712 ● ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) 		8-98106-255-0 01 1 0801-0802 ● ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) 		8-98114-719-0 01 1 0803- ● ●
225 03.417 GASKET; AIR PIPE
4JJ1-TCS ENG(LFB) 03.270 		8-97202-328-1 01 1 0712- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (A) 		8-98004-416-0 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (C) 		8-98036-646-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (E) 		8-98036-649-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (D) 		8-98036-647-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 0712- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 0712- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (H) 		8-98055-247-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (G) 		8-98055-246-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (F) 		8-98055-243-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (B) 		8-98029-819-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (B) 		8-98049-012-1 01 1 0712- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 0712- ● ● ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (B) 		8-98039-933-1 01 1 0712-0712 ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 0712- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (C) 		8-98021-486-1 01 1 0712- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (E) 		8-98070-864-0 01 1 0712- ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (D) 		8-98021-487-2 01 1 0712-1402 ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (D) 		8-98272-699-0 01 1 1403-1406 ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (G) 		8-98281-177-0 01 1 1407- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (F) 		8-98070-862-1 01 1 0712- ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) (B) M6X70 FLANGE 		0-28050-670-0 02 1 0712- ● ● ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ● ● ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 0712- ● ● ● ●
505 03.406 RUBBER; MTG
03.417 		8-98036-826-0 01 1 0712-1106 ● ● ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1107- ● ● ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ● ●
532 03.417 PIPE; INTAKE
4JJ1-TCS ENG(LFB) 		8-97385-203-1 01 1 0712-1303 ● ● ● ●
532 03.417 PIPE; INTAKE
4JJ1-TCS ENG(LFB) 		8-98237-771-1 01 1 1304- ● ● ● ●

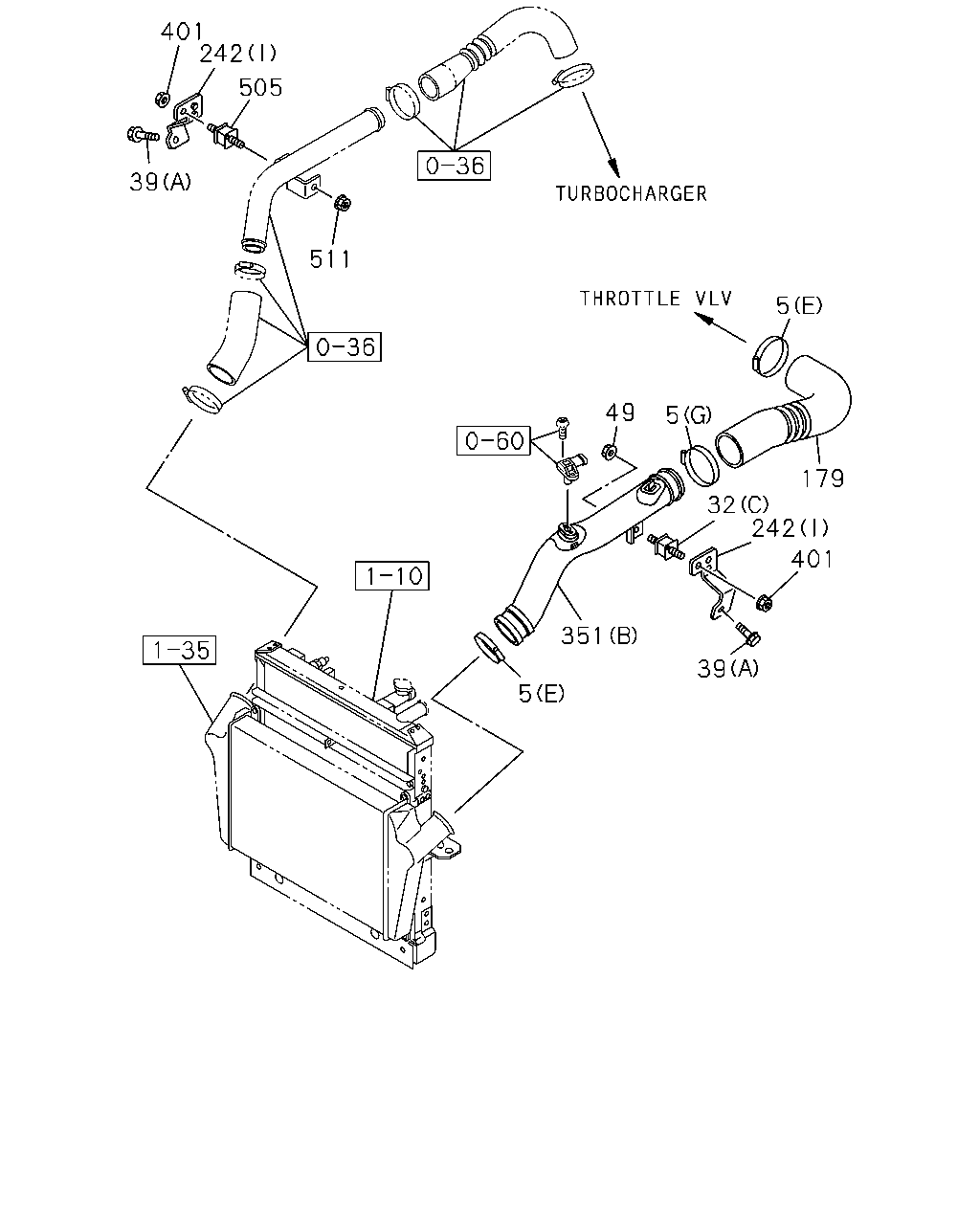

çizim 155663
401 242 505 39 511 5 49 5 179 32 242 401 351 39 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0712-0802 ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0712-0811 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 01 1 0901-1406 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 02 1 0712-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (F) ID=117 		9-09915-075-1 01 1 0712- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (H) ID=112 		9-09915-074-1 01 1 0712- ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 01.277 (B) 		8-94395-766-0 01 1 0712- ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 03.265 (A) OD=23 		8-97105-689-6 01 1 0712- ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCS ENG(RJS) (C) 		8-98036-826-0 01 1 0712-1106 ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCS ENG(RJS) (C) 		8-97081-886-0 01 1 1107- ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ● ● ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 0712- ● ● ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ● ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) 		8-98050-920-2 01 1 0712- ● ● ● ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) 		8-98019-957-1 01 1 0712-0712 ● ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) 		8-98106-255-0 01 1 0801-0802 ● ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) 		8-98114-719-0 01 1 0803- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (A) 		8-98004-416-0 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (C) 		8-98036-646-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (E) 		8-98036-649-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (D) 		8-98036-647-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 0712- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 0712- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (H) 		8-98055-247-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (G) 		8-98055-246-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (F) 		8-98055-243-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (B) 		8-98029-819-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (B) 		8-98049-012-1 01 1 0712- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (B) 		8-98039-933-1 01 1 0712-0712 ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 0712- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (C) 		8-98021-486-1 01 1 0712- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (E) 		8-98070-864-0 01 1 0712- ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (D) 		8-98021-487-2 01 1 0712-1402 ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (D) 		8-98272-699-0 01 1 1403-1406 ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (G) 		8-98281-177-0 01 1 1407- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (F) 		8-98070-862-1 01 1 0712- ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
505 03.406 RUBBER; MTG
03.417 		8-98036-826-0 01 1 0712-1106 ● ● ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1107- ● ● ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ● ● ●

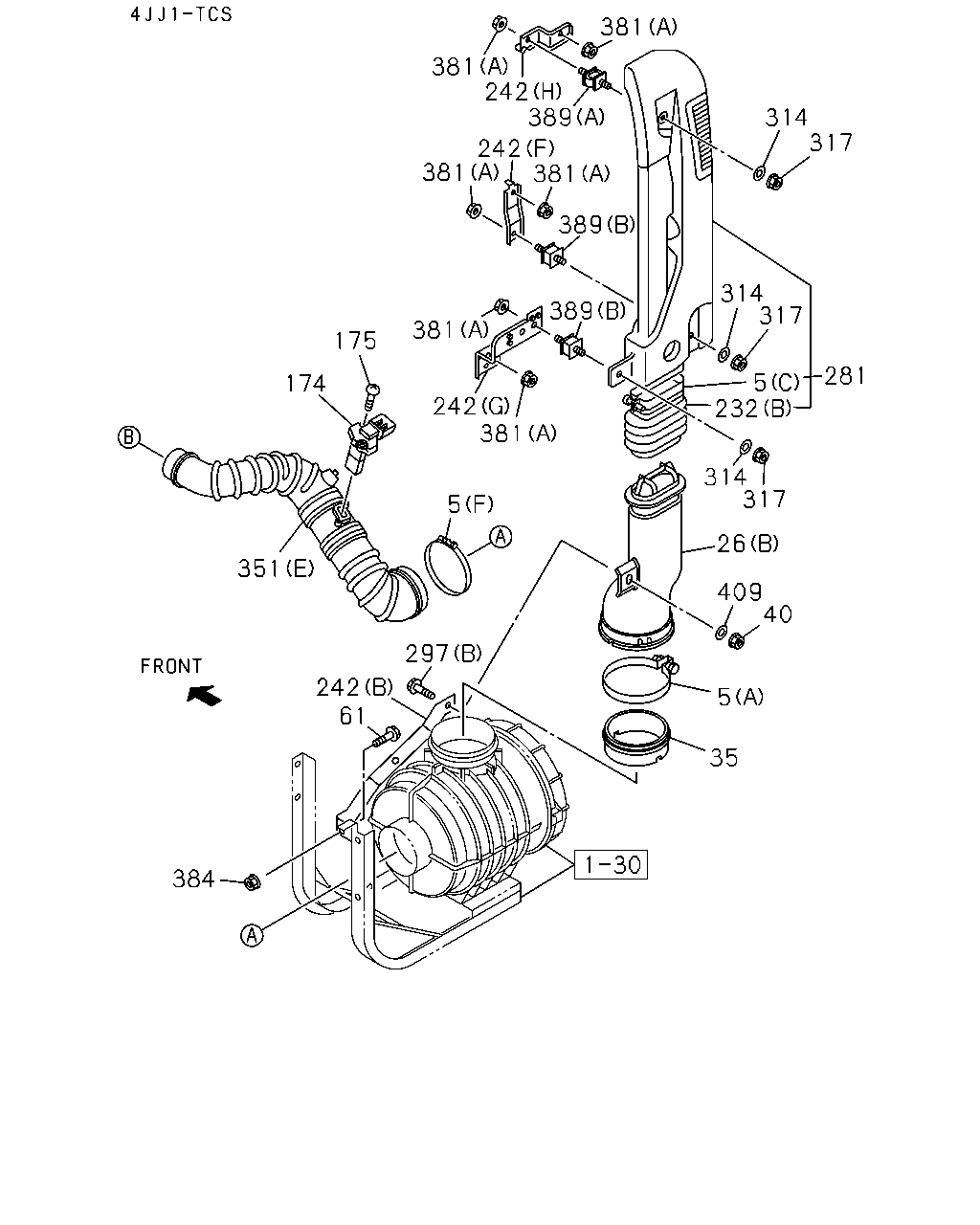

çizim 155666
381 381 242 389 314 317 242 381 381 389 314 317 389 381 175 5 232 281 174 242 381 314 317 5 26 351 409 40 297 242 61 5 35 384
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0712-0802 ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0712-0811 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 01 1 0901-1406 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 02 1 0712-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (F) ID=117 		9-09915-075-1 01 1 0712- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (H) ID=112 		9-09915-074-1 01 1 0712- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (A) 		8-98025-626-0 01 1 0712- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0712- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (B) 		8-98025-627-0 01 1 0712- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0712- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0712- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0712- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0712-0804 ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0712-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0712-1309 ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98048-137-0 01 1 0712- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0712-1402 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98272-700-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-178-0 01 1 1407- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0712-1402 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (D) 		8-98021-072-2 01 1 0712- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0712- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (A) 		8-98004-416-0 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (C) 		8-98036-646-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (E) 		8-98036-649-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (D) 		8-98036-647-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 0712- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 0712- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (H) 		8-98055-247-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (G) 		8-98055-246-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (F) 		8-98055-243-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (B) 		8-98029-819-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (B) 		8-98049-012-1 01 1 0712- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCS ENG(LFB) 		8-98000-230-5 01 1 0712- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCS ENG(RJS) 		8-98080-929-2 01 1 0712- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCS ENG(LFB) 		8-98061-757-2 01 1 0712- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 0712- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 0712- ● ● ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0712- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (B) 		8-98039-933-1 01 1 0712-0712 ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 0712- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (C) 		8-98021-486-1 01 1 0712- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (E) 		8-98070-864-0 01 1 0712- ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (D) 		8-98021-487-2 01 1 0712-1402 ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (D) 		8-98272-699-0 01 1 1403-1406 ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (G) 		8-98281-177-0 01 1 1407- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (F) 		8-98070-862-1 01 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 02 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0712- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0712- ●
384 03.417 NUT; AIR INT DUCT BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0712- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0712- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0712- ● ● ● ●

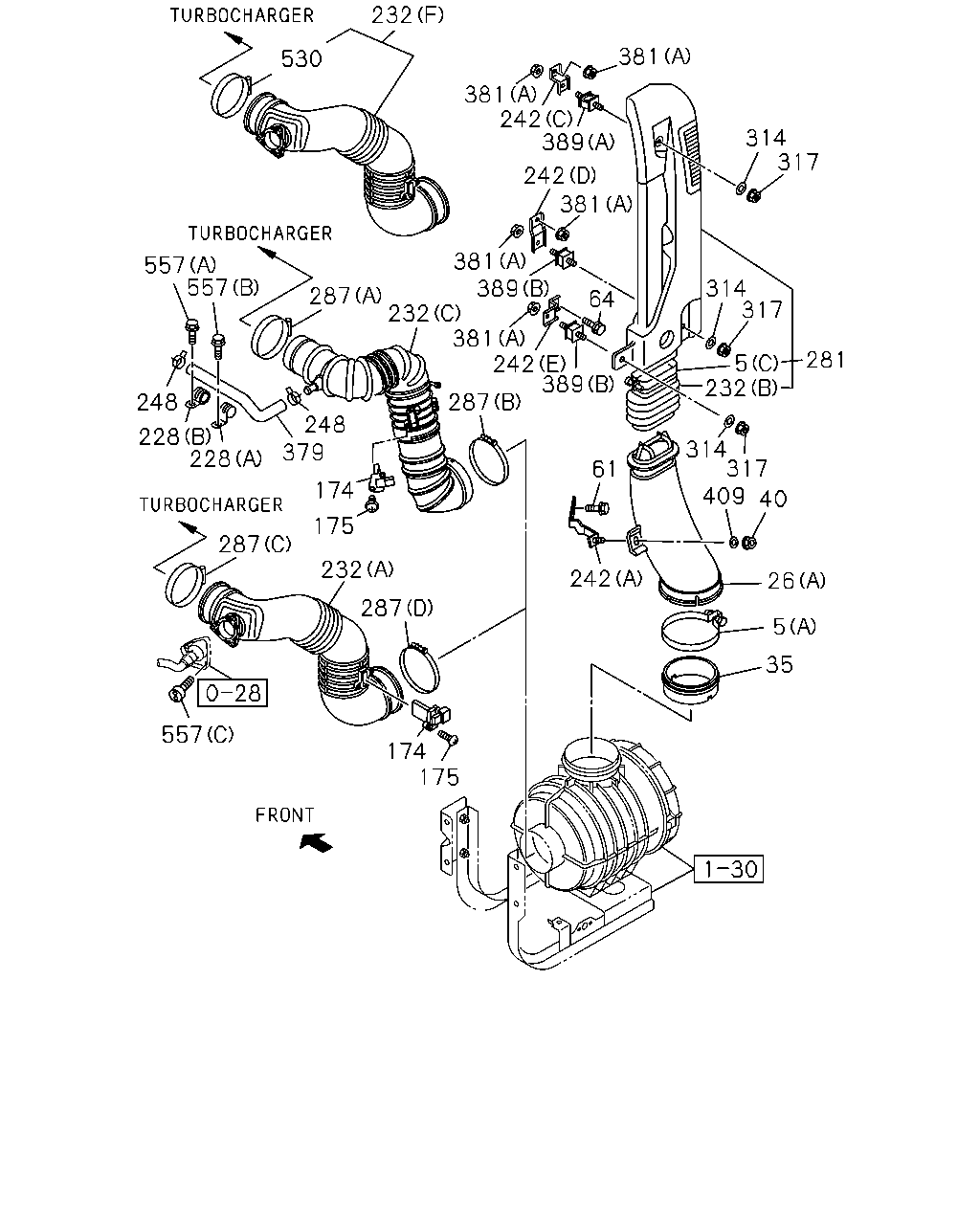

çizim 155671
232 530 557 557 248 228 228 379 248 174 175 232 287 557 174 175 287 232 287 381 389 381 242 389 61 242 314 317 409 40 26 5 35 232 5 281 317 314 317 314 381 381 242 389 242 381 64 287
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0712-0802 ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0712-0811 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 01 1 0901-1406 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 02 1 0712-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (F) ID=117 		9-09915-075-1 01 1 0712- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (H) ID=112 		9-09915-074-1 01 1 0712- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (A) 		8-98025-626-0 01 1 0712- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0712- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (B) 		8-98025-627-0 01 1 0712- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0712- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0712- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
64 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) M8X16 		0-52000-816-0 01 1 0712- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0712- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0712- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0712-0804 ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0712-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ● ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) 04.866 (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0712-1001 ● ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1002- ● ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) 09.242 (B) ID=22 L=22 		5-83574-045-0 01 1 0712-1001 ● ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1002- ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0712-1309 ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98048-137-0 01 1 0712- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0712-1402 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98272-700-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-178-0 01 1 1407- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0712-1402 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (D) 		8-98021-072-2 01 1 0712- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0712- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (A) 		8-98004-416-0 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (C) 		8-98036-646-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (E) 		8-98036-649-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (D) 		8-98036-647-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 0712- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 0712- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (H) 		8-98055-247-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (G) 		8-98055-246-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (F) 		8-98055-243-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (B) 		8-98029-819-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (B) 		8-98049-012-1 01 1 0712- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 0712- ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCS ENG(LFB) 		8-98000-230-5 01 1 0712- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCS ENG(RJS) 		8-98080-929-2 01 1 0712- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCS ENG(LFB) 		8-98061-757-2 01 1 0712- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 0712- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=77-99 		1-09707-141-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=77-99 		1-09707-141-0 01 1 1002-1406 ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (A) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (A) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (B) ID=117 		9-09915-075-1 01 1 0712- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) 03.407 (C) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) 03.407 (C) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=75-95 		8-98133-357-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=75-95 		8-98133-357-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=75-95 		8-98133-357-0 01 1 1002-1406 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) 03.407 (D) ID=112 		9-09915-074-1 01 1 0712- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0712- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0712- ● ● ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 03.278 		8-98045-343-0 01 1 0712- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 		8-98088-336-0 01 1 0712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 02 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0712- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0712- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0712- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0712- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0712- ● ● ● ●
530 03.407 CLAMP; AIR DUCT
4HK1-TCS ENG(RJS) ID=77-99 		1-09707-141-0 01 1 1407- ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0712- ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0712- ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCS ENG(RJS) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0712-0810 ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCS ENG(RJS) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0811- ●

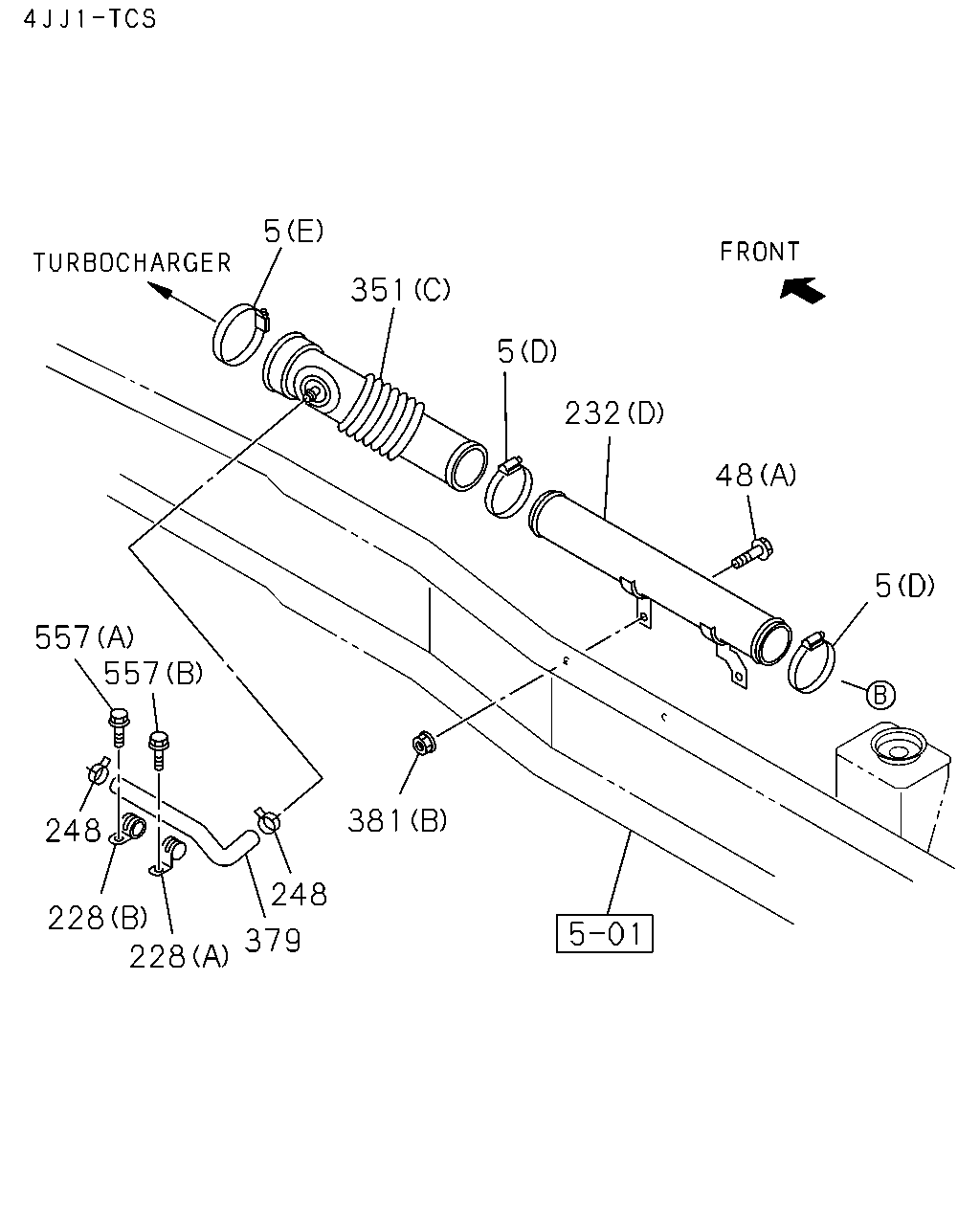

çizim 155674
5 351 5 232 48 5 557 557 381 248 248 228 228 379
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0712-0802 ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0712-0811 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 01 1 0901-1406 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 02 1 0712-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (F) ID=117 		9-09915-075-1 01 1 0712- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (H) ID=112 		9-09915-074-1 01 1 0712- ●
48 03.417 BOLT; AIR DUCT
4JJ1-TCS ENG(LFB) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ●
48 03.417 BOLT; AIR DUCT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ●
48 03.417 BOLT; AIR DUCT
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) 04.866 (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0712-1001 ● ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1002- ● ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) 09.242 (B) ID=22 L=22 		5-83574-045-0 01 1 0712-1001 ● ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1002- ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0712-1309 ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98048-137-0 01 1 0712- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0712-1402 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98272-700-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-178-0 01 1 1407- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0712-1402 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (D) 		8-98021-072-2 01 1 0712- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0712- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0712- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (B) 		8-98039-933-1 01 1 0712-0712 ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 0712- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (C) 		8-98021-486-1 01 1 0712- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (E) 		8-98070-864-0 01 1 0712- ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (D) 		8-98021-487-2 01 1 0712-1402 ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (D) 		8-98272-699-0 01 1 1403-1406 ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (G) 		8-98281-177-0 01 1 1407- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (F) 		8-98070-862-1 01 1 0712- ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 03.278 		8-98045-343-0 01 1 0712- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 		8-98088-336-0 01 1 0712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 02 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0712- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0712- ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0712- ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0712- ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCS ENG(RJS) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0712-0810 ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCS ENG(RJS) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0811- ●
çizim 155677
530 389 389 381 381 381 381 381 381 381 389 384 351 5 232 48 242 175 174 5 297 242 61 351 35 5 409 40 317 26 314 281 232 5 317 314 317 351 5 5 557 48 242 242 314
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 01 1 0901-1406 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0712- ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0712-0802 ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ● ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0712-0811 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 01 1 0901-1406 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 02 1 0712-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (F) ID=117 		9-09915-075-1 01 1 0712- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (H) ID=112 		9-09915-074-1 01 1 0712- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (A) 		8-98025-626-0 01 1 0712- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0712- ●
26 03.417 DUCT; AIR INT
4JJ1-TCS ENG(LFB) (B) 		8-98025-627-0 01 1 0712- ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0712- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0712- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ● ● ● ●
48 03.417 BOLT; AIR DUCT
4JJ1-TCS ENG(LFB) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ●
48 03.417 BOLT; AIR DUCT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ●
48 03.417 BOLT; AIR DUCT
4HK1-TCS ENG(RJS) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0712- ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0712-0804 ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0712-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0712-1309 ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98048-137-0 01 1 0712- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0712-1402 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98272-700-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-178-0 01 1 1407- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0712-1402 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (D) 		8-98021-072-2 01 1 0712- ● ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0712- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (A) 		8-98004-416-0 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (C) 		8-98036-646-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (E) 		8-98036-649-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (D) 		8-98036-647-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 0712- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 0712- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (H) 		8-98055-247-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (G) 		8-98055-246-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (F) 		8-98055-243-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0712- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (B) 		8-98029-819-1 01 1 0712- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (B) 		8-98049-012-1 01 1 0712- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCS ENG(LFB) 		8-98000-230-5 01 1 0712- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCS ENG(RJS) 		8-98080-929-2 01 1 0712- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCS ENG(LFB) 		8-98061-757-2 01 1 0712- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-2 01 1 0712- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 0712- ● ● ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0712- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0712- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (B) 		8-98039-933-1 01 1 0712-0712 ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 0712- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (C) 		8-98021-486-1 01 1 0712- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (E) 		8-98070-864-0 01 1 0712- ● ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (D) 		8-98021-487-2 01 1 0712-1402 ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (D) 		8-98272-699-0 01 1 1403-1406 ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (G) 		8-98281-177-0 01 1 1407- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (F) 		8-98070-862-1 01 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 02 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0712- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 0712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0712- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0712- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0712- ●
384 03.417 NUT; AIR INT DUCT BRKT
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0712- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0712- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0712- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0712- ● ● ● ●
530 03.407 CLAMP; AIR DUCT
4HK1-TCS ENG(RJS) ID=77-99 		1-09707-141-0 01 1 1407- ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0712- ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0712- ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCS ENG(RJS) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0712-0810 ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCS ENG(RJS) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
